AnyHD HVR-6048L User manual

AnyHD Recorder
User Manual
Version: 1.8
Model: HVR-6048L

2
SAFETY WARNINGS
These safety warnings are provided to ensure the best user experience with
the least inconvenience. Please read this user manual completely before
installation and operation. It is advised that you keep the original packaging
and protective material in case you need to safely transport the equipment in
the future (e.g. for repair).
Maintain at least 2 cm around these devices during operations to ensure heat
is properly dissipated; this will maintain and prolong the life of the product.
【WARNING】
 Do not use these devices outdoors or in environments where they can be
exposed to water and moisture (e.g. bathtubs, basins, water tanks, wet
basements, swimming pools etc.). This warning is to prevent fire and
electrical shock.
 To further prevent electrical shock, do not, in any
circumstance, open the cases. Only trained
technicians are certified to repair these devices. If
your device needs repair, please contact your
dealer.
 Do not place containers holding liquid (e.g. flower vases, coffee mugs
etc.) or material soaked with moisture (e.g. paper, cloth etc.) on the top of
or in the vicinity of this product. Always leave 2 cm of open space around
the periphery of the case and on top of the case.
 Do not block the air vents on the cases. Also, do not place this device on
soft surfaces (e.g. sofas) where the product might sink into the surface.
Also, do not place devices on carpets or rugs where the surrounding
material can affect ventilation and heat dissipation.
 Do not place these devices on any surface that generates heat such as
radiators, electric heaters, fire places etc.
【SAFETY INSTRUCTION】
 Before using this product, read the User Manual completely and pay
attention to all safety measures concerning operations.
 Always keep this manual accessible for reference.
 Pay attention to all warnings and follow all the safety instructions closely.
 Only operate these devices in well ventilated areas (i.e. do not place in
closets, cupboards, covered boxes etc.).
 Only use a dry cloth to wipe down the case. Do not use liquid cleaners or
spray cleaners.

3
 Do not place the devices in areas that are confined in a limited space (e.g.
in the middle of a crowded bookshelf).
【ABOUT the POWER SUPPLY】
 If you do not expect to use the product for an extended period of time,
unplug the device from the power socket. This is a precautionary
measure because these products, as long as they are connected to a
power socket, will maintain an electrical current even though they are
“turned off”(i.e. using the power button). Unplug the power cable from
the power socket by pulling from the plug; do not pull on the cable line.
 Power Cable Precautions
 Do not wedge or clamp the power line between the case and
surrounding items (e.g. walls, furniture, closets etc.).
 Do not place things on the power line or drag anything over it.
 If the power line is damaged, replace it immediately to prevent
electrical shock and fire.
【ABOUT the HDMI CONNECTOR】
 Improper use of the HDMI socket and connector will cause damage.
 Before plugging in the HDMI cable into the HDMI socket, carefully
check the orientation and shape of the ends of the socket and
connector to make sure you are not inserting the connector upside
down. Plug the cable carefully into the socket, making sure the
head of the connector aims straight into the socket, without any
tilt.
 Remove the HDMI cables whenever you move or transport these
devices.
 Hold the HDMI cable line when you plug or unplug the HDMI cable.
Do not twist or force the plug into the connector.
【ABOUT DISPOSAL】
 These devices should be disposed of properly according to national,
regional recycling regulations.
 Components that are consumptive in nature (e.g. battery) are not
included in the warranty and will incur a fee when replaced.

4
【ABOUT ABNORMAL OPERATIONs】
 If any smoke or odors emanate from these devices, turn off the device
immediately. Unplug the power cable from the socket and contact your
dealer; if you continue to utilize this product in these conditions, it may
cause a fire or damage the product irreparably. Unauthorized repair by
uncertified repair facilities is forbidden.
 If the device is accidently exposed to water or the case is damaged in any
way, turn off the power switch and unplug the power cable. Failure to do
so may result in electrical short and fire. If you are uncertain of your
situation, please call your dealer immediately.

5
Contents
1. INTRODUCTION ........................................................ 6
2. PRODUCT DESCRIPTION ........................................ 7
2.1 FRONT PANEL DESCRIPTIONS ............................................................ 7
2.2 REAR PANEL DESCRIPTIONS .............................................................. 8
3. QUICK SETUP GUIDE ............................................... 9
4. OPERATION GUIDE ................................................ 13
4.1 REMOTE CONTROLLER ....................................................................13
4.2 REMOTE CONTROLLER BUTTON DESCRIPTIONS ..............................14
4.3 OSD (ON SCREEN DISPLAY) MENU ................................................19
4.3.1 File Viewer .........................................................................21
4.3.2 Recordings .........................................................................24
4.3.3 Timer Programming ..........................................................25
4.3.4 System Setup ......................................................................27
4.3.5 System Setup-Language Settings .......................................27
4.3.6 System Setup-Time Settings ...............................................28
4.3.7 System Setup-Input Audio/Video Setup ..............................28
4.3.8 System Setup-Output Audio/Video Setup ...........................30
4.3.9 System Setup-USB Utilities ...............................................32
4.3.10 System Setup-Software Update ..........................................33
4.3.11 System Setup-Restore Factory Settings .............................36
4.3.12 Information ........................................................................36
4.3.13 Information-Show Stream Information ..............................37
4.4 TIME SHIFTING ...............................................................................37
4.5 ONE-BUTTON RECORDING ..............................................................38
4.6 SIMULTANEOUS RECORDING (1 INPUT SOURCE) ..............................39
5 RECORDING TIPS ................................................... 40
5.1 CREATE YOUR OWN VIDEO LIBRARY .............................................40
5.2 RECORD LIVE OR PRE-SCHEDULED TV PROGRAMS ........................41
5.3 BACKUP THE TV PROGRAMS IN A SET-TOP BOX PVR .....................42
5.4 RECORDING FOR SURVEILLANCE .....................................................42
6 PLAYBACK ON A PC/NB ........................................ 43
APPENDIX 1 TROUBLESHOOTING ................................ 44
APPENDIX 2 SYSTEM SPECIFICATIONS ....................... 47

6
1. Introduction
The AnyHD Recorder employs HDMI™ technology to receive video from various
input sources (HDMI, Component and CVBS) in either digital or analog format. The
AnyHD Recorder then stores the video directly onto a portable USB hard disk or
high speed pen drive. It uses H.264 TS format, which guarantees very efficient
compression and timely delivery. Both digital and analog input/output audio are
supported through HDMI, RCA or phone jack interfaces. Recorded video can be
played back on any media player, Blu-Ray Disc player or PC/NB that supports
AVCHD M2TS file format.
AnyHD Recorder Kit Contents
The AnyHD Recorder kit contains the components listed below. If anything in
the list is missing or damaged, contact your dealer immediately.
Package Contents
A. AnyHD Recorder x1
B. AC to DC Power Adaptor x1
C. Remote Controller x1
D. HDMI Cable x1
E. YPbPr component cable x1
F. AV cable x1
In addition to the kit, a USB hard disk or pen drive, a video player (DVD player,
Blu-Ray Disc player, Set-top box, VHS player, etc.) and an HDTV are needed.
Note: Power adaptor specifications will vary, depending on country or region.
A
D
B
F
C
E

7
2. Product Description
2.1 Front Panel Descriptions
The diagram above shows the front panel layout, which is described,
from left to right, as follows:
 MIC: Microphone input. It could also support audio line in from the
earphone output of MP3 or smart phone.
 POWER LED: Illuminates when the system is in use.
 USB Interface: Connects to an external USB storage device, such as a
USB pen drive or USB HDD.
 CVBS Source LED: Illuminates when CVBS is the selected input source. It
flashes when CVBS is selected but the CVBS video signal is unavailable
from the source.
 YPbPr Source LED: Illuminates when the YPbPr (Component) input
source is selected. It flashes when no YPbPr is selected but the video
signal is unavailable from the source.
 HDMI Source LED: Illuminates when the HDMI is the selected input
source. It flashes when HDMI is selected but the HDMI video signal is
unavailable from the source.
 Source Selection button: Selects the input source from one of the three
source selections; HDMI, YPbPr or CVBS.
 REC LED: Flashes when the system is recording.
 REC Start/Stop button: Starts and stops recording.
 IR Input: IR sensor for the remote controller.

8
2.2 Rear Panel Descriptions
The diagram above shows the rear panel layout and is described from left
to right, as follows:
 DC-IN12V DC Input: For use with the power adaptor included in the
package.
 Power On/Off switch
 CVBS input: Composite video input.
 L-Audio-R: Stereo audio input for use with component or composite video
input.
 YPbPr input: Component video input.
 HDMI input: HDMI input interface.
 HDMI output: HDMI BYPASS(no latency) or PLAYBACK(OSD menu)
output interface.
 CVBS output: Composite video output.
 L-Audio-R: Stereo audio output.

9
3. Quick Setup Guide
The Quick Setup Guide section describes how to get your AnyHD Recorder
environment quickly installed. Once setup is complete, you will be able to record
the video from a video source onto a portable USB storage device. For this setup
you will also need:
 HDTV with HDMI or YPbPr connectors.
 Video player (e.g. Blu-Ray player, DVD player) with HDMI, YPbPr or CVBS
connectors.
 USB Hard Drive or USB Pen Drive (with FAT32 file system)
Step 1: Connect the Video Player to the AnyHD
Recorder
Connect your Video player to the rear panel of the AnyHD Recorder. The AnyHD
Recorder can use HDMI, YPbPr or CVBS cables for input. You must choose
from one of those three cabling options as shown below.
a) HDMI–The HDMI cable (shown right) uses a
simple, single connection. Connect one end of the
HDMI cable to the Input HDMI connector as
shown (right). Connect the other end to your video
player. Note: Audio is also delivered through this
cable.
b) YPbPr– YPbPr cables have 3 connectors, each
color coded (green, blue and red). Simply match
the colors on the connectors with the color coded
adapters on the AnyHD Recorder (top row -
shown right).
Since YPbPr video cables do not carry audio, you
must also attach an audio cable between the
player and recorder (bottom row);this cable will
have 2 connectors (left-right speakers, usually red
and white). You will need to connect a total of 5
connectors. Attach the other ends to your Video
Player.

10
c) CVBS– The CVBS cable is a single cable with a
video connector (usually yellow). You will also
need to attach two audio connectors (for L-R
speakers, usually red and white). The CVBS cable
may come as a single cable with the 3 connectors at
each end. Attach the other ends to your Video
Player.
Note: If your Video Player gives you a choice of using HDMI, YPbPr and CVBS,
it is better to choose HDMI for ease of installation. Also, HDMI and YPbPr
picture quality are both noticeably better than CVBS.
d) MIC– In general, it is a 3.5mm phone jack that could
accept microphone input or audio line in. It could be
connected with the earphone output of MP3 player,
smart phone or PC/NB.
Step 2: Connect the HDTV set to the AnyHD
Recorder
Connect your AnyHD Recorder to the HDTV. The
AnyHD Recorder is capable of using HDMI, YPbPr
or AV(CVBS) cables for output. You can choose
one of the two playback options as shown below for
playback.
HDMI–The figure to the right shows an HDMI
cable connection to the AnyHD Recorder’s HDMI
BYPASS and HDMI PLAYBACK/CVBS PLAYBACK. Attach the other end to
your HDTV. You can connect your TV to HDMI BYPASS output when you are
connecting the device with a PC/NB or game console simultaneously. For
those applications that could not accept video latency when operation, you
should also use the HDMI BYPASS mode for monitoring and use the
PLAYBACK mode (HDMI, CVBS) for playing the recorded video files.

11
a) CVBS–The CVBS cable is a single cable with a video connector (usually
yellow). You will also need to attach two audio connectors (for L-R speakers,
usually red and white). The CVBS cable may come as a single cable with the
3 connectors at each end. Attach the other ends to your TV.
Note: The connections you use between input and output do not have to be the
same. In other words, if you are using an HDMI cable for input, you can use
YPbPr for output.
Step 3: Connect the USB Storage Device to the
AnyHD Recorder
Connect your portable USB storage device to
the USB port of the AnyHD Recorder. The
AnyHD Recorder supports the FAT32 file
system format only. You must confirm that your
USB storage device is FAT32 compliant.
If you are unsure about FAT32, simply use an
empty or new USB storage device and format it
(ALL DATA WILL BE ERASED) using the USB
utility in the AnyHD Recorder’s OSD (On Screen
Display) menu (explained later).
Note: You must always plug in the USB storage device before turning on the
AnyHD Recorder. Also, you should power down the AnyHD Recorder before
detaching the USB device.
Step 4: Connect the power cable to the Recorder
Connect the DC power cable of the power adaptor to the AnyHD Recorder.
Connect the power adaptor to a wall socket with the appropriate voltage.
Step 5: Power on TV set and Video Player
Power on your TV set and Video Player in any order. Place a video disc
into your player and begin playing video.

12
Video Source
Selector Button
Record Button
Step 6: Power on AnyHD Recorder
Turn on the Power Switch on the rear panel of AnyHD Recorder. Wait for about
10 seconds.
A red Power Indicator LED will illuminate on the
front panel of the AnyHD Recorder. One of the
Source LED indicators (HDMI, YPbPr or CVBS)
will illuminate and should match the type of input
source you have attached. If it doesn’t match,
press the Video Source Selector button on the front
panel until the appropriate Source LED indicator
illuminates.
If your Video Player is transmitting a video stream, you should begin to see it on
your HDTV.
Step 7: Recording to USB Storage Device
Press the “REC” button on the front panel to begin
recording to the USB Storage Device. The red “REC”
LED should illuminate.
The TV screen should display “Recording
Started”.
Step 8: Stop Recording
Press the “REC” button on the front panel again to stop recording.
The TV screen should display “Recording Stopped”.
A folder designated by date and a sequence number will be created on the USB
storage device on the root:\\VSTOR directory of the device. For example, the
folder name, “V5C8000”, represents a folder that was recorded on Dec 16, 2015;
the three last digits “000” represent a sequence number. If you record a second
video on the same day, the sequence number for a new folder name will be
incremented (e.g. V5C8001).
At least two files will be created in each folder, a DAT.TS (audio and video
content) and a Meta.APV (playlist). Since the maximum file size is limited to
about 4 GB, video recordings that extend past that file limit will be broken up into
consecutive 4 GB files.
Remark 1: The naming rule of the folder name is V(fixed0 + Year(1 digit) +
Month(1digit) + Day(1 digit) + Numbers(3digits)
Month: 1..9 A represents 10; B represents 11; C represents 12
Remark 2: The folder name cannot be changed but it is ok to add any words
after 8_character folder name for readable.

13
4. Operation Guide
4.1 Remote Controller
The AnyHD Recorder package includes a Remote Controller unit that controls
the AnyHD Recorder. It can also bring up and navigate the OSD Menus on the
TV.
Power On/Off
Volume and Mute
Adjusts audio volume
and mute
Numeric (0-9) and
Character (a-z, A-Z and
Symbols) buttons
Video Source buttons
Selects HDMI, Component or
Composite video input
Record buttons
Start/Stop/Pause Recording
File Brower
For file viewing and file
management
Information
Display system status
Navigation/OK buttons
Used in OSD menus
Exit/Escape
Movie button
Brings up playlist menu
Brings up the OSD
Menu
Playback control buttons
Photo button
Brings up photo file viewer,
supports BMP and JPG file viewing
and slide show functions
Special Function Keys
These keys will function
differently depending on the
OSD screen that is currently
displaying
Snapshot
Captures current screen to a
BMP file and stores
to external
USB storage device
Repeat play
Repeat title or all recorded
files
Change Output Resolution
Lip Sync Key
Resets the recording function
for audio/video sync.

14

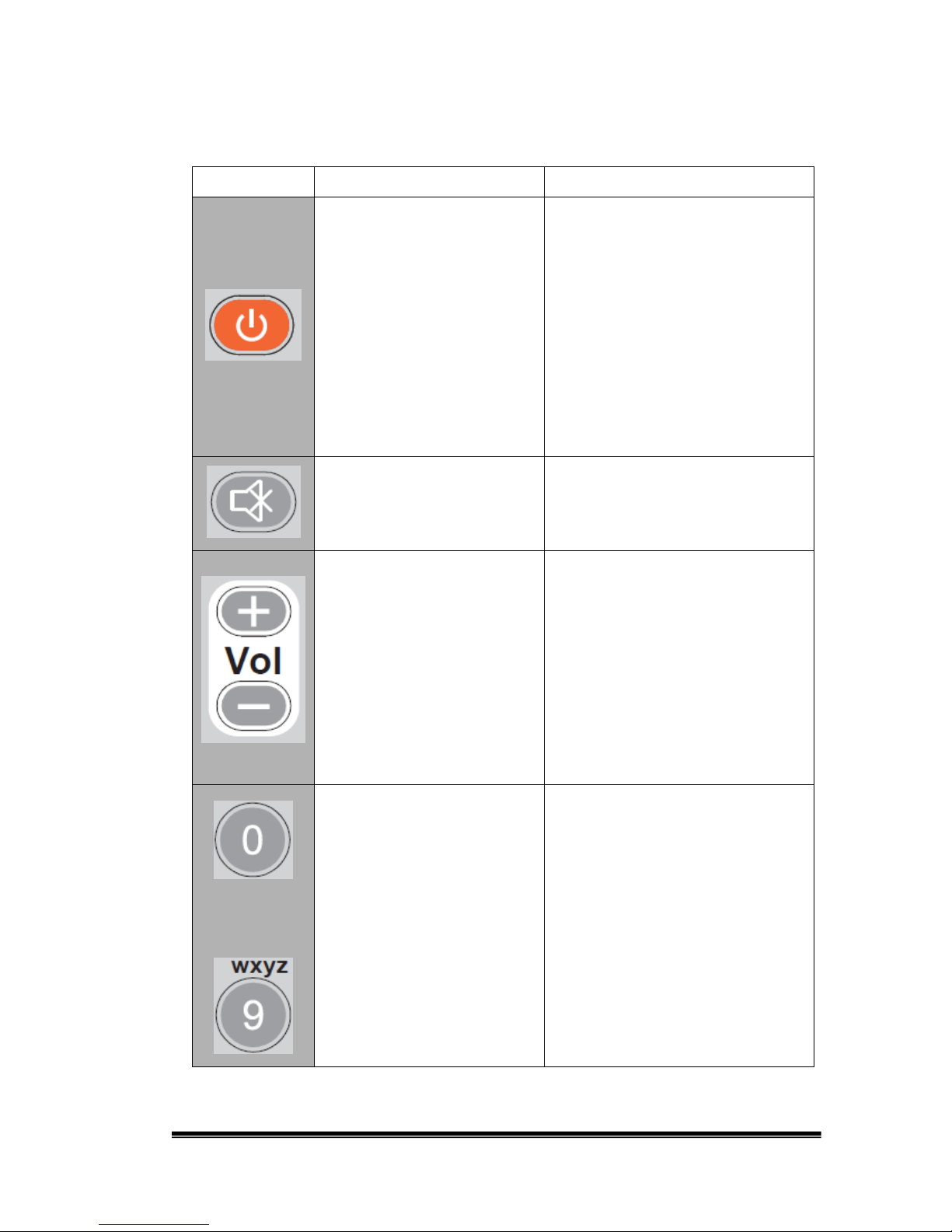

4.2 Remote Controller Button Descriptions
Fig
Name
Description
Active/Power Saving
Toggles the state of the AnyHD
Recorder between Active mode
and Power Saving mode. Active
mode is the normal state when the
AnyHD Recorder is ON. Power
Saving mode is the normal state
when the system is not in use. In
Power Saving mode, the AnyHD
Recorder stops sending video to
the TV and then reverts to a
low-power state.
Audio Mute Audio Mute ON/OFF(on the
AnyHD Recorder)
Increase / Decrease Volume
Increases and decreases the
audio volume.
.
.
.
Numerical and alphabetical
keys:
0- 9 / A-Z.
Used for character input when
using the OSD menus.

15
Fig
Name
Description
Select HDMI Selects HDMI as the current input
source.
Select YPbPr Selects YPbPr as the current input
source.
Select CVBS Selects CVBS as the current input
source.
Information Displays current status information
File browser
Opens the file browser for
browsing all files on your USB
storage device.
Scroll up Scroll-up button for OSD Menus
navigation.
Move right Move-right button for OSD Menu
navigation.
Move left Move-left button for OSD Menu
navigation.
Scroll down Scroll-down button for OSD Menu
navigation.
Setting confirmation Similar to an “Enter” key; used to
confirm a setting selection.

16
Fig
Name
Description
Menu Brings up the OSD Menu on the
TV display
OSD Exit Exits the OSD Menu
One button record Begins video recording to the USB
storage device.
Stop recording Stops video recording.
Pause recording Pauses video recording.
PLAY Brings up the playlist where you
can select a file for playback.
STOP Stops playback and returns to
video play from the input source.
NEXT In playback mode, skips to the
next file.
Previous In playback mode, skips to the
previous file.
PAUSE/PLAY Toggles between Pause and Play
Fast forward Rapidly advances the video

17
Fig
Name
Description
Fast rewind Rapidly rewinds the video
Recorded file list
To list the recorded files. Press the
PLAY or OK buttons to play the
selected file.
Photo file list
Enter into the file browser mode
and list all the BMP and JPG files
for preview.
RED button
Function varies with OSD menus
and screen applications. This
button’s usage will be indicated on
the screen with a red circle and a
function label indicating usage:
(e.g. Back )
GREEN button
Function varies with OSD menus
and screen applications. This
button’s usage will be indicated on
the screen with a Green circle and
a function label indicating usage:
(e.g. Del )
YELLOW button
Function varies with OSD menus
and screen applications. This
button’s usage will be indicated on
the screen with a Yellow circle and
a function label indicating usage:
(e.g. Ins )
BLUE button
Function varies with OSD menus
and screen applications. This
button’s usage will be indicated on
the screen with a Blue circle and a
function label indicating usage:
(e.g. Open)
Snapshots
Takes a snapshot of the current
frame displaying on the TV and
saves the image file to the USB
storage device. The file will be

18
Fig
Name
Description
saved as a .bmp file with a date
stamp. The file will be placed in a
folder labeled “Snapshot”.
Repeat
In playback mode, the current
video can repeat automatically by
pressing this button.
Output Resolution Change output resolution
Lip Sync
While in live monitoring or
recording mode, you can use this
button to re-sync audio and video
manually.
All other buttons not mentioned are reserved for future use.

19
4.3 OSD (On Screen Display) Menu
When the system is active, you can press the button on the remote
controller to bring up the OSD menu on the HDTV attached to the AnyHD
Recorder. The OSD menu is used to configure various options as described
below.
OSD Menu Items:
 File Viewer
 Recordings
 Timer Programming
 System Setup
 Information
Navigating the OSD Menu:
You can navigate the OSD Menus using the following keys on the Remote
Controller.
 Press the button to return to the previous OSD Menu
 Press the button to exit the OSD Menu.
 Press or the button to select an item on the menu, move to the
next menu item, or change a value setting.
 Press or buttons to view the options available for a
setting.

20
OSD Menu Descriptions:
Menu Item Description Options
File Viewer
This function allows you to browse files
on the USB storage device attached to
the AnyHD Recorder. You can see all
files (any format) that currently reside
on the device. From this screen, you
can playback a previously recorded file
by selecting it in the browser and
pressing the OK button (on the
remote). To copy move, rename, or
delete files, use the Yellow button
(above F3 key on remote) to access a
submenu with these operations.

File Browser
Recordings
This function displays a playback list of
your previously recorded video files
that currently reside on the USB
storage device. The files are listed by
date and time. You can playback,
delete, rename or protect these files.

Play list
Timer
Programming
This function allows you setup a
recording schedule to automatically
record video to the USB device at
preset times. You can easily edit, add
and remove multiple recording
sessions.

Preset video
recording timer
System Setup
Configures system settings

Language Settings

Time settings

Input Audio/Video
Setup

Output
Audio/Video Setup

USB Utilities

Software Update

Restore Factory
Settings
Information System information and stream
information.

Free Disk Space

Stream Information
