Anysecu W2plus User manual

Instruction of Mobile Network Radio W2plus
■Safety Warning before use
Input DC 10-24V, please Do NOT connect to 220V/110V power supply, which may cause burn to the
Radio.
Do not use the mobile radio in the explosive environments ( such as gas , dust , steam , etc . )
The machine can not be modified or adjusted for any reason.
Please don't let the mobile radio stand in sunlight directly for a long time , or put it near by the heating appliances.
Do not place mobile radio in extremely dusty ,moisture and water splashing places , and do not put in uneven surface.
Maintenance can only be carried out by professional and technical personnel.

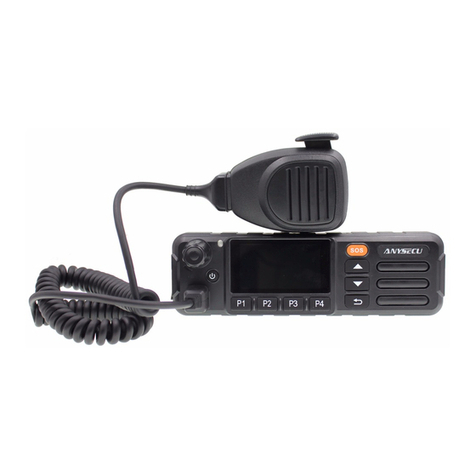

■Get familiar to your Radio
Main keypad Function Introduce

Power /Volume
*Long press to On/Off the Radio (only for without acc cable)
*short press for lock screen
*Turn clockwise to volume+, Turn counterclockwise volume-
SOS Key
*for talking app, Short press SOS key to send SOS message to Dispatcher, selected group or group
members
<
*Exit back to last Interface
Menu
*Shortcut to enter to the setting of the current page or function
Home
*Shortcut to home interface
OK
*Enter/ yes/ type message change line
Exit
*Exit current page or interface
Up/Down
*Up or Down direction control to choose
Screen lock/Hang up
*Hang up a call or close screen
Dial /PTT
*Talking app as PTT, shortcut to talking app /phone call dial interface
■Get started
First of all, you have to prepare a sim card (standard size ) with data flow function activated for your
network radio.
1.1 Connect ACC power cable to your Radio
Ex-work cable is with automatically power on function, for home power supply, red is positive, black
is negative, blue is acc cable, please refer to the label on cable.
For install to car, connect acc cable will automatically power on when you start your car.
1.2 Install GPS & GSM Antenna to the radio
Please Install Antenna to the radio before use or there maybe no signal.
1.3 Install SIM CARD: bottom of the Radio is Sim card port (standard size), Open dust cover,
insert the SIM card, and close the dust cover.
(How to choose SIM card?
1.check radio frequency as data chart show; 2.Standard SIM size; 3.With economic data flow to save the cost; Choose
the service provider stable signal)
1.4 Connect internet by wifi or data:
Download app
There are several method of download app.
2.1.Download the app from “Play Store”
2.2Search on “Browser” to download the app
2.3.Download from computer: Settings-->about phone-->Build number, click”Build number” 4
times: ”you are now a developer!”,back-->”developer options”-->USB debugging √, then connect
USB cable with radio (Android type), go to home page
in the Notifications shade, which pulls down from the top of the screen.”connected as USB
storage”-->”Media device(MTP)” ,choose it.
Now in computer Keep apk in file fold “my PC”-->”W2plus”-->phone storage--download

find this APK on the same path on your radio, tick it to install
2.4.Download to micro TF card, then install from TF card to the radio
Flash or Root right please refer to your agency as we highly require professional to operate.
Talking Platform Introduce: About Real PTT
3.1 Login Account on Mobile radio by type (area depends on server area: choose your country or
the nearest, account cost yearly fee, need buy from radio supplier or local agency to get it)
3.2 Login PC Platform (dispatcher) to Manage your Radio and for more function
Download Real-PTT and login in your account, On PC Press “Space key” to Talk, and the other
functions you can use your mouse to control.
3.3 Login Smart phone to talk
Download RealPTT APP and Same operate as you login on the mobile Radio.
There are more apps you can choose to talk: such as Zello, Echolink, walkiefleet. For more please
contact us freely about the key value match issue
Standard Package
Mobile Radio*1
Microphone*1
GPS antenna*1
Network Antenna*1
ACC Cable*1
Bracket *1
Optional Accessories
Car Charger
AC adaptor
General Specification
CPU
MT6737M Quad core processor 64bit
RAM+ROM
1GB+8GB

OS
Android 7.0
Screen Size
4.5 inches, 480x320mm
Language
Multi languages
Frequency band
EU version
TDD-LTE: Band38/40/41
FDD-LTE: Band1/3/5/7/8/20
WCDMA: Band 1/2/5/8
GSM/GPRS/EDGE: Band2/3/5/8
US version
FDD-LTE:Band1/2/4/5/7/12/13/17/
28a/28b
WCDMA: Band 1/2/4/5
GSM/GPRS/EDGE: Band2/5
Antenna
1)WCDMA/GSM with external antenna
2)GPS antenna with external antenna
3) BT/WIFI antenna is built-in FPC antenna
GPS
GPS/AGPS
USB
USB 2.0
SIM Type
Standard sim card
Dimension
170x80x85mm
Weight
380g
Working Voltage
DC 10-24V
Working Temperature
-30℃to +75℃
Platform Tested
RealPTT, Zello
Talk Range
Limitless in WCDMA/GSM Coverange
RF Parameter
Maximum Output Power
WCDMA 2100/1900/900/850MHz:
Power class 3 (+24dBm +2.5/-1.5dBm) GSM/GPRS 850MHz/900MHz:
Power class 4 (+33dBm +2.5/-0.5dBm) GSM/GPRS 1800MHz/1900MHz:
Power class 1 (+30dBm +2.5/-0.5dBm)
Receiving Sensitivity
WCDMA 2100: ≤-108dBm
WCDMA1900: ≤-109dBm
WCDMA900: ≤-109dBm
WCDMA850: ≤-109dBm
GSM850/900/1800/1900: ≤-107dBm
GPS
GPS
GPS Positioning, Support A-GPS function,1.57542GHz;
Sensitivity
Catch -144dBm, Track -159dBm
Technical Sensitivity
Data Speed Rate
GSM CS: UL 9.6kpbs/ DL 9.6kpbs GPRS: Multi-slot Class 10
EDGE: Multi-slot Class 12
WCDMA CS: UL 64kpbs/ DL 64kpbs WCDMA PS: UL 384kpbs/ DL
394kpbs
Protocol
HSDPA/WCDMA/EDGE/GPRS/GSM
we endeavors to achieve the accuracy and completeness of this manual, but it is still not perfect for
any possible omissions or printing errors. All the above functions and design are subject to be updated
without prior notice due to continuous development.
