EisSound KBSound iSelect User manual

USER’S MANUAL
SPACE
CC-1152ENG-03

1
Important Safety Instructions
Before installing the unit, please read and follow the instructions provided in the Installation Manual included
in this kit.
Before operating the unit, please read and follow the instructions provided in this User´s Manual thoroughly
and save it for future reference.
WARNING - To reduce the risk of fire or electric shock:
install in accordance with the manufacturer’s instructions
do not expose this apparatus to water dripping or splashing
do not use this product near water
do not attempt to disassemble this unit
do not block any ventilation openings
do not install near any heat sources such as radiators, stoves or other equipment that produce
heat.
You are cautioned that any changes or modifications not expressly mentioned in this manual could affect the
normal operation of this equipment.
This product has been designed and tested to provide reasonable protection against harmful interference in
residential installation. However there is no guarantee that interference will not affect in a particular
installation. In these cases, reorient the receiving antenna, try to increase the separation between the
equipment and the source of interference and/or connect the equipment into an outlet on a circuit different
from that to which the source of interference is connected.
The entire risk of the installation, use, results and performance are borne by you.
When a socket plug, or a device connector is used as a mechanism to disconnect from the electrical mains,
the mechanism must be easily accessible at all times. Protect the power cord from being walked on or
pinched particularly at plugs and the point where they exit from the apparatus.
Only use attachments/accessories specified by the manufacturer.
Use a certified technician for installation, repair and/or maintenance of this equipment and comply with all
the regulations in force in each country. Servicing maybe required when the apparatus has been damaged
in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into
the apparatus, the apparatus has been exposed to water dripping or splashing, does not operate normally, or
has been dropped.
To change the batteries remove the cover by pressing on the tab while lifting the cover.
Use batteries type AA 1,5V. Do not discard used batteries with household waste.
1. Introduction
2. General Operating Notes
3. Operating Audio Functions
7. Selecting Turn-On Mode
4. Operating the FM Tuner
5. Operating the wireless accessory
KBSOUND
®DOCK
Quick Reference Guide
Table of Contents
CAUTION
DO NOT OPEN
RISK OF ELECTRIC SHOCK
!
3
5
6
7
10
11
2
15
16
6. Operating the wireless accessory
® ®
KBSOUND Bluetooth
8. Technical specifications
CC-1152ENG-03

2
Delete individual FM tuning pre-sets
Delete all FM tuning pre-sets
Store all FM stations detected
Store individual FM station pre-sets
Store “IDEAL” setting
Store turn-on mode (on/off)

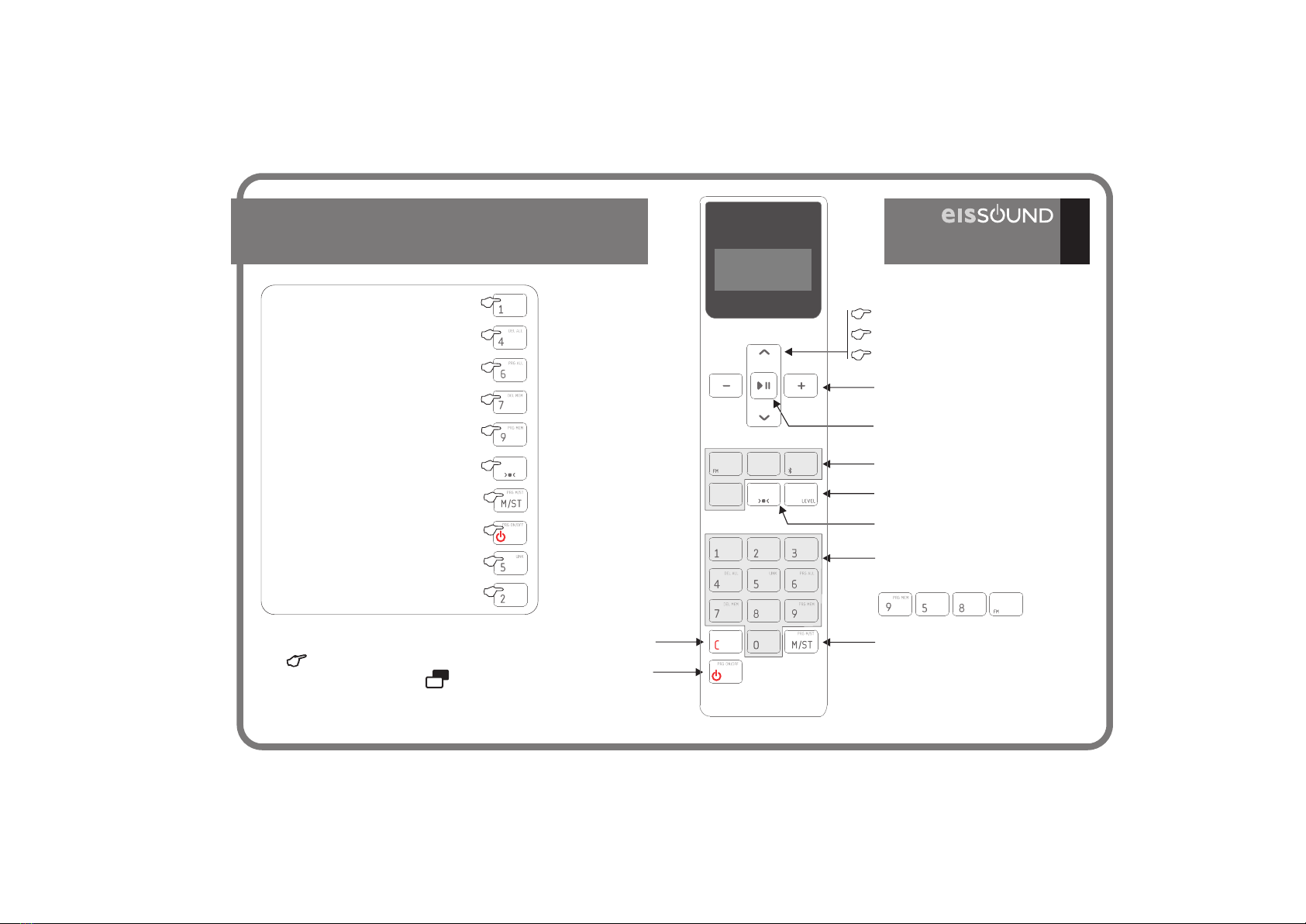

Quick Reference Guide
Automatic FM station scan
Directly keying
FM station frequency (e.g. 95.8 MHz)
Numeric keypad
Play/pause for iPod® playing list
Clear
Audio level adjustment
volume/bass/treble/balance/loudness
Select +/- keys function
volume/bass/treble/balance/loudness
FM Forced Mono
On/off
Step forward and back for iPod® playing list.
FM/DAB memory pre-sets
1”
”IDEAL” mode
Select sound source
®
KBSOUND DOCK or Bluetooth link
Program MONO for all sound sources
Automatic FM station search sensitivity
To illustrate that an operation requires holding down a
key on the remote control for a specific amount of time,
the symbol will appear in the manual next to the
key. The screen will display the symbol.
F
F
2”
6”
2”
2”
2”
6”
6”
FM SENS 1-2-3
2”
6”
KBSOUND XX
6”
Save the kit numeric identification for
Bluetooth pairing
DAB iPOD
AUDIO IN
KBSOUND XXFM SENS 1-2-3
UPDATE DAB
CC-1152ENG-03

KBSOUND
The KBSOUND
KBSOUND
KBSOUND
® iSelect is a sound device specially designed for quick and easy installation. It fits discreetly into the decor of your kitchen, bathroom or
anywhere in your home.
® iSelect Kit comprises:
= Electronic module with built-in FM tuner and power supply.
41,5W + 1,5W stereo audio output.
= Two 2.5” or two 5" loudspeakers.
= Remote control with the following functions:
4Volume, bass, treble and balance control.
4'Forced Mono' function.
4FM and RDS information..
4Ability to directly key-in desired station frequency.
4Ability to automatically store into memory stations received with the best reception.
430 memory pre-sets.
4“Intelligent” loudness: automatic adjustment to the volume level.
®
When connected with the wireless DOCK Accessory (not included in this kit), the user has two additional sound sources: the iPod/iPhone
and an external sound source using a 3,5mm jack input.
When connected with the (not included in this kit),
®
iSelect
® ®
wireless KBSOUND Bluetooth Accessory allows the user to listen to the music stored in any device
that has the ability to transmit via Bluetooth.
The components supplied in this kit are for installation and use in the manner and for the purpose described in the Installation Manual and
the User Manual. The installation must also comply with each country's current regulations. This manual assumes that the
unit has been installed following the instructions provided in the Installation Sheet included in this kit.
3
1. Introduction
CC-1152ENG-03

CC-1152ENG-03
KBSOUND
The KBSOUND
KBSOUND
KBSOUND
KBSOUND
® SPACE is a sound device specially designed for quick and easy installation. Is our new custom made audio solution. It´s open ended
allowing you to choose your loudspeakers and amplifiers tu fulfill the specific design requirements of your dream project with superb sound.
® SPACE Kit comprises:
= Electronic module with built-in FM tuner, includes terminals to allow connecting external amplifier, improve wiring design and
®
connecting terminals to facilitate easy installation, design to insert the Radio Frequency device to allow integration with the
DOCK and the
= Infrared reciever / transmiter
= Remote control with the following functions:
4Volume, bass, treble and balance control.
4'Forced Mono' function.
4FM and RDS information..
4Ability to directly key-in desired station frequency.
4Ability to automatically store into memory stations received with the best reception.
430 memory pre-sets.
4“Intelligent” loudness: automatic adjustment to the volume level.
®
When connected with the wireless DOCK Accessory (not included in this kit), the user has two additional sound sources: the iPod/iPhone
and an external sound source using a 3,5mm jack input.
When connected with the (not included in this kit),
®
SPACE
® ®
KBSOUND Bluetooth Accessory.
® ®
wireless KBSOUND Bluetooth Accessory allows the user to listen to the music stored in any device
that has the ability to transmit via Bluetooth.
The components supplied in this kit are for installation and use in the manner and for the purpose described in the Installation Manual and
the User Manual. The installation must also comply with each country's current regulations. This manual assumes that the
unit has been installed following the instructions provided in the Installation Sheet included in this kit.
4

5
1.- None of the functions (except ON/OFF) work unless the remote control is in “on” mode.
Once the KBSOUND or SPACE is connected to the mains, it will remain powered even it is in OFF state. That
means that the OFF state (as indicated in this manual) really means a “standby” state.
2.- ® iSelect
beep
5m
The KBSOUND or
SPACE will turn on with the
audio and station frequency
settings saved as “ideal”
mode settings (see chapters
3 and 6) when the unit is
connected to a power
supply.
When switched off and on
while connected to the
power supply, the audio and
station frequency settings
will be as when the unit was
switched off with the remote
control ON/OFF key
® iSelect
2. General Operating Notes
DAB iPOD
AUDIO IN
3.-

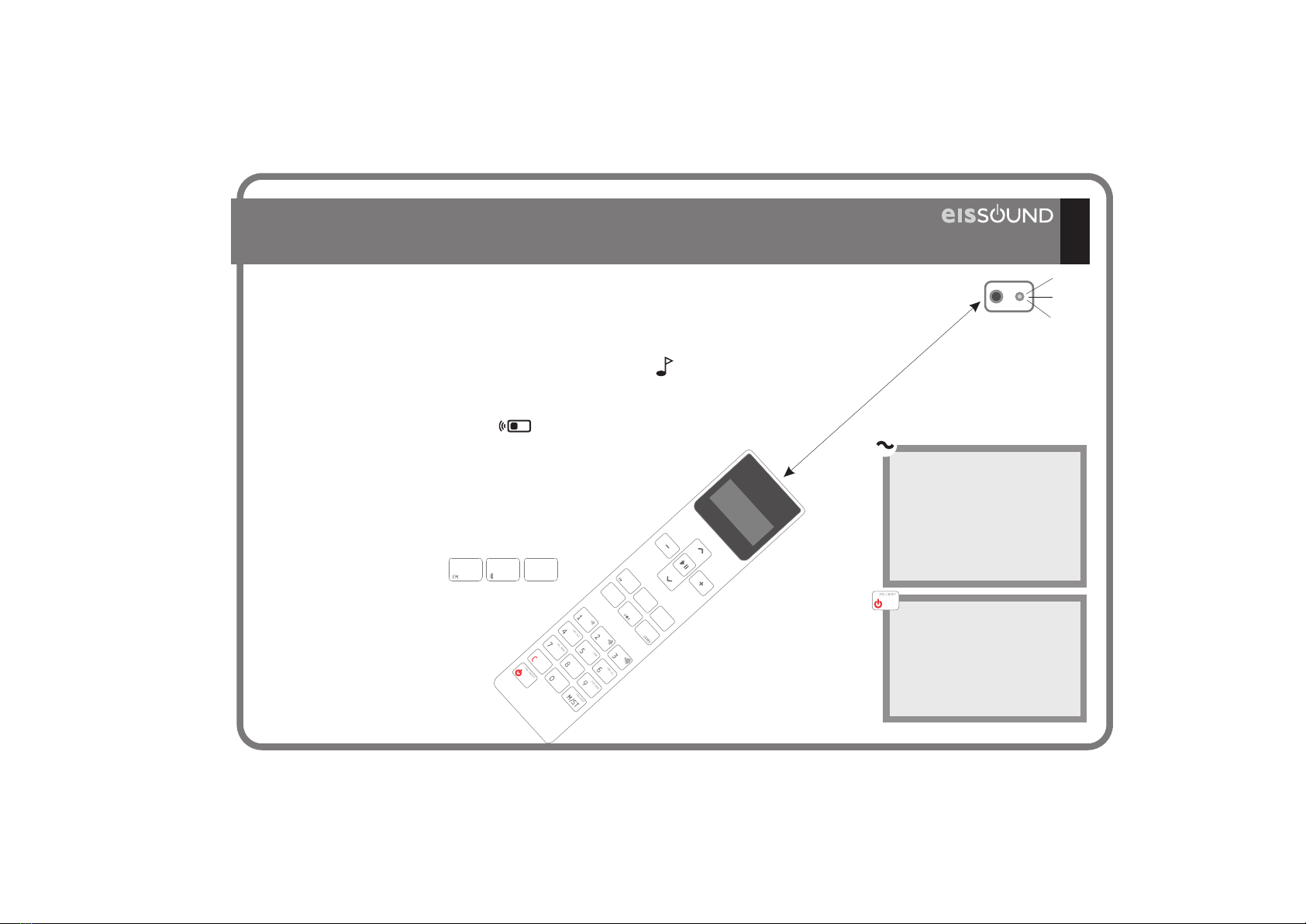

4.- The remote control unit exchanges information (transmits and receives data) by
means of the transmission-reception capsule. If at any time there is a failure in the
communication, the screen will display the symbol. In the event of this
occurring, point the remote control to the transmission-reception capsule at a straight-
line distance of no greater than 5 meters.
5.- The remote control display will automatically turn off when
there has been no keying activity for more than a few seconds,
ensuring more efficient battery usage. To view the display
information at any time, point the remote control to the
transmission-reception capsule and press the key of the
selected sound source at this time
A short BEEP sound signal indicates that the data has been received
AUDIO IN
iPOD
CC-1152ENG-03

6
Key Sequence Display
Increase/decrease in the volume level: The LED will flash
to indicate the desired change in volume.
Increase/decrease in bass/treble levels: The LED will flash
to indicate the desired change in the bass/treble levels.
Loudness: It reinforces the bass level in terms of the volume level, assuming a
greater backing at a lower volume and a lesser backing at a higher volume.
Mono/stereo reception: When activated, this feature allows the FM stations to be received in stereo.
When deleted this feature only allows for mono reception.
Note: If the electronic module´s configuration is mono, the signal will always be received in mono
even if the signal received by the antenna is in stereo.
If the electronic module is off, a brief press on the ON/OFF key will turn on the unit .
When the electronic module is off, the LED will be OFF.
The LED will display the word “ON”
3. Operating Audio Functions
on
vol 58
BAS+06
LD on
STEREO
IDEAL
IDEAL
2’’
"IDEAL" mode of operation: To program your "IDEAL" mode of operation, select the sound source
(FM, iPod, Audio In) and desired levels of volume, bass, treble and loudness. Also, if your choice is FM,
select your favorite station. Then hold down the IDEAL key for 2 seconds.
Then, this "IDEAL" mode can be instantly accessed by simply pressing the IDEAL key on the remote
control.
CC-1152ENG-03

7
Key Sequence Display
To directly key-in an FM station frequency, sequentially dial the numeric keys of the station
frequency then press the FM key. For example, to select 94.7, press 9 4 7 FM.
Note: A station frequency can be keyed-in as either 94.7 (9 4 7 FM)
or as 94.70 (9 4 7 0 FM)
To clear a digit and start a different
frequency, press the C key
and then begin keying-in of the desired
frequency
4.2 Direct Key-in of Station Frequency
While the search is taking place, the word “SCAN” will appear on the display screen.
The screen will duly display the station frequency of the next station found.
4.1 Station Scan
4. Operating the FM Tuner
94.70
94.70
FM
FM
SCAN
102.50
FM
1”
CC-1152ENG-03

Key Sequence Display
4.4 Storing and Clearing Station Frequencies Manually
To store a station, tune to the station (see Chapters 4.1. Station Search and 4.2. Direct key-in of
Station Frequency).
Hold down the 9 key for 2 seconds.
The station tuned at that time will be stored in the memory.
To delete a station from the memory, select the station and hold down the 7 key for 2 seconds.
The station will be deleted from the memory.
The UP/DOWN keys allow you to scroll through the stations stored in the memory (see
Chapters 4.4 and 4.5, Storing and Clearing Stations in Memory).
When stations are stored in the memory they are sorted in ascending order; that is, beginning
with 87.5 and ending with 108.0.
The screen will display the frequency of the station stored in that memory pre-set.
4.3 Tuning to FM Memory Pre-Sets
MEM 07
DEL MEM
MEM 19
102.50
FM
94.70
FM
94.70
FM
2’’
2’’
8
CC-1152ENG-03

Key Sequence Display
To activate the clearing station frequencies automatically process for all the
memory slots, hold down 4 key for 6 seconds.
To activate the storing station frequencies automatically process, hold down key 6 for 6
seconds.
When the automatic programming begins the screen will display the word “AUTO”.
The electronic module will store into the memory the stations that are received with the best
reception, sequentially from lowest frequency (87.5 MHz) to highest frequency (108.0 MHz).
The system will use all the memory slots available, reaching a maximum of 30.
The process can take a few moments. Once the scan has been completed or once the
maximum number of memory slots has been used, the process ends and a BEEP signal
sounds.
4.5 Storing and Clearing Station Frequencies Automatically
To adjust the automatic station search sensitivity (see 4.1. Station Search),
select a value between 1 (minimum) and 3 (maximum) and press key FM
SEN for 2 seconds
4.6 Adjusting Station Search Sensitivity
DEL ALL
AUTO
beep
6’’
6’’
SENS 1
FM SENS 1-2-3FM SENS 1-2-3
2’’
2’’
2’’
FM SENS 1-2-3
FM SENS 1-2-3
SENS 2
SENS 3
9
CC-1152ENG-03

10
5. Operating the
®
KBSOUND DOCK
wireless accessory
Press key 5 for 6 seconds. Speaker led
will flash in blue.
Power the Dock. Press the LINK key at the
back of the Dock for 6 seconds. The Dock
led will flash in blue.
After a few seconds both leds will stop
flashing and the Dock and the
KBSOUND SPACE are linked.
The iPOD key on the remote control
selects the iPod® from the Wireless Dock
as the audio source input. When playing
the Dock led will be green.
To play/pause the iPod®, use the key:
To step forward or back the iPod´s
playing list, use the keys:
The Audio-in key on the remote control
allows you to select the external audio
source that is connected by a 3,5mm jack
to the Dock. When playing the Dock led
will be blue.
® iSelect or
Key Sequence Display
These functions are available only when
the KBSOUND accesory is connected.
® DOCK
AUDIO IN
6”
6”
AUDIO IN
iPOD IPOD
The wireless KBSOUND
Accessory for use with the
KBSOUND 2,5" or 5" and SPACE
allows you to enjoy and listen to your
music from all models of iPhone and iPod,
and any other external sound source that
can be connected to the Dock using a
3,5mm jack input.
When the Dock is powered from the
external power supply, it recharges the
iPod/iPhone.
IMPORTANT: use only the power supply
supplied with the KBSOUND .
When the Dock is not connected to an
external power supply it will be powered
from the connected iPod/iPhone. In this
case, the external audio source AUDIO IN
is not available.
® DOCK
® iSelect
® DOCK
®
the KBSOUND DOCK can be linked
®
ONLY WITH ONE KBSOUND iSelect
or SPACE at any one time
CC-1152ENG-03

CC-1152ENG-03
11
Key
sequence Display
® ®
The KBSOUND Bluetooth wireless accessory allows you to listen to the
music stored in any device that has the ability to transmit via Bluetooth
® ®
through the KBSOUND iSelect 2.5", KBSOUND iSelect 5" or
® ®
KBSOUND SPACE kits. (KBSOUND Bluetooth option).
6. Operating the
wireless accessory
® ®
KBSOUND Bluetooth
05
6”
KBsound XX
®
IMPORTANT: Before linking the KBSOUND Bluetooth option a
®
numeric address must be assigned to each KBSOUND kit installed
(See Chapter 6.2).
Several kits in the same house can be distinguished by assigning
them a different identification number such as KBsound 00 or 01, 02
etc.
KB-05
® ®
Features available ONLY when the KBSOUND Bluetooth accessory is connected
6.1.- Assign a numeric address to your ® ®
KBSOUND Bluetooth option
iPOD BT
Select Bluetooth key.
Dial the two digits that identify the KBsound
kit such as “05" on the Remote Control.
Then press the 2 key for aproximately
5 seconds.
A confirmation beep will be heard through
the speaker to indicate that the identifier has
KBsound00 KBsound01 KBsound02
KBsound03 KBsound04 KBsound05
beep
From this moment the identifier of that kit becomes KBsound 05.
Repeat this procedure for all kits you have installed in your home, taking care of
choosing different numbers for each one.
IMPORTANT: before you begin make
sure that the Bluetooth device from
which you want to stream the music has
the A2DP and AVRCP profiles.

CC-1152ENG-03
6.2.- Pairing (linking) a new Bluetooth device
Before being able to stream music from
®
a Bluetooth device to our KBSOUND
kits it is necessary to link the
®
Bluetooth accessory. This operation
must be carried out only once with each
device.
Make sure that during the entire
operation there is only one Bluetooth
device within the range of coverage of
® ®
the KBSOUND Bluetooth option.
The Remote Control must be
pointing directly at the IR receiver of the
® ®
KBSOUND Bluetooth option.
Select the Bluetooth key option.
Press the 5 key on the Remote Control
for aproximately 10 seconds. “Link” will
appear in the display.
The IR led will flash in blue, and will
remain in this state until the linking
operation is completed, or a maximum
of 3 minutes.
Key
Sequence Display
Access the Bluetooth menu of your
device
In the device select the KBsoundXX
(00,01,02...) option.
Check that the code indicated on the
device matches the code displayed
on the Remote Control.
Note: To get this code the Remote
Control must be pointing directly at
the IR receiver.
The linking process will be carried
out successfully when the IR blue led
stops flashing and “connected”
appears in the display of the
Bluetooth device.
Some Bluetooth devices may
optionally request a password to
confirm the link.
In such cases, dial 0000.
iPOD
BT
6”
DISCONNECT LINK
048233
DAB iPOD
AUDIO IN
DAB iPOD
AUDIO IN
12

CC-1152ENG-03
6.3.- Transmit audio to a ® ® KBSOUND Bluetooth option from multiple Bluetooth devices
If you want to transmit audio from a different
Bluetooth device, press the 5 key on the
Remote Control for 6 seconds, after which the
® ®
KBSOUND Bluetooth option will be freed
from any previous pairing.
Activate the Bluetooth of the new device you
wish to connect with and then select the
® ®
KBSOUND Bluetooth option with which
you wish to link (e.g. KBsound 01).
The pairing will have been carried out
successfully when the IR blue led stops
flashing.
Make sure that during the entire
operation the Remote Control is
pointing directly at the IR
®
receiver of the KBSOUND
®
Bluetooth and the Bluetooth
device is within the range of
coverage.
Select the Bluetooth key on the
Remote Control.
The kit searches for the last
Bluetooth device with which it
was paired and, if found within
its range of coverage, it will
continue to be paired
automatically.
Key
Sequence Display
iPOD
6”
BT
Key
Sequence Display
®
Several Bluetooth devices can share the same KBSOUND
®
Bluetooth option, although only one can transmit audio at any
time.
To make this possible, it is necessary to have made the link of all
® ®
Bluetooth devices with the KBSOUND Bluetooth option
(see chapter 6.2)
DAB iPOD
AUDIO IN
From the Remote Control
you can select the options
PLAY /PAUSE by pressing
the button
Go forward and backward
through the music list
pressing the keys
13

CC-1152ENG-03
6.4.- Transmit audio from one device to several ® ® KBSOUND Bluetooth options
® ®
If there are several KBSOUND Bluetooth options in your installation, you will be able to transmit your music to any of them interchangeably from the
® ®
same Bluetooth mobile device. Please note that only one KBSOUND Bluetooth option can receive the audio signal at any time.
® ®
To make this possible, it is necessary to have made the numeric identification of each KBSOUND Bluetooth option. (see chapter 6.1).
® ®
It is also necessary that the Bluetooth mobile device has been linked with each of the KBSOUND Bluetooth options in the installation
(see chapter 6.2).
Select the Bluetooth option with the Remote Control of the
® ®
KBSOUND Bluetooth option that you wish to use at that moment.
® ®
Select in the Bluetooth device the KBSOUND Bluetooth option you wish to pair:
KBsound00, KBsound01, KBsound02, etc.
NOTE: Be careful, the menus on your Bluetooth device can vary between manufacturers.
As a result, strictly follow their instructions.
Key
Sequences Display
iPOD
BT
KBsound 01
KBsound 02
KBsound 03
KBsound00 KBsound01 KBsound02
14

15
If the Turn-On mode is set to
“on” in this state, when
power is fed to the unit, it will
turn on in “ideal” mode (see
Chapter 3).
If the Turn-On mode is set to “off”,
when power is fed to the unit, it will
turn on in “off” mode.
This function is designed for use in the event that the KBSOUND or
SPACE power supply is fed by a specifically designated switch. In this case,
the automatic activation mode must be programmed in order to
automatically turn on KBSOUND or SPACE unit when the switch is
activated. These steps must be followed:
® iSelect
® iSelect
1. Supply power to the KBSOUND or SPACE unit by
turning on the switch. The KBSOUND or SPACE unit
will flicker a couple of times and turn off.
2. Turn on the KBSOUND or SPACE unit using the
remote control (ON/OFF key).
3. With the KBSOUND or SPACE unit turned on, keep
the ON/OFF key pressed down for 2 seconds.
® iSelect
® iSelect
® iSelect
® iSelect
Key Sequence Display
7. Selecting Turn-On Mode
AUTO x
2’’
2’’
CC-1152ENG-03

CC-1152ENG-03
16
8. Technical specifications
525x1 , 52592 MIN NORMAL MAX NOTAS
Measurements 110x27,75x110 mm ref.525x1 (width x height x depth)
54,8x37x20 mm ref.52592 (width x height x depth)
Voltage 5 Vdc ref.525x1
Consumption demand 10 W ref.525x1
Input signal 350 mVrms jack 3,5mm
Input impedance 50 Kohms jack 3,5mm
Wireless transceiver RF 2,4 GHz
Power RF 10 mWeirp
Antenna RF integral ref. 525x1
2,5 dB ref.52592 (SMA connector)
52391/92 , 52398/93 MIN NORMAL MAX COMMENTS
Measurements 200x53x56 mm
Voltage 185 230 265 Vac 50Hz, terminal F,N (ref.52391,52398)
90 120 140 Vac 50/60Hz, terminal F,N (ref.52392,52393)
Consumption demand 10 W terminals F,N
Output signal (16 ohms) 1,5 W terminals L,R
Passband 45 20.000 Hz
Aux.amplifier switch on signal 12 14 Vdc terminals 62, 4 (ref.52398/93)
Distortion 0,1 %
Left/right channel separation 58 dB
FM Frequency range 87,5 108 MHz
FM antenna impedance 75 ohms RF connector
FM antenna sensitivity 1,7 3,5 uV
FM tuner distortion 0,1 0,5 %
Number of FM station pre-sets 30
52593 MIN NORMAL MAX NOTES
Measurements 54,8x37x20 mm width x height x depth
Alimentación 3,3V Vdc internal connector
Consumo 0,1 W
Bluetooth spec.
Wireless transceiver RF 2,4 GHz
Power RF 10 mWeirp
Antenna RF 2,5 dB SMA connector
Range 5 m
Class2 BT2.1 + EDR
A2DP 1.2
AVRCP 1.4
525x1 , 52592 MIN NORMAL MAX NOTAS
Measurements 110x27,75x110 mm ref.525x1 (width x height x depth)
54,8x37x20 mm ref.52592 (width x height x depth)
Voltage 5 Vdc ref.525x1
Consumption demand 10 W ref.525x1
0,1 W ref.52592
Input signal 350 mVrms jack 3,5mm
Input impedance 50 Kohms jack 3,5mm
Wireless transceiver RF 2,4 GHz
Power RF 10 mWeirp
Antenna RF integral ref. 525x1
2,5 dB ref.52592 (SMA connector)
Range 5 m

64460058
Electrónica Integral de Sonido S.A. is not responsible for any error or omissions that may appear in this manual,
and reserves the right to make changes without prior notice. iPod and iPhone is trademark of Apple Inc.
registered in teh U.S. and other countries. "Made for iPod" and "Made for iPhone" means that an electronic
accessory has been designed to connect specifically to iPod and iPhone and has been certified by Electrónica
Integral de Sonido S.A. to meet Apple performance standards. Apple is not responsible for the operation of this
device or its compliance with safety and regulatory standards. Please note that the use of this accesory with
iPhone may affect wireless performance.
AENOR
Registrada
Empresa
ER-0634/1998
Polígono Malpica Calle F Oeste
Grupo Gregorio Quejido, 87-88
50016 Zaragoza (SPAIN)
Tel.: [phone]
Fax: [phone]
[email protected]
www.eissound.com
CC-1152ENG-03
