Ocean Digital WR-230 User manual

Internet Radio
User Manual
WR-230
Please read this user manual carefully before using the receiver.

1
Welcome
Table of contents
Welcome............................................1
Location of Controls .................................2
Remote control ......................................3
Enter encryption code of the Wi-Fi router ...............4
Connect the radio with your Wi-Fi Router ..............6
Start using internet radio .............................7
My Favorite.......................................7
Internet Radio.....................................8
Media Centre .....................................9
AUX-in..........................................12
Alarm Setting ....................................12
Snooze .........................................13
Sleep Timer Seting ...............................13
Configuration ......................................13
Add your favorite URL ...............................15
Music Streaming from mobile devices.................16
Helpful Tips ........................................17
Technical Specification..............................18

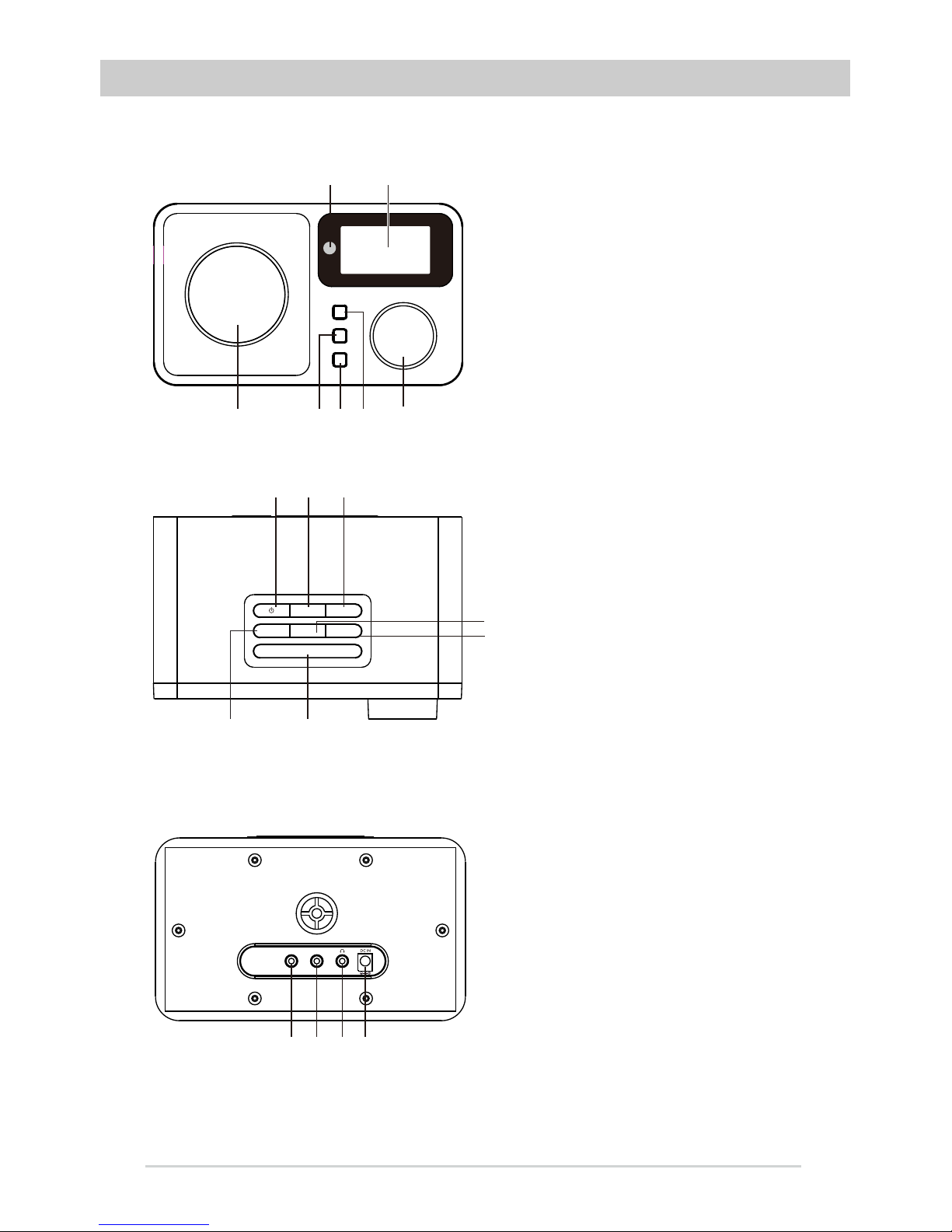

Location of Controls
2
Line outAux-in
PRESET DIAL / SELECT
BACK
MENU
ALARM / SNOOZE
SLEEPLEFT / EQ
MODE LOCAL
RIGHT
Front
Back
1 2
3 4 5 6 7
8 9 10
11
12
13 14
16 17
Top
1. Remote sensor
2. LCD display
- On Standby mode, rotate the
Tune/Select knob to adjust the
brightness level or using the up/down
key on remote control
3. Speaker
4. Back
- Back to previous menu
5. Menu
- Press to enter main menu
6. Preset
- Long press to add station to favourite;
- Short press to recall list of favorite
stations
7. Dial/ Select control
- Rotate to up/down or volume control;
push to select / confirm OK
8. Standby Should show icon only
- Press to turn on the radio/standby
9. Mode
- Switch between modes of Internet
radio /UPnP/Aux-in, and press
Dial/Select to confirm.
10. Local
- Quick access the local station in your
country after setting up in
Configuration
11. Right
- Right cursor
- Under Favorite list, press to enter the
edit menu
12. Sleep
- Set the Sleep Timer
13. Left/EQ
- Left cursor
- When listening to music, press to
access the EQ setting menu

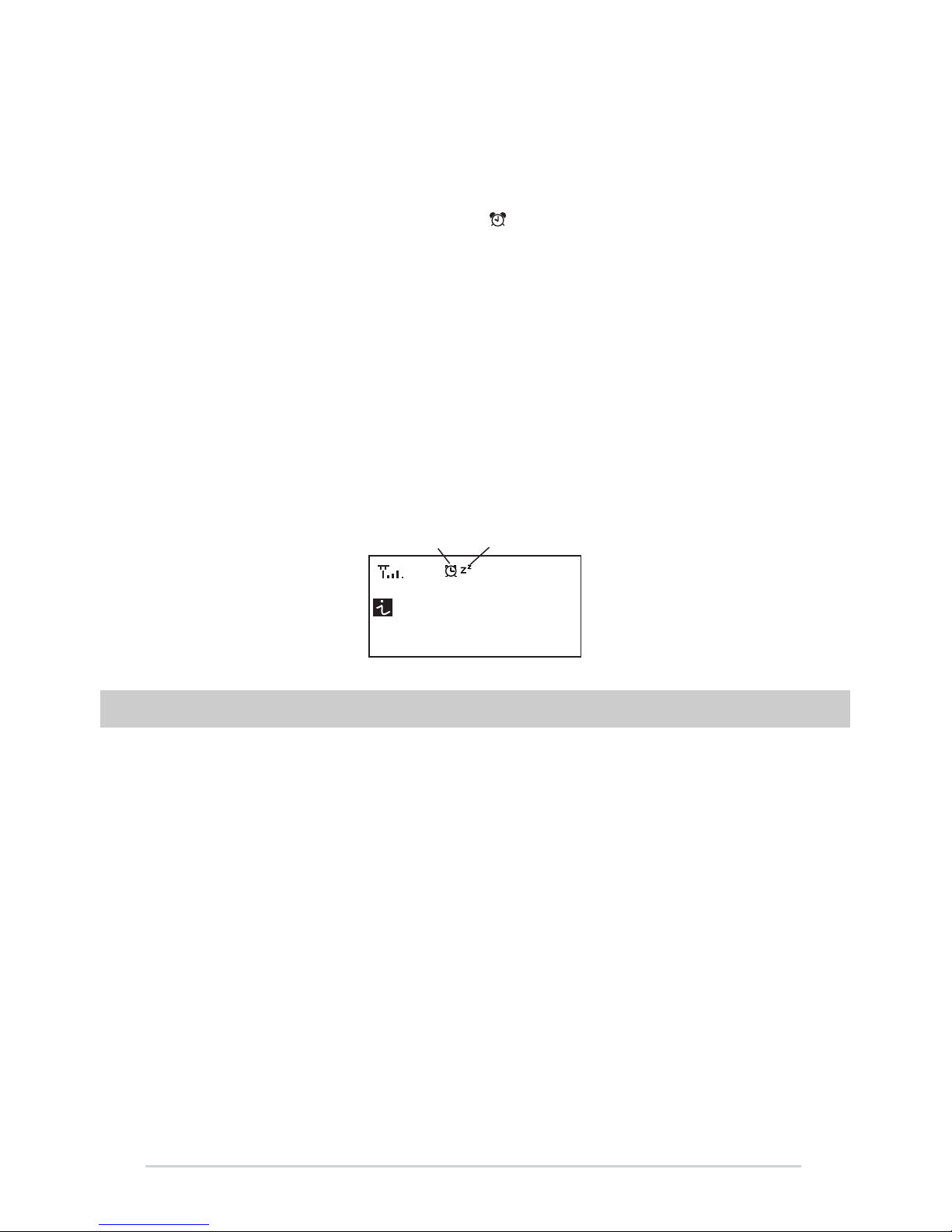

14. Alarm/Snooze
- Set Alarm 1 and 2
- When alarm sounds, press to delay
the alarm for 9 minutes
15. Aux-In jack
16. 3.5 mm Line out jack
17. 3.5 mm Earphone jack
18. DC jack 9V
15 18

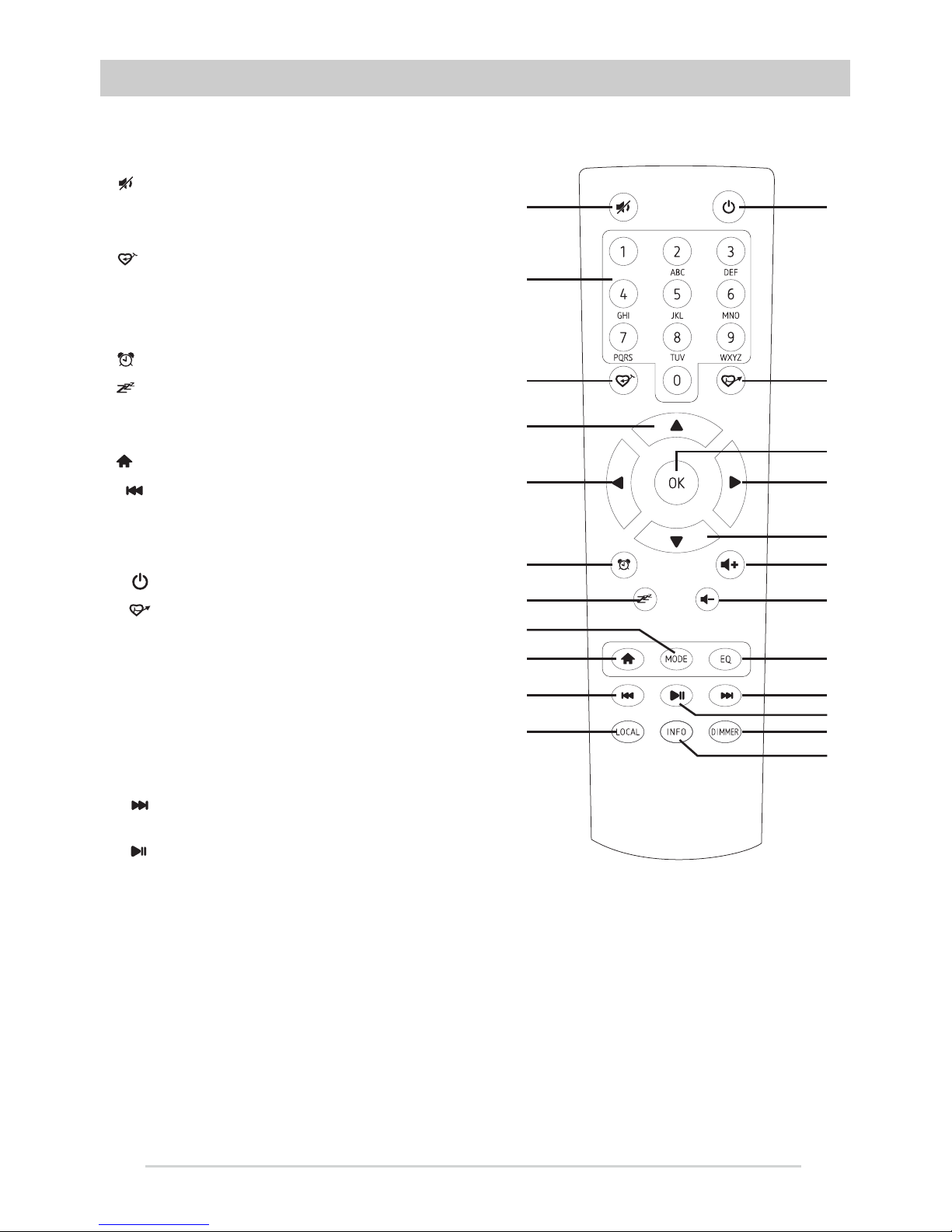

Remote Control
3
1. : Mute
2. 0-9: Favorite station key / input letters and
numbers for WiFi Encryption code
3. : Preset the current playing station to
Favorite
4. ▲: Cursor up
5. : Cursor left / back to previous menu
6. : Alarm button
7. : Sleep Timer
8. Mode: Switch between Internet
radio/UPnP/Aux-in
9. : Main Menu
10. : Previous station on the list/previous
track on UPnP
11. Local: Access the local station list (Local
area set up in Configuration)
12. : Standby button
13. : Recall the favorite list
14. OK: confirm button
15. : Cursor right
16. ▼: Cursor down
17. Vol+: Volume up
18. Vol-: Volume down
19. EQ: Equalizer
20. : Next station on the list/next track on
UPnP
21. : Play/pause for internet radio
22. Dimmer: Access the Dimmer menu to
adjust the brightness of the
display
23. Info: Quick access to Network and
System information
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

Enter encryption code of the Wi-Fi router
4
Using remote control
When you want to enter letters, numbers or symbols for the encryption code, using remote
control would be easy to complete the job.
Here is the definition of each key and toggle the same numeric key to cycling through different
letters / symbol available.
After each entry, press the right key to input the next. When it is done, press <OK > to confirm.
Key 1: 1 and different kind of symbols !@#$%^&*()_+[]{};:'”\|,./<>?
Key 2: 2ABCabc
Key 3: 3DEFdef
Key 4: 4GHIghi
Key 5: 5JKLjkl
Key 6: 6MNOmno
Key 7: 7PQRSpqrs
Key 8: 8TUVtuv
Key 9: 9WXYZwxyz
Key 0: 0
Using buttons on the radio
Use the Dial control to scroll through the letters or symbols, press right key to input the next
entry, press left key to delete the wrong entry. Push the knob when it is done.

5
Before you start
Please ensure the following is ready:
• You have a broadband internet connection.
• A wireless (Wi-Fi) broadband router (2.4GHz) is connected to the internet successfully.
The radio supports Wireless B, G and N connection (Wireless N router can also be used with
the setting on B or G).
• You know the Wired Equivalent Privacy (WEP) or Wi-Fi Protected Access (WPA) data
encryption code/password. You need to enter the correct code when the radio is connected
to the wireless router for network connection.
If you do not know the code/password, please contact the person /technician who set up the
router/network for you.
• The radio supports Wireless network connection (Wi-Fi connection).
Precautions
• The radio should not be used in a high temperature or high humidity environment over
prolonged periods of time as this may damage the unit.
• Keep the radio away from liquids as it may get damaged. Please switch off the radio
immediately if water or liquids is spilled into the radio. Consult with the shop you bought this
radio for any question.
• Avoid using or storing the unit in dusty or sandy environment.
• Do not open and repair the radio by yourself.
• Use only the AC adaptor supplied with the radio.
Connecting a power supply with a different rating will cause permanent damage to the radio
and may be hazardous.
• Clean only with dry cloth

Connect the radio with your Wi-Fi Router
1. Use the AC adaptor supplied with the product, one end to the DC socket located at the rear
side of the radio and the other end to the wall socket outlet.
Caution: Use only the adaptor supplied with the radio. Connecting a power supply
with a different rating will cause permanent damage to the radio and may be
hazardous.

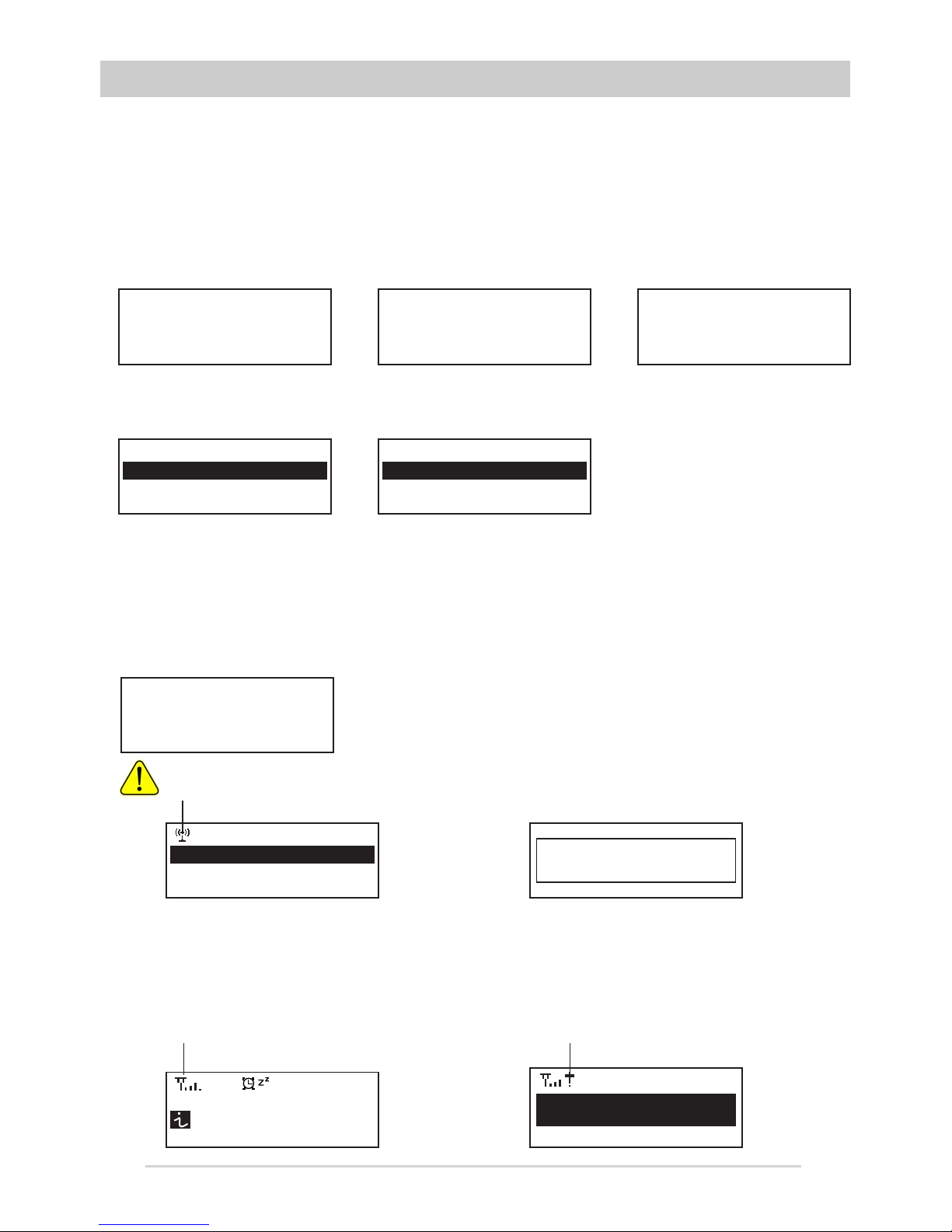

2. The radio will power on and display as follow. Choose <Yes> to start configuring network.
3. Select <Add/Remove AP> and <Add AP>:
4. It will start scanning the available AP (Access points /Wi-Fi routers) nearby. Choose to
connect your AP and enter the encryption code. Press 'OK' on remote, or <Dial/Select> on
unit to confirm.
Remark: The encryption codes are case sensitive to upper and lower case.
5. When the Wi-Fi connection is done, the display shows:
Connecting to Network
>>>>>>>
Configure Network?
<Yes> No
Welcome
Add/Remove AP
AP:[ ]
Add AP
Remove AP
Association complete
When this symbol appears, the radio is
trying to connect to the Wi-Fi network
Skytune
Search
< 1/6 >
01:42AM
If you try to select Skytune when the Wi-Fi
network is not connected, it will show the
message below:
Skytune not connected,
retry later
After the Wi-Fi network is connected,
you will see the Wi-Fi signal bar here.
1. fm Bay Smooth Jazz
H2 ch
< 18/11225 00:25
iRadio
6
My Favourite
Internet Radio
11:10 AM
No internet warning icon
When the “No internet warning icon” appears,
it means the Wifi connection is there but there
is problem in the internet connection. Please
check your internet connection if this icon
appears.

My Favorite
Internet Radio
Media Centre
AUX-in
Alarm
Sleep Timer
Configuration
7
Start using internet radio
Press <Menu> to return to the main menu or press the key on the remote control.
You will see the item list below:
My Favorite - To show the list of favorite stations which have been assigned to the presets.
There are up to 99 presets available.
Internet Radio - Start exploring the worldwide radio stations and music here
Media Centre - Music streams from the UPnP servers/ devices under the same Wi-Fi network
AUX-in - Play from other audio devices by connecting the audio cable.
Alarm- To set alarms
Sleep Timer- You can set the timer to turn the radio standby after certain time elapsed
Configuration- More settings available for you to configure the radio as you desire
My Favorite
This is to show the list of your Favorite stations which have been assigned to the presets.
 Preset a station
The radio can store up to 99 preset stations for each Internet radio and FM radio.
While you are playing a radio station, press the button on the remote control or long press
the <PRESET> key on the unit, you will see the icon appears as below. It means the station
is added to the Favorite list.
The new added stations will always appear in the last item on the Favorite list. You can store
up to 99 presets
 Recall a station
To recall the full list of your Favorite station, simply press the <PRESET> button on the radio
or use the remote control button .
You can enter the Index number to quickly scroll to the radio station you want to listen.
e.g., on the remote control, press 2 8 and <OK>, it will scroll to the station no. 28.
1. fm Bay Smooth Jazz
128kbps, 44100
Hz, 2 ch
< 1/1 00:39
HISTORY
Preset icon

 Edit your favorite list
On the Favorite list, choose the radio station you want to edit then press the right ► key on the
remote control, or the <RIGHT> button on the radio. It will enter the Edit menu with the
following options:
Move down – To move down the ranking of a station
Move up – To move up the ranking of a station
Delete – To delete a particular station
Internet Radio
On the main menu, choose <Internet Radio> and you will find the options below:
Skytune
Select Skytune to start enjoying thousands of radio stations over the world. You can filter your
search by Region, Music genre and Talks. The <Local Radio> let you access quickly the
stations available in your local area.
You can change the Local Radio area under Configuration> Local radio setup.
Search
Instead of browsing the radio station list, you can access the desired station by performing
search and input the name of the station.
History
The radio will memorize the stations you have listened on the radio. It can memorize up to 99
stations.
If you have listened more than 99 stations, it will supersede the first station that you have
listened.
Skytune
Search
History
Global Most Popular
Local Radio
Globe All
Globe By Genre
Globe By Region
8

Media Centre
UPnP (Universal Plug and Play)
You can stream music from the Networked device which supports UPnP function to the radio to
play.
For instance, most of the latest computer laptop supports UPnP, and you can stream music
from Windows Media Player application on the computer and listen on your radio.
Please make sure your computer laptop is on the same Wi-Fi network as the Radio
before you start using this function

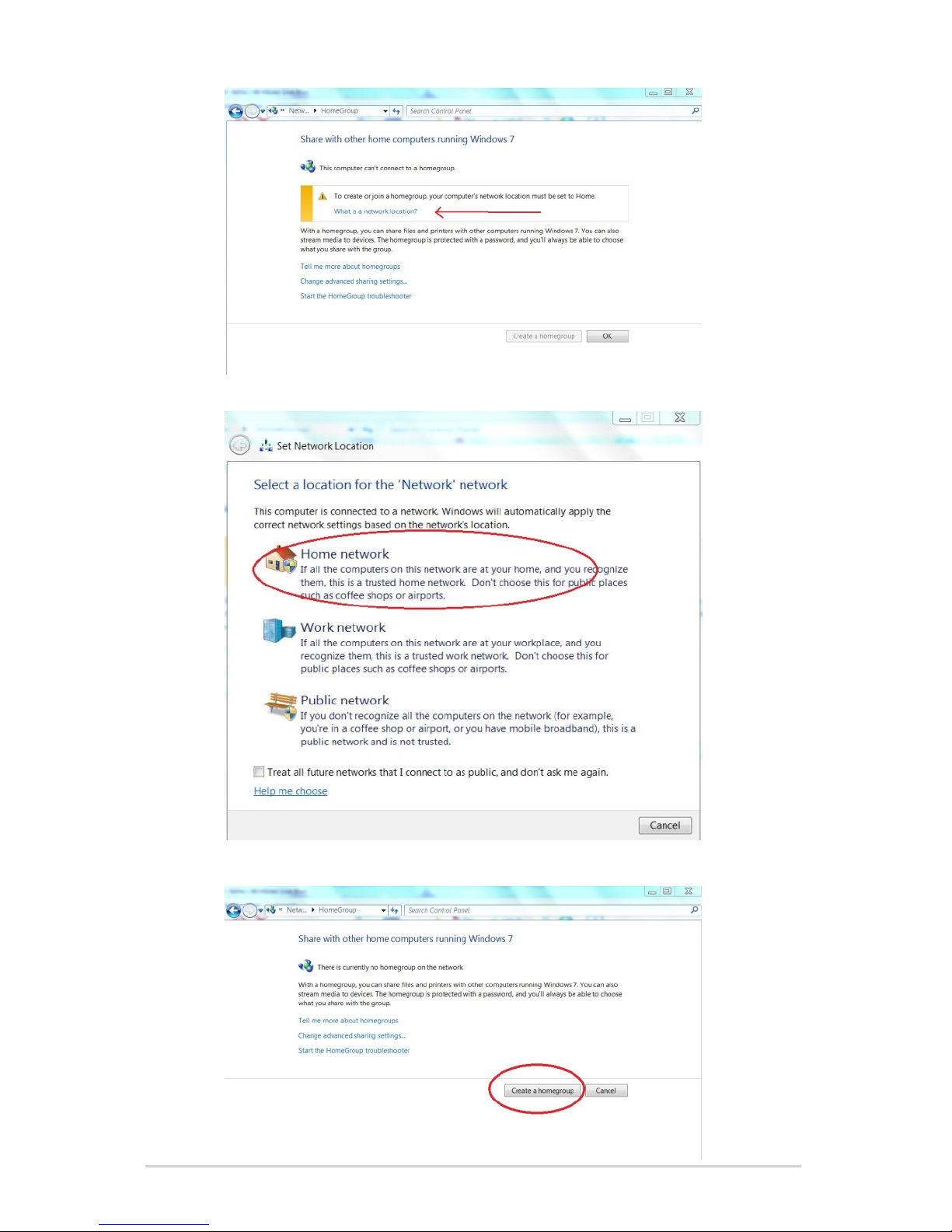

1. If your PC is running Microsoft Windows XP, then you can use Windows Media Player
11(WMP11) to act as your UPnP (Universal Plug and Play) media server. (For Windows 7 or
above, please download the correspond version of Windows Media Player). The latest
Windows Media Player may be downloaded from Microsoft’s website and install by following
the instructions detailed in its installation wizard.

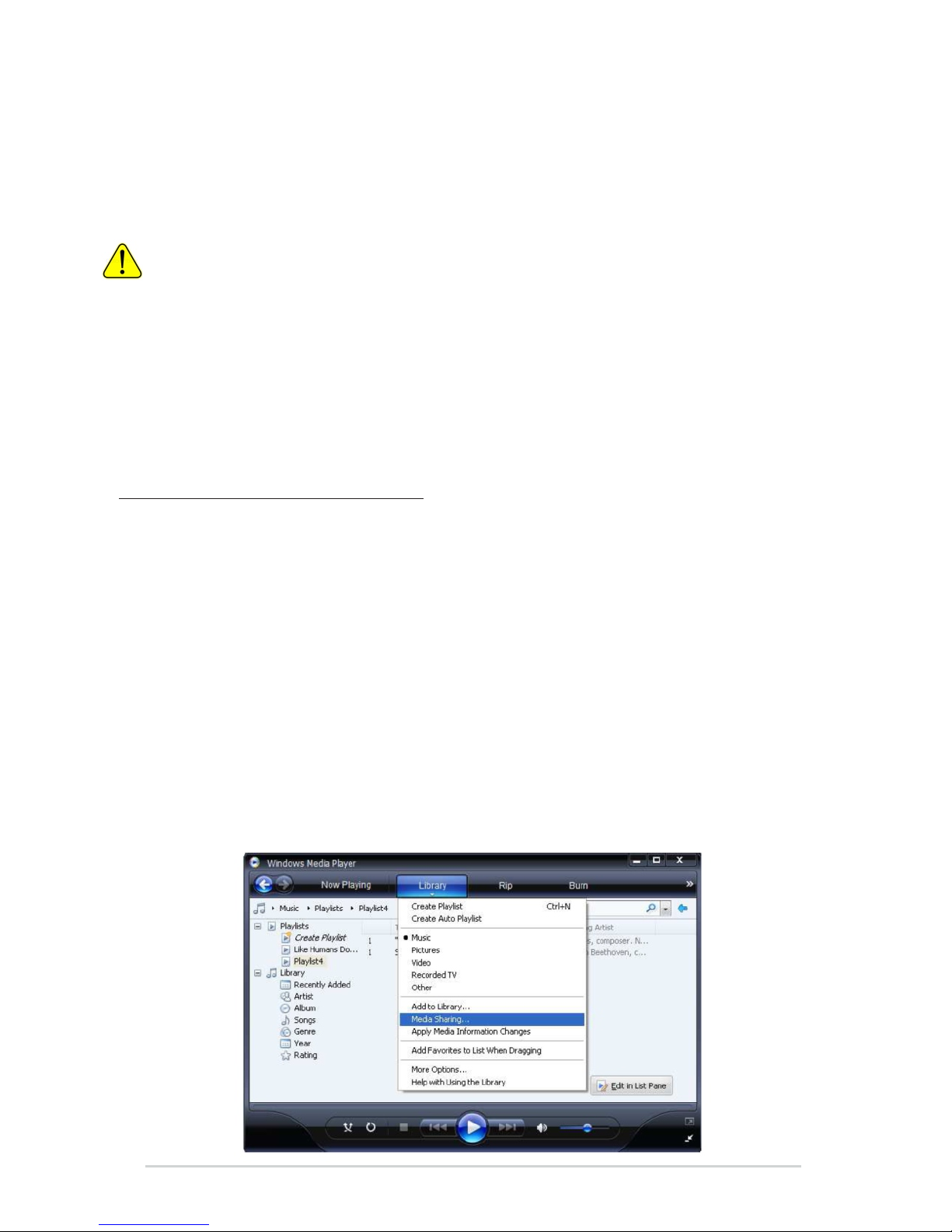

2. Once installed, Windows Media Player will create a library from all the media files available
to it on your PC.

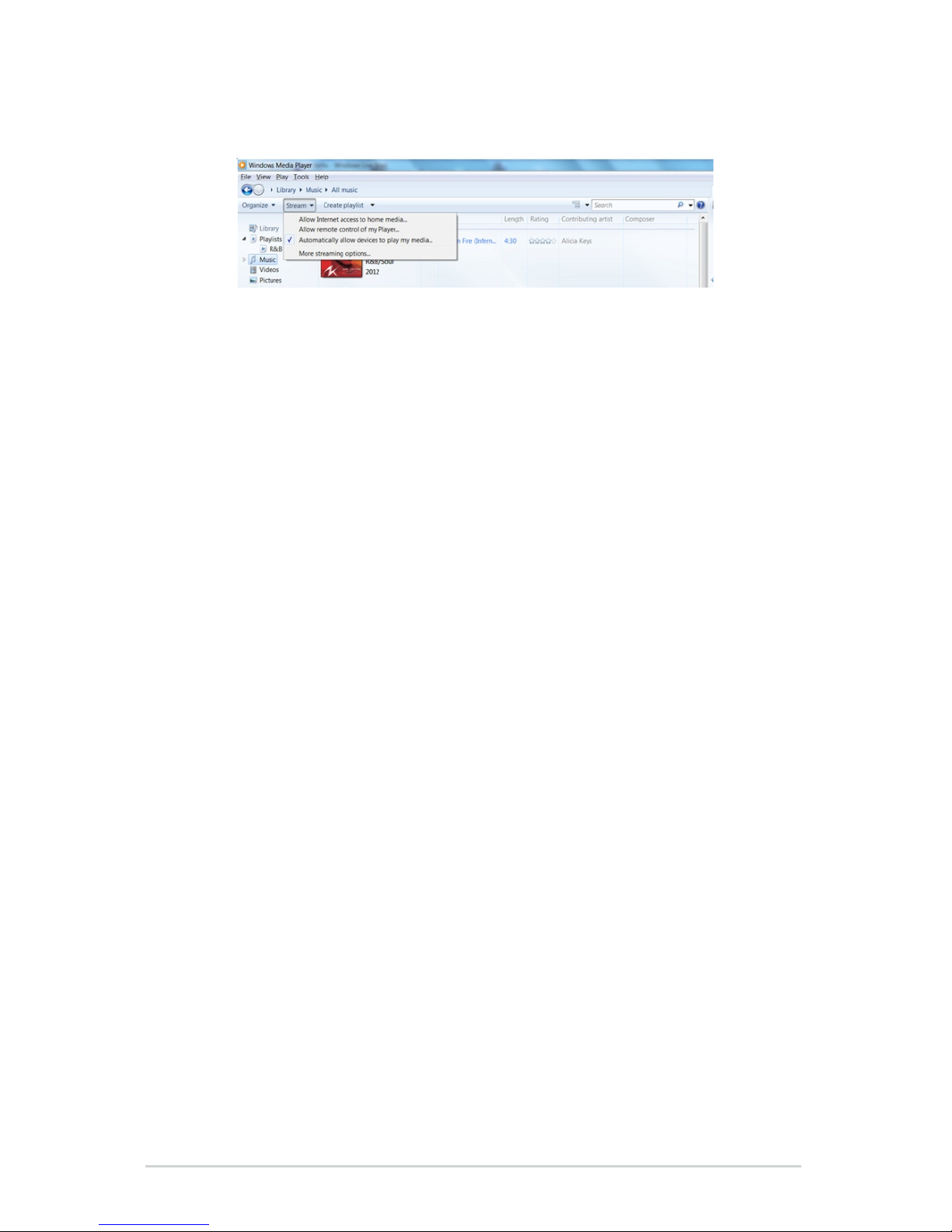

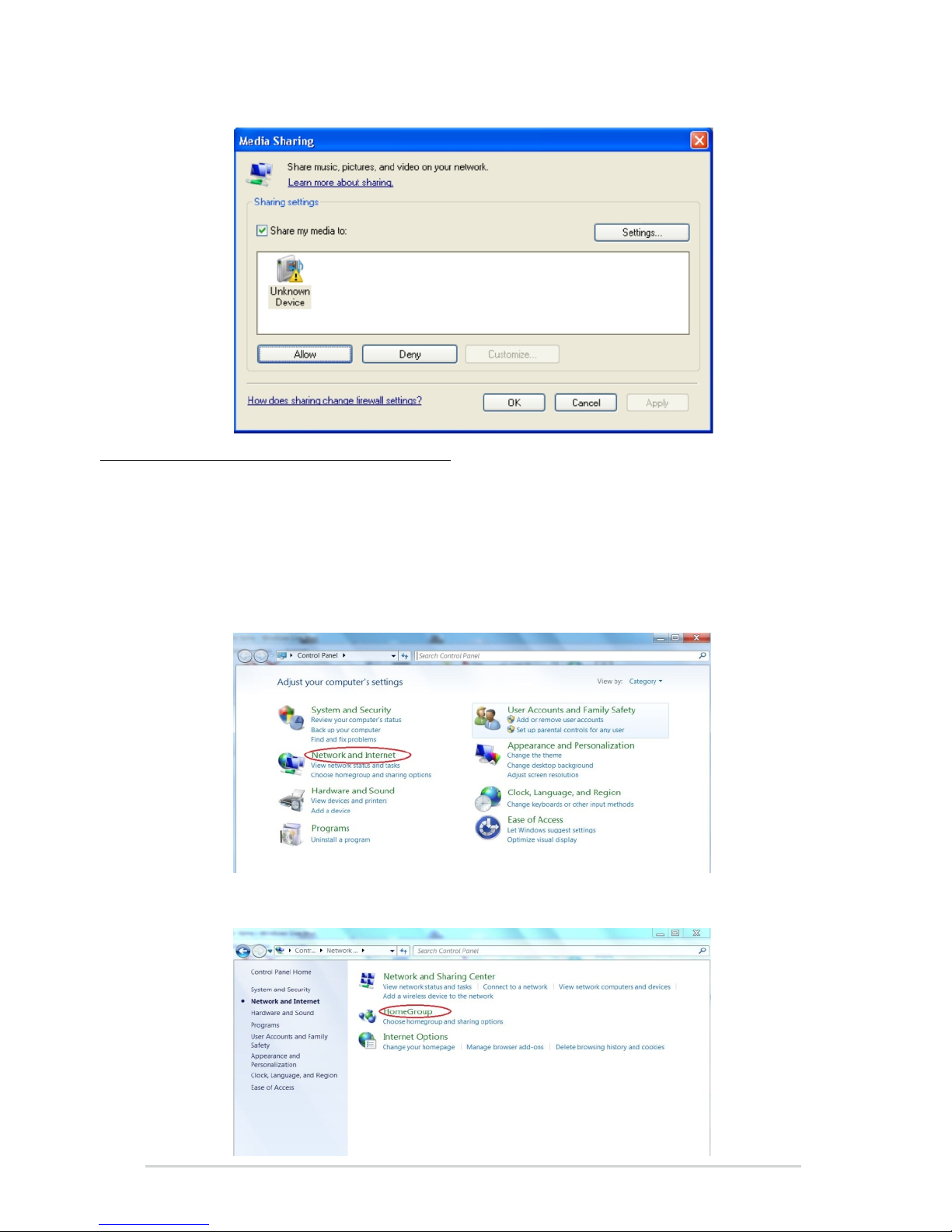

2.1 Windows XP / Windows Media 11
2.1.1 To add new media files to the library, select’ File > Add to Library…> Advanced
Options’, Click ‘Add’ and choose the files you wish to add and click’ OK’.
2.1.2 Now you need to connect your Internet radio to Windows Media Player 11 and
configure it to allow the radio to access your media library. In order to this, you will
need to do the following:
a. On the radio, go to the main menu and select <Media Centre> <UPnP>.
b. It will scan for all available UPnP servers. Note, this may take a few seconds for the radio
to complete its scan and before the scan has completed, the radio will display ‘[Empty]’.
The radio will continue to display ‘[Empty]’ if no UPnP servers and found.
c. After a successful scan. Select your UPnP server, by rotating the dial if there is more than
one UPnP server, and then press SELECT.
2.1.3 Your PC will now prompt you that a device has attempted to connect to your UPnP
server. In order to allow the radio to have access to the media files, you will need to
click the ‘Library’ tab from Windows Media Player 11 and select the <Media Sharing>
item to open the ‘Media Sharing’ window.
Selecting ‘Media Sharing…’ for Windows Media Player11:
9

2.1.4 From the ‘Media Sharing’ windows, the radio will be listed as an unknown device. Click
on the unknown device listed, then click the ‘Allow’ button and then click ‘OK’. Allowing the
Radio to Connect:
2.2 Windows 7 / Windows Media Player 12
2.2.1 If you are using WMP 12, simply go to <File> and choose <Open> to retrieve the music
files you would like to add to library.
2.2.2 Windows 7 or above requires the PC to be set as Home network and also with the
Homegroup enabled to allow devices to access/ play the media files on your Windows
Media Player. Please find the steps below:
I) Go to <Control Panel>, select <Network and Internet>
ii) Choose <HomeGroup>
10

iii) Set the network location
iv) Choose Home network
v) Create a homegroup, then choose the kind of media file to be accessed, such as music..etc.
11

vi) Launch the Windows Media Player, select <Stream> and choose <Automatically allow
devices to play my media> from the drop down list.
vii) You can now enjoy the music streaming from the windows media player.
Music streaming via UPnP
1. Once the UPnP server is configure to share media files with your radio, you can start music
streaming.
2. On the main menu, select <Media Centre> and choose <UPnP>
3. It may take a few seconds for the radio to complete the scan for available UPnP servers. If
no UPnP servers are found, it will show <Empty List>.
4. After a successful scan is done, select your UPnP server.
5. The radio will show the media categories available from the UPnP server, e.g. ‘Music’,
‘Playlists’ etc.
6. Choose the media files that you wish to play.
You can set the mode of playback under <Configuration  Playback setup>.
My Playlist
You can make you own playlist for the UPnP music files. Choose the song you want to add to
playlist, long pressing the Dial until the sign appears. The song will be added to “My playlist”.
You can add up to 99 songs to “My Playlist”.
The UPnP playlist will be erased when the radio is powered off.
Clear My Playlist
Remove all songs in “My Playlist” to allow a new playlist to be prepared.
AUX-in
You can enjoy the music from other audio devices by connecting the audio cable (with 3.5mm
pin) to the AUX IN connector at the rear side of the unit, such as mobile phone, MP3 player,
etc.
Alarm Setting
1. Choose <Alarm> from the main menu or press the <Alarm/Snooze> button on unit or press
the <Alarm> button on the remote controller.
2. Select either Alarm 1 or Alarm 2, and choose <Turn on> to activate the Alarm.
3. Follow the alarm wizard instructions to set the alarm.
The wizard will guide you through the settings below:
Time – Set the time for the alarm
Sound – You can choose wake to <Melody> or Wake to <My Favourite> as the alarm source.
 Wake to Melody- The Melody tone is default by system.
 Wake to My Favourite – only stations on favourite list can be used to set alarm.
12

Please preset your favorite station before setting the alarm.
Repeat – You can schedule the alarm as you desire – Everyday, Once or multiple days.
Alarm Volume – Adjust the volume of the alarm as you like by rotating the dial.
4. After the above settings are completed, press the left  button to exit and make sure the
Alarm is turned on. You will see the Alarm icon appeared on the display if it is activated.
Snooze
When the alarm sounds, the Snooze button will delay the alarm for 9 minutes every time the
Snooze button is pressed.
To cancel the Snooze, long pressing the Alarm/Snooze button until the display shows the
cancel dialogue box.
Sleep Timer Setting
You can set the timer to let the radio go standby after certain time elapsed in the range of 15
minutes to 180 minutes.
You can press <Sleep> button on the remote control to set the timer or press the <SLEEP>
button on the unit. You will see the icon appeared on the display if the timer is set.
Configuration
Network
There are two options under this setting: Wi-Fi Network and Wi-Fi Channels
Wi-Fi Network
 Add / Remove AP
Add AP – It will scan out a list of routers available nearby
Remove AP – If you have already added a router and want to remove it, choose this
option.
 AP: [ ]
If you have added more than one routers on the radio and want to switch to another one,
select this option to change.
 Signal
This is to show the strength of the Wi-Fi Signal of the Wi-Fi router as received by the
radio.
Usually signal levels lower than -70dBm is at weaker level and if it affects the reception
of your radio, you may need to optimize the router location or check any problem of the
router itself.
13
Alarm Sleep Timer
1. fm Bay Smooth Jazz
H2 ch
< 18/11225 00:25
iRadio

 IP
The IP is set <Dynamic> by default. Select to change <Fixed> IP according to your
network condition.
 DNS
The DNS is set <Dynamic> by default. Select to change <Fixed> DNS according to your
network condition.
Wi-Fi Channels
Not all of the Wi-Fi channels are available in every country. There may be variation
between different countries. Therefore it is necessary to choose the Wi-Fi channels to
ensure the Wi-Fi performs satisfactory.
We have already set the channels according to the requirement in different countries.
Choose the country you are staying from the list to get the correct channel.
The default country is set <Europe/United Kingdom>, press <Enter> on the Remote
controller or push the <Dial> to edit the country selection.
Date and Time
You can easily set to your local time by choosing <Set Time Zone>. Choose your local area
and the time will adjust to your local time automatically.
If you want the time to be synchronized with the network time, choose <Use Network Time>
from the menu
You can set Date & Time manually, choose the date and time format under this option.
Daylight saving setting is available.
If you choose to use Network time, the manual setting of Date and Time will be disabled.
Language
English, French, Spanish, Italian, German and Simplified Chinese are available.
Local Radio Setup
This is to set the country of <Local Radio> that you want to access when you select <Local
Radio>. When you press the <Local> on the remote control or choose <Local Radio> under
“Skytune”, it will give one-touch access the radio stations in the country that you have selected
on this setting.
The <Local Radio> is set in <Europe/United Kingdom> by default. Select the
<Europe/United Kingdom> and press <OK> to change the country you want.
Playback Setup
This is to set the mode of playback under UPnP streaming: Repeat All, Repeat Once or Shuffle.
DLNA Setup
Our radio supports streaming from DLNA devices and you can rename your radio for easy
recognition by the DLNA servers.
Resume when Power on
This function is ON by default. The radio will connect to the last listened station automatically
14

when the radio is power on.
Dimmer
You can set the display backlight level as you prefer. There are two settings available: Mode
and Level setting
Mode: Normal or Dim
Normal – the display will stay with the same level of brightness all the time without dim down.
Dim – the display will dim down after 15 seconds if no operation is made on the radio.
Level: Bright and Dim
Bright - the display will stay at the selected level when there is operation on the radio or if the
mode is selected in <Normal> as described above.
Dim - the display will dim to the selected level when <Dim> mode is selected.
Dimmer on Standby
When the radio is on Standby, rotate the dial to adjust your prefer brightness level which you
feel comfortable especially during night time.
EQ
The radio provides several choices of equalizers for you to apply to the type of music playing.
There is <Advanced> level if you want to apply your customized setting on the sound effects.
The EQ does not apply to Aux-in playback.
Information
View the Network and System Information of your radio.
To access quickly to this information, press the <Info> button on the remote control.
When you use your PC to manage the My favorite stations, you have to use the IP address
and you can view this info from here. Then type in the IP address
(Configuration>Information>Network>IP) to your PC’s browser input window
Software Update
There may be software release time to time to provide better features of the radio and continue
improvement. Check the update regularly to keep your radio up to date with the latest
software.
Reset to Default
You can do the reset to clear all the settings and return to default settings.
**Please note all the Station presets, Settings and configuration will be lost after you
have performed the Reset.
Add your favorite URL
You can add your favorite radio station if you know the published URL of the radio.
We provide an embedded server for your radio and you can manage your favorite stations
anytime to add or edit the list. Follow the steps below to access the embedded server:
1. Connect your PC to the same Wi-Fi network as your radio.
2. Locate the IP address in either way as follow:
15

 Press the <Info> button on the remote controller, choose <Network> and scroll to <IP> to
view the IP address
 On the main menu, go to Configuration>Information> Network>IP
3. Open the web browser (we support Internet Explorer and Chrome) in your PC and type the
IP address of the radio (e.g. 192.168.1.11). Ensure your PC is on the same Wi-Fi
network as the radio. The screen will pop up as below:

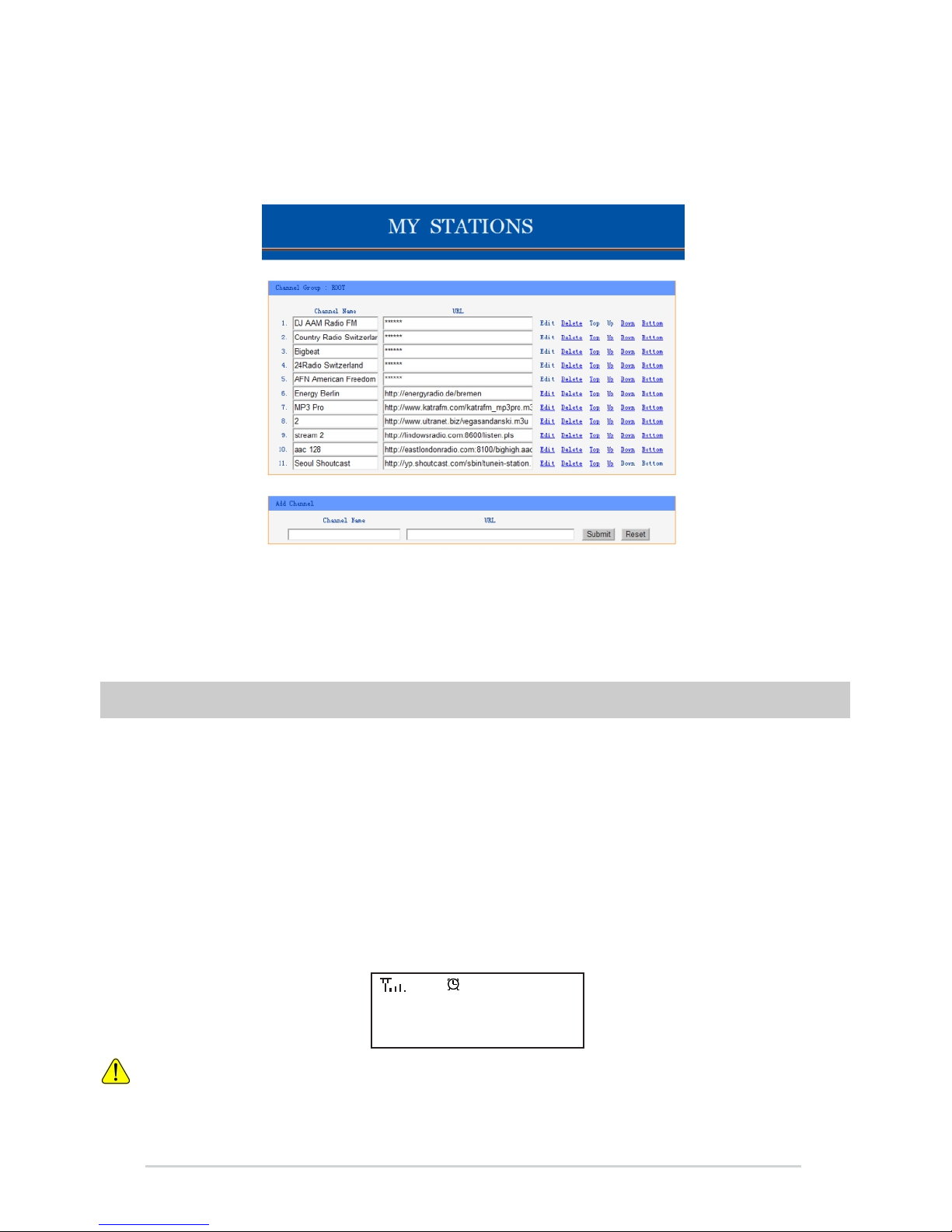

4. You can input the name and URL of a new radio station under the Add channel section, then
click Submit. The new station will sync to the Favorite list of your radio immediately.
You can add up to 99 radio stations.
Music Streaming from mobile devices
The radio supports playing music streams from mobile device which use UPnP or iOS
streaming.
Note: Ensure your mobile devices are on the same Wi-Fi network as the radio.
The radio will be discovered as the Speaker source with name <iRadio-xxxxx> on your mobile
devices.
Choose the <iRadio-xxxxx> to be the speaker to play music; our radio will start playing the
selected music
from your mobile device.
When the radio is playing streams from the remote devices, below message will appear:
If you are using iOS devices and you want to switch back to listen the internet radio,
remember to disable the <iRadio-xxxxx> as the speaker and resume the iOS device as the
source of speaker.
16
Playing from remote source
05:02PM

1. If the Internet Radio keeps re-buffering radio station:
The Internet Radio is streaming the data from the radio station via your broadband
connection, if there is a high error rate on your broadband connection, or the connection is
intermittent, then it will cause the Internet Radio to pause until the connection is re-
established and it has received enough data to start playing again.
If your Internet Radio keeps stopping, please check the DSL modem to ensure that the
Broadband line is not suffering a high error rate or disconnections. If you are experiencing
these problems, you will need to contact your broadband supplier.
2. What is Buffering?
When playing a stream, the Internet Radio/Media player, downloads a small amount of the
stream before it starts playing. This is used to fill in any gaps in the stream that may occur if
the internet or the wireless network is busy.
17

18
The Internet Radio streams music data from the PC while you are listening. If a stream gets
blocked or experiences Internet congestion while transferring it may stop/interfere with the
quality of play. If this happens, check your internet connection speed- it must be faster than the
speed of the streams.
Technical Specification
Model: WR-232
Power input: 9V 0.8A
Power voltage: 100-240V~50/60Hz
Wireless Network: IEEE802.11b/g/n
Security Protocol: WEP/WPA/WPA2
Audio output power: 3W (RMS)
Audio sockets: 3.5mm earphone jack, 3.5mm Line-out jack, 3.5mm Aux-in jack.
Unit Dimension: 195 x 115 x 115 mm (L x D x H)
Remark: Specification may vary without notice
What’s included in the box
* Internet Radio
* Power adaptor
* Remote control
* User manual

FCC Warning
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
NOTE : Any changes or modifications to this unit not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
