Anzhong Power YAG AZ-HJ-150 User manual

YAG Pulse Laser Power Supply For Welding System 150W/300W/600W Operation Manual
Shenzhen Anzhong Power Co., Ltd http://www.szazdq.com
- 1 -
YAG Pulse Laser Power Supply
For Welding System
< O pe ra t i o n Ma n u al >
Please read this manual carefully before installing and operating this product.
Shenzhen Anzhong Power Co.,Ltd
Address:6/F, B1 Anfeng Industrial Area, Lianrun ROAD, Shiguan
Industrial Zone, Dalang, Longhua New District, Shenzhen,
Guangdong, China
Postal Code:518109 Service Tel:[phone]-813
FAX:[phone] EMAIL:[e-mail]
WEB:http://www.szazdq.com

YAG Pulse Laser Power Supply For Welding System 150W/300W/600W Operation Manual
Shenzhen Anzhong Power Co., Ltd http://www.szazdq.com
- 2 -
Chapter ⅠPreface
Thanks for using the YAG pulse laser power supply for cutting system of Shenzhen
Anzhong Power. Before using the product, please read the guide carefully and put the
manual in a safe place for future reference.This manual applies to all products of this series.
The beam of special properties (wavelength 1um, 10.6um etc.) generated by exciting a
specific substance is what we call laser light, while the device that turns electric energy into
the optical energy of the foregoing wavelength is laser generator; Devices provide power to
the lasers to make it work, called laser power supply.
Shenzhen Anzhong Power Co., Ltd is a high-tech company who specializing in
researching, manufacturing and sales for laser power supply and the laser machine key
parts. The company has a great range of laser products, such as YAG solid laser cutting
/welding power supply ,the CO2 laser power supply, High-power & High-precision
semiconductor laser power supply, High-power RF laser power supply ,light source drive ,DC
power supply ,machine tool operation power supply, UV power supply with UV curing,
focusing controller, etc.
The company has leading talents and talents echelon who worked in the field of laser
power industry, and rich experience in R&D and production. For the investment in R&D, we
have a number of independent intellectual property rights and core technology, and the
Annual R & D COST is more than 10% of sales volume. To ensure that the company has a
number of innovative products on the market, Anzhong continues to invest personnel and
funds, and these innovations meet demand of the market, at the same time, it also
establishes the leading position in the laser power supply industry.
Customers’ demands are the power generator for our continuous exploration and
development. Customers’ problems are the golden key for our continuous studies and
innovation. The brand comes from quality, credibility is our life. Facing the future，Anzhong
power will continue to provide a variety of solutions for customers, improve the technology
level of laser application industry, and strive to become the frist brand of laser power supply
industry.
Anzhong Power, with the professional attitude, provides professional products for you
professionals.

YAG Pulse Laser Power Supply For Welding System 150W/300W/600W Operation Manual
Shenzhen Anzhong Power Co., Ltd http://www.szazdq.com
- 3 -
Cautions before use
．Make sure the product is what you bought after unpacking it.
．Please read this manual before using the product!
．Please follow the safety preventions, warnings, cautions and safety signs before using the
product!
Special statement
The hardware and software are subject to subsequent changes in connection with
customized models or technical update without notice.
Safety caution
To keep the operator safe and avoid danger to the laser system or environment, please
follow all the safety cautions, warnings and signs specified below and in subsequent
sections herein whenever you start any of our series products.
Copyright
All rights reserved and protected by law. No part of this manual may be reproduced in
any form or by any means without written consent from publisher.
Please contact our after service immediately for any question about the product.
Shenzhen Anzhong Power CO.,Ltd
Address:6/F,B1 An Feng Industrial Zone,Lian Run ROAD, Shi Guan Industrial Zone, Da Lang,
Long Hua New District, Shenzhen, Guangdong, China
Postal Code:518109 Service Tel:[phone]-813 FAX:[phone]
EMAIL:[e-mail]
WEB:http://www.szazdq.com
Verify the product is damaged or not during the transport.
Please contact us or our sale agent for any inconformity or damage to the product. Email:
[e-mail] (see details about unpacking and installation described herein).

YAG Pulse Laser Power Supply For Welding System 150W/300W/600W Operation Manual
Shenzhen Anzhong Power Co., Ltd http://www.szazdq.com
- 4 -
Contents
Chapter ⅠPreface............................................................................................- 2 -
Chapter ⅡPreface............................................................................................- 2 -
Chapter III Technical Parameters...........................................................- 7 -
Chapter ⅣPrinciple Introduction ..............................................................- 8 -
Chapter ⅤWire Connecting ......................................................................- 9 -
5.1 The Safety Cautions for Circuit Connection...............................- 9 -
Chapter ⅥLCD Touch Screen Introduction .....................................- 11 -
6.1 Startup Introduction .......................................................................- 11 -
6.2 Main Menu...........................................................................................- 11 -
6.3 “Laser Mode(Weld Mode)”Introduction....................................- 12 -
6.4 “Debug Mode”Introduction..........................................................- 11 -
6.5 “Date Set”Introduction ..............................................................- 11 -
6.6 “Facotry Set”Introduction............................................................- 18 -
6.7 “Fault Records”Introduction ........................................................- 20 -
Chapter VII Input/Ooutput Interface .................................................- 20 -
7.1 Diagrammatic drawing of I/O board .........................................- 20 -
7.2 I/O Board introduction................................................................- 21 -
Chapter IX Fault indication .....................................................................- 31 -
Chapter ⅩEveryday Maintenance ........................................................- 34 -
Conclusion........................................................................................................- 35 -

YAG Pulse Laser Power Supply For Welding System 150W/300W/600W Operation Manual
Shenzhen Anzhong Power Co., Ltd http://www.szazdq.com
- 5 -
Chapter ⅡIntroduction and Features
2.1Application
This product is the rational distribution of the laser welding equipment, which is the optical
power under the 600w, the conversion mode is current or energy. It is not only weld the same
materials together like Ti, Ni, Sn, Zn, Cu, Al, Cr, Nb, Au, Ag, alloy, steel, the KOVAR alloy etc，but also
weld the different metal materials like Cu-Ni, Ni-Ti, Cu-Ti, Ti-Mo, Brass-Cu, low carbon steel-Cu etc.
Application industries: Mobile, Electronic components, Clock glasses, Jewelry accessories,
Hardware products, Precision instrument, Medical appliances, Auto parts, Power battery, and Craft
gifts etc.
2.2 Product description
Series of AZ-HJ YAG Pulse laser welding power supply is the product of independent R&D by
our company ,which is high-precision constant-current power supply controlled by DSP, have the
function of laser energy negative feedback and current feedback. It is
a standard power supply for Nd：YAG pulse laser. Advanced technology , in the same industry is also
a leading level.
Working with the energy mode and current mode.The max. single pulse energy can be up to
100J,instability rate is less than ± 2%. The laser machine could realized the penetration depth of
ordinary Stainless Steel plate is 3mm,for the Copper Sheet is 2mm,for the Pure Aluminum plate is
2mm to match our power supply.For the materials such as Ti, Ni, Sn, Zn, Cu, Al, Cr, Nb, Au, Ag, alloy,
steel, the KOVAR alloy and others,we provide the processing solution.
The interface is friendly, parameters and state can be display. Users can set kinds of laser
waveform and parameters by touch screen. The alarm functions are the water temperature, water
flow, water level, over current under/over voltage and phase loss etc. It can almost meet all
requirements of laser welding fields. It is the best power for the multi-function laser welding
machine. According to the different in the welding applications, the Output Power of power supply is
different. And also can customized according to customer demand for processing..For the power
class, respectively, for the single lamp,3kw (optical power 150w),9kw (optical power 150w),double
lamp=12kw(optical power 300w), double lamp=18kw(optical power 600w).
2.3 Main Features：
Laser energy with a real-time feedback, the deviation range is less than ± 2%,the precision
control for single point energy,making the laser welding process standardization.
Initiative pulses output can be exactly controlled by the thermal stability period of resonant
cavity and wide fluctuation of laser energy.

YAG Pulse Laser Power Supply For Welding System 150W/300W/600W Operation Manual
Shenzhen Anzhong Power Co., Ltd http://www.szazdq.com
- 6 -
With the Slow Decrease & Increase and the first impulse control functions for the welding closed
graph.
Compensates laser energy degradation.The system will prompt to change the lamp or other
maintain items if it over the range of the compensation.(option)
The working way,waveform and parameter can be dynamic switched by external control mode.
All of the parameters can be set in Chinese-English interface.
Working state can be output remotely (fault,normal,standby),also use in the remote monitoring.
With multi-purpose external protect port to handle the signal of the water temperature,water
pressure,flow capacity,conductivity,fiber temperature,etc.
Multiple external control board like serial,I/O,analog control,etc.),make the automatic system
integrate easier.
The automatic laser gate control function depends on timing or laser power,they are all accurate
and with a high-speed. (option)

YAG Pulse Laser Power Supply For Welding System 150W/300W/600W Operation Manual
Shenzhen Anzhong Power Co., Ltd http://www.szazdq.com
- 7 -
Chapter III Technical Parameters
Model
AZ-HJ-150
AZ-HJ-300
AZ-HJ-600
Pumping Lamp
Model&Quantity
1pcs.
2pcs.
2pcs.
Max. single pulse energy
60J
100J
120J
Average laser output
power
150W
300W
600W
Laser output peak-power
5kW
10kW
12kW
Rated output power
8kW
14kW
18kW
Input voltage/frequency
range
TN-C,380V± 10%，50Hz-60Hz
Charging Box Dimension
530mm*430mm* 200mm
Discharging Box Dimension
530mm*430mm*200mm
Power box number
1charging box,1discharging box
1 discharging box
1 charging box,2 discharging box
Net weight
(charging box) 26.5 kg / (discharging box) 28.5 kg
Laser working way
Pulse
Display control Way
LCD Color touch screen
Pulse width range
0.1～15.0ms
Laser frequency range
1Hz～100Hz
Pulse current output range
25A-350A
(current working way)
Preburning time
About 1 minute
Continuous working time
More than 24 Hours
Spot welding count
1～9999
Alarm record
For the last 6 group alarm
information record
Cooling way
Forced air cooling
Laser energy stability
The deviation range of laser pulse energy is less than ± 2%In energy mode
Memory
capacity
There are 32 groups laser process parameters, up to 20 waveforms cab be set in each group
Each inflection point width: 0-15.0 ms (there are 24 inflection points can be set)
Laser output peak-power percentage: 0-100.0% (there are 24 inflection points can be set)
Setting waveform:In the energy working mode,display the actually energy waveform , current working mode
no display.
Woking
Environment
In the environmental temperature below45 ℃drying conditions used, air dust <0.01 g/m3, ask no
condensation.

YAG Pulse Laser Power Supply For Welding System 150W/300W/600W Operation Manual
Shenzhen Anzhong Power Co., Ltd http://www.szazdq.com
- 8 -
Chapter ⅣPrinciple Introduction
The circuit of the power supply has main components as following:
The main circuit includes:charging circuit,stored energy circuit,chopped-wave output and
preburning&triggering circuit.
Control Circuit includes:electrical control circuit,computer control circuit and protective
circuit.
Boost/Rectifying Circuit
Boost/Rectifying Circuit is boosted through three-phase boost system,which consist of boost
inductor and IGBT switch.The voltage is expected to rise from 380VAC to 750VDC,and will provide
the charging circuit with power.
Chopped-wave Output
The IGBT module will stop working when the electric energy of stored energy circuit is fully
charged.After that,IGBT module and storage capacitor will discharge,the charging circuit start
working.The power supply will continue this working mode.
HV Start Circuit
It’s consist of step-up Transformers,HV bridge rectifier,electric filter, current limiting
resistor,current relay,HV pulse transformer and HV triggering circuit.
Since the pulse xenon lamp has entered a state of normal glow discharge when preburning,it
will assume the negative-resistance characteristic.The preburn circuit must be assumed a high
current state to ensure of the normal operation of xenon lamp glow discharge after the end of arc
discharge.So the current limiting resistor of preburn circuit is bigger.The trigger mode of the power
supply is internal trigger.The preburing circuit will trigger automatically,when the storage capacitor is
fully charged,the HV pulse transformer can produce 15000-20000V HV to the xenon lamp,as soon as
preburning succeed,the triggering circuit will cut off by itself.
Control Circuit
There are two primary components that make up a control circuit: operating circuit and
computer controlled circuit.The operating circuit with the interlock protection function,which is by
button,contactor and electric relay to achieve the make-break-operation of pump,preburn
circuit,main power and the control power.The whole computer controlled circuit is assembled on a
circuit board.

YAG Pulse Laser Power Supply For Welding System 150W/300W/600W Operation Manual
Shenzhen Anzhong Power Co., Ltd http://www.szazdq.com
- 9 -
Chapter ⅤWire Connecting
5.1 The Safety Cautions for Circuit Connection
Please read the cautions carefully before connecting the circuit and follow them strictly.
Environment:Please use the power at ambient temperature is not to be more than 45
degrees, humidity is less than 85%,and the ambient temperature should not fluctuate
widely.It is prohibited to use of this power in the following environments,
- Dust, oil environment
- Vibratory environment
- Corrosive environment
- High-frequency noise environment
- Humid environment
- Ambient air contains high concentrations of carbon, nitrogen and sulfur oxides CO2, NOx
or SOx）.
Don’t place screws or coins inside the power supply,which could cause a short circuit and
damage the machine.
Press the buttons with uniform force instead of touching them with screwdriver specially
sharp-pointed things in case the screen is damaged.(Fingers or a special stylus are
permitted)
Don’t press or operate the buttons and switches continuously. Repeated switching could
shorten the service life of the machine
The power supply of machine is 380V. There is HV in chassis. Don’t touch inside of machine
when power on and off within 15 minutes.
Don’t dismount or install or, refit welding machine,which may cause an electric shock or
fire.Prohibit any operation other than specified in the manual behavior
Don’t damage the power wire and kinds of connecting wires. Don’t tread, stretch or twist
the power wire and any connecting wires,which may cause a short circuit or fire.If there is
any place in need of repair, please contact our company.If the machine appears abnormal
condition, please shut off and stop using it immediately.
If the machine appeared charred, screechy, overheating or smoking and other accidents,
please shut off the power immediately in case causing an electric shock or fire.In case of
the above, please contact us immediately.
According to the safety regulation and to keep the operator safe and avoid damaging the
equipment, safety earth is necessary as the power supply with the metal enclosure.
All of the pins of plug should plug in correctly. There are different numbers on the plug and
socket, find the same number and insert them corresponding please. Otherwise, the power
supply will be damaged.

YAG Pulse Laser Power Supply For Welding System 150W/300W/600W Operation Manual
Shenzhen Anzhong Power Co., Ltd http://www.szazdq.com
- 10 -
Make sure that the cathode/anode wires are correctly connected!
Don’t connect the three-phase voltage, until all of the connector wires have been
connected correct.
The charge wires of charging Box and discharging box should be minimum 10mm2in
diameter each. In strictly accordance with the standard of our company supplies wires.
The wires from the power supply to the xenon lamps should be minimum 10mm2in
diameter each. In strictly accordance with the standard of our company supplies wires.
The wire connector of power supply input-output should be securely pressed to avoid loose
connection that may cause sparking or heating in the conductor.
Avoid binding the charge wire and discharge wire together with the lamp wire in case of
serious heating in the conductor.
Avoid binding the signal wire together with the input-output wire in case of interference.
Don’t starting the power supply, until the water chiller or water cooling system work
properly.
A high-voltage pulse output when staring the xenon lamp, so the operator should stay
away form the cable of xenon lamp electrode.
The power voltage of the product is 380V three-phase AC, high-voltage is with several parts
of the power boxes. Don't touch the charged metal parts of the connectors inside and
outside of the machine when it is on "Power On" mode or within 30 minutes after the power
is off.
It was forbidden to open the power box by the non-professionals for safety.
Check the insulation of instrument for measure is good, e.g. multimeter and oscilloscope
etc.
Ensure the gear position in the Voltage Grade in voltage measurement and the range of
the meters and instruments larger than the testing point voltage.
Ensure good ventilation and sufficient radiation space are provided when installing the
power to keep the air duct well ventilated.

YAG Pulse Laser Power Supply For Welding System 150W/300W/600W Operation Manual
Shenzhen Anzhong Power Co., Ltd http://www.szazdq.com
- 11 -
Chapter ⅥLCD Touch Screen Introduction
6.1 Startup Introduction
After turning on the device,the touch-screen will enter self-checking interface,which is usually
contains the following,
Memory
Battery voltage
Safety switch (E-stop,case,xenon lamp exchange cover)
Flow
Shutter
EEPROM module
Time module
Energy detector
Please turn on the key switch when you see the words”please unlock”.(Users set the key
switch by yourself),please see the following picture：

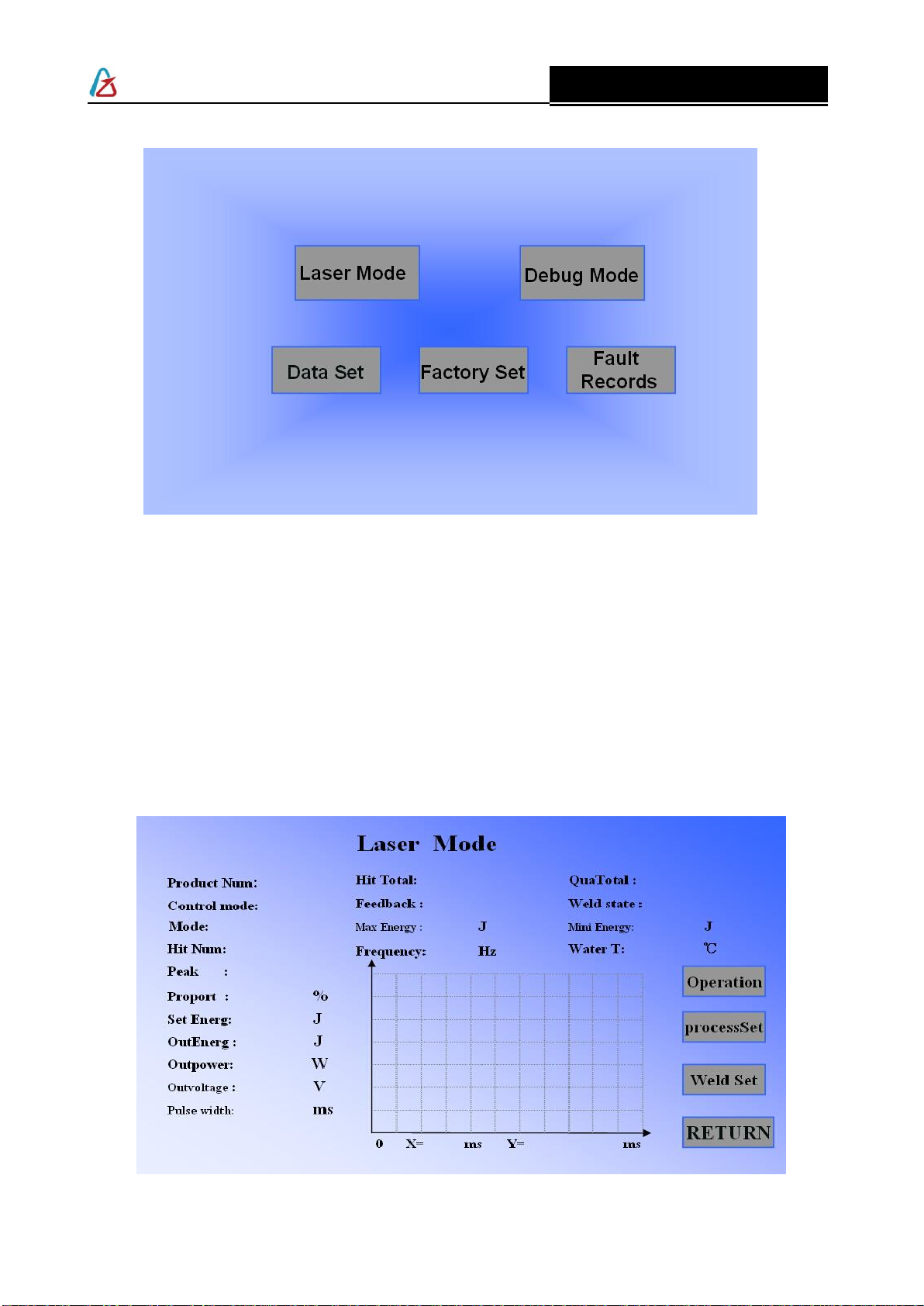

6.2 Main Menu
After turning on the key switch ,self-checking is activated. After 3-5 seconds for
self-checking,the screen will directly display the "Menu" interface. If the self-checking fails,the
screen will display the corresponding error message. Users can adjust equipment according to the
messages ,then start up again,please see the following picture：

YAG Pulse Laser Power Supply For Welding System 150W/300W/600W Operation Manual
Shenzhen Anzhong Power Co., Ltd http://www.szazdq.com
- 12 -
Menu Instruction：
Laser Mode: Setting the welding parameters and waveform.
Debug Mode: Setting the laser or the crystal. (Rarely used).
Data Set(Process Set): Temperature, laser output delayed, display in English &
Chinese, external mode switch.
Factory Set: Chose the model, the trial date, the real time.

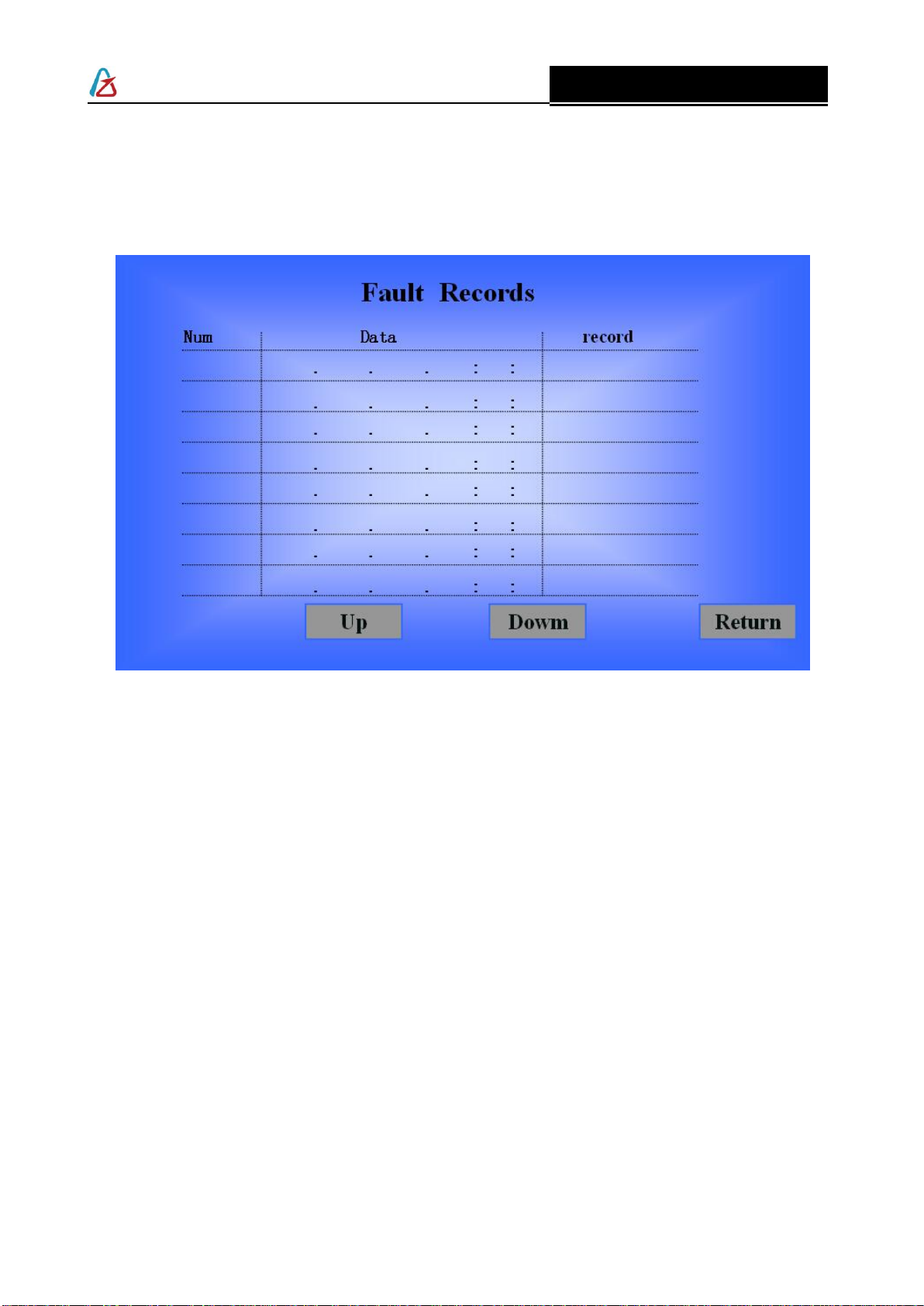

Fault Records：Recording faults of system.
6.3 “Laser Mode(Weld Mode)”Introduction
Setting the welding parameters and waveform.You can enter the control system, parameters
and weld seam set interface.

YAG Pulse Laser Power Supply For Welding System 150W/300W/600W Operation Manual
Shenzhen Anzhong Power Co., Ltd http://www.szazdq.com
- 13 -
6.3.1 “Operation”Introduction
Red light,Step key, One-Key Operate and 光闸 control.
6.3.2 “Process Set”Introduction
Feedback Mode:Energy feedbac and current feedback.
Conmode(Control Mode)：Internal control and external control can be chose.
Set Energy：In the energy mode,according to the setting parameters to calculate the setting
energy;It will dispaly “0”, under the current mode.
Peak input:
In the current mode, enter the maximum units for 50w as 250A, the minimum is 20A.
In the energy mode, enter the maximum units for 50w as 7.5kw, the minimum is 0.5kw.
Proportion: Input proportion is 0-100%；
Frequency: Laser output frequency is 1-100Hz；
Hit Num: Laser output times. When the num is “0”, press the laser key, the laser will output all the
time. When the num is 1-60000, the laser will stop at the num of your set.
Max Energy & Min Energy: It is the limit of the energy output. When the energy over the limited,
you will see the prompt.
Schedule Mode: 0-31 modes for setting and to corresponding different peak and input percent,
power, laser output frequency and times, Max & Min energy and waveform.
Waveform Setting:24 waveforms can be set. You can press the Page Up/Down to viewing/clearing
the waveform. Remember press “Save set”to save the waveform what you set, and you can check it

YAG Pulse Laser Power Supply For Welding System 150W/300W/600W Operation Manual
Shenzhen Anzhong Power Co., Ltd http://www.szazdq.com
- 14 -
after save it.
Password Setting: Change or close the password of this page.（Details in 6.3.2.1）
Save Setting：After save the parameters, the waveform will update.
6.3.2.1 Password Set
Setting the password of the “Process Set”page or cancel it.Password is any combination of
numbers between 1-999999.When the new password is “0”,you can enter the “Process Set”page
without any password.

YAG Pulse Laser Power Supply For Welding System 150W/300W/600W Operation Manual
Shenzhen Anzhong Power Co., Ltd http://www.szazdq.com
- 15 -

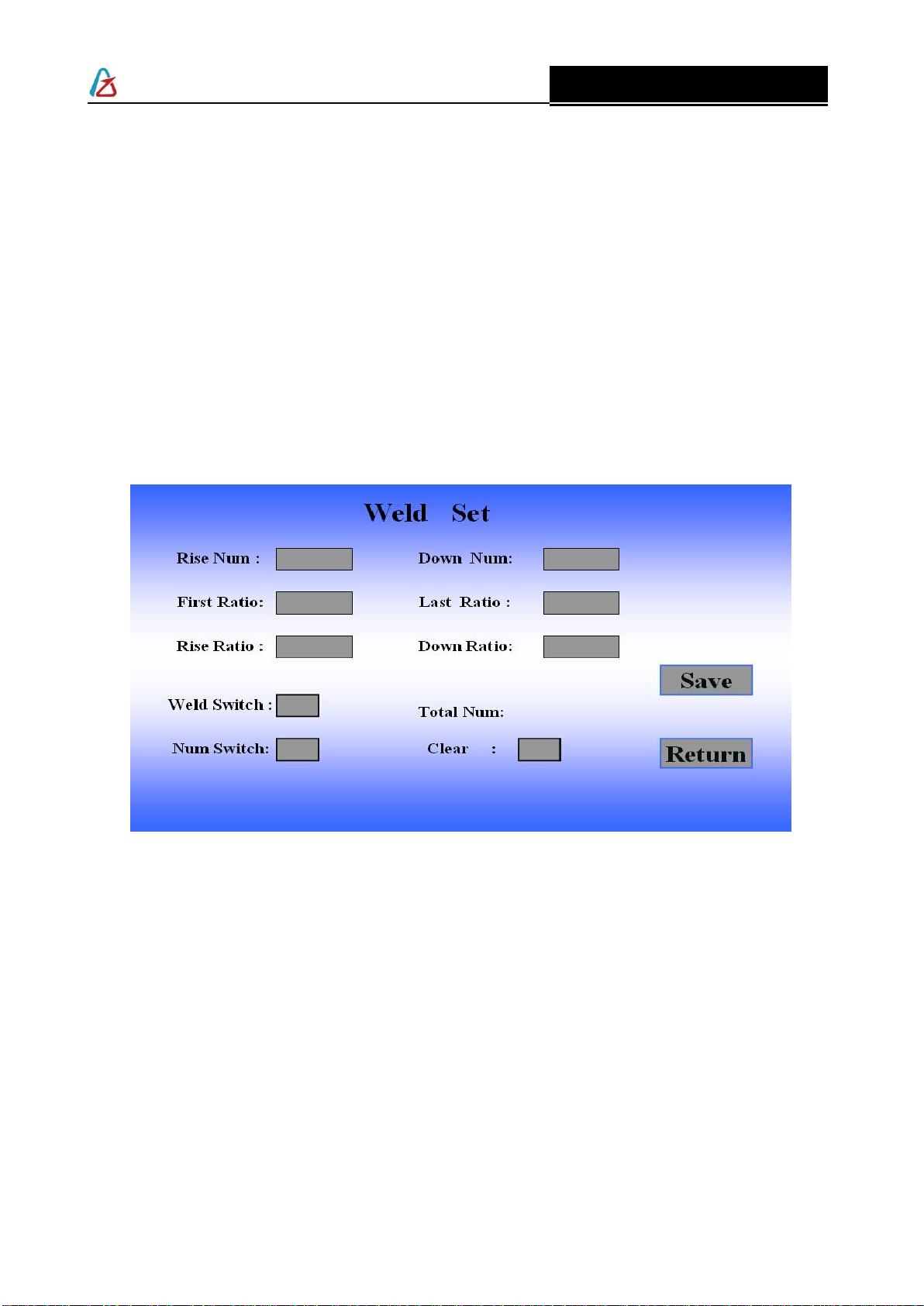

6.3.3 “Weld Set”Introduction
If you want to modify the Ramp Up/Down parameters,please enter this page.
【1】Rise Num:：Ramp up points.
【2】Fisrt Ratio:The first point propotion of the peak input percent.
【3】Rise Ratio:Propotion of progressively increased between the ramp up pinots.
【4】Down Num:Ramp down points.
【5】Last Ratio:The last point propotion of the peak input percent.
【6】Down Ratio:Propotion of progressively decreased between the ramp up pinots.
【7】Num Switch:Turn ON the “Num switch”before welding.System will record all of the points
after print a complete image,and display in the “Total Num”.Please turn OFF the “Num Switch”when
you finish the welding.And then turn ON the “Weld Switch”to input the Ramp up/down
parameters.Press “Save”, system parameters will be automatically updated to that you setted .（For
the switch,“Yellow”is ON,“Gray ”is OFF)

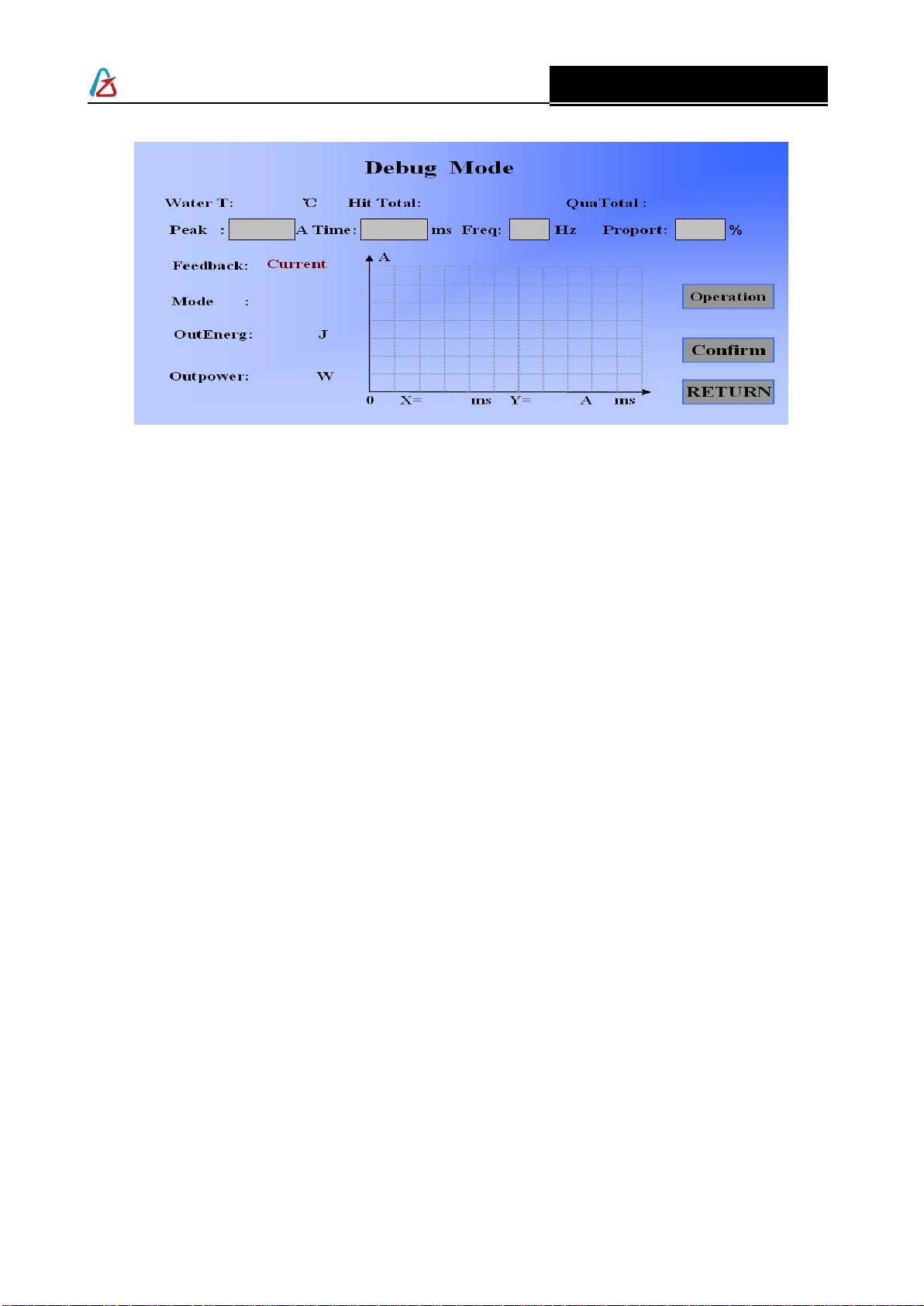

6.4 “Debug Mode”Introduction
Only for current mode.The current range for setting is 20A-250A;The Pulse width time range for
setting is 0.1-15ms.

YAG Pulse Laser Power Supply For Welding System 150W/300W/600W Operation Manual
Shenzhen Anzhong Power Co., Ltd http://www.szazdq.com
- 16 -

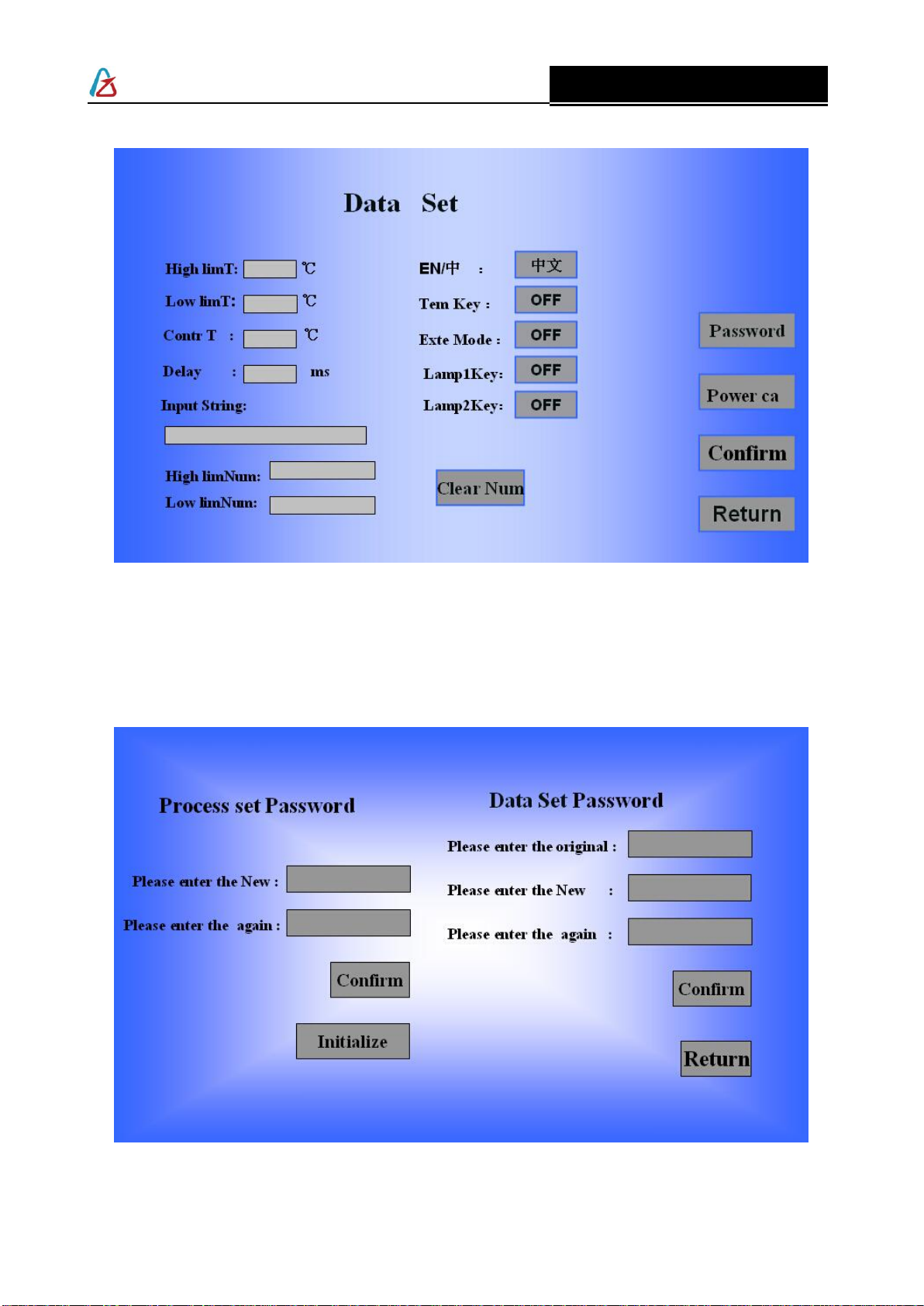

6.5 “Date Set”Introduction
【1】High limT:Upper Temperature Limit 0-99℃
【2】Low limT:Lower Temperature Limit0-99℃
【3】Cotrolled Temperature：0-99℃
【4】Delay:0-999ms
【5】Input String:It is the 15 digit serial numbers for factory.This number is for your customer to
setting or extending the service date.
【6】High limNum:Laser ouput range:0-999999999 times.
【7】Low limNum:Quality products limit:0-999999999 times.
【8】EN/中:Handover in English & Chinese；
【9】Tem Key:Temperature switch.(Unused)
【10】Exte Mode:External mode.In this mode,if you want to use the working mode 0-31,please turn
it ON ;If you opearte it with the LCD,please turn if OFF.
【11】Lamp 1 Key/Lamp 2Key:To chose the lamp1 or 2 on and off.Must be turned on before you 8、
Clear Num: Clear the total output numbers of laser and the quality products.

YAG Pulse Laser Power Supply For Welding System 150W/300W/600W Operation Manual
Shenzhen Anzhong Power Co., Ltd http://www.szazdq.com
- 17 -
6.5.1 “Date Set>Passord”Introduction
Setting the password of “the process parameters setting interface “or “restore the factory settings”.
The Process setting password range is 1-999999,passwords can be up to 6 digits.
Others Items passoword range is 1-99999999,passwords can be up to 8 digits.
6.5.2 “Power Calibration”Introduction

YAG Pulse Laser Power Supply For Welding System 150W/300W/600W Operation Manual
Shenzhen Anzhong Power Co., Ltd http://www.szazdq.com
- 18 -
It’s used to calibarate the average laser power of the machine.Please change OFF to ON before use
this fuction.When the display power is different from the actual value,you can input the power at
“Standard list”what you test and press “Save”,after that system will calibrate the average laser
power to the actual one.
6.6 “Facotry Set”Introduction
The interface is only available to equipment manufacturer.End users can not use it .
【1】Hardware and software version number.
【2】Product Number range is 0-99999999,setted by manufacturer.
【3】Model:Click to select to use 50W, 200W, 300W, 600W.
【4】Peak power limit : In energy mode , peak limit to make a maximum of 12KW.
【5】Trial Date Set : When you select this button , enter the trial date , the date to be set within ten
days away , each boot will prompt customers the use date wii full. Expires the next day , the system
will stop outout the laser.
【6】Set Date & Time : When you select this button, enter the corresponding time and date , press
"Confirm".
【7】Clear Err : Click to clear the fault record.
【8】Password : Entering process settings , parameter settings and factory set three interface
password changes.

YAG Pulse Laser Power Supply For Welding System 150W/300W/600W Operation Manual
Shenzhen Anzhong Power Co., Ltd http://www.szazdq.com
- 19 -
6.6.1 “Facotry Set>Password”Introduction
The Process setting password range is 1-999999,passwords can be up to 6 digits.
Others Items passoword range is 1-99999999,passwords can be up to 8 digits.

YAG Pulse Laser Power Supply For Welding System 150W/300W/600W Operation Manual
Shenzhen Anzhong Power Co., Ltd http://www.szazdq.com
- 20 -
6.7 “Fault Records”Introduction
The system can record the last date 30 Group fault records.
Chapter VII Input/Ooutput Interface
7.1 Diagrammatic drawing of I/O board
