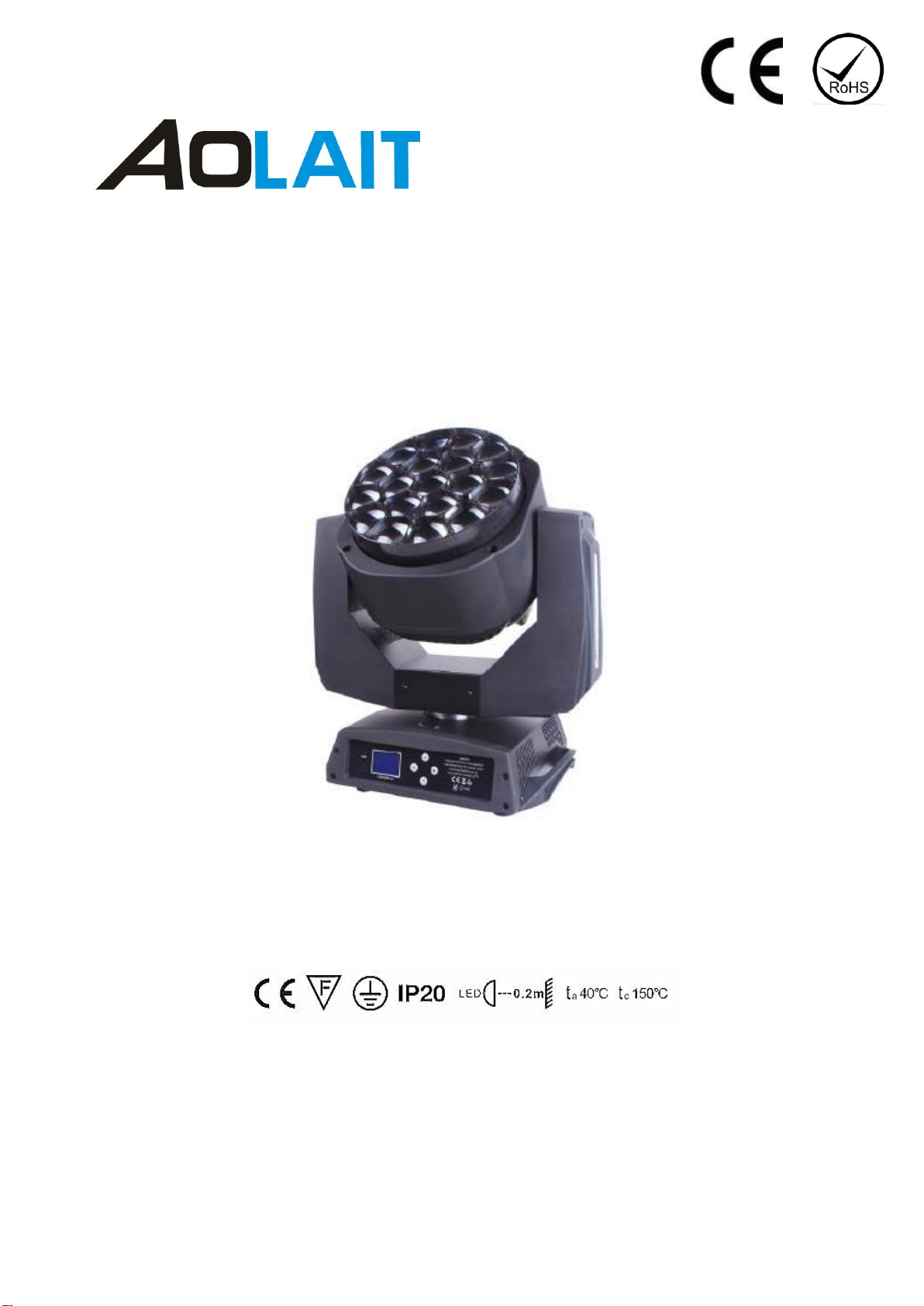

LED BEAM WASH
ZOOM and Rotation
19*15W Bee-Eye
AL1019WR
User Manual
KEEP THIS MANUAL FO FUTURE NEEDS

2/ 20
1. Unpacking
Thank you for choosing our lighting. For your own safety, please read this
manual before installing the device. This manual covers the important information on
installation and applications. Please install and operate the fixture with following
instructions. Meanwhile, please keep this manual well for future needs.
This fixture is made of a new type of high temperature strength of engineering
plastics and cast aluminum casing with nice outlook. The fixture is designed and
manufactured strictly following CE standards, complying with international standard
DMX512 protocol. It’s available independently controlled and linkable with each other
for operation. And it is applicable for large-scale live performances, theater, studio,
nightclubs and discos.
4-IN-1 LEDs(RGBW) which features high brightness and stability. Please
carefully unpack it when you receive the fixture and check whether it is damaged
during the transportation. And please check whether the following items are included
inside the box:
Moving Head---------One Signal Cable----One
Hanging Bracket-----Two Power Cable----One
Safety Cable---------one User Manual----One

3/ 20
2. Product Introduction

4/ 20
3. Safety Instructions
This device has left the factory in perfect condition. In order to maintain this condition
and to ensure a safe operation, it is absolutely necessary for the user to follow the
safety instructions and warning notes written in this user manual.
If the device has been exposed to temperature changes due to environmental
changes, do not switch it on immediately. The arising condensation could damage the
device. Leave the device switched off until it has reached room temperature.
This device falls under protection-class I. Therefore it is essential that the device be
earthed.
The electric connection must carry out by qualified person.
The device shall only be used with rate voltage and frequency.
Make sure that the available voltage is not higher than stated at the end of this
manual.
Make sure the power cord is never crimped or damaged by sharp edges. If this would
be the case, replacement of the cable must be done by an authorized dealer.
Always disconnect from the mains, when the device is not in use or before cleaning it.
Only handle the power cord by the plug. Never pull out the plug by tugging the power
cord.
During initial start-up some smoke or smell may arise. This is a normal process and
does not necessarily mean that the device is defective, it should decrease gradually.
Please don't project the beam onto combustible substances.
Fixtures cannot be installed on combustible substances, keep more than 50cm
distance with wall for smooth air flow, so there should be no shelter for fans and
ventilation for heat radiation.
If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively
replaced by the manufacturer or his service agent or a similar qualified person in order
to avoid a hazard.

5/ 20
4. Operation Instructions
-The moving head is for wash effect for on-site decoration purpose.
-Don’t turn on the fixture if it’s been through severe temperature difference like after
transportation because it might damage the light due to the environment changes. So
make sure to operate the fixture until it is in normal temperature.
-This light should be keep away from strong shaking during any transportation or
movement.
-Don’t pull up the light by only the head, or it might cause damages to the mechanical
parts.
-Don’t expose the fixture in overheat, moisture or environment with too much dust
when installing it. And don’t lay any power cables on the floor. Or it might cause
electronic shock to the people.
-Make sure the installation place is in good safety condition before installing the fixture.
-Make sure to put the safety chain and check whether the screws are screwed properly
when installing the fixture.
-Make sure the lens are in good condition. It’s recommended to replace the units if
there are any damages or severe scratch.
-Make sure the fixture is operated by qualified personnel who knows the fixture before
using.
-Keep the original packages if any second shipment is needed.
-Don’t try to change the fixtures without any instruction by the manufacturer or the
appointed repairing agencies.
-It is not in warranty range if there are any malfunctions from not following the user
manual to operate or any illegal operation, like shock short circuit, electronic shock,
lamp broke, etc.
5. Mounting and Installation
Cautions: For added protection mount the fixtures in areas outside walking paths,
seating areas, or in areas were the fixture might be reached by unauthorized
personnel.
Before mounting the fixture to any surface, make sure that the installation area can
hold a minimum point load of 10 times the device’s weight.
Fixture installation must always be secured with a secondary safety attachment, such
as an appropriate safety cable.

6/ 20
Never stand directly below the device when mounting, removing, or servicing the
fixture from a
periodic safety inspection of all installation material and the fixture. If you lack these
qualifications, do not attempt the installation yourself. Improper installation can result in
bodily injury.
Be sure to complete all rigging and installation procedures before connecting the main
power cord to the appropriate wall outlet.

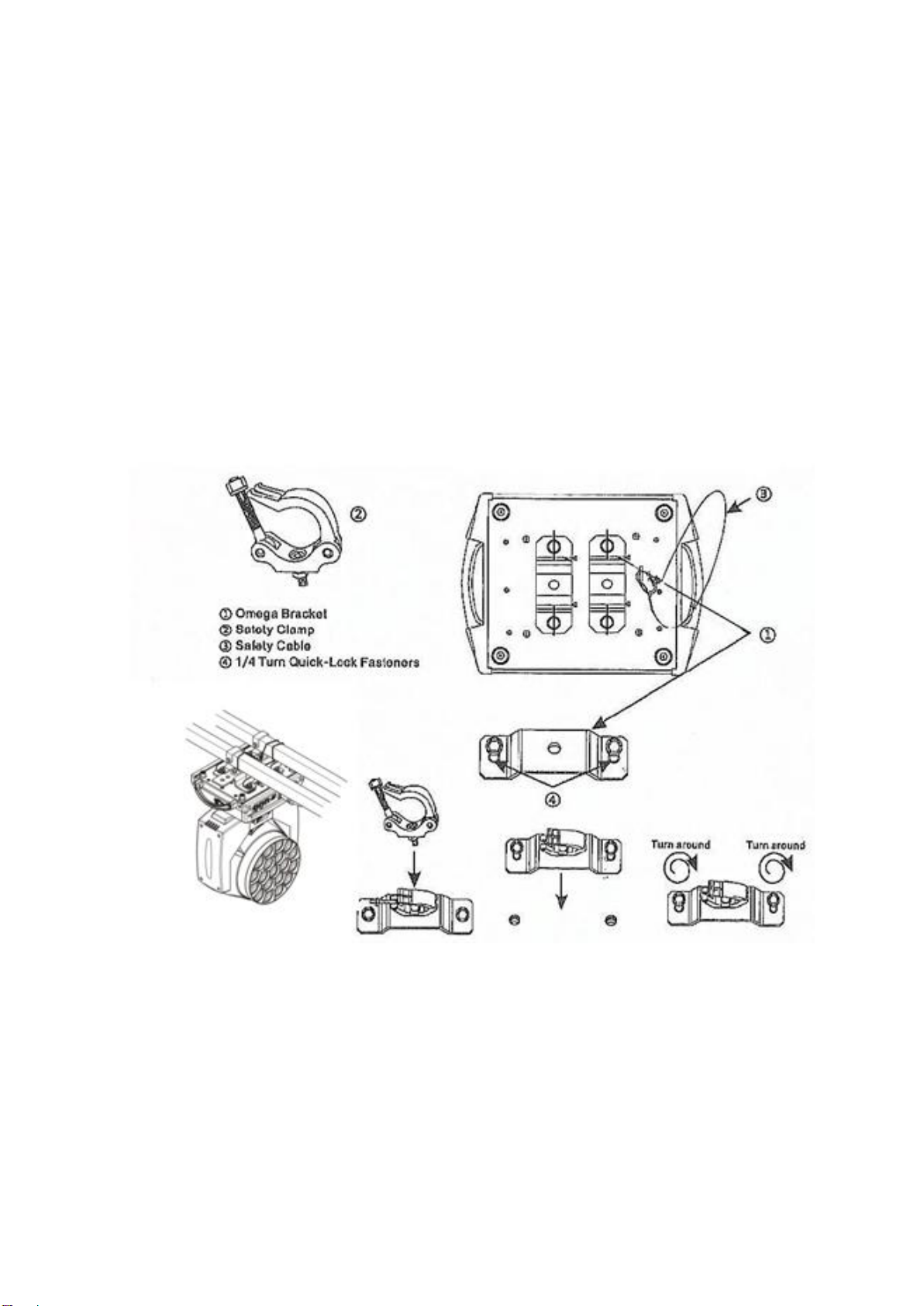

Clamp Mounting: The HAWKEYE II provides a unique mounting bracket assembly
that integrates the bottom of the base, the included “Omega Bracket,” and the safety
cable rigging point in one unit (see the illustration below). When mounting this fixture to
truss be sure to secure an appropriately rated clamp to the included omega bracket
using a M10 screw fitted through the center hole of the “omega bracket”. As an added
safety measure be sure to attached at least one properly rated safety cable to the
fixture using on of the safety cable rigging point integrated in the base assembly
Regardless of the rigging option you choose for your 19pcs zoom, always be sure to
secure your fixture with a safety cable. The fixture provides a built-in rigging point for a
safety cable on the hanging bracket as illustrated above. Be sure to only use the
designated rigging point for the safety cable and never secure a safety cable to a
carrying handle.

7/ 20
6. DMX-512 control connections
Connect the provided XLR cable to the female 3-pin XLR output of your controller and
the other side to the male 3-pin XLR input of the moving head. You can chain multiple
Moving heads be connected together through serial linking. The cable needed should be
two core, screened cable with XLR input and output connectors. Please refer to the
diagram below.
DMX-512 connection with DMX terminator
For installations where the DMX cable has to run a long distance or is in an electrically
noisy environment, such as in a discotheque, it is recommended to use a DMX
terminator. This helps in preventing corruption of the digital control signal by electrical
noise. The DMX terminator is simply an XLR plug with a 120 Ω resistor connected
between pins 2 and 3,which is then plugged into the output XLR socket of the last fixture
in the chain. Please see illustrations below.
1
2
3
PIN 3
PIN 2
120 Ω

8/ 20
7. DMX Channels
21 CH
CH
Function
DMX Value
Details
1
Red
0-255
Red dimmer
2
Red Fine
0-255
Red fine control
3
Green
0-255
Green dimmer
4
Green Fine
0-255
Green fine control
5
Blue
0-255
Blue dimmer
6
Blue Fine
0-255
Blue fine control
7
White
0-255
White dimmer
8
White Fine
0-255
White fine control
9
CTO
0-255
Color temperature linear control
10
Macro color
0-255
Marco color control
11
strobe
0-3
Light up
4-203
Strobe with the same step from slow to fast
204-255
Random strobe
12
Dimmer
0-255
0-100 linear dimmer from dark to bright
13
Dimmer Fine
0-255
Dimmer fine control
14
Pan
0-255
Pan movement control
15
Pan Fine
0-255
Pan fine control
16
Tilt
0-255
Tilt movement control
17
Tilt Fine
0-255
Pan fine control
18
Function
0-255
19
Reset
0-250
No function
251-255
Reset with 5 seconds
20
Zoom
0-255
21
Zoom
Rotation
0-127
0 to 60 degree
128-191
Unlimited clockwise rotation from fast to slow
192-255
Unlimited anticlockwise rotation from fast to slow

9/ 20
23 channels mode
CH
Function
DMX
Value
Details
1
Pan
0-255
Pan movement control
2
Pan fine
0-255
Pan fine control
3
Tilt
0-255
Tilt movement control
4
Tilt fine
0-255
Pan fine control
5
Pan/Tilt speed
0-255
Speed from fast to slow
6
ZOOM
0-255
Zoom
7
LENS rotation
0-127
0 to 60 degree
128-191
Unlimited clockwise rotation from fast to slow
192-255
Unlimited anticlockwise rotation from fast to slow
8
Dimmer
0-255
0-100 linear dimmer from dark to bright
9
Strobe
0-3
Light up
4-203
Strobe with the same step from slow to fast
204-255
Random strobe
10
R
0-255
1-100% Red linear dimmer from dark to bright
11
G
0-255
1-100% Green linear dimmer from dark to bright
12
B
0-255
1-100% Blue linear dimmer from dark to bright
13
W
0-255
1-100% White linear dimmer from dark to bright
14
Color
temperature
0-255
Linear color temperature control
15
Marco
0-255
Marco color change
16
Static effect
0-255
Each 5 DMX value is a kind of static effect
17
Dynamic effect
0-255
Each 5 DMX value is a kind of dynamic effect
18
Dynamic effect
speed
0-255
Speed from slow to fast,pls operate against 15 CH
19
Background R
0-255
1-100% Background Red linear dimmer from dark to bright
20
Background G
0-255
1-100% Background Blue linear dimmer from dark to bright
21
Background B
0-255
1-100% Background Green linear dimmer from dark to bright
22
Background W
0-255
1-100% Background Blue linear dimmer from dark to bright
23
Reset
0-250
No function
251-255
Reset with 5 seconds

10 / 20
35 channels mode
CH
Function
DMX
Value
Details
1
Red
0-255
Red dimmer
2
Red Fine
0-255
Red fine control
3
Green
0-255
Green dimmer
4
Green Fine
0-255
Green fine control
5
Blue
0-255
Blue dimmer
6
Blue Fine
0-255
Blue fine control
7
White
0-255
White dimmer
8
White Fine
0-255
White fine control
9
CTO
0-255
Color temperature linear control
10
Macro colour
0-255
Marco color control
11
strobe
0-3
Light up
4-203
Strobe with the same step from slow to fast
204-255
Random strobe
12
Dimmer
0-255
0-100 linear dimmer from dark to bright
13
Dimmer Fine
0-255
Dimmer fine control
14
Pan
0-255
Pan movement control
15
Pan Fine
0-255
Pan fine control
16
Tilt
0-255
Tilt movement control
17
Tilt Fine
0-255
Pan fine control
18
Function
0-255
19
Reset
0-250
No function
251-255
Reset with 5 seconds
20
Zoom
0-255
21
Zoom Rotation
0-127
0 to 60 degree
128-191
Unlimited clockwise rotation from fast to slow
192-255
Unlimited anticlockwise rotation from fast to slow
22
Shape Selection
0-255
Selecting shape
23
Shape Speed
0-255
Shape speed control
24
Shape Fade
0-255
Shape fade
25
Shape R
0-255
Shape in Red color
26
Shape G
0-255
Shape in Green color
27
Shape B
0-255
Shape in Blue color
28
Shape W
0-255
Shape in White color
29
Shape Dimmer
0-255
Shape dimmer 0-100%
30
Background
Dimmer
0-255
Background dimmer 0-100%
31
Shape Transition
0-255
Shape change
32
Shape Offset
0-255
Shape offset
33
Foreground strobe
0-255
Foreground strobe control
34
Background strobe
0-255
Background strobe control
35
Background
selection
0-255
Background selection

11 / 20
78 channels mode
CH
Function
DMX
Value
Details
1
Red
0-255
Red dimmer
2
Red Fine
0-255
Red fine control
3
Green
0-255
Green dimmer
4
Green Fine
0-255
Green fine control
5
Blue
0-255
Blue dimmer
6
Blue Fine
0-255
Blue fine control
7
White
0-255
White dimmer
8
White Fine
0-255
White fine control
9
CTO
0-255
Color temperature linear control
10
Macro colour
0-255
Marco color control
11
strobe
0-3
Light up
4-203
Strobe with the same step from slow to fast
204-255
Random strobe
12
Dimmer
0-255
0-100 linear dimmer from dark to bright
13
Dimmer Fine
0-255
Dimmer fine control
14
Pan
0-255
Pan movement control
15
Pan Fine
0-255
Pan fine control
16
Tilt
0-255
Tilt movement control
17
Tilt Fine
0-255
Pan fine control
18
Function
0-255
19
Reset
0-250
No function
251-255
Reset with 5 seconds
20
Zoom
0-255
21
Zoom Rotation
0-127
0 to 60 degree
128-191
Unlimited clockwise rotation from fast to slow
192-255
Unlimited anticlockwise rotation from fast to slow
22
Red dimmer 1
0-255
LED 1 red dimmer
23
Green dimmer 1
0-255
LED 1 green dimmer
24
Blue dimmer 1
0-255
LED 1 blue dimmer
25
Red dimmer 2
0-255
LED 2 red dimmer
26
Green dimmer 2
0-255
LED 2 green dimmer
27
Blue dimmer 2
0-255
LED 2 blue dimmer
……
………
………
………
…
………
………
………
76
Red dimmer 19
0-255
LED 19 red dimmer
77
Green dimmer
19
0-255
LED 19 green dimmer
78
Blue dimmer 19
0-255
LED 19 blue dimmer

12 / 20
92 Channels mode
CH
Function
DMX
Value
Details
1
Red
0-255
Red dimmer
2
Red Fine
0-255
Red fine control
3
Green
0-255
Green dimmer
4
Green Fine
0-255
Green fine control
5
Blue
0-255
Blue dimmer
6
Blue Fine
0-255
Blue fine control
7
White
0-255
White dimmer
8
White Fine
0-255
White fine control
9
CTO
0-255
Color temperature linear control
10
Macro colour
0-255
Marco color control
11
strobe
0-3
Light up
4-203
Strobe with the same step from slow to fast
204-255
Random strobe
12
Dimmer
0-255
0-100 linear dimmer from dark to bright
13
Dimmer Fine
0-255
Dimmer fine control
14
Pan
0-255
Pan movement control
15
Pan Fine
0-255
Pan fine control
16
Tilt
0-255
Tilt movement control
17
Tilt Fine
0-255
Pan fine control
18
Function
0-255
19
Reset
0-250
No function
251-255
Reset with 5 seconds
20
Zoom
0-255
21
Zoom Rotation
0-127
0 to 60 degree
128-191
Unlimited clockwise rotation from fast to slow
192-255
Unlimited anticlockwise rotation from fast to slow
22
Shape Selection
0-255
Selecting shape
23
Shape Speed
0-255
Shape speed control
24
Shape Fade
0-255
Shape fade
25
Shape R
0-255
Shape in Red color
26
Shape G
0-255
Shape in Green color
27
Shape B
0-255
Shape in Blue color
28
Shape W
0-255
Shape in White color
29
Shape Dimmer
0-255
Shape dimmer 0-100%
30
Background Dimmer
0-255
Background dimmer 0-100%
31
Shape Transition
0-255
Shape change
32
Shape Offset
0-255
Shape offset
33
Foreground strobe
0-255
Foreground strobe control
34
Background strobe
0-255
Background strobe control
35
Background select
0-255
Background selection
36
Red dimmer 1
0-255
LED 1 red dimmer
37
Green dimmer 1
0-255
LED 1 green dimmer
38
Blue dimmer 1
0-255
LED 1 blue dimmer
39
Red dimmer 2
0-255
LED 2 red dimmer
40
Green dimmer 2
0-255
LED 2 green dimmer
41
Blue dimmer 2
0-255
LED 2 blue dimmer
……
………
………
………
…
………
………
………
90
Red dimmer 19
0-255
LED 19 red dimmer
91
Green dimmer 19
0-255
LED 19 green dimmer
92
Blue dimmer 19
0-255
LED 19 blue dimmer

13 / 20
97 CH
Channel
Function
DMX Value
Details
1
Red
0-255
Red dimmer
2
Red Fine
0-255
Red fine control
3
Green
0-255
Green dimmer
4
Green Fine
0-255
Green fine control
5
Blue
0-255
Blue dimmer
6
Blue Fine
0-255
Blue fine control
7
White
0-255
White dimmer
8
White Fine
0-255
White fine control
9
CTO
0-255
Color temperature linear control
10
Macro colour
0-255
Marco color control
11
strobe
0-3
Light up
4-203
Strobe with the same step from slow to fast
204-255
Randon strobe
12
Dimmer
0-255
0-100 linear dimmer from dark to bright
13
Dimmer Fine
0-255
Dimmer fine control
14
Pan
0-255
Pan movement control
15
Pan Fine
0-255
Pan fine control
16
Tilt
0-255
Tilt movement control
17
Tilt Fine
0-255
Pan fine control
18
Function
0-255
19
Reset
0-250
No function
251-255
Reset with 5 seconds
20
Zoom
0-255
21
Zoom Rotation
0-127
0 to 60 degree
128-191
Unlimited clockwise rotation from fast to slow
192-255
Unlimited anticlockwise rotation from fast to slow
22
Red dimmer 1
0-255
LED 1 red dimmer
23
Green dimmer 1
0-255
LED 1 green dimmer
24
Blue dimmer 1
0-255
LED 1 blue dimmer
25
White dimmer 1
0-255
LED 1 white dimmer
……
………
………
………
…
………
………
………
94
Red dimmer 19
0-255
LED 19 red dimmer
95
Green dimmer 19
0-255
LED 19 green dimmer
96
Blue dimmer 19
0-255
LED 19 blue dimmer
97
White dimmer 19
0-255
LED 19 white dimmer

14 / 20
99 CH
CH
Function
DMX Value
Details
1
Pan
0-255
Pan movement control
2
Pan fine
0-255
Pan fine control
3
Tilt
0-255
Tilt movement control
4
Tilt fine
0-255
Pan fine control
5
Pan/Tilt speed
0-255
Speed from fast to slow
6
ZOOM
0-255
Zoom
7
LENS rotation
0-127
0 to 60 degree
128-191
Unlimited clockwise rotation from fast to slow
192-255
Unlimited anticlockwise rotation from fast to slow
8
Dimmer
0-255
0-100 linear dimmer from dark to bright
9
Strobe
0-3
Light up
4-203
Strobe with the same step from slow to fast
204-255
Random strobe
10
Red
0-255
1-100% Red linear dimmer from dark to bright
11
Green
0-255
1-100% Green linear dimmer from dark to bright
12
Blue
0-255
1-100% Blue linear dimmer from dark to bright
13
White
0-255
1-100% White linear dimmer from dark to bright
14
CTO
0-255
Linear color temperature control
15
Marco
0-255
Marco color change
16
Static effect
0-255
Each 5 DMX value is a kind of static effect
17
Dynamic effect
0-255
Each 5 DMX value is a kind of dynamic effect
18
Dynamic effect
speed
0-255
Speed from slow to fast, pls operate against 15 CH
19
Background R
0-255
1-100% Background Red linear dimmer from dark to
bright
20
Background G
0-255
1-100% Background Blue dimmer from dark to bright
21
Background B
0-255
1-100% Background Green dimmer from dark to bright
22
Background W
0-255
1-100% Background Blue dimmer from dark to bright
23
Reset
0-250
No function
251-255
Reset with 5 seconds
24
Red dimmer 1
0-255
LED 1 red dimmer
25
Green dimmer 1
0-255
LED 1 green dimmer
26
Blue dimmer 1
0-255
LED 1 blue dimmer
27
White dimmer 1
0-255
LED 1 white dimmer
……
………
………
………
…
………
………
………
96
Red dimmer 19
0-255
LED 19 red dimmer
97
Green dimmer 19
0-255
LED 19 green dimmer
98
Blue dimmer 19
0-255
LED 19 blue dimmer
99
White dimmer 19
0-255
LED 19 white dimmer

15 / 20
8. Display instruction
MENU
System
Setup Run Mode
DMX Address
Channel mode
Invert Pan
Invert Tilt
Motor
Calibration
DMX
Sound
Auto 1
Auto 2
Auto 3
LAN
001-512
21CH
23CH
78CH
97CH
99CH
ON
OFF
ON
OFF
Pan-Tilt Swap OFF
ON
Encoder ON
OFF
No Singal Keep
Clean
Screen Saver On
Off
Language EN
中文
Load Default
Manual
Drive
PAN
TILT
ZOOM
ROTATION
System
Test
System
Info
Don’t change
the data
unless it’s
necessary
35CH
92CH

16 / 20

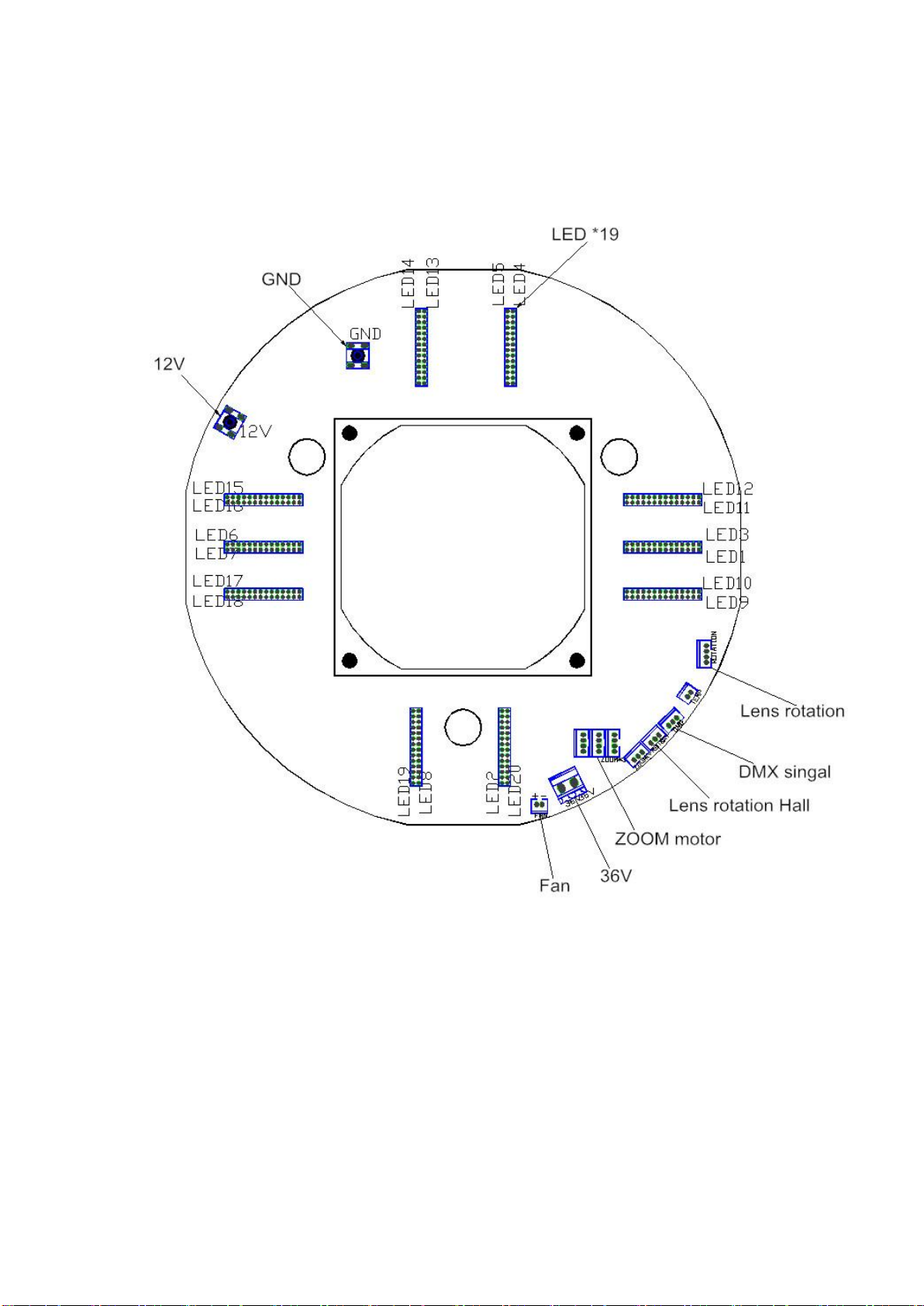

9.Board connection:
LED driver board

17 / 20

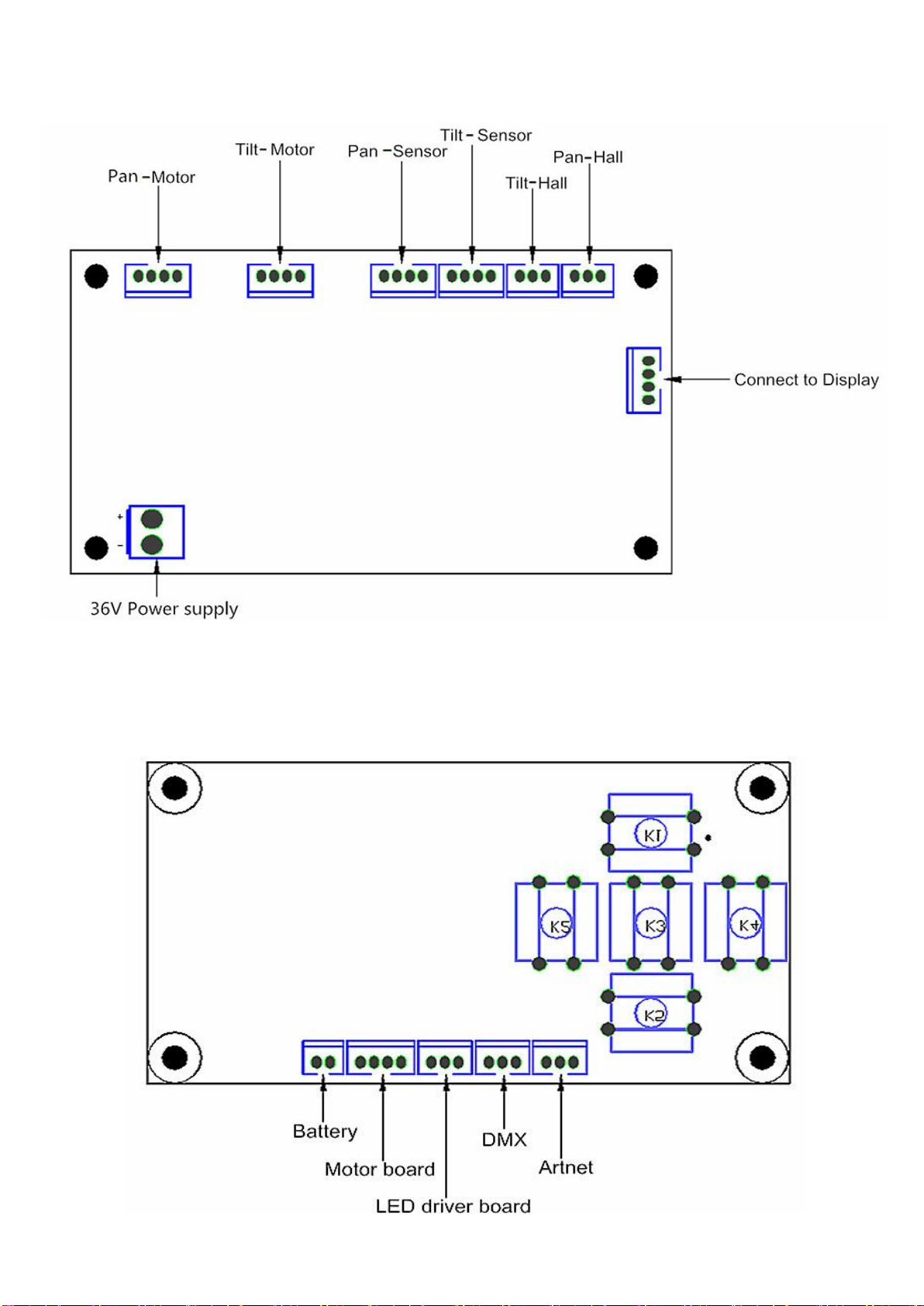

Main board:
Screen board:

18 / 20
10. Key Features
Voltage: AC100V～240V 50-60HZ
Power: 450W
LED Source: 19x15W high power RGBW 4 in 1 LEDs
Zoom: 4-60° Strobe: 0-20Hz
Control Mode: DMX512,Sound-actived,Master/slave
DMX Channels: 21 CH/23 CH/35 CH/78 CH/92 CH/97 CH/99 CH
Dimmer: 0-100% linear dimmer
Pan: 540°+16 bit fine Tilt: 270°+16 bit fine
Display: LCD colorful display
IP: IP20 Rechargeable Battery: Optional
Artnet: Optional
Fixture dimension: 415*275*425 mm
Carton package Size: 53*42*51CM (1pcs/ctn)
N.W:14.95 Kg G.W: 18.1Kg
Special Points.
1. Each LED can be controlled individually. With unique honeycomb designed lens
2. The front lens can rotate without limitation in forward and reverse direction to
create amazing effects
3. Display screen can be turned upside down with 180°automatically to fit the
installation in different place, Display can be equipped with rechargeable battery
to set DMX address without power connection.
4. Can be used as beam, wash or effect light use (Kaleido effects)
5. The scanning position can be memory, it will be automatically reset without
expected movement after rotation.
6. Fan cooling (fan will be change the speed with the temperature variation).
Temperature detecting system (If the temperature detected error, the light will
stop working to protect the fixture)
7. Fast speed with 3 phase motors on Pan and Tilt

19 / 20

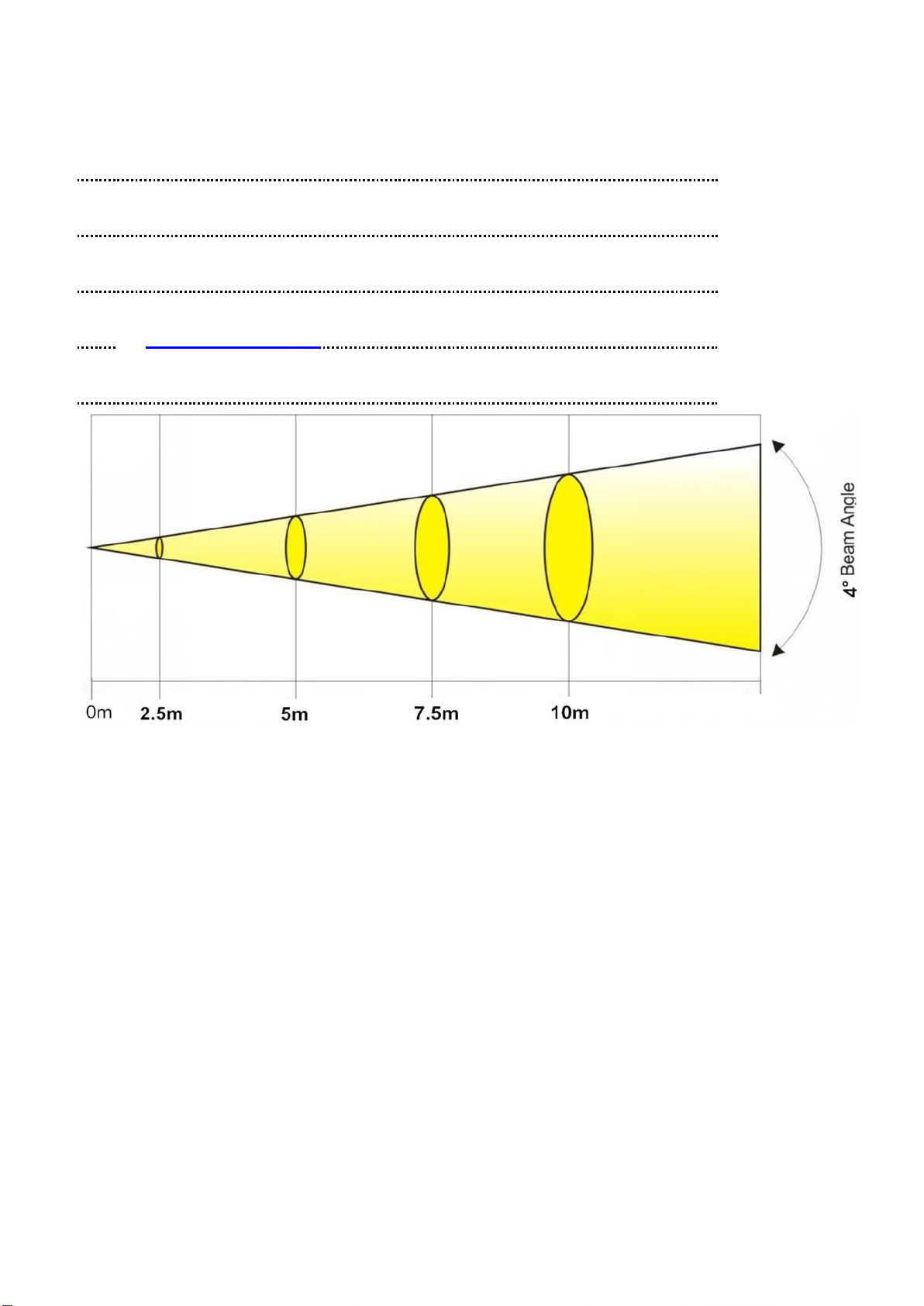

9. Photometric Data:
LUX Data of 4 degree beam angle:
R 83700LUX@2.5m 2550LUX@5m 1150L[email protected]
G 13800LUX@2.5m 3800LUX@5m 1780LU[email protected]
B 15300LUX@2.5m 4460LUX@5m 1970LU[email protected]
W 18000LUX@2.5m 5300LUX@5m 2320L[email protected]
RGBW 50400LUX@2.5m 15500LUX@5m 6680L[email protected]

20 / 20
10. Maintenance and Cleaning
The following points have to be considered during the inspection:
1. All screws for installing the devices or parts of the device have to be tightly connected
and must not be corroded. 2. There must not be any deformations on the housing, color
lenses, fixations and installation spots (ceiling, suspension, trussing). 3. Mechanically
moved parts must not show any traces of wearing and must not rotate with unbalances.
4. The electric power supply cables must not show any damage, material fatigue or
sediments.
Further instructions depending on the installation spot and usage have to be adhered by
a skilled installer and any safety problems have to be removed.
In order to make the lights in good condition and extend the life time, we suggest a
regular cleaning to the lights.
1) Clean the inside and outside lens each week to avoid the weakneness of the lights
due to accumulation of dust.
2) Clean the fan each week.
3) A detailed electric check by approved electrical engineer each three month, make
sure that the circuit contacts are in good condition, prevent the poor contact of circuit
from overheating.
We recommend a frequent cleaning of the device. Please use a moist, lint- free cloth.
Never use alcohol or solvents.There are no serviceable parts inside the device. Please
refer to the instructions under “Installation instructions”.Should you need any spare
parts, please order genuine parts from your local dealer
