Aolait AL350BW User manual

1
350W Waterproof Beam Light
USER MANUAL
KEEP THIS MANUAL FOR FUTURE NEEDS

2
CONTENTS
1. Introduction ..........................................................................................3
2. General Guidelines...............................................................................3
3. Safety Instructions ...............................................................................4
4. Installation Instructions.........................................................................5
5. Cleaning and Maintenance ...................................................................6
6. Technical Parameters ..........................................................................7
7. Gobo&Color......................................................................................... 8
8. Menufunction........................................................................................9
9. Programme......................................................................................10
10. DMX Channels ..................................................................................... 11
11. Remark......................................................................................................12

3
CAUTION!
Unplug mains lead before opening the housing.
Thank you for your patronage. We are confident that our excellent products and
service can satisfy you. For your own safety, please read this user manual carefully
before installing the device.
In order to install, operate, and maintain the lighting safety correctly. We suggest that
the installation and operation should be done by the verified technician and follow the
instruction strictly.
CAUTION!
Safety ground wire
Every person involved with the installation, operation and maintenance of this device
has to:
-be qualified
-follow carefully the instructions of this manual
INTRODUCTION:
Thank you for having chosen this professional moving head.
You will see you have acquired a powerful and versatile device.
Unpack the device. Inside the carton box you should find:
1. One power cable
2. One 3pin DMX cable
3. One user manual
Please check carefully that there is no damage caused by transportation. Should
there be any, please consult your dealer and don’t install this device.
GENERAL GUIDELINES
The device was designed for indoor and outdoor use .
Lighting effects are not designed for permanent operation. Consistent operation
breaks may ensure that the device will serve you for a long time without defects.
CAUTION!
Do not place in the low-lying ground

4
Do not shake the device. Avoid brute force when installing or operating the device.
Please don’t project the beam onto combustible substances. The minimum distance
between light-output from the projector and the illuminated surface must be more
than 10 meter.
Operate the device only after having familiarized with its functions. Do not permit
operation by persons not qualified for operating the device. Most damages are the
result of unprofessional operation.
Please use the original packaging if the device is to be transported.
For safety reasons, please be aware that all modifications on the device are
forbidden. If this device will be operated in any way different to the one described in
this manual, the product may suffer damages and the guarantee becomes void.
Furthermore, any other operation may lead to short-circuit, burns, electric shock,
lamp explosion, crash, etc.
SAFETY INSTRUCTIONS
This device has left the factory in perfect condition. In order to maintain this condition
and to ensure a safe operation, it is absolutely necessary for the user to follow the
safety instructions and warning notes written in this user manual.
1. Always mount this unit in safe and stablematter.
The qualified professionals are allowed to carry out the lamp installation, operation
and maintenance, but they must guarantee to operate in strict accordance with the
instructions referred to.
2. Using lamp, the change rate of power voltage should be within±10%, if the voltage is
too high, it will shorten the light’s life; if it’s not enough, the lamp will be dark.
3. Please restart it after turning off light for 20 minutes until full-cooling. Frequent
switching will reduce the life span of lamps and bulbs; intermittent using will improve
the life of bulbs and lamps.
▲ Important:
Damages caused by the disregard of this user manual are not subject to
warranty. The dealer will not accept liability for any resulting defects or
problems.
If the device has been exposed to temperature changes due to environmental
changes, do not switch it on immediately. The arising condensation could damage
the device. Leave the device switched off until it has reached room temperatures.
This device falls under protection-classⅠ. Therefore it is essential that the device be
earthed.
The electric connection must carry out by qualified person.
CAUTION!
Be careful with your operations. With a dangerous voltage you can
suffer a dangerous electric shock when touching wires!

5
CAUTION!
Never touch the device during operation!
The housing may heat up!
Make sure that the available voltage is not higher than stated at the end of this
manual.
Make sure the power cord is never crimped or damaged by sharp edges. If
this would be the case, replacement of the cable must be done by an
authorized dealer.
Always disconnect from the mains, when the device is not in use or before
cleaning it. Only handle the power cord by the plug. Never pull out the plug by
tugging the power cord.
During initial start-up some smoke or smell may arise. This is a normal
process and does not necessarily mean that the device is defective, it should
decrease gradually.
Please don’t project the beam onto combustible substances.
If the external flexible cable or cord of this luminaire is damaged, it shall be
exclusively replaced by the manufacturer or his service agent or a similar
qualified person in order to avoid a hazard.
Please be aware that damages caused by manual modifications to be the device
are not subject to warranty. Keep away from children and non-professionals.
INSTALLATION INSTRUCTIONS
Before replacing the lamp let the lamp cool down, because during operation,
the lamp can reach very high temperature.
During the installation of halogen lamps do not touch the glass bulbs bare
handed. Always use a cloth to handle the lamps during insertion and removal.
Do not install lamps with a higher wattage. They generate higher temperatures
than which the device was designed for.
CAUTION!
Never look directly into the light source,
As sensitive persons may suffer an epileptic shock.
CAUTION!
Only install the lamp with the device unplugged from the mains.
CAUTION!
The lamp has to be replaced when it is damaged or deformed.

6
CLEANING AND MAINTENANCE
1. During long periods of non-use, disconnect the unit’s main power.
2. It should be installed in a well-ventilated place, at a distance of 50
centimeters or more with the walls. At the same time, please check if the fan
and ventilation holes areunobstructed.
The following points have to be considered during the inspection
1) All screws for installing the devices or parts of the device have to be tightly
connected and must not be corroded.
2) There must not be any deformations on the housing, color lenses.
Fixations and installations spots
3) Mechanically moved parts must not show any traces of wearing and must
not rotate with unbalances.
4) The electric power supply cables must not show any damage, material fatigue
or sediments. Further instructions depending on the installation spot and
usage have to be adhered by a skilled installer and any safety problems have
to be removed.
In order to make the lights in good condition and extend the life time, we
suggest a regular cleaning to the lights.
1) Clean the inside and outside lens each week to avoid the weakness of the
lights due to accumulation ofdust.
2) Clean the fan each week.
3) A detailed electric check by approved electrical engineer each three month,
make sure that the circuit contacts are in good condition, prevent the poor
contact of circuit fromoverheating.
We recommend a frequent cleaning of the device. Please use a moist, lint-free
cloth. Never use alcohol or solvents.
There are no serviceable parts inside the device except for the lamp. Please
refer to the instructions under “Installation instructions”.
Should you need any spare parts, please order genuine parts from your local
dealer.
CAUTION!
Disconnect from mains before starting maintenance
operation!

7
TECHNICAL PARAMETERS
POWER SUPPLIE
Input power:100-240V 50/60 Hz
LAMP SOURCE
Discharge lamp with a short arc burner in a reflector system
- Type: MSD R17 350W
- Output Lamp power: 600W
- Color temperature: 8,500 K
- Average life: 2,000 h
OPTICS
3-lens optical group combination
Focus: electronic
Light output at 10 meters: 160000 lux
COLOR SYSTEM
Interchangeable color wheel with 14 colors + open
EFFECTS SECTION
Interchangeable gobo wheel with 17 fixed gobos +
open High speed shake effect
16-face rotating
prism Frost filter
Mechanical shutter and adjustable speed strobe
effect Mechanical dimmer
CONTROL AND PROGRAMMING
16/20 DMX 512 control channels
Display: LCD display
Pan/Tilt Resolution: 16 bit
Movement control: vectorial
DMX signal connection: 3 PIN output
MOVING BODY
Travel: -PAN = 540°- TILT = 210°

8
ELECTRONICS
Function reset from the lighting desk ON/OFF
lamp control from the lighting desk "AUTOTEST"
function from menu Electronic monitoring with
status error
SAFETY DEVICES
Bipolar circuit breaker with thermal protection.
Automatic break in power supply in case of overheating or failed operation of cooling
system.
Forced ventilation with axial fans.
WEIGHT
35 Kg

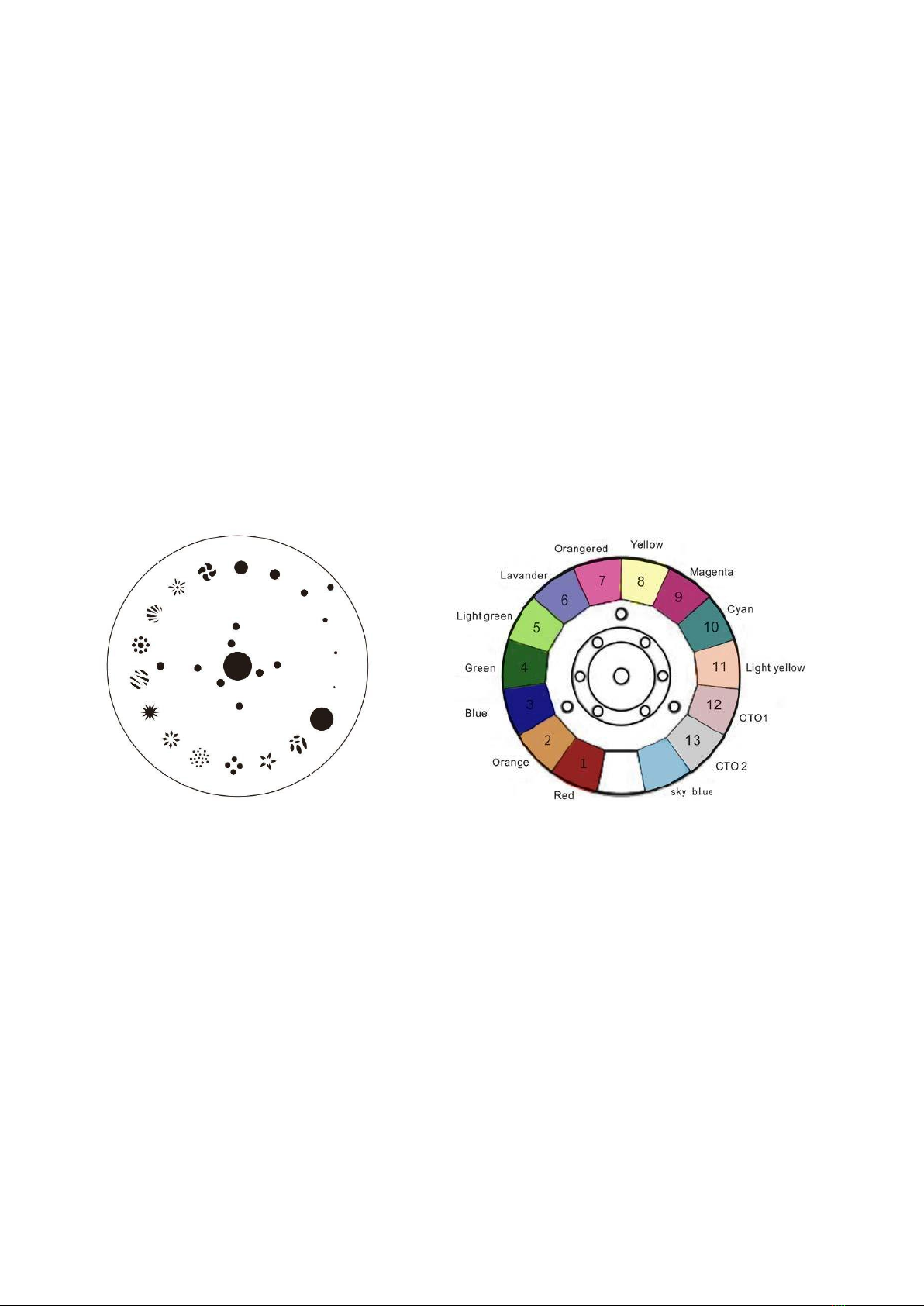

GOBO&COLOR

9

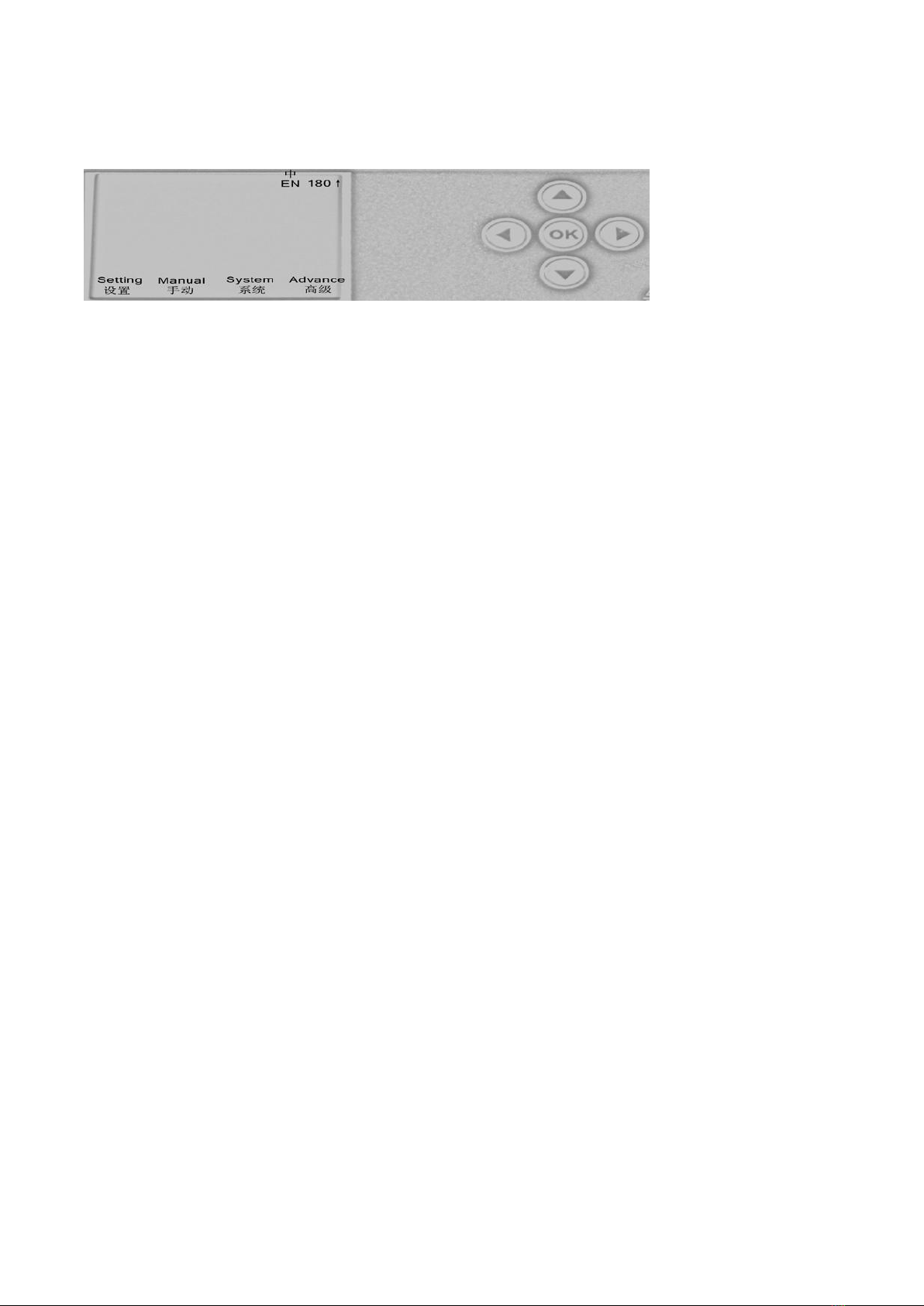

MENU FUNCTION
(Display) ---- （Setting) ---- (Run Mode) ---- DMX512
---- Sound)
---- Random
---- (F-Sleep8)
---- (F-Stand8)
---- (Forward 0)
---- (Drawup8)
---- (Aoto1-4)
---- (Program1-6)
----(DMX Address) ----(001-512)
----(Channel Mode) ----(Std.16CH)
----(Ext.20CH)
----(Invert Pan) ----(OFF)
----(ON)
----(Invert Tilt) ----(OFF)
----(ON)
----Pan-Tilt Swap) ----(OFF)
----(ON)
---- (Pan-Tilt Encoder) ----(OFF)
----(ON)
----(No DMX Signal) ----(KEEP)
----(CLEAR)
----(Display) ----(OFF)
----（ON)
----(Lamp On@Startup) ----(OFF)
----(ON)
--(Linear Color) ----(OFF)
----(ON)
--Programme ---- (Program1-6)
--(Load Default) ----
--(Manual)
--(System) --(Ver)
--(DMX Monitor)
--(System Errors)
--Total Fixture Hours)

10
--(Advance)
--(Partial Fixture Hours)
--(Total Lamp Hours)
--(Partial Lamp Hours)
Manual programme operating instructions
Homepage → Setting(Press ‘OK’) → Programme(Press ‘OK’) → Program selection(1-6,press ‘OK’) → Manual
programme(Press ‘OK’ last for few seconds and choose operating buttons, saving and increasing for next step,
saved via ‘OK’, keep pressing ‘OK’ last for few seconds and operating by channel values, max. 20 scenes for each
manual programme)
Level 1 menu
Level 2 menu
Level 3 menu
SETTING
PROGRAMME
PROGRAM SELECTION
Select a program and enter, interface as bellow:
Manual Programme
Total Time
000
Cf Time
000
1.Color
000
2.Shutter/Strobe
000
Delete Step
Save Add
Previous
00/00
Next
Save
Back
Up
Down
OK
1. Total 6 programs, max.20 scenes for eachprogramme
2. In programme interface, channels above, operating buttons down.
Total Time: Total time of this scene, the number is bigger, then the speed is slower, no time unit
Cf Time: The time of schedule step in this scene, the number is bigger, then the speed is slower, no time
unit
3. Press ”OK” last for few seconds can be an operating button and also can be a channel value amending button
4.“Delete Step”: Delete the channel which display right now
5.“Save Add”: Increasing a new step to save the display channel
6.“Previous”: Checking previous step value and display with channel
7.“01/2”: Display scenes of manual program and current schedule steps
8.“Next”: Checking next step and display with channel
9.“Save”: Saving current display channel
10.Saved and quit, you can choose program 1-6 under running mode

11
DMX CHANNELS
CHANNEL
CHANNEL MODE
16
20
1
COLOUR WHEEL
COLOUR WHEEL
2
STOP/STROBE
STOP/STROBE
3
DIMMER
DIMMER
4
STATIC GOBO CHANGE
STATIC GOBO CHANGE
5
PRISM INSERTION
PRISM INSERTION
6
PRISM ROTATION
PRISM ROTATION
7
MARCO FUNCTION
MARCO FUNCTION
8
FROST
FROST
9
FOCUS
FOCUS
10
PAN
PAN
11
PAN FINE
PAN FINE
12
TILT
TILT
13
TILT FINE
TILT FINE
14
PAN-TILT TIME
PAN-TILT TIME
15
RESET
RESET
16
LAMP CONTROL
LAMP CONTROL
17
--
18
COLOUR TIME
19
DIMMER-PRISM-FROST TIME
20
GOBO TIME

12
REMARK
The product has perfect performance and intergrity packing. All users should be strictly
comply with the warning and operating instructions as stated. Or we aren’t in charge of any
result by misusing.
Any damage resulting by misuse is not within the Company’s warranty. Any fault or problem
caused by neglecting the manual is also not in the charge of dealers.
Errors and omissions for every information given in this manual excepted. All information is
subject to change without prior notice.
