AOODOR 800-039 Installation guide

Assembly&Instruction Manual
SKU:800-039 steel roof 10x10ft
Save this manual for future reference
azebo
Installation
Guide
Version 211108
:

INTRODUCTION
Thank you for purchasing ' ! We hope you will find joy in our Aoodor s Patio wood gazebo
product for many years to come.
To ensure your personal safety during installation and to get the most out of your investment, please read this entire
manual before beginning the installation process. If you feel that this process is too di cult to do on your own, we advise ffi
that you seek assistance from a local building or home improvement contractor.
WARNING Improper installation and operation of your can result in gazebo
severe personal injury as well as product failure not covered by warranty. Please
follow all instructions carefully or contact technical support for assistaince.
We believe that installation can be a simple, streamlined process if you follow the instructions in this manual.
Please contact our customer support line for help any step of the way. If you need assistance with assembly, have
missing or defective parts, or any other issues, please email us at customerservice aoodor@ .com
2
Please read and understand this entire manual before attempting.
Four to five people are need for assembly.
Maximum load for the roof hook: 100 lbs.
• Applying a water repellent or stain (water-based) on a yearly basis is important
maintenance to maintain maximum life and performance of the product.
• Check all wood members for deterioration, structural damage and splintering. Sand down
splinters and replace deteriorated wood members. As with all wood, some checking and
small cracks in grain is normal
• Some gapping may occur at some wood connections.
Estimated assembly time:6-8hours.

IMPORTANT SAFETY NOTICE!
Product is NOT INTENDED for the following:
• A safety barrier to prevent unsupervised access to pools, hot tubs, spas or ponds.
• As load bearing support for a building, structure, heavy objects or swings.
• Used in structures that trap wind, rain or snow that would create extra load on the
product.
Accumulated snow must be removed from roof.
DO NOT climb or walk on roof for any reason.
Permanent structures may require a building permit. As the purchaser and or installer of this
product you are advised to consult local planning, zoning and building inspection departments for
guidance on applicable building codes and/or zoning requirements.
Wood is NOT flame retardant and will burn. Grills, fire pits and chimineas are a fire hazard if
placed too close to structure. Consult user’s manual of the grill, fire pit or chimnea fo r safe
distances from combustible materials.
Wear gloves to avoid injury from possible sharp edges of individual elements before assembly.
During installation, follow all safety warnings provided with your tools and use Safety
glasses. Some structures may require two or more people to install safely.
Check for underground utilities before digging or driving stakes into the ground!
It is important during assembly to closely follow the instructions, complete the assembly
on a solid level surface and that you follow the instruction to square up, level and anchor the
structure, this will reduce the gap at wood connections during assembly.
Symbols:
Throughout these instructions symbols are provided in the top, right-hand corner of the page.
• Tape Measure
• Carpenters Level
• Standard or Cordless Drill
• #2 Phillips Bit or Screwdriver
Assembly Guides
• 8’ Step Ladder
• Safety Glasses
• Adult Helper
• Safety Gloves
• Hard Hat
Tools Required:
• Use Help, where this is shown, or 4 5
people are required to safely complete s
this step. To avoid injury or damage to the
assembly make sure to get some help.
• Use a measuring tape to assure proper
location
• 6’ Step Ladder x 2
If you dispose of structure: Aoodor Please disassemble and dispose of your
unit so that it does not create any unreasonable hazards at the time it is discarded. Be
sure to follow your local waste ordinances.
3

Following are some helpful tips to make the assembly process smooth and efficient.
PRE-ASSEMBLIES:
(i.e. Post and Beam Assemblies, Roof Rafter Assembly, etc)
• Work on a raised, solid and flat surface such as, a table or saw horse.
• Keep all connections flush where shown in the instructions.
• When assembling the beams keep parts flat, straight and snug when
connecting.
METAL PARTS:
• Roofing material may have sharp edges, wear safety gloves.
• Remove all plastic covering, on both sides of the metal panels, directly
before installing each piece.
• Place roofing material on a non-abrasive surface before and after assembly
as it can bend, dent and scratch easily.
• The roofing screws can easily crush the roof panels and roof edges when
using a power drill. We recommend hand tightening the roofing screws so
they sit snug and tight to the roofing material.
Assembly Tips
Note: It is critically important you start with square, solid and level footings, concrete
pad or deck to attach your Pergola Room.
We supply Post Mounts with this structure which gives you the flexibility to permanently install your structure
to a pre-existing or new wood or concrete surface.
• The hardware to attach the Post Mount to the structure is included.
• The hardware to mount the structure permanently will need to be purchased separately at your local
hardware store.
If you are mounting to concrete footers see below for the correct locations and placement. Please double
check for possibility of any underground utilities such as gas, telephone, cable or sprinkler lines.
Following are some examples of how to mount the structure to wood or concrete surfaces.
Refer to your local building and city codes, ordinances, neighbourhood covenants, or height restrictions
regarding this type of structure for guidance on acceptable installation requirements.
Permanent Installation Examples
4

Parts Identification (Metal Parts)
5
Parts Desc Qty Ref No
J8- -039 018
K4800 039-019-
K1 4800 039-020-
K2 4800 039-021-
L4800 039-022-
L1 4800 039-023-
M8800 039-024-
N1 800-039-025
N1 1 800 039-026
-
T4 800 039-027
-
T1 4 800 039-028
-
U128 800 039-029
-
V4 800 039-030
-
V1 4 800 039-031
-
V2 4 800 039-032
-
V3 4 800 039-033
-

Parts Identification (Metal Parts)
6
Parts Desc Qty Ref No
V4 8800 039-034-
W12 800 039-035-
X4800 039-036-
X1 4800 039-037-
X2 4800 039-038-
X3 4800 039-039-
X4 4800 039-040-
X5 4 800-039-041

Parts Identification (Metal Parts)
7

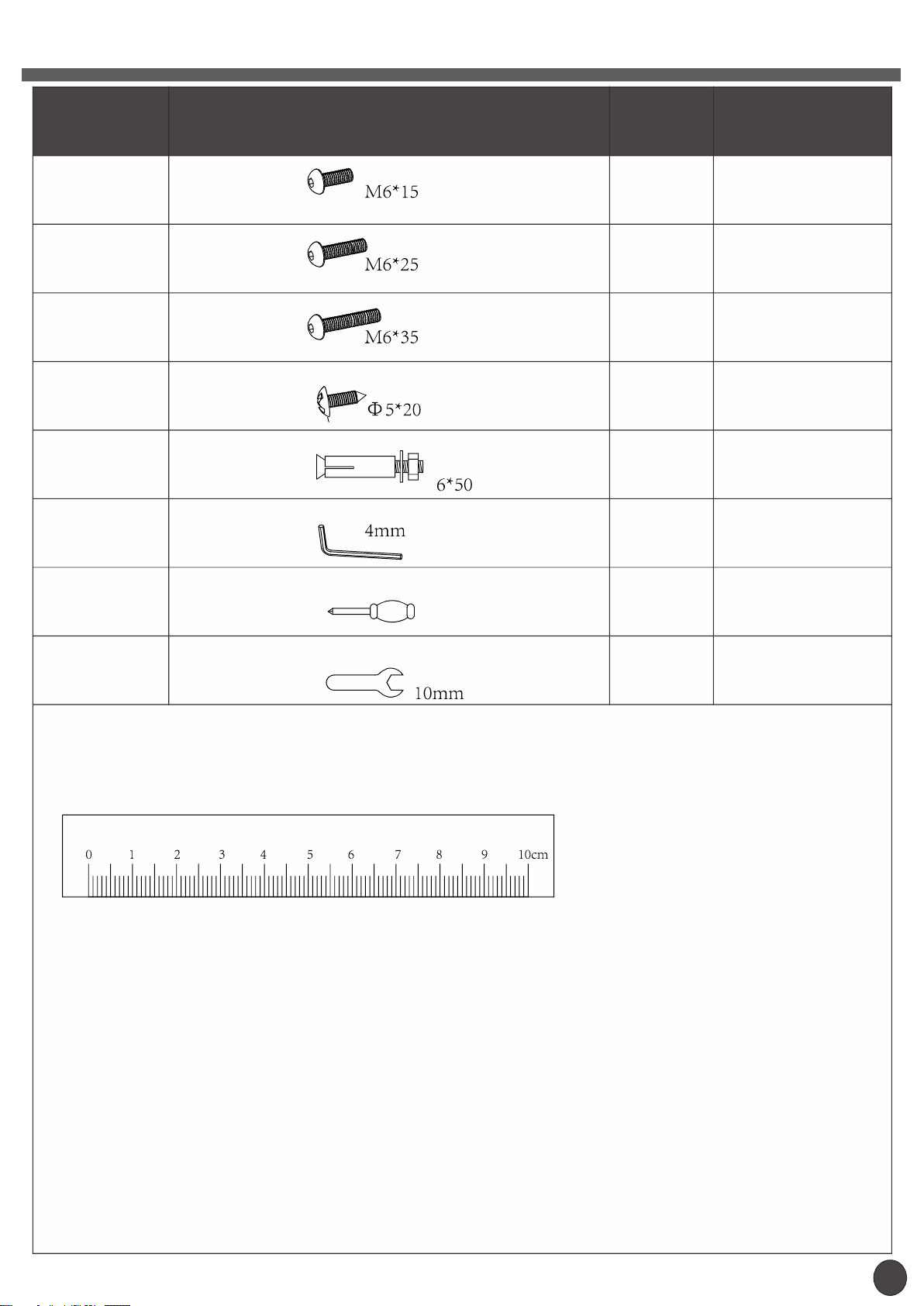

Parts Desc Qty Ref No
7 103 800 039 042- -
8 12 800 039 043- -
9 12 800 039 044- -
10 76 800 039 045- -
11 16 800 039 046- -
12 2 800 039 047- -
13 1 800 039 048- -
14 1 800-039-049

Assembly
1.1
1
1.2
1.3
UU
JJ
JJJ
JJ
U
10 10 10 10
UU
J
U
U

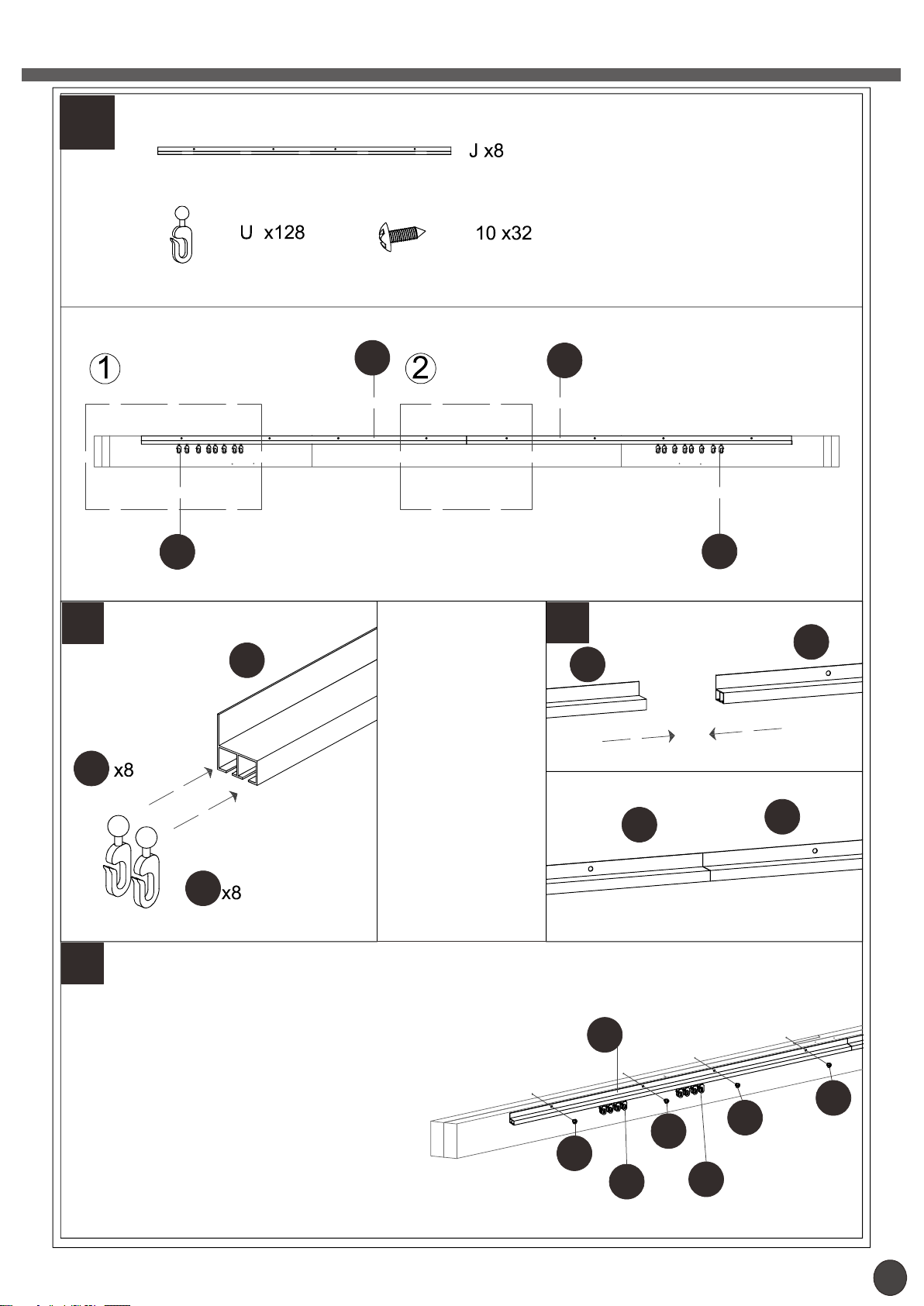

1.1 Insert the hooks(U)
to the rail(J) for mosquito
netting and curtain(not
included)
1.3 Attach the rail to the beam using screws(10).
8

Assembly
22.1
2.2
10
V3
V2
V2
V2
V2
V3
V3 V3
V3
JJ
10
V2
2.1/2.2 Attach the brakect (V2) (V3) to the beam using screws(10).
9

Assembly
3
K1
K2
K1 K2 K1
K2
K1
N1
3.1

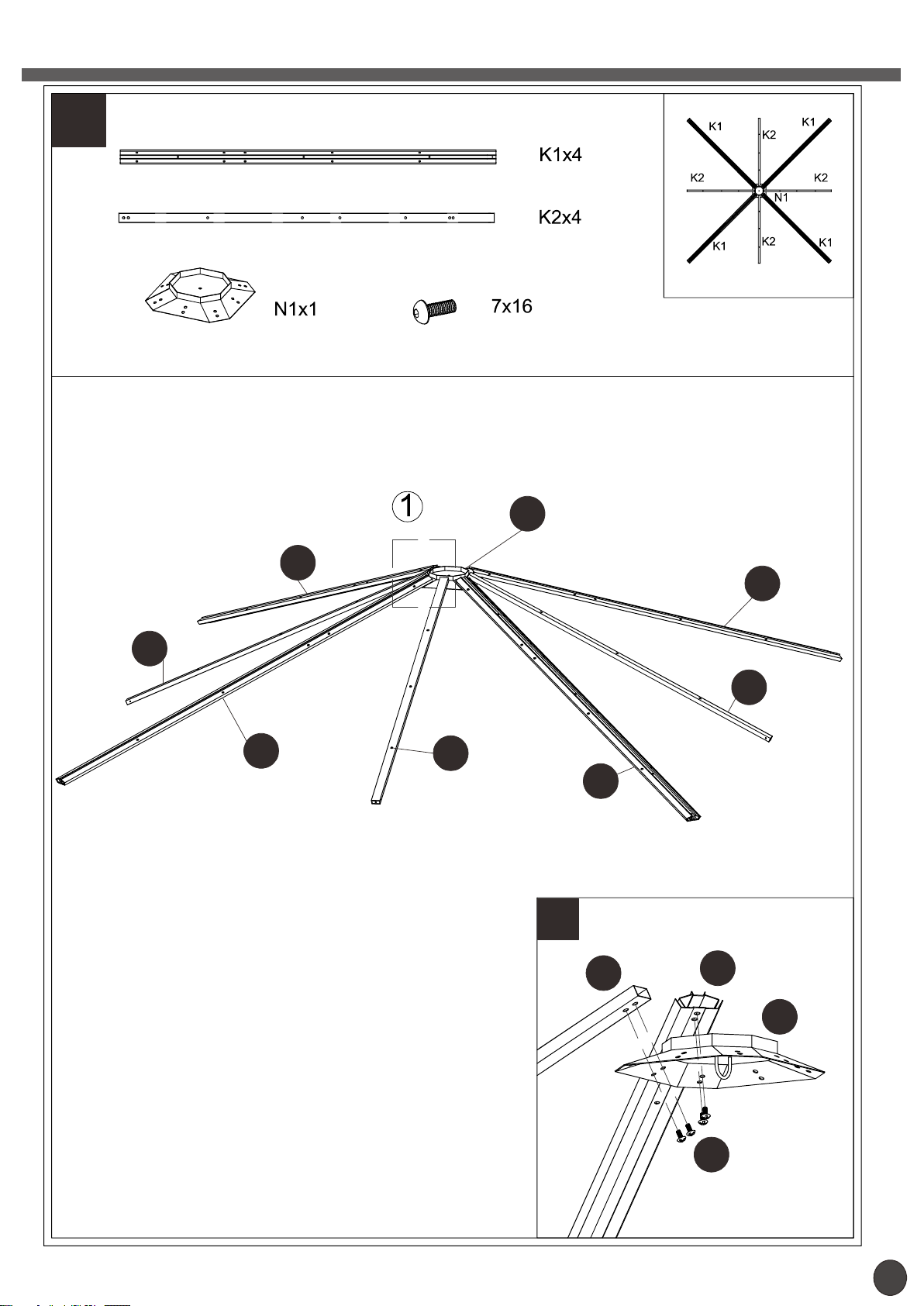

3.1 Joint 4pcs rafter corner(K1) with inside hub(N1) using bolt(7).
Joint 4 pcs rafter(K2) with inside hub(N1) using bolt(7).
K2 K1
N1
7
10

Assembly
4
N
M
M
M
M
K1
K2
K1
K1
K1
TT
T1
T1
T1
K2
K2
7
7
77
7
T
K2 K1 M
M
MM M
M
MM
K1
T1
K2
4.2
4.1

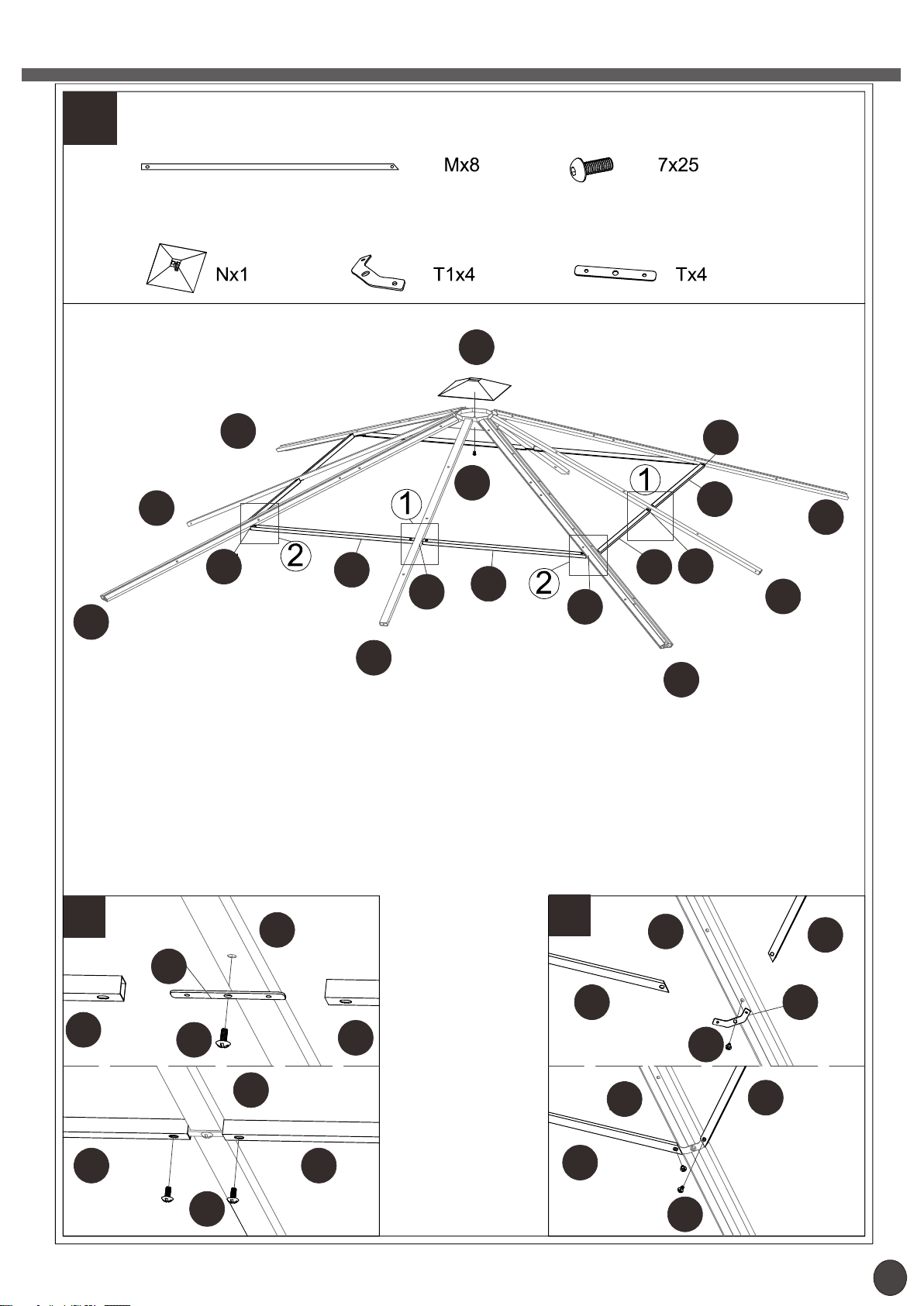

3.1.Joint 2 pcs rafter connector tube(M) together with the rafter bracket(T)
and attach them on the rafter(K2) using bolt(7).
3.2.Joint 2 pcs rafter connector tube(M) together with the rafter corner bracket(T1)
and attach them on the rafter corner(K1) using bolt(7).
3.3.Cover the peak cap(N) on the inside hub(N1) and using bolt(7).
Note:Do not tighten all bolts before the roof panel assembly.
11

Assembly
5x 2
x 1
4.1 4.2
K1 K1
K2
V2
V2 V3
V3
V3
K1
K2
V3 V2
77
Place the ladder in the center of gazebo and need 5 persons for this step.
One person hold the hub and four person hold the rafter corner than put the roof over beam.
4.1/4.2.Attach the rafter to the bracket using bolt (7).
12

Assembly
6
X2
X3
X2 X3
X2
X3
K1 K1
K1
K1
13

Assembly
6.1
6.2
K2
X2 X3
W
8
X3 X2
7
14
K1

Assembly
XX1 X2 X3 X4 X5
X
X1
X2 X3
X4
X5
7
15

Assembly
7.1
77
X
X1
X5
X4
K1
16

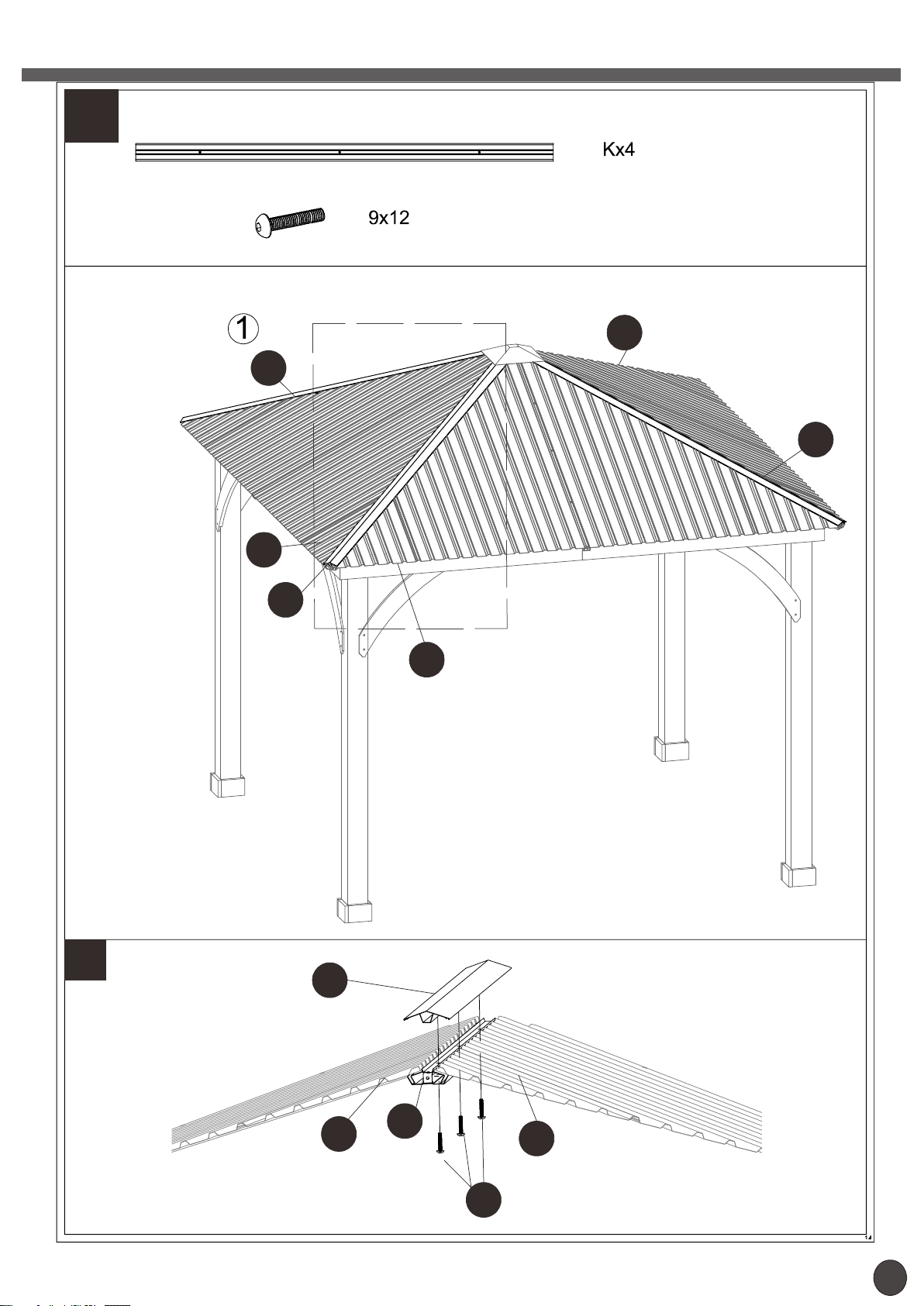

Assembly
8
17
k
k
k
k
8.1 k
K1
X5 X
9
X
X5

Assembly
9
9.1
9.2
V1
V1
V
L
L1
L1
LV
V1
X
X5 X2 X3
L
LL1
L1
V1 V
77
18

Assembly
19
Pleasedon’thesitatetocontactusforanyfurther questions,
yoursatisfactionisguaranteed.
