AOpen DE3100 Series User manual

Personal Computer User Guide
for DE3100 Series
V3

Disposal Instruction (US)
For better protection of our earth, please don't throw this electronic device into municipal trash bin when discarding.
To minimize pollution and ensure utmost protection of the global environment, please recycle the product. For more
information about the collection and recycling of Waste Electrical and Electronic Equipment (WEEE), you are invited to visit
our homepage at www.aopen.com under “Green Products”
廃棄上の指示
より良い地球保護のために、電子機器を廃棄処分にする時は、ゴミ箱に捨てないで下さい。汚染を最小限に抑え、
地球環境の最大限の保護のために、製品をリサイクルして下さい。 廃電気電子機器 (WEEE) の回収とリサイクル
についての情報は、弊社ホームページ www.aopen.com の“Green Products＂（環境に優しい製品）をご覧下さい。
廢棄及回收處理
為了保護環境，請勿將本產品當作一般廢棄物處理。為減少環境污染，維護地球資源，本產品報廢時，請回收本產品。
Instruktion til bortskaffelse (Danish)
Af hensyn til vores miljø bedes De ikke bortskaffe denne elektroniske enhed i en almindelig affaldsspand. For at mindske
forurening og sikre beskyttelse af miljøet bedes De genbruge produktet. For yderligere information vedrørende indsamling og
genbrug af elektronik-affald (Waste Electrical and Electronic Equipment (WEEE)) er De velkommen til at besøge vores
website www.aopen.com og læse nærmere under "Green Products".

Verwijderingsinstructie (Dutch)
Om mogelijke schade aan het milieu of de menselijke gezondheid door ongecontroleerde afvalverwijdering te voorkomen,
moet u dit elektronisch product scheiden van andere soorten afval en op een verantwoorde manier recyclen. Verwijder dit
product dan ook alstublieft niet samen met ander huishoudelijk afval. Voor meer informatie over de verzameling en recycling
van elektrisch afval en elektronische apparatuur (WEEE), nodigen we u uit om onze homepage te bezoeken www.aopen.com
onder "Green Products".
Instruction de Disposition (French)
Pour une meilleure protection de la terre, ne jetez pas ce dispositif électronique dans la poubelle municipale lors de la
disposition. Pour éliminer la pollution et assurer la plus grande protection de l'environnement global, réutilisez s’il vous plaît le
produit. Pour plus d'informations sur la gestion des déchets d’Equipements Electriques et Electroniques (DEEE ou WEEE),
vous êtes invité à visiter notre site à www.aopen.com sous " Green Products".
Entsorgungsanleitung (German)
Zum besseren Schutze unseres Planeten, schmeissen Sie elektrische Geräte bitte nicht in öffentliche Mülleimer. Zur
Verringerung der Verschmutzung und zur Sicherstellung grösstmöglichen Schutzes der Umwelt recyceln Sie bitte das Produkt.
Für mehr Informationen zum Sammeln und Recyceln von elektrischen und elektronischen Müll (WEEE) besuchen Sie bitte
unsere Homepage unter www.aopen.com unter dem Punkt "Green Products".

Istruzioni per lo smaltimento (Italian)
Per una migliore salvaguardia del nostro pianeta, si prega di non gettare questo dispositivo elettronico nei normali rifiuti al
momento dell'eliminazione. Per ridurre al minimo l'inquinamento ed assicurare la massima protezione dell'ambiente, si prega
di riciclare il prodotto. Per maggiori informazioni riguardanti la raccolta ed il riciclaggio delle apparecchiature elettriche ed
elettroniche residue (WEEE), siete invitati a visitare la nostra homepage www.aopen.com alla voce "Green Products".
Instruksjoner for Resirkulering og Oppsamling (Norweigian)
For ĺbeskytte vĺr planet, kast ikke dette elektroniske utstyret sammen med vanlig avfall. For ĺbeskytte vĺr natur og miljř,
vennligst resirkuler dette produktet. For mer informasjon om oppsamling og resirkulering i henhold til Waste Electrical and
Electronic Equipment (WEEE), se vĺr hjemmeside pĺwww.aopen.com under "Green Products".
REEE - Programa de Tratamento de Resíduos de Equipamentos Eléctricos e Electrónicos (Portugese)
Para melhor protecção ambiental do nosso planeta terra, não coloque o dispositivo electrónico no receptáculo de lixo municipal.
Para minimizar a poluição e garantir protecção máxima do ambiente global, recicle o produto. Para mais informações sobre
acerca da recolha e reciclagem de Equipamento Eléctrico e Electrónico (WEEE), convidamos-lhe a visitar nossa página na
Internet em www.aopen.com sobre "Green Products".

Instrucciones para depositar los productos electrónicos (Spanish)
Para proteger mejor el medio ambiente, por favor, no deposite los productos electrónicos en los contenedores de basura
tradicionales. Para reducir la contaminación y proteger el medio ambiente se recomienda que los recicle. Para más información
acerca de dónde depositar y cómo reciclar Equipos Electrónicos y Desperdicios Electrónicos (WEEE), por favor, visite la
página web www.aopen.com y entre en la sección Productos Ecológicos (“Green Products”).
Kassering (Swedish)
För att bättre värna om vår jord bör denna elektroniska utrustning ej kasseras tillsammans med vanligt avfall. För att minimera
mängden föroreningar och så långt som möjligt skydda den globala miljön bör produkten återvinnas. För vidare information
om insamling och återvinning av uttjänta elektriska och elektroniska produkter (Waste Electrical and Electronic Equipment,
WEEE), besök avsnittet "Green Products" på vår hemsida, www.aopen.com.

Copyright
Copyright of this publication belongs to AOpen Inc. AOpen reserves the right to change the content of this publication without
obligation to notify any party of such changes or revisions. No part of this publication may be reproduced, transcribed,
transmitted, translated into any language, stored in a retrieval system in any form or by any means electronically, mechanically,
optically without the prior written permission of this company.
Disclaimer
AOpen makes no warranties or representations, either expressed or implied, with respect to the content herein and specifically
disclaims any warranties, merchantability of fitness for any particular purpose.
AOpen and AOpen logos used herein are registered trademarks of AOpen Inc.
All other brand names and trademarks are owned by their respective owners.
Copyright © 2010 byAOpen Inc.
All rights reserved.

Safety Instructions
1. Please read these safety instructions carefully.
2. Please keep this User’s Manual for later reference.
3. Please disconnect this equipment from connecter before cleaning. Don’t use liquid or prayed detergent for cleaning.
Use moisture sheet or cloth for cleaning.
4. Make sure the equipment is connected to the power source with the correct voltage, frequency, and ampere.
5. All cautions and warnings on the equipment should be noted.
6. Never pour any liquid into opening; this could cause fire or electrical shock.
7. Never open the equipment. For safety reason, the equipment should only be opened by qualified service personnel.
8. If one of the following situations arises, get the equipment checked by a service personnel :
a. Liquid has penetrated into the equipment.
b. The equipment has been exposed to moisture.
c. The equipment has not work well or you can not get it work according to user’s manual.
d. The equipment has dropped and damaged.
e. If the equipment has obvious sign of breakage.
9. Caution on use of battery: Use the battery recommended by the manufacturer or the same type of battery installed by the
manufacturer. If incorrect battery is used, it may cause explosion or fire hazard. Recycle or discard used batteries according
the manufacturer’s instruction or your local authority.
10. Safety caution concerning laser products:
DVD-ROM/CD-RW combo drive is “Class I Laser Product” This equipment, built with DVD and/or CD disc drives using
laser beam to read or write data on optical discs, is classified as “Class 1 laser product”. While the laser optical drive is
reading data from or writing data to an optical disc, do not force open the disc drive door. Press the Eject button to retrieve
the optical disc only after the in-use indicator goes off.
11. Ambient operation temperature: 0 ~ 40 degrees C.

12. Risk of overheating!
• Do not install DE3100 in a closed space. Be sure the ventilation holes in the DE3100 side for at least 2 inches or 5 cm
of space for ventilation. To ensure that other objects do not cover the ventilation holes on DE3100
In right side and rear side and top side keep space at least
5cm.
Don’t put operating device inside closed space.

FCC notice
This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful
interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
■Reorient or relocate the receiving antenna.
■Increase the separation between the device and receiver.
■Connect the device into an outlet on a circuit different from that to which the receiver is connected.
■Consult the dealer or an experienced radio/television technician for help
Notice: Shielded cables
All connections to other computing devices must be made using shielded cables to maintain compliance with FCC regulations.

Notice: Peripheral devices
Only peripherals (input/output devices, terminals, printers, etc.) certified to comply with Class B limits may be attached to this
equipment. Operation with non-certified peripherals is likely to result in interference to radio and TV reception.
Caution
Changes or modifications not expressly approved by the manufacturer could void the user’s authority, which is granted by the
Federal Communications Commission, to operate this computer.
Operation conditions
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
Notice: Canadian users
This Class B digital apparatus complies with Canadian ICES-003

Index
1. Outlook …………..……………………………………………2
2. Product Specification….…………………………...………...4
3. Internal Connectors………..…………………………………6
4. Packing List……………………………………………………7
5. Chassis and Holder Dimension ……………………………..8

2

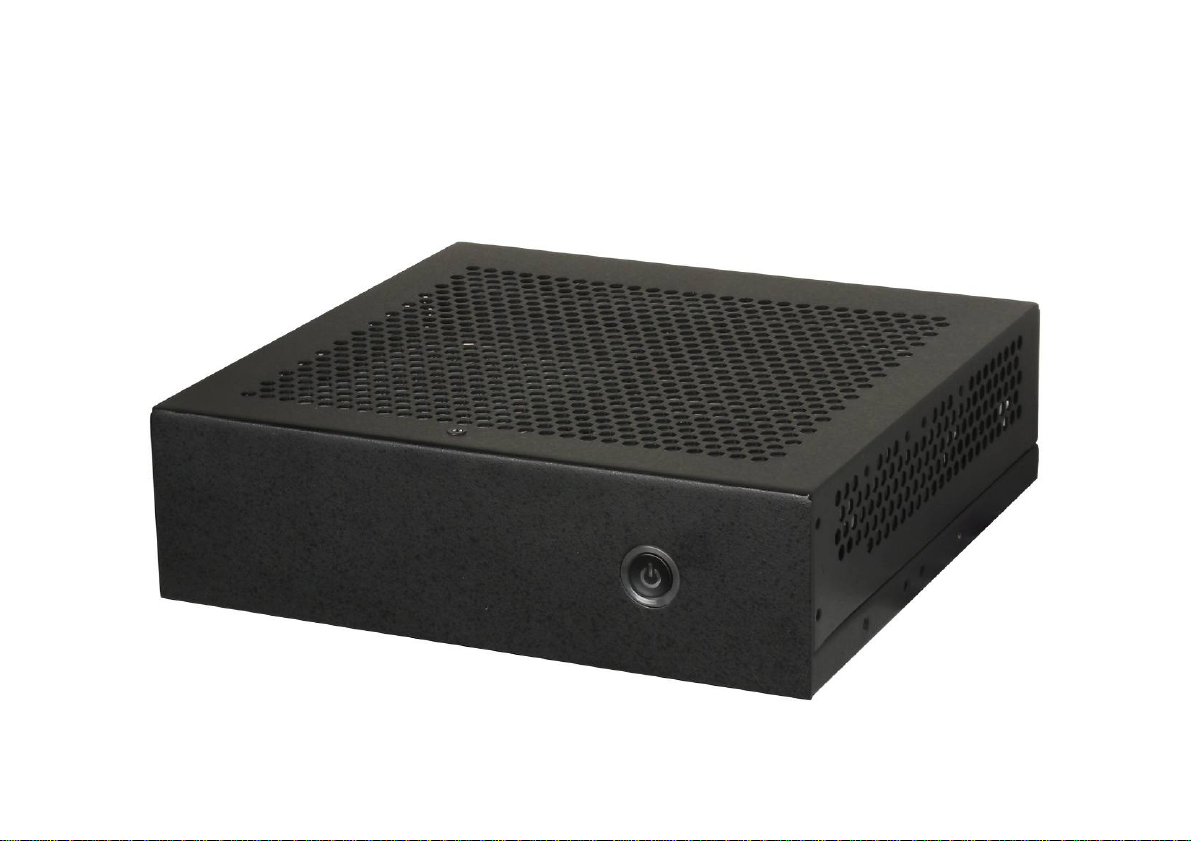

1.Outlook
Front IO

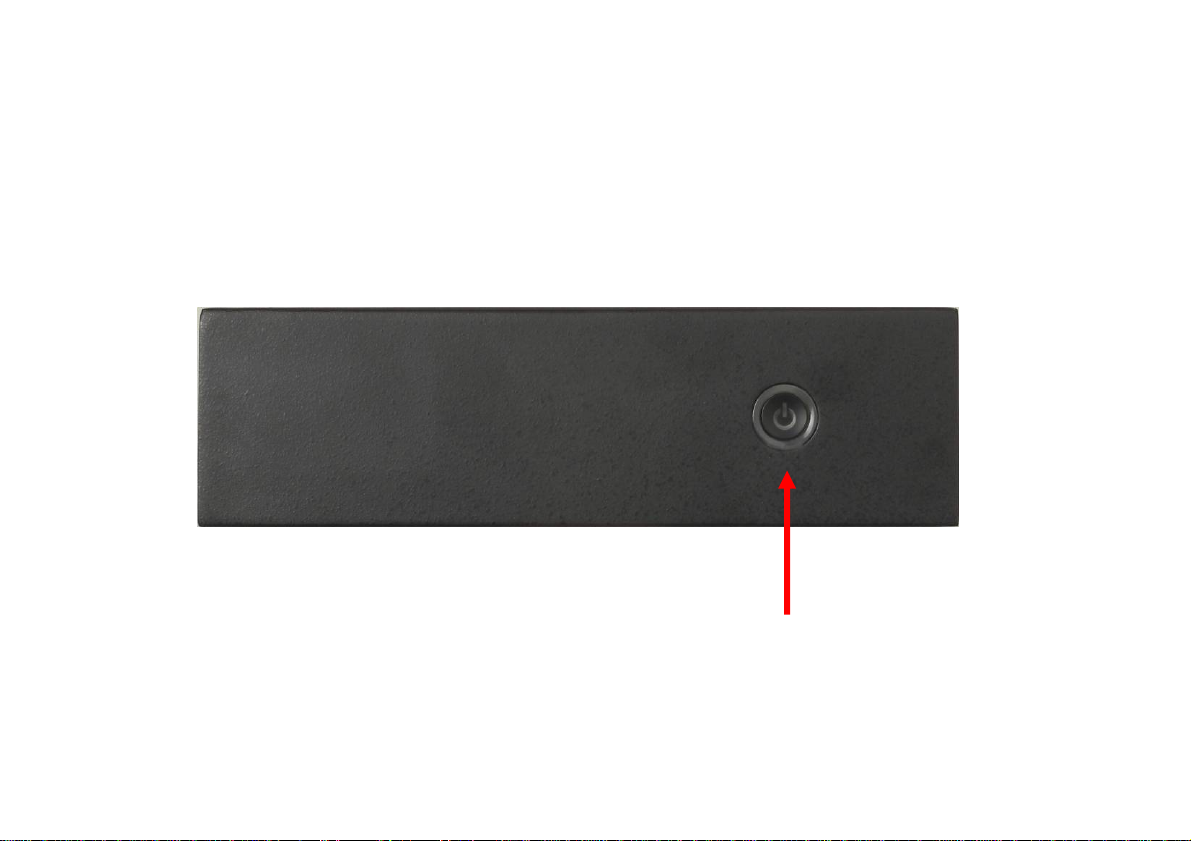

Power Button & indicator

3

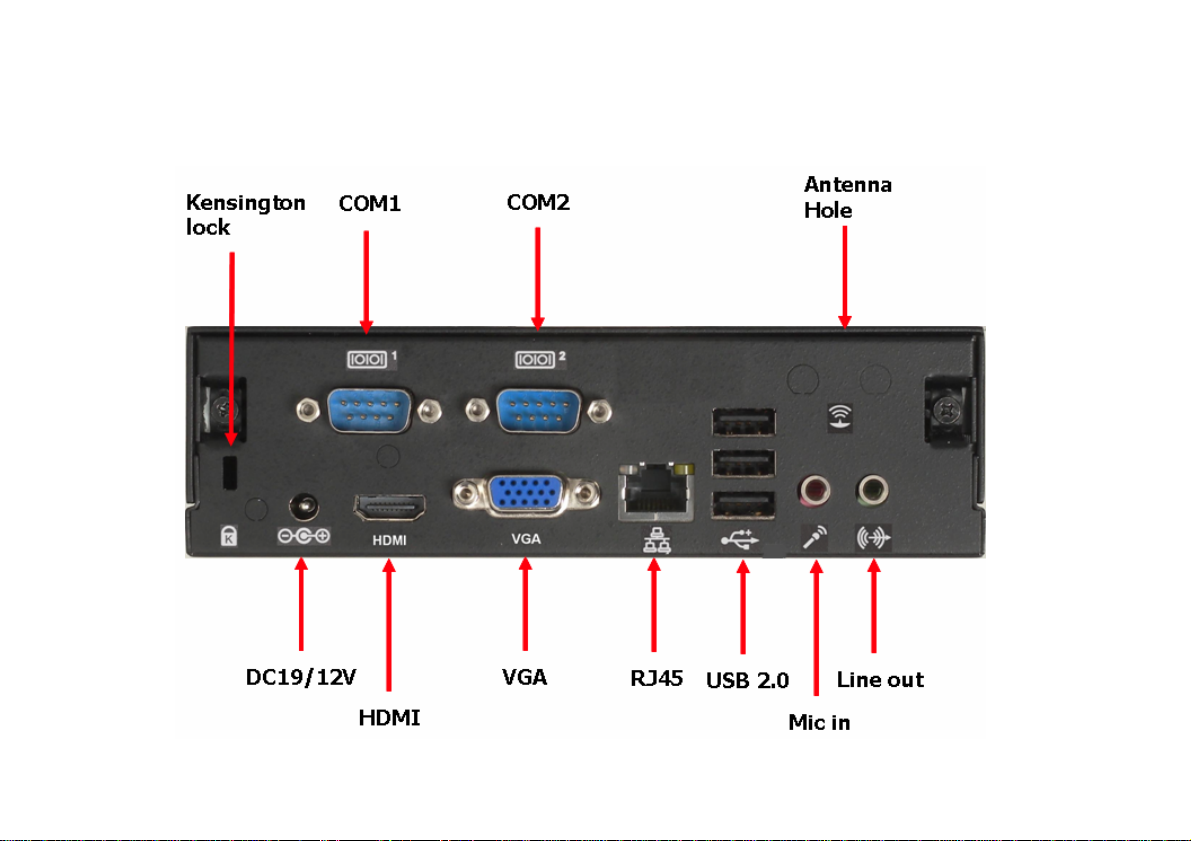

Rear IO

4
2. Product Specification
CPU Intel CPU ATOM Cedar Trail-D D2550 1.86GHz
Chipset Intel NM10 Chipset
Memory Single Channel Mode, SO-DIMM DDRⅢx 2, 1066MHz, Max memory size : 4GB
Graphics Intel integrated Graphics GMA 3650
Expansion
Slot
Full Size mini Card x 1
Half Size Mini Card x 1
Audio Realtek ALC662 HD Audio CODEC on-Board, speaker out x 1, Mic in x 1
LAN Intel 82583V 10/100/1000 Mbps LAN Controller
Front Panel IO Power Button x 1, HDD/Power indicator (Blue) x 1
Rear Panel IO DC 19V Jack x 1, HDMI x 1,VGA x 1, RJ45 LAN Jack x 1, USB 2.0 Port x 3, RS232 Serial
Port x 2, HD Audio ports (speaker out x 1, Mic in x 1)
Adapter 65W (19V, 3.42A) AC Power Adapter
Input Voltage AC 100 ~ 240V

5
Note:
1. DE3100 SO-DIMM don’t support RC-D(2Rx16, dual die), RC-E(2Rx16), and no mixed row
card support

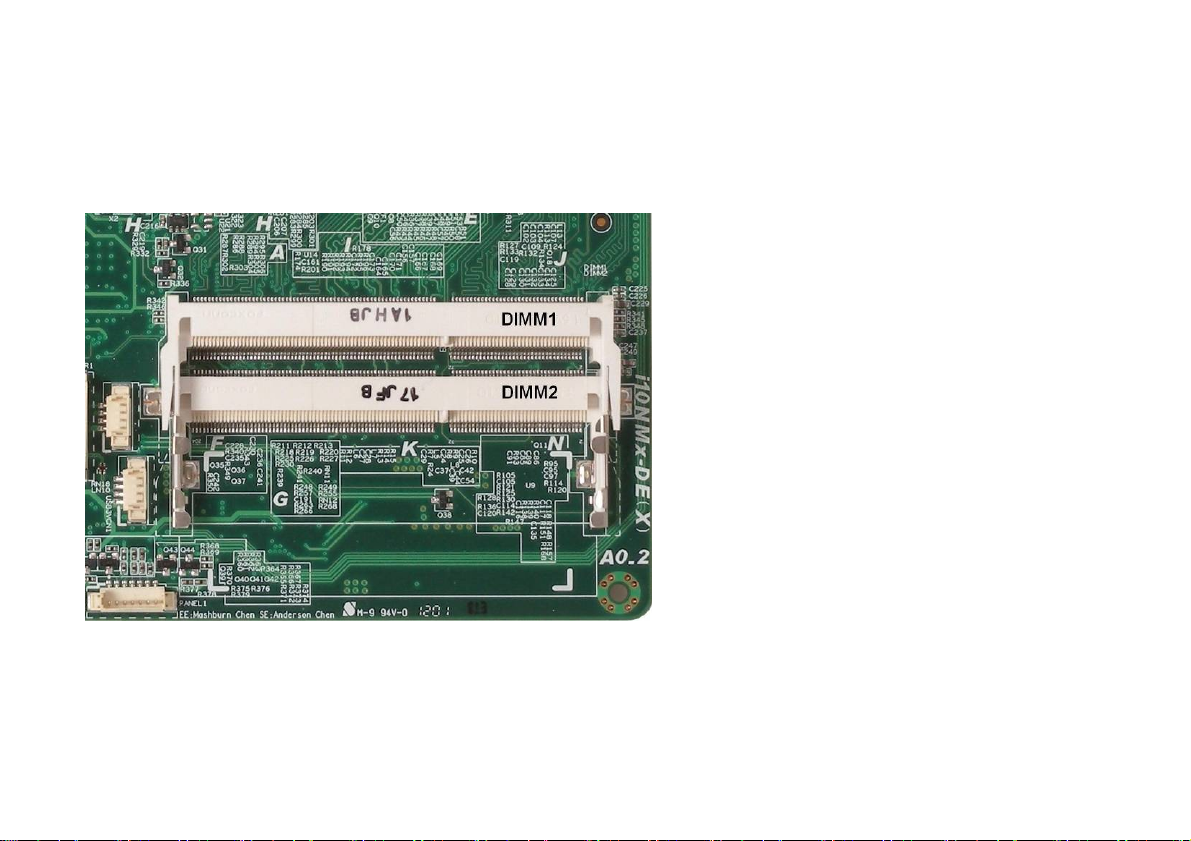

2. Please install SO-DIMM to DIMM 2 if you only install 1 SO-DIMM at DE3100

6

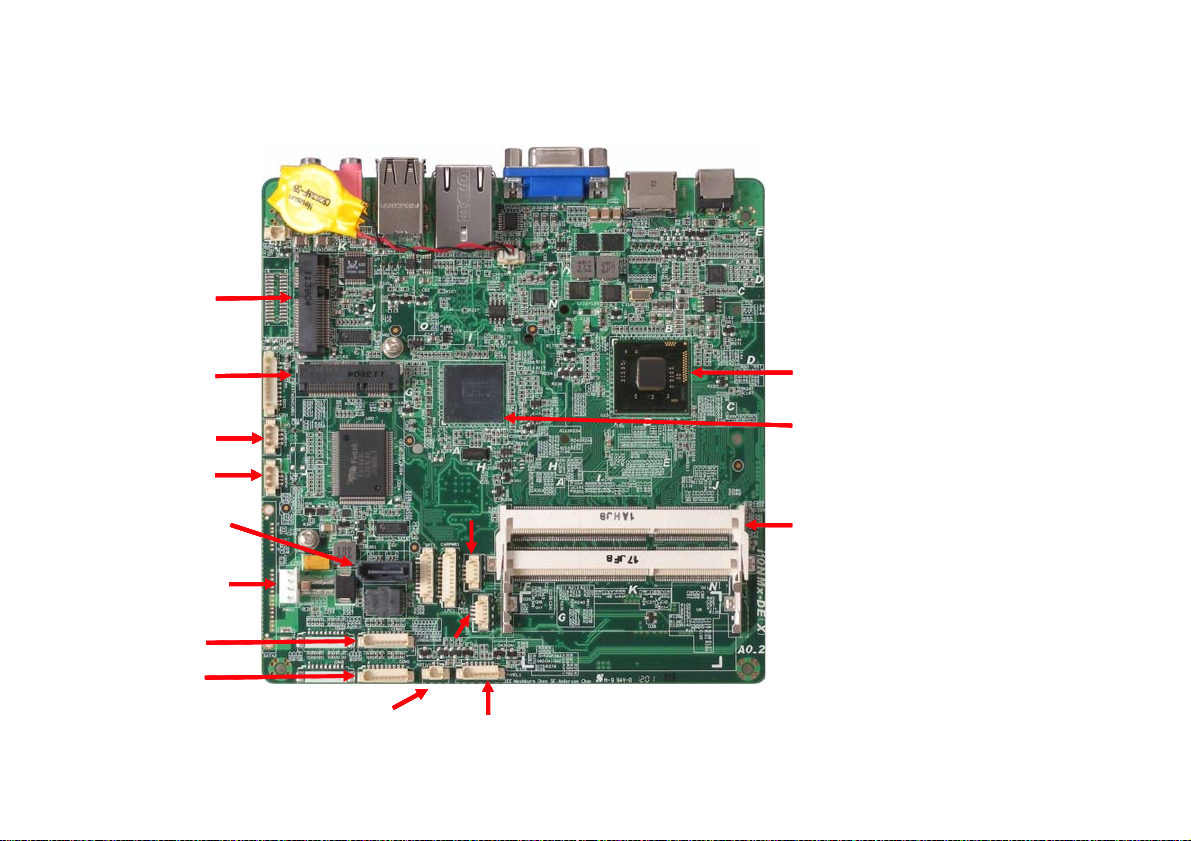

3. Internal Connectors
CPU D2550
PCH NM10
SO-DIMM socket
COM 2
COM 1
Internal USB1
Internal USB2
Half size
Mini card
Full size
Mini card
Power connector
For HDD
SATA connector
Reset connector Front panel connector
Carpwr
3V USB
DIMM1
DIMM2
CPU D2550
PCH NM10
SO-DIMM socket
COM 2
COM 1
Internal USB1
Internal USB2
Half size
Mini card
Full size
Mini card
Power connector
For HDD
SATA connector
Reset connector Front panel connector
Carpwr
3V USB
CPU D2550
PCH NM10
SO-DIMM socket
COM 2
COM 1
Internal USB1
Internal USB2
Half size
Mini card
Full size
Mini card
Power connector
For HDD
SATA connector
Reset connector Front panel connector
Carpwr
3V USB
DIMM1
DIMM2

7
4. Packing List
1 x DE3100 system
1 x User Guide
1 x Driver CD
1 x 65W Adapter and Power Cord
1 x L type Holder with 4 pcs of M3 screw
4 x M3 – L4 screws
2 x cable clamp
1 x DVI to HDMI cable

8
5. Chassis and Holder Dimension

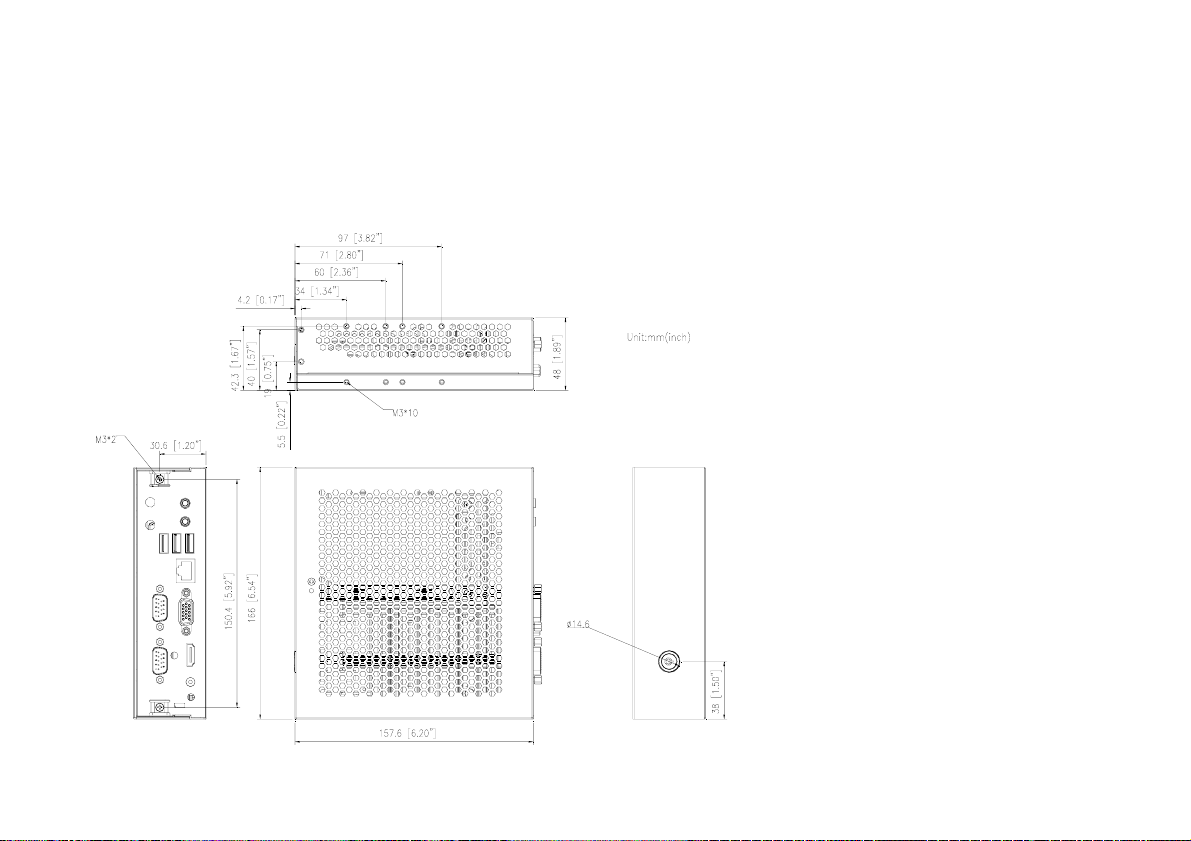

A. Dimension of DE3100 (unit: mm[inch])

9

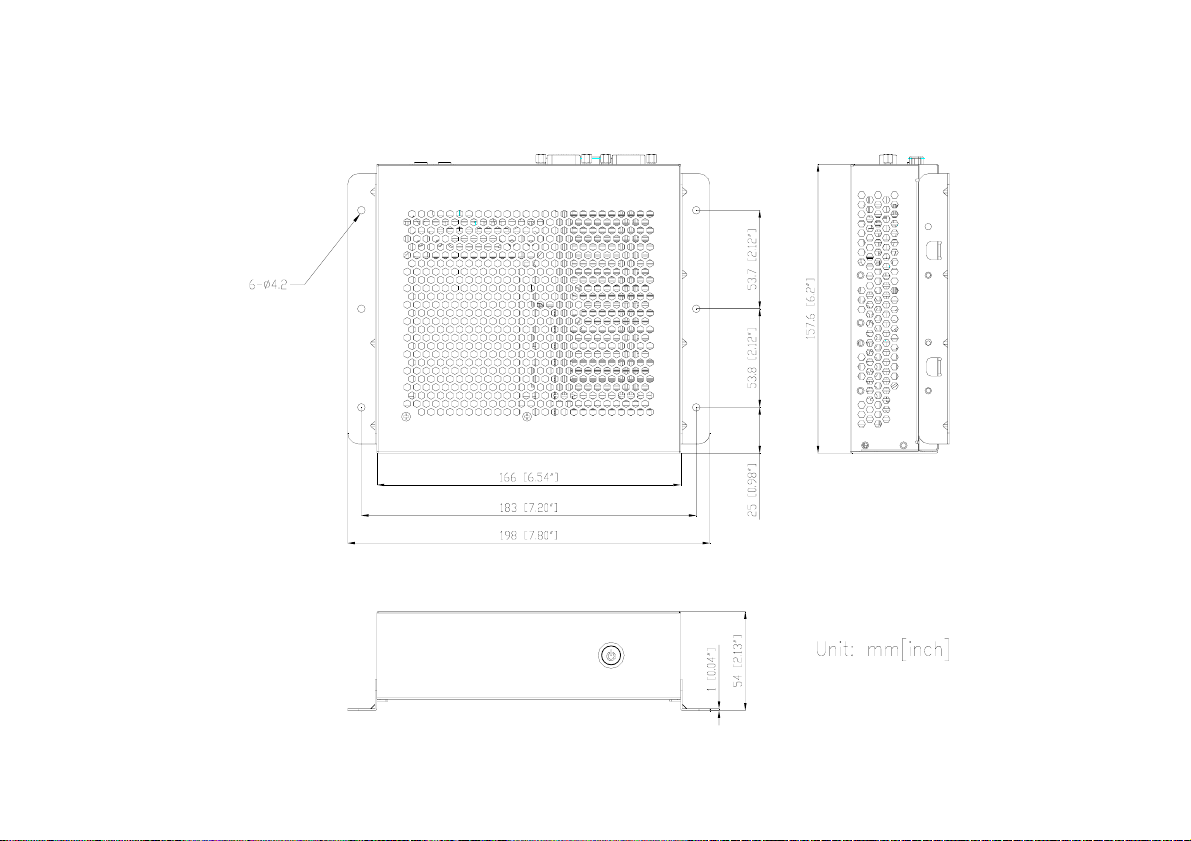

B. LH02 L type Holder(Include 2 piece holder and 4 FPH M3 screws)
