Aosom 370-234V80 User manual

INfad006_US_CA
370-234V80
’
CHILDREN
S
ELECTRONIC TOY GO KART
•
Suitable for 6+ Years
•
Maximum user weight: 50 kg
WARNING:
Must be assembled by an adult.
Read and understand this entire manual before using!
Please keep this manual for future reference as it contains important
information. Before first time use, charge the battery for at least 4-6
hours, but no more than 10hours.
IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY
ASSEMBLY INSTRUCTION
EN

On the purchase of your new Ride-On.
This ride-on car will provide your child with many miles of riding of enjoyment. To help
assure you and your rider a safe ride we ask you to please read this manual carefully, and
keep it for future reference.
Follow the recommendations in this manual, they are designed to improve the safety and
operation of your ride-on car and its rider.
Suitable age:
Charge time:
Load capacity:
Size of car:v
Speed:
About Your New Vehicle
2WD
6+ Years
8~12 hours
Under 50 kg
114*76.5*57.5cm
6.5-12.5 km/h
Specification
●Non-rechargeable batteries are not to be recharged.
●If removable rechargeable batteries are used, the are only to be charged under adult supervision.
●Remove rechargeable batteries from the product before charging.
●Do not mix old and new batteries. Do not mix different types of batteries: alkaline, standard
(carbon-zinc) or rechargeable (nickel-cadmium).
●Insert batteries as indicated inside the battery compartment, anode to anode, cathode to cathode.
●Remove batteries during long periods of non-use. Always remove exhausted batteries from the
product. Battery leakage and corrosion can damage this product. Dispose of batteries safely.
●Never short circuit the battery terminals.
BATTERY INFORMATION
Battery
Charger
input
Motor
Depend on local voltage
1
24V7AH X1
28.8V 800mA
775-21000

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Assembly tools required (not included):
1
2
2
2
4
4
4
1
1
1
1
4
2
1
1
2
NO. Q’TY (PCS)
REMARK
Parts List
left and right
2
PART NAME
Vehicle body
Rear wheel
Front wheel
Ø12 washer
Ø10 washer
Lock nut
Hub cap
M5x32 machine screw
M5 lock nut
Seat
Rear spoiler
Ø4x12 screw
Spanner
Charger
Remote controller
Split pin

13
14
15
1313
1414
1515
1
10
12
11
2
3
4
6
7
7
5
5
6
16
S
P
W
8
9
Parts Diagram
HINT: Some parts shown are assembled on both sides of vehicle
3

WARNING:
• CHOKING HAZARD! Not suitable for children under 72 months.
• Must be assembled by an adult.
PREVENT INJURIES AND DEATHS:
• NEVER LEAVE CHILD UNATTENDED. ADULT DIRECT SUPERVISION IS REQUIRED. Always keep
child in view when child is in vehicle.
Rules for Safe Riding
• This vehicle has adjustable play seat belts. Please instruct children how to tie the safety belt
before using, guarantee the security.
• Keep Children within Safe Riding Areas.
• Use the toy only on flat surfaces. Such as inside your house, garden or playground.
• Never use in the dark. A child could encounter unexpected obstacles and have an accident.
Operate the vehicle only in the daytime or a well-lit area.
• It is prohibited to change the circuit or add other electric parts
• Inspect wires and connections of the vehicle periodically.
• Do not let any child touch the wheels or be near them when the car is moving .
• This toy should be used with caution since skill is required to avoid falls or collisions
causing injury to the user or third parties.
• Protective equipment should be worn.
• To reduce the risk of injury, adult supervision is required. Never use in roadways, near
motor vehicles, on or near steep inclines or steps, swimming pools or other bodies of water,
always wear shoes, and never allow more than 1 rider.
• Always wear shoes, always sit on the seat.
• Not to be used in traffic.
• This toy is unsuitable for children under 72 months due to its maximum speed; Maximum
user weight is 50 kg.
• This toy has no brake.
Safety 4

123
5 4
1
2
3
5
4
Attach the Rear Wheels 5
Rear bottom View
Rear wheel
Turn the vehicle body upside down.
1. Slide the rear wheel onto the rear axle. And keep the rear wheel match up with the gear box.
2. Slide the Ø10 washer onto the rear axle.
3. Tighten a lock nut to the end of the rear axle with a spanner.
Repeat for the other rear wheel. Tip: An extra spanner has been provided to hold the Lock
Nut on the other side of the rear axle while tightening the Lock Nut on the other side. DO NOT
over tighten.
4. Insert a split pin into the hole on the each end of the rear axle. Bend the ends of split pins
back using a long nose pliers (not included).
5. Fit the hub caps to the rear wheels.

234 1
5
2
3
4
1
5
Attach the Front Wheels 6
Front wheel
1. Slide the Ø12 washer onto the front axle.
2. Slide the front wheel onto the front axle.
3. Slide the Ø10 washer onto the front axle.
4. Tighten a lock nut to the end of the front axle with a spanner.
5. Fit the hub cap to the front wheel.
Repeat for the other front wheel.

1
2
Attach the Steering Wheel 7
Turn the vehicle body upright.
1. Lift up the faceguard.
2. Lift the faceguard support until it is aligned with any of the four adjustment holes on
the faceguard.
TIP: The faceguard is adjustable and have four positions. Please choose the
suitable position as your child grows up.
3. Insert a M5X28 machine screw, and tighten a M5 lock nut on the opposite side.
1234
The four adjustment holes

3
4
1
2
Attach the Seat & Connect the Power Supply
1. Fit the seat into the groove in the vehicle
body.
2. Use a slotted screwdriver (Not included) or a
coin to turn the plastic lock on the rear cover
to the unlocked position.
3. Remove the rear cover.
4. Plug the connector from the vehicle body into
the connector on the battery. Replace the
seat.
8
Rear View

Attach the Rear Spoiler 9
1
2
1. Fit rear spoiler assembly to the vehicle body.
2. Tighten two Ø4x12 screws through the spoiler support and into the vehicle body on
each side.

3
2
45
1
6 7 8 9 10
Use Your New Ride On
Always stop vehicle when
changing the speed or
direction to avoid damage
the gears and motor.
IMPORTANT!
10
1. Power switch: Turns the product on and off.
2. Forward/Stop/Reverse lever: Changes the direction that product moves from
forward to reverse.
●To move the product forward, shift the lever to top position.
●To move the product backward, shift the lever to down position.
●Shift the lever to middle position, the product will not move.
3. High/Low speed switch: Operates the product to move forward in high or low speed.
4. Accelerator pedal: To move the product, press the pedal down.
5. Brake pedal: Press down the pedal, the product will slow down until it stops.
6. Horn button.
7. Next / Volume + / Music button
8. Play / Pause / Story Mode
9. Previou / Volume - / Learning Mode
10. Battery indicator: Here shows the remaining power of the battery.

Using the HIGH Speed & Adjust the Distance Of The Pedal
11
The both pedals are adjustable and have three positions. Move them forward as
your child grows up.
HOW TO ADJUST THE PEDALS:
Lift up the front of the product, pull out the handle at the bottom of the pedal until it is
pushed to the position you want, then release the handle.
Front bottom view Front top view
1
1
2
2
3
3

S
P
W
Use the Remote Controller 12
• Leave the remote controller idling for about 10 seconds, it will shut down automatically.
• Rebuild connection when you replace the batteries of the remote controller.
Insert the batteries of controller
Lift the battery compartment door on the back of the controller and insert two AAA(LR03)
batteries.
HINT: Batteries not included. Refer to the Battery Information on the page 1.
NOTE:
1. Build connection
Press the Connection button for 2 seconds, the status indicator flashes, then turn on the power
switch located on the the vehicle dash, when the status indicator turns off about 2 seconds
and turns into long bright, means the connection successful. If the status indicator makes no
response, means the connection failed. Replace the batteries and try again.
2. Brake button
Press the button to stop the vehicle, press it again to release the brake.
3. Speed select button
The switch operates the vehicle to move in low, normal or high speed.
HINT: This switch won’t work while your vehicle moves reverse.
Speed select
button
High speed indicator
Normal speed indicator
Low speed indicator
Connection button
Forward button
Reverse button
Left button
Brake button
Right button

2
1
Charging
WARNING!
ONLY AN ADULT CAN CHARGE AND RECHARGE THE BATTERY!
WARNING!
This product with Charging Protection: when charging, all functions will be cut off!
Only an adult can charge and recharge the battery!
• The POWER SWITCH must be turned in OFF position when charging.
• Before the first use, you should charge the battery for 4-6 hours. Do not recharge the
battery for more than 10 hours to avoid overheating the charger.
• When the vehicle begins to run slowly, recharge the battery.
• After each use or once a month minimum recharge time as 8 to 12 hours, less than 20
hours at most.
• Use the only rechargeable battery and charger supplied with your vehicle. NEVER
substitute the battery or the charger with another brand. Using another battery or
charger may cause a fire or explosion.
• Do not use the battery or charger for any other product.
13

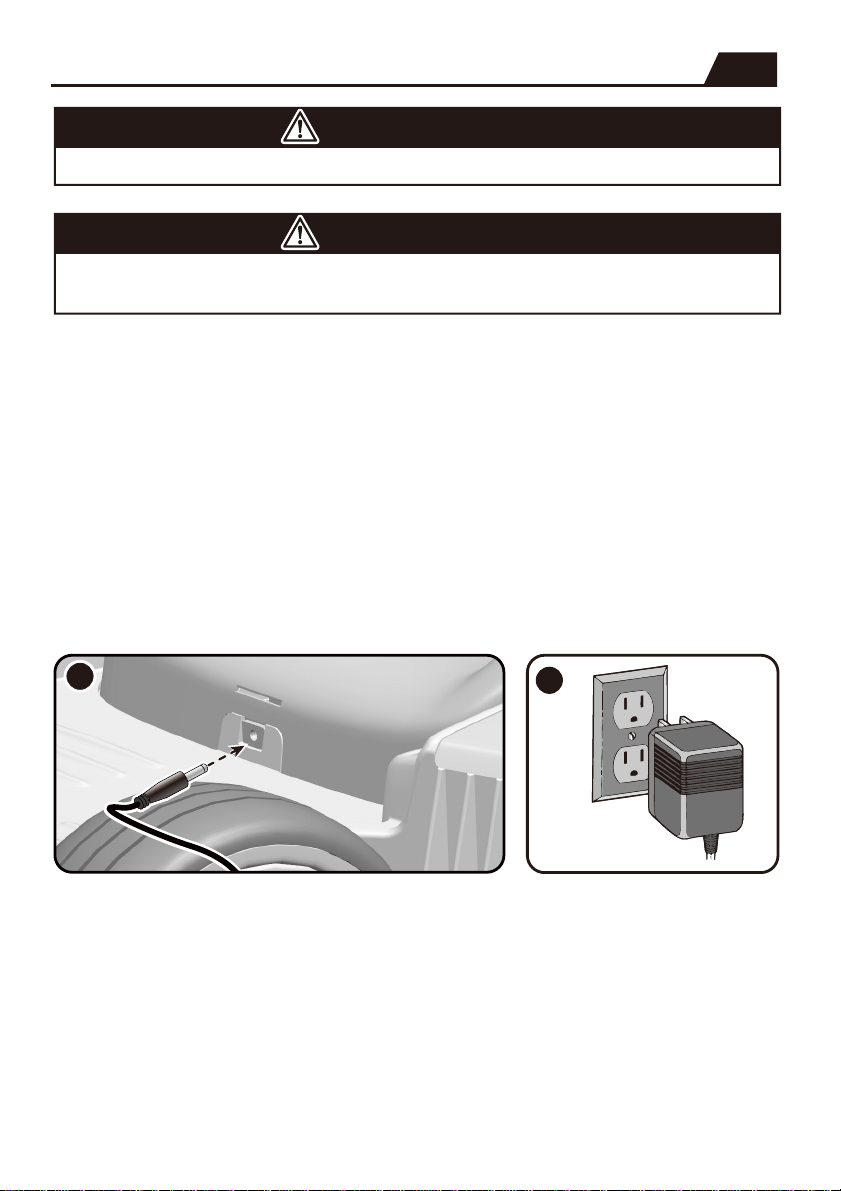

How to charge the battery
1. Plug the charger port into the charger socket on the battery.
2. Plug the charger plug into a wall outlet. The battery will begin charging.

Troubleshooting Guide 14
.
Problem Possible Cause Solution
Vehicle does not run
Vehicle does not run
very long
Vehicle runs sluggishly
Vehicle needs a push
to go forward
Difficult shifting from
forward to reverse or
vice-versa
Loud grinding or clicking
noises coming from
motor or gear box
Battery low on power
Thermal fuse has tripped
Battery connector or wires
are loose
Battery is dead
Electrical system is damaged
Motor is damaged
Battery is under charged
Battery is old
Battery is old
Vehicle is overload
Vehicle is being used in harsh
conditions
Poor contact of wires or
Connectors
“Dead Spot” on motor
Motor or gears are damaged
Battery low on power
Recharge battery.
Reset fuse, see <Fuse>
Check that the battery connectors are firmly plugged
into each other. If wires are loose around the motor
contact your distributor please.
Check that the battery connectors are firmly plugged
into each other. If wires are loose around the motor,
contact your distributor please.
A dead spot means the electric power is not being
delivered to the terminal connection and the vehicle
needs repair. Contact your distributor please.
Attempting to shift while the
vehicle is motion
Completely stop the vehicle and shift, see <Use Your
New Vehicle>
Check that the battery connectors are firmly plugged
into each other when recharging
Replace battery, contact your distributor please.
Replace battery, contact your distributor please.
Replace battery, contact your distributor please.
Reduce weight on vehicle.
Avoid using vehicle in harsh conditions ,see <Safety>.
Recharge battery, contact your distributor please.
Contact your distributor please.
Contact your distributor please.
Contact your distributor please.
Contact your distributor please.
Battery will not
recharge
Charger feels warm
when recharging
Battery connector or adapter
connector is loose
Charger not plugged in
Charger is not working
This is normal and not a
cause for concern
Check that the battery connectors are firmly plugged
into each other.
Check that the battery charger is plugged into a
working wall outlet.
Completely read through this manual and the troubleshooting guide table before calling. If you
still need help resolving the problem Contact your distributor please.

Maintaining
• It is parents' responsibility to check main parts of the toy before using, must regularly
examine for potential hazard, such as the battery, charge,cable or cord, plug, screws
are fastening enclosure of other parts and that in the event of such damage, the toy
must not be used until that damage had been properly removed.
• Make sure the plastic parts of the vehicle are not cracked or broken.
• Occasionally use a lightweight oil to lubricate moving parts such as wheels.
• Park the vehicle indoors or cover it with a tarp to protect it from wet weather.
• Keep the vehicle away from sources of heat, such as stoves and heaters. Plastic parts
may melt.
• Recharge the battery after each use. Only an adult can handle the battery. Recharge the
battery at least once a month when the vehicle Raider is not being used.
• Do not wash the vehicle with a hose. Do not wash the vehicle with soap and water. Do
not drive the vehicle in rainy or snowy weather. Water will damage the motor, electric
system and battery.
• Clean the vehicle with a soft, dry cloth. To restore shine to plastic parts, use a non-wax
furniture polish. Do not use car wax. Do not use abrasive cleaners.
• Do not drive the vehicle in loose dirt, sand or fine gravel which could damage the moving
parts, motors or the electric system.
• When not using, all the electrical source should be turn off. Turn off the power switch
and disconnect the battery connection.
15

C
Lights & Mp3 Fuse
B
When the vehicle lights and Mp3 won't work, please check the fuse first and see
whether it is burnt out. If the fuse is broken (fig B), please change with a new one (fig C),
there is a spare fuse in the assembly package. The fuse is beside the battery (fig A).
Fine Burnt out
A
16
Rear View

Battery Fuse
Our products are suitable for ASTM F963; GB6675; EN71 and EN62115 standard.
The battery features a thermal fuse with a rest fuse that will automatically trip and cut all
power to the vehicle if the motor, electric system or battery is overloaded. The fuse will
reset and power will be restored after the unit is turned OFF for 20 seconds and then
turned ON again. If the thermal fuse trips repeatedly during normal use, the vehicle may
need repair. Contact your distributor please.
To avoid losing power, follow these guidelines:
●Do not overload the vehicle.
●Do not tow anything behind the vehicle.
●Do not drive up steep slopes.
●Do not drive into fixed objects, which may cause the wheels to spin, causing the motor to
overheat.
●Do not drive in very hot weather, components may overheat.
●Do not allow water or other liquids to come in contact with the battery or other electric
components.
●Do not tamper with the electric system. Doing so may create a short, causing the fuse to trip.
17
Disposal Of Battery
●Your sealed lead-acid battery must be recycled or disposed of in an environmentally sound
manner.
●Do not dispose of your lead-acid battery in a fire. The battery may explode or leak.
●Do not dispose of a lead-acid battery in your regular, household trash. The incineration, land
filling or mixing of sealed lead-acid batteries with household trash is prohibited by law.

•
Destinéaux enfants de
plus de 6 ans
•Poids maximum de l'utilisateur : 50 kg
AVERTISSEMENT:L'assemblage doit
être réalisé
par un adulte.
IMPORTANT : LIRE ATTENTIVEMENT ET CONSERVEZ CE MANUEL POUR
VOUS Y REFERER ULTERIEUREMENT
Assemblage & manuel d’instructions
FR
Lisez et comprenez l'intégralité de ce manuel avant de l'utiliser !
Veuillez conserver ce manuel pour vous y référer ultérieurement car il
contient des informations importantes.
Avant la première utilisation, chargez la batterie pendant au moins 4 à
6 heures, mais pas plus de 10 heures.
INfad006_US_CA
370-234V80
KART ÉLECTRONIQUE
POUR ENFANTS

Âge approprié:
Temps de charge:
Capacitéde charge:
Taille de la voiture:
Vitesse:
Àpropos de votre nouveau véhicule
2WD
6+ ans
8~12 heures
moins de 50 kg
114*76.5*57.5 mm
6.5-12.5 km/h
Àl'achat de votre nouveau véhicule.
Ce véhicule procurera àvotre enfant de nombreux kilomètres de plaisir.Pour vous
assurer une conduite sûre, ainsi qu’àvotre enfant, nous vousprions de lire attentivement
ce manuel et de le conserver pour référenceultérieure.
Suivez les recommandations de ce manuel, elles sont conçues pourassurer la sécuritéet
le fonctionnement de votre voiture et de son conducteur.
SPÉCIFICATIONS:
●Les piles non rechargeables ne doivent pas être rechargées.
●Si des piles rechargeables amovibles sont utilisées, elles ne doivent être rechargées que sous la
surveillance d'un adulte.
●Retirez les piles rechargeables du produit avant de les recharger.
●Ne pas mélanger des piles anciennes et des piles neuves. Ne pas mélanger différents types de
piles : alcalines, standard (carbone-zinc) ou rechargeables (nickel-cadmium).
●Insérez les piles comme indiqué à l'intérieur du compartiment à piles, anode vers anode, cathode
vers cathode.
●Enlevez les piles lorsque vous n'utilisez pas l'appareil pendant une longue période. Retirez
toujours les piles épuisées du produit. Les fuites et la corrosiondes piles peuvent endommager ce
produit. Mettez les piles au rebut en toutesécurité.
INDICATIONS RELATIVES AUX PILES
Batterie
Entrée
duchargeur
Moteur
Dépend de la tension locale
1
24V7AH X1
28.8V 800mA
775-21000
