Features
• 2-way professional fixed installation PA speaker
• 350 W RMS power
• 700 W program power
• dual vent bass reflex
• rotatable HF horn.
• 12 inch LF driver with 75 mm vented voice coil
• 34 mm HF titanium compression driver with protection system
• SPL 1 W / 1 m: 98 dB
• 14 M10 rigging points.
• weight: only 19.2 kg

4
FULL RANGE SPEAKER
Introduction
Thank you for buying the Apart MASK12 speaker. With this new
member of the MASK series, we have once again broken new
ground in sonic performance and installer convenience. The
MASK12 speaker is meant for fixed indoor installations. Available
in 8 ohms and 100 volt, MASK12 can be used in many full range
applications where a medium to high sound pressure level is
required.
The multi-angle plywood cabinet, equipped with 14 rigging points
for shoulder eye bolts, and the optional wall/ceiling U-bracket allow
you to safely install the speaker in many different positions, be it in
a horizontal or vertical position, close to the ceiling or at the wall.
With a weight of only 19.2 kgs, the speaker is easy to install.
As usual, these Apart speakers will convince you in terms of sound
quality, reliability and setup versatility. Paired with our Revamp
2600 amplifier, your sound system will be taken to a new level of
performance.
Please read this manual carefully before using the product. This
will give you the necessary product and installation instructions to
assure a seamless installation and non-compromised overall sound
quality.
Unpacking
Upon receipt of this product, check the carton and packing
materials for any damage caused by transport. Carefully unpack
the product and check that all parts are present and in undamaged
condition. Notify your dealer and/or the shipping company
immediately if any damage has occurred during transport. Keep
the carton and packing materials in case you have to return the
product.

Instruction manualMASK12
5
Safety precautions
• Everyone who is involved with the installation and/or operation
of this product must read and understand all local safety
regulations and instructions.
• Keep this manual for future reference.
• Avoid the presence of fire and flames and do not operate the
product in the presence of heat sources, flammable liquids or
gases.
• Take care of your speaker wires, they must be free of damage.
Damaged speaker wires may result in poor sound quality and
can damage amplifiers, other parts of the audio chain and can
cause injury caused by exposure to high voltages.
• No main power shall be connected to the loudspeakers, doing
so will damage the speaker.
• This speaker should only be serviced by qualified personnel. If
not, warranty will be void.
• Use cables of the right gauge, certainly for long runs.
• Use cables with clear color indication and maintain polarity
throughout the whole system.
• For indoor use only. Do not expose the unit to outdoor weather
conditions.
• Use mounting hardware that can support the weight of the
device in a safe way.
• Inspect all mounting hardware periodically and tighten screws
when necessary.
• Do not expose the speaker to excessive temperature, moisture
or vibrations.

6
FULL RANGE SPEAKER
• Do not spill liquids on the product and/or other parts in the
audio chain.
• Always pair the speaker with a matching amplifier, in terms of
load impedance and output power.
• Avoid amplifier clipping, loud feedback, popping noise from
other devices and continuous high power output or distorted
signals.
• When turning on the power of your audio system, always turn
on the power amplifier last to avoid popping signals. For this
reason, always turn of the power amplifier first.
• Avoid ground loops in audio systems.
• Always follow these basic instructions when operating or
installing the product.
• Warning: this speaker is capable of producing high sound
pressure levels that can cause permanent hearing loss.
• Apart audio is not responsible for any damage or injury caused
by improper installation or use of this product.
• Repairs, servicing and electrical connections must be carried out
by qualified personnel only.

Instruction manualMASK12
7
Speaker connection (8 ohm version)
Input: the signal from a power amplifier must be connected to the
input/link speakon®connector. The connectors are equivalent and
internally wired in parallel. Connector 1+ (positive) and 1- (negative)
are used. 2+ and 2- are not connected.

8
FULL RANGE SPEAKER
Speaker installation
Install the speaker on the wall or ceiling using our optional
U-bracket. Make sure the wall, ceiling, surface, structure and
additional mounting hardware are capable of safely supporting the
speaker’s weight. When suspending the speaker with chains, make
sure to mount the M10 shoulder eye bolts (not supplied) on more
than one side of the speaker. Use at least 3 chains, for example,
one at the top of the speaker, and 2 on each side. Adjust the length
of the chain(s) to position the speaker correctly. Do not attempt to
suspend multiple speakers on the same set of chains or brackets.
For safety reasons, every speaker must be mounted using its own
set of chains or brackets.
washer 10.5 x 40
M10 Shoulder eye bolt and washer
(not supplied)

Instruction manualMASK12
9
Speaker orientation
The high frequency horn has a nominal dispersion angle of 90°H
x 70°V. When the speaker is mounted horizontally, we advise to
rotate the high frequency horn by 90° to ensure the 90° horizontal
dispersion angle. The Apart logo on the grille can also be rotated.
In order to mount the speaker close to the ceiling, one side of the
speaker is angled.
on-wall on-ceiling

10
FULL RANGE SPEAKER

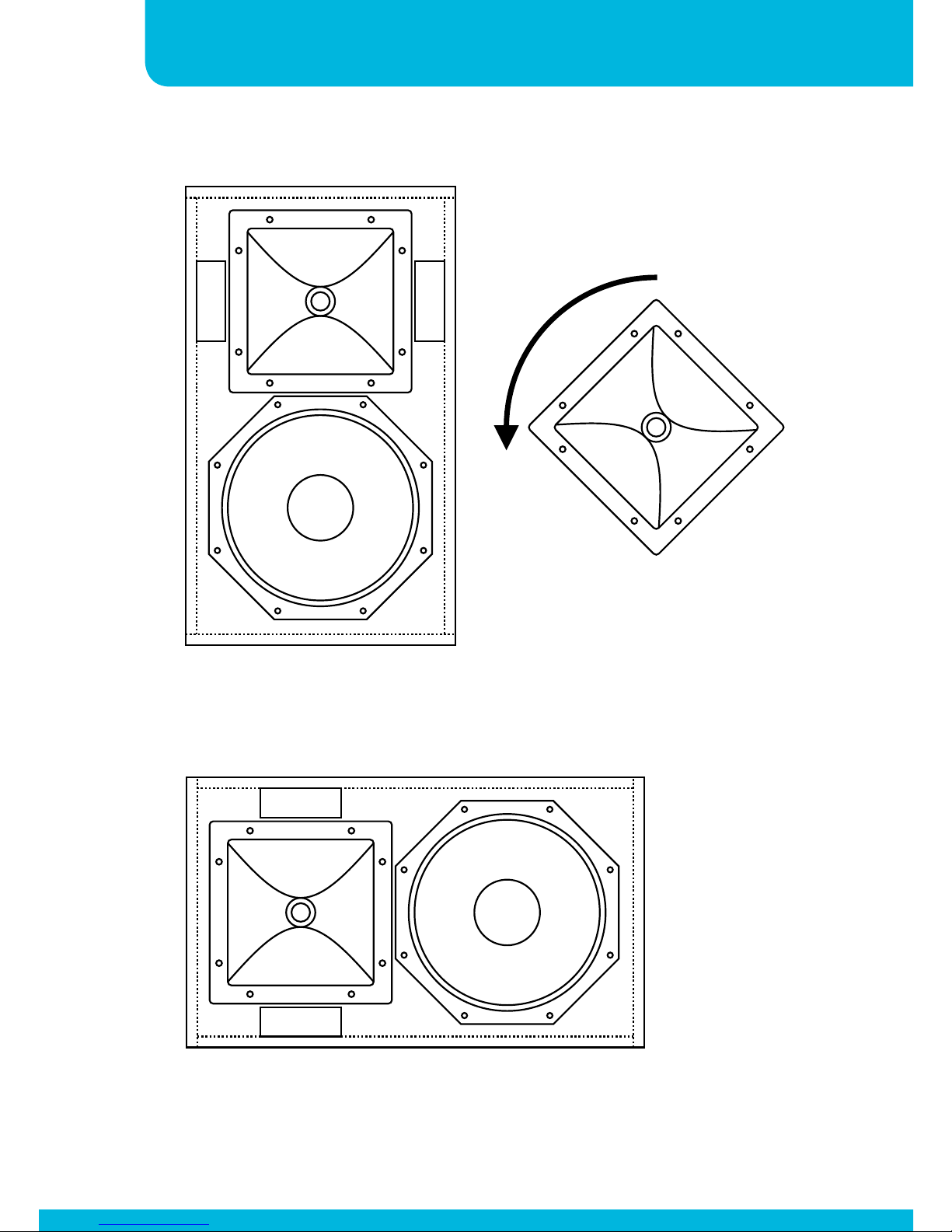

rotate HF horn 90° for horizontal orientation

Instruction manualMASK12
11
rotate logo 90° for horizontal orientation

12
FULL RANGE SPEAKER
Specifications
Model name MASK12
height mm 628
width mm 370
depth mm 370
cutout mm
loudspeaker system 2-way
woofer size inch 12
woofer cone material paper
tweeter size inch 1.4
dispersion (H x V in ° ) 90 x 70
mounting system optional

Instruction manualMASK12
13
rigging flying points 14 x M10
colour black / white
impedance ohms 8
low impedance power watts 700
SPL 1W/1m dB 98
max SPL 1m dB 127
frequency response Hz 48 - 22K
main construction material wood
grille main material steel
IP rating 40

14
FULL RANGE SPEAKER
Warranty info
Apart Audio warrants this product to be free of defects in material
and workmanship for a period of one year for parts and for a
period of one year for labor from the date of original end-user
purchase. This warranty is valid only for the original end-user and
cannot be transferred.
During the warranty period Apart-Audio or one of its authorized
service partners shall either repair or replace any product, free of
charge, that proves to be defective on inspection by Apart-Audio or
its authorized service representative.
This warranty does not include, damages or product faults due to
abuse, misuse or faulty installation.

developed
by
Audioprof nv
Industriepark Brechtsebaan 8 bus 1
2900 Schoten - Belgium
Company names, product names and trademarks are property of their
respective owners.
Apart-Audio specifications are subject to change without notice.
