USER MANUAL
UBDDGS60ABK, UBDDGS90ABK Version 00
DOWN-DRAFT HOOD

Cooker hood

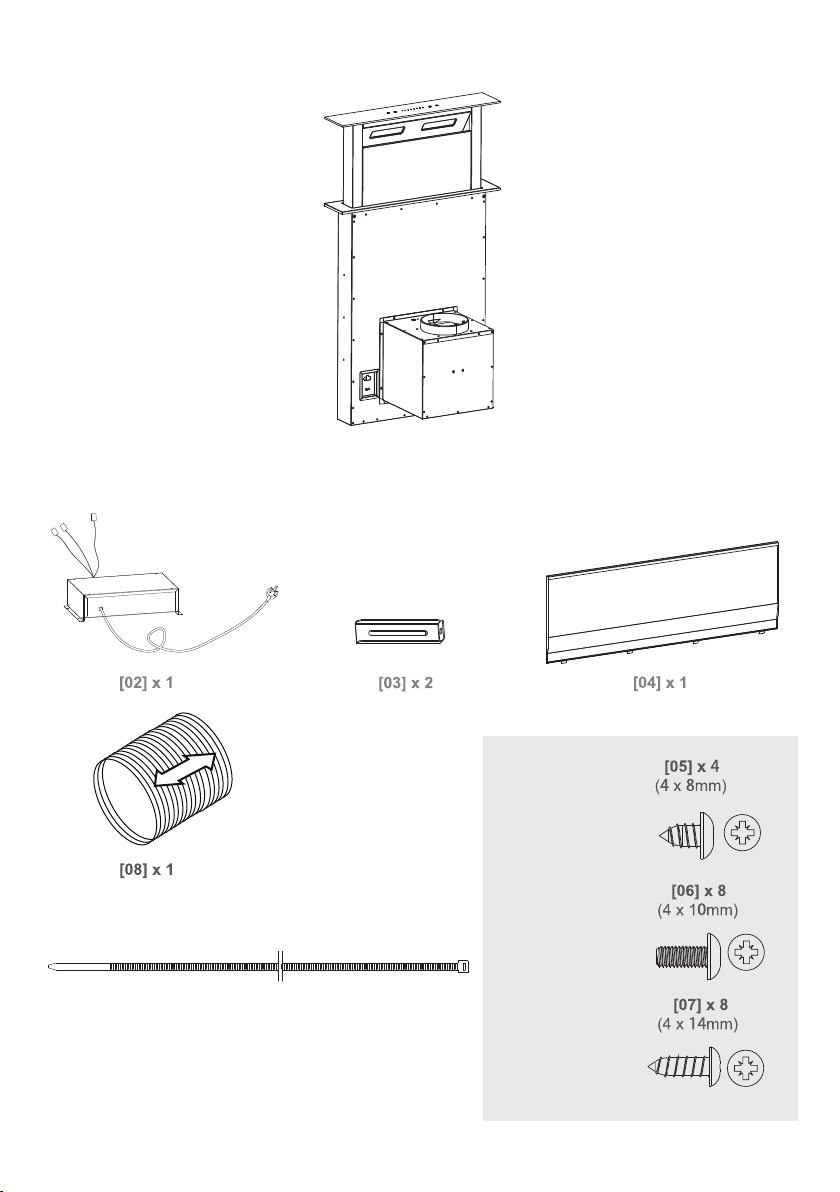

[01] x 1
[09] x 1
VENT PACK 150mm

GB IE
Let's
get started...
Getting started... 03
Before you start
04
Safety
08
In more detail... 10
Product functions
Switching on/off
Care and maintenance
Troubleshooting
Recycling and disposal
Technical and legal information
10
10
11
13
14
15
Appendix
20
Installation
Information for EU66 17
21
3
These instructions are for your safety. Please read through them
thoroughly before use and retain them for future reference.

4
GB IE
Safety
Getting started...
•All installation work must be carried
out by a competent person or qualified
electrician.
•This appliance must be installed correctly
by a suitably qualified person, strictly
following the manufacturer’s instructions.
This appliance complies with all current European
safety legislation, however, the Manufacturer must
emphasise that this compliance does not prevent
the surfaces of the appliance from heating up
during use and remaining hot during its operation.
Accessible parts may become hot during use.
Young children should be kept away. Care should
be taken to avoid touching the appliance.
The Manufacturer highly recommends that this
appliance be kept out of the reach of babies and
small children.
This appliance can be used by children aged from
8 years and above and persons with reduced
physical, sensory or mental capabilities or lack
of experience and knowledge if they have been
given supervision or instruction concerning use of
Warning : For use with Gas Hobs and for the user
not to touch the front panel due to heat
These instructions are for your safety. Please
read through them thoroughly prior to
installation and retain them for future reference.

GB IE
5
Safety
Getting started...
8 and supervised.
Keep the appliance and its cord out of reach of
children less than 8 years.

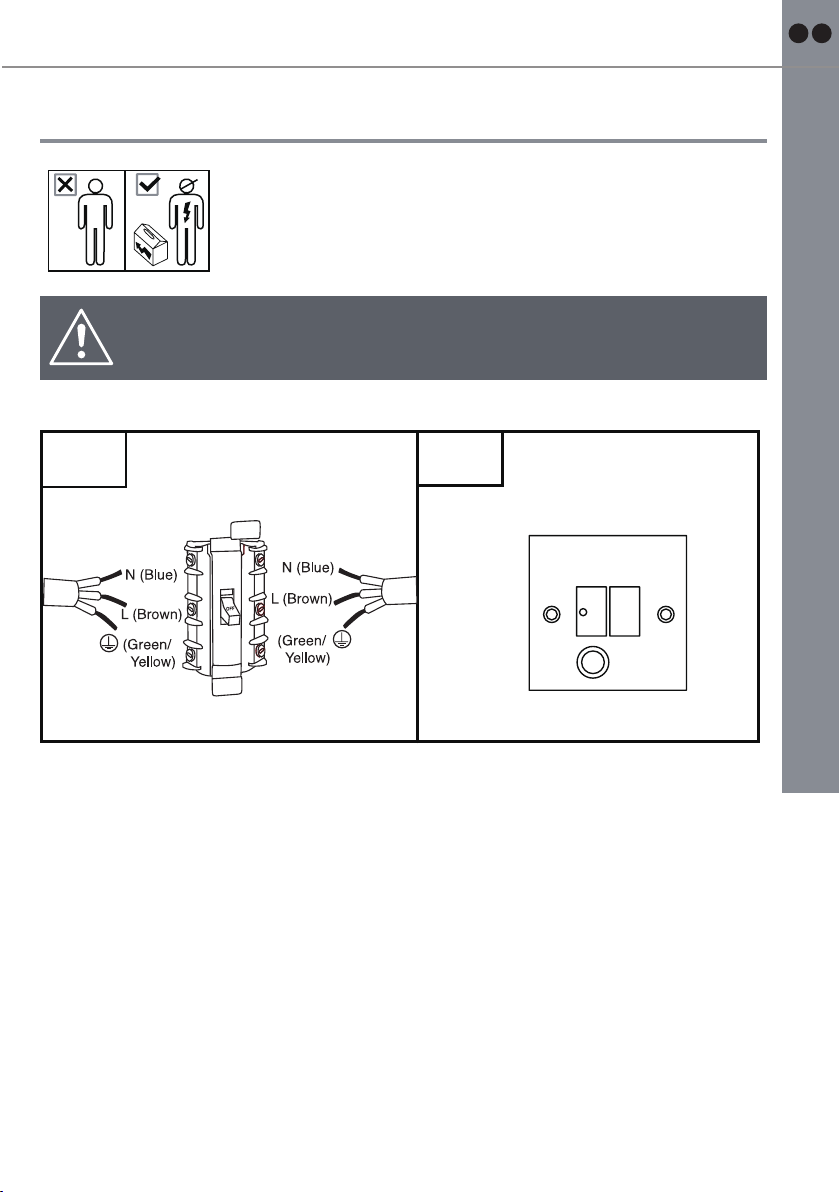

Means for disconnection must be incorporated in
the fixed wiring in accordance with the wiring rules.
An all-pole disconnection switch having a contact
separation of at least 3mm in all poles should be
connected in fixed wiring.
Regularly check the power plug and power cord
for damage. If the supply cord is damaged, it must
be replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid a
danger or injury.
Do not allow the electric cables to touch the hot
parts of the appliance.
Make sure that the power cord is not caught under
or in the appliance and avoid damage to the power
cable.
Warning: Failure to install the screws or fixing
device in accordance with these instructions
may result in electrical hazards.
Do not install the appliance outdoors in a damp
place or in an area which may be prone to water
leaks such as under or near a sink unit. In the
event of a water leak allow the machine to dry
naturally.
the appliance in a safe way and understand the
hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall
not be made by children unless they are older than

6
GB IE
Safety
Getting started...
Warning: When the range hood and appliances
supplied with energy other than electricity are
simultaneously in operarion,the negative pressure
in the room must not exceed 4 Pa (4x10-5 bar).
Please dispose of the packing material carefully.
Do not use flammable sprays in close vicinity to
the appliance.
We also recommend that great care be taken
during use and cleaning. Read the cleaning and
maintenance sections for this appliance carefully.
A steam cleaner is not to be used.
The appliance is not intended to be operated by
means of external timer or separated
remote-control system.
The appliance is for domestic use only.
Warning: Before connecting the hood: switch off
the electricity supply and check that the supplied
Warning: Consult local regulations regarding
fumes outlets. Do not connect the hood to a fume,
ventilation or hot air duct. Confirm that room
ventilation is appropriate with the local authorities.
Make sure the maximum air extraction flow rate for
the appliances in the room does not exceed 4 Pa
(0.04 mbar). The room must have adequate
ventilation if an extractor hood is used
simultaneously with appliances that run on gas or
other fuels. The air must not be discharged into a
flue that is used for exhausting fumes from
appliances burning gas or other fuels. Regulations
regarding air extraction must be complied with.

GB IE
7
Safety
Getting started...
To avoid the risk of fire, clean the metal filter
regularly and closely watch and regulate pans
containing hot oil.
Do not use the hood if it shows signs of damage
or imperfection. Contact customer services.
Flambe cooking must not be carried out
in front of this appliance.
The Manufacturer declines all liability for personal
or material damage as a result of misuse or
incorrect installation of this appliance.
Regarding the information pertaining to installation,
thanks to refer to the below paragraph of the manual.
Regarding the information for replacing the bulb,
please see section "Care and maintenance".
involves no risk of damage. Switch off the
electricity supply to the hood and reconnect after
one minute.
Warning
There is a risk of electric shock and fire if
cleaning is not carried out in accordance with
the instructions.
Regarding the instructions for the lamp
replacement, thanks to refer to the section “
LAMP REPLACEMENT”.
ILCOS D code for this lamp is: DBS-1-S.
voltage and frequency coincide with that indicated
on the appliance nameplate.
Warning: The hood may stop working during an
electrostatic discharge (e.g. lightning). This

8
GB IE
Before you start
Getting started...
Things to check before you start
To avoid the risks that are always present when you use an electrical
appliance it is important that this cooker hood is installed correctly and that
you read the safety instructions carefully to avoid misuse and hazards.
We recommend that you keep this instruction booklet for future reference
and pass it on to any future owners. After unpacking the cooker hood
please check that it is not damaged. If in doubt, do not use the appliance
but contact Customer Services on 0344 800 1128 (UK) and 01 4475261
(Ireland).
Check the package and make sure you have all of the parts listed.
Decide on the appropriate location for your product.
If this product contains glass please take care with fitting or handing to
prevent personal injury or damage to the product.
This specifications plate is available on this appliance. This plate displays
all the necessary identification information for ordering replacement parts.
If you sell the appliance, give it away, or leave it behind when you move
house, make sure you also pass on this manual so that the new owner can
become familiar with the appliance and its safety warnings.
You will need

Before you start
Accessories not supplied
GB IE
9
Getting started...
Recirculation
ATFILT3 for 60cm product;
ATFILT4 for 90cm product.
CARBON FILTER ORDERING
HOTLINE
0344 800 1128 (UK)
014475261 (IE)
Steel fixed wire

Operation
10
GB IE
In more detail...
Product functions
•This appliance extracts the air of the kitchen to remove the odours and keep
an optimum level of air quality inside the room, it also allows you to illuminate
the cooking area.
•Switch on the appliance at the switched fused connection unit. The appliance
is ready for use.
Switching on/off
To obtain the best results from your cooker hood it is recommended that you
leave it switched on for 15 minutes after you have finished cooking.

Care and maintenance

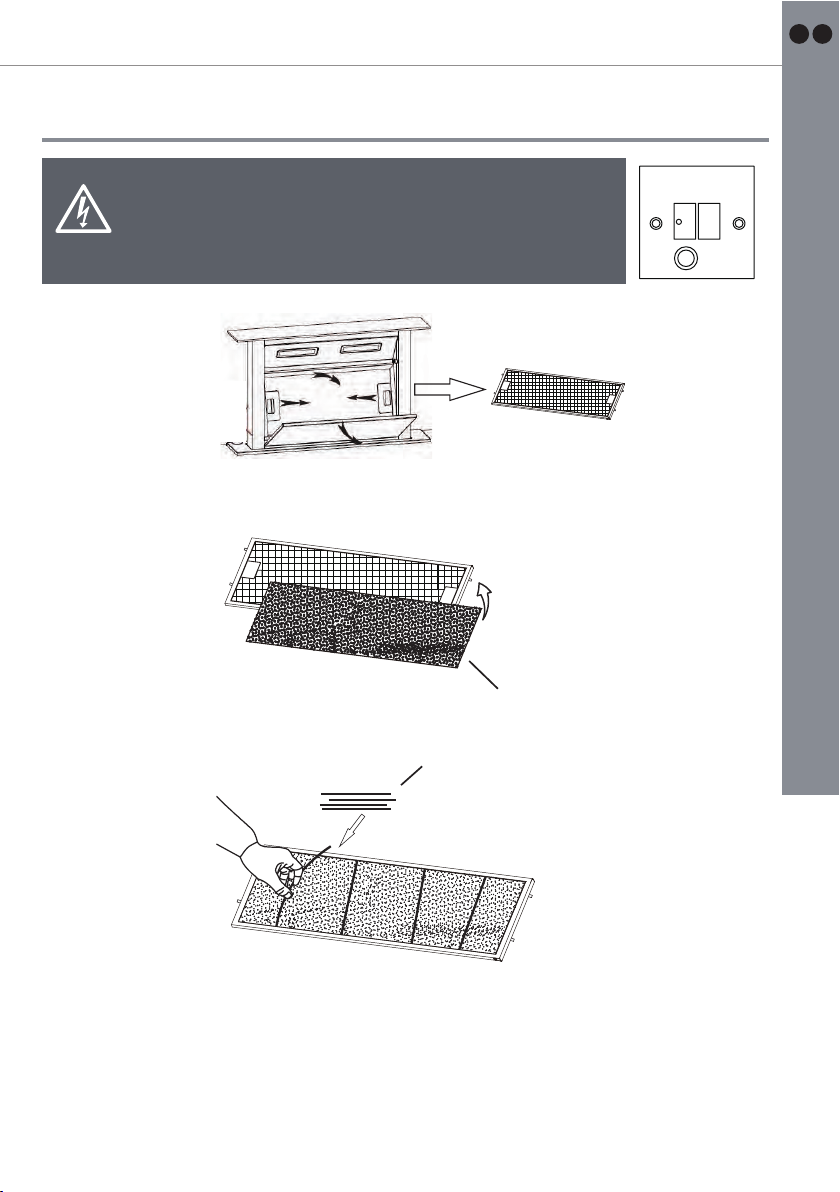

Active charcoal filters replacement
GB IE
11
In more detail...
OFF
Warning
Always switch off the electricity supply before carrying
out maintenance work on the hood. In the event of a
fault, contact customer services.
FUSE
CARBON FILTER ORDERING HOTLINE
0344 800 1128 (UK)
014475261 (IE)

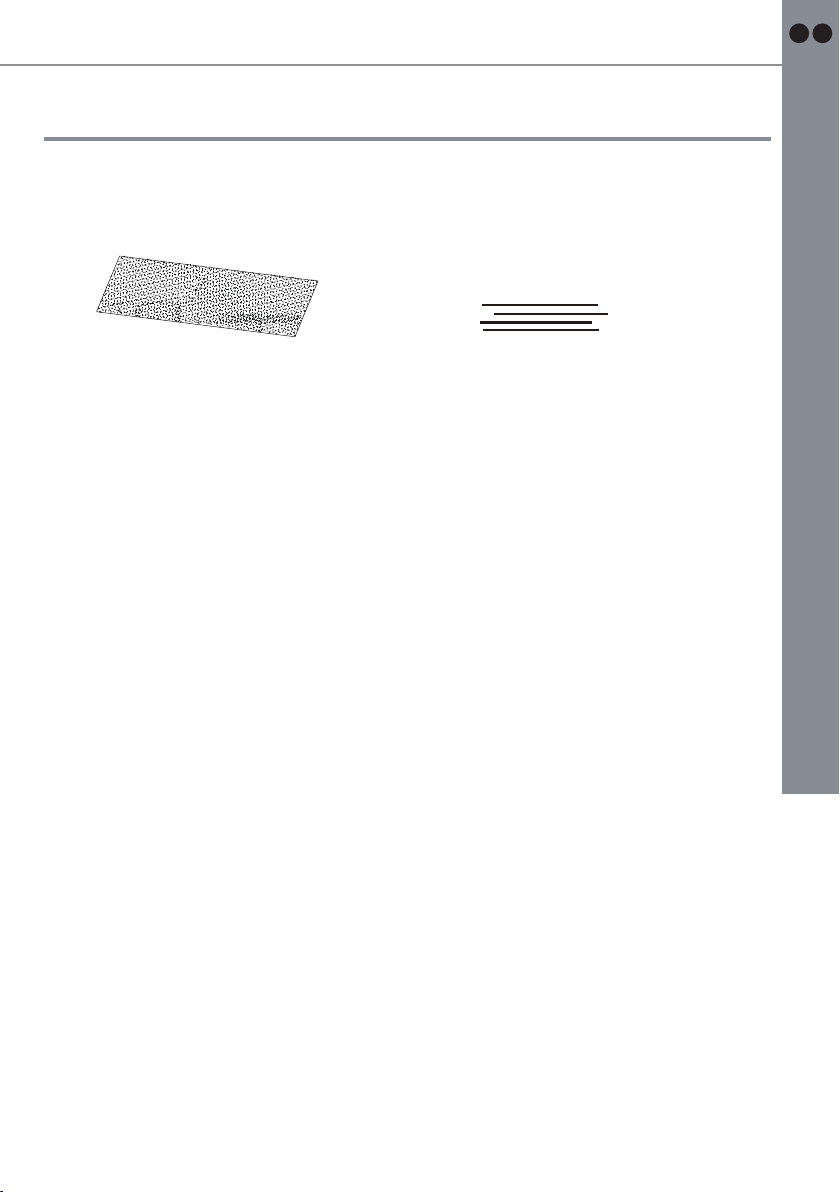

1 X ACTIVE CHARCOAL FILTER MAT(SUPPLIED).
1
2
Carbon filter mat
3
Steel fixed wire
60cm product: 3pcs
90cm product: 4pcs
MODEL NUMBER: ATFILT3 for 60cm product;
ATFILT4 for 90cm product.

Note: Increase the filter cleaning/replacement frequency if the hood
is used for more than 2 hours a day. Always use genuine filters from
the manufacturer.
IE
12
Care and maintenance
,
60
Note: 1.Please do not put anything which can block the up & down of the hood
to avoid the damage of the hood and body injury.
2.Please keep the power off when clean the hood.
In more detail...
Active charcoal filter replacement
1 MONTH
Active charcoal filters:
Replace every 3 months.
3 MONTH
GB IE

Troubleshooting
Troubleshooting
If the lamp is failed please contact the after-sales care.
13
GB IE
In more detail...
Hood doesn’t
work.
No power supply. Check the plug.
Check the main switch.
Care and
maintenance section.
Motor running,
but no airflow
Repair to be carried out by
qualified service personnel only.
After running for
a while, motor
stop working.
High temperature safety
device activated. the manufactures instructions.
Electric hobs: 30mm Electric hobs: 30mm
Whirring sound. Fan blade probelm. Repair to be carried out by
qualified service personnel only.
Poor airflow Aluminum grease filters
are dirty.
Clean the filters. See
Butterfly valve jammed.
Ensure that the vent kit is fitted to
Oil leakage
One way valve and the air
ventilation entrance are
not tightly sealed.
Leakage from the
connection of U-shaped
section and cover.
Take down the one way valve
and seal with glue.
Take U-shaped section down
and seal with soap or paint.
Shake of the
body
The body is not tightly
hanged. Fixed the body tightly.
The machine
inclines
The fixing screw not tight
enough.
Tighten the hanging screw and
make it horizontal.
The hanging screw not
tight enough.
Tighten the hanging screw and
make it horizontal.

Recycling and disposal
Technical and legal information
Recycling and disposal
Technical specification
Environmental protection
Waste electrical products should not be disposed of with household waste.
Please recycle where facilities exist. Check with your Local Authority or retailer for
recycling advice.
The symbol on the product or its packaging indicates that this
product cannot be treated as normal household waste. This
product must be handed over to an electric and electronic
equipment collection point for recycling.
On ensuring that this product is disposed of correctly, you will help to avoid
possible negative consequences for the environment and public health, which
could occur if this product is not handled correctly. To receive more detailed
information about recycling this product, contact your local government, domestic
waste disposal services or the outlet where the product was bought.
Supply voltage 220-240V~, 50Hz
Power consumption - Fan 230W
Power consumption - Luminary 2 x 1W Max
Power consumption - Total 232W
Protection class I
Light bulb Max. 1W (LED Module)
GB IE
14
In more detail...
ILCOS D code DBS-1-S

Technical and legal
information
15
GB IE
In more detail...
Wiring
All installation work must be carried out by a competent
person or qualified electrician.
Before connecting the mains supply ensure that the mains
voltage corresponds to the voltage on the rating plate.
WARNING: THIS APPLIANCE MUST BE EARTHED.
Mains Supply could be connected to the Mains Voltage by Direct Connection
USE A 3AMP FUSE
DOUBLE POLE SWITCHED
FUSED SPUR OUTLET
FUSE ON
EUR UK
Direct Connection
If the appliance is being connected directly to the mains an omnipolar circuit-
breaker must be installed with a minimum opening of 3mm between contacts.
The installer must ensure that the correct electrical connection has been made
and that it complies with wiring diagram.
The cable must not be bent or compressed.
Regularly check the power plug and power cord for damage. If the supply cord is
damaged, it must be replaced by a special cord or assembly available from the
manufacturer or its service agent.

Technical and legal
information
GB IE
16
Technical and legal information
In more detail...
The Manufacturer declines all liability for damage caused to persons and objects
due to incorrect or improper installation of the appliance.
Electrical Requirements
Any permanent electrical installation must comply with the latest I.E.E. regulations
and local electricity company regulations. For your own safety a qualified
electrician or contractor who is on the roll of the National Inspection Council
for Electrical Installation Contracting (NICEIC) should undertake the electrical
installation.
Electrical Connection
Before connecting the mains supply ensure that the mains voltage corresponds to
the voltage on the rating plate inside the appliance.
WARNING: THIS APPLIANCE MUST BE EARTHED
The appliance is supplied with a 3-core mains cable and must be connected to
the electricity supply via a double pole switch having a 3mm minimum contact gap
on each connector.
For UK only
A Switched Fused Connection Unit to BS 1363 Part 4 is recommended.
The fuse must be rated at 3 Amps.
The wires in the mains lead are coloured in accordance with the following code:
Brown = L - Live
Blue = N - Neutral
The connection point must be placed in a position adjacent to the appliance so as
to be readily accessible for an engineer in the event of a breakdown.

17
Installation
01
DUCTED OPTION RECIRCULATION OPTION
VENT PACK Ø150mm VENT PACK Ø150mm
A
min 720-max 760
Mark and cut a hole in the worktop using the dimensions shown above.
(Unit: mm)
For Gas hobs
For Electric hobs >40mm
65-80mm
A02

03
04

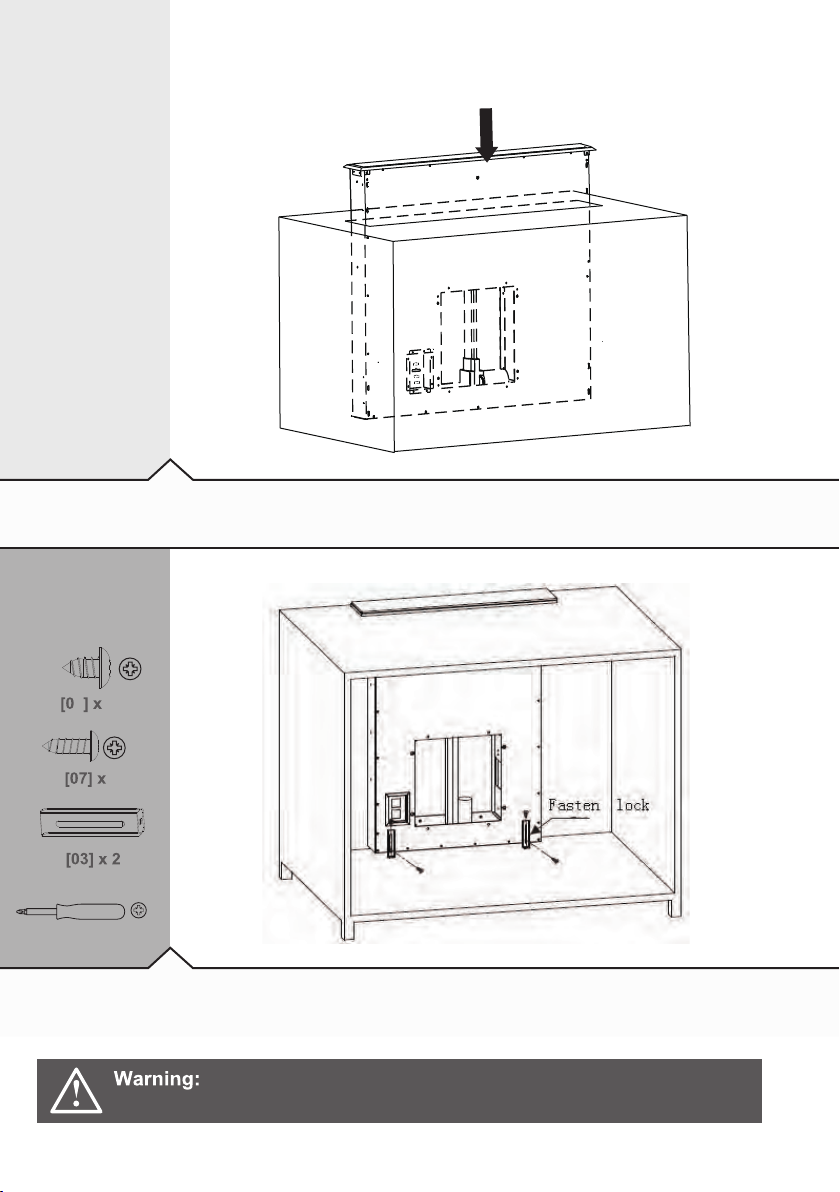

Put the hood into the hole of the cabinet slowly.
Use screws and fixing bracket to fix the hood.
For safety reason, please use only the same size of fixing or mounting screw which are
recommended in this instruction manual.
18
5 2
2
Failure to install the screws or fixing device in accordance
with these instructions may result in electrical hazards.

05
06
Connect the casing and hood. The wind direction are up, down, left, right, the user can
select according to the space of the cabinet. Ensure the external vent outlet has some
form of backdraft shutter i.e. gravity flaps to prevent air blowing back into the room.
19
Fix the vent pack on the outlet, and use 4pcs screws to fix the PCB box, connect the power.
[09]
6
7
[10] x 1
[08] x 1
VENT PACK Ø150mm

20
07
For recirculating option refer to Care and maintenance section.
Note: For electrical connection see Technical and legal information section.
Plug in the cooker hood and fix the decorative glass.
Note: Do not touch the decorative front glass panel during or after the operation
of the hood to avoid burns.
