Apelson UBCDCH100W User manual

Manual for the installation, use and maintenance.
Decorative Ceiling Cooker Hood
Model Number UBCDCH100W

24
1
3
2
4
1
3
2
13
P1
P2
1
2
4
1
2
3
4
3

22 3 41 5
P4
P5
P6
i
123456
P7
2221 23 24 25
P3
1 2 3 4
P5

D E CO R A T IVE E X TRAC T OR H O O D
Dear Customer,
Thank you for buying our hood. Please read these instructions carefully for its optimum
installation, use and maintenance.

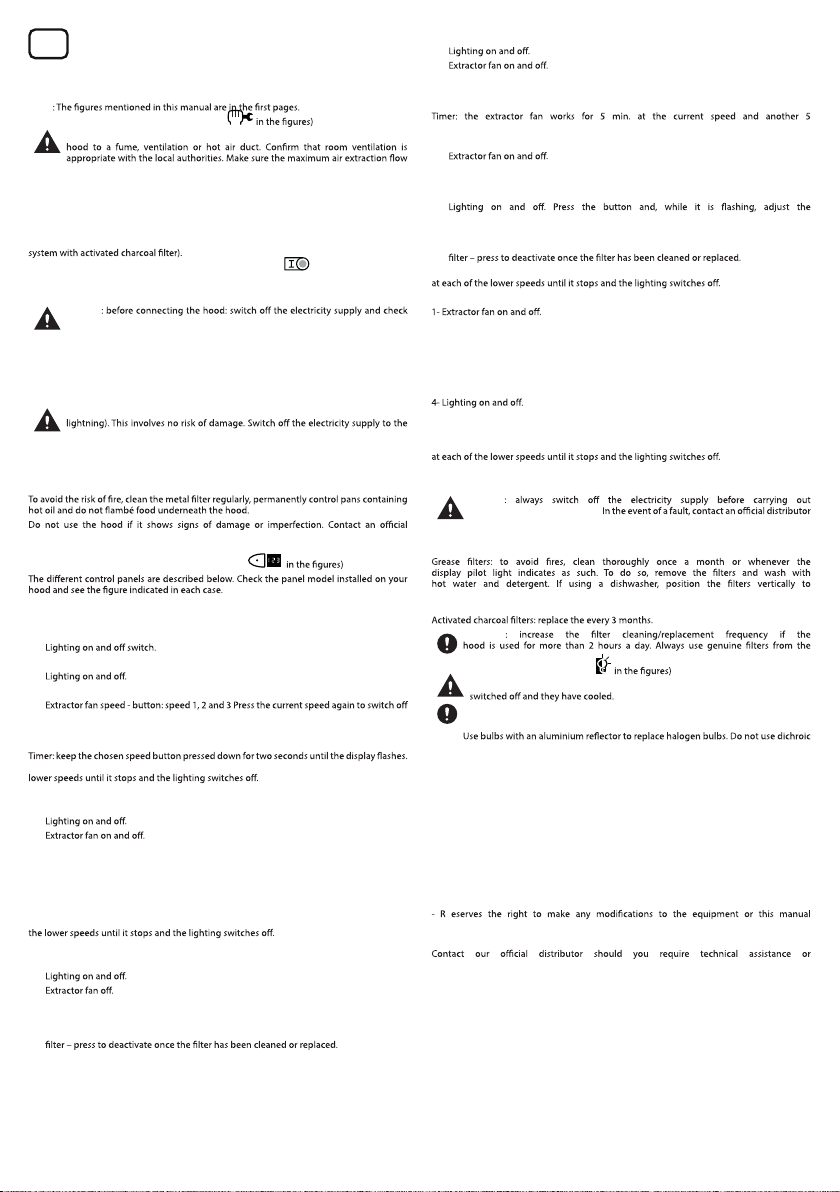

Notes
Hood installation on walls (look for the symbol
Warning: consult local regulations regarding fumes outlets. Do not connect the
rate for the appliances in the room does not exceed 4 Pa (0.04 mbar).The room must have
adequate ventilation if an extractor hood is used simultaneously with appliances that run on
gas or other fuels. The evacuated air must be extracted through ducts that are used for
evacuating fumes from appliances that run on gas or other fuels. Regulations regarding air
extraction must be complied with.
Use a rigid PVC pipe with a min. Ø l20 mm to evacuate fumes outside.
The above restrictions do not apply to hoods with no fumes outlet to outside (recirculation
Install the hood in line with the instructions on the template provided.
For gas cooking appliances only: the minimum distance to the hood must be at least 65 cm.
Connecting the hood to the grid
Warning
that the supplied voltage and frequency coincide with that indicated on the
appliance nameplate.
If the extractor hood has a plug, connect it to a power socket in line with applicable
regulations, located in an accessible area.
If the hood does not have a plug, connect it directly to the electrical grid, protected by a
separator device accessible for disconnection, in line with local regulations.
Use of the hood – Safety
Warning: the hood may stop working during an electrostatic discharge (e. g.
hood and reconnect after one minute.
Do not allow the hood to be used by children or persons with reduced (physical, sensory
or mental) capabilities or lack of experience and knowledge, unless they have been given
instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised so that they do not play with the appliance.
distributor or authorised dealer.
Accessible parts may heat up when using cooking appliances.
Use of the hood - Control panel (look for the symbol
Panel with sliding switch (Fig. P1)
1- Extractor fan speed - positions: OFF, speed 1, 2 and 3
2- Extractor fan operating control pilot light.
3-
Panel with electronic button (Fig. P2)
1-
2- Lighting operating control pilot light.
3-
the extractor fan. In panels with TURBO (I I I i) button, Turbo speed only will work during
5 minutes, once it runs out, the speed will decrease to 2nd speed.
4- Extractor fan operating speed control pilot light.
The extractor fan works for 2 min. at the current speed and another 2 min. at each of the
To cancel the timer: press the chosen speed button once.
Four-speed panel - Digital display (Fig. P3)
1-
2-
3- Decrease extractor fan speed.
4- Extractor fan speed display panel.
5- Increase extractor fan speed.
6- Enable extractor fan turbo speed.
7- Enable and disable extractor fan timer.
Timer: the extractor fan works for 5 min. at the current speed and another 5 min. at each of
Five-button panel (Fig. P4)
1- Extractor fan operating control pilot light.
2-
3-
4- Extractor fan speed - button: speed 1, 2 and 3,
Touch panel (Fig. P5)
1- Filter clean warning display/button. Warning of the need to replace the
2- Enable and disable extractor fan timer.
3- Keep pressed down to adjust the lighting intensity.
4-
5- Extractor fan speed - button: speed 1, 2 and 3/4. In panels with TURBO (P) button, Turbo
speed only will work during 5 minutes, once it runs out, the speed will decrease to 3rd
speed.
min. at each of the lower speeds until it stops.
Sliding touch panel (Fig. P6)
1-
2- Sliding touch panel for extractor fan speed control. Also used in combination
with button -3-. In panels with TURBO (i) button, Turbo speed only will work
during 5 minutes, once it runs out, the speed will decrease to 9th speed.
3-
lighting intensity using the sliding touch panel -2-.
4- Enable and disable extractor fan timer.
5- Filter clean warning display/button. Warning of the need to replace the
Timer: the extractor fan works for 2 min. at the current speed and another 2 min.
Touch panel TC5V (Fig. P7)
2- Extractor fan speed - button: speed SILENT, 1, 2, 3 and TURBO. In panels with
TURBO (T) button, Turbo speed only will work during 5 minutes, once it runs out,
the speed will decrease to 3rd speed.
Turbo speed only will work during 5 minuts, once it runs out, the speed will
decrease to 3th speed.
3- Enable and disable extractor fan timer.
5- Button to decrease the light intensity
6- Button to increase the light intensity
Timer: the extractor fan works for 2 min. at the current speed and another 2 min.
Hood maintenance
Warning
maintenance work on the hood.
or authorised dealer.
Exterior cleaning: use non-corrosive, liquid detergent and avoid the use of
abrasive cleaning products.
prevent solid remains from depositing on them. do not use polish to clean or
shine
Important
manufacturer.
Bulb replacement (look for the symbol
Warning: do not handle the bulbs until the electricity supply has been
Important: use new bulbs according to that indicated on the hood
nameplate.
bulbs - risk of overheating.
On cooker hoods equipped with tungsten lamps, the lights should only be used
during operation of the motor. They should not be left on permanently and
used as a light source.
Legal information
The manufacturer:
- Declares that this product meets all basic requirements regarding low-voltage
electrical equipment established in Directive 2006/95/EC of 12 December 2006
and electro-magnetic compatibility established in Directive 2004/108/EC of 15
December 2004.
- Is not responsible for any failure to observe the instructions given in this manual
and current safety regulations for the correct use of the equipment.
without prior notice.
additional information on our products.
