Apelson CHP60SS User manual

60900115_08 CHP60_70_90SS
GB IE
CHP60/70/90SS
Chimney Hood

[01] x 1
[04] x 2
[05]
600mm x 2
700mm x 2
[02] x 2 [03] x 1
[06] x 1 [07] x 1
1 : 1 [09] x 6
(3.9 x 32mm)
[10] x 4
(3.4 x 10mm)
[08] x 6
900mm x 3

GB IE Cooker Hood 04
FR Hotte Aspirante 20
Installation 22
CHP60/70/90SS
3

4
Let's
get started...
Getting started... 05
Before you start 06
Safety 08
In more detail... 12
Product functions
Operation
Care and maintenance
Troubleshooting
Recycling and disposal
Technical and legal information
CE Declaration of conformity
13
13
14
17
18
18
21
Appendix
GB IE
Installation
Information for EU66 22
30

5
Getting
Started...
Getting started...
GB IE
Before you start 06
Safety 08

Before you start
Before you start
To avoid the risks that are always present when you use
an electrical appliance it is important that this appliance is
installed correctly and that you read the safety instructions
carefully to avoid misuse and hazards. Please keep this
instruction booklet for future reference and pass it on to any
future owners. After unpacking the appliance please check
that it is not damaged. If in doubt, do not use the appliance
but contact Customer Services on 0344 800 1128 (UK),
01 4475261 (Ireland).
Check the package and make sure you have all of the parts
listed.
Decide on the appropriate location for your product.
or handling to prevent personal injury or damage to the
product.
ordering replacement parts.
If you sell the appliance, give it away, or leave it behind
when you move house, make sure you also pass on this
manual so that the new owner can become familiar with the
appliance and its safety warnings.
6
Getting started...
GB IE

Before you start
Tools required
Ø6mm
CARBFILT4 (UK & IE)
SELF ADHESIVE
ALUMINIUM TAPE
Ø125mm or Ø150mm
VENT PACK 2 (UK & IE)
Accessories not supplied
Recirculation Extraction
CARBON FILTER ORDERING HOTLINE
0344 800 1128 (UK) 01 4475261 (IE) 7
Getting started...
GB IE

Safety
8
Getting started...
GB IE
These instructions are for your safety. Please
read through them thoroughly prior to
installation and retain them for future reference.
•All installation work must be carried
electrician.
•This appliance must be installed correctly
following the manufacturer’s instructions.
ThisappliancecomplieswithallcurrentEuropean
safetylegislation,however,theManufacturermust
emphasise that this compliance does not prevent
the surfaces of the appliance from heating up
during useandremaininghotduringitsoperation.
Accessible parts may become hot during use.
Young children should be kept away. Care should
be taken to avoid touching the appliance
The Manufacturer highly recommends that this
appliance be kept out of the reach of babies and
small children.
Thisappliancecanbe usedby childrenagedfrom
8 years and above and persons with reduced
physical, sensory or mental capabilities or lack
of experience and knowledge if they have been
given supervision or instruction concerning use of
the appliance in a safe way and understand the
hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall
not be made by children unless they are older
than 8 and supervised.

Safety
9
Getting started...
GB IE
Keep the appliance and its cord out of reach of
children less than 8 years.
Means for disconnection must be incorporated
rules. An all-pole disconnection switch having a
contact separation of at least 3 mm in all poles
Regularly check the power plug and power cord
for damage. If the supply cord is damaged,
it must be replaced by the manufacturer, its
order to avoid a hazard.
Do not allow the electric cables to touch the
hot parts of the appliance.
Make sure that the power cord is not caught
under or in the appliance and avoid damage to
the power cable.
Do not install the appliance outdoors in a
damp place or in an area which may be prone
to water leaks such as under or near a sink
unit. In the event of a water leak allow the
machine to dry naturally.
to the appliance.
Please dispose of the packing material
carefully.
to the appliance.

Safety
10
Getting started...
GB IE
We also recommend that great care be taken
during use and cleaning. Read the cleaning
and maintenance sections for this appliance
carefully.
A steam cleaner is not to be used.
The appliance is not intended to be operated
by means of external timer or separated
remote-control system.
The appliance is for domestic use only.
Warning: Consult local regulations regarding
fumes outlets. Do not connect the hood to
that room ventilation is appropriate with the
local authorities. Make sure the maximum air
room does not exceed 4 Pa (0.04 mbar). The
room must have adequate ventilation if an
extractor hood is used simultaneously with
appliances that run on gas or other fuels. The
used for exhausting fumes fromappliances
burning gas or other fuels. Regulations
regarding air extraction must be complied with.
Warning: Before connecting the hood: switch
off the electricity supply and check that the
supplied voltage and frequency coincide with
that indicated on the appliance nameplate.

Safety
11
Getting started...
GB IE
Warning: The hood may stop working during
an electrostatic discharge (e.g. lightning). This
involves no risk of damage. Switch off the
electricity supply to the hood and reconnect
after one minute.
regularly and closely watch and regulate pans
containing hot oil.
Do not use the hood if it shows signs of
damage or imperfection. Contact customer
services.
Flambe cooking must not be carried out
underneath this appliance.
When installing the appliance, make sure
that the following distances between the top
of cooker or hob and the lowest part of the
cooker hood must be observed:
> Gas hobs: 750mm.
> Electric hobs: 650mm.
The Manufacturer declines all liability for
personal or material damage as a result of
misuse or incorrect installation of this appliance.
Warning
cleaning is not carried out in accordance with
the instructions.

12
In more detail...
In more
detail...
GB IE
Product functions 13
Operation 13
Care and maintenance 14
Troubleshooting 17
Recycling and disposal 18
Technical and legal information 18
CE Declaration of conformity 21

Product functions
This appliance extracts the air of the kitchen to remove the odours
and keep an optimum level of the air quality inside the room, it
also allows you to illuminate the cooking area.
Operation
•Switch on the appliance at the switched fused connection unit.
The appliance is ready for use.
Five-button panel
Lighting on and off.
Extractor fan off.
Extractor fan speed - button: speed 1
Extractor fan speed - button: speed 2
Extractor fan speed - button: speed 3
To obtain the best results from your cooker hood it is
recommended that you leave it switched on for 15 minutes after
Product Functions
Operation
13
In more detail...
GB IE

Care and maintenance
Care and maintenance
Warning: always switch off the electricity supply before carrying
out maintenance work on the hood. In the event of a fault, contact
customer services.
Bulb replacement
10’
The Bulb may be hot, leave it 10 minutes before replacement.
Turn to replace the Bulb.
FUSE
OFF
14
In more detail...
GB IE

Care and maintenance

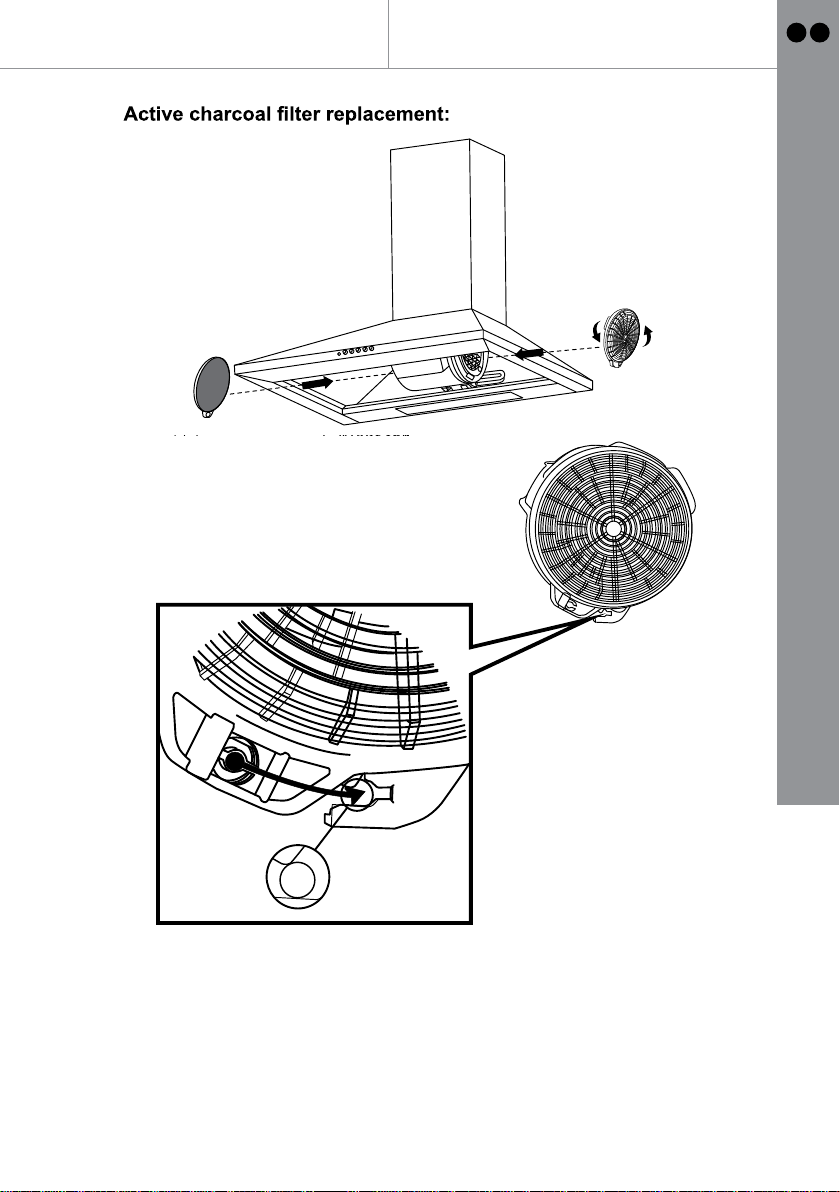

CLICK
CLICK
2 X ACTIVE CHARCOAL FILTER (NOT SUPPLIED).
MODEL NUMBER CARBFILT4 (UK & IE)
15
In more detail...
GB IE

Care and maintenance

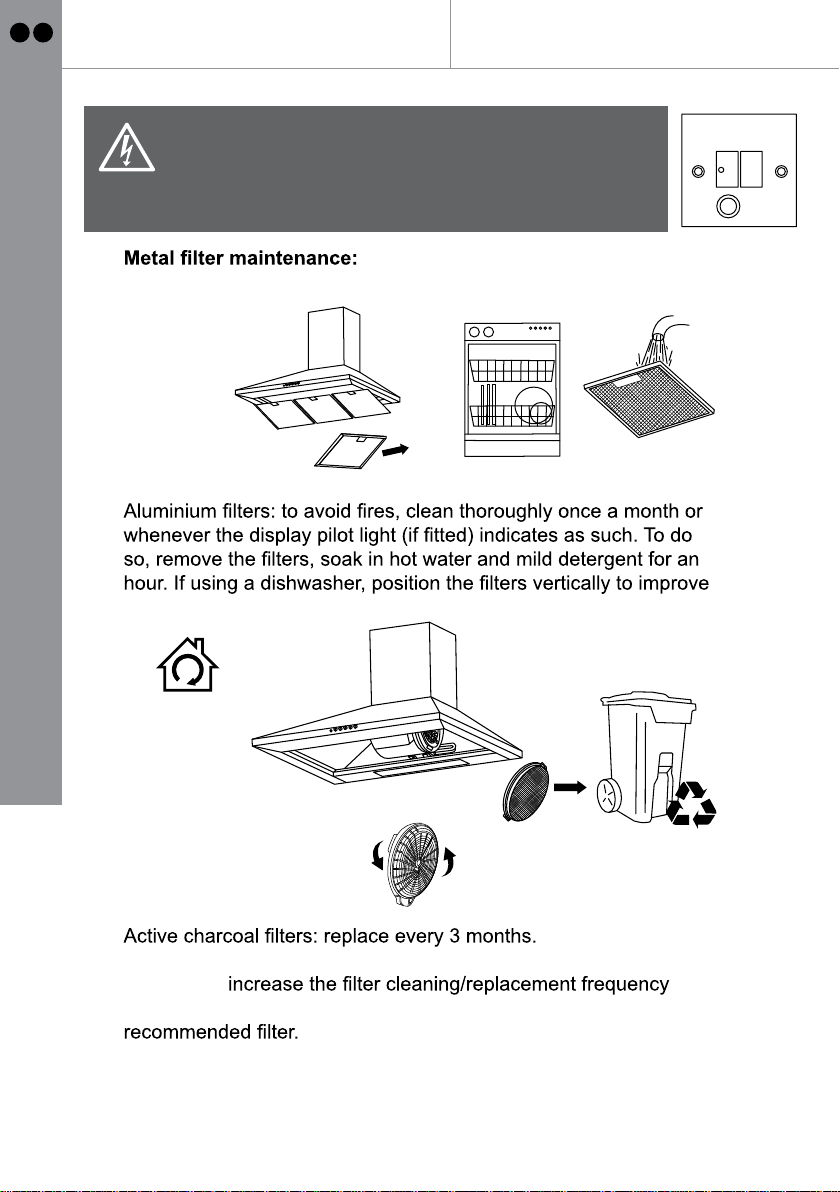

Use non-corrosive, liquid detergent or a stainless steel cleaner.
1 MONTH
MAX.65˚C
the cleaning process.
3 MONTHS
Important:
if the hood is used for more than 2 hours a day. Always use the
FUSE
OFF
Warning
Always switch off the electricity supply before
performing maintenance work. In the event of a fault,
contact customer services.
16
In more detail...
GB IE

Troubleshooting
Troubleshooting
Fault Cause Solution
Excessive
Vibration TheAppliance is not hung properly on the brackets. Take down the appliance and check it is properly
The fan blade is damaged. Switch off the appliance.
Repair to be carried out by
only.
tightly.
Light on, but
motor does
not work.
The fan blade is jammed.
The motor is damaged.
Both light and
motor do not
work.
Light bulb blown. Replace with a bulb with
correct rating.
Power connection loose. Check power supply.
Suction
performance
reduced.
Speed may be too low. Select a higher speed.
Distance between the
cooker hood and the hob
is too great.
Readjust the distance to:
Gas hobs: 750mm
Electric hobs: 650mm
dirty. and maintenance)
Top vent might be
obstructed. (VHB60SS &
VH60W)
Clear any obstruction.
Optional vent kit might be
twisted. Ensure that the vent kit is
instructions.
Works normally
but cooking
smells linger. in recirculation mode or
grease.
recirculating or change
maintenance)
17
In more detail...
GB IE

Recycling and disposal
Recycling and disposal
Environmental protection
Waste electrical products should not be disposed of with
household waste. Please recycle where facilities exist. Check with
your Local Authority or retailer for recycling advice.
The symbol on the product or its packaging indicates
that this product cannot be treated as normal
household waste. This product must be handed over to
an electric and electronic equipment collection point for
recycling.
On ensuring that this product is disposed of correctly, you will help
to avoid possible negative consequences for the environment
and public health, which could occur if this product is not handled
correctly. To receive more detailed information about recycling this
product, contact your local government, domestic waste disposal
services or the outlet where the product was bought.
Technical and legal information
The Manufacturer declines all liability for damage caused to
persons and objects due to incorrect or improper installation of the
appliance.
Power supply : 220-240V~ 50Hz
Power consumption – Fan : 95 W
Power consumption – Luminary : 2 x 7W Max
Power consumption – Total : 109 W
Protection class : II
Light bulb : Max. 7W (E-14)
18
In more detail...
GB IE
Technical and legal information

All installation work must be carried out by a
Before connecting the mains supply ensure that
the mains voltage corresponds to the voltage on
the rating plate inside the cooker hood.
Warning: THIS APPLIANCE MUST NOT
BE EARTHED.

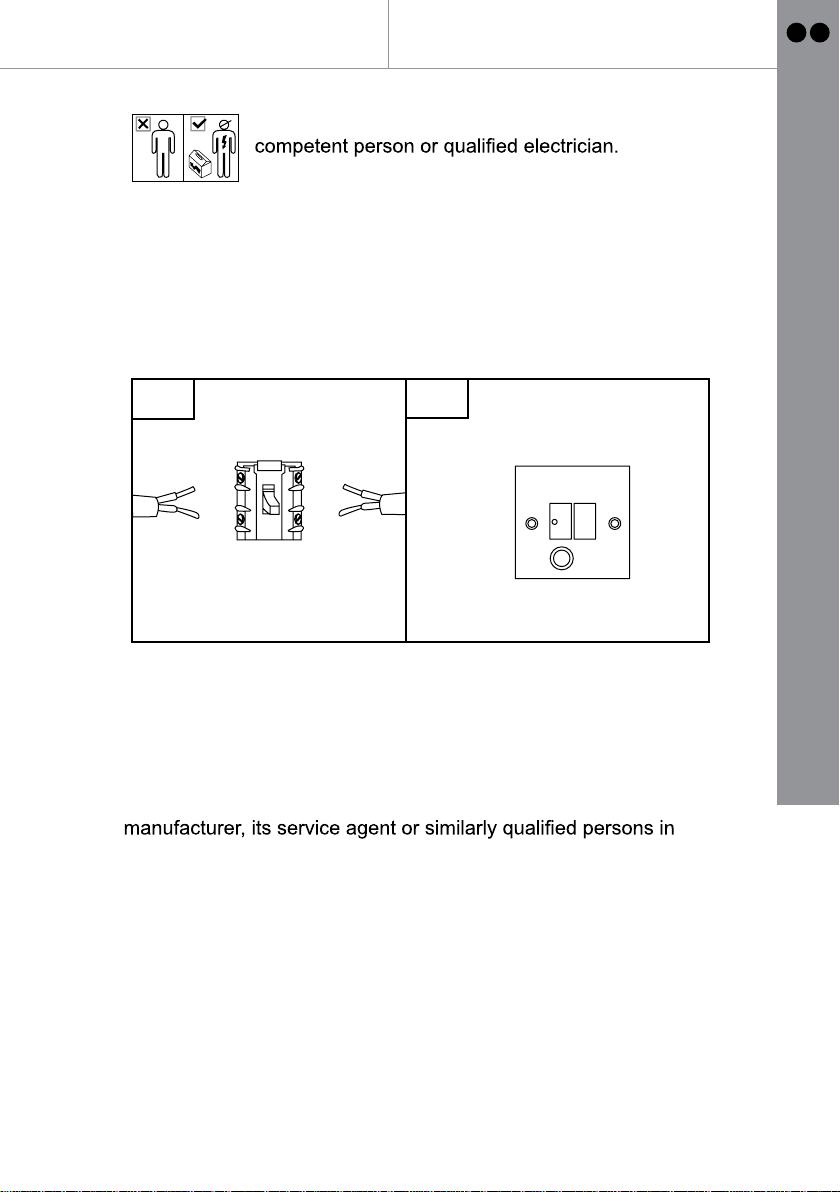

Mains Supply could be connected to the Mains Voltage by Direct
Connection
OFF
N(bleu)
L(brun)
N(bleu)
L(brun)
DOUBLE POLE SWITCHED
FUSED SPUR OUTLET
USE A 3AMP FUSE
FUSE ON
EUR UK
Direct Connection
If the appliance is being connected directly to the mains an
omnipolar circuit-breaker must be installed with a minimum
opening of 3mm between contacts.
If the supply cord is damaged, it must be replaced by the
order to avoid a hazard.
The installer must ensure that the correct electrical connection has
been made and that it complies with wiring diagram.
The cable must not be bent or compressed.
The cable must be checked regularly and replaced by authorized
technicians only.
19
In more detail...
GB IE
Technical and legal information

Technical and legal information
Electrical Requirements
Any permanent electrical installation must comply with the latest
I.E.E. Regulations and local electricity company regulations. For
roll of the National Inspection Council for Electrical Installation
Contracting (NICEIC) should undertake the electrical installation.
Electrical Connection
Before connecting the mains supply ensure that the mains
voltage corresponds to the voltage on the rating plate inside
the cooker hood.
WARNING: THIS APPLIANCE MUST NOT BE EARTHED
The appliance is supplied with a 2-core mains cable and must be
connected to the electricity supply via a double pole switch having
a 3mm minimum contact gap on each connector.
For UK only
A Switched Fused Connection Unit to BS 1363 Part 4 is
recommended.
The fuse must be rated at 3 Amps.
The wires in the mains lead are coloured in accordance with the
following code:
Brown = L - Live
Blue = N - Neutral
The connection point must be placed in a position adjacent to the
appliance so as to be readily accessible for an engineer in the
event of a breakdown.
Disconnect the appliance from the mains supply before
carrying out any kind of maintenance or cleaning.
20
In more detail...
GB IE
