AM-270 Guardian Bracket Quickstart Guide

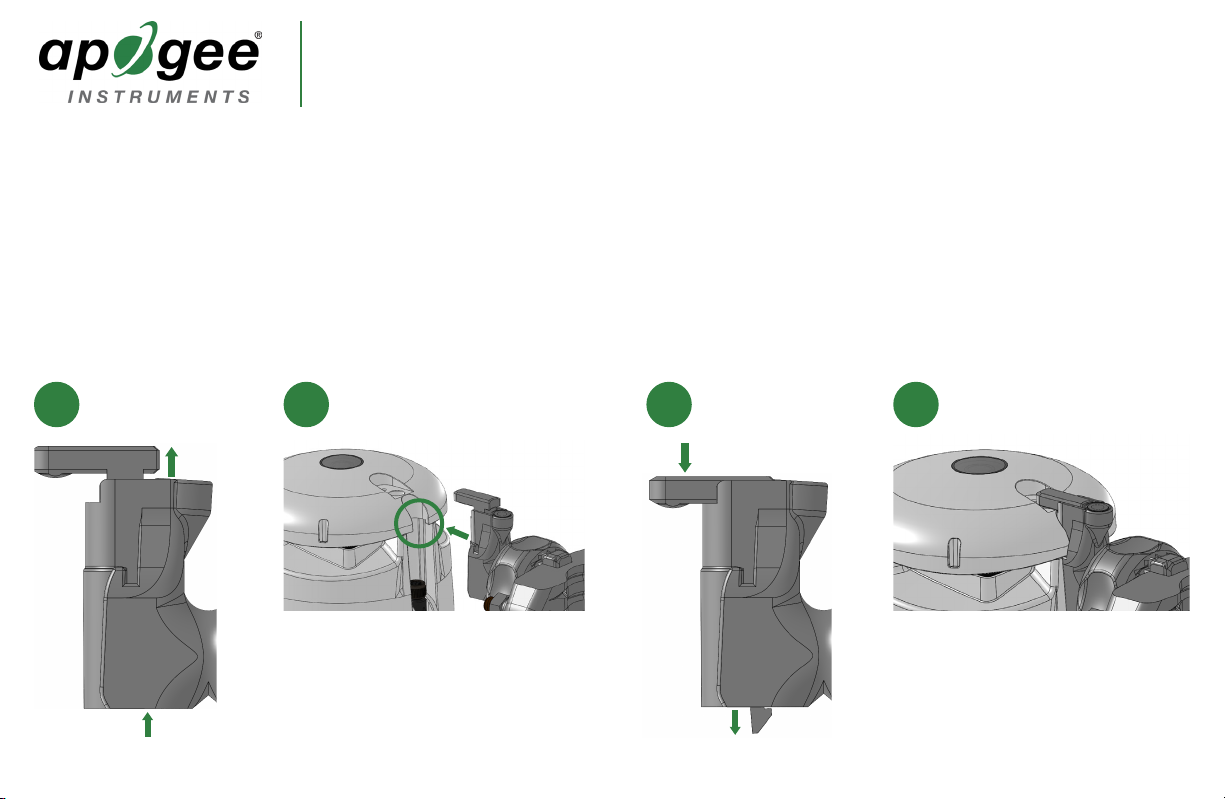

Aaching the AM-270 to the Guardian
1. Press the lever on the boom of the AM-270 straight up with your thumb to unlock the arm of the bracket. Bracket is in the
unlocked posion when the arm raises and the lever disappears into the body.
2. With the AM-270 in the unlocked posion, aach the arm to the back of the Guardian. The grooves on the bracket should slot into
the teeth on the lower ridge of the Guardian.
3. Press straight down on the arm to lock the bracket onto the Guardian. Bracket is in the locked posion when the arm is ush to the
body and the lever appears again.
4. Aer the bracket is locked onto the Guardian, it is ready to be mounted. To adjust the sensor orientaon, see the other side.
Lever
Arm
1
To learn more about the Guardian, visit www.apogeeinstruments.com/guardian-cea-mul-sensor-monitor/.
Lever
Arm
3 42
Teeth

AM-270 webpage
Changing Orientaon of Guardian on Bracket
Rev: 15-Nov-2023
Quickstart Guide
1. Press the buon behind the wheel to unlock the orientaon of the
Guardian.
2. While holding down the buon, twist the wheel counter-clockwise to
loosen it.
3. Move the arm and Guardian to the desired orienaon while the
wheel is loosened.
4. Twist the the wheel clockwise to the desired ghtness to return to
the locked posion.
5. Mount the bracket and Guardian to a pole or cross arm using the
u-bolt.
Guardian webpage
Buon
Wheel
To access full product manuals, visit
hps://www.apogeeinstruments.com/
product-manuals/
