Instruction Sheet
Models TH2642E and CH2642E
TH2642E CH2642E
Models TH2642E and CH2642E Tools Required: For Cabinet Models Only:
4 - 4˝ casters, 2 w/brake 1 - power cord assembly 1 - slotted screwdriver 2 - keys
4 - bolts 4 - screws 1 - rubber mallet 1 - chrome handle
4 - nuts 1 - rubbermat 1 - phillips screwdriver 2 - phillips head screws
1 - cord wrap with bracket (for cabinet models)
Parts List
9/00

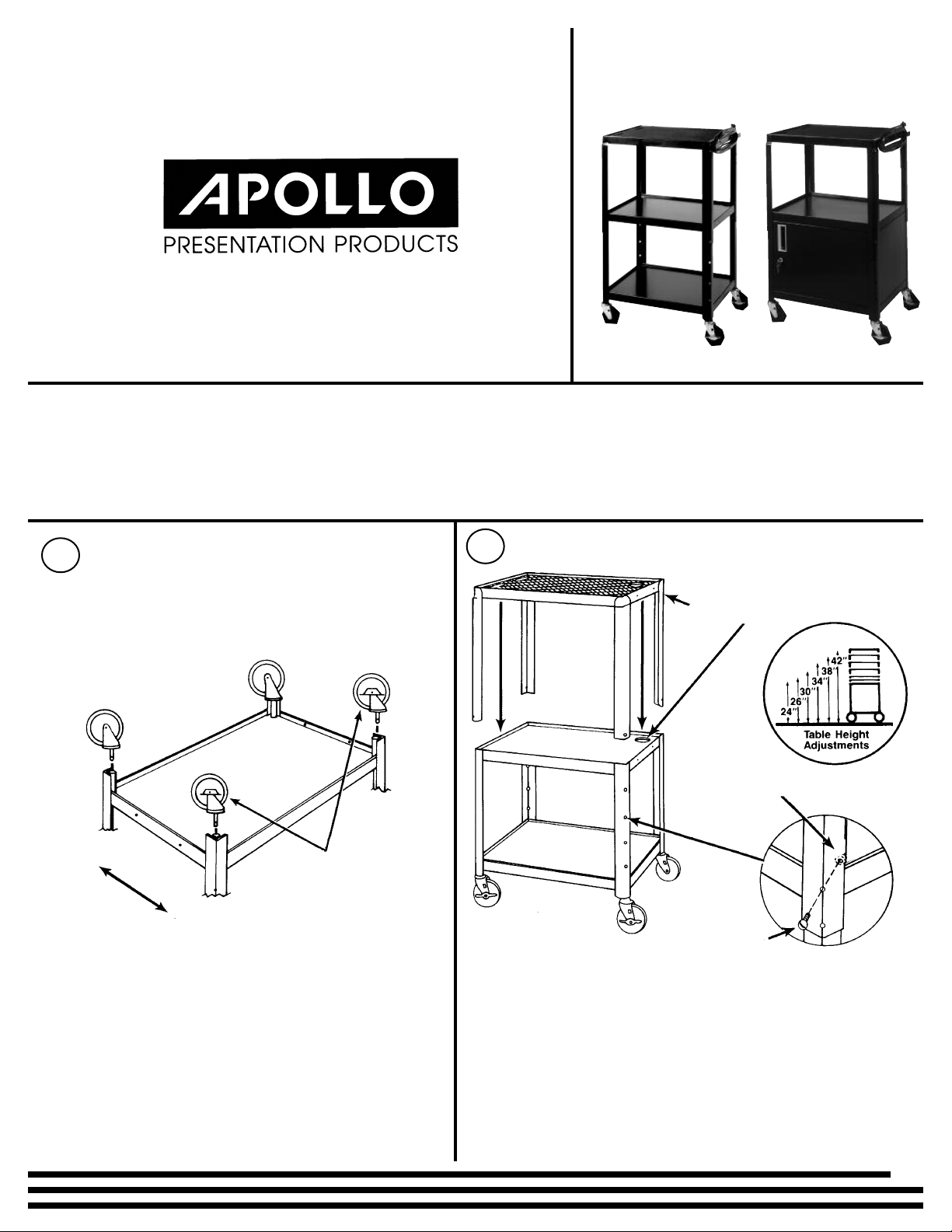

Position top stand assembly over bottom stand assembly, as
illustrated.
NOTE: Be sure cabling hole in corner of top and middle
shelves line up on top of each other.
Adjust top stand assembly up or down to desired height. Align
holes in all four legs, insert bolts and fasten with four kep nuts,
as illustrated.
2
Cabling Holes
Top
Stand
Assembly
Bottom
Stand
Assembly
KepNut
Bolt
Turn bottom stand assembly upside down on a smooth
surface. Push the four casters firmly into the caster
socket holes in bottom of each leg as illustrated.
IMPORTANT: Casters must be fully seated. Tap with
rubber mallet firmly to properly seat casters. Turn the
stand right side up.
Back
Front
Place Locking Casters
as illustrated
1
300 Tower Parkway
Lincolnshire, IL 60069
[phone]
A Division of ACCO Brands, Corp.

Position cord wrap bracket over mounting holes in
end of table and secure with two small screws and
nuts. SEE DRAWING A.
Press 3-outlet power cord into “U” bracket mounted on table and wrap remaining
cord around cord bracket. For safety and neat appearance, secure cord plug to
cord with plug snap, place rubber mat on top shelf.
For models with a cabinet.
Press chrome recessed handle into
door and fasten with 2 phillips
head screws.
Cord Wrap
Bracket
Cabling
Hole
Plug snap
Recessed
Handle
45
3
CABINET MODELS ONLY
