APT LW39-16B User manual

WARNING
Hazardous voltage
can cause electrical shock and burns
Disconnect power before proceeding
with any work on this equipment
Cam Switch LW39-16B
EN60947-5-1，GB 14048.5
Instructions
Before installing the device, please read the instructions.
Summary
Main application
LW39-16B switch is also used to control the start, brake,
clockwise and anti-clockwise of small capacity motor and
the speed governing of two-speed motor.
General product information
Model specification
LW 39 - 16 B □- □- □······□/ □- □- □- □- □- □
①②③④⑤⑥⑦⑧⑨⑩⑪⑫⑬
Installation caution
1) We need to check whether the type meetselectionrequirement.
2) We must turn off powerbefore installation and recondition.
3) Wiring refer to drawing and turn on the power after you check
carefully.
4) Choose the correct operational voltage and current.
5) To prevent impurities metal powderinto the productinside.
6) Tighten all terminal screws evenif not used.
7) Don't open the parts with red mark.
Technical feature
Parameters
1) Rated insulation voltage(Ui) : 690 V
2) Conventional thermal current(Ith) : 16 A
3) Power frequency withstand voltage : 1890 V / 5 s
4) Mechanical life : 30 X 104times
5) Electrical life : AC / 20 X 104times
DC / 10 X 104times
6) Type of fuse used in test of rated conditional short-circuit
current：NT00-16A
7) The ability of terminals wire:
(1) The largest cross-section: 1.5mm²;the maximum number
of conductors connected to the terminal: 2
(2) The largest cross-section: 0.5mm²;the maximum number
of conductors connected to the terminal: 2
(3) Tightening torque:0.8N·m.
8) Usage category
DC-13
AC-15 Ie(A)
Ie(A)
Ue(V)
-
24 V
-- -- -
48 V 110 V
0.2 A
-
220 V
-
1.8 A
380 V
-
-
440 V
32017.1
Usage
category
Drawing No. : APT0.463.022.08
Operation condition
1) Environment temperature : -25°C to +55°C
2) Relative air humidity ≤90%
3) Altitude ≤2000 meters
4) Installation category : Ⅲ
5) Pollution class : 3

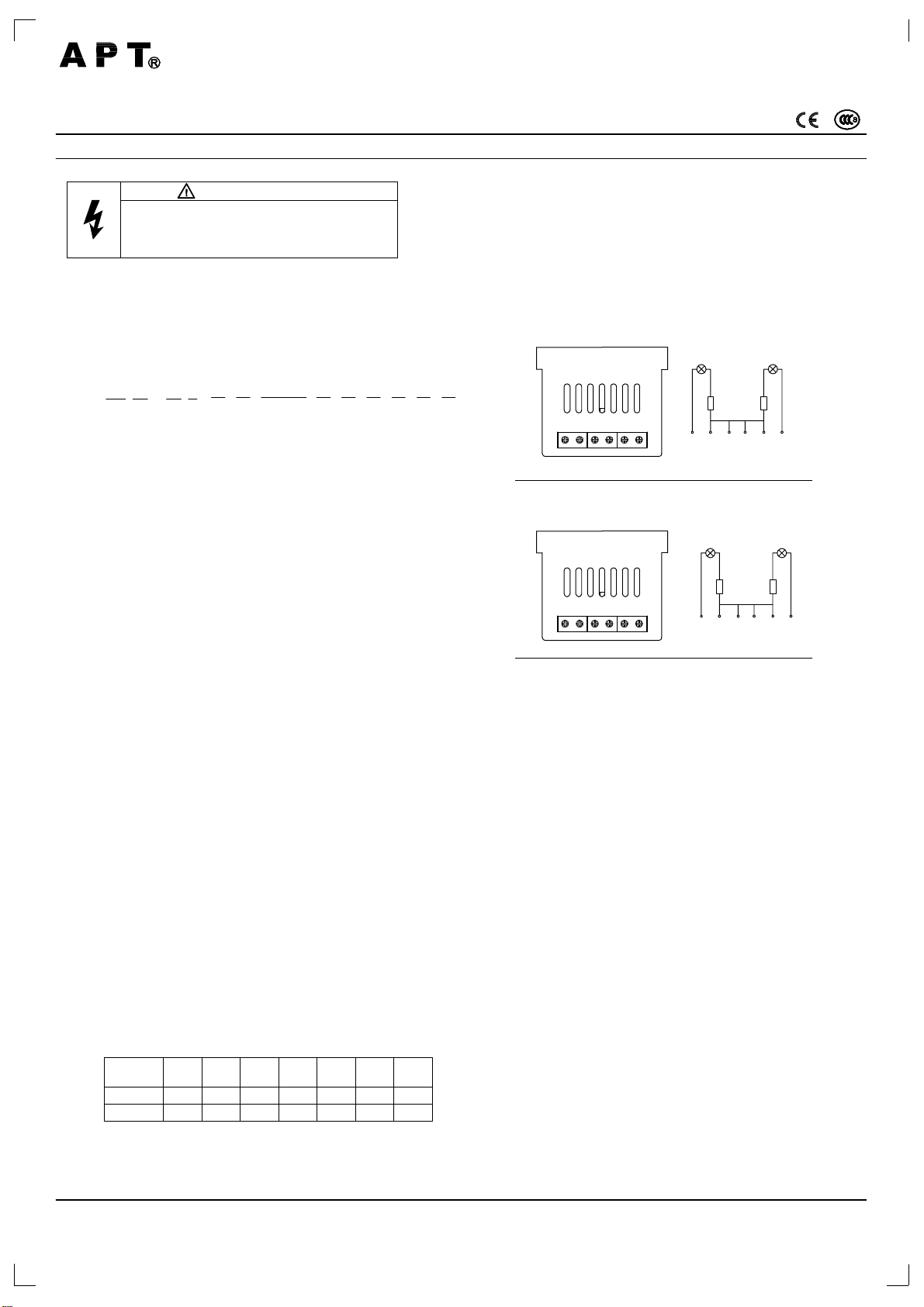

The light box schematic diagram
1) Six terminals[The common is anode]-----default
2) Six terminals[The common is cathode]
Note:Be careful to disassemble or assemble
light box, to avoid damaging them.
Siemens Electrical Apparatus Ltd., Suzhou, Tiantai Branch
Jigong Avenue 699- 10 Tiantai, Zhejiang,China
Sales Dept :Tsidi Building No.55,Lane 777,West Guangzhong Road Shanghai
Tel：[phone] http://www.china-apt.com
R- C+ C+ G- -+ + -
R- C+ C+ G- -
+ +
-
①Switch type
②Design number
③Specification
④Switch category
⑤Function code
⑥ Operating characteristics of code
⑦Relative of nodes orsection code
⑧Stages
⑨Panel code
⑩Illuminated code
⑪Handle style
⑫ Protection grade code
⑬Auxiliary code

LW39-16B
42017.1
Siemens Electrical Apparatus Ltd., Suzhou, Tiantai Branch
Installation
L: The size of the switch body
t : The thickness of the mounting plate
n: The stage of the switch
LW39-16B
LW39-16BP
LW39-16B-□...□-48
LW39-16BP-□...□-48
LW39-16BYM(LW39-16BPYM)
30±1 L=(39.7+10 x n )±2
t=1~3
49±0.5
49±0.5
36±0.2
36±0.2
4-Ø4.5
Ø10
30±1 L=(22.2+10 x n )±2
t=1~3
49±0.5
49±0.5
36±0.2
36±0.2
4-Ø4.5
Ø10
Self-reset=L+18 Instillation position
49±0.5
30±1 L=(22.2+10 x n )±2
t=1~3
36±0.2
36±0.2
64±0.5
4-Ø4.5
Ø10
Self-reset=L+18
30±1 L=(24.7+10 x n )±2
t=1~3
64±0.5
64±0.5
48±0.2
48±0.2
4-Ø4.5
Ø10
Self-reset=L+18
Instillation position
Instillation position
30±1
48±0.2
48±0.2
L=(24.7+10 x n )±2
t=1~3
64±0.5
78±0.5
Ø10
4-Ø4.5
Instillation position
Self-reset=L+18
Ø10
4-Ø4.5
Ø34
37±1 L=(50.7+12 x n)±2
t=1~3
(124.3)
(113.8) (45.8)
3248
100
110.5
48±0.2
48±0.2
48±0.2
Instillation position
Self-reset=L+12
LW39-16BZL
LW39-16BS
LW39-16BM
LW39-16BNZ
LW39-16BNZD
LW39-16BSNZ
Self-reset=L Instillation position
49±0.5
49±0.5
30±1 L=(35.7+10 x n )±2
t=1~3
30±0.2
2-Ø4.5
Ø10
Self-reset=L Instillation position
33±1 L=(22.2+10 x n )±2 72±0.5
76±0.5
60±0.2
64±0.2
52.2+0.4 0
64.2+0.4
0
4-M3
47±0.5
30±1 L=(26.7+10 x n )±2 49±0.5
49±0.5
36±0.2
36±0.2
mounting patch
A
A Side 4-M4
Self-reset=L+18 Instillation position
Self-reset=L+18 Instillation position
72±0.5
76±0.5
60±0.2
64±0.2
52.2+0.4 0
64.2+0.4
0
lights
4xM3
47±0.5
BL=(40.2+10 x n )±2
A P T
A
Compatibility
LW39-16BNZD
LW39-16BNZY
LW39-16BNZDY
/
Dimension A
27±1
Dimension B
31.5±1
33.5±1
27±1 33.5±1
1
2
No.
3
Self-reset=L Instillation position
31.5±1 L=(35.7+10 x n )±2
t=1~3
30±0.2
Ø10
2xØ4.5
49±0.5
49±0.5
Self-reset=L Instillation position
