Aputure LS 1200 User manual

LS 1200 Four-Lights Bracket
Installation Manual
Product Details
What’s Insided
Tips for Using Hex Key
⑤
(1pc)
⑧
(2pcs)
⑦
(4pcs)
When you unbox the product, please make sure all the items listed below are included, otherwise, please
contact the seller immediately.
Tips:
1. Before installation, it is recommended that the components be discharged neatly in the following order to improve
installation efficiency.
2. The illustrations in the manual are only diagrams for reference. Due to the continuous development of new versions of the
product, if there are any differences between the product and the user manual diagrams, please refer to the product itself.
1
2
5
67
7
7
8 8
11
7
3
3
4
42
910
-2-
1.Quickly tighten screw
2.Reinforced screw

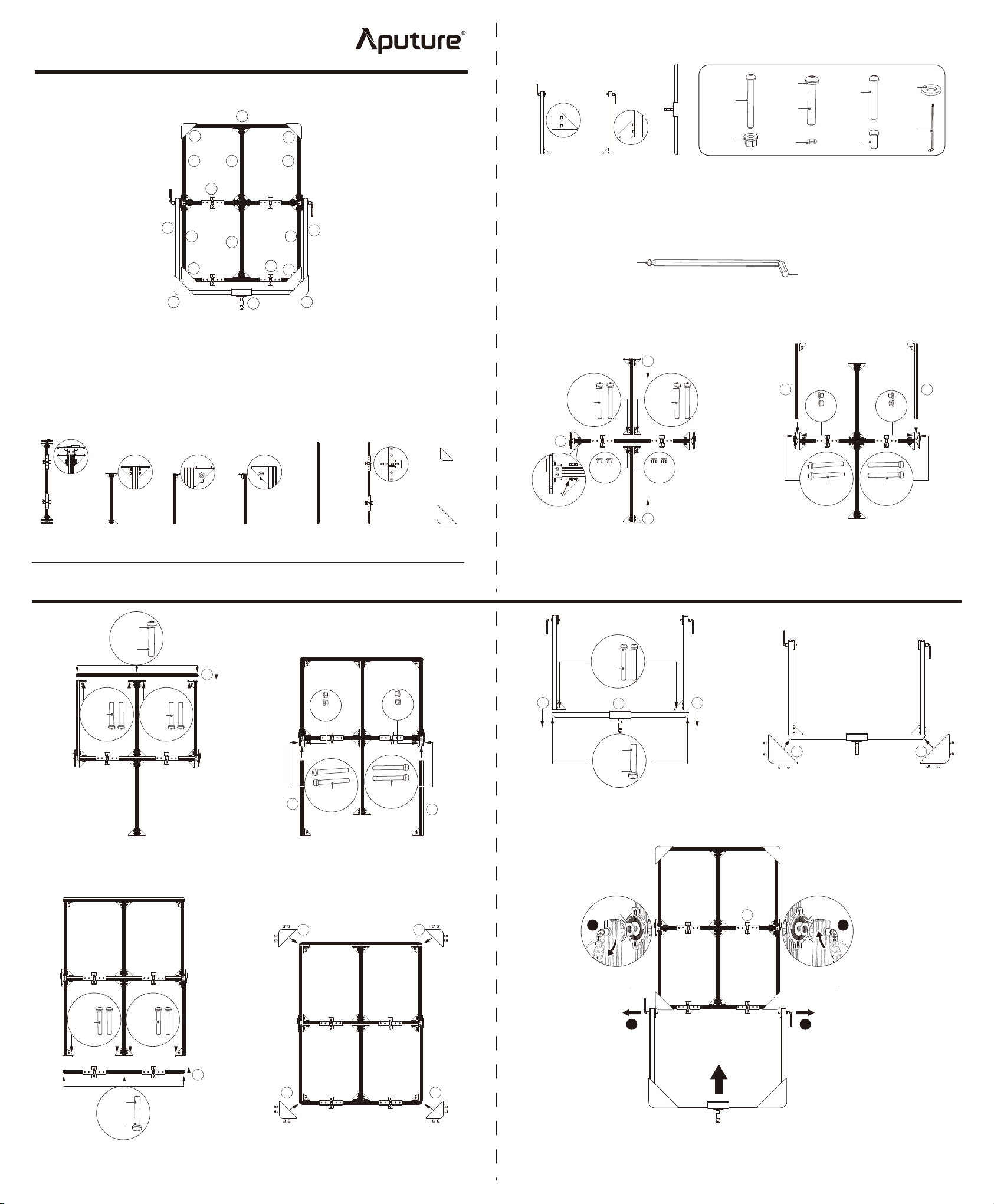

1. Install the middle upper and lower of bracket:
Place ①and ②as shown, fix them with 4 sets of
M6 * 50 screws & washers and nuts.
2. Install the upper side of bracket: Place ③and
④as shown, fix them with 4 sets of M6 * 50
screws and nuts.
2
2
1
3 4
Getting Started
Nuts
Nuts Nuts
Nuts Nuts
M6*50
Screw
M6*50
Screw
M6*50
Screw
Washers
M6*50
Screw
Washers
①
(1pc)
Upward
Upward Upward Upward
Upward Upward
Upward
②
(2pcs)
③
(2pcs)
④
(2pcs)
⑥
(1pc)
⑨
(1pc)
5
3. Install the upper of bracket: Place ⑤as shown,
fix it with 3 sets of M8 * 45 screws & split lock
washers and 8 sets of M6 * 35 screws.
4. Install the lower side of bracket: Place ③and
④as shown, fix them with 4 sets of M6 * 50
screws & nuts.
M6*35
Screw M6*35
Screw
M8*45
Screw
Split lock
washers
3
4
Nuts Nuts
M6*50
Screw
M6*50
Screw
6
5. Install the lower of bracket: Place ⑥as shown,
fix it with 3 sets of M8 * 45 screws & split lock
washers and 8 sets of M6 * 35 screws.
6. Install the corner guards of middle bracket:
Place ⑦as shown, fix them with 4 sets of 4
pieces M8 * 45 screws.
9. Combine the middle and bottom of bracket: Place the components installed in step 6 and step 8 as
shown, pull the bottom bracket handle outward (Figure A), push the bottom bracket from bottom to
top until the handle is flush with the interface on both sides of the component ①, and tighten the left
and right handles to fix them (Figure B)
-3- -4-
M6*35
Screw
M6*35
Screw
M8*45
Screw
Split lock
washers
7 7
7
AA
7
M6*10 Screw (4pcs) M6*10 Screw (4pcs)
M6*10 Screw (4pcs) M6*10 Screw (4pcs)
M6*10 Screw (4pcs)M6*10 Screw (4pcs)
7. Install the bottom of bracket: Place ⑨⑩⑪
as shown, fix them with 4 sets of M6 * 50 screws
& washers and 2 sets of M8 * 45 screws & split
lock washers.
8. Install the corner guards of bottom of bracket:
Place ⑧as shown, fix them with 2 sets of 4 pieces
M8 * 45 screws.
9 10
11
M6*50
Screw
Washers
M8*45
Screw
Split lock
washers
8 8
1
⑪
(1pc)
⑩
(1pc)
Screw Kit
(1pc)
-1-
Detailed product manual can be found on www.aputure.com .
Split lock
washers
(12pcs)
M6*50 Screw
(24pcs)
Washers
(6pcs)
Hex key
(1pc)
Nuts
(18pcs)
M6*35 Screw
(24pcs)
M6*10 Screw
(36pcs)
M8*45 Screw
（12pcs）
Washers
of handle
(2pcs)
BB
Washer of
handle
Washer of
handle

LS 1200四灯支架
安装指南
支架成型示意图
构件清单
构件5
(1pc)
构件8
(2pcs)
构件7
(4pcs)
在安装本产品前，请检查包装内是否包含以下所有构件。如有缺失，请与经销商联系。
温馨提示：
1.安装前建议按下列顺序将构件排放整齐以提高安装效率。
2.说明书中的插图均为示意图，仅供参考。由于产品不断更新与升级，产品实物与示意图如有差异，请以实物为准。
-2-
-1-
您可以在本公司网站 www.aputure.cn 中找到本设备的详细使用者指南。
1. 安装中间上下边框：将构件1、构件2如图放
置，用4组M6*50螺丝、M6螺母将构件固定。
2. 安装上方两侧边框：将构件3、构件4如图
放置，按箭头方向插入构件1角铁与面齿轮之
间，装配到位后使用4组M6*50螺丝、M6螺
母将构件固定。
2
2
1
3 4
安装步骤
内六角扳手使用技巧
1. 先使用小头快速拧紧螺丝
2. 后使用大头加固螺丝
M6*50
螺丝
螺母
M6*50
螺丝
M6螺母 M6螺母
M6螺母 M6螺母
M6*50
螺丝
M6*50
螺丝
M6*50
螺丝
M6*50
螺丝
5
3. 安装最上方的边框：将构件5如图放置，用3
组M8*45螺丝、M8弹垫及8组M6*35螺丝按图
示将构件固定。
4. 安装下方两侧边框：将构件3、构件4如
图放置，按箭头方向插入构件1角铁与面齿
轮之间，装配到位后使用4组M6*50螺丝、
M6螺母将构件固定。
M6*35
螺丝
M6*35
螺丝
M8*45
螺丝
M8弹垫
3
4
M6螺母 M6螺母
构件1
(1pc)
此面朝上
构件2
(2pcs)
此面朝上
构件3
(2pcs)
此面朝上
构件4
(2pcs)
此面朝上
构件6
(1pc)
此面朝上
-3- -4-
5. 安装最下方的边框：将构件6如图放置，用8
组M6*35螺丝及3组M8*45螺丝、M8弹垫按图
示将构件固定。
6. 安装中框包角：将构件7如图放置，分别用4颗
M6*10螺丝将构件固定。
6
M6*35
螺丝
M6*35
螺丝
M8*45
螺丝
M8弹垫
7 7
77
M6*10螺丝(4pcs)M6*10螺丝(4pcs)
M6*10螺丝(4pcs) M6*10螺丝(4pcs)
7. 安装底支架：将构件9、10、11如图放置，用
4组M6*50螺丝、M6平垫及2组M8*45螺丝、M8
弹垫将构件固定。
8. 安装底支架包角：将构件8如图放置，分别用
4颗M6*10螺丝将构件固定。
9 10
11
M6*50
螺丝
M6平垫
M8*45
螺丝
M8弹垫
8 8
M6*10螺丝(4pcs) M6*10螺丝(4pcs)
9. 连接底支架与中框：将步骤6、步骤8安装好的构件如图放置，向外拉底支架把手（图示A），将底框
从下往上推，直至把手与构件1两侧接口平齐，接口放入垫片后左右把手拧紧将构件固定（图示B）。
1
A
BB
A
构件11
(1pc)
构件9
(1pc)
构件10
(1pc)
螺丝配件包
(1pc)
M6*50螺丝
(24pcs)
M6平垫
(6pcs)
内六角扳手
(1pc)
M6螺母
(18pcs)
M6*35螺丝
(24pcs)
把手垫片
(2pcs)
M6*10螺丝
(36pcs)
M8*45螺丝
（12pcs）
M8弹垫
(12pcs)
此面朝上 此面朝上
1
2
5
67
7
7
8 8
11
7
3
3
4
42
910
把手垫片把手垫片
