Aqua Creek Products F-SLR User manual

USE THIS MANUAL FOR PART #’s:
F-RNGR2 / F-ADMRL / F-PPXRD-NA / F-SCTXL / F-MTY400 / F-MTY600 /
F-VGRPL / F-REVXL / F-REVXL-DD / F-006SLE / F-005SLU / F-PEZPL2 /
F-194PHBL-NA
4/19/2023 3:17:33 PM PAGE - 1

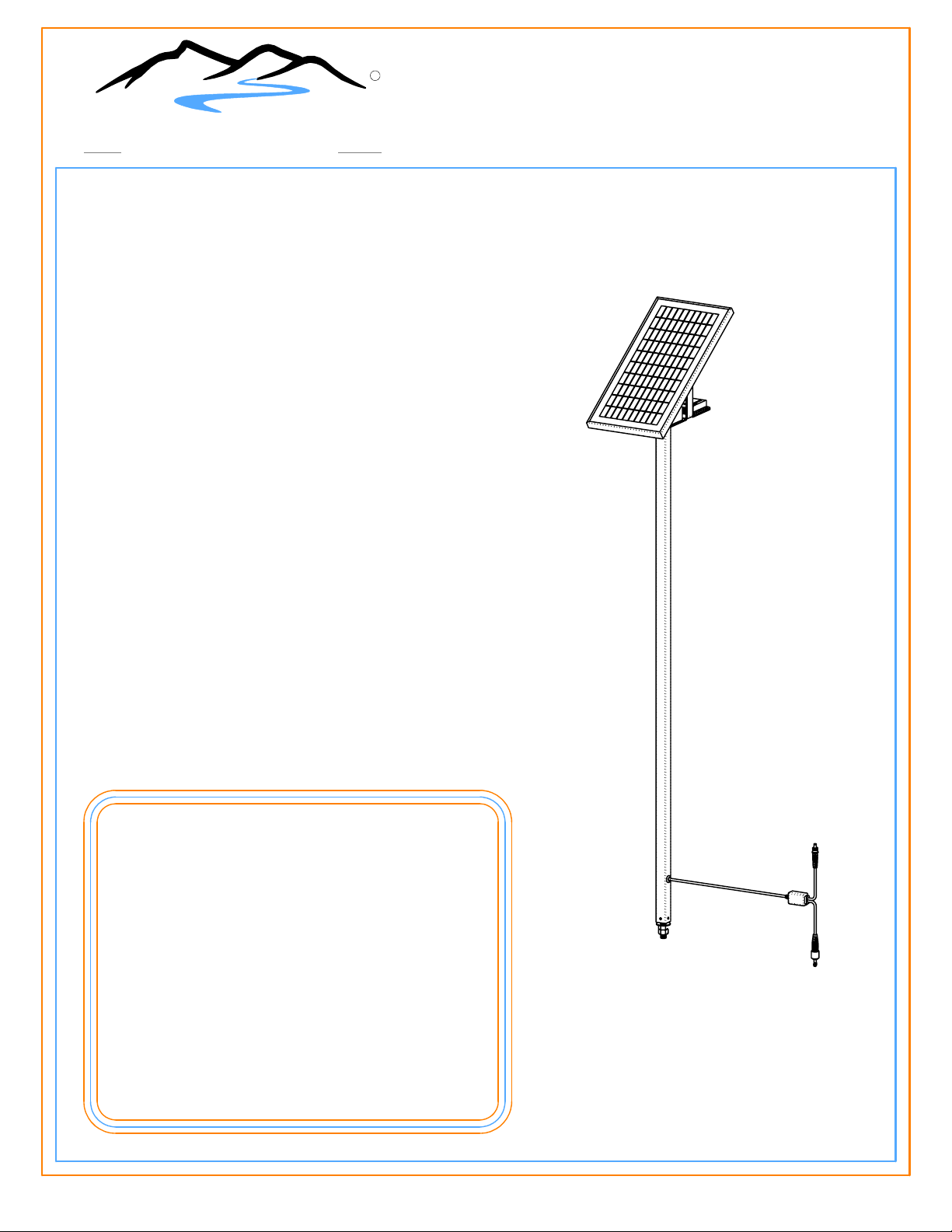

ACCESSORY - UNIVERSAL SOLAR PANEL
CATALOG NO. F-SLR
READ CAREFULLY
Check entire box and all packing materials for
parts. Before beginning assembly, read the
instructions and identify parts using the figures
and parts listed in this document.
It is critical that all parts be carefully inspected
prior to installation. If any damage occurred in
transit, Aqua Creek Products, LLC must be
notified within three days of receipt of unit.
Proper installation cannot be overstressed, as
an improper installation voids Aqua Creek’s
warranty and may affect the safety of the user.
Aqua Creek Products, LLC
9889 Garrymore Lane
Missoula, MT 59808
Toll Free: [phone]
Local/Intnl: [phone]
www.aquacreek.com
• FOR SAFETY REASONS
NEVER
swim alone •
NEVER
use the lift with a dry pool •
NEVER
apply direct water pressure to •
the electronics
NEVER
permit children to play on or •
around the lift
DO NOT
allow children to use the lift •
without adult supervision
MANDATORY
LEAVE THIS MANUAL WITH OWNER
Read and follow all instructions.
Function can only be ensured if the Solar Panel is
installed and operated according to these
instructions.
Aqua Creek Products
Leaders in Recreation, Fitness and Ability
R

ACCESSORY - UNIVERSAL SOLAR PANEL - INV03224
PART NO. QTY. REV. DESCRIPTION REPLACEMENT PARTS
INV03223 1 P1 WELDMENT - SOLARMADE PANEL BRACKET
INV01674 1 P1 SOLAR CHARGER - CONTROLLER
INV03252 1 P1 DC WATERPROOF STEP UP CONVERTER
INV00219 1 P1 SOLAR CHARGER - WAGO 3 LEVER CONNECTOR
INV00218 4 P1 SOLAR CHARGER - WAGO 2 LEVER CONNECTOR
INV00220 1 P1 SOLAR CHARGER - WAGO CONNECTOR HOUSING
INV01154 1 P1 CABLE - SOLAR CHARGER - W/FUSE
INV00103 1 P1 PLUG - DC PORT DUMMY - (LINAK)
INV00610 1 P1 GROMMET - 1/2 ID x 5/8 OD
INV03221 1 P1 SOLARMADE 10W 12V PANEL
INV03271 2 P1 L-BRACKETS, PLASTIC, WHITE
INV00724 2 P1 NH - 1/2"-13 HEX NUT
INV01169 1 P1 WF - 1/2" FLAT WASHER
INV00741 4 P1 NN - #4-40 NYLOCK NUT
INV00367 4 P1 BOLT - FH - #4-40 x 1/2 - PHILLIPS
INV00736 6 P1 NN - #10-24 NYLOCK NUT
INV03283 6 P1 BSH - #10-24x1/2" SOCKET HEAD BOLT
INV01879 1 P1 LASER/WJ - MIGHTY SOLAR BRACKET
INV01170 4 P1 WF - 1/4" FLAT WASHER
INV00735 2 P1 NN - 1/4"-20 NYLOCK NUT
INV01878 2 P1 BB - 1/4"-20X5" BUTTON HEAD BOLT
INV00348 2 P1 BB - 1/4"-20X3" BUTTON HEAD BOLT
4/19/2023 3:17:33 PM PAGE - 2
PRODUCT ORDER FORM
For Service and/or replacement parts, contact Aqua Creek Products, LLC.
Toll Free: [phone] Local/Intnl: [phone] www.AquaCreek.com
R
Aqua Creek Products
Leaders in Recreation, Fitness and Ability

THE CHARGER CABLE GETS PLUGGED INTO
THE 24V IN-OUT BOX WHICH IS LOCATED
OPPOSITE OF THE ACTUATOR PLUG. RUN
THE CABLE ALONG THE SIDE OF THE
CONTROL BOX BRACKET SO IT IS OUT OF THE
WAY.
NOTE: MAKE SURE THE PLUG IS FULLY
ENGAGED INTO THE CONTROL BOX. MAKE
SURE THE LIGHTS COME ON (SEE NEXT PAGE)
AND THE LIFT FUNCTIONS NORMALLY WHEN
THE 24V SOLAR CHARGER IS INSTALLED. IF
THE LIFT DOES NOT FUNCTION, CHECK ALL
CONNECTIONS GOING INTO THE CONTROL
BOX AND MAKE SURE THEY ARE PRESSED
ALL THE WAY IN. WHEN INSTALLED
PROPERLY THE BATTERY WILL CHARGE AS
THE LIFT OPERATES SIMULTANEOUSLY.
NOTE: THE SOLAR PANEL IS NOT A
REPLACEMENT FOR THE REGULAR CHARGER.
THE BATTERY NEEDS TO BE PLACED ON THE
WALL MOUNT CHARGER PERIODICALLY TO
ENSURE A FULL CHARGE AND A LONGER
BATTERY LIFE. THE SOLAR PANEL SIMPLY
ALLOWS FOR A LONGER SPAN OF TIME
BETWEEN REGULAR CHARGES. FOLLOW THE
BATTERY MAINTENANCE INSTRUCTIONS IN
YOUR LIFT OWNER'S MANUAL.
24V BATTERY
CONTROL BOX
PLUG INTO THE
24V IN-OUT
4/19/2023 3:17:33 PM PAGE - 3
PRODUCT ASSEMBLY
R
Aqua Creek Products
Leaders in Recreation, Fitness and Ability

A
B
DETAIL A
SCALE 1 : 1

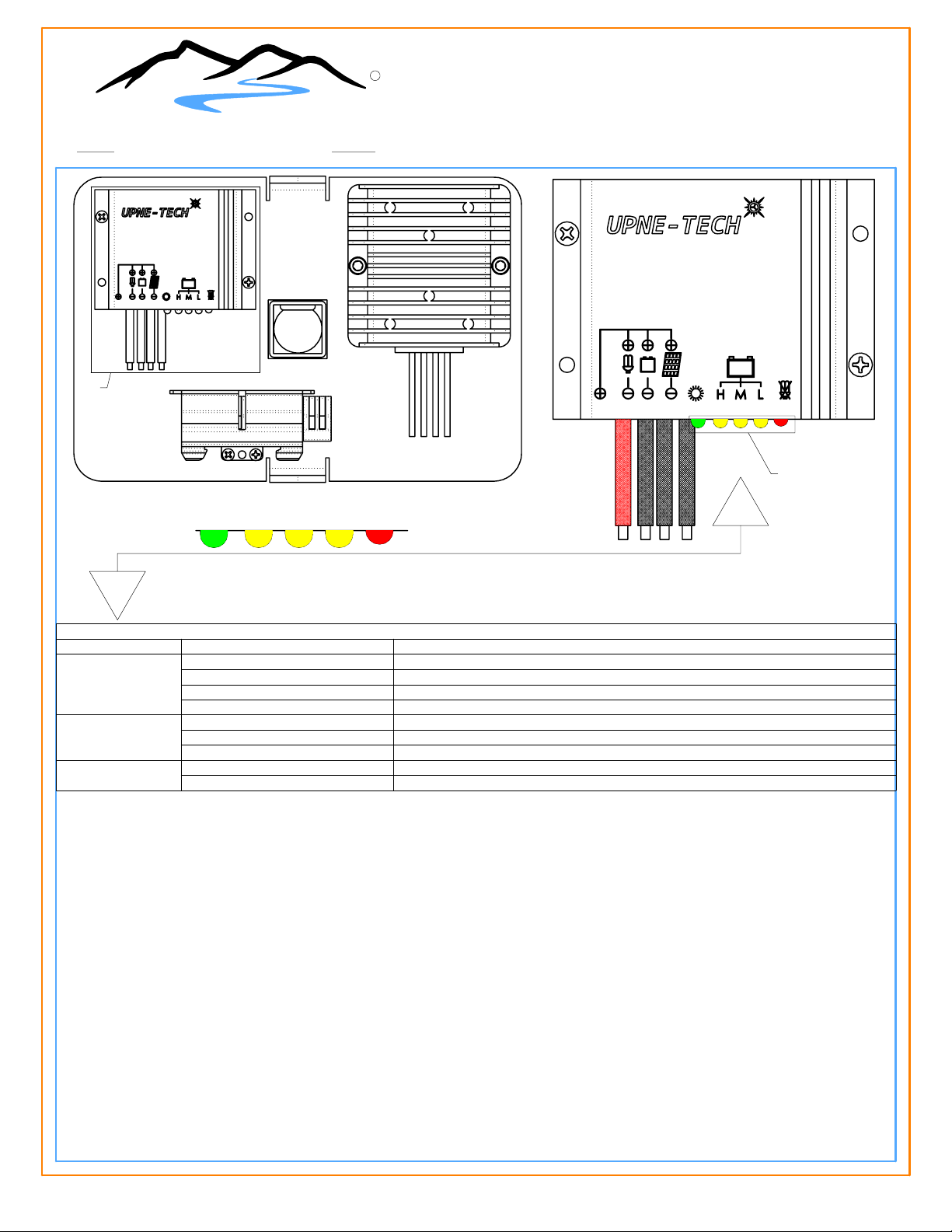

CHARGE CONTROLLER
DETAIL B
SCALE 2 : 1
GREEN RED -------YELLOW-------
03
(H)
02
(M)
01
(L)
ONCE THE SOLAR CHARGER HAS BEEN INSTALLED AND PLUGGED INTO THE CONTROL BOX, AND THERE IS
SUFFICIENT DAYLIGHT, THE 24V SOLAR CHARGER WILL TURN ON AND START TRICKLE-CHARGING THE BATTERY.
WHEN A 24V BATTERY IS INSTALLED ONTO THE LIFT, AND THERE IS SUFFICIENT DAYLIGHT, THE GREEN LED WILL
TURN ON TO SHOW A 24V BATTERY HAS BEEN DETECTED AND THE CHARGER IS OPERATIONAL. IF A FULLY
CHARGED BATTERY IS BEING USED, THE YELLOW LED MARKED "H" WILL LIGHT UP AS WELL. IF A NON-FULLY
CHARGED BATTERY IS BEING USED, EITHER THE YELLOW LED MARKED "M" OR THE YELLOW LED MARKED "L" WILL
TURN ON, DEPENDING ON HOW DRAINED THE BATTERY IS.
SEE THE TABLE IN THE IMAGE ABOVE FOR MORE DESCRIPTIONS ON WHAT ALL OF THE LED LIGHTS MEAN WHEN
THEY ARE EITHER ON OR OFF.
THE 24V SOLAR CHARGER WILL CONTINUE TO CHARGE THE BATTERY, EVEN AS THE LIFT IS BEING USED. ONCE THE
24V SOLAR CHARGER HAS BEEN INSTALLED IT WILL FUNCTION WITHOUT ANY NEED FOR ADJUSTMENT. THE USER
SHOULD CHECK THE INDICATORS PERIODICALLY TO MAKE SURE IT IS WORKING.
*A METHOD OF MAINTAINING A CELL OR BATTERY IN A CHARGED CONDITION BY CONTINUOUS, LONG-
TERM, CONSTANT VOLTAGE CHARGING AT A LEVEL SUFFICIENT TO BALANCE SELF-DISCHARGE.
CHARGE CONTROLLER - STATUS/FUNCTION
LED LIGHT STATUS FUNCTION
GREEN LED
ON MAIN CHARGE DURING DAYTIME
SLOW FLASH * FLOAT CHARGE
FAST FLASH EQUALIZATION CHARGE
OFF CONTROLLER CONNECTED TO BATTERY, NIGHT DETECTED
YELLOW LED
YELLOW LED 01 ON (L) BATTERY POWER LOW (LOW)
YELLOW LED 02 ON (M) BATTERY POWER MEDUIM (M)
YELLOW LED 03 ON (H) BATTERY POWER HIGH (H)
RED LED
OFF NORMAL OPERATION
FLASH OVERLOAD OR SHORT-CIRCUIT OF LOAD
4/19/2023 3:17:33 PM PAGE - 4
PRODUCT FUNCTION
R
Aqua Creek Products
Leaders in Recreation, Fitness and Ability

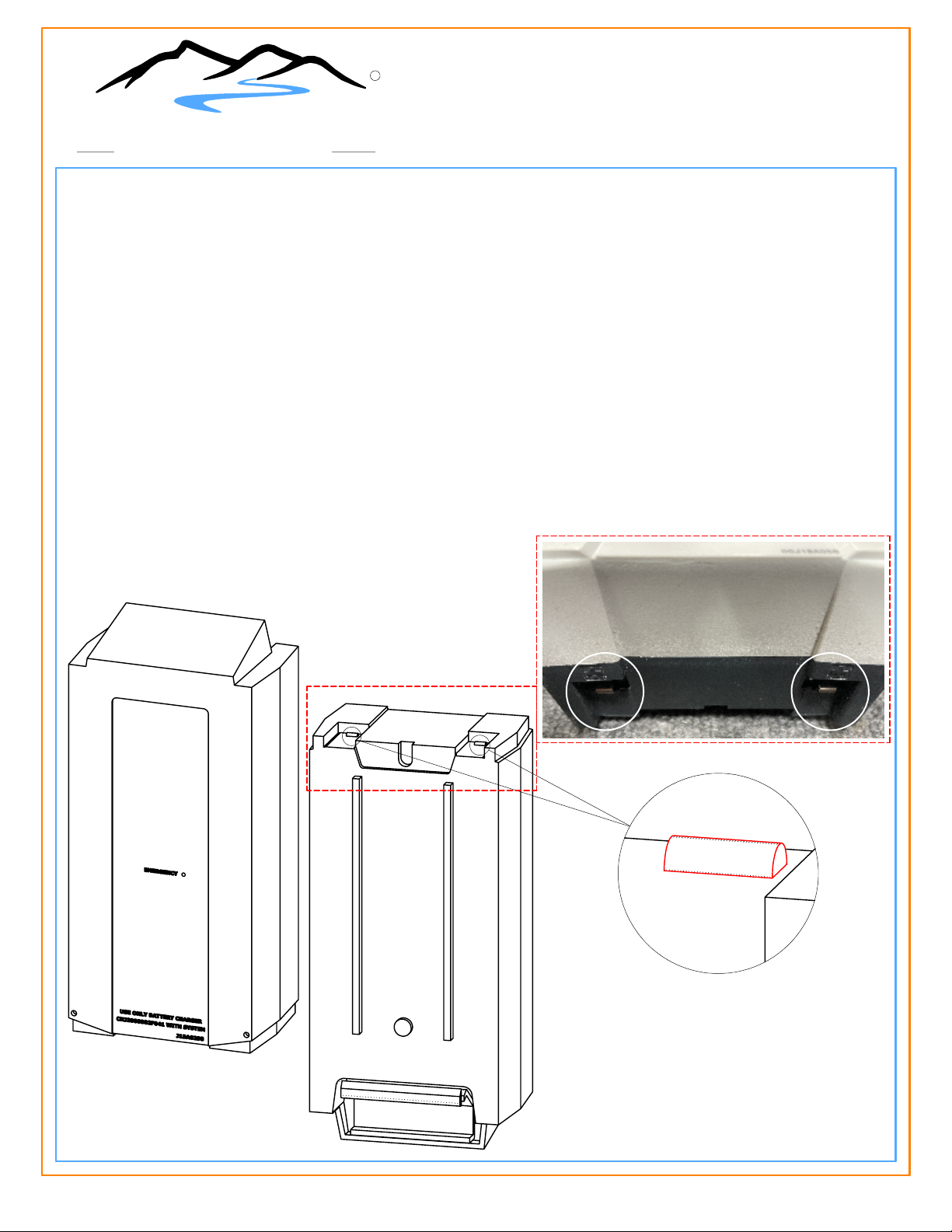

FRONT OF BATTERY
RIGHT SIDE UP
BACK OF BATTERY
UPSIDE DOWN
DETAIL G
SCALE 4 : 1
WITH THE BATTERY REMOVED AND
FLIPPED UPSIDE DOWN, CLEAN WITH
ALCOHOL AND A COTTON SWAB AND
APPLY DIELECTRIC GREASE TO
TERMINALS
(02 PLACES)
DO NOT EXPOSE THE BATTERY TO FREEZING TEMPERATURES.
DO NOT EXPOSE THE BATTERY TO PROLONGED PERIODS OF EXTREME HEAT OR SEVERE COLD
TEMPERATURES.
DO NOT EXPOSE THE BATTERY TO LONG PERIODS OF DIRECT SUNLIGHT. HEAT WILL SHORTEN YOUR
BATTERY LIFE. OPTIMUM OPERATING TEMPERATURE IS BELOW 20 DEGREES CELSIUS (68 DEGREES F.)
AQUA CREEK RECOMMENDS A BATTERY COVER BE USED WITH SOLAR CHARGERS SINCE THE BATTERY
IS LEFT ON THE LIFT FOR EXTENDED PERIODS OF TIME.
NEVER DROP OR BUMP THE BATTERY PACK. THIS MAY RESULT IN LOOSE OR DAMAGED INTERNAL
CONNECTIONS, AND MAY DAMAGE THE BATTERY TERMINALS.
KEEP BATTERY TERMINALS CLEAN AND FREE FROM DIRT AND CORROSION TO ENSURE GOOD
CONTACT. THE TERMINALS MAY BE CLEANED USING ALCOHOL AND A COTTON SWAB. CLEAN OFF ANY
CORROSION OR DISCOLORATION OF THE BATTERY CONTACTS WITH A SCOTCH-BRITE
TM
PAD AND THEN
APPLY DIELECTRIC GREASE (SUPPLIED WITH LIFT) AS SHOWN IN THE FIGURE BELOW.
4/19/2023 3:17:33 PM PAGE - 5
LINAK BATTERY MAINTENANCE
R
Aqua Creek Products
Leaders in Recreation, Fitness and Ability

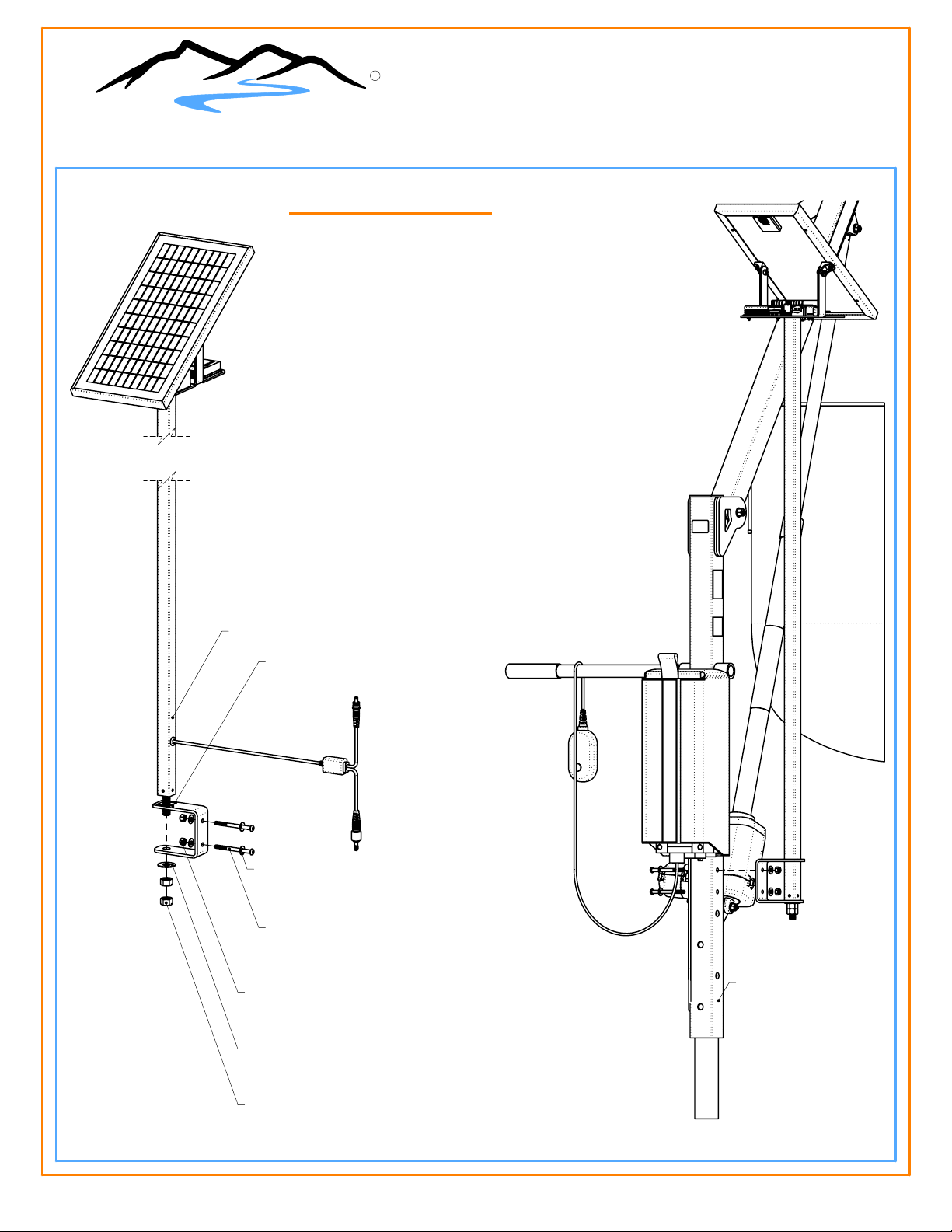

MAIN FRAME TUBE

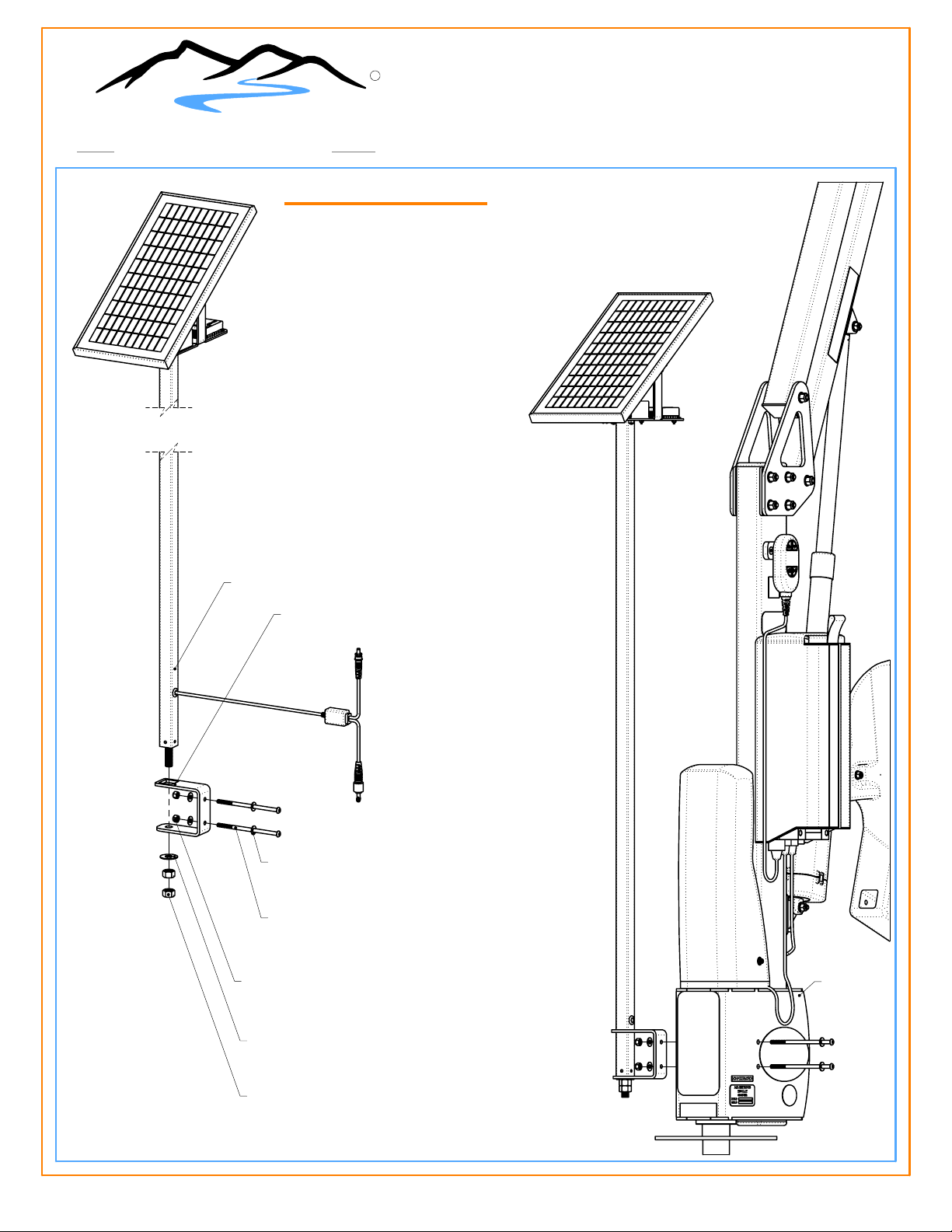

WF - 1/4" FLAT WASHER
PART NO. INV01170
QTY: 04
BB - 1/4"-20X3" BUTTON HEAD BOLT
PART NO. INV00348
QTY: 02
WF - 1/2" FLAT WASHER
PART NO. INV01169
QTY: 01
SOLAR PANEL ASSEMBLY
MOUNTING BRACKET
PART NO. INV01879
NH - 1/2"-13 HEX NUT
PART NO. INV00724
QTY: 02
NN - 1/4"-20 NYLOCK NUT
PART NO. INV00735
QTY: 02
LIFT INSTALLATIONS:
SPA LIFT ELITE - F-006SLE
SPA LIFT ULTRA - F-005SLU
POWER EZ 2 - F-PEZPL2
SUPER POWER EZ - F-194PHBL-NA
TO INSTALL THE 24V SOLAR PANEL, USE THE
MOUNTING BRACKET (INV01879) AND THE (02)
TWO 3" BUTTON HEAD BOLTS, FLAT WASHERS,
AND LOCK NUTS. PASS THE BOLTS THROUGH
THE BRACKET AND TO THE OPPOSITE SIDE OF
THE MAIN FRAME TUBE.
4/19/2023 3:17:33 PM PAGE - 6
PRODUCT ASSEMBLY
R
Aqua Creek Products
Leaders in Recreation, Fitness and Ability

E
SOLAR
PANEL
ASSEMBLY
DETAIL E
SCALE 1 : 4
WF - 1/2" FLAT WASHER
PART NO. INV01169
QTY: 01
BH - 1/2"-13X1 1/2" HEX HEAD BOLT
PART NO. INV00388
(INSTALLED ON LIFT)
WF - 1/2" FLAT WASHER
PART NO. INV01169
(INSTALLED ON LIFT)
ANCHOR INSERT
(BELOW DECK)
LIFT INSTALLATIONS:
RANGER 2 - F-RNGR2
ADMIRAL F-ADMRL
AMBASSADOR - F-PPXRD-NA
TO INSTALL THE 24V SOLAR PANEL, REMOVE (01)
ONE OF THE REAR DECK BOLTS. USING A 1/2" FLAT
WASHER, THREAD THE SOLAR PANEL ASSEMBLY
INTO THE ANCHOR INSERT.
4/19/2023 3:17:33 PM PAGE - 7
PRODUCT ASSEMBLY
R
Aqua Creek Products
Leaders in Recreation, Fitness and Ability

MAIN
FRAME
WF - 1/4" FLAT WASHER
PART NO. INV01170
QTY: 04
BB - 1/4"-20X5" BUTTON HEAD BOLT
PART NO. INV01878
QTY: 02
WF - 1/2" FLAT WASHER
PART NO. INV01169
QTY: 01
SOLAR PANEL ASSEMBLY
MOUNTING BRACKET
PART NO. INV01879
NH - 1/2"-13 HEX NUT
PART NO. INV00724
QTY: 02
NN - 1/4"-20 NYLOCK NUT
PART NO. INV00735
QTY: 02
TO INSTALL THE 24V SOLAR PANEL, USE THE
MOUNTING BRACKET (INV01879) AND THE (02)
TWO 5" BUTTON HEAD BOLTS, FLAT WASHERS,
AND LOCK NUTS. PASS THE BOLTS THROUGH
THE BRACKET AND TO THE OPPOSITE SIDE OF
THE MAIN FRAME.
LIFT INSTALLATIONS:
MIGHTY 400 - F-MTY400
MIGHTY 600 - F-MTY600
REVOLUTION XL - F-REVXL
REVOLUTION XL-DD - F-REVXL-DD
SCOUT EXCEL - F-SCTXL
4/19/2023 3:17:33 PM PAGE - 8
PRODUCT ASSEMBLY
R
Aqua Creek Products
Leaders in Recreation, Fitness and Ability

F
DETAIL F
SCALE 1 : 1
MAIN FRAME
TOP PLATE
WF - 1/2" FLAT WASHER
PART NO. INV01169
QTY: 01
SOLAR PANEL
ASSEMBLY
LIFT INSTALLATIONS:
MIGHTY VOYAGER - F-VGRPL
TO INSTALL THE 24V SOLAR PANEL, USE A 1/2" FLAT
WASHER, THREAD THE SOLAR PANEL ASSEMBLY INTO THE
BACK OF THE MAIN FRAME TOP PLATE.
4/19/2023 3:17:33 PM PAGE - 9
PRODUCT ASSEMBLY
R
Aqua Creek Products
Leaders in Recreation, Fitness and Ability

4/19/2023 3:17:33 PM PAGE - 10
Aqua Creek Products, LLC (a.k.a. Aqua Creek) warrants to the original end user purchaser that products
manufactured by Aqua Creek, when properly installed in accordance with assembly and installation instructions and
properly used and maintained, shall be free from defects in material and workmanship for a period of
one (1) year
from the date of original purchase
, provided that Aqua Creek receives prompt notice in writing of any defect or
failure and satisfactory proof thereof, with the following exceptions:
Exceptions:
This warranty specifically excludes reimbursement for labor to remove, repair, or install the product and any •
freight charges.
This warranty does not cover any damages due to accident, force majeure, act of nature, misuse, abuse, •
negligence or failure to properly maintain any products, or normal wear and tear from day to day operations.
In the event that any products are altered, repaired, or improperly installed by anyone without the prior written •
approval by Aqua Creek, all warranties are void.
To initiate a warranty claim, the owner of an Aqua Creek product must provide the place of purchase, in writing, with
a full description of the product, its serial number, the dates of purchase and installation, and the exact nature of the
defect. Within thirty (30) days after receipt of a written warranty claim by Aqua Creek, and barring any unforeseen
delays, the place of purchase will be notified of Aqua Creek’s decision regarding the claim. All warranty calculations
are from date of original purchase at manufacturer’s suggested retail price. Non-payment for product to Aqua Creek
may void warranty.
If requested by Aqua Creek, any defective product must be returned, freight prepaid by customer, to Aqua Creek’s
designated factory location or duly appointed distributor for inspection and/or repair. Aqua Creek will, at its option,
repair or replace the failed or defective item, and deliver the repaired product or replacement to the customer. All
freight charges are the responsibility of the customer. Products returned to Aqua Creek for which Aqua Creek
provides replacement under this limited warranty shall become the property of Aqua Creek. A new warranty period
shall
NOT
be established for the repaired or replaced products. Such products shall remain under warranty only for
the remainder of the original warranty period on the original products purchased.
This written limited warranty constitutes the final, complete and exclusive statement of warranty terms. No person or
organization is authorized to make any other specific or implied warranties or representations on behalf of Aqua
Creek.
THE WARRANTIES SET FORTH HEREIN ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED OR
IMPLIED, WHICH ARE HEREBY DISCLAIMED AND EXCLUDED, INCLUDING WITHOUT LIMITATION ANY
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR USE.
THE SOLE AND EXCLUSIVE REMEDIES FOR BREACH OF ANY AND ALL WARRANTIES WITH RESPECT TO
THE PRODUCTS SHALL BE LIMITED TO REPAIR OR REPLACEMENT AT AQUA CREEK’S DESIGNATED
FACTORY LOCATION, OR DULY APPOINTED DISTRIBUTOR, OR IN PLACE AT AQUA CREEK’S OPTION. IN
NO EVENT SHALL AQUA CREEK’S LIABILITY EXCEED THE ENTIRE AMOUNT PAID TO AQUA CREEK BY
THE ORIGINAL PURCHASER FOR THE FAILED OR DEFECTIVE PRODUCT.
IN NO EVENT SHALL AQUA CREEK PRODUCTS, LLC BE LIABLE FOR ANY INCIDENTAL,
CONSEQUENTIAL, SPECIAL, INDIRECT, PUNITIVE OR EXEMPLARY DAMAGES OR LOST PROFITS FROM
ANY BREACH OF THIS LIMITED WARRANTY OR OTHERWISE.
Aqua Creek Products
Leaders in Recreation, Fitness and Ability
For Service and/or replacement parts, contact Aqua Creek Products, LLC.
Toll Free: [phone] Local/Intnl: [phone] www.AquaCreek.com
R
LIMITED ONE (1) YEAR WARRANTY
