AQUA FORTE Pure UV-C User manual

v tv
AquaForte Pure UV-C
Quick Installation Guide
AQUAFORTE IS A TRADEMARK OF SIBO FLUIDRA NETHERLANDS B.V.
www.aqua-forte.com

SAFETY NOTE
This device produces harmful radiation. Direct contact can cause a hazard to eyes and skin. Only check the operation of the UV-C lamp
through the transparent parts of the unit.
• Warning - Due to the risk of injury, this product is not suitable for use by children or persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience or knowledge, unless they are supervised or instructed on the use of
the device by a person responsible for their safety.
• Warning - Risk of electric shock. If in doubt as to whether you have sufficient knowledge and experience, this device must always
be connected by a certified electrician, according to the locally applicable standards and laws, with a properly earthed connection
protected by a residual-current device.
• Warning - To reduce the risk of electric shock, a damaged cable should be replaced immediately if possible.
• Warning - To reduce the risk of electric shock, the use of an extension lead is not recommended. Connect the device to an easily
accessible mains outlet.
• Do not bury the connection lead. Never share connections and/or connection leads with lawn mowers, hedge trimmers or other
equipment.
• Never install the unit at a location where it will be exposed to direct sunlight.
• Keep children away from this device and the electrical lead.
• During and after commissioning, the unit is operating and filled with water. Therefore, to reduce the risk of electric shock, be careful
during repairs and/or service work. If you lack the necessary knowledge and experience, repair and/or service activities should be
performed by authorized/accredited technicians.
• Never touch the appliance if it falls into the water! Disconnect the connection lead first, before removing the unit from the water.
Because electrical components are damaged by water and therefore become unsafe, the device must be submitted to authorized/
accredited technicians for repair/maintenance.
• The device must not be switched on if it has been damaged during or as a result of transport, a fall, a production defect or other
cause (particularly the quartz glass sleeve and the UV-C bulb).
• Always connect the device to an undamaged, earthed mains outlet with hinged cover.
• Always remove the plug from the outlet when the device is not in use and/or during cleaning and maintenance activities. The plug
must be removed from the mains outlet by pulling on the plug itself. Never pull on the lead to remove the plug from the outlet.
• The UV-C lamp must be switched off temporarily if chemicals and/or medications are (manually) added to the water. Chemicals
added (manually), such as chlorine and acid, must be poured directly into the water in dissolved form.
• To reduce the risk of electric shock, the plug must not be inserted into or removed from the mains outlet with wet hands and/or
while you are standing in the water.
• The device should never be immersed, in whole or in part, in water or any other liquid.
• The connection lead of the appliance may not be shortened and/or connected directly
This is a Quick Installation Guide. Full instructions can be found on the following website: www.aqua-forte.com.
2 • AQUAFORTE PURE UV-C • QUICK INSTALLING GUIDE

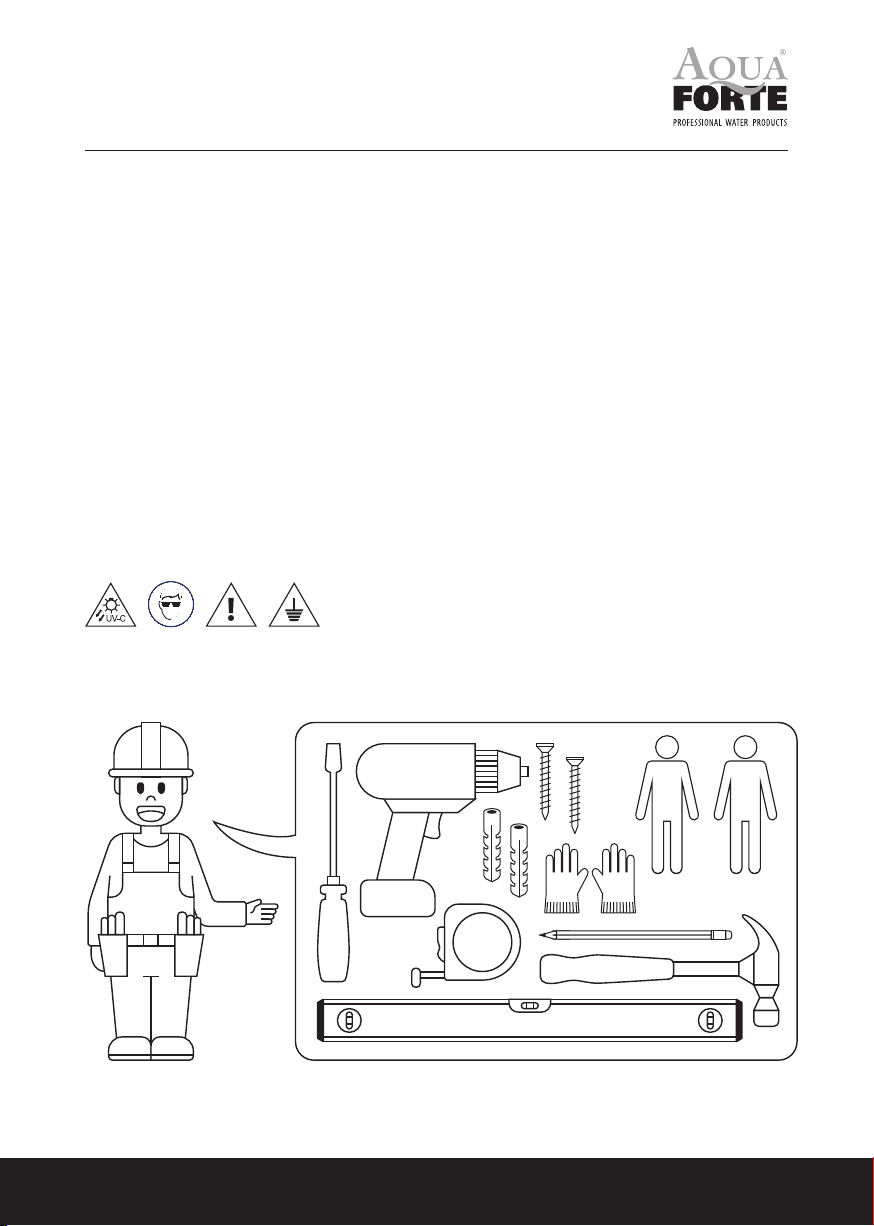

WHAT DO YOU NEED FOR INSTALLATION?
without a plug. If the lead becomes damaged, the entire device must be submitted to authorized/accredited technicians. Devices
with cut-off/shortened cables are excluded from warranty coverage.
• After the device is switched off the bulb will remain warm for ten minutes.
• Use of the equipment for any purpose other than that for which it was designed or developed is not permitted. Use of the
equipment for a purpose other than that for which it was developed by the manufacturer may lead to unsafe situations.
• If there is a seasonal risk of freezing of the device, or parts thereof, appropriate measures must be taken to prevent freezing damage.
Damage caused by freezing is always excluded from warranty coverage.
• The unit should never be placed downstream of a heat exchanger or other heating source. If the bulb is not cooled by the water
sufficiently, it may be damaged.
• This device may only be used in accordance with the guidelines described in this manual. You must also adhere to the instructions
provided on the device.
• Unintended use of the device or damage to the housing can lead to the escape of harmful UV-C radiation. Exposure to UV-C
radiation, even in small doses, cause damage to the eyes and skin.
• If you intend to use of the device in combination with chemicals and/or medications, always consult the manual(s) for this/these
product(s). Pay particular attention to the safety instructions. When using medicines, the device must be disconnected.
AQUAFORTE PURE UV-C • QUICK INSTALLING GUIDE • 3

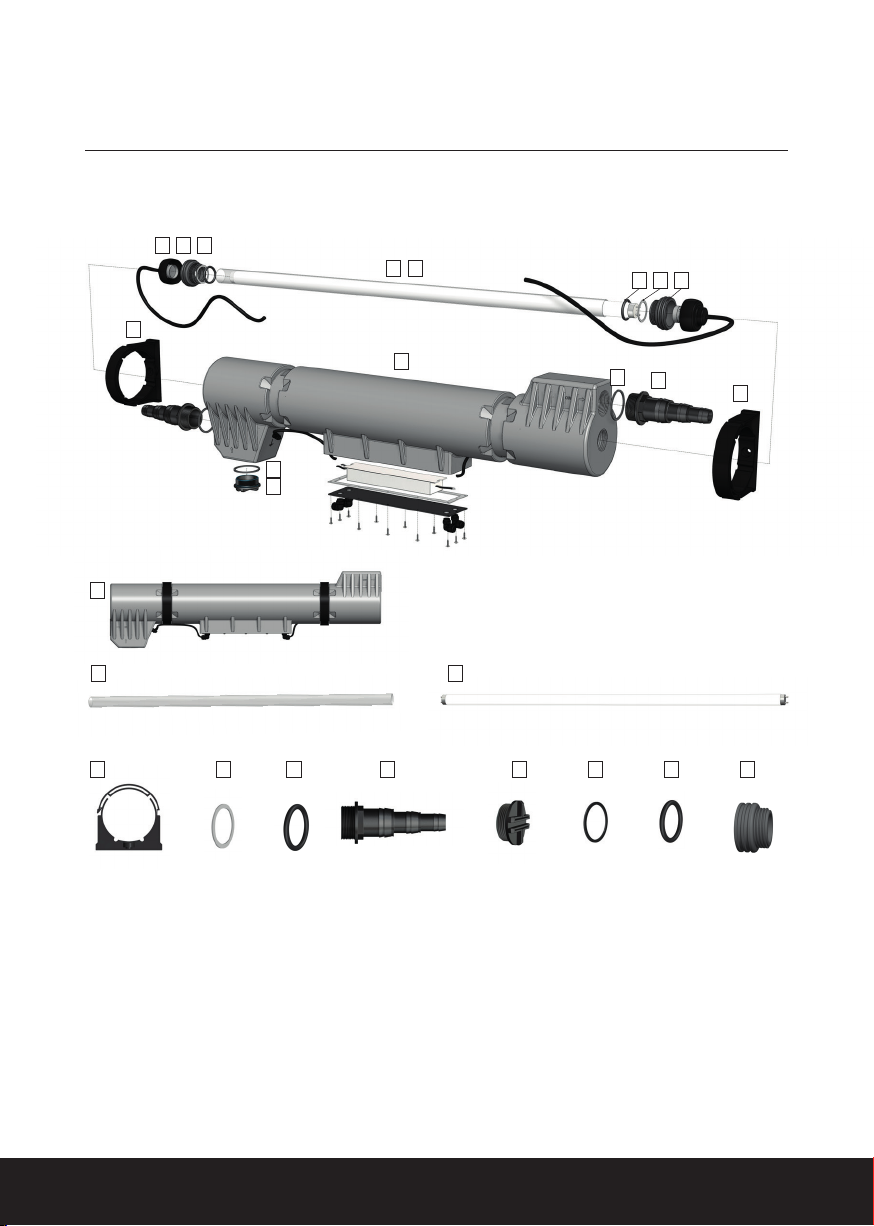

MATERIAL OVERVIEW
TECHNICAL SPECS AQUA FORTE PURE UV-C TL 30W & 55W
K E F
C B
F E K
D
A
J
H
IG
D
1x
2x 2x 2x 1x 1x2x 2x 2x
1x 1x
A
D E F G H I J
B C
K
UV-C UV-C (%) after
9.000 hours
Pond
volume
Max. flow Max.
pressure
Connection
diameter
Length of
the device
Ambient
temperature
Water
temperature
IP class
30 Watt 80% 27.000 liter 13.000 l/h 0.7 bar 25/32/40mm 100cm 0-30C° 1-25C° IP64
55 Watt 80% 45.000 liter 18.000 l/h 0.7 bar 25/32/40mm 100cm 0-30C° 1-25C° IP64
Nylon Ring
37.5x1
O-ring
36x4
O-ring NBR
45x3
O-ring
45x2
4 • AQUAFORTE PURE UV-C • QUICK INSTALLING GUIDE

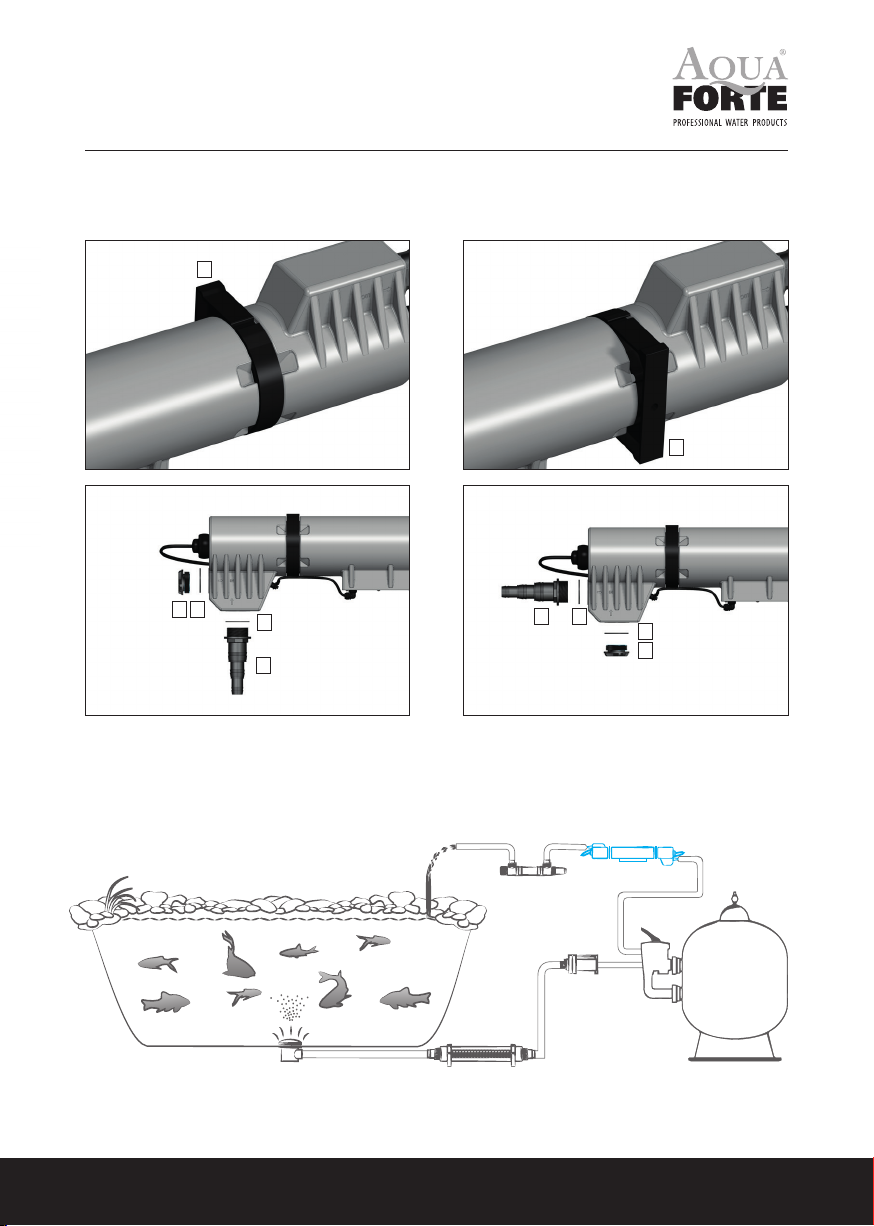

POSSIBLE INSTALLATION
POSSIBLE INSTALLATION
OR
OR
D
D
G
J
H
I
G
I
JH
AERAT ED
BOTTOM DRAIN PREFILTER
PUMP
XCLEAR
PROFI-HEATER
PU RE UV-C
FILTER
AQUAFORTE PURE UV-C • QUICK INSTALLING GUIDE • 5

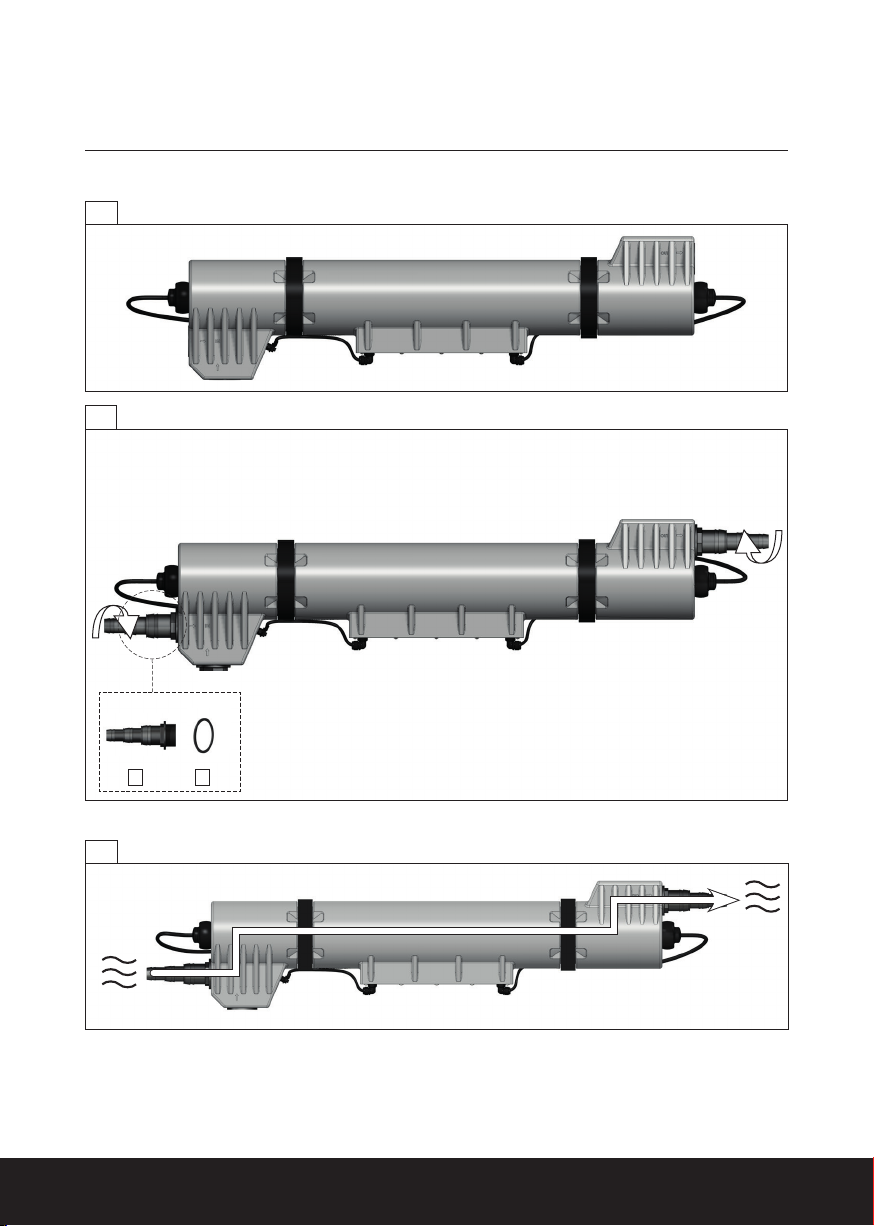

POSSIBLE FLOW DIRECTIONS
6 • AQUAFORTE PURE UV-C • QUICK INSTALLING GUIDE

AQUAFORTE PURE UV-C • QUICK INSTALLING GUIDE • 7

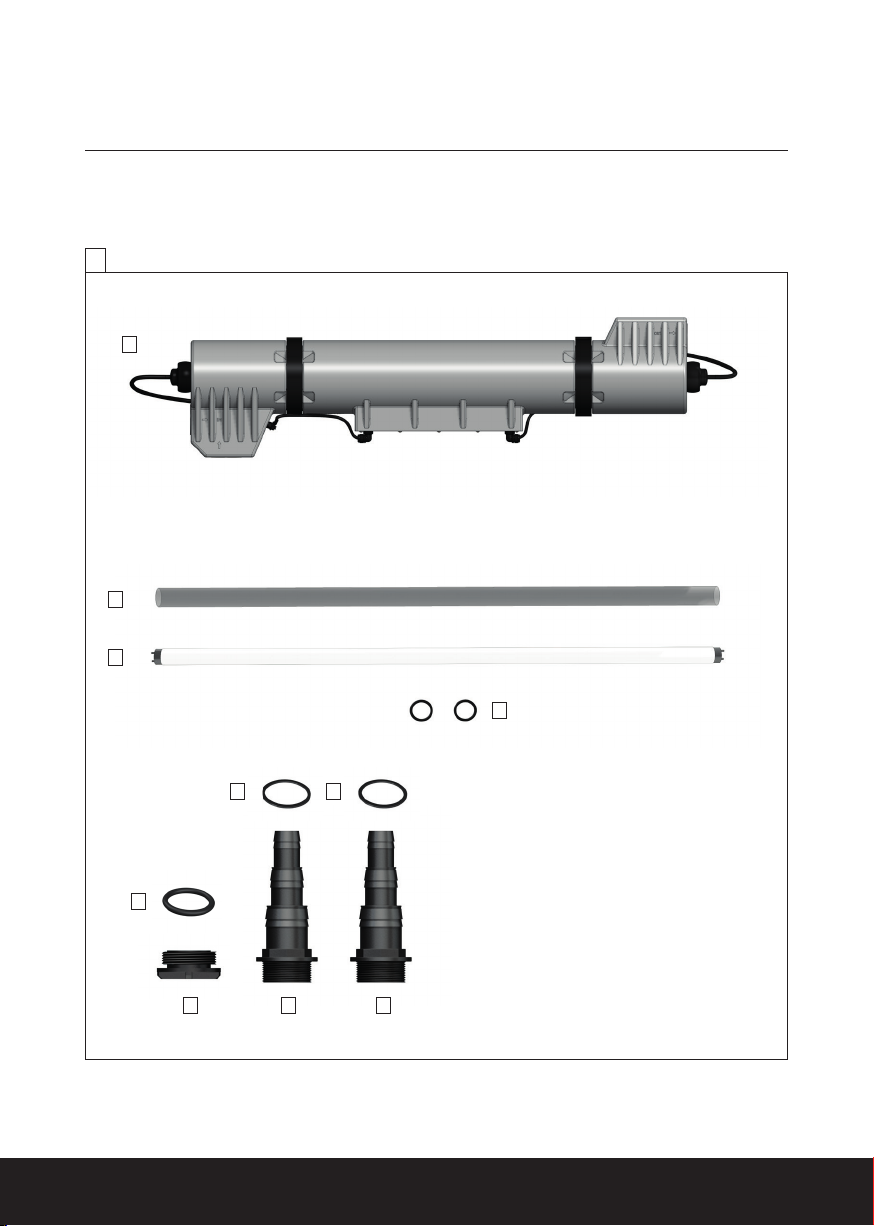

INSTRUCTIONS
1
A
B
C
F
H G G
I I
J
8 • AQUAFORTE PURE UV-C • QUICK INSTALLING GUIDE

2x
D
2
51 cm
max. 100 cm
AQUAFORTE PURE UV-C • QUICK INSTALLING GUIDE • 9

3
4
EK
10 • AQUAFORTE PURE UV-C • QUICK INSTALLING GUIDE

5
6
K E F
B

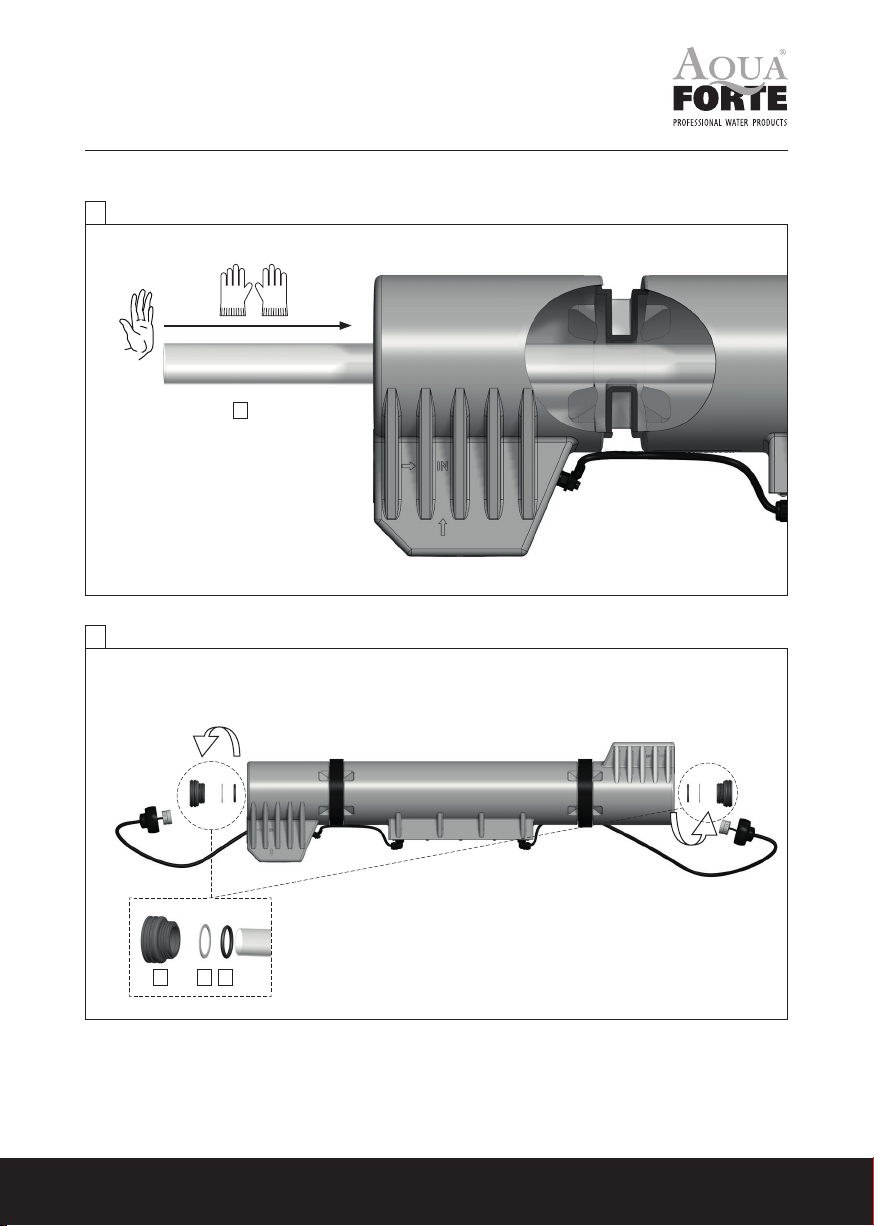

Caution:
Glass is fragile, use:
AQUAFORTE PURE UV-C • QUICK INSTALLING GUIDE • 11

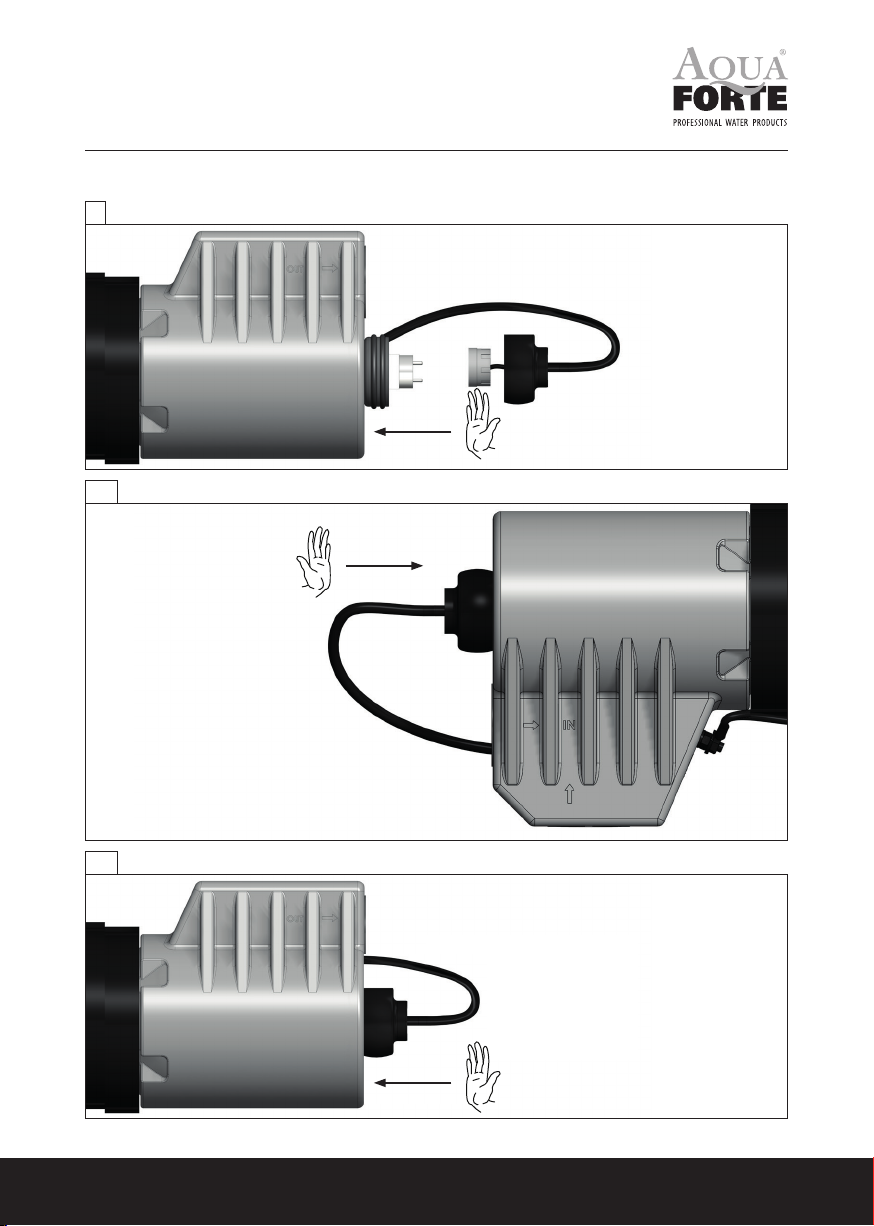

7
8
C
12 • AQUAFORTE PURE UV-C • QUICK INSTALLING GUIDE

9
10
11
AQUAFORTE PURE UV-C • QUICK INSTALLING GUIDE • 13

12
13
G I
14
14 • AQUAFORTE PURE UV-C • QUICK INSTALLING GUIDE

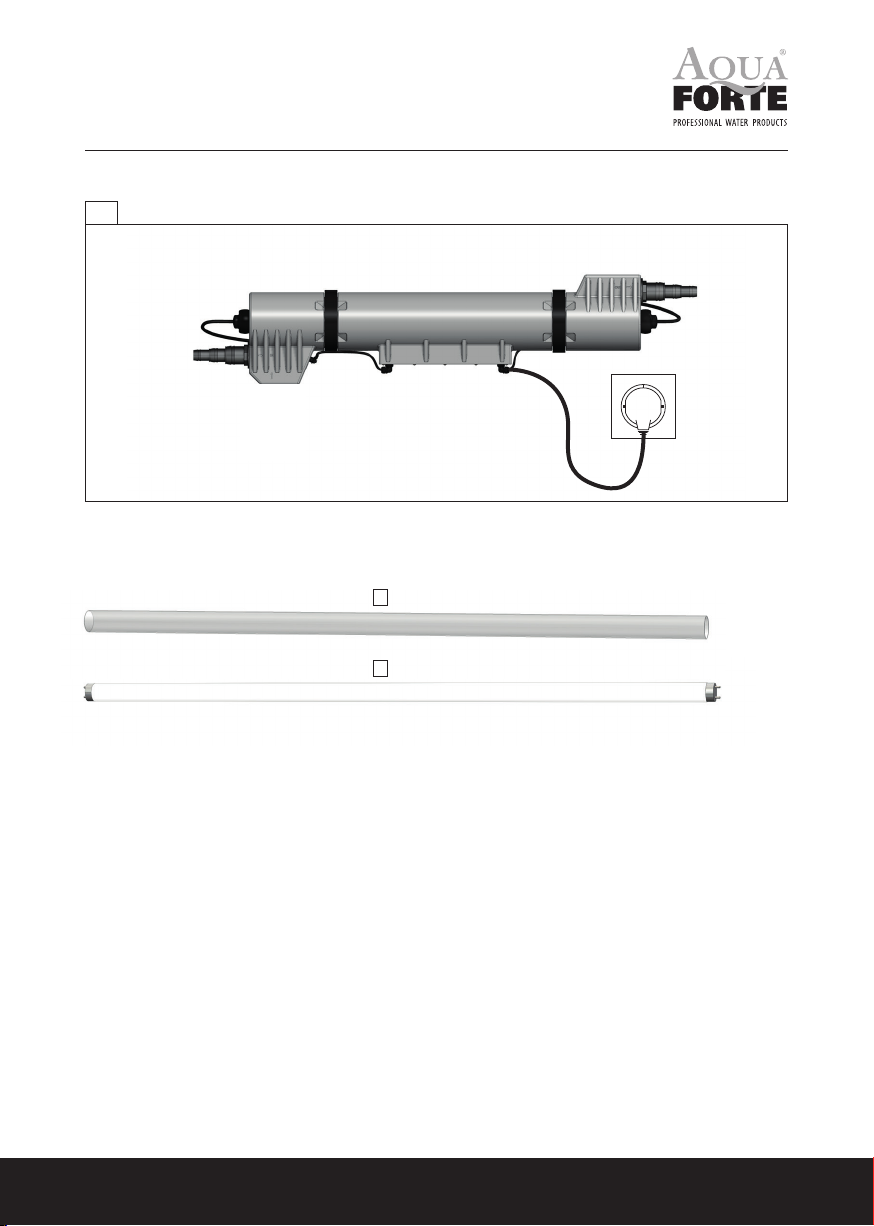

MAINTENANCE
Clean after maximum 4500 hours:
Replace at maximum 9000 hours:
WARRANTY CONDITIONS
The product is guaranteed against manufacturing defects for 24 months from the date of purchase. Warranty claims
can only be processed if the product is returned postage paid, accompanied by a valid proof of purchase. Warranty
repairs may only be carried out by the supplier. Warranty claims that are the result of incorrect installation or operation
will not be honoured. Defects caused by poor maintenance will also not be covered under warranty. The supplier is in
no way responsible for damage caused by misuse of the product. The supplier cannot be held liable for consequential
damage due to failure of the device. Reclamations based on transport damage can only be accepted if the damage
was found or confirmed by the carrier at the time of delivery. Only then can the carrier or postal service be held liable.
B
C
15
AQUAFORTE PURE UV-C • QUICK INSTALLING GUIDE • 15
