Progear Fitness Air elliptical pro 1307 User manual

Air Elliptical Pro
IMPORTANT: Read all instructions carefully before using this product. Retain this
owner’s manual for future reference.
The specifications of this product may vary from this photo and, subject to change without
notice.
OWNER’S MANUAL Item #1307

SERVICE -------------------------------------------------------------------------- 2
LABEL PLACEMENT ----------------------------------------------------------- 3
PRODUCT SAFETY ------------------------------------------------------------ 4
OVERVIEW DRAWING -------------------------------------------------------- 5
PARTS LIST ----------------------------------------------------------------------- 6
HARDWARE LIST & TOOLS -------------------------------------------------- 8
ASSEMBLY ------------------------------------------------------------------------ 9
COMPUTER ----------------------------------------------------------------------- 17
ADJUSTMENTS ------------------------------------------------------------------ 19
MAINTENANCE ------------------------------------------------------------------ 21
TROUBLESHOOTING ---------------------------------------------------------- 22
WARM UP -------------------------------------------------------------------------- 24
WARRANTY ----------------------------------------------------------------------- 25
FAX FORM ------------------------------------------------------------------------- 26
TABLE OF CONTENTS
1

IMPORTANT: FOR NORTH AMERICA ONLY
To request product service and order
replacement parts, please call our
customer service department at:
1-866-924-1688
Monday through Friday, 8:00 AM-5:00 PM Pacific Standard Time,
or email us at: [e-mail]
Please visit our website at www.paradigmhw.com.
Please have the following information ready when requesting for service:
Your name
Phone number
Model number
Serial number
Part number
Proof of Purchase
Before returning this product to the store please contact
customer service at the contact number.
Paradigm Health & Wellness, Inc.
1189 Jellick Ave.
City of Industry, CA 91748 USA
2
SERVICE

3
LABEL PLACEMENT

Basic precautions should always be followed, including the following safety
instructions when using this equipment. Read all instructions before using this
equipment.
1. Before exercising and to avoid injuring your muscles, it is highly recommended
that you perform warm-up exercise for each muscle group. Please refer to
Warm Up section of the Owner’s Manual.
2. Please make sure all components are not damaged and in working order
before using. This equipment should be placed on a stable, flat surface. Using
a mat or similar material on the ground is recommended.
3. Please wear proper clothes and shoes when using this equipment. Do not
wear loose clothing that may get caught by any part of the equipment.
4. Only perform maintenance or adjustments that are instructed in this manual.
Should any problems arise, discontinue use and consult with customer service
at Paradigm.
5. Be careful when stepping on or stepping off the pedals. Always hold onto the
handlebars first and make sure the pedal at your side is at its lowest position,
then step on. With your other leg, stride over the main frame and come to rest
onto the other pedal. To ensure the pedals run smoothly, push or pull on the
handlebars first, then follow with leg motion. To dismount, reduce pedaling
speed gradually before you stop. When stepping off the machine, make sure
one pedal is at its lowest position and step out of there before stepping out of
the pedal at the highest position.
6. Keep dry - do not operate in wet or moist condition.
7. Do not use the equipment outdoors.
8. This equipment is for household use only.
9. Only one person should be on the equipment at a time.
10.Keep children and pets away from the product at all times.
11.This machine is designed for adults only.
12.This product requires a minimum of 6 feet of space for safe operation.
13.If you feel any chest pains, nausea, dizziness, or short of breath, you should
stop exercising immediately and consult with your physician before continuing.
14.The maximum weight capacity for this product is 275 lbs/125 kgs.
WARNING:Before beginning any exercise program consult your
physician. This is especially important for the people who are over 35 years old
or who have pre-existing health problems.
CAUTION:Read all instructions carefully before operating this product.
Retain this Owner’s Manual for future reference.
4
PRODUCT SAFETY

5
OVERVIEW DRAWING
43
83
65
65
66
65
66
24
25
24
2
3
1
3
1
90
84
65
65
43
65
16
76
12
11
88
13
14
88
16
77
15
23
822
64
19L
20
4
36
80
71
70
72 73
74
75
91
96 8
18
14
14
5
6
7
8
95
8
60
59
58
57
53
54
56
55
85
55
56
53
92
93
94
52
92
93
94
82
48
47
46
50
51 45
44
78
66
61
62
97
87
27
25
8
71
70
68
69
27 28
79
89
97
8
67
14
96
91
826
8
22
21
19R
18
23
8
9
4
57
6
95
8
20
80 36
17
16
16
88
11
12
13 14
15
88
29
30
31
32
35
33
34
37
38
39
40
34
10
36
80
81
86
36
41
42
42
48
82
45
46
47
44
49
63
10
78
55
56
61
52
52

No. Description Qty No. Description Qty
001 Handrail Arm End Cap Ø25 2 023 Bolt M8x43 4
002 Right Handrail Arm Ø25x2 1 024 Washer Ø8.2xØ16x1.5 4
003 Handrail Arm Foam Grip
Ø23xØ30x310 2 025 Nylon Nut M8 4
004 Handrail Arm Plastic Bushing
Ø32x1.5 2 026 Right Crank 7" 1
005 Bolt 3/8"x20 2 027 Spring Washer 1/2" 2
006 Spring Washer 3/8" 2 028 Nylon Nut for Right Crank 1/2” 1
007 Washer Ø28x4.5 2 029 Computer M1202 1
008 Plastic Bushing
Ø28xØ24.1xØ16.2x4x16 10 030 Hand Pulse Handlebar End Cap
Ø25x2 2
009 Right Handrail 1 031 Hand Pulse Sensor 2
010 Extension Sensor Wire
L=700 mm 1 032 Hand Pulse Handlebar Foam Grip Ø23xØ30x220 2
011 Bolt M10x55 2 033 Hand Pulse Handlebar 1
012 Handrail End Cap Ø32x1.5 2 034 Wire Grommet Ø12 2
013 Washer Ø10.5xØ20x2 2 035 Hand Pulse Sensor Wire
L=450 mm 2
014 Nylon Nut M10 6 036 Bolt M8x35 10
015 Foot Bar End Cap 30x30x1.5 2 037 Tension Control Knob 1
016 Plastic Bushing
Ø18xØ14.1xØ10.5x3x10 4 038 Bolt M5x15 1
017 Right Foot Bar 1 039 Bolt M5x10 2
018 Foot Pedal Support Bracket 2 040 Bottle Holder 1
019L Left Foot Pedal 350x150x52 2 041 Hand Pulse Handlebar Support
Frame 1
019R Right Foot Pedal 350x150x52 2 042 Hand Pulse Handlebar Support
Frame End Cap 30x20x2 2
020 Bolt M10x45 4 043 Cover Cap 2
021 Right Bolt for Right Crank
Ø16x119 1 044 Eyebolt M6x50 2
022 Wave Washer Ø16.2xØ26xδ0.3 2 045 Nut M10x1 2
6
PARTS LIST

No. Description Qty No. Description Qty
046 Tension Bracket 2 072 Bearing Nut I 7/8" 1
047 Spring Washer Ø6 2 073 Washer 7/8" 1
048 Nut M6 2 074 Nut 7/8" 1
049 Fan Wheel Ø510x56.5 1 075 Left Crank 7" 1
050 Fan Wheel Axle M10x154 1 076 Left Foot Bar 1
051 Spacer Ø14xØ10.2x19 1 077 Left Handrail 1
052 Bolt M10x60 4 078 Sensor with Wire L=900 mm 1
053 Front Stabilizer End Cap Ø50 2 079 Tension Cable L=1000 mm 1
054 Front Stabilizer Ø50x1.5 1 080 Spring Washer Ø8 6
055 Curve Washer Ø10.5xØ20x2 4 081 Curve Washer Ø8xØ16x2 2
056 Cap Nut M10 4 082 Flange Nut M10x1 2
057 Adjustable Leveler Ø30xM8x45 2 083 Right Cover 695x365 1
058 Nut M8 2 084 Left Cover 695x365 1
059 Mainframe 1 085 Chain 1
060 Rotation Rod Ø15.8x373 1 086 Screw ST4.2x19 2
061 Rear Stabilizer End Cap Ø50 2 087 Nylon Nut for Left Crank 1/2” 1
062 Rear Stabilizer Ø50x1.5 1 088 Nut Cap M10 4
063 Tension Strap 1160x17 1 089 Small Magnet Ø15x7 1
064 Left Bolt for Left Crank Ø16x119 1 090 Left Handrail Arm Ø25x2 1
065 Screw ST4.8x39 6 091 Crank Cover Ø22 2
066 Screw ST4.8x15 3 092 Bolt M6x48 2
067 Chain Pulley 1 093 Transport Wheel Ø23xØ7x31 2
068 Washer 15/16" 1 094 Nylon Nut M6 2
069 Bearing Nut II 15/16" 1 095 Nut Cap M8 4
070 Bearing 2 096 Flange Nut 3/8" 2
071 Bearing Cup 2 097 Nut Cap 1/2" 2
7
PARTS LIST

LR
STEP 1 STEP 2 AND 3 STEP 4 STEP 5 STEP 6
8

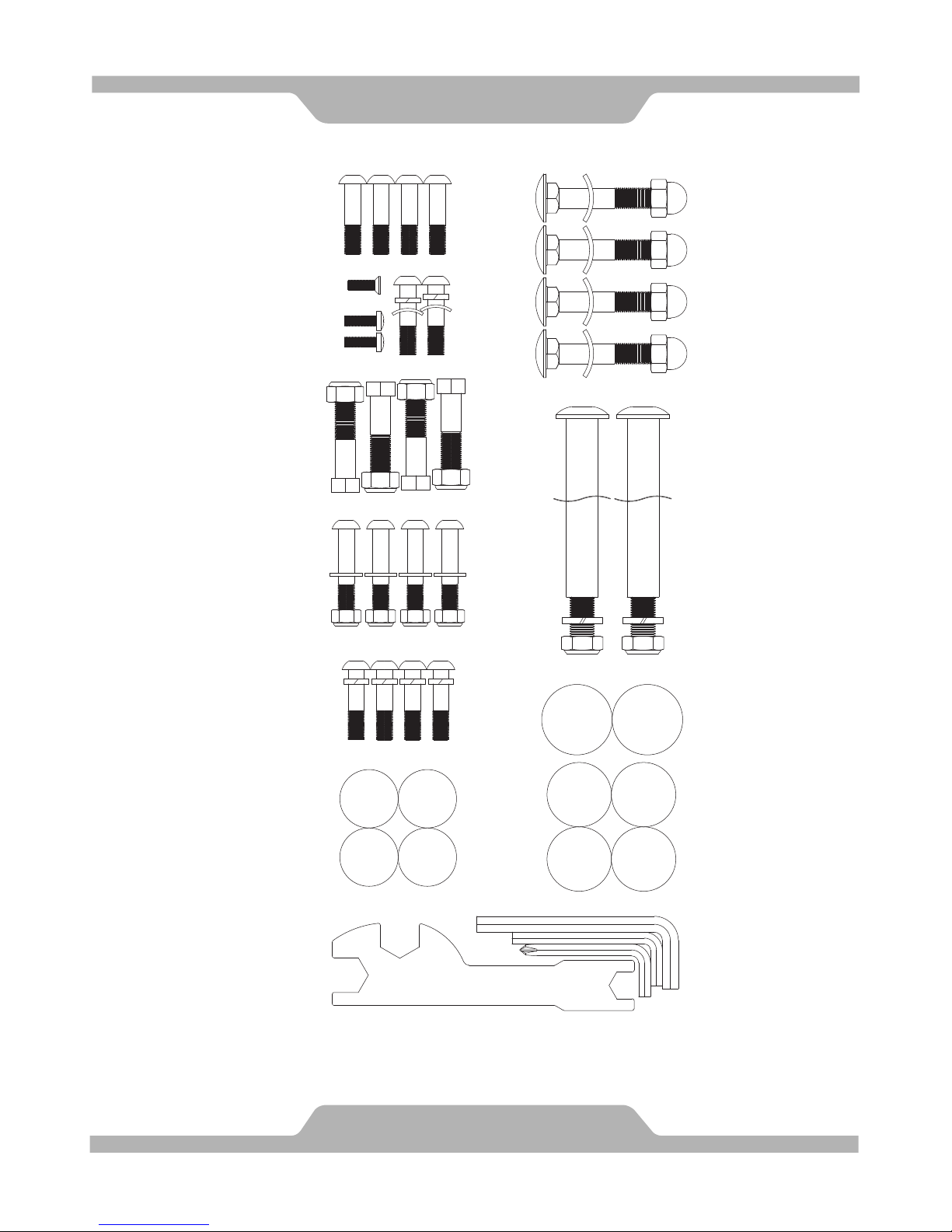

HARDWARE LIST & TOOLS

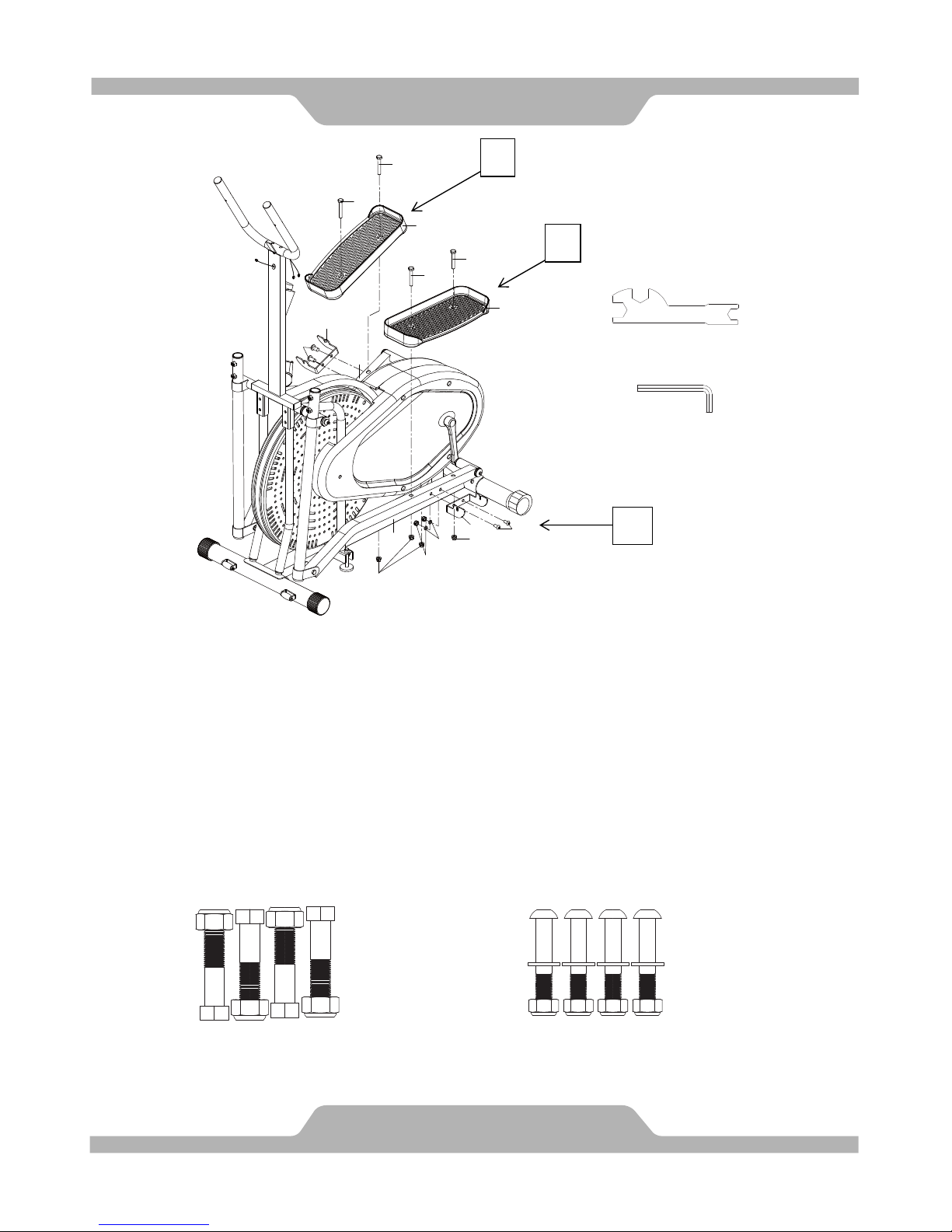

1. Front/Rear Stabilizers and Adjustable Levelers Installation:
Step A: Align the Front Stabilizer (54) onto the front curve of the Mainframe (59).
Make sure the arrow is pointing UP on the front stabilizer and that the Transport
Wheels (93) position toward the front and parallel off the floor. Attach two Bolts (52)
and on the other ends of bolts with two Curve Washers (55) and two Cap Nuts (56).
Using the flat wrench, tighten the cap nuts until firm.
Step B: Align and attach the Rear Stabilizer (62) onto the rear curve of the Main
Frame (59) with two Bolts (52) and the other ends with two Curve Washers (55) and
two Cap Nuts (56). Using the flat wrench, tighten the cap nuts until firm.
Step C: Remove the M8 Nut (58) from the Adjustable Leveler (57). Screw the
levelers onto the bottom of the Mainframe (59) and hand-tighten the nut to the leveler.
Repeat for the other side. Note: Finish assembling the elliptical first and then refer to
page 20 on adjusting the levelers as needed.

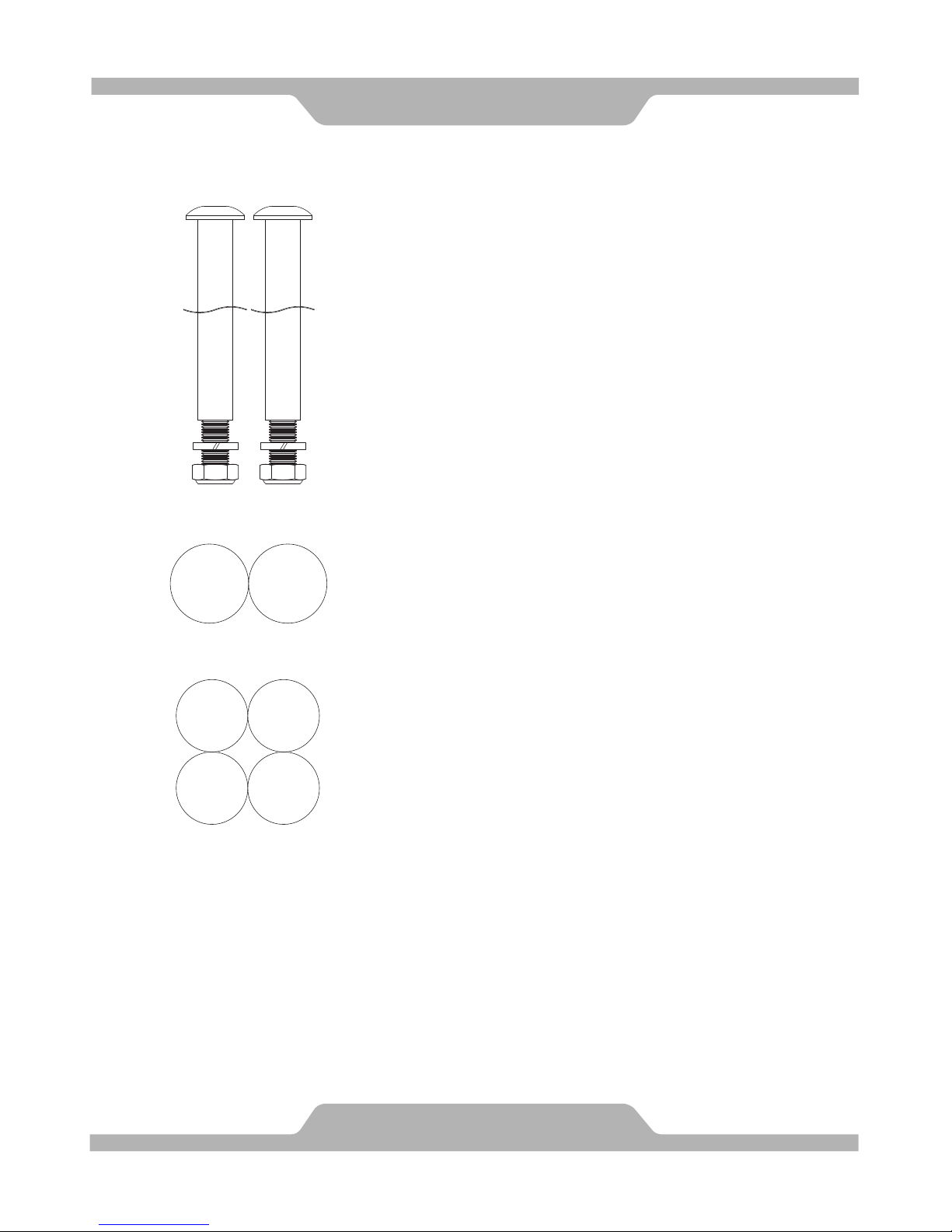

Hardware:
(52) Bolt M10x60 4 PCS
(55) Ø10.5xØ20x2
Curve Washer 4 PCS
(56) M10 Cap Nut 4 PCS
Rear Stabilizer
Hardware (Step B)
Front Stabilizer
Hardware (Step A)
9
ASSEMBLY
Tool:
Open-Ended Flat Wrench
62
52
56
55
58
57
52
56
55
56
55
54
59
A
B
C
93

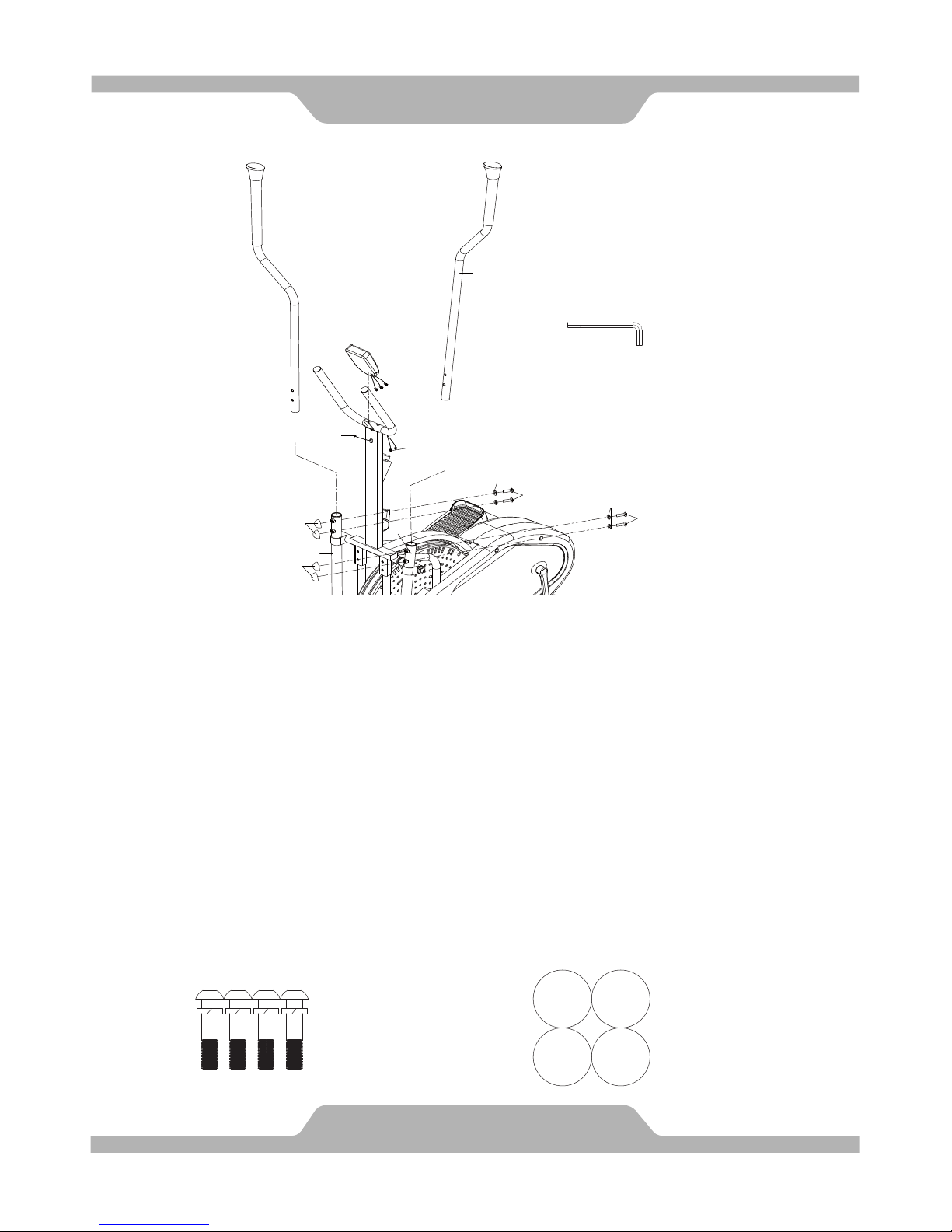

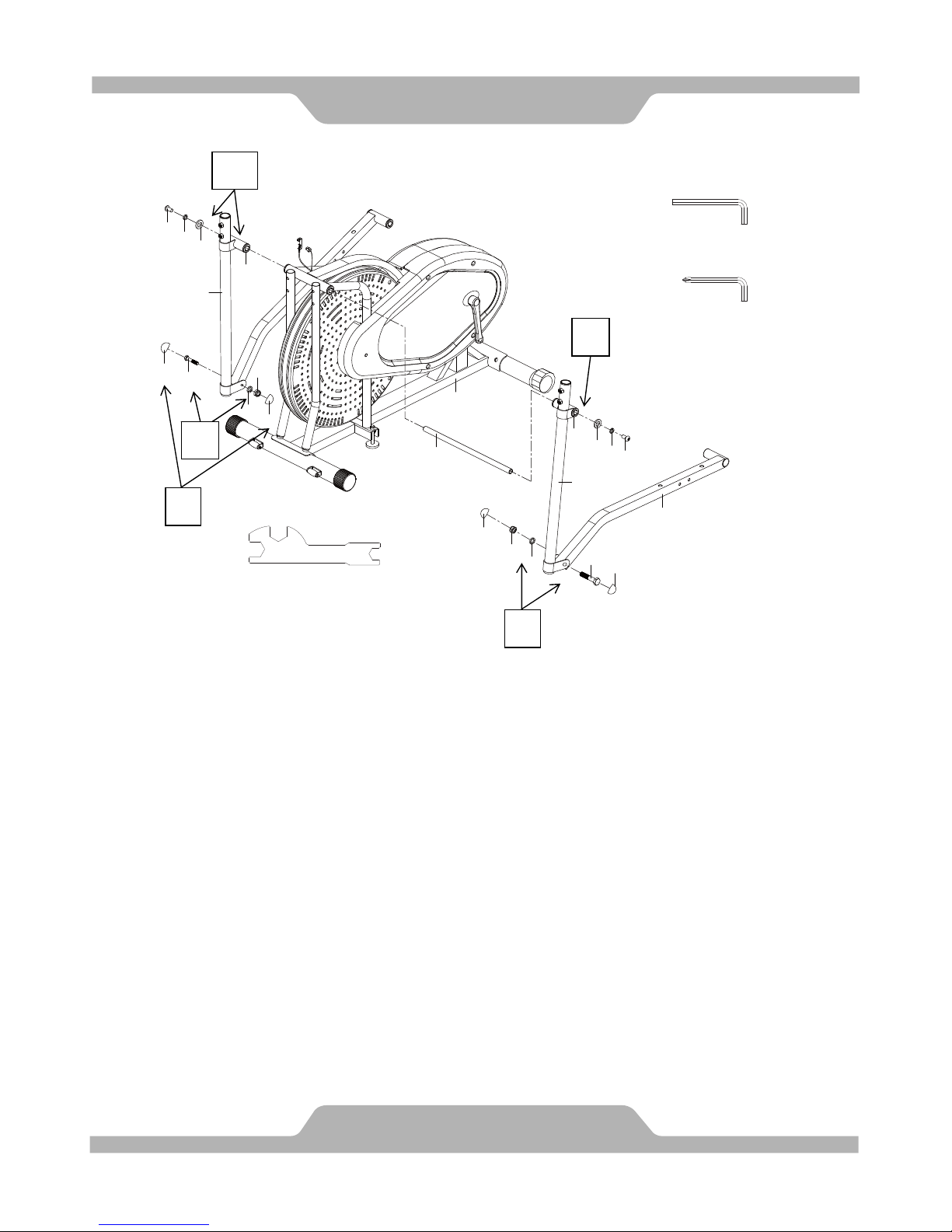

2. Handrails, Foot Bars and Rotation Rod Installation:
Step D: Using two flat wrenches, remove M10 Bolt (11), Washer (13) and M10 Nylon
Nut (14) PRE-ASSEMBLED to the end of the Right Foot Bar (17R).
Attach the Right Foot Bar (17R) onto the bottom end of the Right Handrail (9) with the
above hardware that were removed.
Note: Make sure the right foot bar is angled downward for correct installation.
Use one flat wrench to secure the bolt and the other flat wrench to tighten the nylon
nut until firm. For correct tightness, the bolt’s threads MUST protrude out through the
nylon nut until no longer turns.
Step E: Repeat step above for the left side.
Step F: Cover both Bolts (11) and Nylon Nuts (14) with four M10 Nut Caps (88).
Step G: Using #6 Allen Wrench, remove two Bolts (5), two Spring Washers (6) and
two Washers (7) PRE-ASSEMBLED from both ends of the Rotation Rod (60).
Insert the Rotation Rod (60) into the hole on top of the Mainframe (59). Slide the
Right Handrail (9) onto the Rotation Rod (60) and secure in place with one set of the
above hardware that was removed. Use one #6 Allen Wrench to secure the bolt on
one end of the rod and the other #6 Allen Wrench to the bolt on the other end of the
rod to tighten the bolts until firm.
Step H: Repeat step above for the left side.
10
ASSEMBLY
Tools:
#6 Allen Wrench
#6 Allen Wrench with
Phillips Screwdriver
E
D
G
H
Open-Ended Flat Wrench
F
60 5
6
7
76
88
14
13
77
11 88
5
6
7
8
8
9
88
11
13
14
88
59

3. Right and Left Bolts for Right and Left Cranks Installation:
It is important that you first read and understand the procedures before installing the
bolts to the cranks. Left bolt and left nylon nut are reverse threaded and the correct
direction to tighten is by turning to the left (counterclockwise). If not done correctly,
the bolts and/or cranks may be damaged or stripped.
Step I: Insert the Right Bolt for Right Crank (21) and Wave Washer (22) through the
right side of the Right Foot Bar (17). Align the right foot bar with the Right Crank (26)
so that they are perfectly center. Screw the Right Bolt for Right Crank (21) through
the crank by turning right (clockwise) by hand until it stops. Put a Spring Washer (27)
and screw the Nylon Nut (28) by turning right onto the bolt by hand until it stops. Use
one flat wrench to secure the nylon nut and #8 Allen Wrench to tighten the bolt
through the nylon nut until firm. For correct tightness, the bolt’s threads MUST
protrude out through the nylon nut until no longer turns. Proper tightness is extremely
important to prevent parts from coming loose or damage during use.
Step J: Repeat this procedure for the left side assembly and note that left bolt and left
nylon nut are tighten by turning to the LEFT (counterclockwise).
Step K: Cover both Nylon Nuts (28, 87) with two 1/2” Nut Caps (97).
Note: In order to install the bolt properly, keep it perfectly
straight when the bolt goes through the foot bar and the
crank. If the bolt is connected to the crank at an angle,
damage to the bolt and/or the crank may occur.
Please make sure the right bolt is for the right crank only and the left bolt is for
the left crank only. If done incorrectly, the bolts and/or cranks may be damaged
or stripped.
11
ASSEMBLY
CORRECT
INCORRECT
INCORRECT
22
64
76
97 87
27
8
75
59
J
K
L
L for left bolt
Important:
Installing left bolt into left
crank can only be done
by turning left
(counterclockwise).
22
64
76
27 28
97
21
22
17
8
8
75
59
26
I
R
Important:
Installing right bolt into right
crank can only be done by
turning right (clockwise).
R for right bolt
K
Tool:
#8 Allen Wrench

Hardware:
LR
(21) Right Bolt for Right Crank
Ø16x119 1 PC
(22) Wave Washer
Ø16.2xØ26xδ0.3 2 PCS
(27) 1/2" Spring Washer 2 PCS
(28) 1/2” Nylon Nut for Right Crank 1 PC
(64) Left Bolt for Left Crank
Ø16x119 1PC
(87) 1/2” Nylon Nut for Left Crank 1 PC
(97) 1/2” Nut Cap
2 PCS
(88) M10 Nut Cap
4 PCS
Step I Step J
Step F
Step K
ASSEMBLY
12

4. Hand Pulse Handlebar Support Frame, Tension Control Knob, Bottle Holder,
and Hand Pulse Handlebar Installation:
Step L: Attach the Hand Pulse Handlebar Support Frame (41) onto the Mainframe
(59) with four Bolts (36). Using the #6 Allen Wrench with Phillips Screwdriver, tighten
the bolts until firm.
Step M: Insert the Tension Cable (79) through the bottom hole of Hand Pulse
Handlebar Support Frame (41) and pull it out through the opening hole to connect
with the Tension Control Knob (37). See Figure D.
Step N: Connect the Sensor Wire (78) coming out from the Mainframe (59) to the
Extension Sensor Wire (10) coming from the bottom of the Hand Pulse Handlebar
Support Frame (41). Make sure the connectors “click” when connected. See Figure
A.
Step O: Turn the Tension Control Knob (37) to the lowest setting (counterclockwise).
Caution: Do not continue to turn the Tension Control Knob (37) after reaching its
lowest or highest setting for it may damage the knob.
Put the cable end of resistance cable of Tension Control Knob (37) into the spring
hook of Tension Cable (79). See Figure B. Align the resistance cable of Tension
Control Knob (37) into the gap of metal bracket of Tension Cable (79) with the nuts
sitting above the metal bracket. Turn the tension control knob towards the highest
setting (clockwise) until the nuts are seated firmly on top of the metal bracket. See
Figure C. Tuck cable inside the Hand Pulse Handlebar Support Frame (41).
13
ASSEMBLY
CB
36
10
33
41
10
36
81 80
37
38
79
78
40
39
59
10
78
37
79
1
37
79
D
41
37
23
A
B C D
#6 Allen Wrench with Phillips Screwdriver
Tool:
R
Q
L
CB
10
78
37
79
1
37
79
D
41
37
23
A
BC D

Step P: Install the Tension Control Knob (37) by inserting the tab into a square hole
on the Hand Pulse Handlebar Support Frame (41) and push down on the knob
slightly in order to align the opening with the bolt hole. Using the screwdriver, tighten
one M5 Bolt (38) until firm. See Figure D.
Step Q: Attach the Bottle Holder (40) onto the Hand Pulse Handlebar Support Frame
(41) with two M5 Bolts (39). Using the screwdriver, tighten bolts until firm.
Step R: Attach the Hand Pulse Handlebar (33) onto the top end of the Hand Pulse
Handlebar Support Frame (41) with two M8 Bolts (36), two Spring Washers (80), and
two Curve Washers (81). Using the #6 Allen Wrench with Phillips Screwdriver, tighten
the bolts until firm.

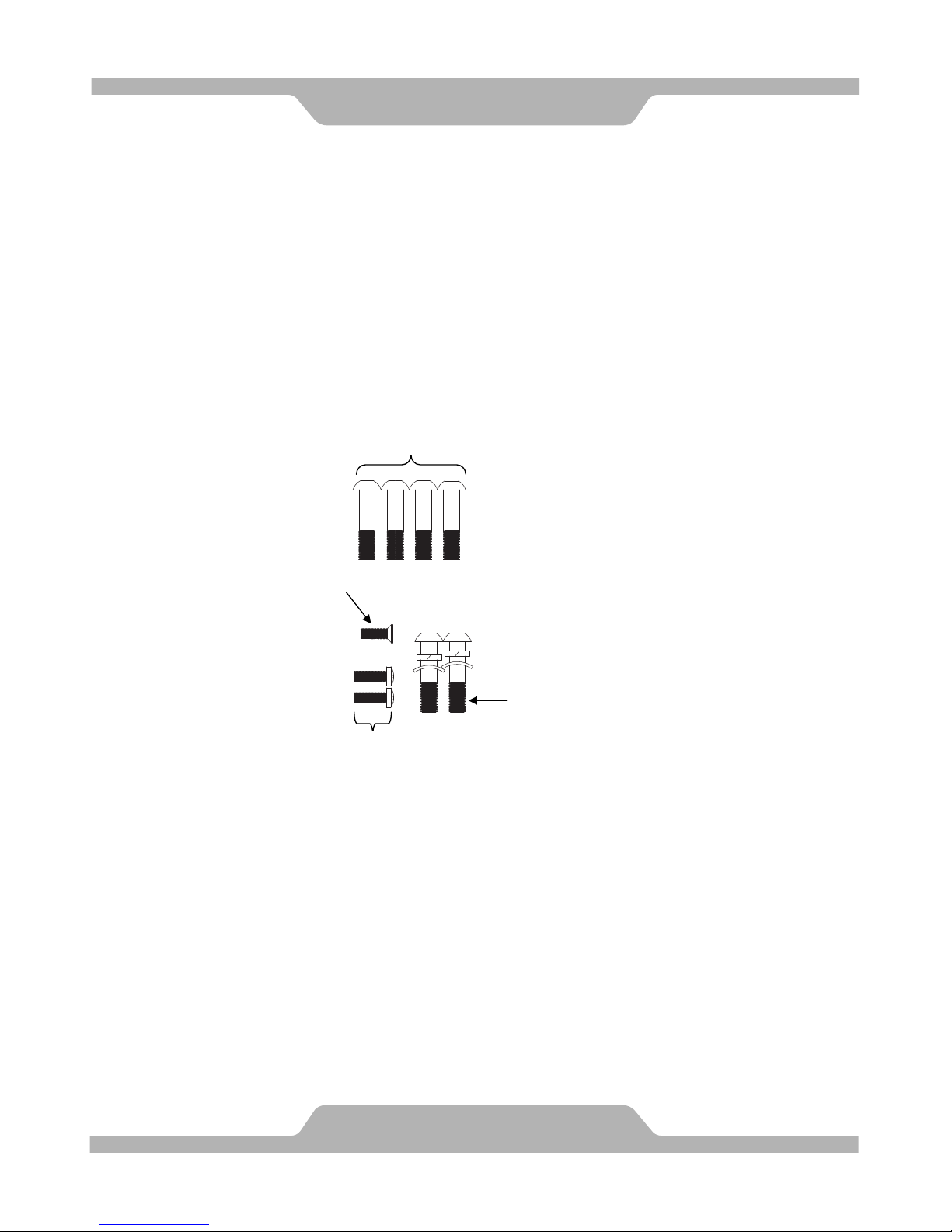

Hardware:
14
ASSEMBLY
(36) M8x35 Bolt
4 PCS
(36) M8x35 Bolt 2 PCS
(80) Ø8 Spring Washer 2 PCS
(81) Ø8xØ16x2 Curve Washer 2 PCS
(38) M5x15 Bolt
1 PC
(39) M5x10 Bolt
2 PCS
Hand Pulse Handlebar Support Frame Hardware (Step L)
Bottle Holder Hardware (Step Q)
Hand Pulse Handlebar Hardware (Step R)
Tension Control Knob Hardware (Step P)

5. Right and Left Foot Pedals Installation:
Step S: Attach two Foot Pedal Support Brackets (18) onto both the Right/Left Foot
Bars (17, 76) with four M8 Bolts (23) and the other ends with four Washers (24) and
four M8 Nylon Nuts (25). Use a flat wrench to secure the nylon nut and #6 Allen
Wrench to tighten the bolt through the nylon nut until firm. For correct tightness, the
bolt’s threads MUST protrude out through the nylon nut until no longer turns.
Step T: Attach the Right Foot Pedal (19R) onto the Right Foot Bar (17) with two M10
Bolts (20) and two M10 Nylon Nuts (14). Using a flat wrench, tighten the nylon nuts
until firm. For correct tightness, the bolt’s threads MUST protrude out through the
nylon nut until no longer turns.
Step U: Repeat step above for the left side.
Hardware:
(14) M10 Nylon Nut
4 PCS
(20) M10x45 Bolt
4 PCS
(23) M8x43 Bolt
4 PCS
(24) Ø8.2xØ16x1.5
Washer
4 PCS
(25) M8 Nylon Nut
4 PCS
Right/Left Foot Pedal
Hardware (Step T)
Foot Pedal Support Bracket
Hardware (Step S)
20
20
20
20
19R
19L
76
17
18 23
14
14
25
24
18
23
Open-Ended Flat Wrench
#6 Allen Wrench
Tools:
U
T
S
15
ASSEMBLY

6. Right/Left Handrail Arms and Computer Installation:
Step V: Insert the Right Handrail Arm (2) onto the Right Handrail (9) and secure with
two M8 Bolts (36) and two Spring Washers (80). Using a #6 Allen wrench, tighten
the bolts until firm.
Step W: Repeat step above for the left side.
Step X: Install four M8 Nut Caps (95) onto the pre-welded nuts on the Right and Left
Handrails (9, 90).
Step Y: Connect the Extension Sensor Wire (10) coming out from the top
side of the Hand Pulse Handlebar Support Frame (41) to the wire with a male
connector coming out from the Computer (29). Make sure the connectors
“click” when connected.
Connect the two Hand Pulse Sensor Wires (35) from the handlebars to the
two wires with female connectors coming out from the Computer (29). Make
sure the connectors “click” when connected.
Step Z: Place the Computer (29) onto the plate of the Hand Pulse Handlebar
(33) then slide it down to lock in position.
Hardware:
Tool:
#6 Allen Wrench
29
90
2
9
95
95
77
36
80
80
36
35
10
33
(36) M8x35 Bolt
4 PCS
(80) Ø8 Spring Washer
4 PCS
(95) M8 Nut Cap
4 PCS
Right/Left Handrail Arm Hardware (Step V & W)
(Step X)
16
ASSEMBLY

SPECIFICATIONS:
TIME ---------------------------------------------------- 00:00-99:59 MIN: SEC
SPEED ------------------------------------------------- 0.0-99.9 MPH
DISTANCE -------------------------------------------- 0.00-99.99 MILE
CALORIES -------------------------------------------- 0-9999 CAL
PULSE ------------------------------------------------- 40-240 BPM

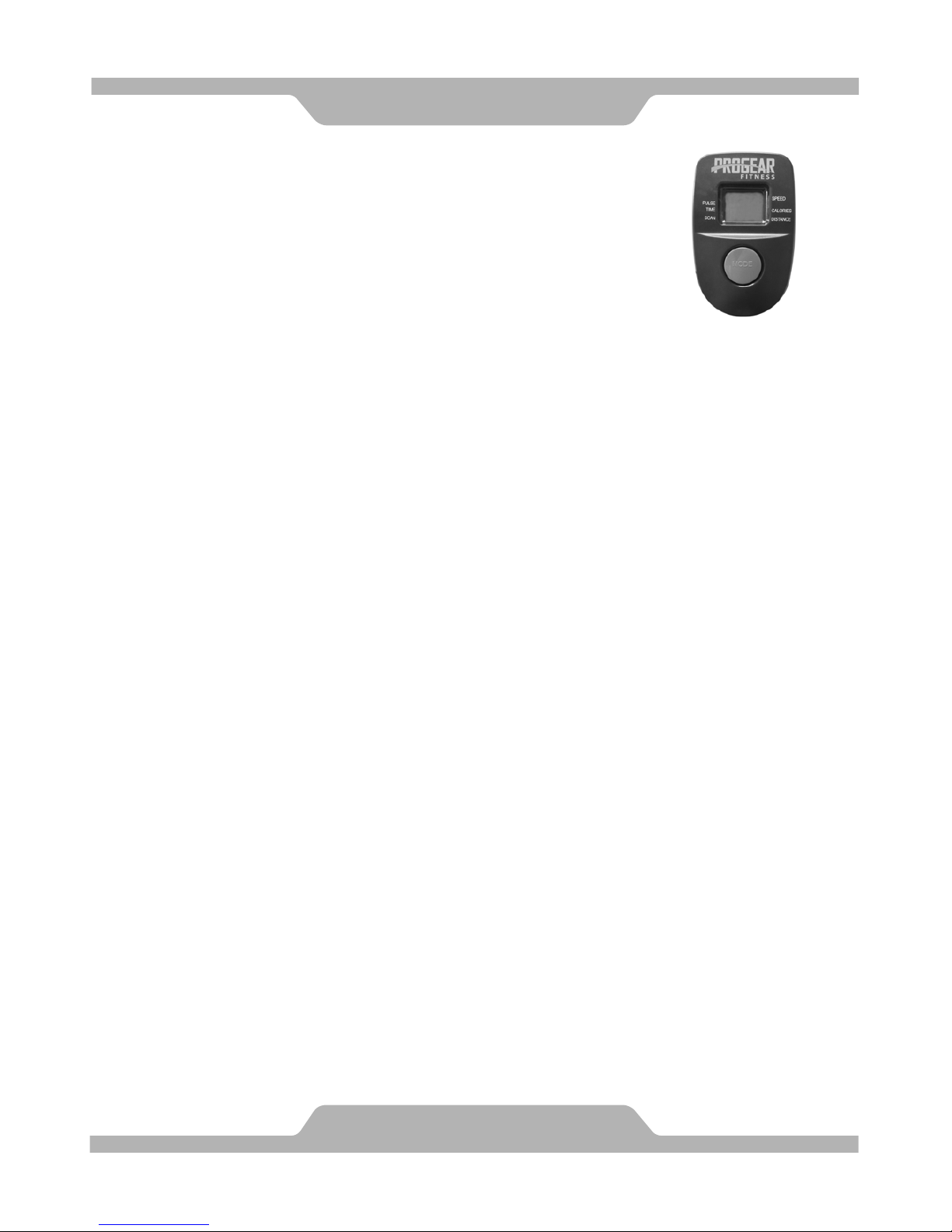

USING YOUR COMPUTER
The computer can be activated by pressing the MODE button or by pedaling. If you
leave the equipment idle for 4 minutes, the power will turn off automatically.
MODE BUTTON FUNCTIONS:
Press the MODE button once to select the desired function of the computer.
Press and hold the MODE button for 4 seconds to reset all data values.
COMPUTER FUNTIONS:
SCAN: Press the MODE button until the arrow flashes on SCAN. The computer will
automatically scan through each function in sequence for 6 seconds. NOTE: If you
do not want to use the SCAN function, press the MODE button to select one of the
other functions.
TIME: Press the MODE button until the arrow points to TIME. The computer will
display your elapsed workout time in minutes and seconds.
CALORIES: Press the MODE button until the arrow points to CALORIES. The
computer will display the ESTIMATED number of calories you are burning during the
workout. Please note that the readings are only estimates and there are many
factors that can’t be accounted for such as fitness level, body fat percentage, age,
weight and gender.
DISTANCE: Press the MODE button until the arrow points to DISTANCE. The
computer will display the cumulative distance traveled during the workout.
PULSE: Press the MODE button until the “P” display on the screen. The computer
will display your current heart-rate readings only if BOTH hands are gripping the
hand-pulse sensors. No readings or inaccurate readings may occur if only one hand
is gripping the hand-pulse sensor.
SPEED: SPEED function will be displayed at all times regardless of what function is
selected. The computer will display the current training speed.
17
COMPUTER

HOW TO INSTALL THE BATTERIES:
1. Remove the battery cover on the back of the computer.
2. Place two "SIZE-AA" batteries into the battery housing.
3. Insure the batteries are correctly positioned and the battery springs are in
proper contact with the batteries.
4. Re-install the battery cover.
5. If the display is illegible or only partial segment appears, remove the batteries
and wait 15 seconds before reinstalling.
18
COMPUTER

Adjusting the Tension Control Knob
To increase the tension, turn the tension control
knob in a clockwise direction.
To decrease the tension, turn the tension control
knob in a counterclockwise direction.
After prolong use of the elliptical trainer, the strap will
begin to stretch out and it will become necessary to
tighten the strap for optimum performance.
1. Before tightening the strap, the tension knob must be
set to its lowest setting. To do this turn the knob in a
counterclockwise direction until it is at its lowest setting.
Do not continue to turn the knob after reaching its
lowest or highest setting for it may damage the knob.
2. To tighten, undo the buckle of the plastic clip and then
pull the top strap on the front of the unit away
(downward). Close the buckle of the plastic clip to lock
in place. Only minimal adjustment is needed.
3. Without changing the tension, you should now be able
to feel a little resistance (i.e. the flywheel is not turning
freely). If you are satisfied with the base level tension,
then you may select the desired tension and continue
exercising.
Tension Control Knob
19
ADJUSTMENTS
