Aqua-Scope Monitor 2 Operating manual

Aqua-Scope Monitor
2
SKU: AQSWIE02
Version: 1.0.2
Product Description
The Aqua-Scope Water Monitor detects damaging water leaks. Additionally, it records the total
consumption of water in the home and the temperature and the pressure of the water. The device
applies advanced signal processing analyzing water pressure waves traveling inside the pipes of the

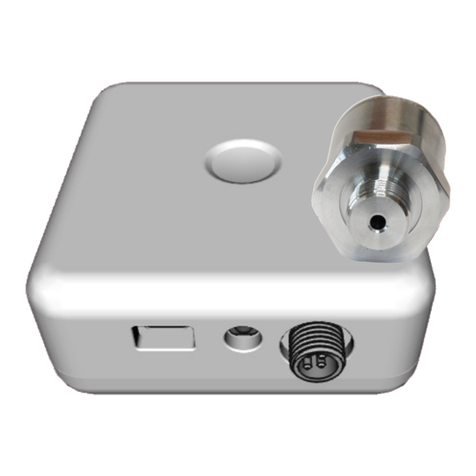

house water system. It consists of two devices:(a) the main body with a battery compartment, (b) the
external sensor head connected to the water pipe.
The device has two wireless communication options. When connected to your local WIFI network it will
send all sensor data and alarms to the Aqua-Scope Cloud and receive commands the same way. Your
mobile app can access the data and present current and historical values and events. When connected
to a LoRaWAN network all data and alarms will be sent to your LoRaWAN network of choice. You can
operate the device with WIFI or LoRaWAN connection or run both connections in parallel.
A single sensor can monitor the whole home or apartment and additional peripheral devices such
as Valve Motors or Flood Sensors can be assigned to the monitor to enhance functionality.
The device is powered either from an external power supply and/or by an internal ER26500 (Bobbin Cell
C) battery. If external power is available the internal battery will not be used and stays ready when
power fails.
Installation Requirements
The Aqua-Scope Water Monitor watches the water pressure and water pressure waves (water noise) of
the home water installation system. The Aqua-Scope water microphone must be connected to the pipe
system at one single point in the home. Ideal connection points are edge valves located below sinks or
beside toilets. Alternatives are 1/4 inch revision openings on pressure reduction valves, shut off vales or
other installation gear. It is recommended to find a place as low in the home as possible (ideally
Users and Installation Manual: Aqua-Scope Monitor 2 (AQSWIE02)
Copyright © 2022 Aqua-Scope Technologies, Sakala tn 7-2, 10141 Tallinn, Estonia, www.aqua-scope.com

basement or first floor) but it is important to find a place 'after' the Pressure Reducing Valve PRV (The
main shut off valve is typically positioned before the PRV and hence the water microphone shall not be
installed on this valve).
Further requirements are:
Next to the device is mains power for the USB-C power
plug. Otherwise the device requires a battery.
The device expects a Pressure Reducing Valve (PRV)
installed in the home. The presence of a PRV is detected
automatically. If no PRV is present the device will still work
but the functionality is limited. Please refer to the manual section 'PRV Impact' for details.
The place of installation needs reasonable coverage by your WIFI (or LoRaWAN9 network of choice.
Mechanical Installation of the Monitor
To make it short and easy – the video on aqua-scope.com/install explains the installation of the Aqua-
Scope Water Monitor step by step:
1. In case there are two edge valves under the sink, please identify the cold-water supply. Just open
hot water and check which valve warms up.
2. Close the faucet and close the edge valve by turning clockwise.
3. Remove the metal hose from the edge valve using the 19 mm wrench supplied. You may want to
have a towel on hand to catch the water leaking from the end of the hose.
4. Mount the T-shaped connector on top of the edge valve and fasten it using the 19 mm wrench.
5. Connect the metal hose to the upper end of the connector
and fasten it using the 19 mm wrench.
6. Screw the Aqua-Scope pressure sensor head into the side
opening of the connector and fasten it by hand. There is no
need to make it super-tide.
7. Re-Open the edge valve by turning the knob anti-clockwise.
8. Please check all three connections for some seconds that
there are no leaks.
9. Attach the Aqua-Scope to a suitable location using double-
side tape and plug the sensor head into the water-proof
screwable terminal of the main device. Attach the optional
water contact sensor to the small round terminal if desired.
10. Power the device using the USB Power Plug. Please use the
power supply provided within the scope of delivery. This
power supply has very low distortion factor required for precise measurements of pressure.
Reset to Factory Default
The factory default is indicated by a green/red blinking LED. To reset to factory default state push the
button right after the initial buzzer beep (but not earlier!) and keep it pushed for 5 seconds. 4 short
beeps will help you count. After 5 seconds you will see three short green LED pulses with a low-
Users and Installation Manual: Aqua-Scope Monitor 2 (AQSWIE02)
Copyright © 2022 Aqua-Scope Technologies, Sakala tn 7-2, 10141 Tallinn, Estonia, www.aqua-scope.com

frequency sound. Now release the button! The recessed round part on the middle of the device is the
touch button.
This process will delete all device and network settings.
WIFI Setup
Download the App “Aqua-Scope” from your App store and register yourself as new account with
email and password. You may want to use the QR codes above for a convenient access to the store.
Follow the instructions on the app. For all subsequent setups of Aqua-Scope Monitor please choose the
option “Setup new Monitor” in the Configuration menu of your mobile app.
If you don’t want to use the Aqua-Scope Mobile App you can also setup the device using any standard
web browser. Please refer to the technical manual Aqua-Scope Monitor Access - developers manual
for more information.
Part of the step-by-step guidance in the mobile app is to read your water meter and insert the current
water meter value into the app. After few weeks you will receive a push notification on your mobile
phone to redo this process ('Configuration' ->' Water Meter'). This will help to further enhance your water
consumption display accuracy.
Add more peripheral devices
The Aqua-Scope Water Monitor can act stand alone in connection with the Aqua-Scope cloud and your
mobile app or it can control further peripheral devices using a dedicated local LORA based wireless
network. Its recommended adding at least one Aqua-Scope motor servo (for ball valves or gate valves)
to shut off the water in case of an emergency or to support certain tests. You can add up to 10 additional
wireless Aqua-Scope water-contact sensors further protecting your home from water damage caused by
spillovers. Please refer to the manual of the water-contact sensors for further information.
Aqua-Scope Peripherals: Shut Off Valves and Water Contact Sensors
Users and Installation Manual: Aqua-Scope Monitor 2 (AQSWIE02)
Copyright © 2022 Aqua-Scope Technologies, Sakala tn 7-2, 10141 Tallinn, Estonia, www.aqua-scope.com

Pairing with the LoRaWAN Network
The device supports LoRaWAN. Operating the device requires sufficient LoRaWAN coverage from your
LoRaWAN provider of choice. Your LoRaWAN service must register the new device before the OTAA
operation. LoRaWAN OTAA requires three device-specific keys for this process:
Device-EUI (unique key to identify this device)
Application-EUI (unique key to identify the service of this device)
App-Key (unique secret key to secure network connection setup)
You find the Device EUI key printed right on the device both as readable characters and as QR Code. The
QR code complies to the recommendation of the LoRaWAN Alliance.
Using the service http://io.aqua-scope.com/lora/keys.php you can download the complete set of keys
plus additional device information.
Please refer to the technical manual "Aqua-Scope Monitor Access - Developers Manual" for details
on payloads, configuration options etc.
Functions and Usage
The Water Monitor has a variety of different functions that require certain configuration values. The
default values will work in most cases but you may want to double-check and verify the settings in the
mobile app under menu item "Configuration".
Water Consumption
The device will report each consumption of water including the duration plus the consumed amount .
Ambient Sensors
The device regularly reports water pressure, water temperature, uptime since last reboot and the
incremental water consumption of water.
Leakage Detection
To detect leaks some water must have escaped from the water system. Hence, leak detection does not
protect you from leaks but minimizes the damage of leaks. Damage happens if a certain amount of
water has enough time to impact construction material and furniture.
The diagram above shows the relationship between the speed of water (in liters/minute) and the time
this water flows out. The thick curve marks the area where damage will happen (about 10 liters of water,
one full bucket). The required reaction time to a detected leak depends on the speed of the water. For
micro leakages with very low speed of water (point 1 in the diagram) its acceptable to act after few days
or even weeks while a fatal burst of a pipe requires a reaction within few seconds (point 2 in the
diagram).
Aqua-Scope uses different techniques to identify leaks in four different scenarios (A1 - A4) characterized
Users and Installation Manual: Aqua-Scope Monitor 2 (AQSWIE02)
Copyright © 2022 Aqua-Scope Technologies, Sakala tn 7-2, 10141 Tallinn, Estonia, www.aqua-scope.com

by their speed of water. The lines between the area are determined by calibration. After initial calibration
they are constantly are re-adjusted to adapt the device to changing conditions of the water system. The
four sub-areas result in different alarms because the user action on these alarms may be different.
All normal water outlets in a home limit the speed of water. Even parallel consumption of water will
not result in speed of water beyond a certain level. In case the system detects a very high speed
of water a possible root cause is a bursting pipe (Section A4). Depending on the measured speed
of water the Aqua-Scope will issue a Heavy Flow-Alarm after few seconds. Please note that an
interruption of the water supply or a manual shut-off of the water will result such this alarm type
too since the Aqua-Scope Monitor must assume that the water disappeared somewhere.
The „Usage“-scenario (section A3) is defined by speeds of water typically for normal water
consumption of toilets, appliances, or faucets. It is impossible to separate desired from undesired
water takes. Hence the max time of water flow is limited. Once this level is reached a Flow-Alarm
is issued. The factory default threshold is set to 900 s = 15 minutes and can be conveniently
changed in the mobile app in settings.
Additional protection
is provided by the external wired water contact sensor, connected to the socket of the Aqua-Scope
Monitor. This will recognize e.g. spillovers or other loss of water. A Flood-Alarm is sent out in this
case.
The most dangerous and most common type of leaks are caused by a chemical reaction in the
water pipe leading to small orifices, also called micro-leaks (section A1). Since these orifices are
very tiny in the beginning, they are usually not seen. However, these very tiny leaks indicate a
much larger problem later on. The device has a built-in process to detect these small leaks. It is
called Pipe-Check. It requires to shut off the water for about 3 minutes. Therefore, an associated
Shut-Off Valve motor servo is recommended. The application controls this process by shutting off
the water automatically (or advise the user to manually shut off before triggering the pipe check).
The completion of the pipe check is indicated with an uplink status command or in case of a
problem a Pipe-Check Alarm. The alarm includes the estimated speed of water in ml /min plus
the estimated elevation of the leak relative to the elevation of the external sensor head.
Users and Installation Manual: Aqua-Scope Monitor 2 (AQSWIE02)
Copyright © 2022 Aqua-Scope Technologies, Sakala tn 7-2, 10141 Tallinn, Estonia, www.aqua-scope.com

The “Drip”-scenario (section A2) defines flow speeds between about 100 ml/m and 2000 ml/m.
This is still quite low, but a Pipe-Check would come too late here. Hence, this range is monitored
permanently and detected leaks or dripping faucets will cause a Drip-Alarm within minutes.
Additional Monitoring
The system is permanently monitoring the water detecting pattern indicating a jamming toilet flap.
In this case a Jamming-Alarm is issued.
If the water pressure is too high the pipes may be damaged in the home. The Aqua-Scope will
determine automatically the highest acceptable pressure and report an Overpressure-Alarm if
this threshold is exceeded.
The temperature sensor inside the sensor head measures the water temperature. A Frost-Alarm
is issued when temperature falls below a certain threshold. The factory default value for this
threshold is 4 °C.
LED-Signals
red/green/blue blinking: startup
Red fast blinking (when mains powered): Alarm
Red steady (whenbattery powered): Alarm
Green/red blinking: connection to wireless network pending
3 times green blinking plus buzzer: Aqua-Scope connected to network successfully and is ready to
work
PRV Impact
An installed pressure reducing valve (PRV) is common in almost all contemporary European home water
installations. Without PRV the Aqua-Scope Monitor is still applicable but some functions are limited.
Working: Pressure Monitor, Temperature Monitor, Flood-Alarm, Frost-Alarm, Overpressure-Alarm,
Micro Leak Testing
Not Working: Drip-Alarm
Less Precise: Usage Alarm, Water Consumption Metering, Jamming-Alarm
Attention: If your water system has a PRV installed the Aqua-Scope Monitor must be
installed after the PRV (between PRV and the individual outlets).
Alarm and Alarm Clearing
All alarms are indicated by
a buzzer sound on the device,
a red LED blinking on the device,
a warning display on the home page of the mobile app including the time stamp, reason of the
alarm and a hint how to remedy the situation,
a push notification on the mobile phone that has the native app installed.
Alarms are cleared automatically if the reason for the alarm disappeared. They are kept as notice on the
Users and Installation Manual: Aqua-Scope Monitor 2 (AQSWIE02)
Copyright © 2022 Aqua-Scope Technologies, Sakala tn 7-2, 10141 Tallinn, Estonia, www.aqua-scope.com

mobile phone app but with green color to signal that the root cause of the alarm was removed.
Battery Operation
If the device is powered by battery all focus in on extending battery life. The battery life depends on
several factors:
Presense of a Pressure Reduction Valve: If a PRV is present the device will draw significantly less
power and the battery life extends at least by a factor of 2.
Interval of status reporting. In mains power mode the device will report its status every 20 seconds
plus it will report every start of water flow and every end of water flow. The app show individual
water flows. In battery mode this function is turned off to reduce the number of communications.
Hence, there is no visualization of individual water flows but aggregated water consumption data
only.
In mains powered mode an alarm is indicated by a blinking red LEDs plus a buzzing sound. In
battery mode the led is turns on and the time and a shorter buzzing sound is issued every 4
seconds.
All status data such as temperature of water, consumption etc are only reported once per hour (in
mains every 15 minutes)
The stand-by animation of blue led glowing is tuned of in battery mode.
Scope of Delivery Aqua-Scope Monitor
Aqua-Scope Water Monitor main device (without battery)
Aqua-Scope pressure sensor head with 80 cm cable
3/8 Inch water pipe connector (T-shaped)
One external water contact sensor with cable and audio jack
USB-C power cable and power supply
19 mm wrench to unfasten and fasten the 3/8 Inch connections of the pipe connector
Manual
Information related to Drinking Water Directive EU 98/83/EC
The t-shaped part of the device is exposed to drinking water and therefore subject to the European
Drinking Water Directive. The certified used material is called CW509L, which is in the list of approved of
materials of the German Environment Agency (UBA) in the version from May 14th, 2020 under section
2.1.3.1.
Technical Data
Power Supply: External USB Power Plug 5 V/ 1A
Battery: Bobbin CellC ER26500, Lithium-Thionyl Chloride
Processor: ESP32-WROOM_32E (Xtensa Dual Core 32 Bit, 240 MHz, 520 KB RAM)
Wireless Connection:
Users and Installation Manual: Aqua-Scope Monitor 2 (AQSWIE02)
Copyright © 2022 Aqua-Scope Technologies, Sakala tn 7-2, 10141 Tallinn, Estonia, www.aqua-scope.com

WIFI ESP Built-in 2.4 GHz 802.11 b/g/n, bitrate in ‘n’ mode up to 150Mbps
Lora: SX1261, EU868 MHz, SF 7-12, TX16 dBm, RX: - 147 dBm @ 300 bps, Class A
Pressure Sensor Head:
Range : 0 … 1000 kPa (10 bar)
Overload: 150 Percent of maximum
pressure
Connection: G ¼ “ female
Communication: I2C
Precision: better then 1 Percent
dynamically
Built-in High-Precision Temperature
Sensor
External Sensor Pad
4 sensing pins on both sides
Cable length: 150 cm
3.5 mm water-proof jack
Minimal Flow Speed:
With Pressure Reduction Valve (PRV): < 250 ml /m
Without Pressure Reduction Valve (PRV): < 2000 ml / m
Pipe-Check: < 4ml/h
Dimensions (Main Device): 91 mm x 91 mm x 30 mm
Weight (Main Device): 105 gr
Weight (Sensor Head): 140 gr
Water Proof: Main Device: IP 65, Pressure Sensors: IP 65
User Interface: 3 color LED, single touchless button
Environmental Conditions:
Shipment and Storage: -65 °C … 100 °C
Operation: - 10 °C … 50 °C
Rel. Humidity: 0...90 %
Support and Contact
Should you encounter any problem, please give us the opportunity to address it before returning this
product. Please check our website www.aqua-scope.com and particularly the support section for answers
and help. You can also send a message to [email protected].
While the information in this manual has been compiled with great care, it may not be deemed an
assurance of product characteristics. Aqua-Scope shall be liable only to the degree specified in the terms
of sale and delivery. The reproduction and distribution of the documentation and software supplied with
this product and the use of its contents is subject to written authorization from Aqua-Scope. We reserve
the right to make any alterations that arise as the result of technical development.
Phone: [phone]
eMail: [email protected]
Web: www.aqua-scope.com
Users and Installation Manual: Aqua-Scope Monitor 2 (AQSWIE02)
Copyright © 2022 Aqua-Scope Technologies, Sakala tn 7-2, 10141 Tallinn, Estonia, www.aqua-scope.com

Declaration of Conformity
Aqua-Scope Technology OÜ, Sakala 7-2, 10141 Tallinn, Republic of Estonia, declares that
this radio emitting device works on the following frequences:
Български С настоящото Aqua-Scope Technology OÜ декларира, че този тип
радиосъоръжение AQSWIE02 е в съответств ие с Директива 2014/53/ЕС. Цялостният текст на ЕС
декларацията за съответствие може да се намери н а следния интернет адрес: www.aqua-scope.com/ce.
Čeština Tímto Aqua-Scope Technology OÜ prohlašuje, že typ rádiového zařízení AQSWIE02 je v souladu se
směrnicí 2014/53/EU. Úplné znění EU prohlášení o shodě je k dispozici na této internetové adrese: www.aqua-
scope.com/ce.
Dansk Hermed erklærer Aqua-Scope Technology OÜ, at radioudstyrstypen AQSWIE02 er i overensstemmelse
med direktiv 2014/53/EU. EUoverensstemmelseserklæringens fulde tekst kan findes p følgende internetadresse:
www.aqua-scope.com/ce.
Deutsch Hiermit erklärt Aqua-Scope Technology OÜ, dass der Funkanlagentyp AQSWIE02 der Richtlinie
2014/53/EU entspricht. Der vollständige Text der EU-Konformitätserklärung ist unter der folgenden
Internetadresse verfügbar: www.aqua-scope.com/ce.
Eesti Käesolevaga deklareerib Aqua-Scope Technology OÜ, et kesolev raadioseadme tp AQSWIE02 vastab
direktiivi 2014/53/EL nuetele. ELi vastavusdeklaratsiooni tielik tekst on kttesaadav jrgmisel internetiaadressil:
www.aqua-scope.com/ce
English Hereby, Aqua-Scope Technology OÜ declares that the radio equipment type AQSWIE02 is in compliance
with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet
address: www.aqua-scope.com/ce
Español Por la presente, Aqua-Scope Technology OÜ declara que el tipo de equipo radioeléctrico AQSWIE02 es
conforme con la Directiva 2014/53/UE. El texto completo de la declaracin UE de conformidad está disponible en la
direccin Internet siguiente: www.aqua-scope.com/ce
Ελληνικά Με την παρούσα ο/η Aqua-Scope Technology OÜ, δηλώνει ότι ο ραδιοεξοπλισμός AQSWIE02 πληροί
την οδηγία 2014/53/ΕΕ. Το πλήρες κείμενο της δήλωσης συμμόρ φωσης ΕΕ διατίθεται στην ακόλουθη ιστοσελίδα
στο διαδίκτυο: www.aqua-scope.com/ce
Français Le soussigné, Aqua-Scope Technology OÜ, déclare que l'équipement radioélectrique du type AQSWIE02
est conforme la directive 2014/53/UE. Le texte complet de la déclaration UE de conformité est disponible
l'adresse internet suivante: www.aqua-scope.com/ce
Hrvatski Aqua-Scope Technology OÜ ovime izjavljuje da je radijska oprema tipa AQSWIE02 u skladu s Direktivom
2014/53/EU. Cjeloviti tekst EU izjave o sukladnosti dostupan je na sljedećoj internetskoj adresi: www.aqua-
scope.com/ce
Italiano Il fabbricante, Aqua-Scope Technology OÜ, dichiara che il tipo di apparecchiatura radio AQSWIE02
conforme alla direttiva 2014/53/UE. Il testo completo della dichiarazione di conformit UE disponibile al seguente
indirizzo Internet: www.aqua-scope.com/ce
Latviešu Ar šo Aqua-Scope Technology OÜ deklarē, ka radioiekārta AQSWIE02 atbilst Direktīvai 2014/53/ES. Pilns
ES atbilstības deklarācijas teksts ir pieejams šādā interneta v ietnē: www.aqua-scope.com/ce Lietuvių Aš, Aqua-
Users and Installation Manual: Aqua-Scope Monitor 2 (AQSWIE02)
Copyright © 2022 Aqua-Scope Technologies, Sakala tn 7-2, 10141 Tallinn, Estonia, www.aqua-scope.com

Scope Technology OÜ, patvirtinu, kad radijo įrenginių tipas AQSWIE02 atitinka Direktyvą 2014/53/ES. Visas ES
atitikties deklaracijos tekstas prieinamas šiuo internet adresu: www.aqua-scope.com/ce
Magyar Aqua-Scope Technology OÜ igazolja, hogy a AQSWIE02 típus rádiberendezés megfelel a 2014/53/EU
irányelvnek. Az EUmegfelelőségi nyilatkozat teljes szövege elérhető a következő internetes címen: www.aqua-
scope.com/ce
Malti B'dan, Aqua-Scope Technology OÜ, niddikjara li dan it-tip ta' tagħmir tar-radju AQSWIE02 huwa konformi
madDirettiva 2014/53/UE. It-test kollu tad-dikjarazzjoni ta' konformit tal-UE huwa disponibbli f'dan l-indirizz
talInternet li ġej: www.aqua-scope.com/ce
Nederlands Hierbij verklaar ik, Aqua-Scope Technology OÜ, dat het type radioapparatuur AQSWIE02 conform is
met Richtlijn 2014/53/EU. De volledige tekst van de EUconformiteitsverklaring kan worden geraadpleegd op het
volgende internetadres: www.aqua-scope.com/ce
Polski Aqua-Scope Technology OÜ niniejszym oświadcza, że typ urządzenia radiowego AQSWIE02 jest zgodny z
dyrektywą 2014/53/UE. Pełny tekst deklaracji zgodnośc I UE jest dostępny pod następującym adre sem
internetowym: www.aqua-scope.com/ce
Português O(a) abaixo assinado(a) Aqua-Scope Technology OÜ declara que o presente tipo de equipamento de
rádio AQSWIE02 está em conformidade com a Diretiva 2014/53/UE. O texto integral da declarao de conformidade
está disponível no seguinte endereo de Internet: www.aqua-scope.com/ce
Română Prin prezenta Aqua-Scope Technology OÜ declară că tipul de echipamente AQSWIE02 este în
conformitate cu Directiva 2014/53/UE. Textul integral al declarației UE de conformitate este disponibil la
următoarea adresă internet: www.aqua-scope.com/ce
Slovensko Aqua-Scope Technology OÜ potrjuje, da je tip radijske opreme AQSWIE02 skladen z irektivo
2014/53/EU. Celotno besedilo izjave EU o skladnosti je na voljo na naslednjem spletnem naslovu: www.aqua-
scope.com/ce
Slovensky Aqua-Scope Technology OÜ týmto vyhlasuje, že rádiové zariadenie typu AQSWIE02 je v slade so
smernicou 2014/53/EÚ. Úplné EÚ vyhlásenie o zhode je k dispozícii na tejto internetovej adrese: www.aqua-
scope.com/ce
Soumi Aqua-Scope Technology OÜ vakuuttaa, että radiolaitetyyppi AQSWIE02 on direktiivin 2014/53/EU
mukainen. EUvaatimustenmukaisuusvakuutuksen täysimittainen teksti on saatavilla seuraavassa
internetosoitteessa: www.aqua-scope.com/ce
Svenska Härmed försäkrar Aqua-Scope Technology OÜ att denna typ av radioutrustning AQSWIE02
verensstmmer med direktiv 2014/53/EU. Den fullständiga texten till EUförsäkran om verensstämmelse finns på
följande webbadress: www.aqua-scope.com/ce
Disposal Guidelines
Do not dispose of electrical appliances as unsorted municipal waste, use separate collection
facilities. Contact your local government for information regarding the collection systems available.
If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into
the groundwater and get into the food chain, damaging health and well-being.
Users and Installation Manual: Aqua-Scope Monitor 2 (AQSWIE02)
Copyright © 2022 Aqua-Scope Technologies, Sakala tn 7-2, 10141 Tallinn, Estonia, www.aqua-scope.com
