aqua signal 75 Series User manual

en
de
fr
LED Series 75, 75D,
75 Arctic, 75D Arctic
Navigation- and All-round Lights with
LED technology
Operating Manual
Navigations- und Signalleuchten mit
LED-Technik
Navigations- und Signalleuchten mit
LED-Technik Serie 66N und 66ND
Betriebsanleitung
Feux de navigation et de signalisation
en technologie LED
Instructions de service
Glamox Marine and Offshore GmbH
Linzer Str. 9a, 28359 Bremen, Germany
e-mail: [email protected]
http://glamox.com/gmo
© aqua signal
Application for commercial vessels
Einsatzbereich für die Berufsschifffahrt
Application pour marine commerciale

Page 2 of 45 9420120800_en Rev. 0
en
de
fr
Please read the Operating Manual for your navigation lights care-
fully.
Die Betriebsanleitung ist vor Einsatz der Navigationsleuchte sorg-
fältig zu lesen.
Il est recommandé de lire attentivement les pages suivantes et de
suivre les instructions de service avec la même attention.
GLAMOX MARINE AND OFFSHORE RESERVES THE RIGHT
TO MAKE TECHNICAL AND DESIGN CHANGES TO THE
PRODUCTS.
GLAMOX MARINE AND OFFSHORE BEHÄLT SICH VOR, AN
DEN BESCHRIEBENEN PRODUKTEN TECHNISCHE ÄNDER-
UNGEN VORZUNEHMEN.
GLAMOX MARINE AND OFFSHORE SE RESERVE LE DROIT
DE MODIFIER LA TECHNIQUE OU LE DESSIN DE SES
PRODUITS SANS PREVAIS
Print date: 2021-07-06

Page 3 of 45 9420120800_en Rev. 0
CONTENTS
1FOREWORD...........................................................................................................................................................4
2HAZARD INFORMATION...................................................................................................................................5
3INTENDED USE.....................................................................................................................................................6
2ITEM NUMBERS...................................................................................................................................................7
5PRODUCT OBSERVATION...............................................................................................................................11
7TECHNICAL DATA ............................................................................................................................................12
8HANDLING, FUNCTION, AND REGULATIONS...........................................................................................19
9DIMENSIONS AND INSTALLATION SIZES..................................................................................................20
10 INSTALLATION..................................................................................................................................................22
10.1 GENERAL MOUNTING INFORMATION ....................................................................................................................22
10.2 SIDE-NAVIGATION LIGHTS....................................................................................................................................24
10.3 MASTHEAD-NAVIGATION LIGHT..........................................................................................................................25
10.4 HECK-NAVIGATIONSLEUCHTE.......................................................................................................................26
10.4 STERN-NAVIGATION LIGHT..................................................................................................................................26
10.5 ALL-ROUND LIGHTS .............................................................................................................................................27
10.6 TWO COLOR ALL-ROUND LIGHTS ........................................................................................................................28
10.7 MECHANICAL INSTALLATION...............................................................................................................................28
10.8 ELECTRICAL INSTALLATION.................................................................................................................................29
10.8.1 TERMINAL ASSIGNMENT SERIES 75, 75 ARCTIC 24V DC MAIN.........................................................................31
10.8.2 TERMINAL ASSIGNMENT SERIES 75, 75 ARCTIC 115/230V AC MAIN................................................................32
10.8.3 TERMINAL ASSIGNMENT SERIES 75D, 75D ARCTIC 24V DC MAIN AND 24V DC RESERVE...........................33
10.8.4 TERMINAL ASSIGNMENT SERIES 75D, 75D ARCTIC 115/230V AC MAIN AND 24V DC RESERVE.................34
10.8.5 TERMINAL ASSIGNMENT SERIES 75D, 75D ARCTIC 115V/230V AC MAIN AND 115V/230V AC RESERVE...35
10.9 CLOSE THE HOUSING AFTER CONNECTING THE CABLE..........................................................................................37
10.10 MATERIAL INFORMATION ..................................................................................................................................38
11 SPARE PARTS......................................................................................................................................................39
12 ACCESSORIES.....................................................................................................................................................39
13 OPERATION OF 24V DC NAVIGATION LIGHTS WITH EXTERNAL POWER SUPPLY ....................40
14 DISASSEMBLY....................................................................................................................................................40
15 INFORMATION ON ELECTROMAGNETIC COMPATIBILITY (EMC) ..................................................40
16 INFORMATION ON THE COMPASS PROTECTIVE DISTANCE..............................................................40
17 INFORMATION ON PROTECTION AGAINST LIGHTNING.....................................................................41
18 OPERATING LIFE OF THE LED NAVIGATION AND ALL-ROUND LIGHTS.......................................41
19 75 ARCTIC, 75D ARCTIC ..................................................................................................................................42
19.1 75 ARCTIC,75D ARCTIC ELECTRICAL INSTALLATION....................................................................................42
20 CARE AND MAINTENANCE ............................................................................................................................43
20.1 CHANGING THE LIGHT SOURCE.............................................................................................................................43
20.2 PAINTING WORK ON BOARD ................................................................................................................................43
20.3 CUSTOMER SERVICE ............................................................................................................................................44
21 DECLARATION OF CONFORMITY ...............................................................................................................44
22 APPROVALS ........................................................................................................................................................44

Page 4 of 45 9420120800_en Rev. 0
en
de
fr
1Foreword
The LED navigation lights (all-round- and sector lights) are de-
signed and constructed with state-of-the-art technology accord-
ing to the recognized safety regulations. However, hazards can
arise for persons or objects, as not all hazard points can be
avoided if the functional capacity is to be maintained. Accidents
on account of these hazards and faults can, nevertheless, be pre-
vented by observing the operating manual and the information
during the training and instruction. Furthermore, you will then be
able to utilize the full capacity of the LED navigation light and
avoid unnecessary faults.
Therefore, always read this operating manual carefully be-
fore operating your LED navigation light. Always observe
the notes and information contained therein, in particular
the safety information.
Keep the operating manual in a convenient location after first
reading through it, so that you can refer to it later again.
All data, figures, and dimensions in this operating manual are not
binding. Claims of any kind cannot be derived from these.
Reprinting and duplication of any kind, also in extracts, requires
the written approval of the manufacturer.
Conversion or modifications to the LED navigation light are not
permissible. Modifications made by the user himself will result in
revocation of the approval and any liability on the part of theman-
ufacturer as well as the warranty will be rendered void.
Only use original spare parts and accessories approved by the
manufacturer. Otherwise, properties of the LED navigation light
specified by the design as well as the functional capacity or
safety could be negatively affected. The use of other parts there-
fore, annuls liability for the consequences resulting from this.
Contact the Customer Service for ordering spare parts or acces-
sories.

Page 5 of 45 9420120800_en Rev. 0
en
de
fr
2Hazard Information
Warning of optical radiation!
Eye injuries possible.
Do not look into the LED lighting.
Warning of electrical voltage.
Life-threatening electrical voltages are present in the elec-
trical components of the device.
Do not work on live components!
Operation of the LED navigation light is at the user's own risk and
hazard. The LED navigation light can be opened by the customer
for electrical connection. . The encapsulated electronic
components and the luminaire housing with the LED circuit
boards must not be opened, exchanged, or converted. In the
case of an infringement, the warranty claim expires. The manu-
facturer is not liable for damage that results from using the LED
navigation light, unless this damage can be traced back to
grossly negligent or intentional violation of contract.
The manufacturer cannot predict every danger! The warnings
contained in this information and attached to the LED navigation
light might not therefore, include all hazards.
In addition to the information in this operating manual, the statu-
tory regulations must be observed, in particular the safety and
accident prevention regulations.

Page 6 of 45 9420120800_en Rev. 0
en
de
fr
3 Intended Use
These navigation lights correspond to the national and interna-
tional provisions with respect to the minimum visibility ranges,
light distribution, and colour type for water vessels of 20 and
more meters in length.
The Navigation Lights
AQUA SIGNAL Series 75, 75D, 75 Arctic, and 75D Arctic are ap-
proved corresponding to the MED Regulations, in compliance
with the light and colour measurement values according to EN
14744. The approval marking is done with the steering wheel, on
the nameplate of the navigation light.
This navigation lights series 75, 75D, 75 Arctic, and 75D Arctic
are intended and approved for international commercial marine.
The approval-compliant function of the LED navigation lights of
the series 75, 75D, 75 Arctic, and 75D Arctic is only guaranteed
under intended use.
The navigation lights of the series 75, 75D, 75 Arctic, and 75D
Arctic are designed to work with Aqua Signal navigation light con-
trol panels, however they offer a lot of flexibility because they can
also be operated by third party panels. Compatibility and func-
tional ability must be confirmed by the third party control panel
supplier, including COLREG compliance.
The following pages are based on an approval-compliant in-
tended use and are therefore, to be read carefully.

Page 7 of 45 9420120800_en Rev. 0
en
de
fr
2 Item Numbers
S75
Black Poly-
carbonate
housing
S75
Black Poly-
carbonate
housing
Main system
(one LED cir-
cuit)
Range
≥20m
115V …230V
AC
Range
≥20m
24V DC
Port
3 NM
3684205000
3 NM
3684203000
Starboard
3 NM
3683105000
3 NM
3683103000
Masthead
6 NM
3681005000
6 NM
3681003000
Stern white
3 NM
3682705000
3 NM
3682703000
Stern yellow
3 NM
3682405000
3 NM
3682403000
All-round white
3 NM
3680705000
3 NM
3680703000
All-round green
3 NM
3680105000
3 NM
3680103000
All-round red
3 NM
3680205000
3 NM
3680203000
All-round yellow
3 NM
3680405000
3 NM
3680403000
All-round white
(2x180°)
3 NM
3680705003
3 NM
3680703003
All-round green
(2x180°)
3 NM
3680105003
3 NM
3680103003
All-round red
(2x180°)
3 NM
3680205003
3 NM
3680203003
All-round white
(2x180°) for over-
head installation
3 NM
3680705007
3 NM
3680703007
All-round green
(2x180°) for over-
head installation
3 NM
3680105007
3 NM
3680103007
All-round red
(2x180°) for over-
head installation
3 NM
3680205007
3 NM
3680203007
All-round white
for hoisting
3 NM
3680705004
3 NM
3680703004
All-round green
for hoisting
3 NM
3680105004
3 NM
3680103004
All-round red
for hoisting
3 NM
3680205004
3 NM
3680203004
Manoeuvre
5 NM
5 NM
3680003000

Page 8 of 45 9420120800_en Rev. 0
en
de
fr
S75D
Black Poly-
carbonate
housing
S75D
Black Poly-
carbonate
housing
S75D
Black Poly-
carbonate
housing
Main system
Range
≥20m
115V …230V
AC
Range
≥20m
115V …230V
AC
Range
≥20m
24V DC
Reserve system
115V …230V
AC
24V DC
24V DC
Port
3 NM
3679205000
3 NM
3679206000
3 NM
3679203000
Starboard
3 NM
3678105000
3 NM
3678106000
3 NM
3678103000
Masthead
6 NM
3676005000
6 NM
3676006000
6 NM
3676003000
Stern white
3 NM
3677705000
3 NM
3677706000
3 NM
3677703000
Stern yellow
3 NM
3677405000
3 NM
3677406000
3 NM
3677403000
All-round white
3 NM
3675705000
3 NM
3675706000
3 NM
3675703000
All-round green
3 NM
3675105000
3 NM
3675106000
3 NM
3675103000
All-round red
3 NM
3675205000
3 NM
3675206000
3 NM
3675203000
All-round yellow
3 NM
3675405000
3 NM
3675406000
3 NM
3675403000
All-round white
(2x180°)
3 NM
3675705003
3 NM
3675706003
3 NM
3675703003
All-round green
(2x180°)
3 NM
3675105003
3 NM
3675106003
3 NM
3675103003
All-round red
(2x180°)
3 NM
3675205003
3 NM
3675206003
3 NM
3675203003
All-round white
(2x180°) for over-
head installation
3 NM
3675705007
3 NM
3675706007
3 NM
3675703007
All-round green
(2x180°) for over-
head installation
3 NM
3675105007
3 NM
3675106007
3 NM
3675103007
All-round red
(2x180°) for over-
head installation
3 NM
3675205007
3 NM
3675206007
3 NM
3675203007
All-round white
for hoisting
3 NM
3675705004
3 NM
3675706004
3 NM
3675703004
All-round green
for hoisting
3 NM
3675105004
3 NM
3675106004
3 NM
3675103004
All-round red
for hoisting
3 NM
3675205004
3 NM
3675206004
3 NM
3675203004
All-round
green/red
3 NM
3675305000
3 NM
-----
3 NM
3675303000
All-round
white/red
3 NM
3675305200
3 NM
-----
3 NM
3675303200
All-round white
/green
3 NM
3675305400
3 NM
-----
3 NM
3675303400
All-round
green/red
(2x180°)
3 NM
3675305003
3 NM
-----
3 NM
3675303003
All-round
white/red
(2x180°)
3 NM
3675305203
3 NM
-----
3 NM
3675303203
All-round
white/green
(2x180°)
3 NM
3675305403
3 NM
-----
3 NM
3675303403

Page 9 of 45 9420120800_en Rev. 0
en
de
fr
S75
Arctic
Black Poly-
carbonate
housing
S75
Arctic
Black Poly-
carbonate
housing
Main system
(one LED cir-
cuit)
Range
≥20m
115V …230V
AC
Range
≥20m
24V DC
-------
------
Port
3 NM
3684255000
3 NM
3684253000
Starboard
3 NM
3683155000
3 NM
3683153000
Masthead
6 NM
3681055000
6 NM
3681053000
Stern white
3 NM
3682755000
3 NM
3682753000
Stern yellow
3 NM
3682455000
3 NM
3682453000
All-round white
3 NM
3680755000
3 NM
3680753000
All-round green
3 NM
3680155000
3 NM
3680153000
All-round red
3 NM
3680255000
3 NM
3680253000
All-round yellow
3 NM
3680455000
3 NM
3680453000
All-round white
(2x180°)
3 NM
3680755003
3 NM
3680753003
All-round green
(2x180°)
3 NM
3680155003
3 NM
3680153003
All-round red
(2x180°)
3 NM
3680255003
3 NM
3680253003
All-round white
for hoisting
3 NM
3680755004
3 NM
3680753004
All-round green
for hoisting
3 NM
3680155004
3 NM
3680153004
All-round red
for hoisting
3 NM
3680255004
3 NM
3680253004
Manoeuvre
5 NM
5 NM
3680053000

Page 10 of 45 9420120800_en Rev. 0
en
de
fr
S75D
Arctic
Black Poly-
carbonate
housing
S75D
Arctic
Black Poly-
carbonate
housing
S75D
Arctic
Black Poly-
carbonate
housing
Main system
Range
≥20m
115V …230V
AC
Range
≥20m
115V …230V
AC
Range
≥20
24V DC
Reserve system
115V …230V
AC
24V DC
24V DC
Port
3 NM
3679255000
3 NM
3679256000
3 NM
3679253000
Starboard
3 NM
3678155000
3 NM
3678156000
3 NM
3678153000
Masthead
6 NM
3676055000
6 NM
3676056000
6 NM
3676053000
Stern white
3 NM
3677755000
3 NM
3677756000
3 NM
3677753000
Stern yellow
3 NM
3677455000
3 NM
3677456000
3 NM
3677453000
All-round white
3 NM
3675755000
3 NM
3675756000
3 NM
3675753000
All-round green
3 NM
3675155000
3 NM
3675156000
3 NM
3675153000
All-round red
3 NM
3675255000
3 NM
3675256000
3 NM
3675253000
All-round yellow
3 NM
3675455000
3 NM
3675456000
3 NM
3675453000
All-round white
(2x180°)
3 NM
3675755003
3 NM
3675756003
3 NM
3675753003
All-round green
(2x180°)
3 NM
3675155003
3 NM
3675156003
3 NM
3675153003
All-round red
(2x180°)
3 NM
3675255003
3 NM
3675256003
3 NM
3675253003
All-round white
for hoisting
3 NM
3675755004
3 NM
3675756004
3 NM
3675753004
All-round green
for hoisting
3 NM
3675155004
3 NM
3675156004
3 NM
3675153004
All-round red for
hoisting
3 NM
3675255004
3 NM
3675256004
3 NM
3675253004

Page 11 of 45 9420120800_en Rev. 0
en
de
fr
5 Product Observation
Our new navigation and all-round lights include the user of new
and innovative LED technology.
Despite careful development and quality assurance, not all tech-
nical circumstances are foreseeable.
Please observe our product and feel free to report to us if any
unusual operating states are noticeable, which lead to or could
lead to hazardous situations in certain conditions.
We shall carefully examine your experience and incorporate the
insights gained into our work.
Contact: See Customer Service section.
6 Safety and Accident Prevention Regulations
In addition to the safety and accident prevention regulations of
the trade associations, the following information must be heeded,
in order to avoid damage to persons and objects:
Electrical lines must be replaced immediately if crack for-
mations or other damage is discernible.
Only original spare parts and accessories approved by the
manufacturer may be used. Otherwise, the liability by the
manufacturer for any resultant consequences will be rendered
null and void.

Page 12 of 45 9420120800_en Rev. 0
en
de
fr

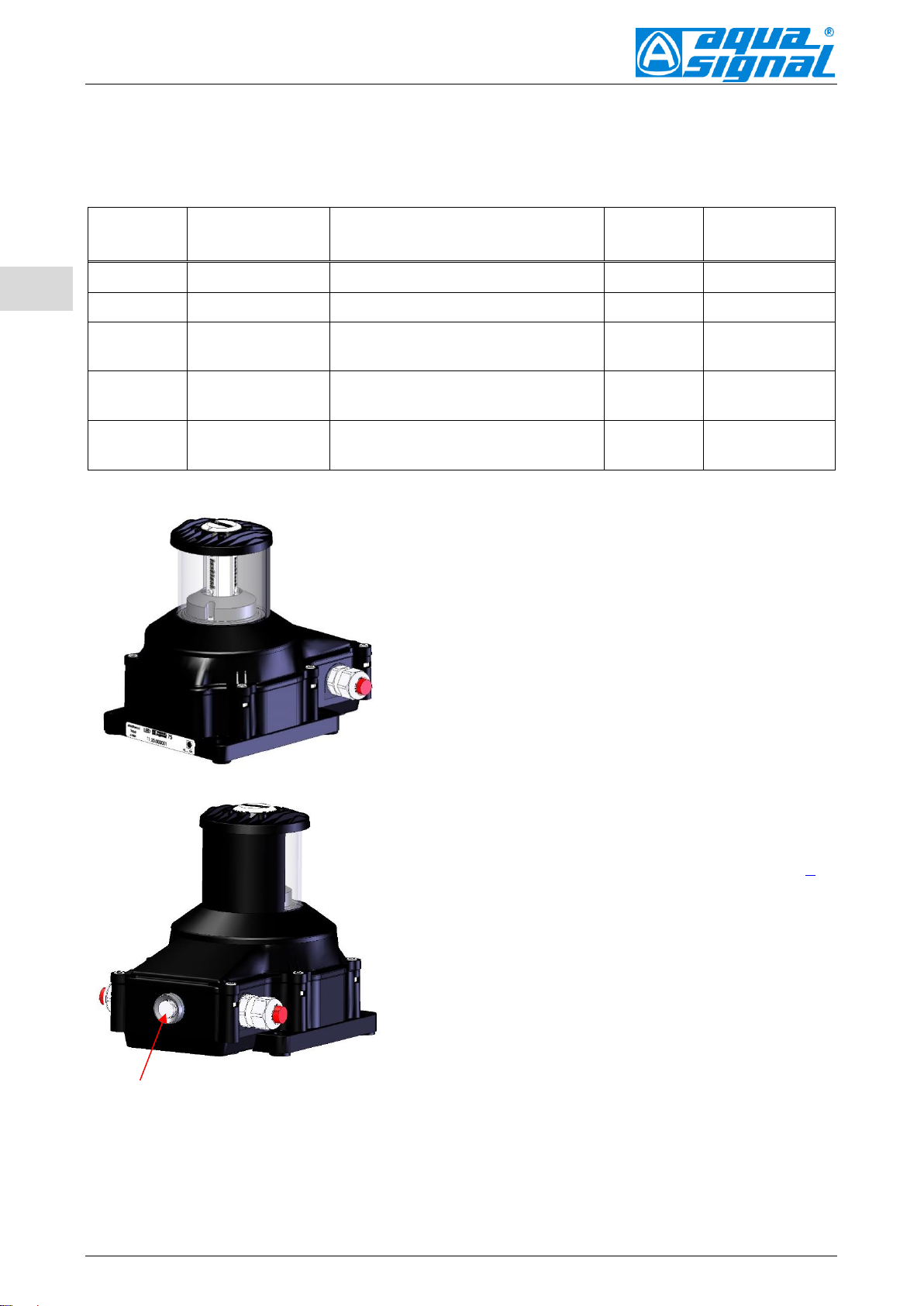

7 Technical Data
Illuminant:
LED
Permissible ambient
temperature for storage
and operation:
-25°C T 55°C
Permissible ambient
temperature for storage
and operation:75 Arctic,
75D Arctic
-40°C T 55°C
Protection class:
IPX6 / IPX7
Dimensions (max)/
For hoisting (max):
248 mm × 187 mm × 222 mm
248 mm × 306 mm × 305 mm
(lxwxh) (see chapter 9)
Cable gland:
Polyamide, for outer cable dia-
meter 10 -17 mm (with en-
closed reducer min. Ø8.0mm)
Series
Type
Number of LED
circuits
Voltage supply
Weight
Weight
hoistable
75
1
115V-230V AC Main circuit
2.5 kg
3.2 kg
75
1
24V DC Main circuit
2.25 kg
2.9 kg
75D
2
115V-230VAC Main- and Re-
serve circuit
3.0 kg
3.7 kg
75D
2
115V-230V AC Main- und 24V
DC Reserve circuit
2.75 kg
3.4 kg
75D
2
24V AC Main- and Reserve cir-
cuit
2.5 kg
3.2 kg
Pressure Equalisation

Page 13 of 45 9420120800_en Rev. 0
en
de
fr
Voltage supply
Main system
(Type 75, 75D,
75 Arctic, 75D Arctic)
Reserve system
(Type 75D, 75D Arctic)
Line voltages, nominal
115V / 230V AC
115V / 230V AC
Line voltages, minimum
103V (115V-10%)
103V (115V-10%)
Line voltages, maximum
253V (230V+10%)
253V (230V+10%)
Line frequency
50/60 Hz
50/60 Hz
Power factor
ca. 0.5 *1)
ca. 0.5 *1)
Line voltages, nominal
115V / 230V AC
24V DC
Line voltages, minimum
103V (115V-10%)
21.6V (24V -10%)
Line voltages, maximum
253V (230V+10%)
31.2V (24V +30%)
Line frequency
50/60 Hz
--
Power factor
ca. 0.5 *1)
--
Line voltages, nominal
24V DC
24V DC
Line voltages, minimum
21.6V (24V -10%)
21.6V (24V -10%)
Line voltages, maximum
31.2V (24V +30%)
31.2V (24V +30%)
Line frequency
--
--
Power factor
--
--

Page 14 of 45 9420120800_en Rev. 0
en
de
fr
Series 75 Power and current consumption of all navigation and all-round lights at differ-
ent line voltages
Light type
Colour
Visi-
bility
115V AC
Main
230V AC
Main
24V DC
Main
Masthead
white
6 NM
14.5W / 0.22A *1)
14.5W / 0.14A *1)
12.1W / 0.5A
Stern
white
3 NM
2.2W / 0.05A *1)
2.2W / 0.03A *1)
4.2W / 0.2A
Stern
yellow
3 NM
2.4W / 0.05A *1)
2.4W / 0.04A *1)
4.4W / 0.2A
Port
red
3 NM
3.5W / 0.06A *1)
3.5W / 0.05A *1)
5.3W / 0.2A
Starboard
green
3 NM
2.8W / 0.06A *1)
2.8W / 0.04A *1)
4.7W / 0.2A
All-round
white
3 NM
2.8W / 0.05A *1)
2.8W / 0.04A *1)
4.7W / 0.2A
All-round
red
3 NM
5.0W / 0.08A *1)
5.0W / 0.06A *1)
3.8W / 0.2A
All-round l
green
3 NM
3.7W / 0.07A *1)
3.7W / 0.05A *1)
4.7W / 0.2A
All-round
yellow
3 NM
7,1W / 0,1A *1)
7,1W / 0,06A *1)
6,4W / 0,3A
Signal
(2x180°)
white
3 NM
2 x 2.2W / 0.04A *1)
2 x 2.2W / 0.03A *1)
2 x 2.7W/ 0.1A
All-round
(2x180°)
red
3 NM
2 x 5.0W / 0.08A *1)
2 x 5.0W / 0.06A *1)
2 x 3.8W / 0.2A
All-round
(2x180°)
green
3 NM
2 x 3.7W / 0.07A *1)
2 x 3.7W / 0.05A *1)
2 x 4.7W / 0.2A
All-round
for hoisting
white
3 NM
2.8W / 0.05A *1)
2.8W / 0.04A *1)
4.7W / 0.2A
All-round
for hoisting
red
3 NM
5.0W / 0.08A *1)
5.0W / 0.06A *1)
3.8W / 0.2A
All-round
for hoisting
green
3 NM
3.7W / 0.07A *1)
3.7W / 0.05A *1)
4.7W / 0.2A
Manoeuvre
white
5 NM
___W / ___A *1)
___W / ___A *1)
___W / ___A

Page 15 of 45 9420120800_en Rev. 0
en
de
fr
Series 75D Power and current consumption of all navigation and all-round lights at dif-
ferent line voltages
Light type
Colour
Visi-
bility
115V AC
Main/Reserve
230V AC
Main/Reserve
24V DC
Main/Reserve
Masthead
white
6 NM
14.5W / 0.22A *1)
14.5W / 0.14A *1)
12.1W / 0.5A
Stern
white
3 NM
2.2W / 0.05A *1)
2.2W / 0.03A *1)
4.2W / 0.2A
Stern
yellow
3 NM
2.4W / 0.05A *1)
2.4W / 0.04A *1)
4.4W / 0.2A
Port
red
3 NM
3.5W / 0.06A *1)
3.5W / 0.05A *1)
5.3W / 0.2A
Starboard
green
3 NM
2.8W / 0.06A *1)
2.8W / 0.04A *1)
4.7W / 0.2A
All-round
white
3 NM
2.8W / 0.05A *1)
2.8W / 0.04A *1)
4.7W / 0.2A
All-round
red
3 NM
5.0W / 0.08A *1)
5.0W / 0.06A *1)
3.8W / 0.2A
All-round
green
3 NM
3.7W / 0.07A *1)
3.7W / 0.05A *1)
4.7W / 0.2A
All-round
yellow
3 NM
7,1W / 0,1A *1)
7,1W / 0,06A *1)
6,4W / 0,3A
All-round
(2x180°)
white
3 NM
2 x 2.2W / 0.04A *1)
2 x 2.2W / 0.03A *1)
2 x 2.7W / 0.1A
All-round
(2x180°)
red
3 NM
2 x 5.0W / 0.08A *1)
2 x 5.0W / 0.06A *1)
2 x 3.8W / 0.2A
All-round
(2x180°)
green
3 NM
2 x 3.7W / 0.07A *1)
2 x 3.7W / 0.05A *1)
2 x 4.7W / 0.2A
All-round
for hoisting
white
3 NM
2.8W / 0.05A *1)
2.8W / 0.04A *1)
4.7W / 0.2A
All-round
for hoisting
red
3 NM
5.0W / 0.08A *1)
5.0W / 0.06A *1)
3.8W / 0.2A
All-round
for hoisting
green
3 NM
3.7W / 0.07A *1)
3.7W / 0.05A *1)
4.7W / 0.2A
All-round
green/
red
3 NM
3.7W / 0.07A/ *1)
5.0W / 0.08A *1)
3.7W / 0.05A / *1)
5.0W / 0.06A *1)
4.7W / 0.2A /
3.8W / 0.2A
All-round
white/
red
3 NM
2.8W / 0.05A/ *1)
5.0W / 0.08A *1)
2.8W / 0.04A/ *1)
5.0W / 0.06A *1)
4.7W / 0.2A /
3.8W / 0.2A
All-round
white/
green
3 NM
2.8W / 0.05A/ *1)
3.7W / 0.07A *1)
2.8W / 0.04A/ *1)
3.7W / 0.05A *1)
4.7W / 0.2A /
4.7W / 0.2A
All-round
(2x180°)
green/
red
3 NM
2 x 3.7W / 0.07A/ *1)
2 x 5.0W / 0.08A *1)
2 x 3.7W / 0.05A/ *1)
2 x 5.0W / 0.06A *1)
2 x 4.7W /0.2A/
2 x 3.8W / 0.2A
All-round
(2x180°)
white/
red
3 NM
2 x 2.2W / 0.04A/ *1)
2 x 5.0W / 0.08A *1)
2 x 2.2W / 0.03A/ *1)
2 x 5.0W / 0.06A *1)
2 x 2.7W /0.1A/
2 x 3.8W / 0.2A
All-round
(2x180°)
white/
green
3 NM
2 x 2.2W / 0.04A/ *1)
2 x 3.7W / 0.07A *1)
2 x 2.2W / 0.03A/ *1)
2 x 3.7W / 0.05A *1)
2 x 2.7W / 0.1A/
2 x 4.7W / 0.2A

Page 16 of 45 9420120800_en Rev. 0
en
de
fr
Series 75 Arctic Power and current consumption of all navigation and all-round lights at
different line voltages
Light type
Colour
Visibili-
ty
115V AC
Main
Maximum values*2)
230V AC
Main
Maximum values*2)
24V DC
Main
Maximum
values*2)
Masthead
white
6 NM
54.5W / 1.10A*1)
54.5W / 0.68A *1)
Table *3)
Stern
white
3 NM
42.2W / 0.82A*1)
42.2W / 0.52A *1)
Table *3)
Stern
yellow
3 NM
42.4W / 0.82A*1)
42.4W / 0.53A *1)
Table *3)
Port
red
3 NM
43.5W /0.84A*1)
43.5W / 0.54A *1)
Table *3)
Starboard
green
3 NM
42.8W / 0.93A *1)
42.8W / 0.53A *1)
Table *3)
All-round
white
3 NM
42.8W / 0.83A *1)
42.8W / 0.53A *1)
Table *3)
All-round
red
3 NM
45.0W / 0.87A *1)
45.0W / 0.56A *1)
Table *3)
All-round
green
3 NM
43.7W / 0.84A *1)
43.7W / 0.54A *1)
Table *3)
All-round
yellow
3 NM
47,1W / 1.02A *1)
47.1W / 0.58A *1)
Table *3)
All-round
(2x180°)
white
3 NM
2 x 42.2W / 0.82A *1)
2 x 42.2W / 0.52A *1)
Table *3)
All-round
(2x180°)
red
3 NM
2 x 45.0W / 0.87A *1)
2 x 45.0W / 0.56A *1)
Table *3)
All-round
(2x180°)
green
3 NM
2 x 43.7W / 0.84A *1)
2 x 43.7W / 0.54A *1)
Table *3)
All-round
for hoisting
white
3 NM
42.8W / 0.83A *1)
42.8W / 0.53A *1)
Table *3)
All-round
for hoisting
red
3 NM
45.0W / 0.87A *1)
45.0W / 0.56A *1)
Table *3)
All-round
for hoisting
green
3 NM
43.7W / 0.84A *1)
43.7W / 0.54A *1)
Table *3)
Manoeuvre
white
5 NM
___W / ___A *1)
___W / ___A *1)
Table *3)

Page 17 of 45 9420120800_en Rev. 0
en
de
fr
Series 75D Arctic Power and current consumption of all navigation and all-round
lights at different line voltages
Light type
Colour
Visi-
bility
115V AC
Main/Reserve
Maximum values*2)
230V AC
Main/Reserve
Maximum values*2)
24V DC
Main/Reserve
Maximum
values*2)
Masthead
white
6 NM
54.5W / 1.10A *1)
54.5W / 0.68A *1)
Table *3)
Stern
white
3 NM
42.2W / 0.82A *1)
42.2W / 0.52A *1)
Table *3)
Stern
yellow
3 NM
42.4W / 0.82A *1)
42.4W / 0.53A *1)
Table *3)
Port
red
3 NM
43.5W / 0.84A *1)
43.5W / 0.54A *1)
Table *3)
Starboard
green
3 NM
42.8W / 0.93A *1)
42.8W / 0.53A *1)
Table *3)
All-round
white
3 NM
42.8W / 0.83A *1)
42.8W / 0.53A *1)
Table *3)
All-round
red
3 NM
45.0W / 0.87A *1)
45.0W / 0.56A *1)
Table *3)
All-round
green
3 NM
43.7W / 0.84A *1)
43.7W / 0.54A *1)
Table *3)
All-round
yellow
3 NM
47,1W / 1.02A *1)
47.1W / 0.58A *1)
Table *3)
All-round
(2x180°)
white
3 NM
2 x 42.2W / 0.82A 1)
2 x 42.2W / 0.52A *1)
Table *3)
All-round
(2x180°)
red
3 NM
2 x 45.0W / 0.87A *1)
2 x 45.0W / 0.56A *1)
Table *3)
All-round
(2x180°)
green
3 NM
2 x 43.7W / 0.84A*1)
2 x 43.7W / 0.54A *1)
Table *3)
All-round
for hoisting
white
3 NM
42.8W / 0.83A *1)
42.8W / 0.53A *1)
Table *3)
All-round
for hoisting
red
3 NM
45.0W / 0.87A *1)
45.0W / 0.56A *1)
Table *3)
All-round
for hoisting
green
3 NM
43.7W / 0.84A *1)
43.7W / 0.54A *1)
Table *3)
All-round
green/
red
3 NM
43.7W / 0.84A/ *1)
45.0W / 0.87A *1)
43.7W / 0.54A / *1)
45.0W / 0.56A *1)
Table *3)
All-round
white/
red
3 NM
42.8W / 0.83A/ *1)
45.0W / 0.87A *1)
42.8W / 0.53A/ *1)
45.0W / 0.56A *1)
Table *3)
All-round
white/
green
3 NM
42.8W / 0.93A/ *1)
43.7W / 0.84A *1)
42.8W / 0.53A/ *1)
43.7W / 0.54A *1)
Table *3)
All-round
(2x180°)
green/
red
3 NM
2 x 43.7W / 0.84A/ *1)
2 x 45.0W / 0.87A *1)
2 x 43.7W / 0.54A/ *1)
2 x 45.0W / 0.56A *1)
Table *3)
All-round
(2x180°)
white/
red
3 NM
2 x 42.2W /0.82A/*1)
2 x 45.0W / 0.87A*1)
2 x 42.2W /0.52A/*1)
2 x 45.0W / 0.56A*1)
Table *3)
All-round
(2x180°)
white/
green
3 NM
2 x 42.2W / 0.82A/1)
2 x 43.7W / 0.84A*1)
2 x 42.2W / 0.52A/*1)
2 x 43.7W / 0.54A *1)
Table *3)

Page 18 of 45 9420120800_en Rev. 0
en
de
fr
Table 7
*1) The cited power data stems from laboratory tests and represent typical values.
*2) The specified maximum values of the power consumption are made up of the operation of one
LED circuit and the heating output at full capacity
NM –Nautical Miles
NM –Range > 3NM
Table *3) Series 75 Arctic, 75D Arctic: 24V DC
Maximum power and current consumption for navigation and all-round lights, taking into
account tolerances of the voltage supply on site.
Chapter 19.1 Technical layout of the supply line.
Light type
Colour
Main-/ Reserve-
system
24V DC
Maximum values*2)
Main-/ Reserve-
system
24V DC +20%
Maximum values*2)
Main-/ Reserve-
system
24V DC +30%
Maximum values*2)
Masthead
white
45.4W / 1.89A
60.1W / 2.1A
68.7W / 2.20A
Stern
white
37.5W / 1.56A
52.2W / 1.81A
60.5W / 1.94A
Stern
yellow
37.7W / 1.57A
52.4W / 1.82A
60.7W / 1.95A
Port
red
38.6W / 1.61A
53.3W / 1.85A
61.6W / 1.97A
Starboard
green
38.0W / 1.58A
52.7W / 1.83A
61.0W / 1.96A
All-round
white
38.0W / 1.58A
52.7W / 1.83A
61.0W / 1.96A
All-round
red
37.1W / 1.55A
51.8W / 1.80A
60.1W / 1.93A
All-round
green
38.0W / 1.58A
52.7W / 1.83A
61.0W / 1.96A
All-round
yellow
39,7W / 1,65A
54,4W / 1,89A
62,7W / 2,01A
All-round
(2x180°)
white
36.0W / 1.50A
50.7W / 1.76A
59.0W / 1.89A
All-round
(2x180°)
red
37.1W / 1.55A
51.8W / 1.80A
60.1W / 1.93A
All-round
(2x180°)
green
2 x 38.0W / 1.58A
2 x 52.7W / 1.83A
2 x 61.0W / 1.96A
All-round
for hoisting
white
2 x 38.0W / 1.58A
2 x 52.7W / 1.83A
2 x 61.0W / 1.96A
All-round
for hoisting
red
2 x 37.1W / 1.55A
2 x 38.0W / 1.58A
2 x 60.1W / 1.93A
All-round
for hoisting
green
38.0W / 1.58A
52.7W / 1.83A
61.0W / 1.96A
Manoeuvre
white
___W / ___A
___W / ___A
___W / ___A

Page 19 of 45 9420120800_en Rev. 0
en
de
fr
8 Handling, Function, and Regulations
Installation of the navigation lights indicated here on German
ships is required by the Collision Prevention Regulations 1972,
the German Waterways Regulations (SeeSchStrO), and the
Conditions of the Federal Maritime and Hydrographic Agency
(formerly German Hydrographic Institute) for the installation of
navigation and all-round lights, acoustic signal systems, and ma-
noeuvre signal systems.
For vessels sailing the German flag, which are subject to the Ship
Safety Ordinance(SchSV), the installation of the navigation lights
must be approved by the Federal Maritime and Hydrographic
Agency. This also applies for conversions, insofar as navigation
lights are affected by these.
The rules of the International Regulations for Prevention Collision
in ANNEX I –Positioning and Technical Details for Lights and
Signal Bodies –indicated must be complied with for all ships.
The technical data in relation to the horizontal and vertical posi-
tioning and the distances between the navigation and all-round
lights, which are described in this operating manual, apply for all
ships, irrespective of their flag.

Page 20 of 45 9420120800_en Rev. 0
en
de
fr
9 Dimensions and Installation Sizes
