Aqua Systems Eradicator Gen II User manual

SmartChoice
Eradicator Gen II O3with EOG II
Owners Guide
Owners Manual Supplement
7785 East US Hwy 36
Avon, IN 46123
[phone] • [phone]
© 2019 New Aqua LLC
Gen II
TM
CLOCK REGEN
1200
NEXT
GAL
GALLONS REMAINING
C
L
OC
K
R
E
G
E
N
1200
NEXT
G
A
L
G
ALL
O
N
S
REMAININ
G
TM

© 2019 New Aqua LLC dba Aqua Systems • 114 Vista Park Way • Avon IN 46123
2
Eradicator Gen II O3
Owners Manual Supplement
Ozone Specic Information
Introduction
This Owner’s manual supplement is an information
guide to the Eradicator with the External Ozone
Generator (EOG II). The Eradicator line of
chemical free iron and sulfur removal systems is
enhanced with ozone during the aeration cycle.
󰀨Super Oxidant of the air,
as well as a super source for added oxygen.
The unique low voltage ozone generator has been

a single low voltage power supply. This approach provides an attractive ozone system that is very
󰀩
quality of ozone to the system. The Eradicator with Ozone is an advanced technology water treatment

technician to achieve optimum long term performance.
Contact the Customer Service Group for additional information.

© 2019 New Aqua LLC dba Aqua Systems • 114 Vista Parkway • Avon, IN 46123
3
Eradicator Gen II O3
Owners Manual Supplement
Ozone Specic Information
Table of Contents
Introduction............................................................................................................................................ 2
Eradicator with External Ozone Overview.......................................................................................... 4-5
External Ozone Installation............................................................................................................. 6, 8-9
Ozone Resistant Check Valve Assembly............................................................................................... 7
EOG II Start Up .................................................................................................................................. 10
Periodic Maintenance Log....................................................................................................................11

© 2019 New Aqua LLC dba Aqua Systems • 114 Vista Park Way • Avon IN 46123
4
Eradicator Gen II O3
Owners Manual Supplement
Ozone Specic Information
Overview

󰀨
in the Eradicator’s aeration process. The ozone is made from ambient air that is pulled into the control
during the draw cycle. A 12 volt DC generator creates electrical arcing technology, inside of a sealed
tube, known as Corona Discharge (CD). When the air is exposed to the arcing electrical current, the

󰀪
oxygenated.
The ozone is generated from the auxiliary circuit board that is mounted inside of the Gen II EOG II
cover. This Eradicator O3 is operated by a single power supply in which the O3 generator is activated
by the AQx relay function. The programming to activate the ozone generator is in the Eradicator elec-

Gen II O3with Ozone
Note:
The Gen II AQx control is programmed to activate the ozone generator. The ozone gen-
erator will not turn on if the control is fast-stepped through cycles by using the REGEN
button. You must wait for the activation based on the number of minutes from the start
of the cycle.

technicians.

© 2019 New Aqua LLC dba Aqua Systems • 114 Vista Parkway • Avon, IN 46123
5
Eradicator Gen II O3
Owners Manual Supplement
Ozone Specic Information
Overview
The EOG II Ozone system is mounted on the inlet side of the control valve with the wire harness
going through the backplate to the circuit board. This allows the control valve and the O3 system to
operate with a single power supply. An optional air dryer which increases O3 production and quality
can be added to this control using the single power supply (see separate Air Dryer instruction sheet).
Gen II
EOG II
Wire Harness
Note: The O3components should only be inspected and serviced
by a qualied service technician.
Gen II O3with Ozone
Side View with
External Ozone
When the control stops in the Regeneration DN position, air is pulled into the control through the air

(CD) Tube. When the tube is activated by the relay controlled power supply, it creates an electrical
arc internally. The air passes through this arcing where it is converted from Oxygen (O2) to Ozone
(O3). The ozone then travels through the special tubing, through the check valve, and the brine

Air Intake
Filter Stone
How Ozone is Produced

© 2019 New Aqua LLC dba Aqua Systems • 114 Vista Park Way • Avon IN 46123
6
Eradicator Gen II O3
Owners Manual Supplement
Ozone Specic Information

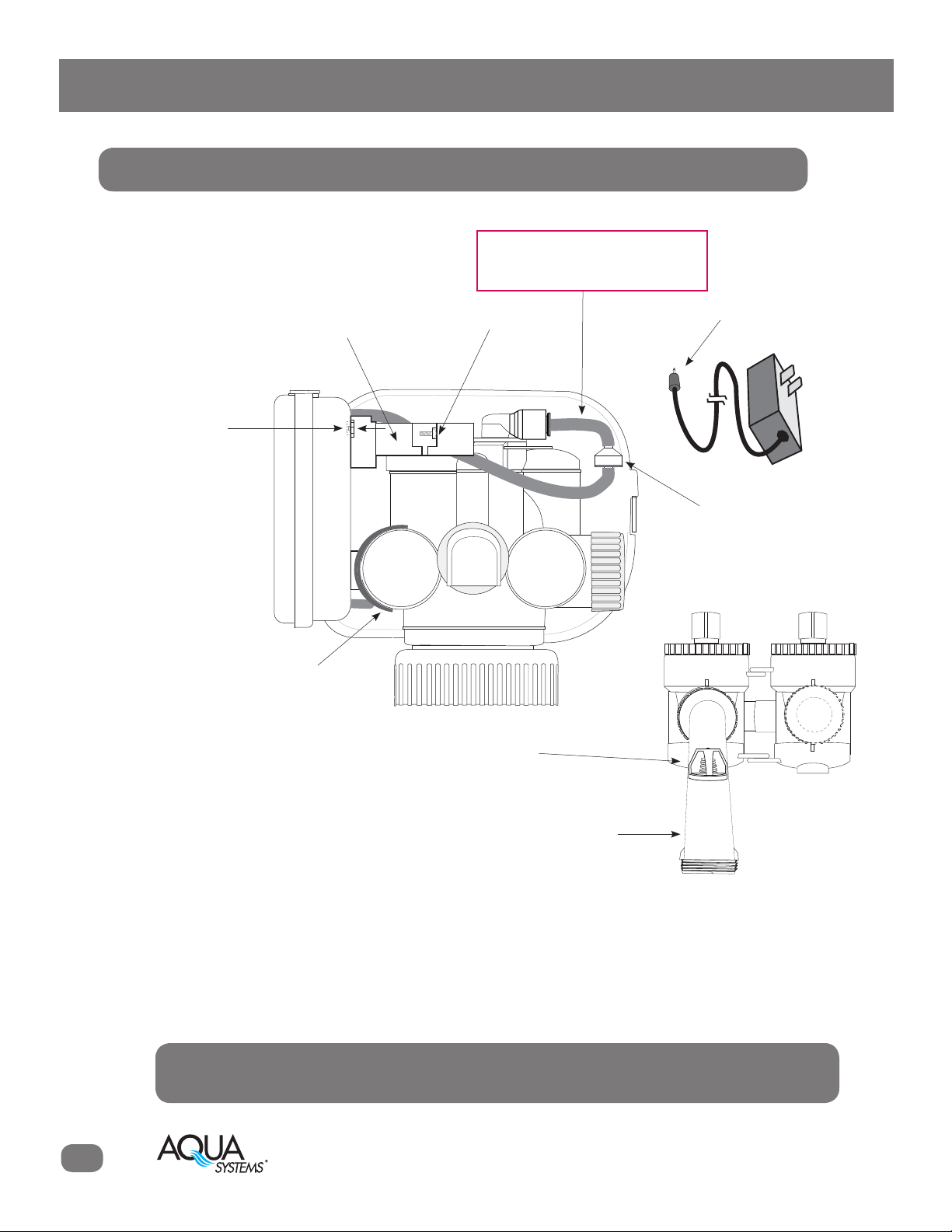

Installation
Gen II O3with Ozone
To mount the EOG II to
the control valve, slide
the mounting ring over
the injector cap, then
attach the lower clip
to the inlet part of the
valve body. Then snug
the clamp screw to
secure the EOG II to
the control valve.
Note: The O3components should only be inspected and serviced
by a qualied service technician.
Power Supply
Transformer Jack
Insert Power
Supply Plug Here
Install the Vertcal
Adapter Elbow with
check valve to the
inlet port of the
bypass.
Then attach the
Bypass to the Control
Valve.
Power Supply Plug
Lower Clip
Clamp Set
Screw
Mounting
Clamp
External
Check Valve
Inlet Check
Valve
Attach O3outlet tube
see page 7, gures a & b

© 2019 New Aqua LLC dba Aqua Systems • 114 Vista Parkway • Avon, IN 46123
7
Eradicator Gen II O3
Owners Manual Supplement
Ozone Specic Information

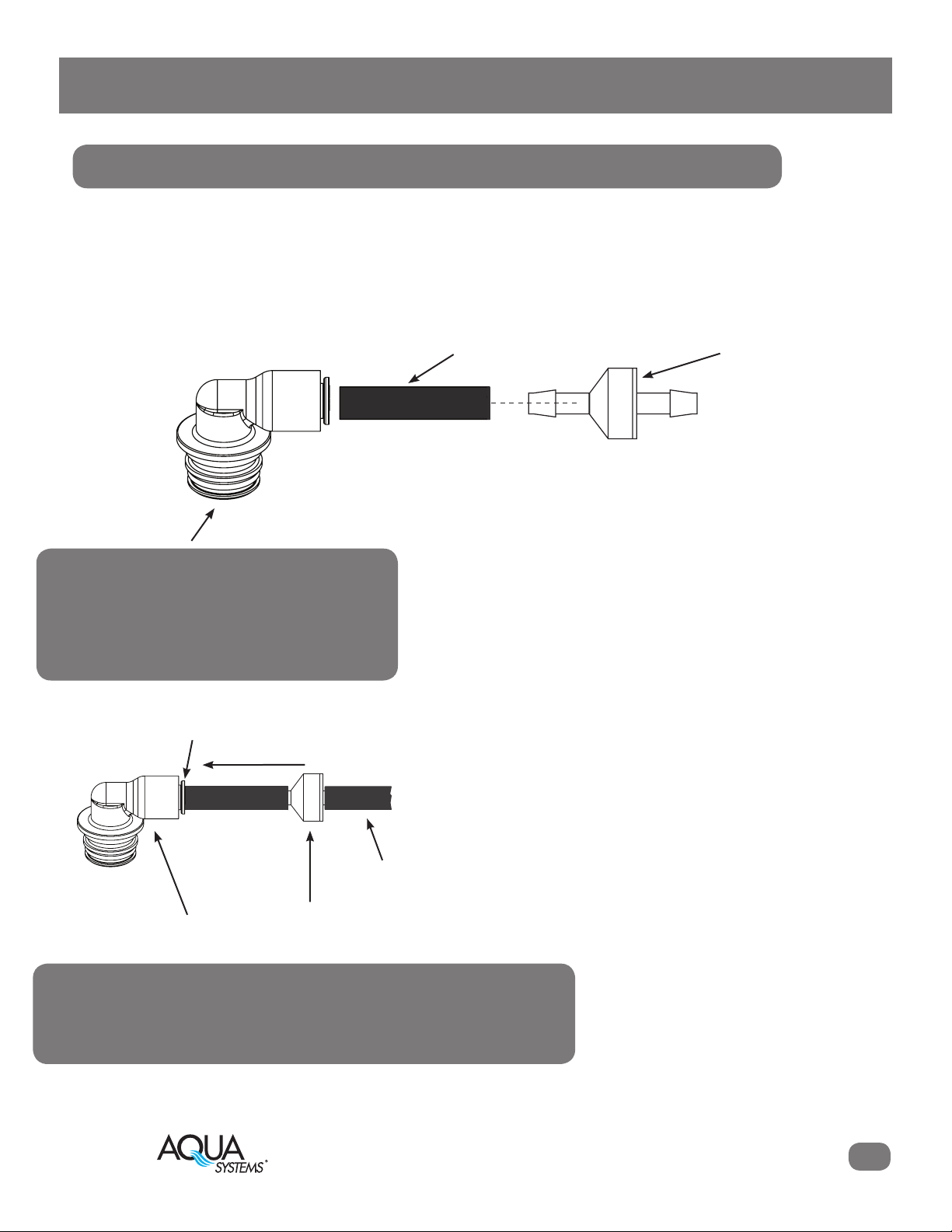

Tygon
Tubing
Ozone Resistant
Check Valve
Ozone Resistant
Check Valve
Figure c
Locking Collar
The ozone resistant check valve
is pre-inserted into the 3/8" Tygon
tubing.
Tygon tubing is inserted and
seated in the push connect

Firmly insert the black tubing
(figure b) from the EOG II
into the push connect elbow
(gure a). Be sure the tubing
has fully seated.
If the tubing needs to be
removed from the elbow,
press the locking collar (gure
c
out the tubing.
Installation
Ozone Resistant Air Draw Check Valve Assembly
Gen II O3with Ozone
Tubing to Elbow
Installation
Figure a
Figure b
These components should only be serviced by qualied
technicians.
Note:
There is no check valve in the bottom of

-
moved for operating with ozone.
Note:

© 2019 New Aqua LLC dba Aqua Systems • 114 Vista Park Way • Avon IN 46123
8
Eradicator Gen II O3
Owners Manual Supplement
Ozone Specic Information
Installation
On the circuit board, unplug the power plug (4-wire), and the
meter plug (3-wire) on the lower right side of the board, then
the motor plug on the lower left side of the board. Carefully lift
up slightly the tab holding the circuit board in place, then gently
pull the board forward, then lift the board out.
Next, remove the drive bracket by gently lifting the two tabs
securing the the bracket and tilt it forward from the tabs. The
lower edge of the drive bracket has two notches that rest on
the drive back plate. Lift up and outward on the drive bracket
to disengage the notches.
Then, remove the power supply wire and transformer by
pushing/pulling it through the slot in the backplate.
Set the power supply and cord aside as it will not be
used in this application.
Gen II O3with Ozone
EOG II Wire Harness Assembly
Circuit board
locking tab
Drive bracket
locking tabs
Drive bracket
notches
Motor
Plug Power
Plug Meter
Plug
1.
2.
3.

© 2019 New Aqua LLC dba Aqua Systems • 114 Vista Parkway • Avon, IN 46123
9
Eradicator Gen II O3
Owners Manual Supplement
Ozone Specic Information
Gen II O3with Ozone
Green wire
to Relay 1
Meter wire
Power
wire
Drive Motor
wire
Installation
Push the EOG II harness through the strain relief slot that the
power cord went through. Pull through about 10” of the harness.
Then make sure the wire is fully seated in the strain relief slot.
Reinstall the drive bracket (step 2) and the circuit board (step 1)
in the reverse order of removal.
Connect the power, meter, and drive motor harnesses to the
circuit board as illustrated. Then connect the relay wire (green
wire) to the relay block in the Relay 1 port and tighten the set
screw until secure.
Harness to
EOG II Box
Q 101 . 10
TMO OR
SET
CLOCK NEXT
REGEN
DOWN
UP
DP SW
RLY2 COM RLY1
METER
J8 OUTPUT
METER
COMM CABLE
12 VAC
A LT
MTR
AUX
MAV

© 2019 New Aqua LLC dba Aqua Systems • 114 Vista Park Way • Avon IN 46123
10
Eradicator Gen II O3
Owners Manual Supplement
Ozone Specic Information
Start Up
Plug the power supply into the receptacle. Refer to the main Eradicator manual for the instructions
for the start up procedure.
The programming for the Ois already done for Eradicator Osystems, so no further action is
needed beyond the normal start up procedure.
Once set up is complete, start the Eradicator in a manual regeneration and let it complete the
regeneration.
The Eradicator with Ozone should only be installed, serviced, and programming accessed

It is highly recommended to have an annual inspection and maintenance on the Eradicator system
to keep it operating at optimum performance.
If any service or maintenance is required, contact your authorized dealer for this service.
Gen II O3with Ozone
If the Eradicator O3is installed in any damp or humid area, it is highly recommended to
to install the optional Air Dryer kit to the system to dry the air entering the O3generator.
This allows the generator to produce the optimum quantity and quality of ozone to enhance
the Eradicator's performance and reduces required maintenance on the ozone producing
components. The optional dryer mounts on the left backside of the valve controller.
Simply contact your authorized Eradicator dealer to obtain and install the dryer kit.
Note:

© 2019 New Aqua LLC dba Aqua Systems • 114 Vista Parkway • Avon, IN 46123
11
Eradicator Gen II O3
Owners Manual Supplement
Ozone Specic Information
Gen II O3with Ozone
Periodic Maintenance Log
Date Service Performed Technician

Revision 2.1 12/2019
