Aquaforest OceanGuard 605 User manual
605
USER MANUAL | WARRANTY | instrukcja użytkownika | gwarancja
afoceanguard.com
en
PL
REEFING BRILLIANCE
afoceanguard.com
Table of Contents
605
en
Introduction
Technical data
1
605
dimensions of aquarium
length width height glass length width height
dimensions of cabinet
120 cm 62,5 cm 57,5 cm 12 mm 120 cm 60 cm 94 cm
47,2 in 24,6 in 22,6 in ½ in 47,2 in 23,6 in 37 IN
aquarium
volume
length width height
dimensions of sump system
volume
aquarium
volume
80 cm 48,5 cm 60 cm
31,5 in 19,1 in 17,7 in
430 l 605 l
114 us gal 160 us gal
AF90 MEDIA REACTORAF150 in/AF200 in3000-4000 l/h
recommended water flow recommended skimmer recommended media reactor
Downflow elements
Safety-drain elements
Return elements
Overflow elements
Cabinet elements
Front
D (Down-flow)
S (Safety-drain)
R (Return)
O (Overflow)
C (Cabinet)
2
components
• During assembly all the elements of
the set should be stacked on a so and
clean surface.
• Minimum three adults are required
for assembly.
605
en
3

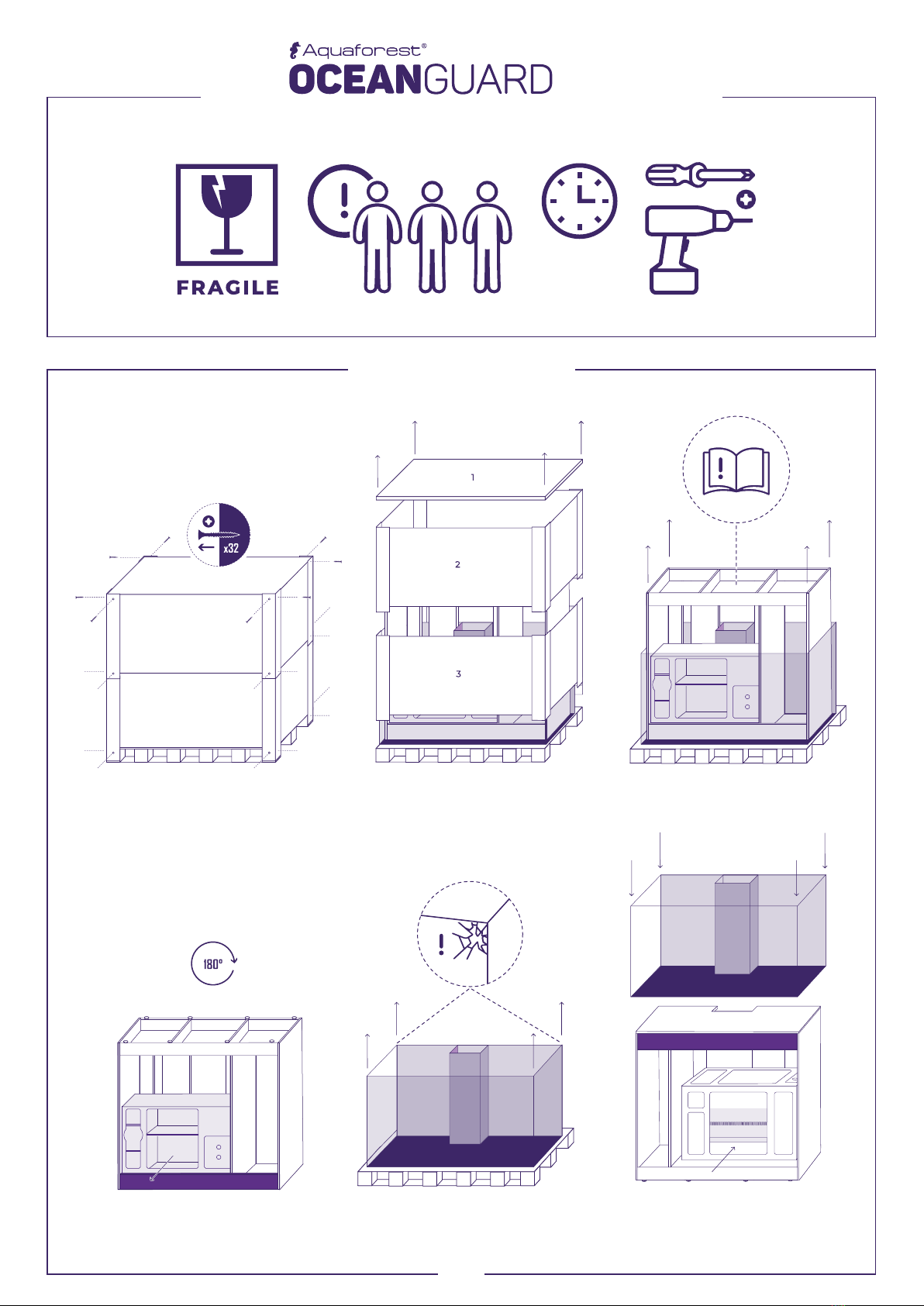

unboxing
x3
max
45 min
605

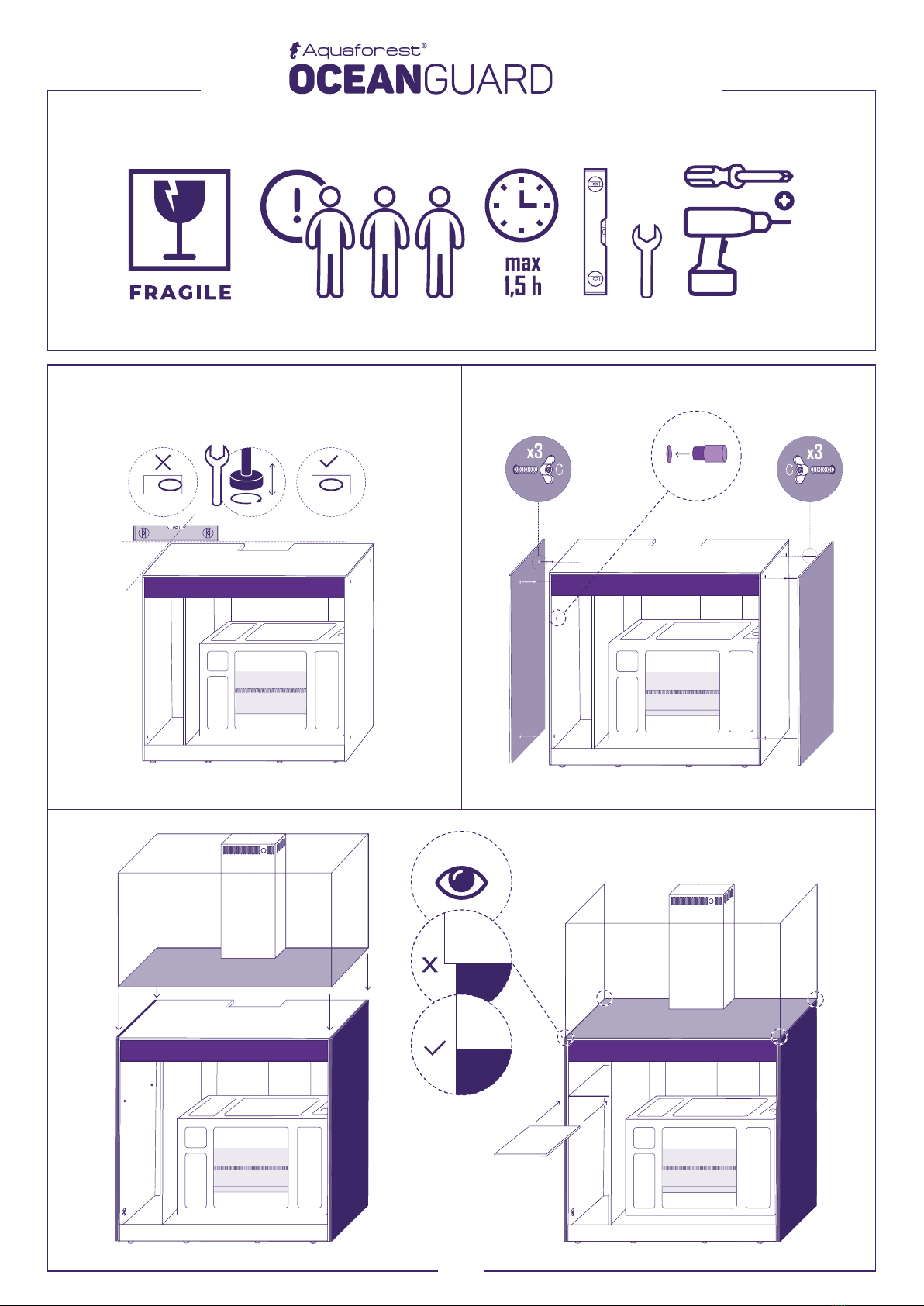

Cabinet assembly
1. The cabinets are delivered in the form of two separate sets: the load-bearing part - screwed and glued,
and waterproof external panels with doors.
2. Aer seng the cabinet in the right place, set its stability using the adjustable legs.
The cabinet should be leveled with a spirit level. Then aach the side panels.
3. Due to using the highest quality self-hardening materials, we advise not washing the for
72 hours aer removing the protecve foil.
4. The cabinet should be kept clean, any water or spills should be removed immediately and dried.
4
Tank location
605
en
Leveling the cabinet
1
3
2
5
x3
605
x4
6
Overflow plumbing assembly
412
3 4
x3
6
6
Lower plumbing assembly
5
x3 1 2 3 4 5
silencer assembly
en
7 8
9
7
605
CORRECTLY ASSEMBLED PLUMBING
check valve
bypass (optional place
for fluidization filter)
return pump
gate valve
clamp
clamp
hose
close open
sump top view
skimmer
return pump
safety drainDownflow
11
8
10
x8
X2
x8
605
en
PLUMBING TEST
Remove the protective foil
12
13
9
605
TAP WATER OR
RO WATER
10

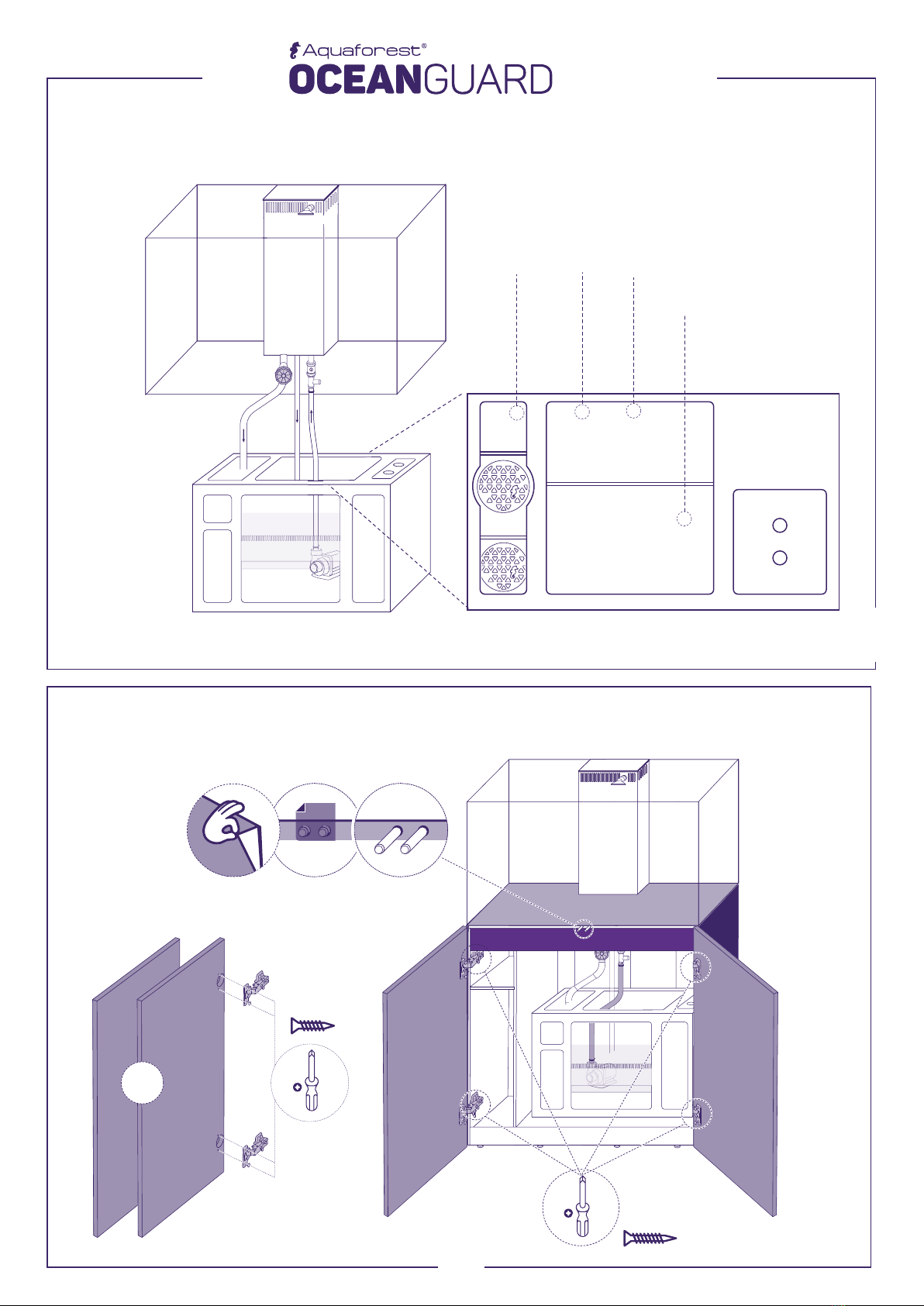

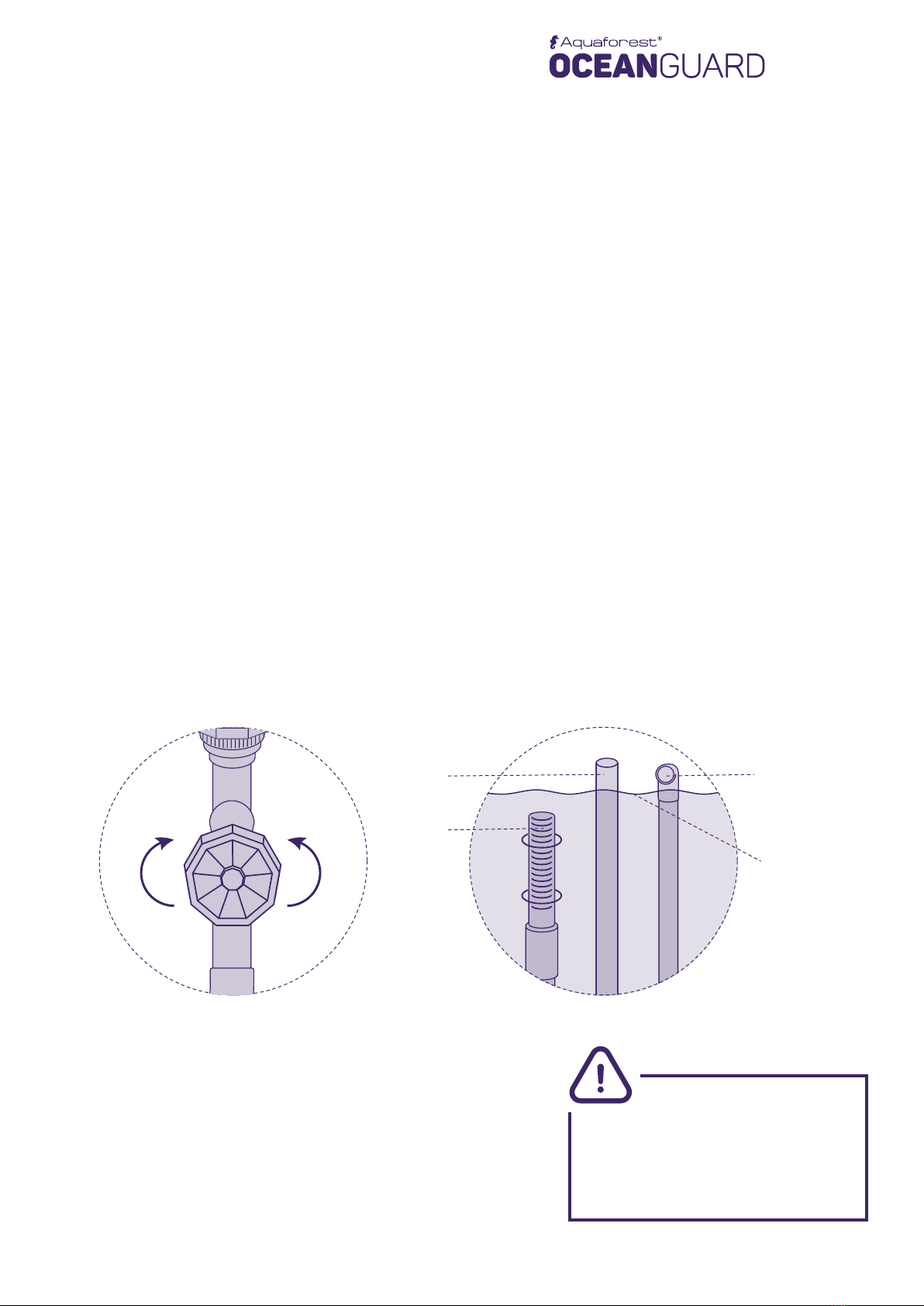

Maintenance
downflow
safety drain
close open
water level
return
Warning!
Do not use window cleaner or other
chemicals, that could harm fragile
marine organisms.
First filling of the tank
Drain valve adjustment
605
en
Sump
11
605
13. anti-vibration foam
1. removable
filtration socks
frames & silencers
15. socks or
media reactor
chamber
2. water flow
direction
8. aquarium
3. down pipe
4. safety drain
5. bubble
stop
12.. skimmer
or refugium
chamber
9. wąż i wtyczka
automatycznej dolewki
11. ro water
chamber
10. cover
7. return
pump pipe
14. adjustable
& removable divider
with silencing comb
water
level
17. media
sock
16.
filtration
sock
6. return
pump chamber
12
www.afoceanguard.com
Warranty terms and conditions:
Warranty
605
en
The warranty does not cover:
Warranty loss causes:
Serial number, stamp, date and signature of the seller
13
Spis treści:
605
PL
Wstęp
Dane techniczne
15
605
rozmiar akwarium
długość szerokość wysokość szkło długość szerokość wysokość
rozmiar szafki
aquarium
volume
długość szerokość wysokość
rozmiar sumpa pojemność
całkowita
pojemność
akwarium
120 cm 62,5 cm 57,5 cm 12 mm 120 cm 60 cm 94 cm
47,2 in 24,6 in 22,6 in ½ in 47,2 in 23,6 in 37 IN
80 cm 48,5 cm 60 cm
31,5 in 19,1 in 17,7 in
430 l 605 l
114 us gal 160 us gal
zalecany przepływ zalecany odpieniacz zalecany filtr
AF90 MEDIA REACTORAF150 in/AF200 in3000-4000 l/h
Elementy spływu
Elementy rewizji
Elementy powrotu
Elementy komina
Elementy szai
Front
D (Down-flow)
S (Safety-drain)
R (Return)
O (Overflow)
C (Cabinet)
16
Elementy zestawu
• Podczas montażu wszystkie
elementy zestawu należy układać
na miękkim i czystym podłożu.
• Do montażu potrzebne są
minimum trzy osoby dorosłe.
605
PL
17
Rozpakowanie
x3
max
45 min
605
