Data sheet for protein skimmer Bubble King®DeLuxe 300 internal with Red Dragon®3
Protein skimmer Bubble King® DeLuxe 300 internal Product no.: 79/RD3 2.572.68 $
or aquariums from 317gal. up to 793 gal.
Skimmer-series Bubble King® DeLuxe for aquarium-grounds. For internal installation in lter-systems.
The „deLuxe version“ for the demanding user.
Technical data Bubble King®DeLuxe 300 internal with Red Dragon®3 Mini Speedy:
660 gph Air - 1585 gph Water = Red Dragon®3 Mini Speedy 2500 pump
with air- and ozon- plug
Base plate: Ø 12.80ʺ / height ~ 25.98ʺ
Skimmer-pump: Red Dragon®3 Mini Speedy 2500 with 60W
Delivery rate: 528 gph Air inlet ~ 1057 gph Water inlet
Wattage - active power: from 15W up to 60W
Operating voltage: 110 Volt 60 Hz (also in 230V/50Hz available)
Protection class: IP 68
Water level: ~ 7.09ʺ up to ~ 10.63ʺ (ideal ~ 8.86ʺ)
Weight skimmer: 16 kg inclusiv pump
Height of intake side: center 2.36ʺ
Dimension skimmer with pump:
13.78ʺ wide / 19.69ʺ length / ~ 25.98ʺ height
Outlet (cleanout) height ~ 17.72ʺ
25.98ʺ
13.78ʺ 19.69ʺ
1
19.69ʺ

For more information, please visit www.royal-exclusiv.de. Simply enter the part number or name into
the search box or email: [e-mail].
All information subject to change. We try our best, but printing errors reserved.
Royal Exclusiv pumps &skimmers
Since 1986
Klaus Jansen // Richard-Byrd-Str. 7 // 50829 Cologne // Germany
Fon +49(0)221/222886 0 // Fax [phone]
[e-mail] // www.royal-exclusiv.de
Protein skimmer Bubble King®DeLuxe 300 for
internal lter assembly in aquariums of 317 up
to 793 gallons.
The skimmer is equipped with a Red Dragon® 3
Bubble King®skimmer pump from Royal Exclu-
siv®, installed on the side. A continuously height-
adjustable telescopic tube is provided to regu-
late the water level. The swivelling water outlet
at the side has a tube diameter of 2.48ʺ (63 mm).
For the ne adjustment of the water level, there
is also a 360° pivotable PVC torque tube with
a tted dismountable simple silencer. The per-
forated Plexiglas lid can be opened by loosen-
ing the M6 titanium hexagon socket screw in the
centre.
The complete skimmer cup can be unscrewed
from the pillar tube. The lift height required for
this is 1.18ʺ (30 mm). A pivotable tap is tted to
the bottom for draining off the absorbate.
The pump is connected to the skimmer on the
pressure side through a loosely attached Ø 30 mm
silicon tube connection piece. The 9 mm silicon
tube is used to transport the air exhaust from the
silencer to the pump.
The grey 6 mm connecting piece on the nozzle
base part is set up for ozone supply.
The whole skimmer including the pump is de-
signed, produced and tested in Germany.
Important maintenance information!!!
For the smooth functioning of the protein
skimmer, the skimmer pump must be regu-
larly cleaned and decalcied!
Protein skimmer Bubble King® DeLuxe 300 internal + RD3 Product no.: 79/RD3
with adjustable Bubble King®Red Dragon®3 skimmer-pump 60W
2

For more information, please visit www.royal-exclusiv.de. Simply enter the part number or name into
the search box or email: [e-mail].
All information subject to change. We try our best, but printing errors reserved.
Royal Exclusiv pumps &skimmers
Since 1986
Klaus Jansen // Richard-Byrd-Str. 7 // 50829 Cologne // Germany
Fon +49(0)221/222886 0 // Fax [phone]
[e-mail] // www.royal-exclusiv.de
Protein skimmer Bubble King® DeLuxe 300 internal + RD3 Product no.: 79/RD3
3

For more information, please visit www.royal-exclusiv.de. Simply enter the part number or name into
the search box or email: [e-mail].
All information subject to change. We try our best, but printing errors reserved.
Royal Exclusiv pumps &skimmers
Since 1986
Klaus Jansen // Richard-Byrd-Str. 7 // 50829 Cologne // Germany
Fon +49(0)221/222886 0 // Fax [phone]
[e-mail] // www.royal-exclusiv.de

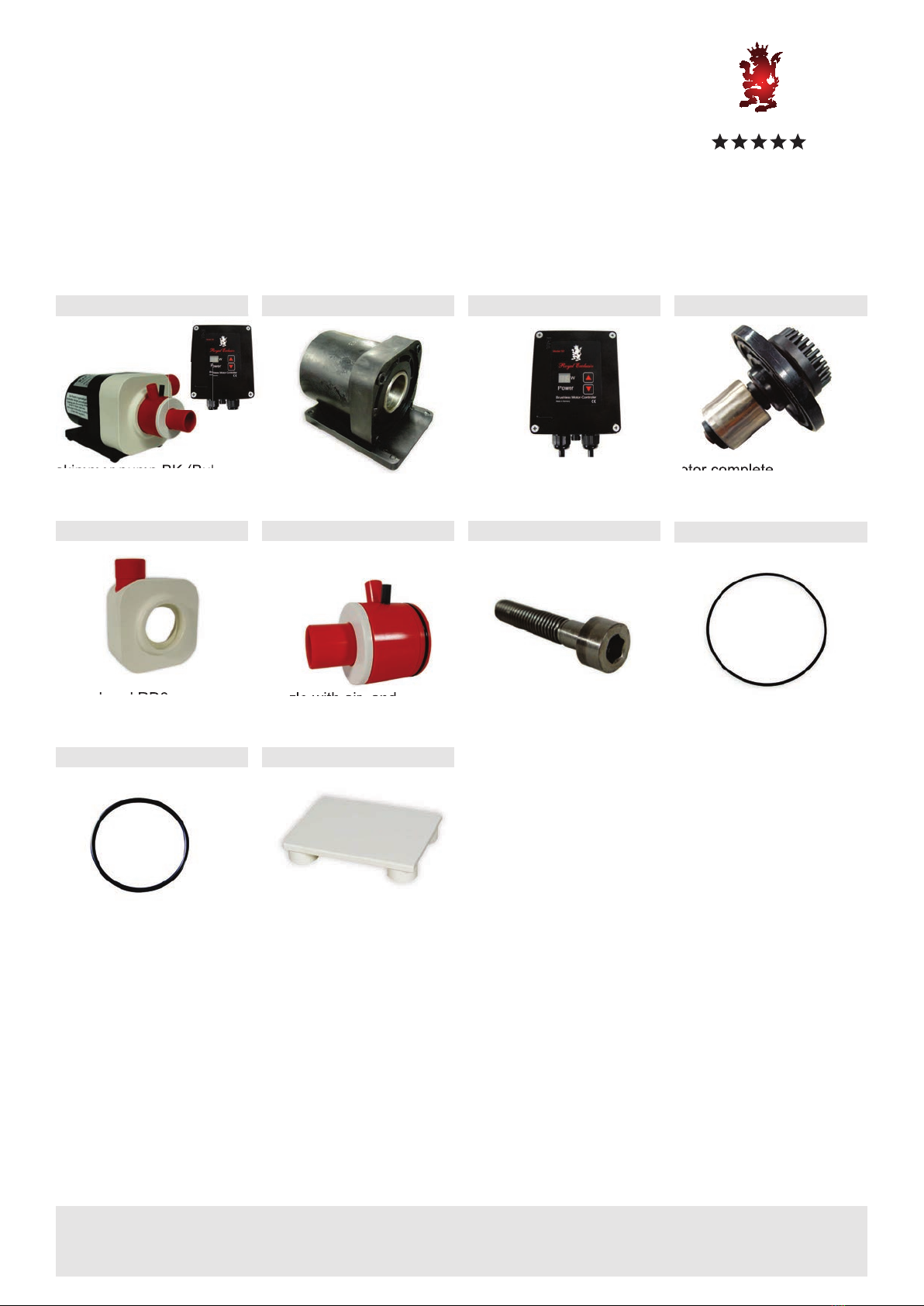

list of spare parts product no. (110V) (230V) Price
resonator single for Ø 63mm torque tube 293 293 67.91 $
silicon-outlet (cleanout) 298 298 31.05 $
lid complete with lever ring 314 314 146.22 $
cup with conus / stand pipe / cleanout 358 358 487.87 $
silicon O-ring 180x3,0mm for conus 334 334 12.05 $
silicon hose - 32mm 75mm length 296 296 10.88 $
torque tube Ø 63mm PVC red 347 347 65.14 $
titan screw for injection pan 6x45mm 183-5 183-5 10.68 $
plastic screw for pipe bracket 6x12mm 181-1 181-1 0.70 $
titan screw for torque tube 6x16mm 183-7 183-7 13.73 $
titan screw for base plate 1 piece 183-10 183-10 5.40 $
rubber feets 4 pieces 180 180 5.54 $
silicon hose 9x3mm (price for one meter) 185 185 25.65 $
skimmer body with conus 367/14 367/14 880.11 $
base plate PVC white Ø 325mm 392/14 392/14 179.63 $
V4A srew 6 x 110mm for resonator / silencer 182-4 182-4 9.70 $
skimmer pump BK (Bubble King®)RD3 complete 60W 614/1 614/2 894.30 $
part motor block 50/60W 601/SP21 601/SP21 353.43 $
rotor complete 2000/2500 l air 601/SP25 601/SP25 214.82 $
controller complete RD3 60W 2500l/h 614/20/1 614/20/2 389.94 $
pump head RD3 BK (Bubble King®) 2500 l/h 614/10 614/10 178.21 $
nozzle with air- and ozon- plug 2500 l/h 614/2500 614/2500 59.11 $
titan screw 6x32mm for Mini Speedy 60Watt 614/12 614/12 6.09 $
o-ring for bearing plate Ø 85mm 603/ST3 603/ST3 6.23 $
o-ring for nozzle 2500 l/h 41x2,5mm 614/2500/1 614/2500/1 4.62 $
pump table for (Bubble King®)RD3 skimmer-pump 153 153 30.49 $
Protein skimmer Bubble King® DeLuxe 300 internal + RD3 Product no.: 79/RD3
4
add on resonator Ø 63mm 999 999 44.35 $
PVC pipe clip Ø 63mm for wall and ceiling mounting 930-63 930-63 9.02 $
resonator - inlay 294-1 294-1 8.18 $
silicon grease tube 6g 030/6 030/6 3.47 $
silicon grease tube 25g 030/25 030/25 10.40 $
accessories product no. (110V) (230V) Price
