Aquagem iSAVER Power+1100 Operation manual

En
FREQUENCY INVERTER
INSTALLATION & USER GUIDE
Power+1100, Power+2200
Thank you for purchasing our frequency inverter. Please read the manual carefully before installation &
operation and keep it for future reference after installation.

CONTENTS
1. IMPORTANT SAFETY INSTRUCTIONS ..................................................................... 1
2. TECHNICAL DATA ................................................................................................... 1
3. BEFORE INSTALLATION .......................................................................................... 2
4. CONNECTING TO POOL PUMP .............................................................................. 2
5. SETTINGS & OPERATION ........................................................................................ 4
6. PROTECTION & ERROR CODES .............................................................................. 6
7. EXCLUSIONS ........................................................................................................... 6
8. WEEE LEGISLATION ................................................................................................ 6
SAFETY SYMBOLS
Read and keep the manual in a safe place
Warning
Caution: Risk of electrical shock
Do not touch the heat sink
e-Waste: Dispose at recycling centre

1
1. IMPORTANT SAFETY INSTRUCTIONS
To make the best use of this energy saving device and to avoid potential risk of fire,
electrical shock, SERIOUS injury to people or damage to property, please read
this user guide carefully before installation and keep it for future reference.

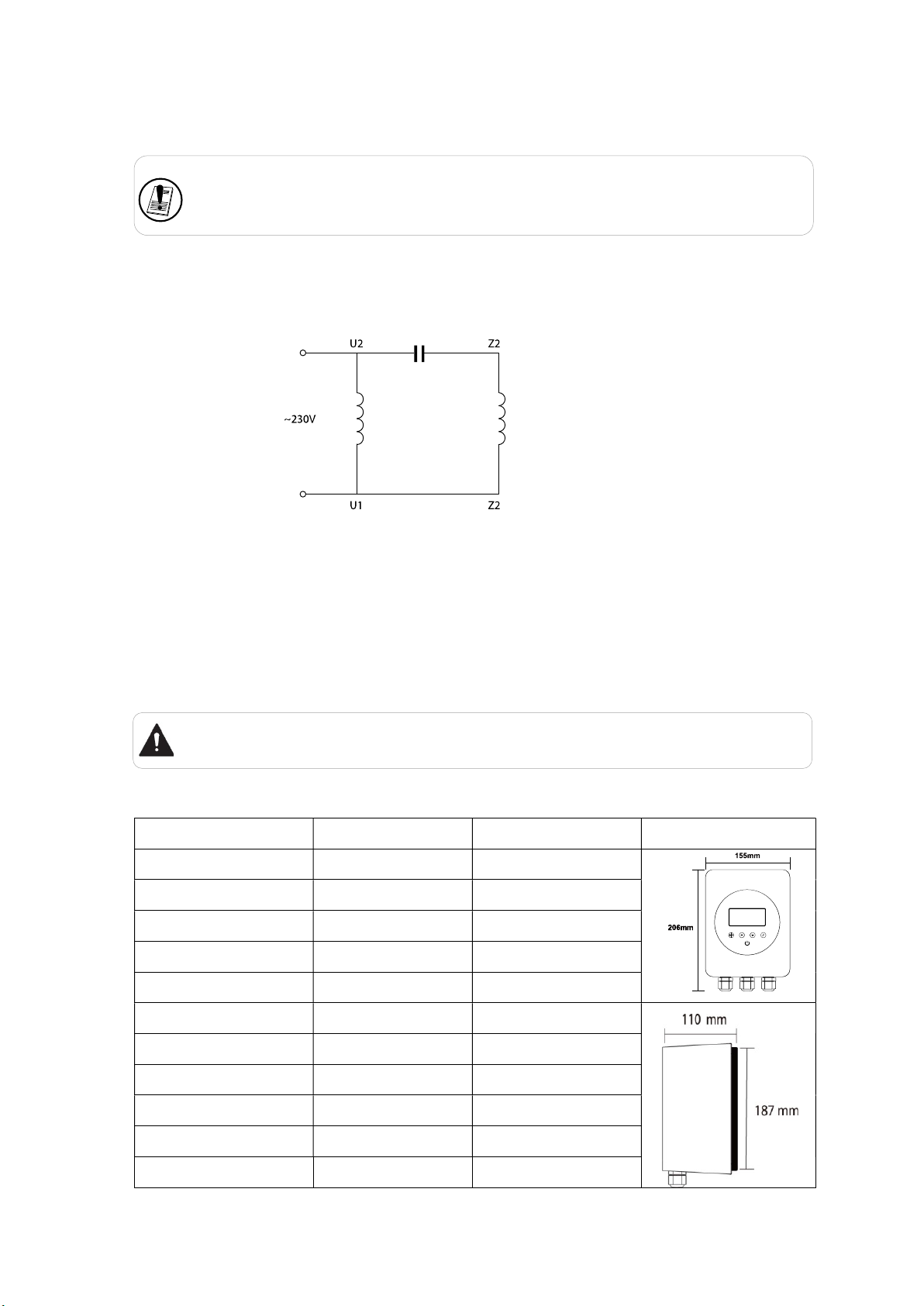

This device can ONLY be used with pool pumps with permanent split capacitor motor. The
schematic diagram below shows a typical single speed swimming pool pump motor.
Fig 1
1.1 It is NOT compatible with:
a. Single phase motors with centrifugal switch
b. Pool pump motors with start relays or switch
c. Series or DC motors
d. Pool pump motors with faults in their rotors or capacitors
e. Shaded-pole asynchronous motors
1.2 An RCD with a rated residual current not exceeding 30mA must be used with this product.
If you are not sure of the compatibility of your pool pump with this device, please
contact your supplier or manufacturer before proceeding with installation.
2. TECHNICAL DATA
Model Power+1100 Power+2200 Dimensions
Input power 1 phase AC 1 phase AC
Input voltage 220~240V 220~240V
Input frequency 50Hz 50Hz
Output power Max 1.1kW Max 2.2 kW
Output Voltage 1ph, 0~240V 1ph, 0~240V
Pump type Single phase Single phase
Max. current Max 6A Max 12A
Speed range 1200~2900 rpm 1200~2900 rpm
Cooling Ventilation Ventilation/Fan
Net Dimension (L*H*W) 187*110*155mm 187*110*155mm
Gross/Net Weight 3.0/2.7Kg 3.0/2.7Kg
Running Capacitor
Main
Winding
Auxiliary
Winding

2
3. BEFORE INSTALLATION
Upon receipt of this device, check for damage to the packaging or product.
DO NOT PROCEED with installation if any damage is found; contact your
supplier. Do not use extension leads with the device. This can pose a danger
particularly in the vicinity of a swimming pool.
Make sure the place you choose for installation meets the following conditions:
- Ambient temperature from -10~40℃
- 45 to 90 percent relative humidity, non-condensing
- Less than1000m above sea level
- Keep out of direct sunlight
- Good ventilation

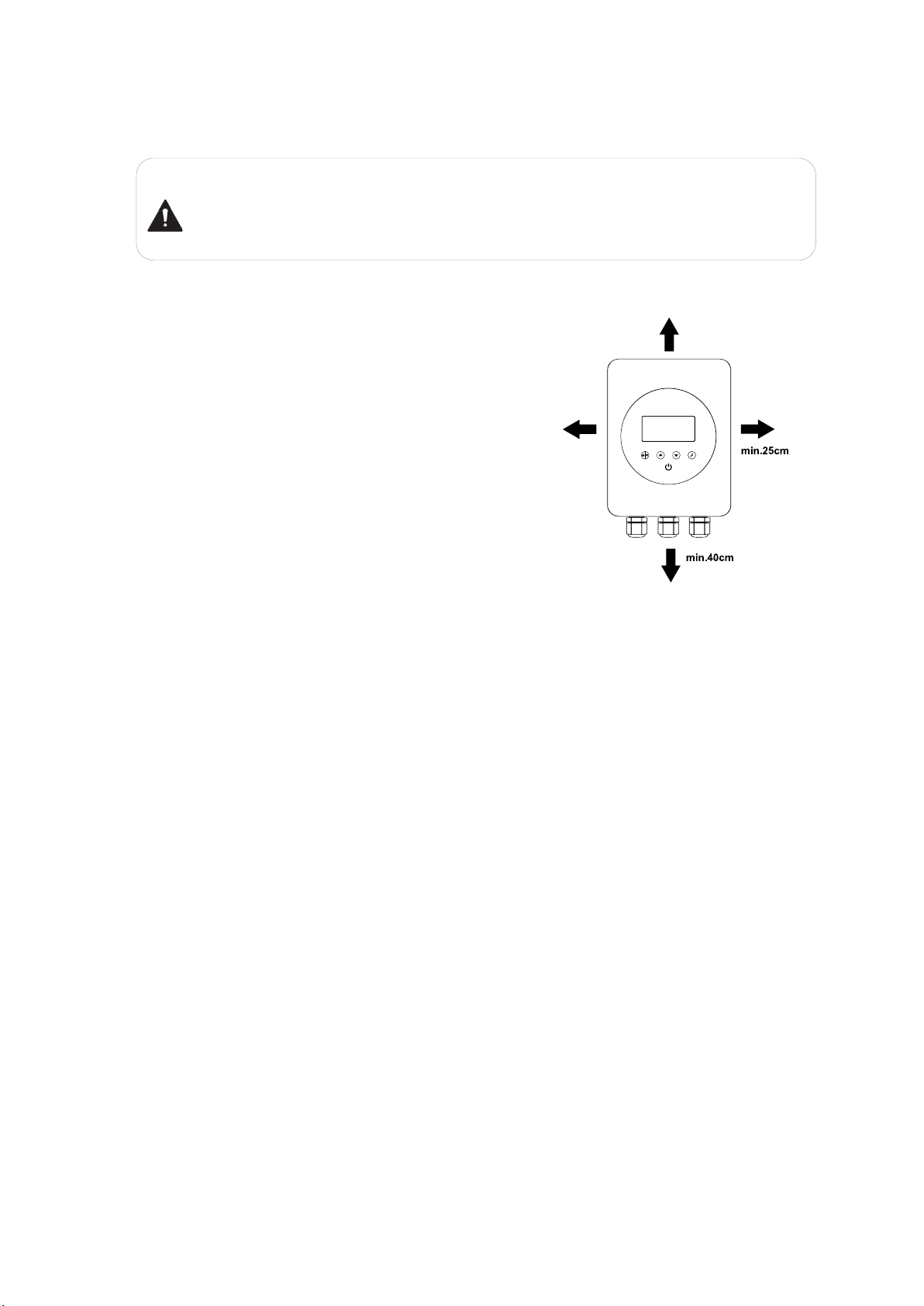

For efficient cooling, please make sure it is installed with a
minimum clearance surrounding it (Fig2)
Blocked ventilation or an enclosed space with limited air
flow may cause overheating or potential operational failure
of the inverter.
Fig. 2
4.
CONNECTING TO POOL PUMP
Please follow these steps and the wiring diagram for correct connection. The warranty may be
compromised if the device is not installed in accordance with instructions described in this
manual.
Only ONE pump can be connected to the inverter. Please do not connect any other appliance
to the output.
Mark the hole locations on the wall, drill and insert the expansion plugs supplied, fit the screws
and hang the device on the screws.
4.1 Turn off all electrical supply to the pool pump, unplug it from the main switch or at the
chlorinator which provides electrical power to the pump.
4.2 Plug the pool pump into the device’s power outlet (marked PUMP CONNECTION ONLY).
4.3 Plug the device into the main switch/chlorinator/timer connection where the pump was
originally plugged into.
4.4 Switch all power back on.
4.5 Ensure chlorinator/timer is active.
4.6 Now the device is ready to operate.

3
Fig. 3
Above figure is for reference only, plug & socket may vary for different countries/regions.
If you do not require a power plug for installation, wire the device as shown in Fig.4, please.
Fig. 4
Do not touch the heat sink while the device is in operation or until at least 30 mins
after it has been switched off. Keep it out of reach of children.
Because of high voltage conversion components contained in the device, do not try
to disassemble or replace any components in case of malfunction or breakdown.
Before serving on the unit, wait till the power light turned off or at least 3 minutes
after power plug has been plugged off from input supply.
Power plug Pump socket
12mm
Screw
Screw
Power Cable
Power source
220~240VAC,
1ph,50Hz
Breaker
(Customer prepare)
Earthing
Expansion plug

4
5. SETTINGS & OPERATION
5.1 Control panel
5.2 Mode selection
The frequency inverter has 3 modes(speed ranges).You can either run your pump at a constant
speed choosing from “M” or set up to 4 timers for daily operation, each with an individual speed.
Mode Speed range Default speed
Night (Low) 1200~1650 rpm 1400 rpm
Day (Medium) 1700~2400 rpm 2000 rpm
Backwash(High) 2450~2900 rpm 2900 rpm
① When plugged in, lights up, hold for 3
seconds to unlock the screen. Press to start.
② Upon starting, pump will run at maximum speed of
2900 rpm for one-minute self-priming. (This can be
increased to 10 minutes – see Parameter settings
Section 5.5)
③ Press to choose a running speed, use or
arrows to adjust by 50rpm to a specific running
speed if required.
Once the pump has finished priming, the inverter will automatically switch the pump to the
pre-set speed, indicates the pump is running and showing current rpm and power
consumption.
5.3 Timer setting
To run the pump at a different times or speeds to take advantage of lower electricity tariffs
Power Consumption
Speed in rpm
Day/Night/Backwash
(Low/Med/High speed)
Lock/Mode
On/Off
Current time
Timer on/Timer off
Increase/Decrease
Timer

5
during the night, you can set up to 4 timers.
Step1: Press to enter timer setting
Step2: Use or to set current time. Press
to move cursor to the next setting. Press to
choose a speed range for timer 1, use or
to decide on a specific speed if required. Press
to move cursor to previous setting.
Step3: Repeat the above steps to set the other 3 timers
Step4: Hold for 3 seconds or wait 10 seconds to save settings automatically.
A flashing indicates the device is waiting for start time.
Step5: press or to check all 4 timers to ensure there are no invalid setting.
Note:
* If inactivate for 1 minute, the screen will lock automatically. Hold for 3 seconds to
unlock the device.
* The device has power-off memory, operation will resume upon power restoration.
* Under OFF mode, hold for 3 seconds to retrieve factory setting.
5.4 External control
External control can be enabled via the following contacts. However, even if it’s working via an
external controller, Pressing can stop the device.
Please do not apply voltage to these inputs.
Fig 5
E.g.: To enable external speed control via digital input, connect one of the digits from Di2/3/4
to COM.
DIGITAL INPUT
ANALOG INPUT RS485
RELAY
OUTPUT
* Any overlapping of timer periods will be considered as invalid and the device will only run
based on the previous valid timer setting.
* During timer setting, if you want to abandon it, hold for 3 second.

6
5.5 Parameter setting
Under OFF mode, hold for 3 seconds to enter parameter settings.
Parameter Description Default setting Setting range
1 Priming time 1 minutes 1~10min, by 1 minute increments
2 Minimum RPM 1200rpm 1200~2000rpm, by 100rpm increments
6. PROTECTION & ERROR CODES
Item Code Description Analysis
1 E001 Abnormal input voltage Not faulty
2 E002 Output over current Not faulty
3 E101 Heat sink over heat Contact your supplier
4 E102 Heat sink sensor error Contact your supplier
5 E103 Master driver board error Contact your supplier
6 E201 Circuit board error Contact your supplier
7 E202 Master board EEPROM reading failure Contact your supplier
8 E203 RTC time reading error Contact your supplier
9 E204 Keyboard EEPROM reading failure Contact your supplier
10 E205 Communication error Contact your supplier
11 AL01 Auto speed reduction against high temperature Contact your supplier
Note:
1. AL01 is not an error indication: when it appears the inverter will automatically switch to a
lower speed to self protect against high internal temperature. When the temperature drops
back to 65 the℃ inverter will resume at the preset speed.
2. When causes for E002/E101/E103 lifts, the device will resume working automatically,
however when it appears a fourth time, the device will stop working, to resume operation,
unplug the device and plug in & restart again.
7. EXCLUSIONS
Under no circumstances should the manufacturer be held liable for any consequences
resulting from inappropriate, incorrect installation, or mismatching of the product to pool
pumps that are not compatible.
Manufacturer reserves the right to change the specification of the product or its performance
or the contents of the User Guide without notice in case of technical upgrade.
8. WEEE LEGISLATION
When disposing the product, please hand it over to a designated collection
point for the recycling of waste electrical and electronic equipment.
The separate collection and recycling of waste equipment at the time of
disposal will help ensure that it is recycled in a manner that protects human
health and the environment. Contact your local authority for information on
where you can drop off your water for recycling.
