AquaLutio AL-1118 User manual

USER MANUAL 1
|
USER
MANUAL
Ruerse Osmosis
System
AL-1118

USER MANUAL
2|
e following tools may be necessary, depending on
each particular installation.
Electric Drill - 1/4" Drill Bit 6" Adjustable Wrench Phillips Screw Driver
Teflon Tape
Plastic Tubing Cutter
»Operating pressure: 85psi maximum
»Feed water temperature: 40 – 100 degree F (4-37 degree C)
»Do not connect this unit to hot water source
»Install the RO in a sheltered environment, avoid exposure to
hot and cold weather or under direct sun light.
Operating Parameter

USER MANUAL 3
|
STORAGE
TANK
MACHINE
MAIN UNIT
FILTER
HOUSING
DRINKING
FAUCET
FILTER
CARTRIDGES
DRAIN
SADDLE
WATER
FEEDER
PLASTIC
TUBING
TANK
VALVE
HOUSING
WRENCHES
Components included with the RO system:
Make sure you have all these parts before starting installation.
Parts List

USER MANUAL
4|
STEP
1
Turn off the Cold Water Line
via the Cold Water Shutoff
Valve (CWSV) under the sink.
Open the kitchen faucet to
release pressure and make
sure water has stopped before
proceeding to the next step.
Get a towel or bucket to catch
water spill. Disconnect Kitchen
Faucet Connector (KFC) pipe
from CWSV.
1) Check Oring inside AFW
female end, and twist it
onto CWSV. Tighten it up
using wrench or pliers.
2) Twist KFC onto the male
end of AFW. Turn the
handle of AFW to cross
(OFF) position. Turn on
CWSV slowly, check and
x any leaks.
DO NOT OVERTIGHTEN AS IT MAY CRACK AND LEAK
Install Feed Water Adapter (AFW)

USER MANUAL 5
|
STEP
2

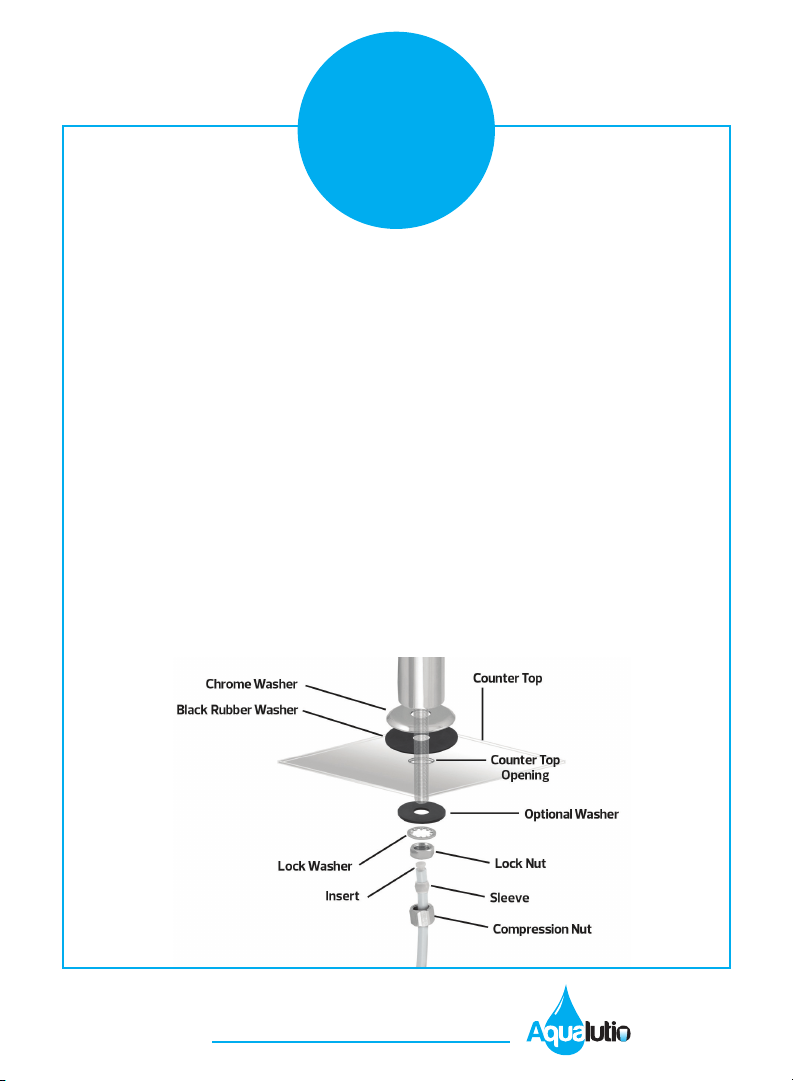

1) If your kitchen sink does not have an existing 1/2
inch hole, you will have to drill one. (Refer to: video
How to drill a Hole on Sink or Countertop). Wipe
clean and dry the area.
2) Slip the front plate on the faucet stem, followed by
the rubber washer. Insert the faucet stem into the
hole on countertop
3) Under the sink, slip on the back rubber washer,
tighten the nut with plastic wing.
4) Screw the tubing adapter on to the faucet stem.
Insert the tubing 1/2 inch deep into the Pushin tting.
Install Drinking Water Faucet

USER MANUAL
6|
STEP
3

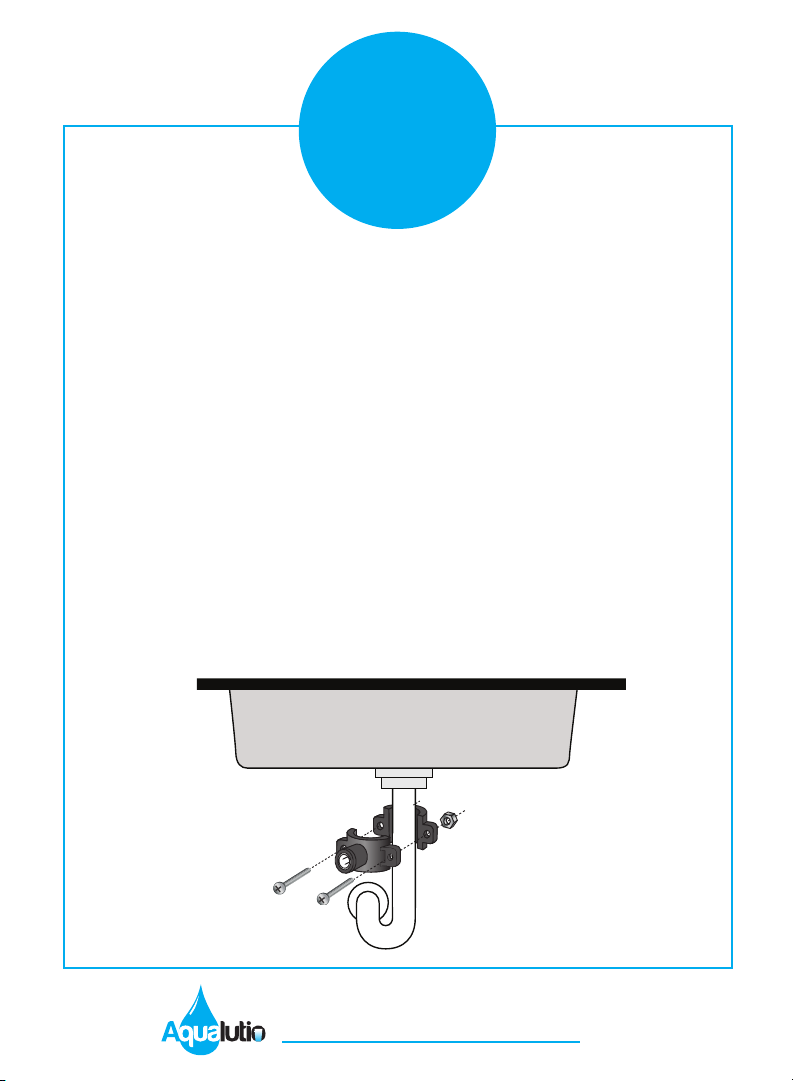

1) Choose a spot on the drain pipe that is convenient
for installing the drain saddle and tubing. It is
recomended that you install the pipe horizontally to
minimize dripping sounds.
2) Drill a 1/4” hole on the drain pipe (Drill at point
approximately 6 inches above the trap);paste the
black sticky pad around the hole.
3) Install the back plate and tighten the two screws with
hex nuts while the tubing remains in the hole.
4) Tighten the nut securing the black drain line the
Drain Saddle by hand. Pull the tubing to check if it is
secure. Do not over tighten.
Install Drain Saddle

USER MANUAL 7
|
STEP
4
1) Stand the 3 housings upright. Make sure each
housing has a rubber O-ring in its groove.
2) Put the Essence sediment lter into the “1st stage”
housing on the right.
3) Put the Essence carbon lters into the “2nd and 3rd
stage” housing in the middle and left.
4) Starting from the 3rd stage housing on the left, hand
twist the housing onto the main system turning
counterclockwise, one by one, for all 3 housings.
Use the wrench provided to completely tighten the housing
starting from 1st-stage. Repeat this step for the 2nd stage
housing in the middle, and for the 3rd stage housing on
the left.
Install Filters
WRENCH

USER MANUAL
8|
STEP
5
The RO membrane is preserved in a sealed bag. Firmly
insert the membrane into the housing.
The smaller end with two black Orings should be
inserted rst, Push in until the back end is even with the
housing opening.
Check that the Oring is placed securely on the
membrane housing (cap does NOT have Oring).
Hand tighten and then using a small plastic housing
wrench tighten 1 /4 – 1 /2 turns, being careful not to
over tighten.
Install Reverse Osmosis Membrane
WRENCH

USER MANUAL 9
|
STEP
6
Apply Teon tape onto the threads of the tank nipple.
Screw the connector onto the tank making sure to avoid
cross threading. The connector only needs to be hand
tight (DO NOT OVER TIGHTEN) and should thread on
easily. Put the tank in place.
Tank Setup
CONNECTOR
Apply Tape
Do Not Touch
STEP
7
Place the system and the water storage tank in an area
under the sink so they are out of the way.
Unit Location

USER MANUAL
10 |
STEP
8
Cut the tubing in 4 pieces to make 4 connections. Make a
straight clean cut (recommended to use a cutter)
1) Locate the red plastic nut and connect to the water
supply, The side to the red plastic nut is a Quick-
Connect see page11, the other side AFW is not a
Quick-Connect its a compression tting. Unscrew
the nut and slip it onto 1/4" tubing. Insert the tubing
into the AFW (the T), push in rmly and then screw
and tighten the nut with your hands. Use wrench for
nal 1/4 turns.
2) Locate the black plastic nut and before connecting
to the drain cut the tubing end a 45 degree angle,
then Insert the tubing all the way into the 1/4” hole
on the drain pipe. (Quick-Connect see page 11)
3) Locate the yellow plastic nut and connect to the tank
(Quick-Connect see page 11)
4) Locate the blue plastic nut (Quick-Connect see
page 11) and connect to the faucet (see page 12)
System Hook Up

USER MANUAL 11
|

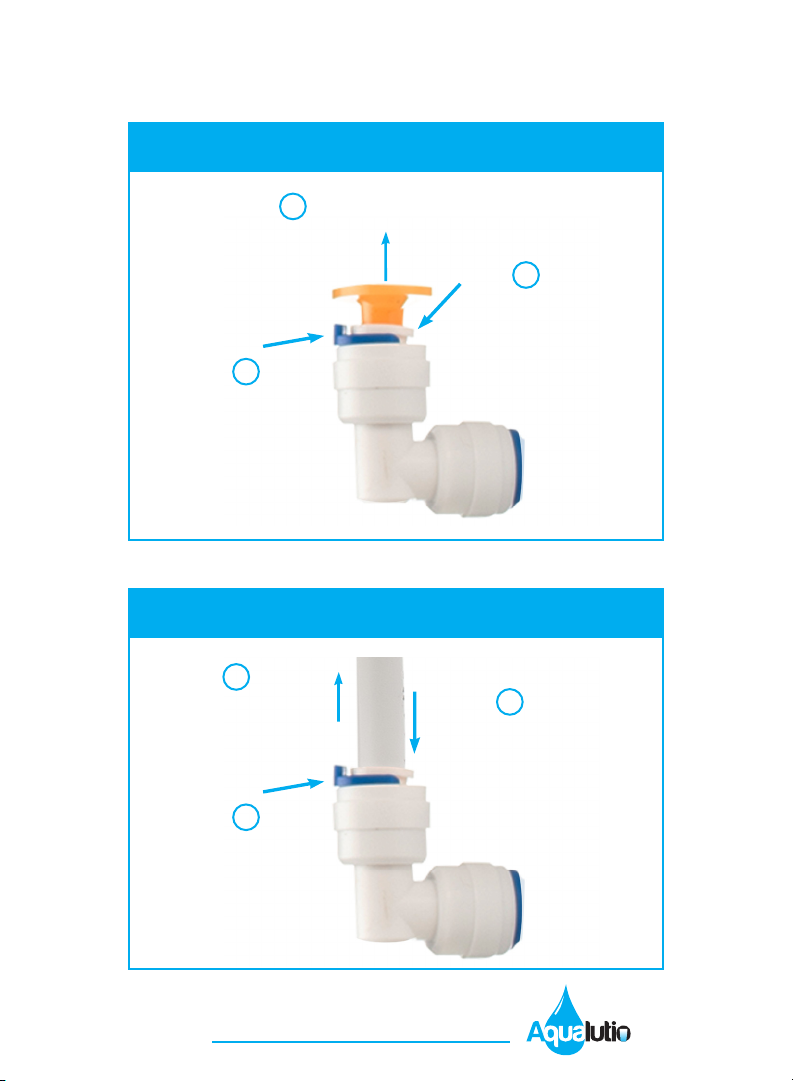

Remove lock clip
Remove lock clip
Press down and hold on lock
sleeve to elimiate the gap
occupied by lock clip
Insert the tubing all the way
(about 5/8" or more)
While pressing dowen lock
sleeve to unlock the plastic
nut, pul out the plastice nut
Pull the tubing to check
secure, when pulling the
tubing and its not coming
out insert the blue lock clip
1
1
2
2
3
3
How To Remove a connection
How to insert a (Quick Connect) Connection

USER MANUAL
12 |
Insert
Sleeve
Metal Nut
Tube
Important! Use plastic sleeve and
inserts on the plastic tubing we provide.
Do Not use metal sleeve or insert on
plastic tubing or the connection will
leak!
How to connect: Slide the compression
nut onto the tubing. - Slide the plastic
sleeve onto the tubing. - Insert the
“insert” into the tubing. - Insert the
tubing into the opening of the tting. -
Slide the brass nut up, then tighten nut
with a wrench. No Teon tape! (Use
Teon tape if connecting metal tubing.)
Faucet Setup
RO-FlowChart

USER MANUAL 13
|
STEP
9
1) Turn off the storage tank ball valve, this will
ensure no water can enter the tank. Slowly
turn on the cold water supply valve to the
sink. If you have not already done so, open
the valve of the cold-water self-piercing valve
(turn counter clockwise to open). Check for
any leaks around the valve. If any leaks are
detected turn off cold water supply valve and
make necessary repairs.
2) Open the reverse osmosis faucet on the sink.
You will hear a gurgling noise. This is normal
air being cleared from the system. It will take
approximately 10-15 minutes before you
actually see water dripping from the reverse
osmosis faucet. (Flip the faucet handle on to
keep the faucet open during this time.) The
initial water dripping from the faucet may be
black in color; this is the water ushing carbon
nes from the carbon post lters. Allow the
water to drip from the faucet for 10-15 minutes
then close the faucet.
Starting Up the System

USER MANUAL
14 |
3) Now open the ball valve on the reverse
osmosis storage tank, which will allow the tank
to ll. This will take approximately 4-10 hours.
During this period of time check all ttings for
any leaks. If any leaks are found turn off cold-
water line and make the necessary correction.
Once the tank is full open the faucet and drain
the system completely (until you are getting
only a drip from the faucet). Shut the reverse
osmosis faucet off and allow the system to re-
ll.
4) It is recommended on new installations that
you drain the system 3 times prior to use.
5) Make a daily check for any leaks during the
rst week after installation and check for leaks
occasionally thereafter.

USER MANUAL 15
|
1st
2
nd
3rd
4th
5th
1st
STAGE
2nd
STAGE
3rd
STAGE
4th
STAGE
5th
STAGE
Sediment Filter
Removes dust, particles, and rust.
Carbon Block
Removes chlorine, tastes, odors, cloudiness,
colors, VOCs and other chemicals.
Carbon Block
Further removes residual chemicals, tastes
and odors, guarantee purty.
RO Membrane
US Made. High Rejection, removes up to 99%
of contaminants including arsenic, lead fluoride,
heavy metals, and much more.
Inline Carbon Filter
Removes any possible tase & impurity from the tank.
STAGE
GUIDE
STAGE FILTER NAME REPLACE
1 Sediment Filter 6 MONTHS
2 Carbon Block 6 MONTHS
3 Carbon Block 6 MONTHS
4RO Membrane
Membrane
1-2 YEAR'S
depends on the quality
water of the local town
5 Inline Carbon Filter 12 MONTHS

For information or replacement call:
888.798.2070
