Technical Information
Use onlyAquaManta Genuine Spare Parts. See your localAquaManta dealer and look for the number listed
below for the spare part you require. Alternatively you will nd these numbers on the silver label located
on the product.
Replacement Parts
• Before operating the appliance, please read this manual carefully and keep it properly for future reference.
• Follow the instructions and the “important safeguards” in this manual before use.
• Please be aware of the guarantee conditions which are found at the end of this section of the instruction booklet.
This product is shipped to you in a factory sealed carton. Should the product malfunction in any way or if the unit
is damaged and requires replacement, contact the retailer where the product was purchased for inspection.
• Do not discard packing material until the product has been assembled.
MODEL:
MAX. AQUARIUM
VOLUME:
MAX FLOW RATE:
WATTAGE:
NUNBER OF MEDIA
CHAMBERS:
IFX 50
50L
200L/hr
2.6W
2
IFX 100
100L
600L/hr
7.1W
2
IFX 200
200L
1000L/hr
10.8W
3
MODEL:
IMPELLER:
15ppi SPONGE PAD:
PHOSPAD:
CARBON MODULE:
IFX 100
001i
001w
003s
001s
IFX 200
002i
003w
007s
005s
IFX 50
002i
003w
007s
005s

ENGLISH
DEUTSCHFRANCOIS
NEDERLANDS
ESPAÑOL
PORTUGUÊS
ITALIANO
中文
5
To guard against injury, basic safety precautions should be observed, including the following:
1. Read and follow all safety instructions and important notices in these instructions as well as on the product
itself.
2. This appliance is not intended for use by children or inrm persons without supervision. Young children should
be supervised to ensure that they do not play with the appliance.
3. To avoid possible electric shocks, special care should be taken since water is employed in the use of aquarium
equipment. For each of the following situations do not attempt repairs yourself. Return the appliance to an
authorised service facility for service or discard the appliance.
a. If the appliance or any electrical component of the appliance (non-immersible equipment only) falls into the
water or gets wet, do not reach for it. Unplug it and then retrieve it.
b. If the appliance shows any sign of abnormal water leakage, immediately unplug it from the power source.
c. Carefully examine the appliance after installation. It should not be plugged in if there is water on parts which
are not intended to be wet.
d. Do not operate the appliance if it has a damaged cord or plug, or if it is malfunctioning, or dropped or damaged
in any manner.

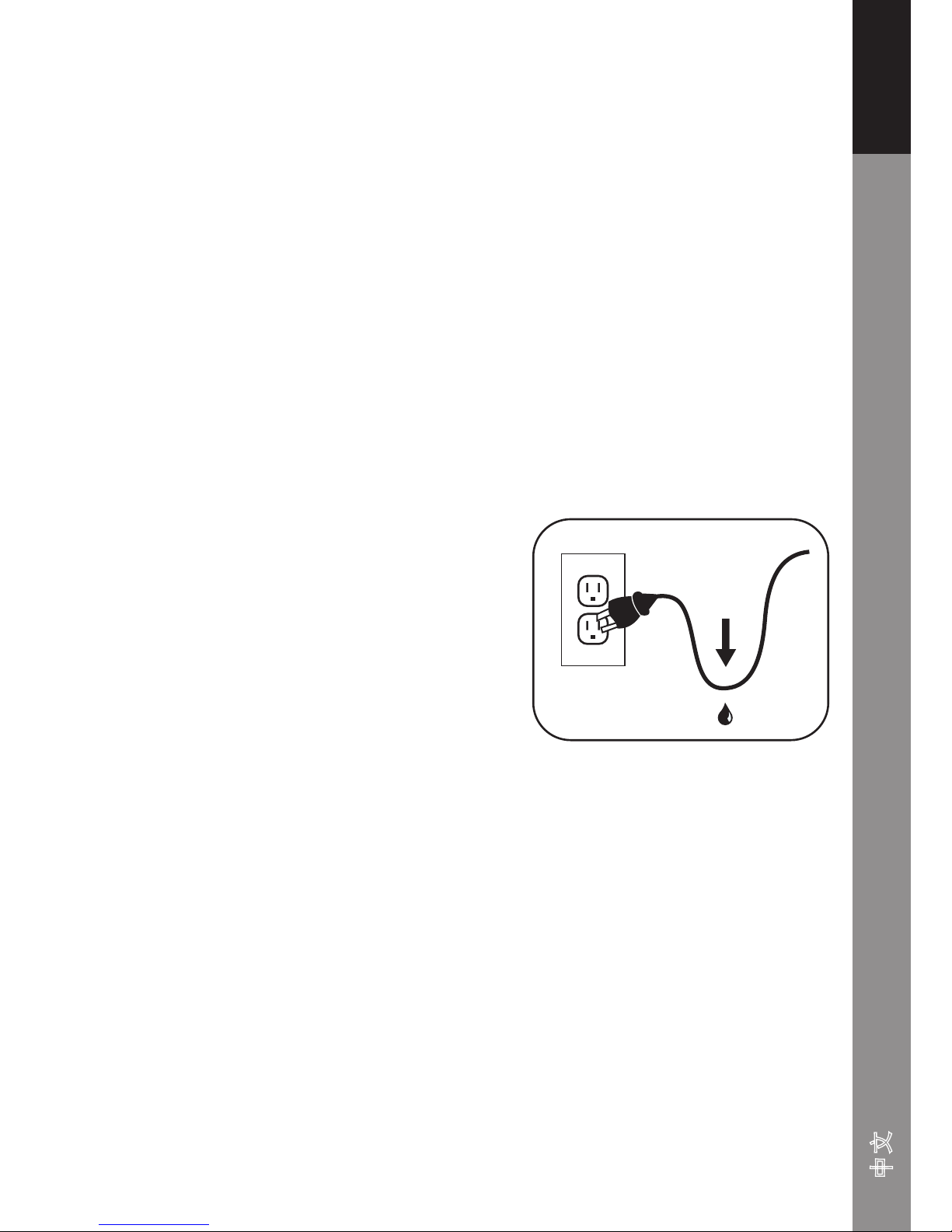

4. A “drip loop” (see graphic) should be arranged for each cable connecting an aquarium to a power supply. The
drip loop is the part of the cable below the level of the power
supply. It prevents water travelling down the cable and coming
into contact with the power supply. If the plug or the socket does
get wet, do not unplug the appliance. Disconnect the fuse or
circuit breaker that supplies the power to the appliance, then
unplug and examine for presence of water in the socket.
5. Always unplug the appliance from the electrical outlet when
not in use, before putting on or taking off parts, before any type
of maintenance or cleaning.
6. Never yank the cable to pull it from the socket. Pull the plug
carefully to disconnect.
7. Do not use the appliance for reasons other than the intended
use. The use of attachments that are not recommended or sold by the manufacturer may cause the product to be
unsafe. This is not recommended.
8. Do not install or store the appliance where it will be exposed to weather or temperatures below freezing.
9. Make sure any component mounted on a tank is securely installed before operating it.
10. Ensure input voltage is the same voltage as your local power supply.
11. If an extension cable is used it should have the proper rating. Care should be taken to arrange the cord so that
it will not be tripped or pulled.
12. A G.F.C.I (Ground fault circuit interrupter) & surge protector is recommended for all electrical appliances.
13. Ensure your hands are dry when turning the power switch on/off and when inserting/removing the power cable
from the socket.
14. If you are in any doubt about the electrical installation or safety of this product you must consult a qualied
electrician.
Important Safeguards

ENGLISH
DEUTSCHFRANCOIS
NEDERLANDS
ESPAÑOL
PORTUGUÊS
ITALIANO
中文
6
Know Your Filter
15ppi Sponge
Phosphate Sponge
Carbon Module
Media Container 1
Media Container 2
Spray Bar and elbow
Pump Chamber
Media Container 3
(only model 200)
IFX 50 IFX 100 IFX 200

ENGLISH
DEUTSCHFRANCOIS
NEDERLANDS
ESPAÑOL
PORTUGUÊS
ITALIANO
中文
7
Installation
1. Open the lter unit
2. Take the lter apart exposing media containers
3. Remove lter media from media container and rinse in tap water to remove excess dust. Rinse the inside of the
media container in tap water too. DO NOT USE ANY SOAPS OR DETERGENTS.
4. Once all lter media and media containers have been washed insert all the lter media back into the media
container in the correct order
5. Connect the elbow and spray bar to the lter for a more dispersed ow.
6. Attach the lter inside the aquarium in the desired location. Ensure the lter is not resting on the substrate nor
is it above the water level (straight outlet and spray bar may be above water level).
7. Plug lter into the power outlet and switch on.

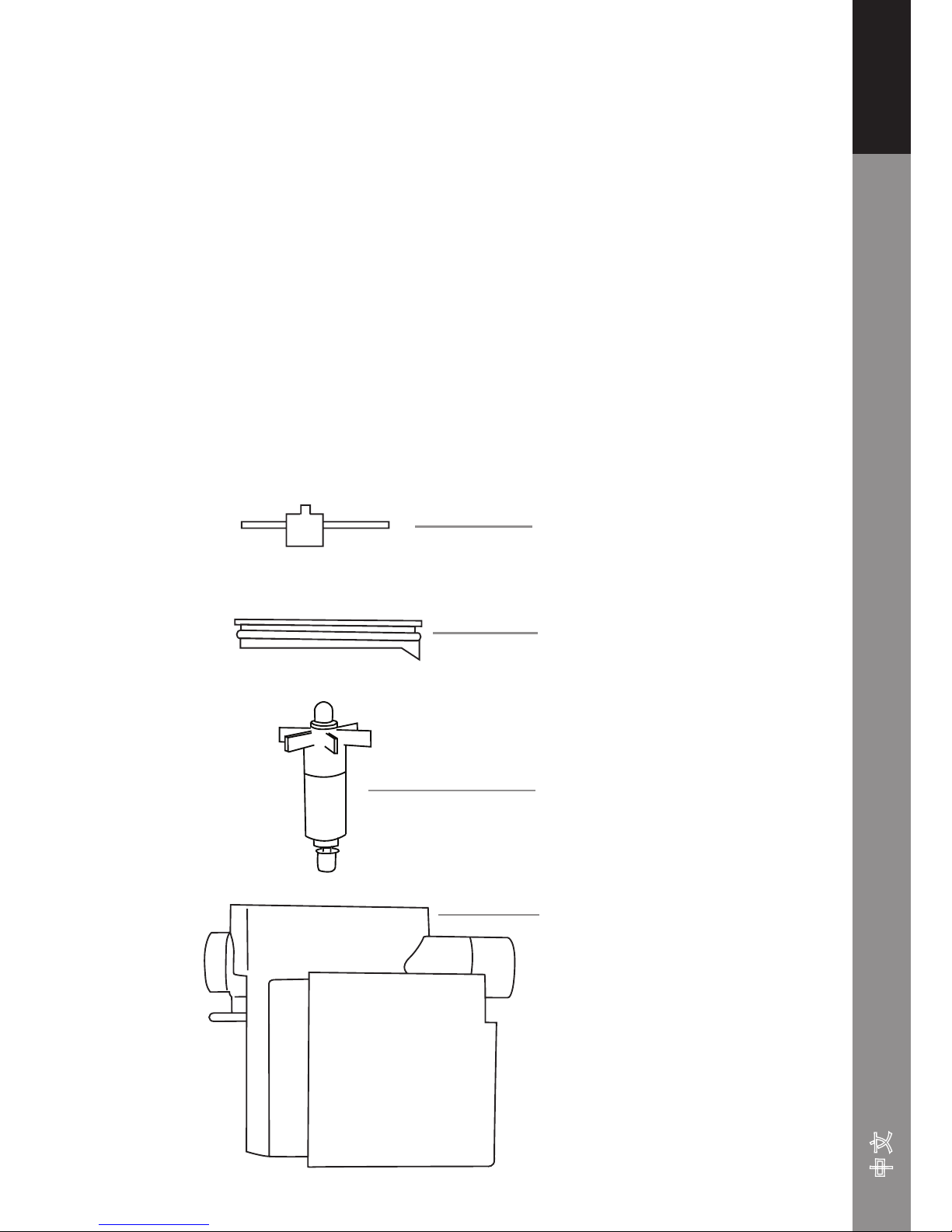

Accessing the impleller
Pump
Imepller
Imepller Cover
Imepller Cover Lock

ENGLISH
DEUTSCHFRANCOIS
NEDERLANDS
ESPAÑOL
PORTUGUÊS
ITALIANO
中文
8
Maintenance
1. Unplug lter from power outlet and remove from aquarium. Take the lter to a sink.
2. Remove the cartridge cap allowing access to the rst media chamber.
3. Remove the sponges and rinse thoroughly in aquarium water. It is important not to wash the sponge too thoroughly
and never wash it in tap water. Sponges should be replaced when there is noticeable deterioration. Phosphate
Sponges should be replaced every 4-6 weeks.
4. Remove the carbon module. These should be lightly rinsed in aquarium water. The carbon cartridge should be
replaced every 6-8 weeks.
5. Following the diagram in page 7, remove the impeller from the pump. Wash the impeller thoroughly every
4-6 weeks and clean the impeller chamber (inside the motor) using an Aqua One double ended pipe brush (sold
separately).
6. Reassemble the lter and place the lter back inside the aquarium.
7. Ensure your hand is not wet and there is no water on the electrical plug. Plug the lter into the power outlet
and switch on.
FILTER WILL NOT START
1. Check that the power outlet is switched on and the lter is plugged in.
2. Check that the impeller and shaft are in good condition. remove pump from pump chamber and turn the power
on to check if the impeller is running.
Disposal of used Electrical & Electronic Equipment
(Applicable in the European Union and other
European countries with separate collection
systems)
This symbol on the product or on its
packaging indicates that the product
must not be disposed of with normal
household waste. Instead, it is your
responsibility to dispose of your waste
equipment by arranging to return it to a designated
collection point for the recycling of waste electrical
and electronic equipment. By separating and recycling
your waste equipment at the time of disposal you will
help to conserve natural resources and ensure that the
equipment is recycled in a manner that protects human
health and the environment. For more information
about recycling this product, please contact your local
city ofce, your household waste disposal service or
the shop where you have purchased the product.
Troubleshooting

ENGLISH
DEUTSCHFRANCOIS
NEDERLANDS
ESPAÑOL
PORTUGUÊS
ITALIANO
中文
9
Guarantee
The additional 1 Year Extended Guarantee applies when you REGISTER online
with AquaManta. Register your Extended Guarantee at www.aquamanta.co.uk
About this Guarantee
The Manufacturer or Distributor, of AquaManta goods, is collectively known herein as “AquaManta”. Please refer to contact details for
AquaManta below or on the applicable AquaManta website. Any product that is covered by its own Guarantee (as enclosed with the
product) is subject to the conditions of that Guarantee.
The benets given to the purchaser, under Guarantee, are in addition to all other statutory rights and remedies which the purchaser has
in respect of goods under legislation in the applicable country of purchase. This Guarantee shall not affect any such rights and should be
read subject to such legislation.
1.0. Terms and Conditions of Guarantee.
1.1. AquaManta warrants to the purchaser, for 2 Years from date of original purchase, to repair or replace goods where fault is found due
to defective materials or faulty workmanship and where goods do not operate in accordance with the instructions.
1.2. All claims for repair or replacement must be made at place of purchase.
1.3. The original and dated Proof of Purchase (receipt) must be supplied with all goods claims. Please also provide this Guarantee where
possible.
1.4. The Guarantee covers the Aquarium against gluing breakdown resulting in leakage.
1.5. All goods subject to claim under Guarantee should be prepared for transportation in the original packaging or other comparable
packaging which offers the same degree of protection.
1.6. Where goods are repaired or replaced under Guarantee, these goods are Guaranteed for the remainder of either the original
Guarantee or Extended Guarantee period.
1.7. Where claims on inspection reveal goods are in normal working order, AquaManta will request reimbursement of all reasonable costs
incurred.
2.0. Other Terms and Conditions – Extended Guarantee
2.1. The Extended Guarantee period is for an additional 1 Year and commences on expiration of the standard guarantee period.
2.2. Application for Extended Guarantee is FREE of any registration cost to the purchaser on completion of the Extended Guarantee
questionnaire which is found on the applicable AquaManta website (refer below).
2.3. Upon receipt and acceptance of the questionnaire, AquaManta will forward (by way of email) a Certicate of Extended Guarantee
to the purchaser.
2.4. For more information on how we collect, hold, use and disclose personal information provided to us, please refer to our Privacy
Statement on the AquaManta websites or write to our Privacy Ofcer, in your country of purchase.
2.5. Where AquaManta determines goods are being used in a manner contrary to the instructions, specications or this Guarantee,
AquaManta reserves the right to terminate Extended Guarantee for such goods and will provide written notice to the purchaser.
3.0. Exclusions and Limitations
Where permitted by local law, the following exclusions and limitations apply in regard to Guarantee:
3.1. Goods claims where fault is due to, but not limited by a) misuse b) neglect c) abuse d) re or ood e) normal wear and tear f)
accidental breakage g) Acts of God h) mains voltage uctuation or supply problems i) connection to any voltage other than what is
stated on the rating plate j) modication or tampering to electrical cord or plug, k) vermin, insects or foreign object l) liquid spillage or
submersion of goods not designed to sustain such use or duress.
3.2. Where inspections reveal goods are in normal working order including where noise or vibration is consistent with normal goods
operation.
3.3. Attempted repairs or modications by unauthorised persons, including but not limited to the drilling of holes in the aquarium glass
by unauthorised persons.
3.4. Where the goods factory rating plate has been removed, altered, damaged or is rendered illegible.
3.5. Where goods are not installed, operated or maintained in accordance with AquaManta’s goods instructions, specications or this
Guarantee.
3.6. Replacement or repair of worn consumables or replacement of lost goods, parts or components.
3.7. Costs associated with goods transportation, removal, installation, postage or cost of insurance.
3.8. Any damage incurred whilst installing, transporting or moving the goods.
3.9. Subject to certain local statutory rights and obligations to the contrary, and this guarantee shall not affect those rights or obligations,
where, to the full extent permitted by law: 1. all express and implied warranties and conditions under statute or general law, are
expressly excluded and AquaManta, where permitted, will limit liability as follows and at AquaManta’s option to: in regard to goods
either a) the replacement of goods or supply of equivalent goods b) the repair of goods or the cost of replacing the goods or of acquiring
equivalent goods OR in regard to services either c) the re-supply of services d) the cost to re-supply services.
2. AquaManta will not be liable for any loss or damage, including consequential loss or damage either directly or indirectly, or for any
incidental expenses, of any kind, and in any way whatsoever.
(1) Consumables include items such as lter media/cartridges, impellers and shafts.
The additional 1 Year Extended Guarantee applies when you REGISTER online with AquaManta. Register your Extended Guarantee at
www.aquamanta.co.uk
AquaManta can be contacted at:
Kong’s (UK) Limited, Unit 10 Oriana Way, Nursling Industrial Estate
Southampton, SO16 OYU, United Kingdom
Local distributors of AquaManta products can be found at www.aquamanta.co.uk

10
the experts in aquatic technology
aquamanta
TM
Manufactured in China
AquaMantra and Kong’s are registered
trademarks of Kong’s (Aust.) Pty Limited.
www.aquamantra.com.au
Instruction version: 05/05/2011
