1 Introduction
This guide will help you use the OMNI MAX Scanner to identify pets. An overview of the basic functions and
settings is provided.

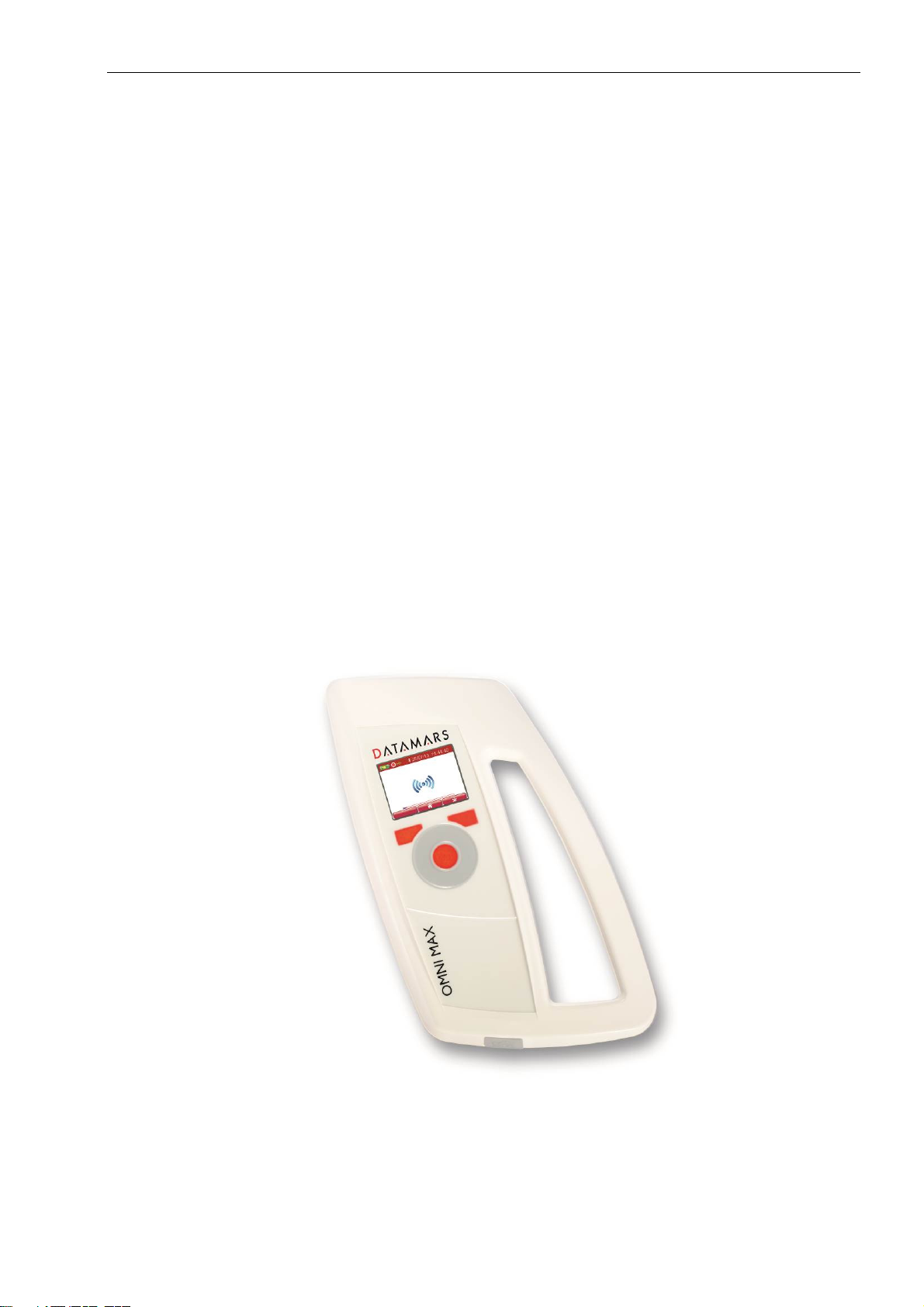

1.1 A Description of the OMNI MAX Universal Scanner
OMNI MAX is the newest, portable, universal reader from Datamars with the strongest feature-set of any
microchip reader available, making it a perfect fit for animal identification in any environment.
OMNI MAX is able to read FDX-B (ISO), FDX-A/FECAVA, Trovan, and either HDX ISO or Avid encrypted,
depending on the reader version. From puppies and kittens to seniors, from pocket pets to horses, indoors
and outdoors – OMNI MAX delivers the identification you need.
OMNI MAX has an innovative antenna that runs along the full perimeter of the reader, greatly increasing the
read field for fast and easy scanning. This larger, wider read field improves the read distance and time –
which are critical to making an identification. With OMNI MAX, Datamars delivers the most modern available
technology to ensure the fastest possible microchip ID with every read.
Connect OMNI MAX to your computer via USB or optional Bluetooth wireless. The keyboard wedge allows
microchip IDs to be transmitted directly to your computer, tablet or smartphone and any other Windows or
Mac compatible application as if typed by a keyboard, eliminating the possibility of transcription errors.
Communication with your computer, as well as updating the scanner firmware can be managed through the
S-ID software tool, available for download at www.datamars.com.
OMNI MAX improves the speed and reliability of animal ID for veterinarians, shelters, and animal control
officers around the world. OMNI MAX is delivered in a practical carrier box, including quick start guide, USB
cable and power supply.

OMNI MAX - User Guide
© 2014 Datamars SA. All rights reserved. Page 3 of 20
2 OMNI MAX Basics
There are three menus:
•HOME MENU used to start or stop a reading session:
•MAIN MENU used to set volume, brightness, calendar and to access the info menu:
•ADVANCED MENU used to select additional, advanced settings:
osingle read vs. continuous read,
oenable/disable recording of microchips,
oUSB mode,
oselect 15/23 digit microchip format,
oaccess memory folders,
oset/connect optional Bluetooth mode (only if Bluetooth model was purchased)
2.1 How to switch OMNI MAX on and off
Switching On The Scanner
oPress the “on” button, which is located in the center of the scroll-wheel for two seconds.
oThe Home menu will appear:

OMNI MAX - User Guide
© 2014 Datamars SA. All rights reserved. Page 4 of 20
Switching Off The Scanner
oPress the right navigation button ( ) located on the Home menu to access the Main menu.
oOnce in the Main menu, press the left navigation button that contains the following icon: .
2.2 Accessing the Main Menu
oOnce the reader is switched on, press the right navigation button to access the Main menu.
oRotate the scroll-wheel clockwise or counter-clockwise to access menus and settings:
1. Volume
2. Brightness
3. Time
4. Calendar
5. Info
2.3 Accessing the Advanced Menu
oOnce in the Main menu, select the Advanced Settings icon .
oRotate the scroll-wheel clockwise or counter-clockwise to access menus and settings:
1. Single or continuous reading
2. Microchip Recording
3. USB Mode
4. 15/23 Digit Microchip Format
5. Memory & Storage
6. Bluetooth (if Bluetooth model was purchased)

OMNI MAX - User Guide
© 2014 Datamars SA. All rights reserved. Page 5 of 20
3 Using OMNI MAX To Scan Microchips
3.1 Scanning a Microchip
Correctly hold the scanner as shown:
Make sure the reader is on.
Hold OMNI MAX in close proximity to the animal to be scanned, and then press the “on” button located in the
center of the scroll-wheel.
Once the reader is scanning you will see the scanning icon appear on the screen.
OMNI MAX will give an audible sound and you will hear a “beep” when the scanner successfully detects a
microchip.
To cancel or stop scanning, press the “on” button located in the center of the scroll-wheel.
Effective Scanning

OMNI MAX - User Guide
© 2014 Datamars SA. All rights reserved. Page 6 of 20
■Hold the scanner close to, or touching the animal
■Scan slowly and repeatedly over the entire body to ensure whether or not a microchip is present
■Wave the scanner back and forth lightly while scanning, because microchips can be in various orientations
within the animal
■Scan first in a horizontal, then a vertical “S” pattern down the animal’s body, as shown in the diagram
below
■Consider scanning each animal more than once to ensure any present microchip can be localized by the
scanner
Which Microchips Is OMNI MAX Able To Scan?
The OMNI MAX universal scanner can detect the following microchips:
Microfindr™ Datamars™
PetLink™ Bayer resQ®
24 Pet Watch™ AKC CAR/EID™
Αllflex® Avid™
Banfield® Crystal Tag™
Destron Fearing™ Digital Angel®
HomeAgain® Lifechip® Schering Plough™
Trovan®
OMNI MAX should be able to detect all FDX-B and FDX-A microchips commonly used for companion
animals.
If you have purchased Version i, the reader will be able to read HDX microchips instead of Avid Encrypted
microchips.

OMNI MAX - User Guide
© 2014 Datamars SA. All rights reserved. Page 7 of 20
4 Charging The Battery
OMNI MAX comes with a rechargeable Lithium-Ion battery that can be charged in two ways. You can
connect the USB cable to the wall-mounted adapter and plug it into a standard electrical socket, or you can
connect the USB cable to your computer.
4.1 Battery Indicators
When the reader is switched on, in the upper left corner of the display header you will always be able to see
the battery charge level ( ).
If the reader is on and connected via USB to a computer, the battery level indicator will show a thunderbolt,
indicating the reader is in charging mode ( ):
The following indicators are shown on the display when the reader is switched off but connected to a power
source:
Battery Discharge/Power Low
The following image will appear when the battery is completely discharged, indicating that you need to
connect the reader to a power source:
Battery Charging
The following image will appear when the unit is plugged in and the battery is charging:
Indicates unit is
plugged into the
wall
Indicates unit is
plugged in via
USB
Indicates unit is
plugged into the
wall
Indicates unit is
plugged in via
USB

OMNI MAX - User Guide
© 2014 Datamars SA. All rights reserved. Page 8 of 20
Full Power
While still plugged into a power source, OMNI MAX will display one of the following images when fully
charged:
Indicates unit is
plugged into the
wall
Indicates unit is
plugged in via
USB

OMNI MAX - User Guide
© 2014 Datamars SA. All rights reserved. Page 9 of 20
5 OMNI MAX Settings
A number of different settings can be customized to the user’s preference.
Some are accessible from the Main menu, some from the Advanced menu.
MAIN MENU:
5.1 Audio setting
The Audio setting allows you to adjust the volume level of the OMNI MAX’s audio signals.
The following values are available:
oOFF – OMNI MAX will make no sounds
oLOW – this setting should be used in quiet environments or where animals may be afraid of ambient
sounds
oMID – this is a medium setting and is suitable for most environments
oHIGH – this setting should be used in very noisy environments
5.2 Brightness setting
The Brightness setting allows you to adjust the brightness of the display.
The following values are available:
oLOW – the dimmest setting
oMID – this is a medium setting and is suitable for most environments
oHIGH – this is the brightest setting, and should be used in environments with high amounts of available
light
5.3 Time
2 Display formats are available to show the time:
oEurope: 24-hour clock
oNorth America: 12-hour clock
Setting The Time Format
Once in the Time menu, pressing the right navigation button will allow you to switch from 24-Hr to 12-Hr time
formats.
Volume Icon
Brightness Icon
Time Icon

OMNI MAX - User Guide
© 2014 Datamars SA. All rights reserved. Page 10 of 20
Setting The Time
Use the scroll wheel to increase or decrease the value as needed. By pressing the left navigation button you
pass from hours to minutes. When done, press the “selection” button in the center of the scroll wheel to save
your changes and exit this menu.
5.4 Date
Date Formats
There are 2 available formats to display the date:
oDAY/MONTH/YEAR
oMONTH/DAY/YEAR
Once in the Calendar menu, pressing the right navigation button will allow you to select your preferred date
format.
Setting The Date
Use the scroll wheel to increase or decrease the value as needed. By pressing the left navigation button, you
pass from day to month to year. When done, press the “selection” button in the center of the scroll wheel to
save your changes and exit this menu.
5.5 Information Menu
The Information Menu helps you determine which version of OMNI MAX you are using; it will confirm the
current firmware, current bootloader and proper license number of your unit.
Calendar Icon
Info Icon

OMNI MAX - User Guide
© 2014 Datamars SA. All rights reserved. Page 11 of 20
ADVANCED MENU:
(accessible from MAIN MENU by selecting the Adanced Settings icon )
5.6 Reading Setting
The Reading Setting allows you to either select Single reading or Continuous reading.
: In Single Read mode, OMNI MAX will scan for microchips for an allotted period of time. Once a
microchips is localized, the unit will stop reading and the microchip’s unique ID code will be displayed. If no
microchip is localized, OMNI MAX will stop reading and display a red X.
: In Continuous Read mode, OMNI MAX will scan for microchips continuously but will only store
unique microchip ID codes once; the system will display each new unique ID code, but it will not store
duplicates. If no microchip is localized during a continuous read session, the reader will stop after an allotted
period and shut down.
5.7 Record Setting
Record allows you to enable or disable the recording of unique microchip ID codes to the internal storage.
Recorded files can be accessed at a later time for download or reference. To turn the Record setting on,
press the center button until the red dot is visible in the green Record icon.
Recorded files are automatically named by the reader and saved in the following folder:
\session\<current year>\<current month>\s<date>.txt
OMNI MAX will save one file per calendar day. Each microchip ID code is saved with date and time stamp.
5.8 USB Setting
USB/Keyboard Wedge:
Reading Icons
Recording Icons
USB mode Icons

OMNI MAX - User Guide
© 2014 Datamars SA. All rights reserved. Page 12 of 20
The Keyboard Wedge feature allows the reader to enter data on a computer, tablet or smartphone
application by simulating the action of a keyboard.
The applications most commonly used with a keyboard wedge are Microsoft Excel, Microsoft Access, and
other custom database and applications like microchip search databases or animal welfare management
applications. This is a useful tool to help speed data entry regarding scanned animals and should help speed
the reunification process.
When using keyboard wedge, place your cursor where you want the ID code to go in your application, and
then press the center button on OMNI MAX to read the microchip. If a microchip can be localized, the unique
ID code will appear automatically in the correct field, just as if you typed it in yourself. The example below
shows what a keyboard wedge entry looks like in Microsoft Excel.
You can also send and receive data through the USB port as though it were a serial/RS232 port.
Instructions are outlined in chapter titled “Command Interface”.
5.9 ID Code Dislay Settings
A full unique microchip ID code actually contains 23 characters. It’s common in many countries to only
reference the last 15 digits. You can select whether you would prefer to see the full 23 or only 15 characters
of the unique ID code.
o"981000000123456" (15 char)
o"A0000000981000000123456" (23 char)
AID format Icon

OMNI MAX - User Guide
© 2014 Datamars SA. All rights reserved. Page 13 of 20
Data transferred to computer, tablet or smartphone will contain the same format as the one selected here.
5.10 File Menu
This setting enables the user to browse all the session files recorded by the reader, if recording has been
enabled (see Section 5.7).
oOpen: recorded microchip identification codes display on screen.
oDelete: will delete a selected file, duplicates or single microchip identification codes.
oSearch for a specific microchip ID code by selecting the Options button in the center of the scroll
wheel.
oTransfer only one record or the entire file to your computer, tablet or smartphone according to your
needs.
oYou can browse the microchip codes from any particular day directly from the Home menu by
pressing the left button if Recording is enabled.
5.11 Bluetooth setting (only available on BT version)
Wireless data transfer to your computer, tablet or smartphone is possible when enabled. You must first pair
OMNI MAX with your device. Please consult your device’s instruction manual for details, but an overview of
the pairing process appears below.
File Browser Icon
USB mode Icons

OMNI MAX - User Guide
© 2014 Datamars SA. All rights reserved. Page 14 of 20
To Pair OMNI MAX with Your Bluetooth-enabled Device:
•Ensure the computer/device is equipped with Bluetooth
•Enable Bluetooth on OMNI MAX – the white and blue Bluetooth icon will appear at the top of the
reader screen
• Your device should “find” OMNI MAX. Add OMNI MAX to the list of recognized devices. If the
connection is successfully established, the Bluetooth icon will turn green
•If asked, use as passkey/pairing code 1234
SPP (Serial Port Profile): You can send and receive data via Bluetooth as though it were a
serial/RS232 port. This can be very helpful if you’d like to connect your OMNI MAX to a wireless printer
Keyboard Wedge: data is transferred from OMNI MAX via Bluetooth to your device as if entered by a
keyboard. This can help speed microchip search by placing the microchip code directly into the database
search field; or it can help speed data transfer to your management application and eliminate manual
transcription.
Bluetooth OFF: Bluetooth disabled.
5.12 S-ID Software
Datamars makes S-ID Software available to our OMNI MAX customers as a free download from
datamars.com. S-ID will simplify future upgrades, and will help us support your OMNI MAX if it ever requires
service.

OMNI MAX - User Guide
© 2014 Datamars SA. All rights reserved. Page 15 of 20
6 Command Interface
6.1 Commands Overview
You can transfer data from OMNI MAX to your computer, tablet or smartphone using the USB Virtual Comm
Port or Bluetooth connection (if Bluetooth version purchased).
3 command types are possible:
oGet
oSet
oExecute
A “Get” command is used to read a parameter value from the reader and always starts with the letter “G”, e.g
“G<CMD>\r\n”.
A “Set” command is used to change a parameter value in the reader and always starts with a dot “.”, followed
by the command name and parameter value, e.g “.[CMD]<par>\r\n”.
An “Execute” command is sent to the reader to perform an action. These commands always start with “.”,
and do not have any parameters, e.g. “.<CMD>\r\n”.
Execute Commands
Command
Descript
ion
.? Help
.T Dump signals
.LBT Simulate press left function
.CBT Simulate press center function
.RBT Simulate press right function
.r Read command remotely
.WO Rotate Wheel clockwise
.WA Rotate Wheel counter-clockwise
.GH Go Home (only for testing)
.BMP .BMP -> Create a screenshot of the current display
and store it into SD reader memory
Get/Set Commands
Command
Description
.v Get reader firmware version
.GB Get battery level
.YE Set the Date/Year: .YExx ( xx = 0-99 )
.MO Set the Date/Month: .MOxx ( xx = 1-12 )
.DA Set the Date/Day: .DAxx ( xx = 1-31 )
.DF Set date format: EU: .DF0, US: .DF1
.GDF Get date format
.GDT Get reader date
.HO Set the time/hour: .HOxx ( xx = 0-23 )
.MI Set the time/minutes: .MIxx ( xx = 0-59 )
.SE Set the time/seconds: .SExx ( xx = 0-59 )
.GTM Get reader time
.DM Set output tag format: LONG: .DM0 , SHORT: .DM1
.GDM Get output tag format
.REC Recording on/off, ON: .REC1, OFF: .REC0
.GREC Get recording status
.GRB Get reading sound status, 1 enabled 0 disabled
.RB Enable | disable reading sound: 1 enabled 0 disabled
.GKB Get keyboard sound status, 1 enabled 0 disabled

OMNI MAX - User Guide
© 2014 Datamars SA. All rights reserved. Page 16 of 20
.KB Enable | disable keyboard sound: 1 enabled 0
disabled
.RT Set the reading timeout: .RTxx ( xx = 10-60 [s] )
.GRT Get the reading timeout
.ST Set the auto shutdown timeout: 2Min: .ST0, 5Min:
.ST1, 15Min: .ST2, 30Min: .ST3
.GST Get the shutdown timeout
.DIAG Set Diagnostic level: NONE: .DIAG0, ERROR:
.DIAG1, INFO: .DIAG2, DEBUG: .DIAG3

OMNI MAX - User Guide
© 2014 Datamars SA. All rights reserved. Page 17 of 20
7 Troubleshooting
•Not enough reading distance between the reader and the animal
The optimal reading distance is obtained with the microchip perpendicular to the reader’s
antenna, and aimed at its center. If the microchip is implanted into an animal, its orientation may
not be optimal and therefore the reading distance may be reduced.
Try to reduce disturbances to RFID like computer equipment, video or TV. Move a few meters
away and try again.
Do not use the reader on a metal table. Metal will reduce the performance of the reader.
The reading distance will be somewhat reduced if the microchip is still inside the needle.
•The reader does not read a microchip:
It takes time and patience to effectively scan an animal. Be sure to change the position and
direction of the reader, and try multiple times.
•The reader does not work:
Check to ensure that the ambient temperature is between -5ºC and +55º C (23°F - 131°F).
If you’re still having problems, please contact your local Datamars dealer for assistance.
OMNI MAX is a product developed and produced by DATAMARS.
Should you have any suggestions or require information regarding this or any other DATAMARS
products, please contact your local Datamars dealer or email us at [e-mail].

OMNI MAX - User Guide
© 2014 Datamars SA. All rights reserved. Page 18 of 20
8 Certifications
8.1 European Directives
Datamars SA, Via ai Prati, CH-6930 Bedano declares, under its own responsibility, that the product OMNI
MAX is in accordance with the following standards:
ETSI EN 300 330-1 /
ETSI EN 300 330-2
Electromagnetic compatibility and Radio spectrum matters
(ERM) - Short Range Devices.
ETSI EN 301 489-1 /
ETSI EN 301 489-3
Electromagnetic compatibility (EMC) standard for radio
equipment and services.
IEC/EN 61000-4-2 /
IEC/EN 61000-4-3/
IEC/EN 61000-4-4/
IEC/EN 61000-4-5/
IEC/EN 61000-4-6/
IEC/EN 61000-4-11
Electrostatic discharge, electromagnetic field, electrical fast
transient/burst, surge immunity, radio-frequency fields’ immunity,
voltage variation immunity.
OMNI MAX satisfies the essential requirements of directives 99/5/EC.
8.2 American Directives
Datamars SA, Via ai Prati, CH-6930 Bedano declares, under its own responsibility, that the product OMNI
MAX is in accordance with the following standards:
FCC Part 15B Part 15 Class B Computing Device Peripheral
FCC Part 15C Part 15 Low Power Transmitter Below 1705 kHz
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) This device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for Class B Digital Device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures.
oReorient or relocate the receiving antenna
oIncrease the separation between the equipment and receiver
oConnect the equipment into an outlet on a circuit different from that to which the receiver is
connected
oConsult the dealer or an experienced radio/TV technician for help
Any changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.

OMNI MAX - User Guide
© 2014 Datamars SA. All rights reserved. Page 19 of 20
8.3 Canadian Directives
This device complies with Industry Canada license-exempt RSS standard(s) IC RSS 210. Operation is
subject to the following two conditions:
(1) This device may not cause interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de
licence. L’exploitation est autorisée aux deux conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
