Fixed Grooming Arm (Optional Accessory)

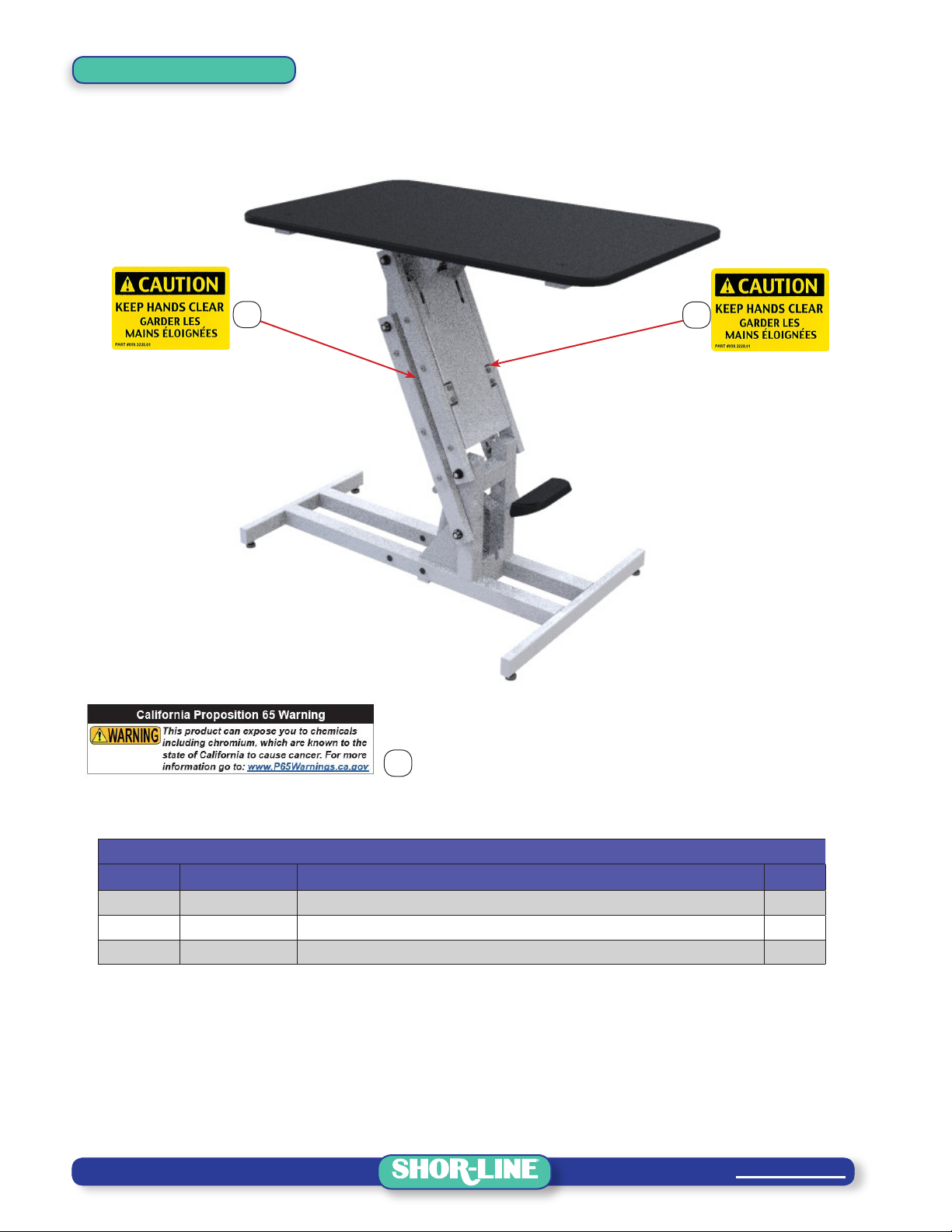

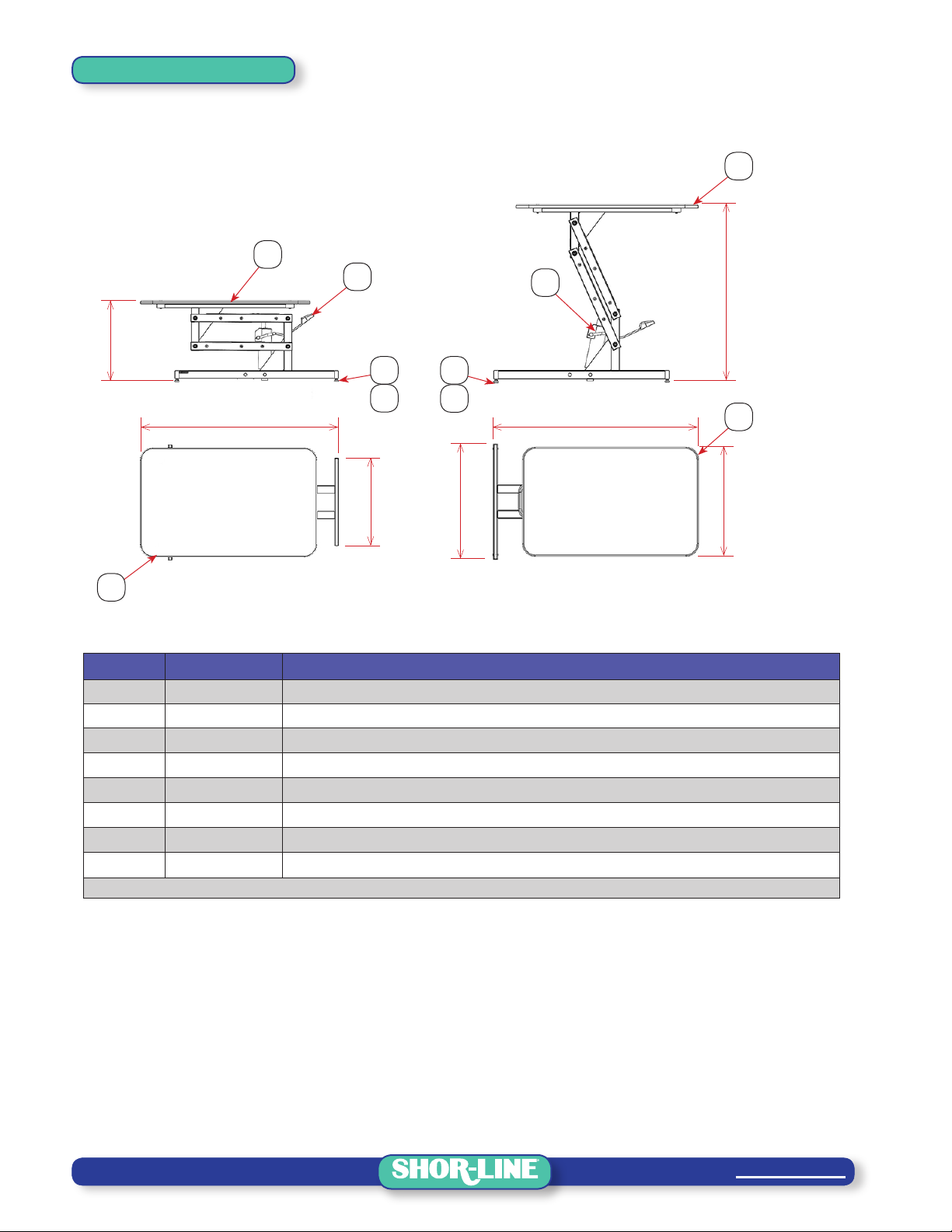

Shor-Pet grooming tables are equipped with a
table top measuring 26x42.5” long. The Fixed Arm
Assembly (PN: 803.3221.08) includes the frame
bracket, arm height bracket, shepherds hook
grooming loop, slide stops and a scu ball.
The xed grooming arm (optional accessory) can be
attached to the table frame and is mounted on the
either end of the table. The arm bracket is bolted to the
underside of the table top frame.
To install the xed grooming arm into the arm height
bracket the lower slide stop must be removed from the
grooming arm. See FIGURE 2.7
Remove the acorn nut, spacers and bolt. If the arm is equipped with post end plug, remove
before installing the xed grooming arm. See FIGURE 2.3
Enlist help and USE SAFE LIFTING PRACTICES during assembly, installation and
moving equipment.
Keep hands clear of possible pinch areas during installation, which if not avoided,
could result in MINOR to MODERATE INJURY.
STEP 1: Secure the xed arm bracket to the underside of the table top frame using the
hardware provided. See FIGURE 2.4
STEP 2: Slide the height bracket over the end of
the arm swivel bracket if it is not already
installed. Loosen the height adjustment
bracket knob.
STEP 3: Slide the straight long end of the grooming
arm down into and through the top of the
height adjustment bracket. Ensure the top
of the shepherds hook is facing towards the
center of the table. Allow the arm to rest on
the height control bracket, tighten the knob
to help aid in the scu ball installation.
STEP 4: Follow the adjustable arm procedures to complete the installation of the xed
grooming arm, lower slide stop pin and the scu ball.
FIGURE 2.3 - Fixed Grooming Arm
FIXED
GROOMING
ARM
ARM
HEIGHT
BRACKET
FIGURE 2.4 - Fixed Arm Bracket
TABLE
TOP
FRAME
FIXED ARM
BRACKET
