Introduction
Congratulations!
With this purchase you have decided to buy a quality product. Familiarize yourself with this product
before the installation and initial start-up.
This operating manual belongs to this aluminium clothes dryer. It contains important information for
assembly and use.
To increase the clarity, the aluminium clothes dryer will here after just be called “clothes dryer”.
Please read the instructions, especially the safety instructions, through carefully before you start using
the clothes dryer. Failure to observe these instructions may lead to serious personal injury or damage
to the clothes dryer.
These instructions are based on the standards and rules in the European Union. Please also note
country-specific policies and laws in foreign countries.
Please keep these instructions for further use. Should you hand over the clothes dryer to a third party
then please make sure to include these instructions.
Intended use
This product is intended for private use only and not for commercial purposes.
Use the clothes dryer only as described in this instruction manual. Any other use is considered
as incorrect and can lead to damage to property or personal injury. The clothes dryer is not a toy.
The manufacturer or the retailer assumes no liability for damage caused by improper or incorrect use.
Check contents and clothes dryer
ATTENTION! Danger of damage!
The clothes dryer might get damaged if you open the package carelessly. Do not use sharp
objects when unpacking.
1. Remove the clothes dryer from the packaging.
2. Remove the packaging material and all protective foil.
3. Check if the delivery is complete (see fig. A).
4. Check if the clothes dryer or single items are damaged. Please do not use the clothes dryer if this
is the case. Contact the manufacturer using the service address provided on the warranty card.
GB IE NI

6
Scope of delivery / parts
1
Line stoppers, 4 ×
2
Arms, 4 ×
3
Screw-in tool
4
Protective cap, 2 ×
5
Cover of helical-shaped ground socket
6
Spacer
7
Alu-tube, ø 18 mm, L 483 mm
8
Helical-shaped ground socket
9
Protection cover
10
Main standard
11
Pulley cord
12
Collar, 2 ×
13
Handle at the pulley cord (fig. B)
14
Ratchets at top collar (fig. B)
15
Handle on collar, 2 × (fig. B, C)
16
Toothed rail (fig. C)
17
Clothes line (fig. D)
18
Holes (fig. G)
Technical data
Type: 30154
Weight: approx. 3.5 kg
Dimensions of the main standard (ø): 50 mm
Dimensions of the clothes dryer (ø): approx. 2.95 m
Distance between the open arms: approx. 2.10 m
Maximum load of the collars: 150 kg
Article nr.: 290201
GB IE NI

7
Safety instructions
CAUTION: The clothes dryer must be checked for damage before each use. A damaged
clothes dryer may no longer be used.
Make sure you hang up your laundry evenly. Do not hang up laundry in strong wind! Place the clothes
dryer so that it can rotate freely. Please remove all clothes pegs before closing the clothes dryer to
avoid damaging the main standard. When storing the dryer, please use the protection cover to prevent
the clothes lines from getting tangled.
Caution: Please make sure that children do not use the clothes dryer as gym equipment or
roundabout. Children can get tangled in the clothes lines. Risk of suocation! This product
is not a child’s toy. Close the clothes dryer after use. Close the cover of the ground socket after
removing the clothes dryer.
The PE-packaging is not a toy. Risk of suocation! Please dispose the packaging in the
recycle bin for plastic waste right after unpacking the product. PE is non-polluting and
non-toxic. Warning! The protection cover is not a toy! Please keep out of reach of children. Risk of
suocation!
Wear and tear of the pulley cord used to open the clothes dryer
The pulley cord
11
is an essential part of rotary clothes dryers. It is therefore made of very
strong material, and designed to last over the years. Nevertheless, it may be necessary to
replace the pulley cord over the product’s service life. If torn fibres appear on the outside of the
pulley cord (frayed cord), replace the pulley cord with a new original one as soon as possible. You can
obtain this, stating your type of clothes dryer, directly from us.
A defective pulley cord can rip suddenly when using, causing you to lose your balance (worst
case scenario) risk of injury.
Wear and tear of the main standard
The main standard
10
that rotates in the helical-shaped ground socket
8
can be exposed
to wear and tear depending on the ground conditions. Please check the area of the main
standard where it comes out of the ground socket for wear and tear at least once a year.
Although the main standard has been manufactured to strict quality requirements, grooves can
appear in this area and weaken the main standard. If you notice deep grooves all around the main
standard, or any severe dents, please replace the main standard with a new original one as soon as
possible.
Deep grooves or severe dents on the main standard, caused by a lawnmower or a
wheelbarrow for example, can weaken the main standard, which can fall down due to strong
wind or uneven distribution of laundry on the dryer, and can cause physical injury.
You can obtain a new main standard, stating your type of clothes dryer, directly from us. Replace other
spare parts such as pulleys and rivets always with approved original spare parts, only these will ensure
the safe function your clothes dryer.
GB IE NI

8

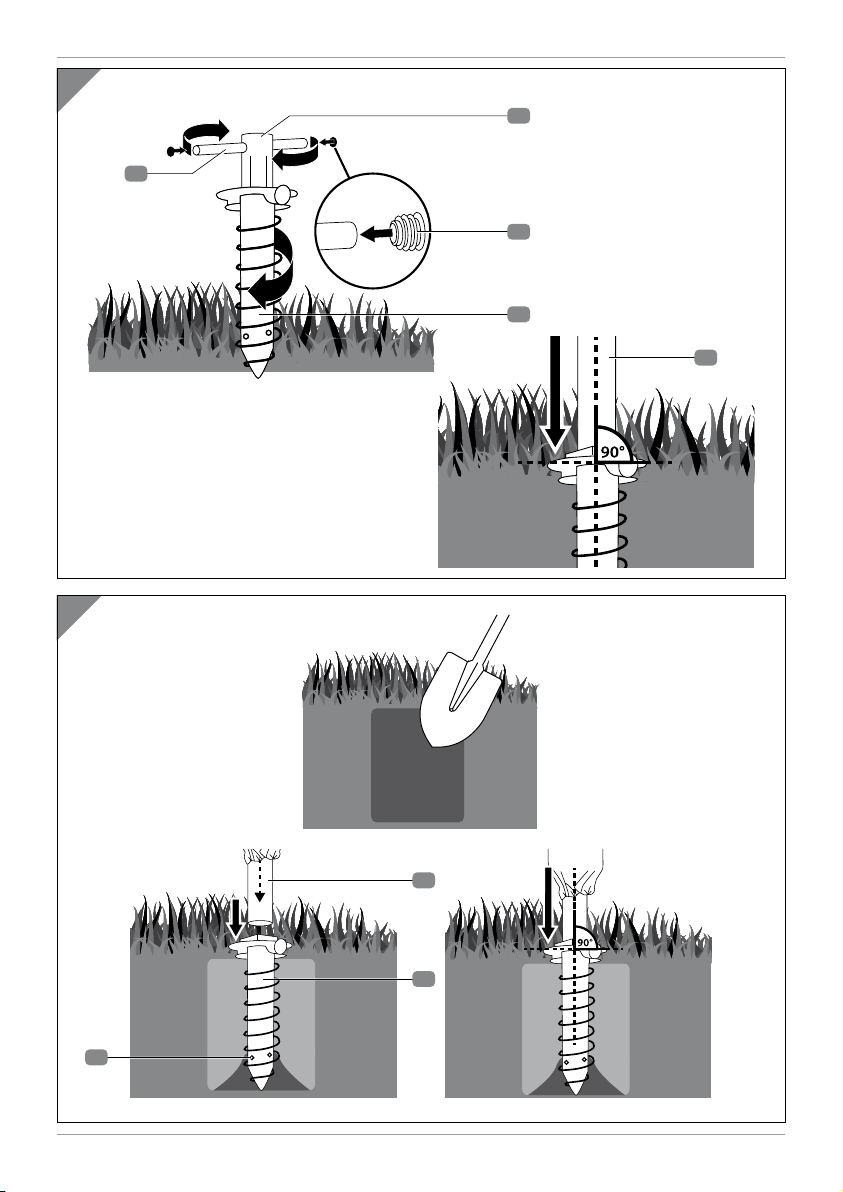

Installation of the helical-shaped ground socket
Choose a location where the clothes dryer can rotate freely. Depending on the soil you can either
screw-in the ground socket or fix it in concrete.
1. Remove the protective caps
4
from the cover
5
.
2. Hook the cover in the holder of the helical-shaped ground socket
8
until it engages (see fig. E).
Screw-in the ground socket
The ground socket can be screwed into the ground (ground level) using the included screw-in tool
3
and
7
.
1. Put the two protective caps
4
onto the ends of the alu-tube
7
(see fig. F).
2. Insert the alu-tube
7
through the upper openings of the screw-in tool
3
.
3. Put the spacer
6
in the ground socket
8
and push it all the way to the bottom (see fig. E).
4. Insert the screw-in tool into the ground socket and screw the ground socket clockwise into the
ground until the top edge is level with the soil.
5. Remove the screw-in tool and also any soil that may have penetrated out of the ground socket.
6. Place the clothes dryer with the main standard, until the arrow mark, into the ground socket.
Please make sure your clothes dryer is in a perpendicular position (see fig. G). You can check this
by using a sprit level.
You can now use the clothes dryer.
Fixing the ground socket into concrete
If you want to put the clothes dryer in a location with sandy or stony soil you should fix the ground
socket with concrete. This will ensure a firm footing.
1. Dig a hole with a diameter of about 40 cm and a depth of 30 cm with a spade or a shovel
(seefig. G).
2. Wrap newspaper around the lower end of the ground socket
8
to cover the holes
18
. This
prevents the holes at the bottom from being concreted and penetrated water can drain from the
ground socket.
3. Put the spacer
6
in the ground socket
8
and push it all the way to the bottom (see fig. E).
4. Fix the ground socket into the concrete according to the concrete specified procedure. The
newspaper at the bottom of the ground socket is also concreted.
5. Place the clothes dryer with the main standard, until the arrow mark, into the ground socket,
before the concrete is hard. Please make sure your clothes dryer is in a perpendicular position
(see fig. G). You can check this by using a sprit level.
6. Remove the clothes dryer from the ground socket and wait until the concrete is completely
hardened.
You can now use the clothes dryer.
GB IE NI

9
Use the clothes dryer
Opening the clothes dryer and height adjustment
By releasing the upper red grip key
15
, you can adjust the height of the dryer at the main standard
and perfectly adapt it to your desired working height. To open, first pull the arms
2
out of their
catches
14
at the upper part
12
of the holder (see fig. B).
Opening with the rope tackle block
When the handle
13
is pulled, the clothes dryer opens while the lines
17
are tautened at the same
time; this is especially easy thanks to the built-in tackle block. To close, pull the lower red handle; the
dryer will close.
Retautening the lines
If possible, NEVER open the line stoppers
1
on the end of the arms – only if you want to
exchange your clothes line!
1. Open your clothes dryer until the lower collar
12
engages in the toothed rail
16
.
2. Divide the loose clothes line
17
on all 4 sides as regularly as possible on all 4 line circles by
pulling the clothes line lightly (see fig. D).
3. Open the clothes dryer gradually and divide the clothes line step by step until you have reached
your using height or until the outermost line circle is tight. Important! Using height: distance
between the collars 30 – 35 cm!
Close the clothes dryer
1. Remove all objects from the clothes line
17
.
2. Release handle button
15
at the bottom collar
12
(see fig. C).
3. Pull the bottom collar at the hand grip completely downwards.
4. Slide the arms
2
in the ratchets
14
at the top collar, until they lock into place (see fig. B).
5. Pull the protection cover
9
over the clothes dryer, as described in the chapter “storage” if you
wish to no longer use the clothes dryer or store it.
Storage
Close the clothes dryer and pull the protection cover
9
over the clothes dryer. Take the clothes dryer
from the ground socket
8
and store it in a dry, sheltered and inaccessible place to children. Secure
the clothes dryer from falling over.
Care instructions
This quality product is made of weatherproof materials and can be washed down with a garden hose.
Do not clean with sharp or rough objects or with aggressive detergents.
GB IE NI

10
Disposal
Disposal of packaging
Please sort the packaging before disposal. Put cardboard with the waste paper, foils in the collection
of recyclables.
Disposal of the clothes dryer
Disposal of the clothes dryer is to be done in accordance with the rules and regulations in your
country.
Warranty of JUWEL H. Wüster GmbH
Dear customer!
You will receive 3 years warranty on this device, starting from the date of purchase. You are entitled
legal rights against the seller in case of defects of this product. These legal rights are not limited by
our following represented warranty.
Warranty terms and conditions
The warranty period begins with the date of purchase. Please keep the original sales receipt. This
document is required as proof of purchase.
Should a material or manufacturing fault of this product occur within 3 years from the date of
purchase, we will, at our discretion, either repair this product or replace it free of charge. This warranty
requires that, within the 3 year period, the defective unit is submitted with proof of purchase (sales
receipt) and with a brief description what the defect is and when it occurred.
If the defect is covered by our warranty, you will receive a repaired device or a new product. No new
warranty period begins with the repair or replacement of the product.
Warranty period and statutory claims for defects
The warranty period is not extended by the warranty. The same applies to replaced and repaired
parts. Any damage and defects already present during the purchase must be reported immediately
after unpacking. After the warranty period incidental repairs are subject to a charge.
Warranty coverage
The device has been manufactured according to strict quality guidelines and meticulously checked
before delivery.
The warranty applies to material or manufacturing defects. This warranty does not cover product parts
that are subject to normal wear and tear and therefore are viewed as wear parts, such as clothes line
and protective cover.
This warranty is void if the product has been damaged, misused, or not correctly maintained. For
proper use of the product, all instructions given in the operating instructions must be followed exactly.
Purposes and actions, which are discouraged in the manual or warned about, must be avoided.
The product is intended for private use only and not for commercial purposes. The warranty will be
void in case of abusive and improper handling, use of force, or in the case of interventions which have
not been carried out by our authorized service center.
GB IE NI
