Aquapure MOA0.6-AD User manual

OZONE THERAPY MACHINE MOA0.6-AD
BUILT-IN VC Meter and Vacuum Pump
v
1
User’s Manual
MOA0.6-AD

OZONE THERAPY MACHINE MOA0.6-AD
BUILT-IN VC Meter and Vacuum Pump
v
2
Table of Content
Ozone Introduction ……………………………………1
Features and Specification ……………………………1
Structure and Accessories …………………………… 2
Installation and Usage ……………………………… 3
Application ……………………………………………4
Safety and Cautions ………………………………… 5
FAQ ……………………………………………………6
Maintenance Service …………………………………6
Warranty card …………………………………………6

OZONE THERAPY MACHINE MOA0.6-AD
BUILT-IN VC Meter and Vacuum Pump
v
3
I、Ozone Introduction
Ozone, O3, is a molecule that consists of three negatively charged oxygen atoms and is a normal constituent
of the earth’s atmosphere. Ozone is produced deliberately for a variety of industrial purposes and medical
therapy purposes, and is also produced naturally from oxygen whenever ultra-violet radiation or electrical
discharges occur, e.g. at high altitudes or by the action of lightning. Ozone itself is a distinctly blue coloured
gas (bp – 111.9ºC) and is about one and a half times heavier than air (density 2.144g/l). Ozone is used as
“ozone air”, a colourless gas produced when ozone is generated from part of the oxygen in air. Ozone
cannot be stored or transported in vessels because it falls back into its original form (oxygen) after a while.
Medical ozone has highly pronounced bactericidal, fungicidal and virostatic properties, and is thus widely used
in disinfecting infected wounds, as well as in bacterially and virally produced diseases.
II、Features and Specification
1. Feature
The device is an ozone therapy machine that designed for multi-treatments with medical pure ozone gas. It
uses Double Walls of Pure Quartz Electrode to make pure oxygen/ozone mixed gas in high accuracy of ozone
concentrations.
The Double Walls of Pure Quartz Electrode is a patented design that offers Ultra-pure Ozone and constant
stable ozone concentration. It is a latest technology that makes sure NO ANY metal, plastic, ceramic, rubber,
glues, etc., be at the ozone generating area. Pure Quartz is the ONLY material at the ozone generating area.
The strain point of this pure quartz is 1110℃, and its soften point is 1670℃. It is 100% ozone resistant, an
ideal material for high frequency high voltage electrode. It makes Ultra-pure ozone without any contaminants.
It can deliver pure ozone from low to high concentrations (2~ 95 ug/mL) for different therapy applications. It
has a power (VC) meter with knob for adjusting the ozone concentrations. Also, it has been built-in two
powerful ozone destructors which can remove extra ozone gas, and a powerful vacuum pump with 0.07 Mpa
pressure.
2.
Specification
Model No.
MOA0.6-AD
Ozone Concentrations
2~95ug/mL （1 ug/mL = 1 gamma = 1 mg/L ）adjustable
Air Source
Pure oxygen only; 1/32~1.5 LPM
Ozone Module Technology
Double Walls of Pure Quartz Electrode Technology
Cooling System
4000 RPM , turbo brushless cooling fan
V/C Meter with Knob
~12 VDC, 0~0.65A
Ozone Destructor
Powerful catalyst*2 pieces
Life
> 10,000 hours
Input Voltage
12V DC (100-240V AC to 12V DC adaptor)
Rated Power
< 18 W
Operating Temperature
~ 25℃
Storage Temperature
-0℃ ~ 50℃
Product Size(L x W x H)
325*220*108 mm

OZONE THERAPY MACHINE MOA0.6-AD
BUILT-IN VC Meter and Vacuum Pump
v
4
Package Box Size(L x W x H)
340 *250*160 mm
Weight
3.3 kg
3. Ozone Concentration Chart:

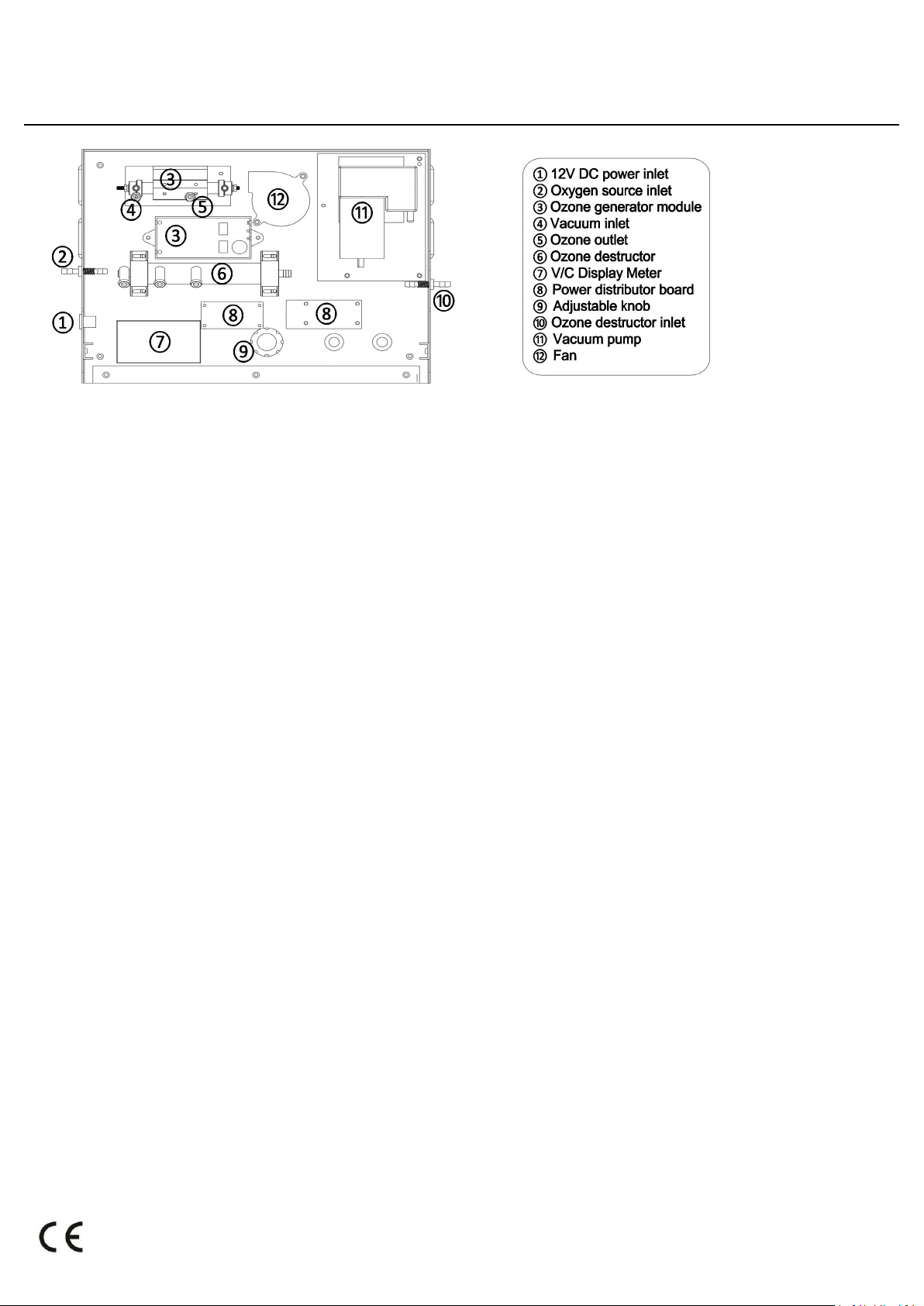

III、Structure & Accessories
Accessories:
1pc * Power Adaptor / 1pc * 3 way connector / 3pcs * male luer connector / 1 pc * silicon tubing / 1pc *oxygen filter

OZONE THERAPY MACHINE MOA0.6-AD
BUILT-IN VC Meter and Vacuum Pump
v
5
IV、Installation and Usage
1. Take out the appliance and accessories from the package, put it on a flat ground in which space you are going to run
the appliance.
2. Connect the oxygen source to the Oxygen Input connector (O2 IN) . Make sure the oxygen filter is used to protect
the appliance for long life usage. Pure oxygen source should be used ONLY to get accurate ozone concentrations.
3. Connect the 3 way connector to the Ozone Outlet (O3 OUT)
4. Cut a short piece of silicon tubing, add one male luer lock connector to one end, then connect the side outlet of 3
way connector to the Ozone Destructor (O3 Destructor）
5. Adjust the 3 way connector, make sure the gas flow is from the Ozone Outlet (O3 OUT) to the Ozone Destructor
inlet (O3 Destructor) before switch on the appliance.
6. Connect the direct outlet of 3 way connector to the syringe or ozone bags, etc.
7. Plug in the 12V DC power adaptor to the Mains and the appliance. The “POWER” indication light is red when the
power is connected successfully.
8. Press the ON/OFF switch. The ‘ OZONE’ indicator will be ON when ozone starts working.
9. Open the oxygen source. Check the ozone concentration chart. Turn the Adjusting Current Knob to get the ozone
concentration you need.
10. Adjust the 3 way connector, make the gas flow to the syringe or ozone bags, etc.
11. After collecting the ozone, adjust the 3 way connector, make the gas flow back to the Ozone Destructor (O3
Destructor) again.
12. Press the ON/OFF Switch and turn the appliance off.
13. Close the oxygen source, and unplug the appliance.
*NOTE:
1. For making ozonated water, it does not need the 3 way connector. Just connect the O3 Outlet Port to the ozone glass
cup inlet directly, and connect the ozone glass cup outlet to the O3 destructor.
2. The Vacuum pump is controlled by its own button ‘Vacuum Switch’. Just press this switch to use the vacuum
functions when in need

OZONE THERAPY MACHINE MOA0.6-AD
BUILT-IN VC Meter and Vacuum Pump
v
6
V、Applications
Ozone Joint Injection
Ozone Major/minor Autohemotherapy
Ozone for Rectal Insufflation
Ozone for Vaginal Treatment
Ozone Drinking Water
Ozone for Leaky Cut Treatment
Ozone for making Ozone Oil
Ozone for Wound Healing

OZONE THERAPY MACHINE MOA0.6-AD
BUILT-IN VC Meter and Vacuum Pump
v
7
Ozone for Ear Insufflation
Ozone for Nasal & Sinus Insufflation
Ozone for dental
Ozone Sauna
Ozone for Lyme disease treatment
Ozone for Cancer treatment
VI、Safety and Cautions
1. Make sure that all accessories are attached in the box and the appliance is in good condition when it is
received. Always keep the appliance vertical on the flat ground.
2. Do not store the appliance in a humid place.
3. Only feed in pure oxygen source to get accurate ozone concentration outputs
4. Operate the appliance in a precondition within ~25℃& 0 ~ 70% RH
5. Do dis-connect the adapter before opening the product or any maintenance.
6. It is not recommended to switch on & off frequently on this appliance. To avoid any defective, please
re-switch on the appliance at least 2mins after switching off.
7. Do not block the ventilated fan and outlet of the appliance all the time.
8. Turn off this appliance and unplug the adapter immediately when there is ozone leakage inside the
housing. A space with ventilation is preferable to stay when this happens.
9. Do not operate the appliance in flammable or explosive places.
10. Do not allow water go into the appliance.
11. Pack the appliance into a box if it is not going to use for a long while

OZONE THERAPY MACHINE MOA0.6-AD
BUILT-IN VC Meter and Vacuum Pump
v
8
VII、FAQ
Queries
Answers
Power indication light doesn’t
work after plugging the adapter
to the mains power socket
a. if the adapter is well connected to the appliance or not
b. if the indication light of the adapter on or off
c. if the adapter is in good condition or not
d. unplug the adapter and open the appliance, check if the wire of
power connector is in good condition or not
No ozone comes out when the
appliance is on, and the power
and ozone indication light is on
as well
a. if the oxygen source has been connected and be offered to make ozone
b. the fan is working or not
c. unplug the adapter and open the appliance, check if the connection
inside is in good condition or not
d. if the quartz tube of the ozone module is broken or not
e. change the ozone generator module or ask for help from whom is
responsible for.
The ozone smell is very strong
around the appliance
a. If the ozone outlet connectors are connected well
b. If the ozone destructor be connected properly
c. If the ozone destructor need replacements
Vacuum doesn’t work
a. If the ‘Vacuum Switch’ has been turned ON
Who is allowed to operate
the appliance
People who are trained or with relative knowledge of ozone appliance is
allowed to operate or repair it
VIII、Maintenance Service
1. This Ozone Therapy Machine is warranted to be free from all defects in material in normal ozone therapy use for
a period of (1) year from date of purchase.
2. The warranty is guaranteed only to the original purchaser and members of his or her immediate household. The
warranty is subject to the following provisions. Any damages or malfunctions caused by negligence, abuse, or
not operate in accordance with the User’s Manual are not covered by this warranty. Also, any defects or
damages caused by unauthorized service or the use of other than Genuine parts are not covered.
3. YOUMO AQUAPURE will, at its option, repair or replace a defective ozone generator or part(s) for the unit that
is covered by this warranty. As a matter of warranty policy, YOUMO AQUAPURE will not refund the
customer’s purchasing price. Please recorder the following Warranty Card when you purchase the unit from our
company or the distributor.
4. To obtain warranty service you must return the defective ozone generator or its parts along with proof of
purchasing to our company or any Authorized Warranty Station. All transportation charges on parts, or units,
submitted under this Warranty shall be borne by purchaser.
IX、Warranty card
Customer Name
Model No.
Purchase Date
Serial No.
Customer Address
Customer Phone
