AQUARIUS Intelligent Bidet User manual

Aquarius Intelligent Bidet Instruction Manual
Page | 1
Contents:
02 –Technical Performance
03 –Preparations for Installation
05 –Installation Instructions
08 –Bidet functions & operation
11 –Safety, Maintenance & Cautions
12 –Product Warranty & Contact Details

Aquarius Intelligent Bidet Instruction Manual
Page | 2
Technical Performance:
Power
AC 220V 50HZ
Total Power
1800W
Minimum Water
Pressure Requirement
0.07 MPa / 10.15 PSI
Water Temperature
Maximum temp 40°c
6 Adjustable Settings
Heating Power
200W
Dryer Temperature
6 Adjustable Settings
40°c - 60°c
Heated Seat Power
20W
Heated Seat
Temperature
Four Adjustable
Settings. Ranging from
room temperature to
38°c
Overall Dimensions
480 x 390 x 115 mm
Weight of Unit
5 kg
Maximum Weight of
User
140 kg

Aquarius Intelligent Bidet Instruction Manual
Page | 3
Intelligent Bidet Installation:
The Intelligent Bidet has been designed with ease of installation in mind. The
bidet does however require an electrical supply. As they are intended for the
use in a bathroom it is critical that the electrical supply is safe. If you do not
already have a suitable electrical supply you will require the assistance of a
qualified electrician before you continue with installation.
Electrical Supply Required:
The Intelligent Bidet must be earthed. An approved residual Current Device
(RCD) must be used. When the Intelligent Bidet is being installed for use in a
bathroom it most commonly is connected via a switched spur box, no other
appliance should share the spur with this product. Please seek advice from a
qualified electrician.
Manufactured for household use only. For Safety Purposes use this product
only as described in the operating instructions. Using the product in any other
way other than as described in this manual will void the warranty.

Aquarius Intelligent Bidet Instruction Manual
Page | 4

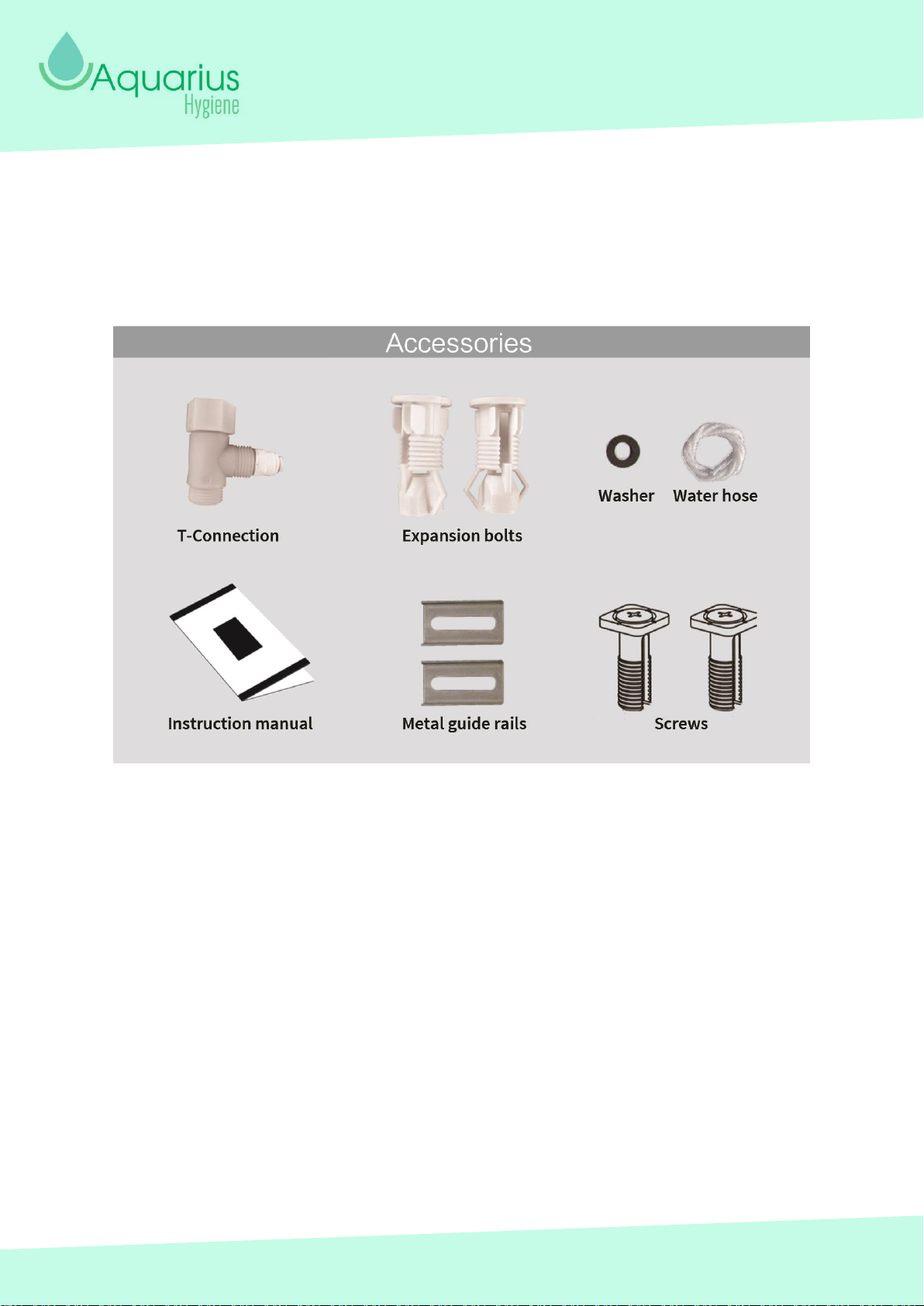

Preparations for Installation
All parts required for the installation of your Aquarius Intelligent Bidet are
included within the purchase. Please check the following parts are present;
If your Bidet does not contain any of the above parts please contact Aquarius
Hygiene on 01422 328 950 or email [e-mail]

Aquarius Intelligent Bidet Instruction Manual
Page | 5
Installing the Intelligent Bidet takes just 3 basic steps!
1) Remove your existing toilet seat
2) Mounting the Intelligent Bidet
3) Connecting to the water supply
Step 1- Remove your existing toilet seat
Generally if you close the existing seat and lid, you’ll see two bolts right behind
the seat. These are often covered by a cap or cover, simply remove these to
find the toilet’s mounting holes, where bolts are inserted to secure your
existing seat to the toilet. Simply unscrew and remove the bolts and if you lift
the toilet seat it should raise straight off. You will be left with a seat-less toilet
with the two mounting holes exposed just behind the bowl, ready for your
Intelligent Bidet to go in its place.

Aquarius Intelligent Bidet Instruction Manual
Page | 6

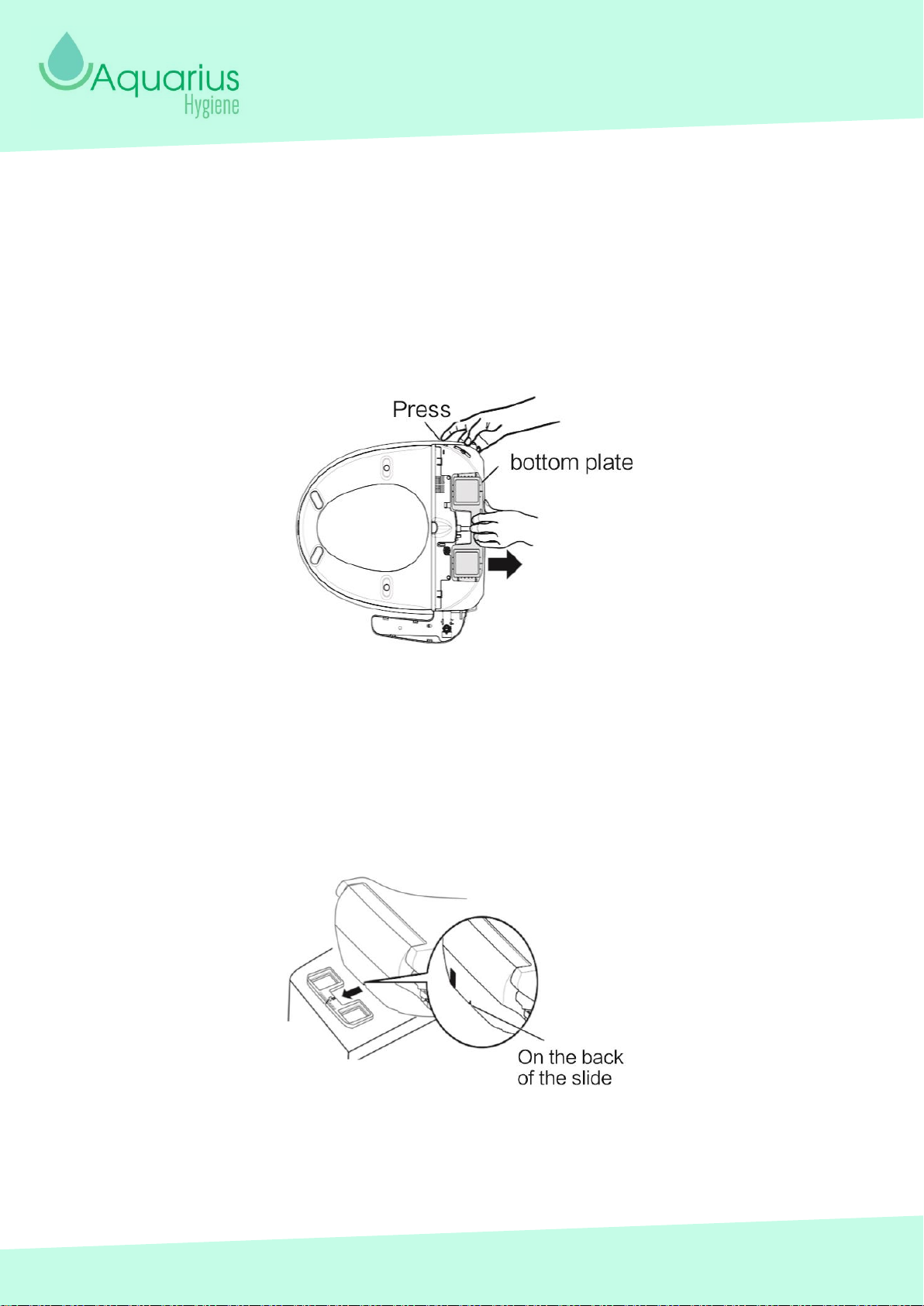

Step 2 –Mounting the Intelligent Bidet
To mount your new Intelligent Bidet to the toilet you will first need to insert
the two white expansion bolts into the mounting holes you have just exposed
on the toilet.
You will then need to remove the mounting bracket bottom plate from the
main bidet body.
Place the mounting bracket over the mounting holes on the toilet. Next insert
the rectangular metal guide rails on the left and right sides of the bracket.
Then guide the screws through the guide rails and into the white expansion
bolts in the mounting holes, and screw to secure.
Once the mounting bracket is secure, slide the bidet onto the bracket until it
locks into place.

Aquarius Intelligent Bidet Instruction Manual
Page | 7

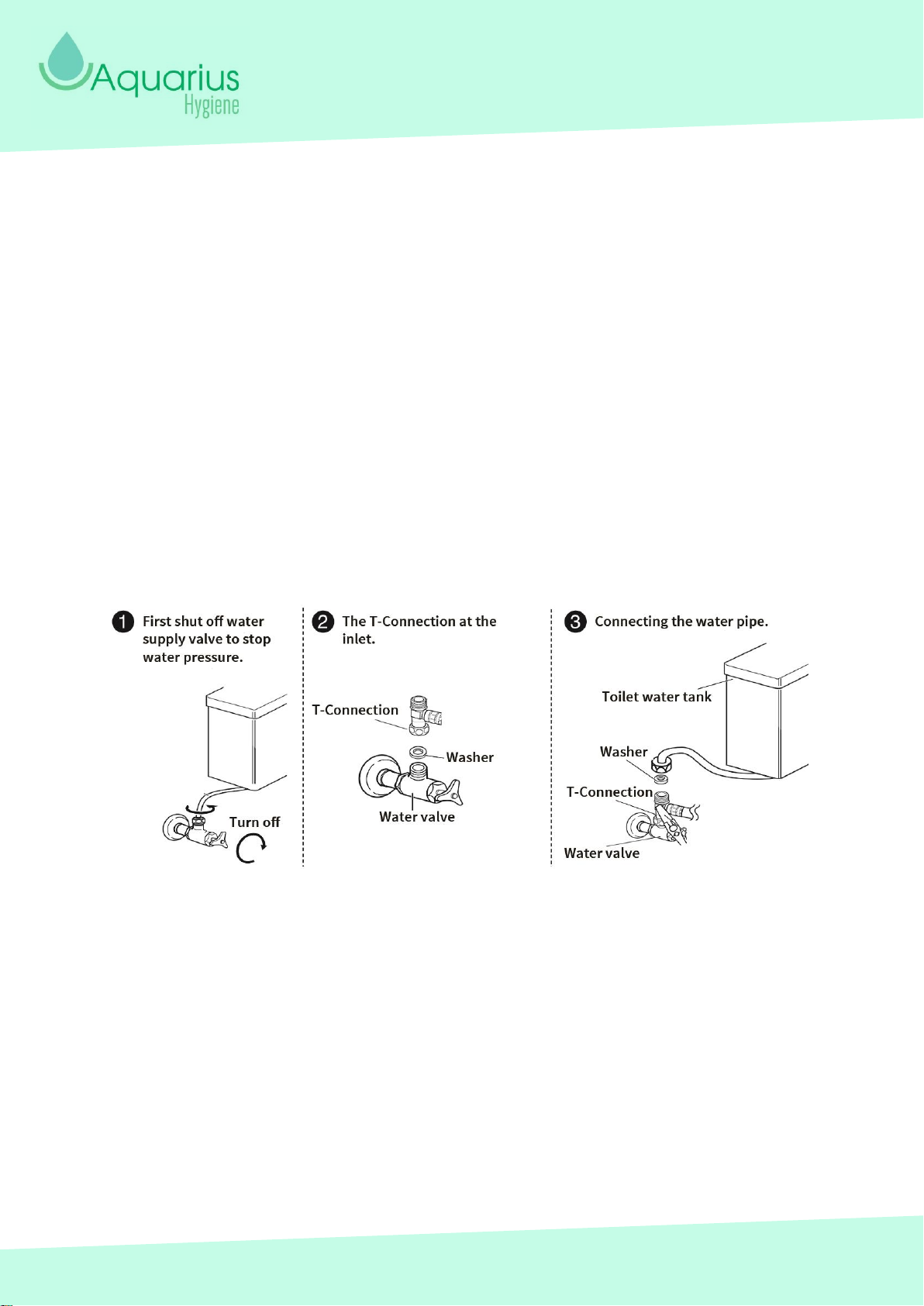

Step 3 –Connecting to the water supply
The final step once the Bidet is securely fastened to the toilet is to connect it to
the water supply.
Your Intelligent bidet comes included with a T-Connection or “splitter” which
splits your water supply two ways, one to your toilet’s water tank and the
other to feed water to the bidet.
Typically there will be a hose running from behind your toilet to the water
tank. This will usually have an “angle-stop” valve.
Shut off the water supply by turning the knob on the angle-stop valve
clockwise. Then unscrew the hose that connects to the angle-stop. Attach the
T-Connection directly to the angle-stop, and reconnect the supply hose to the
top end of the T-Connection.
Into the one remaining side of the T-Connection insert the bidet water hose
provided and attach the other end of the hose to the bidet.
Check all connections are tight then open the water supply by turning the knob
counter-clockwise. Ensure you check for any leaks immediately after
installation before leaving the bidet unattended.

Aquarius Intelligent Bidet Instruction Manual
Page | 8
INTELLIGENT BIDET FUNCTIONS:
Standby Mode
The Intelligent Bidet has a built in power saver standby mode. This is activated
by a built in pressure sensor approximately a third of the way around the seat
on the right hand side. Unless this pressure sensor is triggered the only
functions that will work are the nozzle cleaning and heated seat. Once the user
sits on the seat there is a noise to indicate the bidet is now active and the
control panel will illuminate. If the Bidet is being used with a shower chair or
for any other purpose in which the user will not be in direct contact with the
seat a damp cloth or similar placed on the seat is sufficient to provide the
pressure required for activation of the bidet.

Aquarius Intelligent Bidet Instruction Manual
Page | 9
Heated Seat
The heated seat can be controlled from the main control panel and will
operate constantly even in standby mode to maintain the desired temperature
unless the function is switched off. The heated seat has four heat settings
ranging from room temperature to 38°c and can be adjusted from the main
control panel by using the “seat temperature” button.
Soft Close Seat
The Bidet seat is equipped with a soft close bracket to allow the seat lid to
close slowly and quietly.
Anti-Bacterial Function
The Bidet seat and nozzle are made of an antibacterial material which prevents
bacteria from breeding and growing.
Bidet Wash Cycles
The Bidet comes with three wash functions, “Spray” is a light clean, “Bidet” is
your regular bidet wash and “Turbo Wash” is for when a stronger clean is
required, however if the wash cycle does not feel like it has been sufficient you
can simply run the cycle again.
Adjustable Water Pressure
Select the required wash cycle function as mentioned above. When the bidet
spray begins you can adjust the water pressure using the “HI” and “LO”
buttons on the section of the control panel labelled “Adjust Water”
Adjustable Water Temperature
Use the “HI” and “LO” buttons on the section of the control panel labelled
“Water temperature” to adjust the Water temperature, there are a choice of 6
settings with the maximum temperature the water will reach being 40°c.

Aquarius Intelligent Bidet Instruction Manual
Page | 10
Adjustable Nozzle Position
The position of the nozzles can be adjusted using the “Front” and “Back”
buttons on the control panel. When the spray nozzles are not in use they will
retract back into the bidet seat for hygiene purposes.
Heated Air Dryer
The heated dryer will automatically activate after a wash cycle until switched
off or until the bidet goes into standby mode. There are six settings between
40 –60°c and can be adjusted from the main control panel using the “HI” and
“LO” buttons on the Drying temperature control whilst the dryer is activated.
Nozzle Cleaning
The spray nozzle will clean itself automatically before and after every wash
cycle. When a bidet wash cycle is selected for a few seconds there will be a
light trickle of water before the cycle starts, this is the nozzle cleaning. This
eliminates the need to clean the bidet nozzles however If you wish to further
clean the nozzle lightly rubbing with a small brush is recommended, this is
usually not necessary. The Nozzle cleaning function can also be selected
separately from the main bidet cleaning cycles on the control panel.
Automatic Deodorising
The Intelligent Bidet has an automatic deodorising function. It filters the air
into the deodorising core which has an active carbon catalyst. The “Auto
Deodorization” button will illuminate on the control panel when active. This
works automatically for 1 minute after the bidet is activated and for 1 minute
after the air dryer has finished.

Aquarius Intelligent Bidet Instruction Manual
Page | 11
SAFETY
Read the instruction manual carefully before installation
Installation should be done step by step in accordance to this guide
This product is manufactured for household use only
Use this product only as described in the operating instructions. Using
the product in any other way will void the warranty.
Do not obstruct or put anything into the dryer outlet. Do not apply
excessive force on the shower nozzle.
Electrical supply should only be by a suitable power supply due to the
nature of the product and the area in which it is operated, seek advice
from a qualified electrician
Do not disassemble the product –this will lead to a void of the
guarantee.
The heating element has a fuse and temperature sensor, the Intelligent
Bidet water temperature is not designed to exceed 40°c. If the
thermostat within the heating element exceeds 45°c it will stop the
heating element from operating for safety.
Be aware of low temperature burns. Burns can still occur when the skin
is in contact with an object at a low temperature (around 40c)
particularly those with sensitive skin, the elderly and children; Close
supervision is strongly advised.
MAINTENANCE
Switch off the power supply before maintenance
Prevent the bidet from coming in direct contact from water or detergent
liquid
Do not bend or press the water supply hose
Keep the temperature in the bathroom above 0°c to avoid freezing and
leaking
Provide sufficient ventilation to avoid damage to electronic components
due to high levels of humidity.

Aquarius Intelligent Bidet Instruction Manual
Page | 12
CAUTIONS
To prevent the product from discolouring avoid contact with direct
sunlight
Do not push the spray nozzle back with force
Not suitable for users exceeding 140kg. Users exceeding this weight will
void the product warranty.
Disconnect from electricity during storms for safety
Disconnect from the power supply if not in use for a long period of time
Do not apply any additional force whilst soft close seat is closing
One Year Manufacturer’s Limited Warranty
The Aquarius Intelligent Bidet is covered under a one year manufacturer’s
warranty for repair or replacement, for the first year from the original date
of purchase. Our obligations under this warranty are limited to repair or
replacement, for the first year from the original date of purchase, provided
the parts or product was properly installed and used in accordance with
these instructions. We are not responsible for the cost of removal or
reinstallation of the product. The warranty covers for manufacturing
defects under normal use for a one year period, it does not
If you suspect there is a fault with your Bidet please contact Aquarius
Hygiene direct. You may be redirected to the retailer or stockist from whom
you purchased the Aquarius Bidet from.
Aquarius Hygiene LLP
Unit 1A Elland Lane
Elland
West Yorkshire
HX5 9DZ
01422 328 950
[e-mail]
www.aquariushygiene.com
