AQUASCAN INTERNATIONAL AQUAPULSE 1B User manual

AQ1B Underwater Metal Detector User Manual
1
UNDERSEA DETECTION EQUIPMENT
AQUAPULSE 1B
UNDERWATER
METAL DETECTOR
.....
Operating
Instructions
.....
This manual is copyright © 2002 Aquascan Int. Ltd, all rights reserved. This document must not be
replicated in whole or part without the prior express permission of Aquascan International Ltd.
Issue 7.
22nd December 2003
AQUASCAN INTERNATIONAL LTD.
AQUASCAN HOUSE
HILL STREET
NEWPORT.
SOUTH WALES. UK
NP20 1LZ
Tel: [phone]/255645
Fax: [phone]
Email: [email protected]
Website : www.aquascan.co.uk

AQ1B Underwater Metal Detector User Manual
2
Contents
1. Front
2. Page of Contents
3. Introduction
4. Initial Testing
5. Underwater Operation
7. Using Arm Saver Kit with 38cm Loop
9. Care and Maintenance
9. Checking Battery Status/Performance
12. Troubleshooting Guide
13. Aquapulse 1B System Parts & Accessories
17. Contact Information
18. EC Declaration of Conformity
Product Guarantee – loose insert

AQ1B Underwater Metal Detector User Manual
3
INTRODUCTION
The AQUAPULSE name has been established for more than two decades and
conveys the message of underwater detection excellence using the Pulse Induction
(PI) principle. Unlike some of the land based detection solutions that perform
dismally underwater the PI system provides a very powerful means of detection for
every form of ferrous or non-ferrous metallic item. The AQUAPULSE is a modular
system with a range of interchangeable detection heads that allows for a flexible
approach to detection under various underwater conditions.

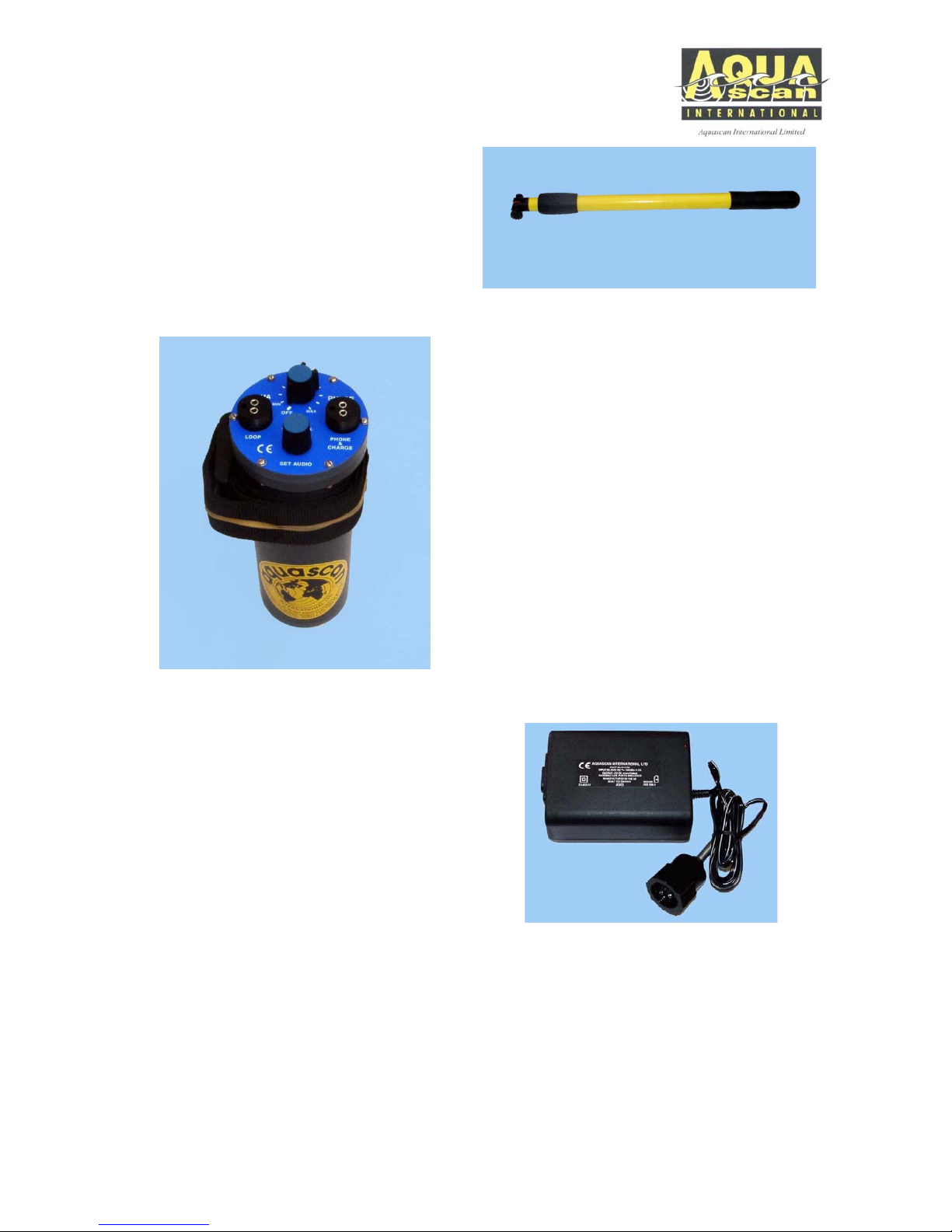

A standard AQUAPULSE 1B (AQ1B) kit consists of the following items:
1. Sealed electronic unit

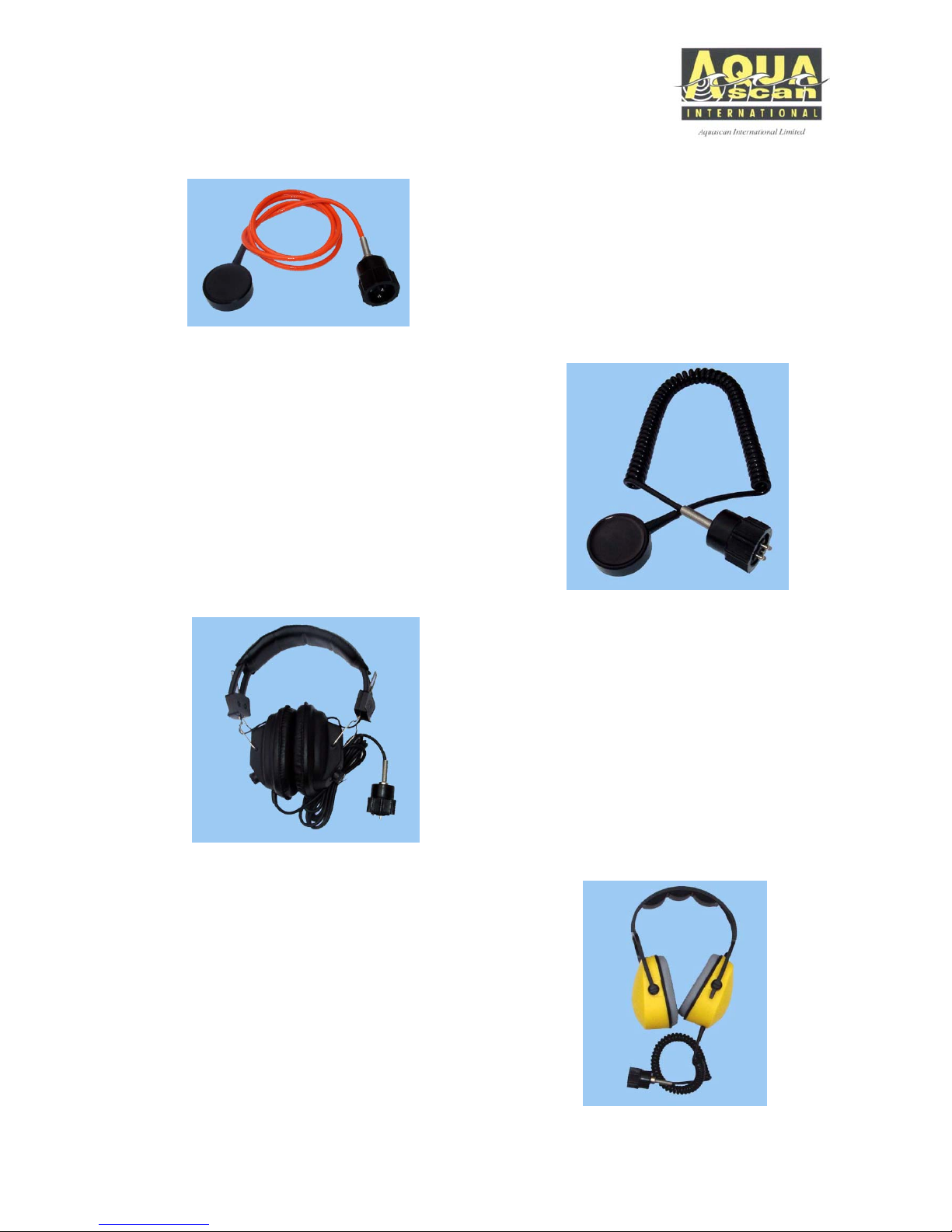

2. Bone conductor earphone (or Land headphones) with cable and plug.
3. Search Loop and shaft or Search probe with cable and plug.
4. Mains Battery charger (100-250v) with AC charging lead.
5. Harness and belt with quick release buckle.
6. Operating instructions.
The Aquapulse 1B underwater metal detector is a precision built instrument using the
latest pulse induction techniques, and has been designed for both ease and simplicity
of use in the underwater environment, featuring good detection performance with both
ferrous and non-ferrous metals.
The unit is ruggedly built to withstand normal diving usage, but to get the best
trouble-free operation and long life, certain simple operation and maintenance
procedures must be followed. Read the instructions carefully before diving with your
detector.

AQ1B Underwater Metal Detector User Manual
4
INITIAL TESTING OF YOUR AQ1B DETECTOR:
1. Charging the batteries: -
The detector is supplied only partially charged and will require a full 14 hours
charging duration to bring the unit to a fully charged status. Plug the output lead from
the charger into the AUDIO & CHARGE socket on the control bulkhead. Please note
that this can only be inserted one way round due to the locating (polarising) pin.
N.B. DO NOT ON ANY ACCOUNT PLUG THE CHARGER INTO THE LOOP
SOCKET AS DAMAGE MAY BE DONE TO THE ELECTRONICS
Plug the charger into the mains supply (100 – 250vAC). After running for an hour or
so the charger may get slightly warm to the touch. This is quite normal.
The batteries will not be damaged by being left on charge for a longer period than
necessary due to the controlled charge current (14hr rate). For maximum life it is
recommended not to give ‘top-up’ charges and to generally charge for no longer than
14 hours from the discharged state. If the batteries become fully discharged - due to
natural usage for the maximum operating period or through the unit accidentally being
left in the on state – the unit should be fully recharged as soon as possible to avoid
irreparable damage to the battery cells.
N.B. DO NOT USE ANY OTHER BATTERY CHARGER THAN THE ONE
SUPPLIED AS DAMAGE TO THE BATTERY PACK MAY RESULT.
When the charge period has elapsed, disconnect the AC supply to the charger and
unplug the connector from the socket on the detector.
Plug in the connector on the search loop into the LOOP socket and screw down the
retaining collar. This should be good finger tightness only.
Note: This plug can only be inserted one way round due to the polarising pin.
4. Plug the connector on the Bonephone (or headphone) lead into the PHONE &
CHARGE socket and screw down the collar as above. NB. For testing on land the
headphones – if available - are much easier to work with.
5. Hold the search loop well away from any metal and switch the unit on by rotating
the REJECT control to the MIN position. If a continuous sound is heard
immediately, the SET AUDIO control should be rotated anticlockwise until the
audio threshold is reached, this is indicated by a low frequency ticking sound in
the Bonephone. Alternatively, if the unit is initially silent, the control should be
turned clockwise to reach the audio threshold. The audio can be set so that a
normal slow ticking sound is heard, or alternatively set slightly below the
threshold so that operation is initially silent.

AQ1B Underwater Metal Detector User Manual
5
6. Test the operation of the detector by scanning the loop over metal objects e.g.
a coin, keys or any convenient metallic object. The audio note will rise rapidly
reaching a maximum pitch when the object is centred on the loop axis.
7. An additional check can be made on a piece of buried metal. Scan the loop
from side to side and locate the position of maximum tone. Repeat in a
forward and backward direction. The point where the audio is at a maximum
on both scans is where the object lies.
8. Check the detector on various sizes and shapes of both ferrous and non ferrous
metals to get ‘feel’ as to how it responds on different targets.
9. The ‘REJECT’ control when set at its lowest setting will give maximum
sensitivity to small rings and thin section foils; as the setting is increased the
detector will ‘reject’ signals from silver paper, ring pulls and other unwanted
non ferrous objects.
10. Having performed the above checks, switch off. The Aquapulse is now ready
for use on land or underwater.
UNDERWATER OPERATION
1. The control unit of the detector can be worn or carried in a number of ways, the
choice will be influenced by which of the sense head variants is being utilised.
The most obvious choice is worn on the waist secured by the quick release
buckle, however if the 38cm (15”) loop is being used the control unit can be
fitted to the lower cup of the “armsaver” section. Other options include strapping
to the upper arm, clipping to any suitable position on the diver or attached to a
container that may be used for collecting detected items. When the armsaver is
being used one of the small straps should retain the control unit, whilst the other
should act as a brace for the forearm in the upper cup.

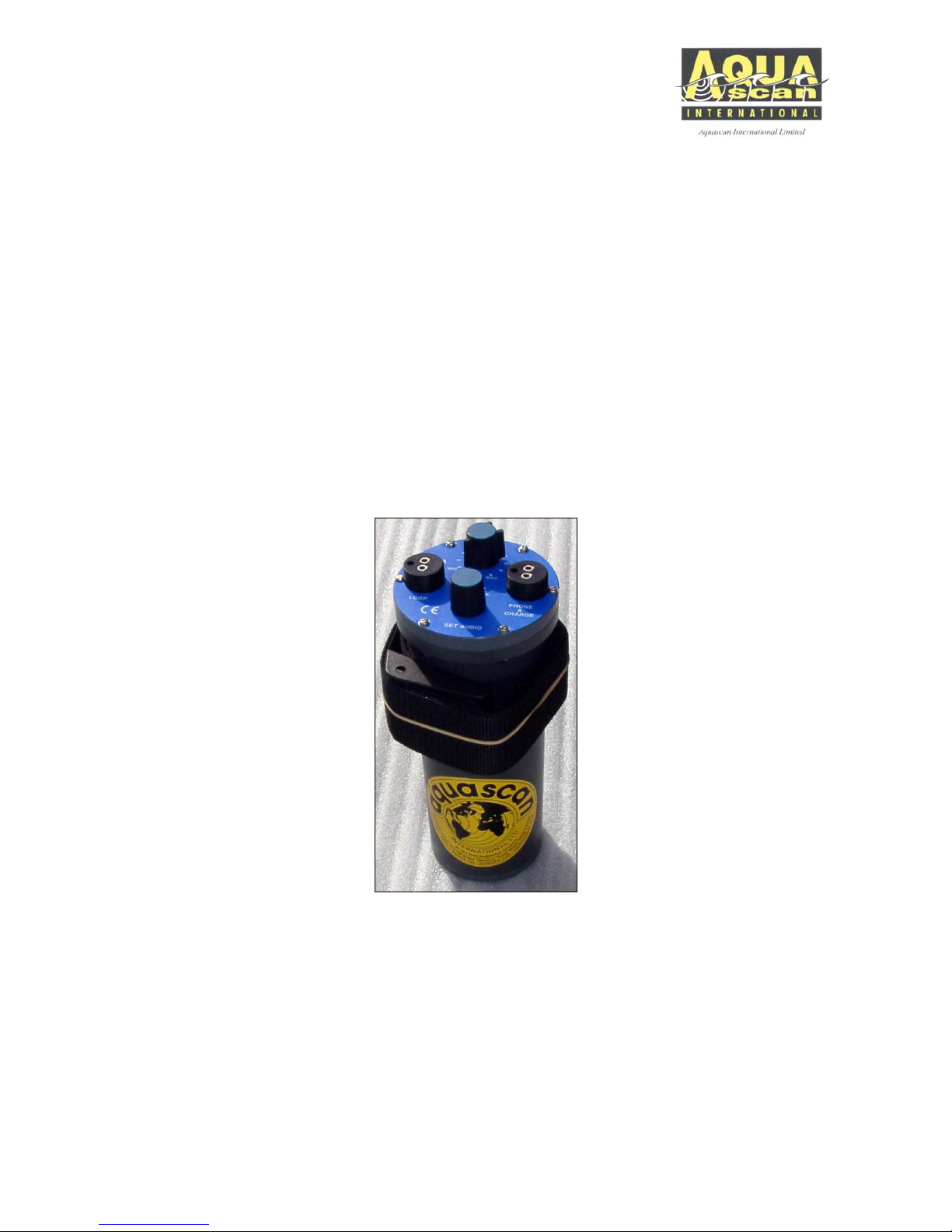

The above image shows the control module attached to the armsaver

AQ1B Underwater Metal Detector User Manual
6
Diver prepared for EOD survey using AQ1B/20cm - Harness mounted
2. The Bonephone should be placed under the hood, if no hood is worn it can be
placed under the strap of the facemask or under a suitable neoprene headband.
Position the Bonephone so that it is on a bony part of the head close to the ear.
N.B. NEVER PLACE THE PHONE DIRECTLY OVER THE EAR AS
THIS COULD INTERFERE WITH PRESSURE EQUALISATION ON
THE EARDRUM.
3. Dive to the search area to be searched.
4. Switch the unit on and rotate the SET AUDIO control to achieve the audio
threshold point keeping the search loop at arms length and up from the seabed,
this avoids detecting any metallic part of the personal diving equipment or any
buried items.
5. Search by scanning the loop from side to side close to the seabed in a fanning
action, Avoiding passing the loop close to regulator, air tanks or weightbelt as
these or any other metal object on the diver, will give false responses.
6. If too much signal is obtained from the seawater such that the ‘SET AUDIO’
control will not achieve the desired threshold, turn the ‘REJECT’ control
clockwise until the ‘SET AUDIO’ control comes back into range.
Note: Different water depths will make a small difference to the threshold
setting which can be readjusted by the control knob. This effect does not
occur in fresh water.

AQ1B Underwater Metal Detector User Manual
7
USING ARM SAVER KIT WITH 38CM LOOP
1. Place 38cm Loop on a flat level surface.

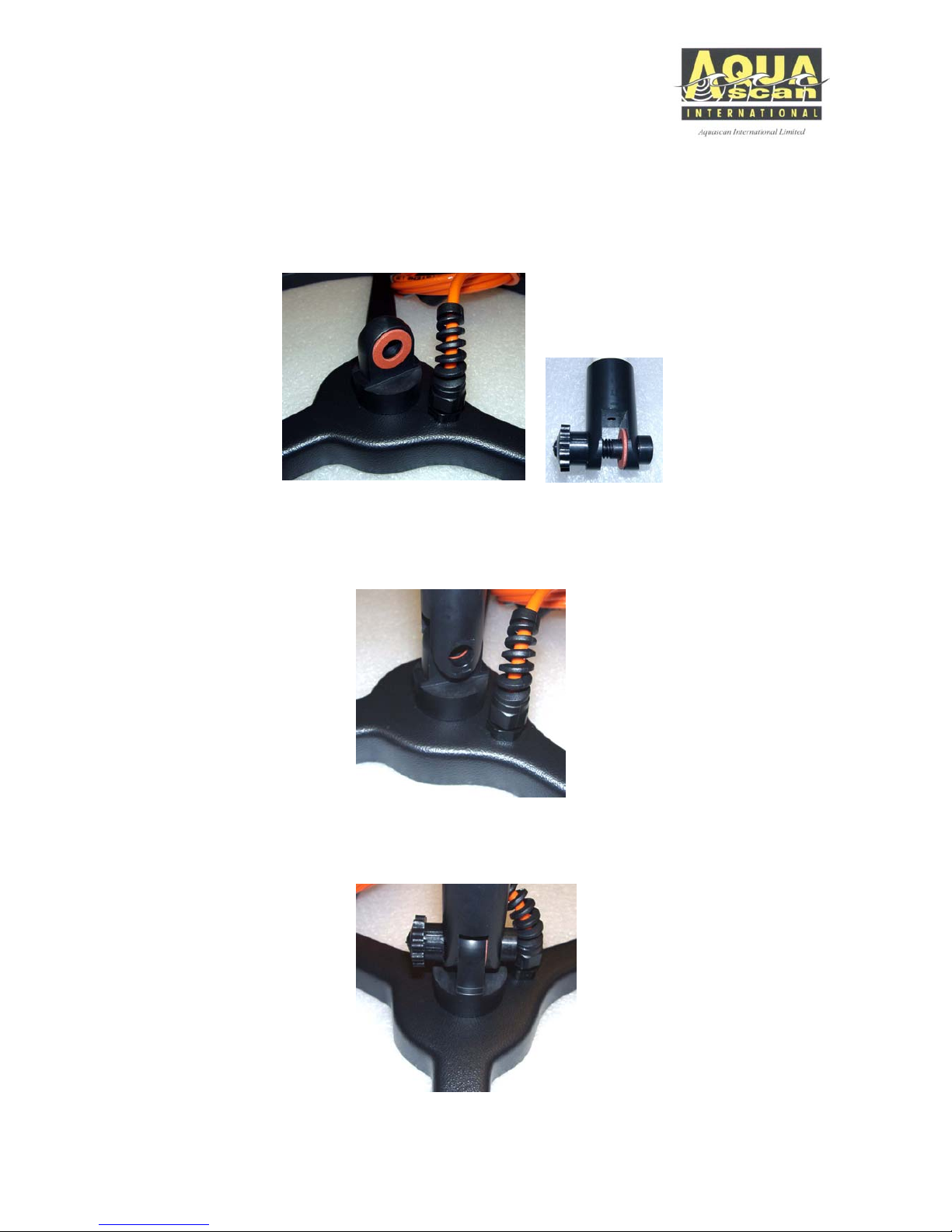

2. Remove the Nut, Bolt and Washer from the Lower Shaft and place the Washer
in the recess on the Swivel Connector at the centre of the Loop as shown
below.
Washer in connector recess Nut, Bolt & Washer
3. Next slide the end of the Lower Shaft over the Washer and the Connector as
shown below.
4. Secure the Lower Shaft in place using the Nut & Bolt you removed from the
Lower Shaft in step 2.

AQ1B Underwater Metal Detector User Manual
8
5. Now slide the opposite end of the Lower Shaft inside the Arm Saver as shown
below and secure with the Nut and Bolt from the Arm Saver.
Note: There are three possible securing positions on the Arm Saver so that you can
select the one which is more comfortable for you and most suitable for the job you
are carrying out.
6. The top of the Arm Saver is designed to secure both your arm and an AQ1B
Module in the cups as shown below.
7. When fully assembled the Arm Saver Kit when connected to a 38cm Loop
should look like the image below.

AQ1B Underwater Metal Detector User Manual
9
CARE AND MAINTENANCE
Proper care of your Aquapulse will be repaid by a long and trouble free life and
attention should be given to the following points: -
1. After use, and before removing plugs, make sure that the unit is switched off,
wash down with clean fresh water.
2. Dry the detector paying particular attention to the area around the plugs.
Clear any excess water by blowing.
3. Recharge the batteries if the total hours used is approaching 10.
4. Never leave your Aquapulse lying in the hot sun, as this could raise the internal
temperature to the point where it may distort the case and harm the electronics.
5. The electronic unit is sealed and pressure tested in the factory, no attempt should
be made to access the electronics. If any servicing is required, contact your
supplier who will advise you where to send the unit.
BATTERY CARE & CHECKING BATTERY PERFORMANCE/STATUS
The AQ1B internal battery pack is a 7-cell series pack giving a capacity of
approximately 2500mA/Hrs. This capacity relates to an operational period of between
10 and 12 hours from full charge. Note: self-discharge occurs naturally in a
rechargeable battery. During inactivity this self-discharge causes the battery to slowly
discharge itself over a period of months. Nicad batteries can develop a “memory”
effect through partial charge/discharge cycles; this effect will reduce the effective
capacity available. To maintain maximum performance it is important to regularly
discharge the battery completely followed immediately by a full re-charge.
Periodically, to ensure adequate operational battery duration, or to confirm the status
of your battery, the following checks and procedure should be carried out.
Checking Battery Pack Voltage
To test whether or not your battery pack is charged, you may use the following test,
which requires a DC voltmeter. A digital voltmeter is preferred since these voltages
are low and measurement needs to be made in the tenths of a volt resolution.
1. With nothing connected to the detector, turn the detector ON.
2. With the detector placed so the printing on the top label is in normal
orientation, place the positive lead of the voltmeter on the TOP pin of the
Loop connector (See diagram).
3. Place the negative lead of the voltmeter on the TOP pin of the Phone/Charge
connector (See diagram).
4. You should now be able to read the voltage of your battery pack.

AQ1B Underwater Metal Detector User Manual
10
5. A fully charged new battery pack should read approximately 9.8 volts. This
might decrease slightly as the pack gets older. As the detector is used, the
voltage will drop gradually, but performance is not affected until the voltage
drops below 8.4 volts. Once the voltage drops below 8.4 volts, it will drop at
an accelerated rate. The detector will not function correctly if it gets down
around 7 volts or lower. If you measure the voltage and it is near or below 8.4
volts, it’s time to re-charge the battery pack.
Battery Test Points
Checking Battery Pack Performance
Note: For routine maintenance this should be carried out every three months.
The recommended procedure is as follows: -
1.0 Connect an AQ1B Loop or Probe to your AQ1B module.
1.1 Power on your AQ1B and leave it on overnight to fully discharge the battery.
1.2 Disconnect the loop and power the AQ1B off.
1.3 Charge the AQ1B for at least 14 hours using the provided AQ1B charger.
1.4 Once the AQ1B is fully charged, disconnect the charger.
1.5 Connect an AQ1B sensing loop and Bonephone/Headphone to the unit and
switch it on. Place the loop away from any metal and adjust the SET AUDIO
control to get a steady slow clicking sound.
1.6 Make a note of the detection range on a suitable test object.

AQ1B Underwater Metal Detector User Manual
11
1.7 Confirm the functionality and detection range of the unit every 30 minutes -
re-adjusting the tick-over as necessary.
1.8 When it becomes impossible to set the threshold, or the detection distance has
dropped dramatically, this can be considered to be the end of charge status for
the battery.
1.9 If the performance becomes unacceptable after less than what you (the
operator) determine to be an acceptable minimal operational period, then the
AQ1B Battery Pack needs to be replaced.
Note: If your battery needs to be replaced please contact our technical support dept
to arrange for an installation of a replacement battery, or in the case of an
approved service agent please refer to the servicing data provided.
Please consider Nicad batteries as hazardous material and dispose of your old
battery pack in line with local guidelines.

AQ1B Underwater Metal Detector User Manual
12
TROUBLESHOOTING GUIDE
Symptom: No Response from AQ1B Module
Check the following:-
1. Check that the battery has been charged -
¾If not, place AQ1B on charge and then re-test.
2. Check that both Sensing Loop and Bonephone are correctly connected
¾Try using an alternative Bonephone/AQ1B Headphones.
¾Try using an alternative Loop or a known good AQ1B Probe.
3. Check that both the Sensing Loop and Bonephone are in good
condition. Check by substitution if possible or by monitoring the
nominal resistance of both items. Connecting a good quality multi-
meter across the pins of the plug can check the resistance. NB. It is
good policy to firstly check the multi-meter’s reading with the leads
shorted together - this provides a measure of what residual reading to
take into account.
¾See AQ1B Resistance Chart below: -
Item Resistance (ohms)
20cm Loop 1.4
25cm Loop 1.6
38cm Loop 1.8
12" Probe 5.8
36" Probe 5.8
Bonephone 5.4
Headphones 15.0 (Minimum Volume)
Symptom: Erratic Performance from AQ1B Module
1. First check as above.
2. Check that the stainless contacts of the bulkhead connectors are clean.
3. Check that the stainless connectors of the Sense loop and bonephone
are clean. If necessary reduce the contact resistance by slightly prising
the gap in the male contacts, this will increase the firmness of the
connector on insertion.
4. Check that the cable to the Sense Loop has not been damaged causing
water ingress.
5. Check that the male connector seals are in place and clean.

AQ1B Underwater Metal Detector User Manual
13
AQ.4.061
AQ1B Bonephone – Fully waterproof headphone,
utilises Ikelite underwater connector to connect to
the AQ1B Control Module. Normally placed
against the skull at the back of, or below the ear
whilst underwater, enabling the diver to clearly
hear the change in the Detector tone when metal
is sensed
AQ.4.062
AQ1B Bonephone with Extending Flexible
Cable– Fully waterproof headphone, utilises
Ikelite underwater connector to connect to the
AQ1B Control Module. Normally placed
against the skull at the back of, or below the ear
whilst underwater, enabling the diver to clearly
hear the change in the Detector tone when metal
is sensed. Comes with extendable flexible cable
which allows more freedom of movement with
the Bonephone whilst underwater.
AQ.4.030
AQ1B Land Headphones – Rugged
headphones for use above water
enabling The AQ1B to be utilised as
a powerful land detector. The
Headphones feature an adjustable
volume control and a comfortable fit
for the user.
AQ.4.031
AQ1B Underwater Headphones –
Rugged headphones for use
underwater giving an alternative to
the Bonephone. These are
particularly useful in warm waters
where a diving hood is not normally
worn, They also provide a more
powerful sound level that can
enhance the ability to sense even the
most subtle changes in the audible
out
p
ut.
AQUAPULSE 1B SYSTEM PARTS & ACCESSORIES

AQ1B Underwater Metal Detector User Manual
14
AQ.4.000 part 1
Arm Saver – Used in conjunction
with a 38cm Loop and Lower Shaft.
Set of straps enables user to use
forearm to comfortably support 38cm
Loop for long periods of time. AQ1B
Control Module can also be secured
to lower cup of the Arm Saver.
AQ.4.000 part 2
Lower Shaft – Used in conjunction
with Arm Saver and 38cm Loop.
Extends the sensing loop to a distance
that eliminates background detection of
metallic items on the diver. Allows the
sense head to be swung over a wide arc
for good search coverage. Locks into
one of three Arm Saver positions to
optimise the overall length
AQ.4.080
20cm (8”) Loop with Stem – Fully Waterproof compact search
loop uses Ikelite underwater connector that enables the Loop
to be easily connected and disconnected.
AQ.3.001
20cm (8”) Loop – Same loop as AQ.4.080 but comes without
Stem & Handle. This can be used with the Extending Handle
(AQ.04.001) and the Arm Saver kit (AQ.4.000)
AQ.3.002
25cm (10”) Loop – Fully Waterproof
robust, mid-sized search loop uses Ikelite
underwater connector that enables Loops
to be inter-changed. Normally supplied
with the extending handle to give a
flexible usage.

AQ1B Underwater Metal Detector User Manual
15
AQ.3.003
38cm (15”) Loop – Fully Waterproof large search
loop complete with Ikelite underwater connector.
This loop gives the largest sensing range and
supplied with the Arm-saver kit to give good
sweep range underwater and a good balanced unit
for land use.
AQ.3.004
38cm (15”) Loop supplied with a 20 metre (65ft)
length of re-enforced cable and standard Ikelite
connector for direct compatibility with a standard
AQ1B detector.
The extended length of cable allows the sensing
loop to be slowly towed behind a boat or simply
lowered down for drift searching. This system of
operation allows metallic contact areas to be
located prior to deploying a diver.
This item is indispensable for extended shallow
water searches in low visibility conditions.
AQ.3.040
30cm (12”) Ferrite Probe – Fully waterproof
probe used for searching for metal in small
crevices and for digging amongst silt and sand.
AQ.3.041
90cm (36”) Ferrite Probe – Fully waterproof
probe used for searching for metal in bigger
crevices and for digging amongst silt and
sand. Fully extendable between 44cm &
85.5 cm.

AQ1B Underwater Metal Detector User Manual
16
AQ.04.001
Extending Handle – Used in conjunction with
25cm Loop, fully extendable between 45cm &
87cm.
AQ.2.010
AQ1B Control Module – The main item of the AQ1B
detector kit. A fully sealed electronic control module with a
diver depth rating of 100m (tested and proven by divers
beyond this depth). The control unit features a multi-turn
adjustment for audio (detection) threshold.
The primary control is the rotary on-off power control which
also provides an element of rejection as it is rotated clock-
wise, this is primarily intended for the rejection of “ring
pulls” during beach searching applications. In addition to the
electronics, the control unit houses the Nicad rechargeable
battery pack.
AQ.4.010
Battery Charger – Switched mode unit with 100v to
250v AC 50/60HZ input voltage range. Used to
recharge the AQ1B Module internal battery pack.
Can be supplied with option of US, UK or
European type Power Connector.

AQ1B Underwater Metal Detector User Manual
17
Manufacturer Contact Information
If you should need to contact Aquascan International Limited for advice on your
purchase, to order further equipment or to arrange a repair, please use the following
contact information: -
Mailing Address:
Aquascan International Limited
Aquascan House
Hill Street
Newport
South Wales
NP20 1LZ
United Kingdom
Tel: [phone]
[phone]
Fax: [phone]
e-mail: Sales Enquiries: [email protected]
General Inquiries: [email protected]
Technical Support: [e-mail]
Website: www.aquascan.co.uk

AQ1B Underwater Metal Detector User Manual
18
Aquascan International Ltd.
EC Declaration of Conformity
We hereby declare that the following equipment complies with the essential
requirements at the Electronic Compatibility Directive (89/336, 91/26 3 and 92/31).
This equipment should not be modified, without our approval, as this declaration will
lose it’s authority.
Equipment description:- Marine Metal Detector.
Model:- Aquapulse 1B.
Manufacturer:- Aquascan International Ltd.
Aquascan House
Hill Street
Newport,
NP20 1LZ
S. Wales.
Tel: [phone]/255645
Fax: [phone]
Email: [email protected]
Applicable directives:- EN 55011 General Emission Standard Class A,
Group 1.
EN 50082 Generic Immunity Standard Part 2.
A technical construction file for this equipment is retained at the manufacturing base.
Signed :- ..............................................…… Date :- ..........................................
Name :- .................................................. Position :- .....................................
1st January 1996
J. R. WILLIAMS Managing Director
