AQUATECH CAN165-75 User manual

165 Series
Softener Operation Manual
Note:
1. Read all instructions carefully before operation.
2. Avoid pinched o-rings during installation by applying
(provided with install kit) NSF certified lubricant to all seals.
Rev 12, December 28, 2011

2
TABLE OF CONTENTS
Water Softener Gallon Setting Chart....................................................................................... 2
System Specifications.............................................................................................................. 3
Introduction............................................................................................................................ 4
Programming .......................................................................................................................... 5
General System Installation .................................................................................................... 7
Start-up Instructions ............................................................................................................... 7
System Configuration.............................................................................................................. 8
Maintenance........................................................................................................................... 9
Power Head Valve Exploded View......................................................................................... 11
Power Head Parts List ........................................................................................................... 12
Control Valve Exploded View ................................................................................................ 13
Control Valve Parts List ......................................................................................................... 14
Trouble Shooting .................................................................................................................. 15
Guarantee............................................................................................................................. 16

3
Water Softener Gallon Setting Chart
Water Softener Gallon Setting Chart
Instructions: First select the chart for your model of water softener, then simply line up the number of people living in the home
with the hardness of the water and select the appropriate gallon setting for your model.
at 6lbs salt/CF
.75 CF Total Hardness in Grains per US Gallon
16500 10 15 20 25 30 35 40 45 50
11575 1025 750 585 475 396 338 292 255
21500 950 675 510 400 321 263 217
Number of 3 1425 875 600 435 325
people 4 1350 800 525
living in the
51275 725
home 6 1200 Softener could be undersized if # of people and hardness line up in this shaded area.
71125 Consideration maybe given to a larger size unit to meet your needs.
81050
1.0 CF Total Hardness in Grains per US Gallon
22000 10 15 20 25 30 35 40 45 50 55 60 65
12125 1392 1025 805 658 554 475 414 365 325 292 263
22050 1317 950 730 583 479 400 339 290 250 217
Number of 3 1975 1242 875 655 508 404 325
people 4 1900 1167 800 580 433
living in the
51825 1092 725
home 6 1750 1017 Softener could be undersized if # of people and hardness line up in this shaded area.
71675 942 Consideration maybe given to a larger size unit to meet your needs.
81600 867
91525
10 1450
1.5 CF Total Hardness in Grains per US Gallon
33000 10 15 20 25 30 35 40 45 50 55 60 65 70 75
13225 2125 1575 1245 1025 868 750 658 585 525 475 433 396 365
23150 2050 1500 1170 950 793 675 583 510 450 400 358 321 290
Number of 3 3075 1975 1425 1095 875 718 600 508 435 375 325
people 4 3000 1900 1350 1020 800 643 525 433
living in the
52925 1825 1275 945 725 568
home 6 2850 1750 1200 870 650
72775 1675 1125 795 Softener could be undersized if # of people and hardness line up in this shaded area.
82700 1600 1050 Consideration maybe given to a larger size unit to meet your needs.
92625 1525 975
10 2550 1450
2.0 CF Total Hardness in Grains per US Gallon
44000 10 15 20 25 30 35 40 45 50 55 60 65 70 75
14325 2858 2125 1685 1392 1182 1025 903 805 725 658 602 554 512
24250 2783 2050 1610 1317 1107 950 828 730 650 583 527 479 437
Number of 3 4175 2708 1975 1535 1242 1032 875 753 655 575 508 452 404 362
people 4 4100 2633 1900 1460 1167 957 800 678 580 500 433
living in the
54025 2558 1825 1385 1092 882 725 603
home 6 3950 2483 1750 1310 1017 807
73875 2408 1675 1235 942
83800 2333 1600 1160 867 Softener could be undersized if # of people and hardness line up in this shaded area.
93725 2258 1525 1085 Consideration maybe given to a larger size unit to meet your needs.
10 3650 2183 1450
3.0 CF Total Hardness in Grains per US Gallon
66000 10 15 20 25 30 35 40 45 50 55 60 65 70 75
16525 4325 3225 2565 2125 1811 1575 1392 1245 1125 1025 940 868 805
26450 4250 3150 2490 2050 1736 1500 1317 1170 1050 950 865 793 730
Number of 3 6375 4175 3075 2415 1975 1661 1425 1242 1095 975 875 790 718 655
people 4 6300 4100 3000 2340 1900 1586 1350 1167 1020 900 800
living in the
56225 4025 2925 2265 1825 1511 1275 1092
home 6 6150 3950 2850 2190 1750 1436 1200
76075 3875 2775 2115 1675 1361 1125
86000 3800 2700 2040 1600 Softener could be undersized if # of people and hardness line up in this shaded area.
95925 3725 2625 1965 Consideration maybe given to a larger size unit to meet your needs.
10 5850 3650 2550
Figure 1. Gallon Setting Chart

4
System Specifications
Figure 2.Specifications
How Your Water Conditioner Works
The principle behind water softening is simple chemistry. A water softener contains resin beads which hold electrically charged
ions. When hard water passes through the softener, calcium and magnesium ions are attracted to the charged resin beads. It's
the resulting removal of calcium and magnesium ions that produces soft water.
This system is controlled with simple, user-friendly electronics displayed on a LCD screen. The main page displays the current time
and the remaining gallons in meter mode or the remaining days in calendar clock mode.
Figure3. Valve Display
Figure 3. Valve Display
System Initialization
When power is supplied to the control, the screen will display TIME OF DAY AND DEFAULT GALLON SETTING. If the valve is not in
service it will read “CANATURE” while the valve returns to the service position.
Maximum Water Temperature = 110°F (43°C)
Maximum Operating Pressure = 100 PSIG
(689 kPa)
Voltage = 110 volts standard
Pipe Size = 3/4”
At the stated service flow rates, the pressure drop through these
devices will not exceed 15 psig.
Changing salt settings from factory setting may require
changing injector sizes to achieve stated capacities.
The manufacturer reserves the right to make product
improvements which may deviate from the specifications and
descriptions stated herein, without obligation to change
previously manufactured products or to note the change.

5
Programming
1. Press ‘ ’ to enter programming. If the system has been inactive, you may have to hold and press ‘ ’ until you hear a beep to
unlock the display screen. Press ‘ ’ or ‘ ’ to select which setting to modify.
2. To change setting, press ‘’. When the display flashes, the value may be changed. Press ‘ ’ or ‘ ’ to change the value.
Press ‘’to accept the value.
3. Press ‘ ’ to return to previous menu.
Figure4. Program Flow Chart

6
Program Options
Depending on the current option settings, some parameters cannot be viewed or set.
Program Mode
PARAMETER OPTIONS DESCRIPTION
1 REGIONAL METRIC
This option controls whether cubic meters or US gallons is used for the volume display and the format
of the day, year, and month.
US
2 REGENERATION MODE METER DELAYED
This is the most common setting. When the volume remaining reaches zero gallons, the system will
initiate a regeneration at the next pre-set regeneration time.
METER IMMEDIATE
The unit will initiate a regeneration immediately after the volume remaining reaches zero.
TIMER
The unit will initiate a regeneration at the next pre-set regeneration time based on the interval of days
between regeneration days.
MIX REGEN
Meter initiated with Day Override. When the volume remaining reaches zero gallons, the system will
initiate a regeneration at the next pre-set regeneration time. If the days between regeneration is
reached before the remaining volume reaches zero, the system will override the meter setting and
initiate a regeneration.
4 DATE
Set date of installation. This value is fixed and does not change.
5 TIME Set current time.
6 REG TIME This setting controls the time of day when a regeneration cycle will start.
7 REG. DAYS The user can manually enter values for regeneration day intervals.
8 REG. CAP. The user can manually enter values system capacity.
9 BACKWASH
This option controls the length of time in minutes for the unit to clean the bed by reversing the flow of
water upwards through the bed and out to the drain.
10 BRINE
This option controls the length if time in minutes for the unit to draw regenerant (brine for softeners)
from the second tank and slowly rinse it from the top to bottom of the tank.
11 RINSE
This option controls the length of time to give the tank a final rinse from the top to the bottom in order
remove any last traces of the regenerant (brine) from the tank.
12 REFILL
This option controls the length of time the brine valve will open to refill the second tank (brine tank for
softeners) with water in order to produce the regenerate solution (brine for softeners) for the next
regeneration cycle. The water is accurately measured through the valves brine line flow control to
make a precise quantity of regenerant solution.
13 LOAD DEFAULT L.CAPA.
It is not recommended to use any of these options. The function of this option is to load pre-set
values of BACKWASH, BRINE, RINSE, and REFILL for large, medium, and small capacity systems. We
recommend to use the settings as specified in the SYSTEM CONFIGURATION section of this manual.
M.CAPA
S.CAPA
Figure 5. Program Options
Manual Regeneration (Delayed or Immediate)
If screen is locked, press “ MENU”for 3 seconds to unlock. To initiate an immediate regeneration, press the SET / REGEN button
for 3 seconds, an option for delayed or immediate regeneration will appear. Press the SET / REGEN button again and delayed will
begin flashing, press the down arrow button to have immediate flash, press the SET / REGEN button and then press the menu
button and the valve will immediately start into manual regeneration.
To initiate a delayed regeneration, press the SET / REGEN button for 3 seconds, then press the menu button and a regeneration
will be queued to the next pre-set regeneration time (2:00 a.m.).

7
General System Installation
Water Pressure
Minimum 25 PSI
Electrical Supply
Uninterrupted 115V AC
Existing Plumbing
Free of any deposits or build-ups inside pipes.
Softener Location
Locate close to drain and connect according to
plumbing codes
Bypass Valves
Always provide for bypass valve if unit is not
equipped with one.
Plumbing
Softener and or other water treatment
equipment should be installed to local
plumbing codes
CAUTION
Do not exceed 120 psi water pressure.
Do not exceed 110°F water temperature.
Do not subject unit to freezing
conditions.
Figure 6. Piping Diagram
Installing the Bypass valve
Figure 7. Bypass Assembly View
1. Locate the softener tank and brine tank close to a drain where the system will be installed. The surface should be clean and
level.
2. Perform all plumbing according to local plumbing codes.
Use a ½” minimum pipe or tubing size for the drain line
Use a ¾” pipe or tubing for backwash flow rates that exceed 7 gpm or length that exceeds 20ft (6 m)
ON COPPER PLUMBING SYSTEMS BE SURE TO INSTALL A GROUNDING WIRE BETWEEN THE INLET AND OUTLET PIPING TO
MAINTAIN GROUNDING.

8
3. Any solder joints near the valve must be done before connecting any piping to the valve. Always leave at least 6" (152 mm)
between the valve and joints when soldering pipes that are connected to the valve. Failure to do this could cause damage to
the valve.
4. If the valve is not installed on the tank, cut the 1”central pipe flush with top of each tank. Lubricate the large o-ring on the
valve that seals against the tank. Screw the valve on to the tank. Be careful to not cross thread the valve into the tank. Only
use silicone lubricant.
5. Connect the drain line to the valve.
6. Connect the brine line from the valve to the air check / safety elbow as per figure 8. Double check to make sure all
connections are assembled correctly and the brass and plastic nuts are tight and secure to prevent leaks.
7. Add water until there is approximately 1" (25 mm) of water above the grid plate. If the tank does not have a grid, add water
until it is above the air check in the brine tank. Do not add salt to the brine tank at this time.
8. Place the unit in the bypass position.
9. Slowly turn on the main water supply.
10. At the nearest cold treated water tap nearby remove the faucet screen, open the faucet and let water run a few minutes or
until the system is free of any air or foreign material resulting from the plumbing work. Close the water tap when water runs
clean, then proceed to start up instructions.

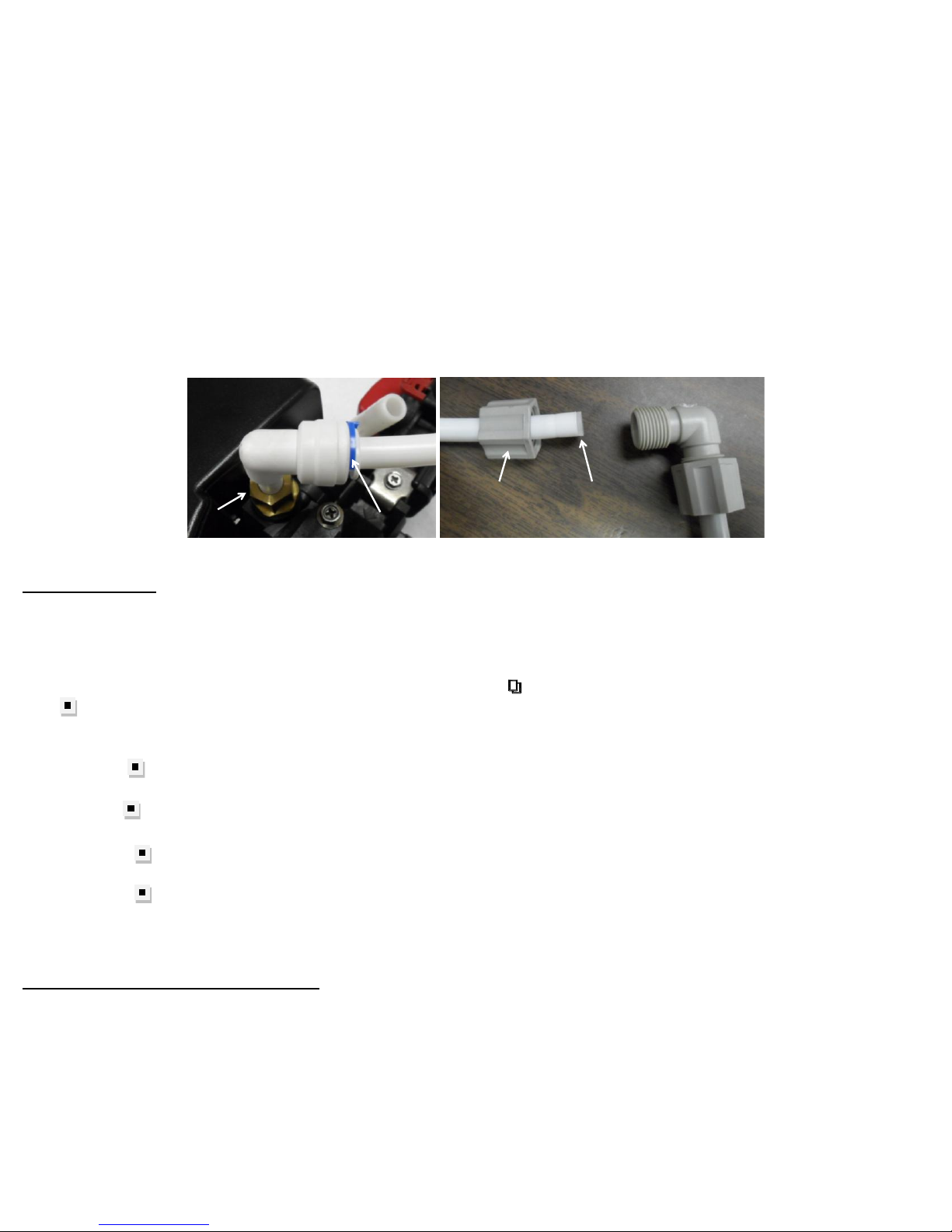

BRASS NUT BLUE LOCKING CLIP
PLASTIC NUT 3/8” PLASTIC TUBE
INSERT
Figure 8. Brine Line Connections View
Start up Procedure
1. Plug the valve into an approved power source.
2. When power is supplied to the control, the screen will display TIME OF DAY and DEFAULT GALLON SETTING. If the valve is not
in service it will read “CANATURE” while the valve returns to the service position.
3. If the system has been inactive, you may have to hold and press ‘ ’ until you hear a beep to unlock the display screen. Press
“ ” to initiate a manual regeneration and advance the valve to the Backwash position. Open the inlet on the bypass valve
slowly and allow water to enter the unit. Allow all air to escape from the unit before turning the water on fully then allow
water to run to drain for 3-4 minutes or until all media fines are washed out of the softener or filter.
4. Press the “ ” to advance to the BRINE position. Check the water level in the brine tank to insure the valve is drawing brine
properly.
5. Press the “ ” to advance to the RINSE position. Check the drain line flow. Allow the water to run for 3-4 minutes or until the
water is clear.
6. Press the “ ” to advance to the REFILL position. Check that the valve is filling water into the brine tank. Allow the valve to
refill for the correct amount of time as displayed on the screen to insure a proper brine solution for the next regeneration.
7. Press the “ ” to advance to the SERVICE position. Open the outlet valve to the bypass, then open the nearest treated water
faucet and allow the water to run until clear, close the tap and replace the faucet screen.
8. Put salt into the brine tank.
Control Operation During A Power Failure
In the event of power failure, the valve will keep track of the time and day for 48 hours. The programmed settings are stored in a
non-volatile memory and will not be lost during a power failure. If power fails while the unit is in regeneration, the valve will
return to the service position once power is restored. If the valve misses a scheduled regeneration due to a power failure, it will
queue a regeneration at the next regeneration time once power is restored.

9
System Configuration
@ 15 lbs/cu ft @ 10 lbs/cu ft
@ 6 lbs/cu ft
(Factory Setting)
@ 3 lbs/cu ft BACKWASH BRINE/RINSE RINSE @ 15 lbs/cu ft @ 10 lbs/cu ft
@ 6 lbs/cu ft
(Factory Setting)
@ 3 lbs/cu ft
0.75 22,500 19,875 16,500 10,500 10.0 60.0 10.0 6.0 4.0 2.0 1.1
1.00 30,000 26,500 22,000 14,000 10.0 60.0 10.0 7.0 5.0 3.0 1.5
1.50 45,000 39,750 33,000 21,000 10.0 60.0 10.0 11.0 7.0 5.0 2.0
2.00 60,000 53,000 44,000 28,000 10.0 60.0 10.0 14.0 10.0 6.0 3.0
3.00 90,000 79,500 66,000 42,000 10.0 60.0 10.0 21.0 14.0 9.0 4.3
RESIN VOLUME
SYSTEM CAPACITY (GRAINS)
CYCLE TIME (MINUTES)
REFILL TIME (MINUTES) @ 0.70 GPM BLFC
Figure 9. Valve Cycle Settings
Injector and Drain Line Flow Control
Tank Size (Diameter) Injector Set
Brine Line Flow
Control (BLFC)
Drain Line Flow
Control (DLFC)
6"
7"
8"
9" #2 (2.0 GPM)
10" #3 (2.4 GPM)
12" #4 (3.5 GPM)
13" #6 (4.0 GPM)
14" #7 (5.0 GPM)
16" none
Suggested Softener Valve Configuration
#000 Brown
(0.70 GPM)
#1 (1.5 GPM)
#1 White
#2 Blue
#3 Yellow
Figure 10. Valve Configurations
Automatic Bypass The regeneration cycle lasts approximately 75 minutes, after which soft water service will be restored.
During regeneration, hard water is automatically bypassed for use in the household. Hot water should be
used as little as possible during this time to prevent hard water from filling the water heater. This is why
automatic regeneration is set for sometime during the night and manual regenerations should be
performed when little or no water will be used in the household.
Safety Float The brine tank is equipped with a safety float which prevents your brine tank from overfilling as a result of
a malfunction such as a power failure.
New Sounds You may notice new sounds as your water softener operates. The regeneration cycle lasts approximately
2-1/2 hours. During this time, you may hear water running intermittently to the drain.
Figure 11. Bypass Installation View
Manual Bypass In the case of emergency, such as an overflowing brine tank, you can isolate your water softener from the
water supply using the bypass valve located at the back of the control. In normal operation the bypass is
open with the on/off knobs in line with the inlet and outlet pipes. To isolate the softener, simply rotate
the knobs counter clockwise until they lock. You can use your water related fixtures and appliances as the
water supply is bypassing the softener. However, the water you use will be hard. To resume soft water
service, open bypass valve by rotating the knobs clockwise.

10
Maintenance
Adding Salt Use only crystal water softener salt. Check the salt level monthly. It is important to maintain the salt level
above the water level. To add salt, simply lift the salt lid and add the salt directly into the brine tank. Be
sure the brine well cover is on and fill only to the height of the brine well.
Bridging Humidity or wrong type of salt may create a cavity between the water and the salt. This action, known as
“bridging”, prevents the brine solution from being made, leading to your water supply being hard.
If you suspect salt bridging, carefully pound on the outside of the brine tank or pour some warm water
over the salt to break up the bridge. This should always be followed up by allowing the unit to use up any
remaining salt and then thoroughly cleaning out the brine tank. Allow four hours to produce a brine
solution, and then manually regenerate the softener.
Care of Your
Softener To retain the attractive appearance of your new water softener, clean occasionally with mild soap
solution. Do not use abrasive cleaners, ammonia or solvents. Never subject your softener to freezing or to
temperatures above 120°F.
Figure 12. Injector Assembly
Cleaning the
Injector Assembly Sediment, salt and silt will restrict or clog the injector. A clean water supply and pure salt will prevent this
from happening.
The injector assembly is located on the right side of the control valve. This assembly is easy to clean.
Shut off the water supply to your softener and reduce the pressure by opening a cold soft water faucet.
Using a screwdriver, remove the two screws holding the injector cover to the control valve body. Carefully
remove the assembly and disassemble as shown in Figure 6. The injector orifice is removed from the valve
body by carefully turning it out with a large screwdriver. Remove the injector throat the same way.
Carefully flush all parts including the screen. Use a mild acid such as vinegar or Pro-Rust Out to clean the
small holes in the orifice and throat.
Re-assemble using the reverse procedure.
Resin Cleaner An approved resin cleaner must be used on a regular basis if your water supply contains iron. The amount
of resin cleaner and frequency of use is determined by the quantity of iron in your water (consult your
local representative or follow the directions on the resin package).

11
Power Head Exploded View
See parts listing on next page (12)

12
Power Head Parts List
Item No. Part No. Part Description Quantity
B01 5056136
Screw-ST3.5×13(Hexagon with Washer) 4
B02 5056014
Bnt65 Back Cover 1
B03 5010045
Piston Stem Holder 1
A26 13000426
Screw-ST2.9×13(Large Wafer) 1
B04 5056139
Washer-3x13 1
B05 5056005
Main Gear 1
B06 5056083
Screw-M4x14 1
B07 5056166
Screw-ST4.2×12(Large Wafer) 1
B08 5056141
Washer-4x12 1
B09 13111004
Washer-4x9 1
B10 5056016
Refill Regulator 1
B11 5056015
Brine Gear 1
B12 5056089
Nut-M4 1
B13 5056095
Spring Detent 2
B14 5056001
Bnt65 Housing 1
B15 5010037
Screw-ST2.9×10 5
B16 5056504
Bnt165 Pcb 1
B17 5056500
Bnt165 Front Cover 1
5056505
Bnt165 Operation Label 1
5056506
Bnt165 Regen. Label 1
B18 5056509
Screw-ST2.9×10(CSK ) 2
B19 5056082
Screw-M3×5 2
B20 5056510
Motor-12v/2rpm 1
11700005
Wire Connector 2
B21 5056045
Motor Mounting Plate 1
B22 5056501
Bnt165 Drive Gear 1
A04 5010081
Bnt65 Piston Rod 1
B23 5056002
Idler Gear 1
B24 5010031
Meter Assembly 1
5010046
Meter Strain Relief 1
B25 5056094
Spring Idler 1
B26 5056098
Motor Pin 1
B27 5056502
Spring Retainer 1
B28 5056507
Bnt165 Power Cable 1
5056013
Bnt65 Power Strain Relief 1
B29 5056092
Ball-1/4inch 2
B30 5056503
Magnet Holder 1
B31 5010023
Magnet-φ3×2.7 1
B32 5056008
Bnt65 Knob 1
5056111
Bnt65 Knob Label 1
B33 5056084
Screw-ST3.5x13 1

13
Control Valve Exploded View
See parts listing on next page (14)

14
Control Valve Parts List
Item N o. P artN o. P artD iscription Q uantity
A 01 05056087 S crew -M 5×12(H exagon) 3
A 02 05056088 S crew -M 5×16(H exagon w ith W asher) 2
A 03 05056047 E nd P lug R etainer 1
A 04 05010081 B nt65 P iston R od 1
A 05 05056097 P iston P in 1
A 06 05056023 E nd P lug 1
A 07 05056070 Q uad R ing 2
A 08 05056024 E nd P lug W asher 1
A 09 05056022 P iston R etainer 1
A 10 05056181 P iston (E lectrical) 1
A 11 05056104 M uffler 1
A 12 05056021 S pacer 4
A 13 05056073 S eal 5
A 14 05056019 B nt65 V alve B ody 1
A 15 05056063 O -ring-φ78.74×5.33 1
A 16 05056129 O -ring-φ23×3 4
A 17 05056025 A daptor C oupling 2
A 18 05056044 A daptor C lip 2
A 19 05056090 S crew -S T 4.2×13(H exagon w ith W asher) 2
A 20 21709003 S ecure C lip 2
A 21 05056140 V alve C onnector 1
A 22 05056065 O -ring-φ23.6×2.65 2
A 23 21319006 S crew A daptor 2
A 24 26010103 O -ring-φ25×3.55 1
A 25 07060007 V alve B ottom C onnector 1
A 26 13000426 S crew -S T 2.9×13(Large W afer)  2
A 27 05056038 D rain F itting 1
A 28 26010003 O -R ing-φ18×2.65 1
A 29 05056036 D LF C B utton R etainer 1
A 30 05056079 O -R ing-φ15×0.8 1
A 31 05056143 D LF C -2# 1
A 32 05056035 B LF C B utton R etainer 1
A 33 05056191 B LF C -2# 1
A 34 05056138 O -R ing-φ14×1.8 1
A 35 05056100B B LF C Fitting 1
A 36 05056106 B rine Line S creen 1
A 37 05056107 B LF C Tube Insert 1
A 38 05056033 B LF C Ferrule 1
A 39 05056108 B LF C Fitting N ut 1
A 40 05056086 S crew -M 5×30(H exagon w ith W asher) 2
A 41 05056029 Injector C over 1
A 42 05056072 O -R ing-φ24×2 1
A 43 05056103 Injector S creen 1
A 44 05056027 Injector N ozzle 1
A 45 05056028 Injctor Throat 1
A 46 05056177 Injector B ody 1
A 47 05056075 Injector S eat 1
A 48 05056134 O -R ing-φ12×2 1
A 49 05056054 Injector S tem 1
A 50 05056031 Injector S pacer 1
A 51 05056081 O -R ing-φ12.5×1.8 1
A 52 05056030 Injector C ap 1
A 53 05056093 Injector S creen 1
A 54 05010049 S pecialW asher 1
A 55 05056105 R etaining R ing 1
A 56 05056067 O -R ing-φ7.8×1.9) 2
A 57 05056037 A ir D isperser 1
A 58 05056066 O -R ing-φ11×2 1

15
Trouble Shooting
Issue Possible Cause Possible Solution
1. No power supply. Check electrical service, fuse, etc.
2. Defective circuit board. Replace faulty parts.
3. Power failure. Reset time of day.
1. By-pass valve open. Close by-pass valve.
2. Out of salt. Add salt to tank.
3. Plugged injector / screen. Clean parts.
4. Flow of water blocked to brine tank. Check brine tank refill rate.
5. Hard water in hot water tank. Repeat flushing of hot water tank required.
6. Leak between valve and central tube.
Check if central tube is cracked or o-ring is
damaged. Replace faulty parts.
7. Internal valve leak. Replace valve seals, spacer, and piston assembly.
C. Salt use is high. 1. Refill time is too high. Check refill time setting.
1. Iron or scale build up in line feeding unit. Clean pipes.
2. Iron build up inside valve or tank.
Clean control and add resin cleaner to clean bed.
Increase regeneration frequency.
3. Inlet of control plugged due to foreign material. Remove piston and clean control valve.
1. Air in water system.
Check well system for proper air eliminator
control.
2. Incorrect drain line flow control (DLFC) button. Check for proper flow rate.
1. Plugged injector or screen. Clean parts.
2. Valve not regenerating. Replace circuit board, motor, or control.
3. Foreign material in brine valve. Clean parts.
1. Drain line flow control is plugged. Clean parts.
2. Injector or screen is plugged. Clean parts.
3. Inlet pressure too low. Increase pressure to 25 PSI.
4. Internal valve leak. Replace seals, spacers, and piston assembly.
H. Valve continuously cycles. 1. Defective position sensor PCB. Replace faulty parts.
1. Valve settings incorrect. Check valve settings.
2. Foreign material in control valve. Clean control.
3. Internal leak. Replace seals, spacers, and piston assembly.
F. Too much water in brine
tank.
I. Flow to drain continuously.
G. Unit fails to draw brine.
A. Unit fails to initiate a
regeneration cycle.
B. Water is hard.
D. Low water pressure.
E. Resin in drain line.

16
Manufacturers
Warranty
Canature North America Inc. warrants that your new water conditioner is built of quality
material and workmanship. When properly installed and maintained, it will give years of trouble
free service.
Five Year Complete Parts Warranty:
Canature North America Inc. will replace any part which fails within 60 months from date of
manufacture, as indicated by the serial number, provided the failure is due to a defect in material
or workmanship. The only exception shall be when proof of purchase or installation is provided
and then the warranty period shall be from the date thereof.
Ten Year Warranty on Mineral Tanks and Brine Tanks:
Canature North America Inc. will provide a replacement mineral tank or brine tank to any
original equipment purchaser in possession of a tank that fails within 120 months, provided that
the water conditioner is at all times operated in accordance with specifications and not subject to
freezing.
General Provisions:
Canature North America Inc. assumes no responsibility for consequential damage, labour or
expense incurred as a result of a defect or for failure to meet the terms of this warranty because
of circumstances beyond its control.
