Aquatic AQ-DM-4B User manual

products with a watertight reputation
WATER/DUST PROOF DIGITAL MEDIA LOCKER™
AQ-DM-4
WATER/DUST PROOF iPOD/MP3 DIGITAL MEDIA LOCKER™
WITH FLOATING RF LCD 2-WAY WIRELESS REMOTE CONTROL
OWNERS MANUAL
PLEASE READ THIS INSTRUCTION MANUAL BEFORE
INSTALLATION AND OPERATION
AQ-DM-4
products with a watertight reputation
Aquatic AV
282 Kinney Dr..
San Jose, CA 95112, USA
E-mail: [e-mail]
US & Canada: 1 877 579 2782
International: [phone]
Fax: [phone]
www.aquaticav.com
products with a watertight reputation
®
AQ-DM-4B
DIGITAL MEDIA LOCKER™
for iPod & MP3 devices
DIGITAL MEDIA LOCKER™
AQ-DM-4B
OWNERS MANUAL

10
www.aquaticav.com
FCC STATEMENT
AQ-DM-4
FCC ID:
MADE IN CHINA
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
NOTE:
The equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged
to try and correct the interference by one or more of the following measures:
- Reorientate or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Consult the dealer or an experienced radio/TV technician for help.
The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user
authority to operate the equipment.
Product design and specification subject to change without notice. E&OE.
Digital Media Locker™is a Trademark of Aquatic AV.
iPod is a Trademark of Apple Inc, registered in the US and other countries.
Doc V4 Feb12
• AQ-DM-4 Digital Media Locker™
• 2-way RF wireless remote control
• 2.35m audio cable (3.5mm plug to 3.5mm plug)
• One (1) CR2430 battery
• AQ-DM-4 mounting template
• Six (6) Stainless Steel mounting screws
• Owners manual
CONTENTS
INSTALLATION
GETTING STARTED
1www.aquaticav.com

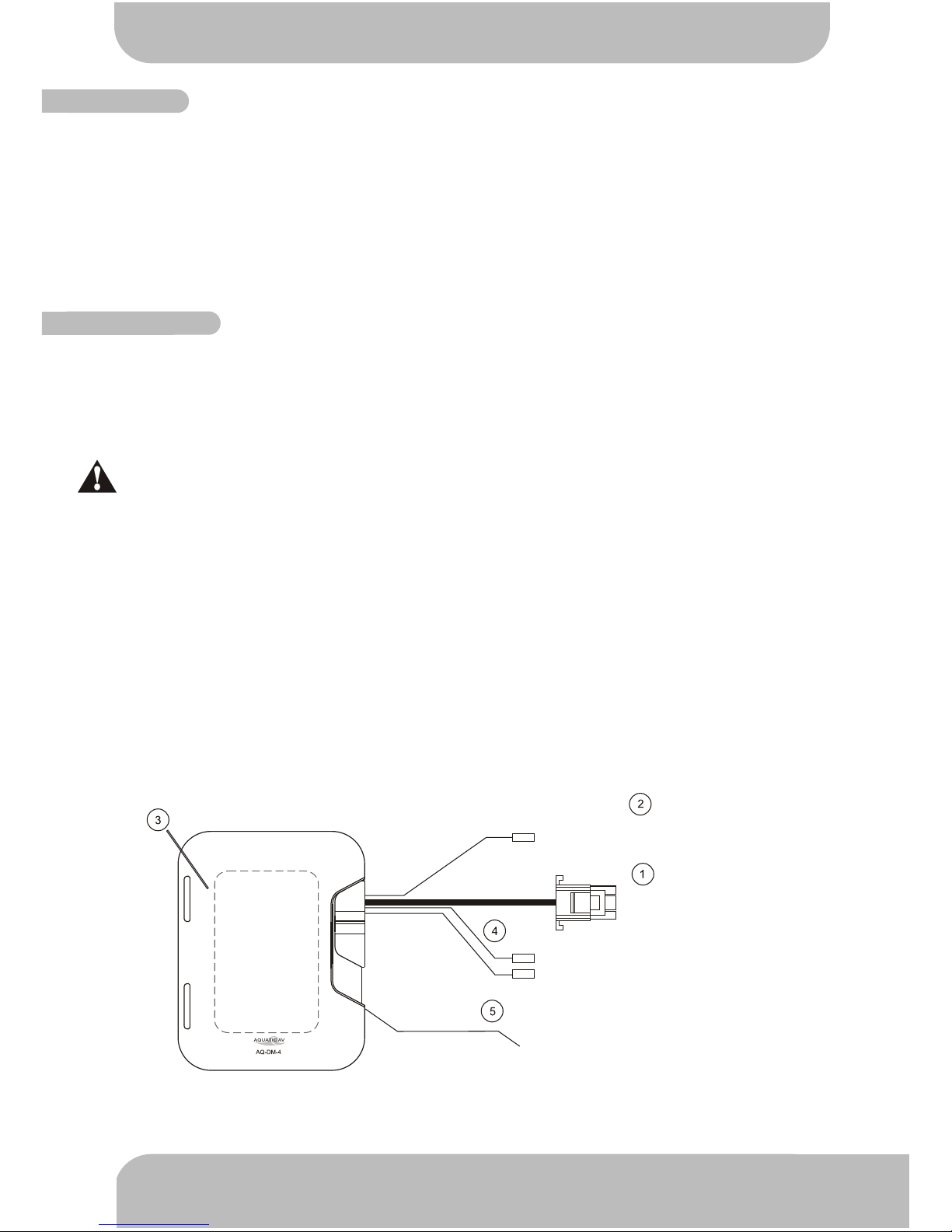

FM Radio
Antenna Jack
12 pin
Harness Cable
External 12V Trigger (Brown)
Left Audio - RCA Output Jack
Right Audio - RCA Output Jack
Aux’ Input
Jack Socket
1. 12-pin Watertight Harness
This harness supplies power and ground connections to the Digital Media Locker™ and four (4)
speaker channel output connections from the Digital Media Locker™. The AQ-UNH-2 (supplied
separately) or a custom manufacture harness will be required.
Do not cut or modify the 12-pin harness or warranty will be void
2. FM Radio Antenna Jack
Connect antenna to female antenna receptacle. For best FM performance make sure the FM
Antenna is extended to the highest achievable position.
3. Auxiliary Input
The AQ-DM-4 has a 3.5mm stereo jack socket for connecting other audio devices.
4. Auxiliary Outputs
Allows external amplifier to be connected to power additional speakers.
5. 12V DC External Trigger
Allows for an external light or relay to be triggered (350mA max load).
(AQ-RFDM-4)
2

9www.aquaticav.com
SPECIFICATIONS
10.7V - 15.6V DC, 5A min
0A
2.4GHz
3V (1 x CR2430 battery)
12V DC, 350mA max
IP65
500 hours stable without degradation
General
Power Supply:
Current drain when OFF:
Remote Control Frequency:
Remote Control Battery:
External Trigger:
IP Rating (Digital Media Locker™):
UV Protection:
TECHNICAL SPECIFICATION
8uV
Dipole Antenna (not included)
Stereo
3
FM Radio
FM Radio Sensitivity:
FM Antenna:
FM Radio Reception:
Number of Radio Presets:
Amplifier
Distortion:
Frequency Response:
Amplifier Output:
<0.1% THD at 1kHz
20Hz - 20kHz
45W per channel at 4 Ohm load
72W per channel at 2 Ohm load
GETTING STARTED
AQ-DM-4
2
www.aquaticav.com
12-PIN HARNESS
The AQ-DM-4 will require a universal harness (AQ-UNH-2) in order to connect the dock to
power and speakers.
All open wire connections should be soldered and protected against water and dust for best
long term performance.
MOUNTING THE UNIT
1. Mounting templates are included. Aquatic AV recommends
1. using the ‘measure twice, cut once’ method.
2. Once the mounting hole is complete, make sure the outside
2. surface is clean and clear of debris. The Digital Media
2.Locker™has an external water/dust proof gasket, but this
2. requires a clean surface for best performance.
3. The Digital Media Locker™has six(6) front screws. Drive
2.the 6 screws using a screw driver. During final mounting,
3.apply equal pressure to all points for the best water/dust
3..outer seal performance.
4. Review all outside surfaces of the Digital Media Locker™to
4. ensure proper water/dust seal. This is important for long
4.term environmental protection performance for iPod or MP3
4. devices.
(Purple/Black Stripe)
(Purple)
(Gray/Black Stripe)
(Gray)
(White/Black Stripe)
(White)
(Green/Black Stripe)
(Green)
Speaker
Right
Front
Left
Rear
Left
Front
RR (Pin 11)
RR (Pin 12)
RF (Pin 8)
RF (Pin 9)
LR (Pin 3)
LR (Pin 2)
LF (Pin 5)
LF (Pin 5)
Not Used (Pin 6)
+12VDC, Triggered (Pin 6) (Blue)
DC Ground (Pin 10) (Black)
+12VDC (Pin 1) (Red)
F
Right
Rear
No lower than a 2 Ohm load should be used or
damage may occur to the Digital Media Locker
™.
Make sure the polarity of speakers are connected
correctly.
+12VDC, Trigger for Amp (pin 6) (Blue)
AQ-DM-4B
3

8
www.aquaticav.com
OTHER FEATURES
AQ-DM-4
Load on External Trigger should not exceed 350mA
When specified iPod devices are connected to the Digital Media Locker™30-pin connector
the iPod battery will charge.
iPOD CHARGING
REMOTE CONTROL LCD AUTO OFF
To maximize battery life of the RF wireless remote control, the LCD of the remote control
will be OFF if no key is pressed in 20 seconds. To re-activate the LCD display, press any
key once to bring the remote control to normal operation.
Aquatic AV understands the need for more flexible remote applications. With the Digital
Media Locker™Aquatic AV has provided an independent 12V “accessory” trigger, activated
from the RF wireless remote that allows the user to activate non-iPod, MP3 related devices.
This could include and 12V based device like 12V lights or surveillance camera.
1. In any operational mode, press the (12V TRIGGER) key to activate. Press again to
deactivate.
2. We strongly recommend you speak to our technical service staff or your dealer if you are
considering using this feature.
To avoid rusting as a result of electrical potential in the connector, the battery of your
iPod devices must not be totally drained. If your iPod is not charged at all then the
Digital Media Locker will not charge it.
GETTING STARTED
3www.aquaticav.com
Remove the water/dust proof RF wireless remote control from the Digital Media Locker™.
Unscrew the waterproof cap on the back of the remote control and place the CR-2430
battery in the RF remote control and replace the water/dust proof cap.
If the LCD displays “- -” in either mode, this means that your remote control is out of
reception range. Please move closer and try the feature again.
POWER ON
To activate the Digital Media Locker™press the on/off button. ON will be indicated by a red
LED.
For applications that require zero current draw the power button must be turned OFF.
When the power button is in the OFF position the red LED will not be lit.
REMOTE SYNCHRONIZING
REMOTE BATTERY INSTALL
Each Digital Media Locker™comes with a matching RF (Radio Frequency) Wireless LCD
remote control. This remote is required to use any functions on the unit. For any additional
remote controls you will need to activate/synchronize those remote controls to the AQ-DM-4
by following the steps above.
If you lose your remote control and buy a replacement, follow the steps above to
pair/synchronize before normal usage.
EXTERNAL TRIGGER
If the pairing process is not effective, turn the docking station OFF with the on/off
button, located inside the door of the dock. Uplug the 12-pin harness on the back of
the stereo for 3 minutes. Reattach the harness and repeat steps 1-5 above.
1. Turn the docking station OFF with the on/off button inside the door (the red LED should
not be illuminated when power is OFF).
2.Press the red (POWER) button on the remote.
3.Press and hold the (MODE) button on the top right corner until the LCD reads PAIR.
4.Turn the docking station ON (within 10 seconds) with the on/off button inside door (the
red LED will illuminate when power is ON).
5.The remote’s LCD should read WELCOME or show a mode position such as RADIO,
IPOD, or AUX IN.
Remove the RF Wireless Remote control from the Digital Media Locker. Unscrew the
waterproof cap on the back of the remote control. Place the CR-2430 battery in the RF
Remote control and replace the water/dust proof cap.
REMOTE BATTERY INSTALL
POWER ON
REMOTE SYNCHRONIZING
If the pairing process is not effective, switch the locker off using the on/off button located
inside the door of the dock. Unplug the 12-pin Harness on the back of the Locker for 3
minutes. Reattach the Harness and repeat steps 1-6 above.
For any additional remote controls, you will also need to activate/synchronize those
remote controls by following the steps above.
If you loose your remote control and buy another new remote control, please follow the
above to start pairing before normal usage.
1. Turn the docking station OFF with the on/off button inside the door (the red LED
should not be illuminated when power is OFF).
2. Press the red (POWER) button on the remote.
3. Press and hold the (MODE) button until the LCD reads PAIR.
4. Continue to press the MODE button during step 5 below.
5. Turn the docking station ON (within 10 seconds) with the on/off button inside door
(the red LED will illuminate when power is ON).
6. The remote’s LCD should read WELCOME or show a mode position such as
RADIO, IPOD, or AUX IN.
Press the on/off button. ON will be indicated by a red LED.
For applications that require zero current draw, and where battery drain may occur, the
power button must be turned OFF. When the power button is in the OFF position the
red LED will not be lit.
For applications where a 12V battery is not used, such as in a Spa, the power button
can be left ON and the remote control can then be used to power on/off accordingly.
If the LCD displays “NO LINK” in either mode, this means the remote is out of reception
range. Move the remote closer to the Locker and try again.
4

7www.aquaticav.com
LISTENING TO FM RADIO
ENTER FM RADIO MODE
TO SCAN OR NAVIGATE CHANNELS
FM radio is only available when you are in the FM Radio Mode.
If this is the first time you listen to FM radio, the default frequency will be 87.5MHz, as
shown on the remote LCD.
SAVING RADIO CHANNEL TO MEMORY
LISTENING TO SAVED RADIO MEMORY
1. Press (FAST REWIND) or (FAST FORWARD) to seek another station.
2. Press and hold either (FAST REWIND) or (FAST FORWARD) for manual tun-
ing back or forward.
1. Press or or button once to listen to the station stored in button.
1. Press (MODE) on remote control to switch to FM radio model.
1. If you want to save the current frequency into memory, press and hold or or
for more than 2 seconds. The station will be stored the to relevant button or or

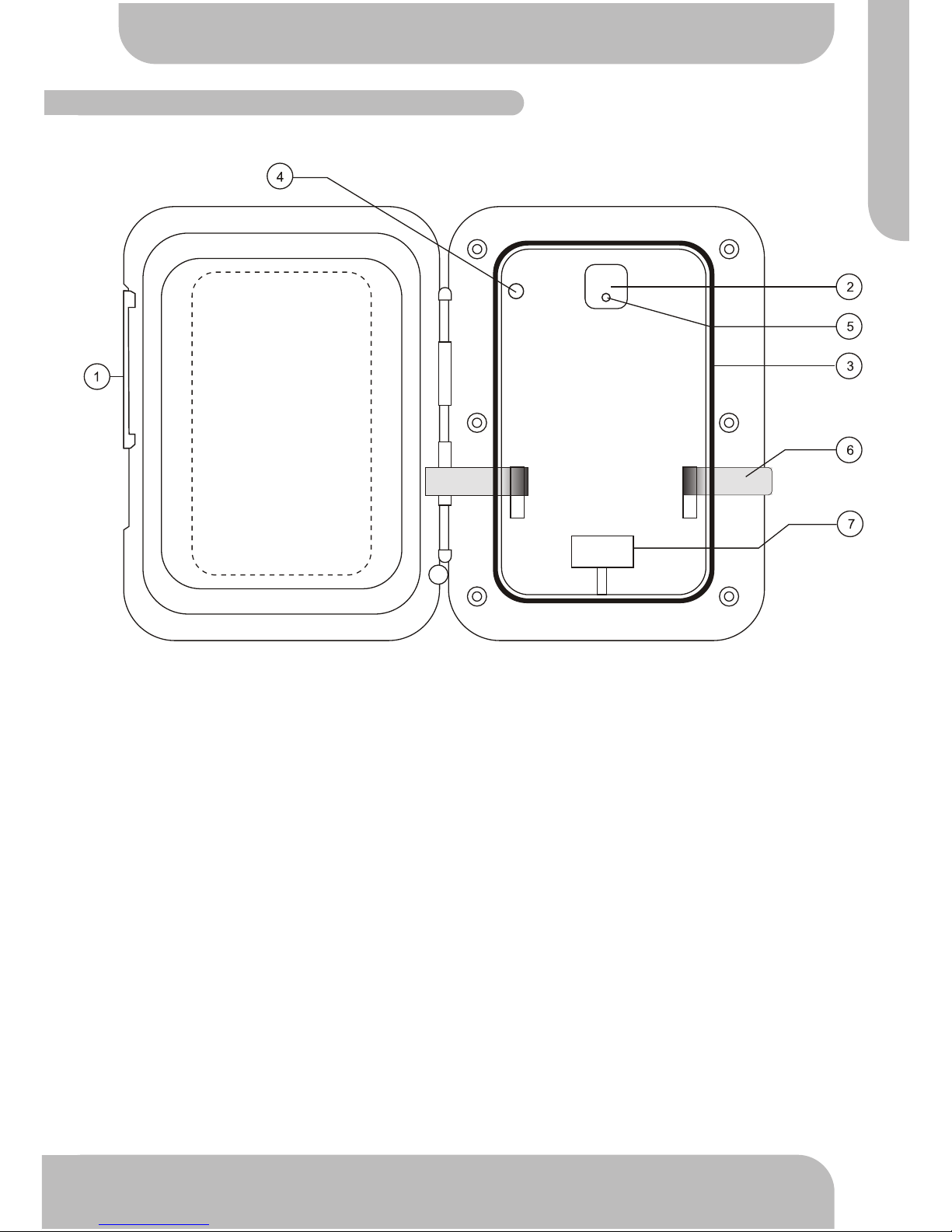

LOCATION OF CONTROLS
AQ-DM-4
4
www.aquaticav.com
WATER/DUST PROOF DIGITAL MEDIA LOCKER™
Digital Media Locker Knob and Protective Door
ON/OFF Button
Water/Dust Protection Inner Gasket
3.5mm AUX Input Jack for MP3 Devices
ON/OFF Power LED
Security Strap for Digital Media Devices (MP3/iPod)
iPod 30-pin Connector
Item Description
1.
2.
3.
4.
5.
6.
7.
AQ-DM-4B
5

AQ-DM-4
LISTENING TO PLAYERS
6
www.aquaticav.com
LISTENING TO MP3
ADJUSTING VOLUME LEVEL
Always ensure to connect and disconnect your media player with dry hands.
Last Track
Toggle Play and Pause
Next Track
Button Press once
Fast Rewind
Fast Forward
Press and Hold
If you are listening to iPod and you change your mode to Radio or Standby mode, the
iPod will automatically pause playing and the charging screen will appear.
1. Press (VOLUME UP) once to increase the volume by 3 decibels.
2. Press (VOLUME DOWN) once to reduce the volume by 3 decibels.
3. Press and hold either VOLUME UP or VOLUME DOWN and the Digital Media Locker™
3. will increase or decrease the volume continuously.
1. Power up the Digital Media Locker™.
2. Attach your iPod device to the iPod 30-pin connector.
3. Secure the iPod device with the anchor straps provided.
4. Secure The Digital Media Locker™protective door.
5. Press and hold (POWER) on the remote control to turn it ON.
6. Press (MODE) on the remote control to select iPod mode. Use the buttons below for
6.the features.
LOCATION OF CONTROLS
5www.aquaticav.com

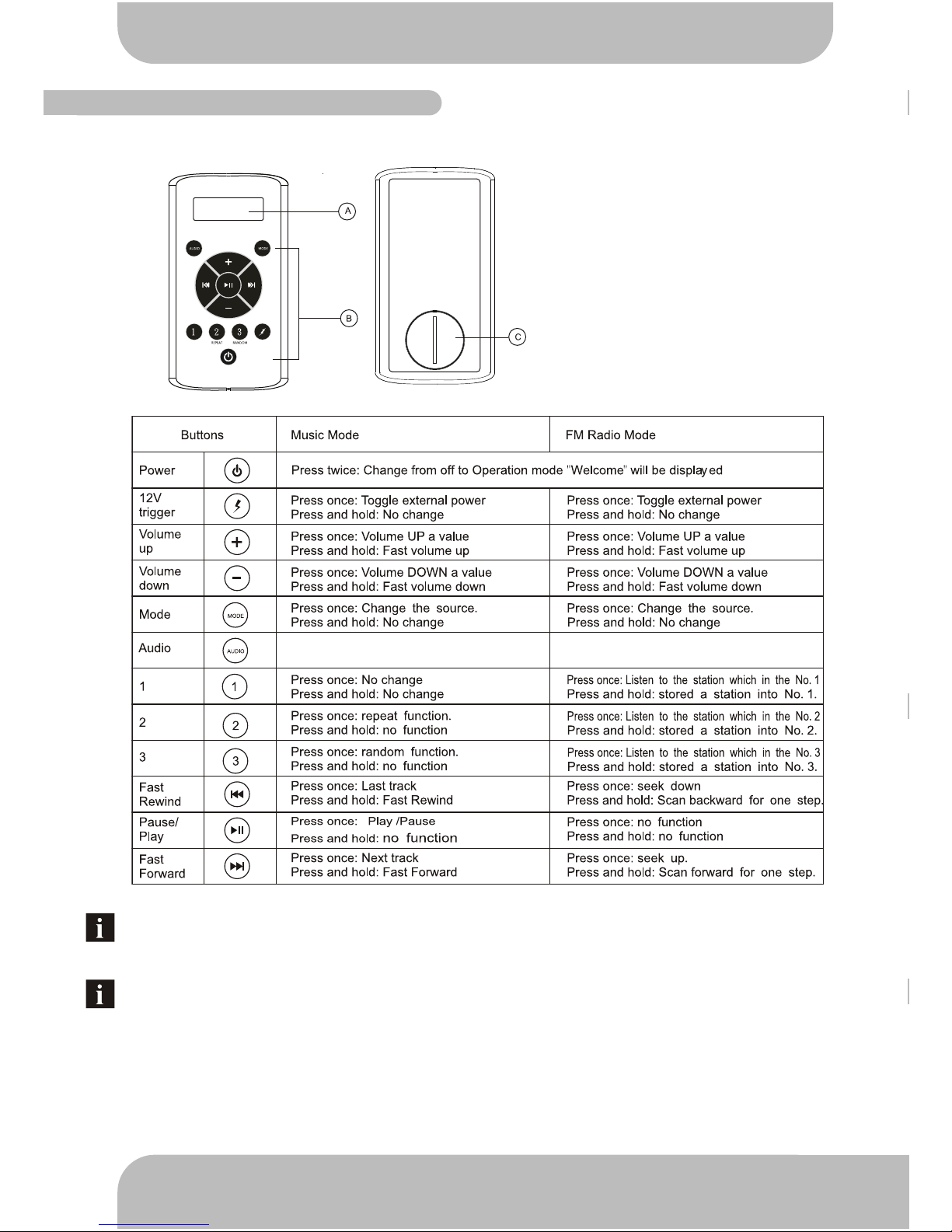

RF LCD WIRELESS REMOTE CONTROL
Remote Control LCD
Remote Control Buttons
Battery Door
Item Description
A.
B.
C.
If your music player is not an iPod, you will only be able to use the volume and power
controls on the remote control.
In order to prolong remote battery life the LCD will shut off after 20 seconds if no other
button is pressed. To turn remote back on, press any button once, and then press the
command desired.
LISTENING TO iPOD
1. Power up the Digital Media Locker™.
2. Attach your MP3 device to the 3.5mm connector.
3. Secure the MP3 device with the anchor straps provided.
4. Secure The Digital Media Locker™protective door.
5. Press and hold (POWER) on the remote control to turn it ON.
6. Press (MODE) on the remote control to select AUX mode. RF wireless remote
6. control of Volume only.
Press once: Enter BAS-TRE-BAL-FAD-DX-MONO-STEREO
Press and hold: Switch USA to EUR tuning
The remote control will only allow navigation of songs within the selected playlist. To
navigate to another playlist use the iPod directly.
Press once: Enter BAS-TRE-BAL-FAD-DX-MONO-STEREO
Press and hold: Switch USA to EUR tuning
6

AQ-DM-4
LISTENING TO PLAYERS
6
www.aquaticav.com
LISTENING TO MP3
ADJUSTING VOLUME LEVEL
Always ensure to connect and disconnect your media player with dry hands.
Last Track
Toggle Play and Pause
Next Track
Button Press once
Fast Rewind
Fast Forward
Press and Hold
If you are listening to iPod and you change your mode to Radio or Standby mode, the
iPod will automatically pause playing and the charging screen will appear.
1. Press (VOLUME UP) once to increase the volume by 3 decibels.
2. Press (VOLUME DOWN) once to reduce the volume by 3 decibels.
3. Press and hold either VOLUME UP or VOLUME DOWN and the Digital Media Locker™
3. will increase or decrease the volume continuously.
1. Power up the Digital Media Locker™.
2. Attach your iPod device to the iPod 30-pin connector.
3. Secure the iPod device with the anchor straps provided.
4. Secure The Digital Media Locker™protective door.
5. Press and hold (POWER) on the remote control to turn it ON.
6. Press (MODE) on the remote control to select iPod mode. Use the buttons below for
6.the features.
LOCATION OF CONTROLS
5www.aquaticav.com
RF LCD WIRELESS REMOTE CONTROL
Remote Control LCD
Remote Control Buttons
Battery Door
Item Description
A.
B.
C.
If your music player is not an iPod, you will only be able to use the volume and power
controls on the remote control.
In order to prolong remote battery life the LCD will shut off after 20 seconds if no other
button is pressed. To turn remote back on, press any button once, and then press the
command desired.
LISTENING TO iPOD
1. Power up the Digital Media Locker™.
2. Attach your MP3 device to the 3.5mm connector.
3. Secure the MP3 device with the anchor straps provided.
4. Secure The Digital Media Locker™protective door.
5. Press and hold (POWER) on the remote control to turn it ON.
6. Press (MODE) on the remote control to select AUX mode. RF wireless remote
6. control of Volume only.
Press once: Enter BAS-TRE-BAL-FAD-DX-MONO-STEREO
Press and hold: Change USA to EUR
The remote control will only allow navigation of songs within the selected playlist. To
navigate to another playlist use the iPod directly.
AQ-DM-4B
iPhone & iPod COMPATIBLE MODELS
1. Power up the Digital Media Locker.
2. Attach your MP3 device to the 3.5mm connector.
3. Secure the device with the anchor straps provided.
4. Secure the Digital Media Locker’s protective door.
5. Press (Mode) on the remote control to select ‘AUX IN’ mode.
LISTENING VIA 3.5MM JACK
1. Press (VOLUME UP) once to increase the volume by 3 decibels.
2. Press (VOLUME DOWN) once to reduce the volume by 3 decibels.
3. Press and hold either or and the Digital Media Locker will increase or decrease
audio volume continuously.
ADJUST VOLUME LEVEL
6. Press (Mode) on the remote control to select iPod mode. Use the buttons as
shown in the remote function chart.
Always ensure to connect and disconnect your media player with dry hands!
7

7www.aquaticav.com
LISTENING TO FM RADIO
ENTER FM RADIO MODE
TO SCAN OR NAVIGATE CHANNELS
FM radio is only available when you are in the FM Radio Mode.
If this is the first time you listen to FM radio, the default frequency will be 87.5MHz, as
shown on the remote LCD.
SAVING RADIO CHANNEL TO MEMORY
LISTENING TO SAVED RADIO MEMORY
1. Press (FAST REWIND) or (FAST FORWARD) to seek another station.
2. Press and hold either (FAST REWIND) or (FAST FORWARD) for manual tun-
ing back or forward.
1. Press or or button once to listen to the station stored in button.
1. Press (MODE) on remote control to switch to FM radio model.
1. If you want to save the current frequency into memory, press and hold or or
for more than 2 seconds. The station will be stored the to relevant button or or
LOCATION OF CONTROLS
AQ-DM-4
4
www.aquaticav.com
WATER/DUST PROOF DIGITAL MEDIA LOCKER™
Digital Media Locker Knob and Protective Door
ON/OFF Button
Water/Dust Protection Inner Gasket
3.5mm AUX Input Jack for MP3 Devices
ON/OFF Power LED
Security Strap for Digital Media Devices (MP3/iPod)
iPod 30-pin Connector
Item Description
1.
2.
3.
4.
5.
6.
7.
SWITCH BETWEEN US & EURO FM MODES
US mode will increase and decrease the FM frequency in steps of 0.1 MHz, e.g. 88.5,
88.6, 88.7 MHz. EUR mode will increase and decrease the FM frequency in steps of
0.05 MHz, e.g. 88.25, 88.30, 88.35 MHz.
1. Make sure dock and remote are turned on and in ‘RADIO’ mode.
2. Hold down the (AUDIO) button for 3-5 seconds.
3. The remote will display ‘AREA USA’ or ‘AREA EUR’ depending on which tuning mode is
currently selected.
4. Use the +/- arrows to switch between US or European modes.
5. Press (PLAY/PAUSE) to select the desired tuning mode.
6. Once you switch modes it will default to the FM station stored in ‘PRESET 1’.
8

8
www.aquaticav.com
OTHER FEATURES
AQ-DM-4
Load on External Trigger should not exceed 350mA
When specified iPod devices are connected to the Digital Media Locker™30-pin connector
the iPod battery will charge.
iPOD CHARGING
REMOTE CONTROL LCD AUTO OFF
To maximize battery life of the RF wireless remote control, the LCD of the remote control
will be OFF if no key is pressed in 20 seconds. To re-activate the LCD display, press any
key once to bring the remote control to normal operation.
Aquatic AV understands the need for more flexible remote applications. With the Digital
Media Locker™Aquatic AV has provided an independent 12V “accessory” trigger, activated
from the RF wireless remote that allows the user to activate non-iPod, MP3 related devices.
This could include and 12V based device like 12V lights or surveillance camera.
1. In any operational mode, press the (12V TRIGGER) key to activate. Press again to
deactivate.
2. We strongly recommend you speak to our technical service staff or your dealer if you are
considering using this feature.
To avoid rusting as a result of electrical potential in the connector, the battery of your
iPod devices must not be totally drained. If your iPod is not charged at all then the
Digital Media Locker will not charge it.
GETTING STARTED
3www.aquaticav.com
Remove the water/dust proof RF wireless remote control from the Digital Media Locker™.
Unscrew the waterproof cap on the back of the remote control and place the CR-2430
battery in the RF remote control and replace the water/dust proof cap.
If the LCD displays “- -” in either mode, this means that your remote control is out of
reception range. Please move closer and try the feature again.
POWER ON
To activate the Digital Media Locker™press the on/off button. ON will be indicated by a red
LED.
For applications that require zero current draw the power button must be turned OFF.
When the power button is in the OFF position the red LED will not be lit.
REMOTE SYNCHRONIZING
REMOTE BATTERY INSTALL
Each Digital Media Locker™comes with a matching RF (Radio Frequency) Wireless LCD
remote control. This remote is required to use any functions on the unit. For any additional
remote controls you will need to activate/synchronize those remote controls to the AQ-DM-4
by following the steps above.
If you lose your remote control and buy a replacement, follow the steps above to
pair/synchronize before normal usage.
EXTERNAL TRIGGER
If the pairing process is not effective, turn the docking station OFF with the on/off
button, located inside the door of the dock. Uplug the 12-pin harness on the back of
the stereo for 3 minutes. Reattach the harness and repeat steps 1-5 above.
1. Turn the docking station OFF with the on/off button inside the door (the red LED should
not be illuminated when power is OFF).
2.Press the red (POWER) button on the remote.
3.Press and hold the (MODE) button on the top right corner until the LCD reads PAIR.
4.Turn the docking station ON (within 10 seconds) with the on/off button inside door (the
red LED will illuminate when power is ON).
5.The remote’s LCD should read WELCOME or show a mode position such as RADIO,
IPOD, or AUX IN.
AQ-DM-4B
9

9www.aquaticav.com
SPECIFICATIONS
10.7V - 15.6V DC, 5A min
0A
2.4GHz
3V (1 x CR2430 battery)
12V DC, 350mA max
IP65
500 hours stable without degradation
General
Power Supply:
Current drain when OFF:
Remote Control Frequency:
Remote Control Battery:
External Trigger:
IP Rating (Digital Media Locker™):
UV Protection:
TECHNICAL SPECIFICATION
8uV
Dipole Antenna (not included)
Stereo
3
FM Radio
FM Radio Sensitivity:
FM Antenna:
FM Radio Reception:
Number of Radio Presets:
Amplifier
Distortion:
Frequency Response:
Amplifier Output:
<0.1% THD at 1kHz
20Hz - 20kHz
45W per channel at 4 Ohm load
72W per channel at 2 Ohm load
GETTING STARTED
AQ-DM-4
2
www.aquaticav.com
12-PIN HARNESS
The AQ-DM-4 will require a universal harness (AQ-UNH-2) in order to connect the dock to
power and speakers.
All open wire connections should be soldered and protected against water and dust for best
long term performance.
MOUNTING THE UNIT
1. Mounting templates are included. Aquatic AV recommends
1. using the ‘measure twice, cut once’ method.
2. Once the mounting hole is complete, make sure the outside
2. surface is clean and clear of debris. The Digital Media
2.Locker™has an external water/dust proof gasket, but this
2. requires a clean surface for best performance.
3. The Digital Media Locker™has six(6) front screws. Drive
2.the 6 screws using a screw driver. During final mounting,
3.apply equal pressure to all points for the best water/dust
3..outer seal performance.
4. Review all outside surfaces of the Digital Media Locker™to
4. ensure proper water/dust seal. This is important for long
4.term environmental protection performance for iPod or MP3
4. devices.
(Purple/Black Stripe)
(Purple)
(Gray/Black Stripe)
(Gray)
(White/Black Stripe)
(White)
(Green/Black Stripe)
(Green)
Speaker
Right
Front
Left
Rear
Left
Front
RR (Pin 11)
RR (Pin 12)
RF (Pin 8)
RF (Pin 9)
LR (Pin 3)
LR (Pin 2)
LF (Pin 5)
LF (Pin 5)
Not Used (Pin 6)
+12VDC, Triggered (Pin 6) (Blue)
DC Ground (Pin 10) (Black)
+12VDC (Pin 1) (Red)
F
Right
Rear
No lower than a 2 Ohm load should be used or
damage may occur to the Digital Media Locker
™.
Make sure the polarity of speakers are connected
correctly.
+12VDC, Trigger for Amp (pin 6) (Blue)
10

10
www.aquaticav.com
FCC STATEMENT
AQ-DM-4
FCC ID:
MADE IN CHINA
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
NOTE:
The equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged
to try and correct the interference by one or more of the following measures:
- Reorientate or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Consult the dealer or an experienced radio/TV technician for help.
The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user
authority to operate the equipment.
Product design and specification subject to change without notice. E&OE.
Digital Media Locker™is a Trademark of Aquatic AV.
iPod is a Trademark of Apple Inc, registered in the US and other countries.
Doc V4 Feb12
• AQ-DM-4 Digital Media Locker™
• 2-way RF wireless remote control
• 2.35m audio cable (3.5mm plug to 3.5mm plug)
• One (1) CR2430 battery
• AQ-DM-4 mounting template
• Six (6) Stainless Steel mounting screws
• Owners manual
CONTENTS
INSTALLATION
GETTING STARTED
1www.aquaticav.com
FM Radio
Antenna Jack
12 pin
Harness Cable
External 12V Trigger (Brown)
Left Audio - RCA Output Jack
Right Audio - RCA Output Jack
Aux’ Input
Jack Socket
1. 12-pin Watertight Harness
This harness supplies power and ground connections to the Digital Media Locker™ and four (4)
speaker channel output connections from the Digital Media Locker™. The AQ-UNH-2 (supplied
separately) or a custom manufacture harness will be required.
Do not cut or modify the 12-pin harness or warranty will be void
2. FM Radio Antenna Jack
Connect antenna to female antenna receptacle. For best FM performance make sure the FM
Antenna is extended to the highest achievable position.
3. Auxiliary Input
The AQ-DM-4 has a 3.5mm stereo jack socket for connecting other audio devices.
4. Auxiliary Outputs
Allows external amplifier to be connected to power additional speakers.
5. 12V DC External Trigger
Allows for an external light or relay to be triggered (350mA max load).
AQ-DM-4B
Digital Media Locker is a trademark of Aquatic AV Inc. iPod, iPod classic, iPod touch and iPod nano are trademarks of Apple Inc.,
registered in the U.S. and other countries.
Made for iPod means that an electronic accessory has been designed to connect specically to iPod, and has been certied by
the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with
safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.
Product design and specication subject to change without notice. E&OE.
Doc V6.1
11

products with a watertight reputation
WATER/DUST PROOF DIGITAL MEDIA LOCKER™
AQ-DM-4
WATER/DUST PROOF iPOD/MP3 DIGITAL MEDIA LOCKER™
WITH FLOATING RF LCD 2-WAY WIRELESS REMOTE CONTROL
OWNERS MANUAL
PLEASE READ THIS INSTRUCTION MANUAL BEFORE
INSTALLATION AND OPERATION
AQ-DM-4
products with a watertight reputation
Aquatic AV
282 Kinney Dr..
San Jose, CA 95112, USA
E-mail: [e-mail]
US & Canada: 1 877 579 2782
International: [phone]
Fax: [phone]
www.aquaticav.com products with a watertight reputation
®
