Brief Operating Instructions
Proline Promag 50
Electromagnetic Flow Measuring System
6
8
These Brief Operating Instructions are not intended to replace the
Operating Instructions provided in the scope of supply.
Detailed information is provided in the Operating Instructions and
the additional documentation on the CD-ROM supplied.
The complete device documentation consists of:
• These Brief Operating Instructions
• Depending on the device version:
– Operating Instructions and the Description of Device Functions
– Approvals and safety certificates
– Special safety instructions in accordance with the approvals for
the device (e.g. explosion protection, pressure equipment
directive etc.)
– Additional device-specific information
Q-Pulse Id
Active 30/09/2014
Page 1 of 52
Vendor Manual - Electromagnetic Flowmeter - Endress and Hauser - Model Proline Promag 50 - Operating Instructions
Q-Pulse Id VM454
Active 30/09/2014
Page 1 of 52

Proline Promag 50
2Endress+Hauser
Table of contents
1 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.1 Designated use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.2 Installation, commissioning and operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.3 Operational safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.4 Safety conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.1 Transporting to the measuring point . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.2 Installation conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.3 Installing the Promag L sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.4 Installing the W sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
2.5 Installing the Promag P sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
2.6 Installing the Promag H sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
2.7 Installing the transmitter housing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
2.8 Post-installation check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
3 Wiring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
3.1 Connecting the various housing types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
3.2 Connecting the remote version connecting cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
3.3 Potential equalization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
3.4 Degree of protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
3.5 Post-connection check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
4 Hardware settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
4.1 Device address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
4.2 Terminating resistors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
5 Commissioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
5.1 Switching on the measuring device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
5.2 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
5.3 Navigating within the function matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
5.4 Calling the Commissioning Quick Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
5.5 Software settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
5.6 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Q-Pulse Id
Active 30/09/2014
Page 2 of 52
Vendor Manual - Electromagnetic Flowmeter - Endress and Hauser - Model Proline Promag 50 - Operating Instructions
Q-Pulse Id VM454
Active 30/09/2014
Page 2 of 52

Proline Promag 50 Safety instructions
Endress+Hauser 3
1 Safety instructions
1.1 Designated use
• The measuring device is to be used only for measuring the flow of conductive liquids in closed
pipes. A minimum conductivity of 20 μS/cm is required for measuring demineralized water.
Most liquids can be measured as of a minimum conductivity of 5 μS/cm.
• Any use other than that described here compromises the safety of persons and the entire
measuring system and is, therefore, not permitted.
• The manufacturer is not liable for damage caused by improper or non-designated use.
1.2 Installation, commissioning and operation
• The measuring device must only be installed, connected, commissioned and maintained by
qualified and authorized specialists (e.g. electrical technicians) in full compliance with the
instructions in these Brief Operating Instructions, the applicable norms, legal regulations and
certificates (depending on the application).
• The specialists must have read and understood these Brief Operating Instructions and must
follow the instructions they contain. If you are unclear on anything in these Brief Operating
Instructions, you must read the Operating Instructions (on the CD-ROM). The Operating
Instructions provide detailed information on the measuring device.
• The measuring device should only installed in a de-energized state free from outside loads or
strain.
• The measuring device may only be modified if such work is expressly permitted in the
Operating Instructions (on the CD-ROM).
• Repairs may only be performed if a genuine spare parts kit is available and this repair work is
expressly permitted.
• If performing welding work on the piping, the welding unit may not be grounded by means
of the measuring device.
1.3 Operational safety
• The measuring device is designed to meet state-of-the-art safety requirements, has been
tested, and left the factory in a condition in which it is safe to operate. Relevant regulations
and European standards have been observed.
• The manufacturer reserves the right to modify technical data without prior notice. Your
Endress+Hauser distributor will supply you with current information and updates to these
Operating Instructions.
• The information on the warning notices, nameplates and connection diagrams affixed to the
device must be observed. These contain important data on the permitted operating conditions,
the range of application of the device and information on the materials used.
• If the device is not used at atmospheric temperatures, compliance with the relevant marginal
conditions as specified in the device documentation supplied (on CD-ROM) is mandatory.
• The device must be wired as specified in the wiring and connection diagrams. Interconnection
must be permitted.
Q-Pulse Id
Active 30/09/2014
Page 3 of 52
Vendor Manual - Electromagnetic Flowmeter - Endress and Hauser - Model Proline Promag 50 - Operating Instructions
Q-Pulse Id VM454
Active 30/09/2014
Page 3 of 52

Safety instructions Proline Promag 50
4Endress+Hauser
• All parts of the device must be included in the potential equalization of the system.
• Cables, certified cable glands and certified dummy plugs must be suitable to withstand the
prevailing operating conditions, such as the temperature range of the process. Housing
apertures that are not used must be sealed with dummy plugs.
• The device should only be used for fluids to which all the wetted parts of the device are
sufficiently resistant. With regard to special fluids, including fluids used for cleaning,
Endress+Hauser will be happy to assist in clarifying the corrosion-resistant properties of
wetted materials.
However, minor changes in temperature, concentration or in the degree of contamination in
the process may result in variations in corrosion resistance.
For this reason, Endress+Hauser does not accept any responsibility with regard to the
corrosion resistance of wetted materials in a specific application. The user is responsible for
the choice of suitable wetted materials in the process.
• When hot fluid passes through the measuring tube, the surface temperature of the housing
increases. In the case of the sensor, in particular, users should expect temperatures that can
be close to the fluid temperature. If the temperature of the fluid is high, implement sufficient
measures to prevent burning or scalding.
• Hazardous areas
Measuring devices for use in hazardous areas are labeled accordingly on the nameplate.
Relevant national regulations must be observed when operating the device in hazardous areas.
The Ex documentation on the CD-ROM is an integral part of the entire device documentation.
The installation regulations, connection data and safety instructions provided in the Ex
documentation must be observed. The symbol and name on the front page provides
information on the approval and certification (e.g. 0Europe, 2USA,
1Canada). The
nameplate also bears the documentation number of this Ex documentation (XA***D/../..).
• For measuring systems used in SIL 2 applications, the separate manual on functional safety
(on the CD-ROM) must be observed.
• Hygienic applications
Measuring devices for hygienic applications have their own special labeling. Relevant national
regulations must be observed when using these devices.
• Pressure instruments
Measuring devices for use in systems that need to be monitored are labeled accordingly on the
nameplate. Relevant national regulations must be observed when using these devices. The
documentation on the CD-ROM for pressure instruments in systems that need to be
monitored is an integral part of the entire device documentation. The installation regulations,
connection data and safety instructions provided in the Ex documentation must be observed.
• Endress+Hauser will be happy to assist in clarifying any questions on approvals, their
application and implementation.
Q-Pulse Id
Active 30/09/2014
Page 4 of 52
Vendor Manual - Electromagnetic Flowmeter - Endress and Hauser - Model Proline Promag 50 - Operating Instructions
Q-Pulse Id VM454
Active 30/09/2014
Page 4 of 52

Proline Promag 50 Safety instructions
Endress+Hauser 5
1.4 Safety conventions
#Warning!
"Warning" indicates an action or procedure which, if not performed correctly, can result in injury
or a safety hazard. Comply strictly with the instructions and proceed with care.
"Caution!
"Caution" indicates an action or procedure which, if not performed correctly, can result in
incorrect operation or destruction of the device. Comply strictly with the instructions.
!Note!
"Note" indicates an action or procedure which, if not performed correctly, can have an indirect
effect on operation or trigger an unexpected response on the part of the device.
Q-Pulse Id
Active 30/09/2014
Page 5 of 52
Vendor Manual - Electromagnetic Flowmeter - Endress and Hauser - Model Proline Promag 50 - Operating Instructions
Q-Pulse Id VM454
Active 30/09/2014
Page 5 of 52

Installation Proline Promag 50
6Endress+Hauser
2 Installation
2.1 Transporting to the measuring point
• Transport the measuring device to the measuring point in the original packaging.
• Do not remove the covers or caps until immediately before installation.
2.1.1 Transporting flanged devices DN ≤300 (≤ 12")
2.1.2 Transporting flanged devices DN > 300 (> 12")

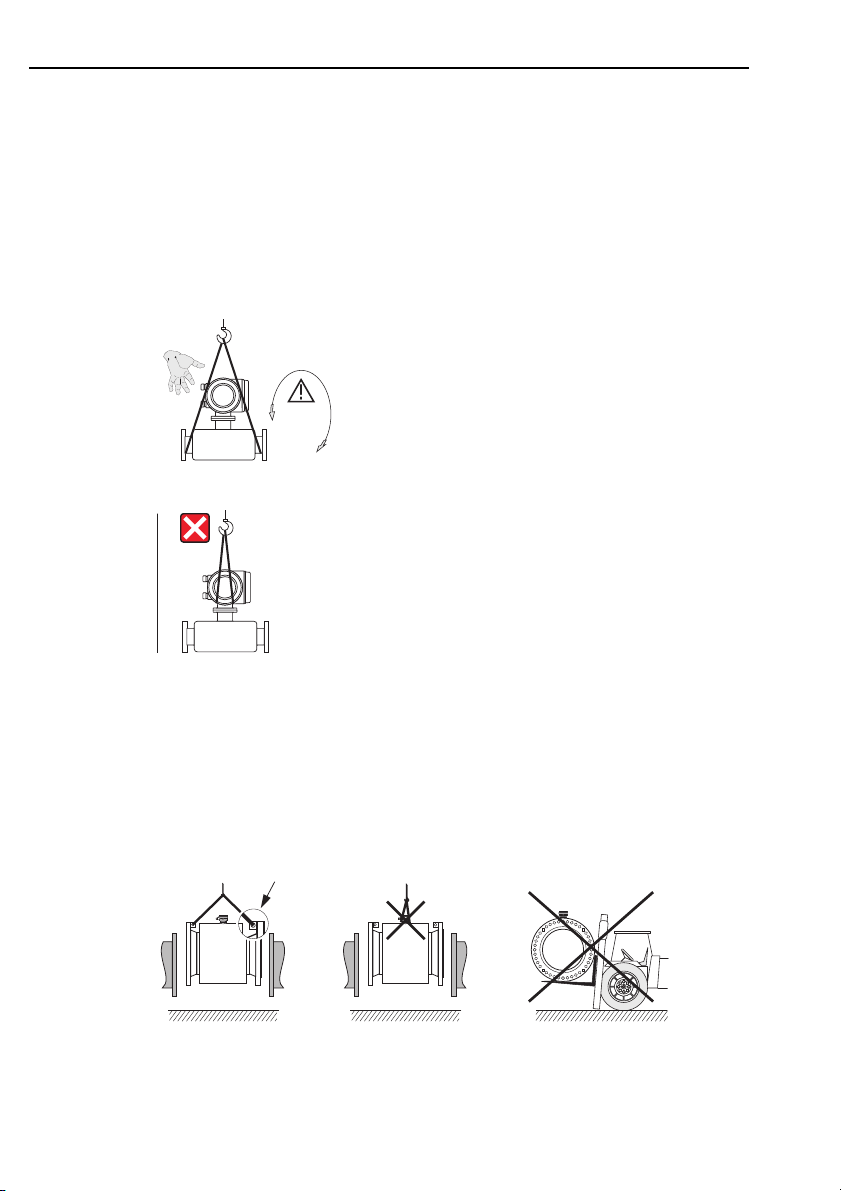

Use only the metal eyes provided on the flanges to transport, lift or position the sensor in the
piping.
"Caution!
Do not attempt to lift the sensor with the tines of a fork-lift truck beneath the metal casing!
This would buckle the casing and damage the internal magnetic coils.
A0008153
A0007408
To transport the unit, use slings slung around the process
connections or use lugs (if available).
#Warning!
Risk of injury! The device can slip.
The center of gravity of the measuring device may be
higher than the holding points of the slings.
Always ensure that the device cannot slip or turn around
its axis.
A0007409
Do not lift measuring devices by the transmitter housing
or the connection housing in the case of the remote
version. Do not use chains as they could damage the
housing.
Q-Pulse Id
Active 30/09/2014
Page 6 of 52
Vendor Manual - Electromagnetic Flowmeter - Endress and Hauser - Model Proline Promag 50 - Operating Instructions
Q-Pulse Id VM454
Active 30/09/2014
Page 6 of 52

Proline Promag 50 Installation
Endress+Hauser 7
2.2 Installation conditions
2.2.1 Dimensions
For the dimensions of the measuring device, see the associated Technical Information on the
CD-ROM.
2.2.2 Mounting location

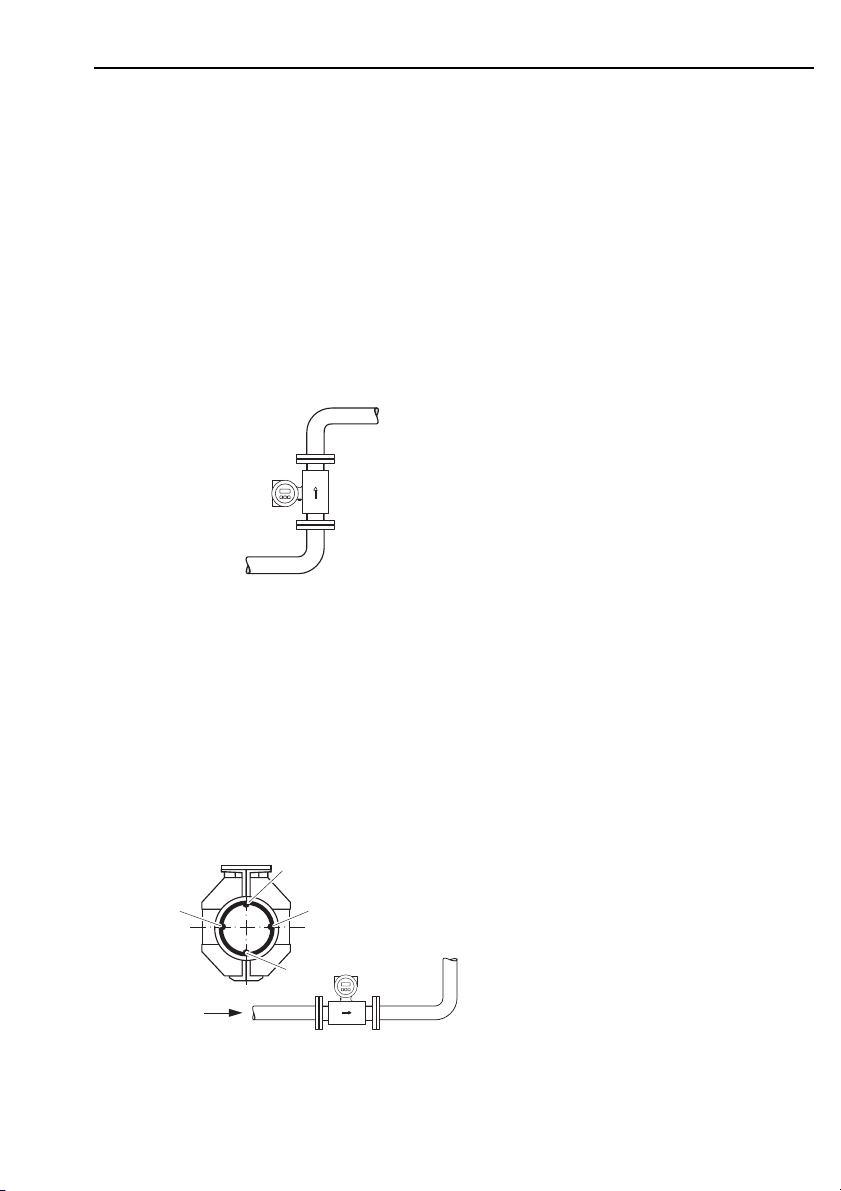

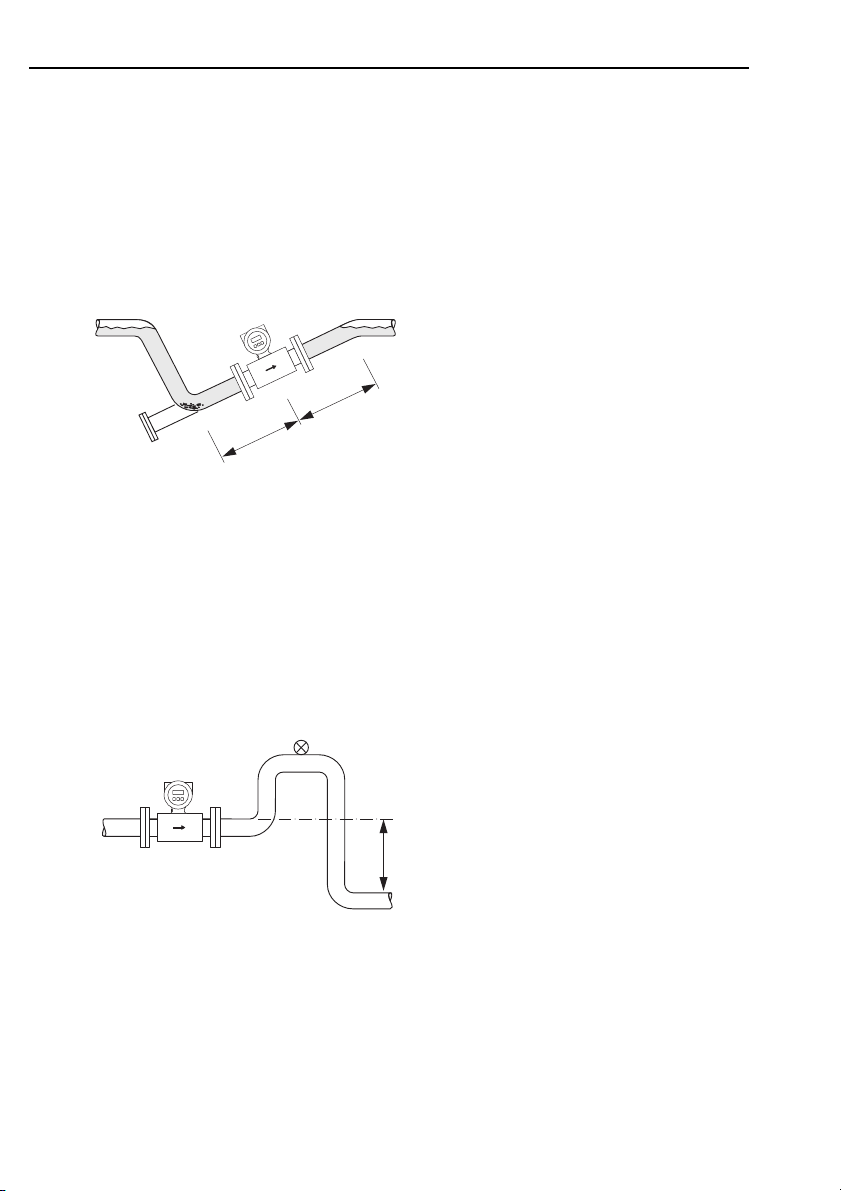

The accumulation of air or formation of gas bubbles in the measuring tube can result in an
increase in measuring errors.
For this reason avoid the following mounting locations in the pipe:
• At the highest point of a pipeline. Risk of air accumulating!
• Directly upstream from a free pipe outlet in a down pipe.
A
0008154
Installation of pumps
Do not install the sensor on the intake side of a pump. This precaution is to avoid low pressure
and the consequent risk of damage to the lining of the measuring tube. It might be necessary to
use pulse dampers in systems incorporating piston pumps, piston diaphragm pumps or peristaltic
pumps.
Information on the measuring system's pressure tightness and resistance to vibration and shock
can be found in the Operating Instructions of the CD-ROM.
A
0003203
h 2xDN³
Q-Pulse Id
Active 30/09/2014
Page 7 of 52
Vendor Manual - Electromagnetic Flowmeter - Endress and Hauser - Model Proline Promag 50 - Operating Instructions
Q-Pulse Id VM454
Active 30/09/2014
Page 7 of 52

Installation Proline Promag 50
8Endress+Hauser
Partially filled pipes
Partially filled pipes with gradients necessitate a drain-type configuration.
The empty pipe detection (EPD) function offers additional protection by detecting empty or
partially filled pipes.
"Caution!
Risk of solids accumulating! Do not install the sensor at the lowest point in the drain. It is
advisable to install a cleaning valve.
Down pipes
Install a siphon or a vent valve downstream of the sensor in down pipes longer than 5 meters
(16 ft). This precaution is to avoid low pressure and the consequent risk of damage to the lining
of the measuring tube. This measure also prevents the system losing prime, which could cause
air pockets.
For information on the pressure tightness of the measuring tube lining, see the Operating
Instructions on the CD-ROM.
A0008155
Installation in a partially filled pipe
A0008157
Measures for installation in a down pipe (h > 5 m/16 ft)
1. Vent valve
2. Siphon
5xDN
2xDN
³
³
h
2
1
Q-Pulse Id
Active 30/09/2014
Page 8 of 52
Vendor Manual - Electromagnetic Flowmeter - Endress and Hauser - Model Proline Promag 50 - Operating Instructions
Q-Pulse Id VM454
Active 30/09/2014
Page 8 of 52

Proline Promag 50 Installation
Endress+Hauser 9
2.2.3 Orientation
An optimum orientation helps avoid gas and air accumulations and buildup in the measuring
tube. The measuring device, nevertheless, supplies a range of functions and tools to measure
problematic fluids correctly:
• Electrode cleaning circuitry (ECC) to prevent electrically conductive deposits in the
measuring tube, e.g. for fluids causing buildup
• Empty pipe detection (EPD) for detecting partially filled measuring tubes, e.g. in the case of
degassing fluids or varying process pressures
• Exchangeable measuring electrodes for abrasive fluids (only Promag W)
Vertical orientation
Horizontal orientation
The measuring electrode plane should be horizontal. This prevents brief insulation of the two
electrodes by entrained air bubbles.
"Caution!
In the case of horizontal orientation, empty pipe detection only works correctly if the transmitter
housing is facing upwards. Otherwise there is no guarantee that empty pipe detection will
respond if the measuring tube is only partially filled or empty.
A0008158
This orientation is optimum for self-emptying piping
systems and when using empty pipe detection (EPD) or
open electrode detection (OED).
A0008159
1. EPD electrode for empty pipe detection
(not for Promag H, DN 2 to 15, 1/12" to ½").
2. Measuring electrodes for signal detection
3. Reference electrode for potential equalization
(not for Promag H)
A1
22
A
3
Q-Pulse Id
Active 30/09/2014
Page 9 of 52
Vendor Manual - Electromagnetic Flowmeter - Endress and Hauser - Model Proline Promag 50 - Operating Instructions
Q-Pulse Id VM454
Active 30/09/2014
Page 9 of 52

Installation Proline Promag 50
10 Endress+Hauser
Inlet and outlet runs
If possible, install the sensor upstream from fittings such as valves, T-pieces, elbows, etc.
2.2.4 Vibrations
Secure and fix both the piping and the sensor if vibrations are severe.
A0008160
The following inlet and outlet runs must be observed in
order to meet accuracy specifications:
•Inletrun:≥5 × DN
• Outlet run: ≥2 × DN
A0008161
Measures to prevent device vibration
(L > 10 m/33 ft)
"Caution!
It is advisable to install the sensor and transmitter
separately if vibration is excessively severe. For
information on the permitted shock and vibration
resistance, see the Operating Instructions on the
CD-ROM.
5xDN³³2xDN
L
Q-Pulse Id
Active 30/09/2014
Page 10 of 52
Vendor Manual - Electromagnetic Flowmeter - Endress and Hauser - Model Proline Promag 50 - Operating Instructions
Q-Pulse Id VM454
Active 30/09/2014
Page 10 of 52

Proline Promag 50 Installation
Endress+Hauser 11
2.2.5 Foundations, supports
If the nominal diameter is DN ≥350 (≥ 14"), mount the sensor on a foundation of adequate
load-bearing strength.
"Caution!
Risk of damage! Do not support the weight of the sensor on the metal casing.
This would buckle the casing and damage the internal magnetic coils.
A
0008163
2.2.6 Length of connecting cable
Comply with the following instructions in order to ensure correct measuring results:
• Secure the cable run or route the cable in an armored conduit. Movement of the cable can
falsify the measuring signal, particularly if the fluid conductivity is low.
• Route the cable well clear of electrical machines and switching elements.
• Ensure potential equalization between the sensor and transmitter, if necessary.
• The permissible cable length Lmax depends on the fluid conductivity.
A0008164
Gray shaded area = permissible
range
Lmax = length of connecting
cable in [m]/[ft]
Fluid conductivity in (μS/cm]
Lmax
Lmax
200
100
510 100 200
[µS/cm]
[m]
[ft]
200 6000 400
Q-Pulse Id
Active 30/09/2014
Page 11 of 52
Vendor Manual - Electromagnetic Flowmeter - Endress and Hauser - Model Proline Promag 50 - Operating Instructions
Q-Pulse Id VM454
Active 30/09/2014
Page 11 of 52

Installation Proline Promag 50
12 Endress+Hauser
2.3 Installing the Promag L sensor
"Caution!
• The protective covers mounted on the two sensor flanges (DN 50…300) are used to hold the
lap joint flanges in place and to protect the PTFE liner during transportation. Consequently,
do not remove these covers until immediately before the sensor is installed in the pipe.
• The protective plates must always remain mounted while the device is in storage.
• Make sure that the lining at the flange is not damaged or removed.
2.3.1 Seals
Comply with the following instructions when installing seals:
• Hard rubber lining →additional seals are always required!
• Polyurethane lining →no seals are required.
•No seals are required for PFTE measuring tube lining.
• For DIN flanges, only use seals to DIN EN 1514-1.
• Make sure that the mounted seals do not protrude into the piping cross-section.
"Caution!
Risk of short circuit!
Do not use electrically conductive sealing compounds such as graphite! An electrically
conductive layer could form on the inside of the measuring tube and short-circuit the measuring
signal.
2.3.2 Ground cable
If necessary, special ground cables can be ordered as accessories for potential equalization.

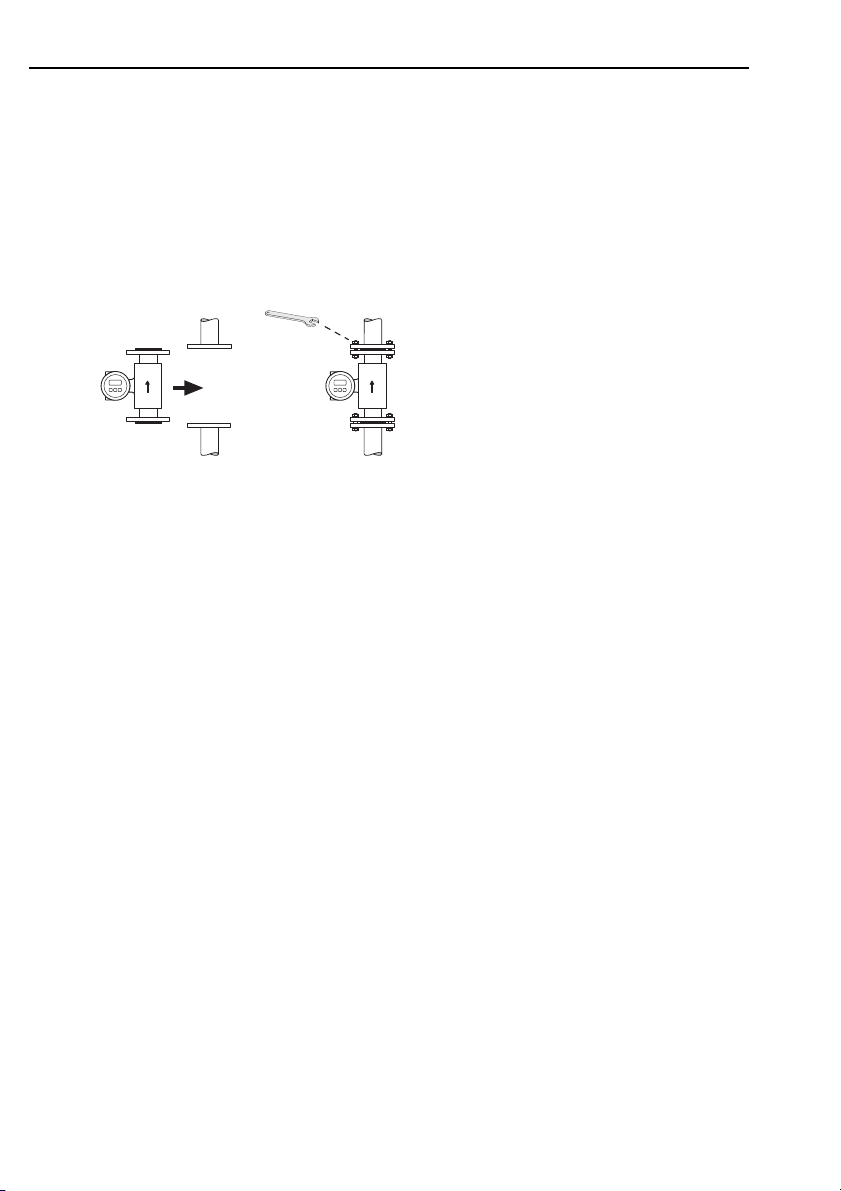

a0008165
!Note!
Screws, nuts, seals, etc. are not included in the scope of
supply and must be supplied by the customer.
The sensor is installed between the two pipe flanges:
• The requisite torques must be observed → ä13
• If grounding disks are used, follow the mounting
instructions which will be enclosed with the
shipment.
• To comply with the device specification, a
concentrical installation in the measuring section is
required
Q-Pulse Id
Active 30/09/2014
Page 12 of 52
Vendor Manual - Electromagnetic Flowmeter - Endress and Hauser - Model Proline Promag 50 - Operating Instructions
Q-Pulse Id VM454
Active 30/09/2014
Page 12 of 52

Proline Promag 50 Installation
Endress+Hauser 13
2.3.3 Screw tightening torques (Promag L)
Please note the following:
• The tightening torques listed below are for lubricated threads only.
• Always tighten the screws uniformly and in diagonally opposite sequence.
• Overtightening the screws will deform the sealing faces or damage the seals.
• The tightening torques listed below apply only to pipes not subjected to tensile stress.
Promag L tightening torques for EN (DIN)
Nominal
diameter
EN (DIN) Max. tightening torque
Hard rubber Polyurethane PTFE
[mm] Pressure
rating [bar]
Threaded
fasteners
[Nm] [Nm] [Nm]
50 PN 10/16 4 × M 16 - 15 40
65* PN 10/16 8 × M 16 - 10 22
80 PN 10/16 8 × M 16 - 15 30
100 PN 10/16 8 × M 16 - 20 42
125 PN 10/16 8 × M 16 - 30 55
150 PN 10/16 8 × M 20 - 50 90
200 PN 10 8 × M 20 - 65 130
250 PN 10 12 × M 20 - 50 90
300 PN 10 12 × M 20 - 55 100
350 PN 6 12 × M 20 111 120 -
350 PN 10 16 × M 20 112 118 -
400 PN 6 16 × M 20 90 98 -
400 PN 10 16 × M 24 151 167 -
450 PN 6 16 × M 20 112 126 -
450 PN 10 20 × M 24 153 133 -
500 PN 6 20 × M 20 119 123 -
500 PN 10 20 × M 24 155 171 -
600 PN 6 20 × M 24 139 147 -
600 PN 10 20 × M 27 206 219 -
700 PN 6 24 × M 24 148 139 -
700 PN 10 24 × M 27 246 246 -
800 PN 6 24 × M 27 206 182 -
800 PN 10 24 × M 30 331 316 -
900 PN 6 24 × M 27 230 637 -
900 PN 10 28 × M 30 316 307 -
1000 PN 6 28 × M 27 218 208 -
1000 PN 10 28 × M 33 402 405 -
1200 PN 6 32 × M 30 319 299 -
1200 PN 10 32 × M 36 564 568 -
1400 PN 6 36 × M 33 430 - -
Q-Pulse Id
Active 30/09/2014
Page 13 of 52
Vendor Manual - Electromagnetic Flowmeter - Endress and Hauser - Model Proline Promag 50 - Operating Instructions
Q-Pulse Id VM454
Active 30/09/2014
Page 13 of 52

Installation Proline Promag 50
14 Endress+Hauser
Promag L tightening torques for ANSI
1400 PN 10 36 × M 39 654 618 -
1400 PN 16 36 × M 45 729 762 -
1600 PN 6 40 × M 33 440 417 -
1600 PN 10 40 × M 45 946 893 -
1600 PN 16 40 × M 52 1007 1100 -
1800 PN 6 44 × M 36 547 521 -
1800 PN 10 44 × M 45 961 895 -
1800 PN 16 44 × M 52 1108 1003 -
2000 PN 6 48 × M 39 629 605 -
2000 PN 10 48 × M 45 1047 1092 -
2000 PN 16 48 × M 56 1324 1261 -
2200 PN 6 52 × M 39 698 - -
2200 PN 10 52 × M 52 1217 - -
2400 PN 6 56 × M 39 768 - -
2400 PN 10 56 × M 52 1229 - -
* Designed acc. to EN 1092-1 (not to DIN 2501)
Nominal
diameter
ANSI Threaded
fasteners
Max. tightening torque
Pressure rating Hard rubber Polyurethane PTFE
[mm] [inch] [lbs] [Nm] [lbf · ft] [Nm] [lbf · ft] [Nm] [lbf · ft]
50 2" Class 150 4 × 5/8" - - 15 11 40 29
80 3" Class 150 4 × 5/8" - - 25 18 65 48
100 4" Cla ss 150 8 × 5/8" - - 20 15 44 32
150 6" Class 150 8 × ¾" - - 45 33 90 66
200 8" Class 150 8 × ¾" - - 65 48 125 92
250 10" Class 150 12 × 7/8" - - 55 41 100 74
300 12" Class 150 12 × 7/8" - - 68 56 115 85
350 14" Class 150 12 × 1" 135 100 158 117 - -
400 16" Class 150 16 × 1" 128 94 150 111 - -
450 18" Class 150 16 × 1 1/8" 204 150 234 173 - -
500 20" Class 150 20 × 1 1/8" 183 135 217 160 - -
600 24" Class 150 20 × 1 ¼" 268 198 307 226 - -
Nominal
diameter
EN (DIN) Max. tightening torque
Hard rubber Polyurethane PTFE
[mm] Pressure
rating [bar]
Threaded
fasteners
[Nm] [Nm] [Nm]
Q-Pulse Id
Active 30/09/2014
Page 14 of 52
Vendor Manual - Electromagnetic Flowmeter - Endress and Hauser - Model Proline Promag 50 - Operating Instructions
Q-Pulse Id VM454
Active 30/09/2014
Page 14 of 52

Proline Promag 50 Installation
Endress+Hauser 15
Promag L tightening torques for AWWA
Promag L tightening torques for AS 2129
Nominal
diameter
AWWA Threaded
fasteners
Max. tightening torque
Pressure rating Hartgummi Polyurethane PTFE
[mm] [inch] [Nm] [lbf · ft] [Nm] [lbf · ft] [Nm] [lbf · ft]
700 28" Class D 28 × 1 ¼" 247 182 292 215 - -
750 30" Class D 28 × 1 ¼" 287 212 302 223 - -
800 32" Class D 28 × 1 ½" 394 291 422 311 - -
900 36" Class D 32 × 1 ½" 419 309 430 317 - -
1000 40" Class D 36 × 1 ½" 420 310 477 352 - -
1050 42" Class D 36 × 1 ½" 528 389 518 382 - -
1200 48" Class D 44 × 1 ½" 552 407 531 392 - -
135054"ClassD44×1¾"730538----
150060"ClassD52×1¾"758559----
165066"ClassD52×1¾"946698----
180072"ClassD60×1¾"975719----
200078"ClassD64×2"853629----
215084"ClassD64×2"931687----
230090"ClassD68×2¼"1048773----
Nominal
diameter
AS 2129 Threaded
fasteners
Max. tightening torque
Pressure rating Hard rubber Polyurethane PTFE
[mm] [Nm] [Nm] [Nm]
350 Table E 12 × M 24 203 - -
400 Table E 12 × M 24 226 - -
450 Table E 16 × M 24 226 - -
500 Table E 16 × M 24 271 - -
600 Table E 16 × M 30 439 - -
700 Table E 20 × M 30 355 - -
750 Table E 20 × M 30 559 - -
800 Table E 20 × M 30 631 - -
900 Table E 24 × M 30 627 - -
1000 Table E 24 × M 30 634 - -
1200 Table E 32 × M 30 727 - -
Q-Pulse Id
Active 30/09/2014
Page 15 of 52
Vendor Manual - Electromagnetic Flowmeter - Endress and Hauser - Model Proline Promag 50 - Operating Instructions
Q-Pulse Id VM454
Active 30/09/2014
Page 15 of 52

Installation Proline Promag 50
16 Endress+Hauser
Promag L tightening torques for AS 4087
Nominal
diameter
AS 4087 Threaded
fasteners
Max. tightening torque
Pressure rating Hard rubber Polyurethane PTFE
[mm] [Nm] [Nm] [Nm]
350 PN 16 12 × M 24 203 - -
375 PN 16 12 × M 24 137 - -
400 PN 16 12 × M 24 226 - -
450 PN 16 12 × M 24 301 - -
500 PN 16 16 × M 24 271 - -
600 PN 16 16 × M 27 393 - -
700 PN 16 20 × M 27 330 - -
750 PN 16 20 × M 30 529 - -
800 PN 16 20 × M 33 631 - -
900 PN 16 24 × M 33 627 - -
1000 PN 16 24 × M 33 595 - -
1200 PN 16 32 × M 33 703 - -
Q-Pulse Id
Active 30/09/2014
Page 16 of 52
Vendor Manual - Electromagnetic Flowmeter - Endress and Hauser - Model Proline Promag 50 - Operating Instructions
Q-Pulse Id VM454
Active 30/09/2014
Page 16 of 52

Proline Promag 50 Installation
Endress+Hauser 17
2.4 Installing the W sensor
2.4.1 Seals
Comply with the following instructions when installing seals:
• Hard rubber lining →additional seals are always necessary.
• Polyurethane lining →no seals are required.
• For DIN flanges, use only seals according to EN 1514-1.
• Make sure that the seals do not protrude into the piping cross-section.
"Caution!
Risk of short circuit!
Do not use electrically conductive sealing compounds such as graphite! An electrically
conductive layer could form on the inside of the measuring tube and short-circuit the measuring
signal.
2.4.2 Ground cable
If necessary, special ground cables can be ordered as accessories for potential equalization.
a0008165
!Note!
Screws, nuts, seals, etc. are not included in the scope of
supply and must be supplied by the customer.
The sensor is installed between the two pipe flanges:
• The requisite torques must be observed → ä18
• If grounding disks are used, follow the mounting
instructions which will be enclosed with the
shipment.
• To comply with the device specification, a
concentrical installation in the measuring section is
required
Q-Pulse Id
Active 30/09/2014
Page 17 of 52
Vendor Manual - Electromagnetic Flowmeter - Endress and Hauser - Model Proline Promag 50 - Operating Instructions
Q-Pulse Id VM454
Active 30/09/2014
Page 17 of 52

Installation Proline Promag 50
18 Endress+Hauser
2.4.3 Screw tightening torques (Promag W)
Please note the following:
• The tightening torques listed below are for lubricated threads only.
• Always tighten the screws uniformly and in diagonally opposite sequence.
• Overtightening the screws will deform the sealing faces or damage the seals.
•The tightening torques listed below apply only to pipes not subjected to tensile stress.
Promag W tightening torques for EN (DIN)
Nominal diameter EN (DIN) Threaded fasteners Max. tightening torque [Nm]
[mm] Pressure rating [bar] Hard rubber Polyurethane
25 PN 40 4 × M 12 - 15
32 PN 40 4 × M 16 - 24
40 PN 40 4 × M 16 - 31
50 PN 40 4 × M 16 48 40
65* PN 16 8 × M 16 32 27
65 PN 40 8 × M 16 32 27
80 PN 16 8 × M 16 40 34
80 PN 40 8 × M 16 40 34
100 PN 16 8 × M 16 43 36
100 PN 40 8 × M 20 59 50
125 PN 16 8 × M 16 56 48
125 PN 40 8 × M 24 83 71
150 PN 16 8 × M 20 74 63
150 PN 40 8 × M 24 104 88
200 PN 10 8 × M 20 106 91
200 PN 16 12 × M 20 70 61
200 PN 25 12 × M 24 104 92
250 PN 10 12 × M 20 82 71
250 PN 16 12 × M 24 98 85
250 PN 25 12 × M 27 150 134
300 PN 10 12 × M 20 94 81
300 PN 16 12 × M 24 134 118
300 PN 25 16 × M 27 153 138
350 PN 6 12 × M 20 111 120
350 PN 10 16 × M 20 112 118
350 PN 16 16 × M 24 152 165
350 PN 25 16 × M 30 227 252
400 PN 6 16 × M 20 90 98
400 PN 10 16 × M 24 151 167
400 PN 16 16 × M 27 193 215
400 PN 25 16 × M 33 289 326
450 PN 6 16 × M 20 112 126
450 PN 10 20 × M 24 153 133
Q-Pulse Id
Active 30/09/2014
Page 18 of 52
Vendor Manual - Electromagnetic Flowmeter - Endress and Hauser - Model Proline Promag 50 - Operating Instructions
Q-Pulse Id VM454
Active 30/09/2014
Page 18 of 52

Proline Promag 50 Installation
Endress+Hauser 19
450 PN 16 20 × M 27 198 196
450 PN 25 20 × M 33 256 253
500 PN 6 20 × M 20 119 123
500 PN 10 20 × M 24 155 171
500 PN 16 20 × M 30 275 300
500 PN 25 20 × M 33 317 360
600 PN 6 20 × M 24 139 147
600 PN 10 20 × M 27 206 219
600 * PN 16 20 × M 33 415 443
600 PN 25 20 × M 36 431 516
700 PN 6 24 × M 24 148 139
700 PN 10 24 × M 27 246 246
700 PN 16 24 × M 33 278 318
700 PN 25 24 × M 39 449 507
800 PN 6 24 × M 27 206 182
800 PN 10 24 × M 30 331 316
800 PN 16 24 × M 36 369 385
800 PN 25 24 × M 45 664 721
900 PN 6 24 × M 27 230 637
900 PN 10 28 × M 30 316 307
900 PN 16 28 × M 36 353 398
900 PN 25 28 × M 45 690 716
1000 PN 6 28 × M 27 218 208
1000 PN 10 28 × M 33 402 405
1000 PN 16 28 × M 39 502 518
1000 PN 25 28 × M 52 970 971
1200 PN 6 32 × M 30 319 299
1200 PN 10 32 × M 36 564 568
1200 PN 16 32 × M 45 701 753
1400 PN 6 36 × M 33 430 398
1400 PN 10 36 × M 39 654 618
1400 PN 16 36 × M 45 729 762
1600 PN 6 40 × M 33 440 417
1600 PN 10 40 × M 45 946 893
1600 PN 16 40 × M 52 1007 1100
1800 PN 6 44 × M 36 547 521
1800 PN 10 44 × M 45 961 895
1800 PN 16 44 × M 52 1108 1003
2000 PN 6 48 × M 39 629 605
2000 PN 10 48 × M 45 1047 1092
2000 PN 16 48 × M 56 1324 1261
* Designed acc. to EN 1092-1 (not to DIN 2501)
Nominal diameter EN (DIN) Threaded fasteners Max. tightening torque [Nm]
[mm] Pressure rating [bar] Hard rubber Polyurethane
Q-Pulse Id
Active 30/09/2014
Page 19 of 52
Vendor Manual - Electromagnetic Flowmeter - Endress and Hauser - Model Proline Promag 50 - Operating Instructions
Q-Pulse Id VM454
Active 30/09/2014
Page 19 of 52

Installation Proline Promag 50
20 Endress+Hauser
Promag W tightening torques for ANSI
Promag W tightening torques for JIS
Nominal diameter ANSI Threaded fasteners Max. tightening torque
Pressure rating
[lbs]
Hard rubber Polyurethane
[mm] [inch] [Nm] [lbf · ft] [Nm] [lbf · ft]
25 1" Class 150 4 × ½" - - 7 5
25 1" Class 300 4 × 5/8" - - 8 6
40 1 ½" Class 150 4 × ½" - - 10 7
40 1 ½" Class 300 4 × ¾" - - 15 11
50 2" Class 150 4 × 5/8" 35 26 22 16
50 2" Class 300 8 × 5/8" 18 13 11 8
80 3" Class 150 4 × 5/8" 60 44 43 32
80 3" Class 300 8 × ¾" 38 28 26 19
100 4" Class 150 8 × 5/8" 42 31 31 23
100 4" Class 300 8 × ¾" 58 43 40 30
150 6" Class 150 8 × ¾" 79 58 59 44
150 6" Class 300 12 × ¾" 70 52 51 38
200 8" Class 150 8 × ¾" 107 79 80 59
250 10" Class 150 12 × 7/8" 101 74 75 55
300 12" Class 150 12 × 7/8" 133 98 103 76
350 14" Class 150 12 × 1" 135 100 158 117
400 16" Class 150 16 × 1" 128 94 150 111
450 18" Class 150 16 × 1 1/8" 204 150 234 173
500 20" Class 150 20 × 1 1/8" 183 135 217 160
600 24" Class 150 20 × 1 ¼" 268 198 307 226
Nominal diameter JIS Threaded fasteners Max. tightening torque [Nm]
[mm] Pressure rating Hard rubber Polyurethane
25 10K 4 × M 16 - 19
25 20K 4 × M 16 - 19
32 10K 4 × M 16 - 22
32 20K 4 × M 16 - 22
40 10K 4 × M 16 - 24
40 20K 4 × M 16 - 24
50 10K 4 × M 16 40 33
50 20K 8 × M 16 20 17
65 10K 4 × M 16 55 45
65 20K 8 × M 16 28 23
80 10K 8 × M 16 29 23
80 20K 8 × M 20 42 35
100 10K 8 × M 16 35 29
Q-Pulse Id
Active 30/09/2014
Page 20 of 52
Vendor Manual - Electromagnetic Flowmeter - Endress and Hauser - Model Proline Promag 50 - Operating Instructions
Q-Pulse Id VM454
Active 30/09/2014
Page 20 of 52
