Aquatic AQ-SWA8-6BT Guide

PLEASE READ THIS INSTRUCTION MANUAL BEFORE
INSTALLATION AND OPERATION
USER / INSTALLATION MANUAL

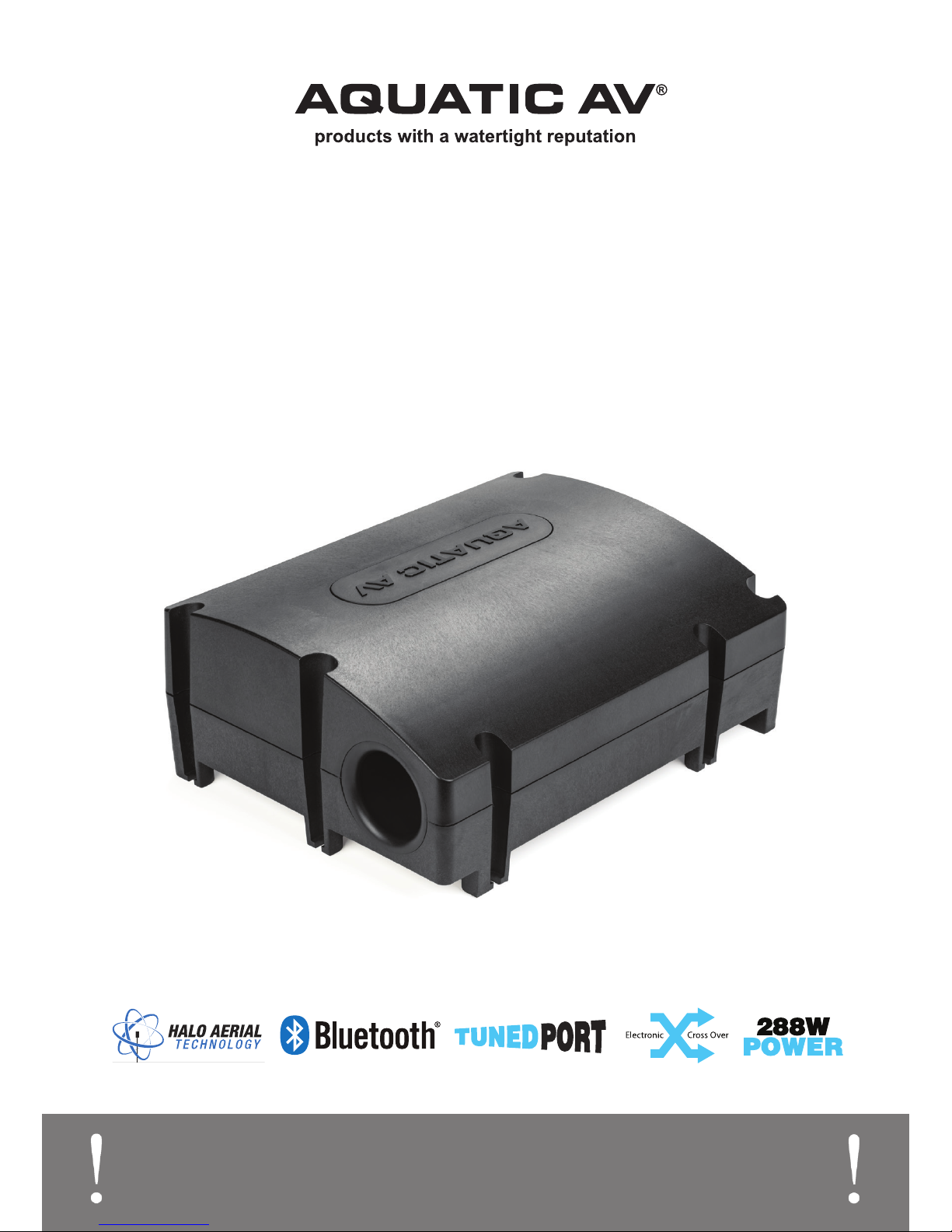

AQ-SWA8-6BT
COMBINED BLUETOOTH STEREO SUBWOOFER
with Bluetooth & Full Range Speaker Outputs

1 Introduction...................................................................................................
1.1 Safety Instructions...................................................................................
2 Getting Started..............................................................................................
2.1 Contents..................................................................................................
2.2 Features...................................................................................................
3 Installation & Wiring.....................................................................................
3.1 Connecting the Combined Stereo Subwoofer............................................
3.2 Wiring Harness........................................................................................
3.3 Bluetooth Halo Aerial Technology Antenna...............................................
3.3.1 Bluetooth Halo Aerial Technology Precautions...................................
3.3.2 Bluetooth Halo Aerial Technology Installation...................................
4 Remote Control (optional)............................................................................
5 Listening to Devices......................................................................................
5.1 Listening via Bluetooth............................................................................
5.1.1 Pair with Bluetooth Device.................................................................
5.1.2 Play Bluetooth Device........................................................................
5.1.3 Bluetooth Multi-Link..........................................................................
5.2 Listening via Auxiliary Input.....................................................................
5.3 Automatic Standby Mode.........................................................................
6 Specifications & Dimensions........................................................................
6.1 Specifications..........................................................................................
6.2 Dimensions..............................................................................................
7 Warranty Information...................................................................................
3
3
4
4
4
5
5
5
6
6
6
7
8
8
8
8
8
8
8
9
9
9
10
Table of Contents Combined Bluetooth Stereo Subwoofer AQ-SWA8-6BT
2www.aquaticav.com

1.1 Safety Instructions
Do not expose this apparatus to rain or moisture.
Place the combined stereo subwoofer away from all heat sources, such as heat registers, stoves,
and direct sunlight.
Do not defeat the safety purpose of the polarized plug. A polarized plug has two blades with one
wider than the other. The wider blade is provided for your safety. If the provided plug does not fit
into your outlet, consult an electrician for replacement of the obsolete outlet. Protect the power
cord from being walked on or pinched particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
For added protection during lightning storms, unplug the combined stereo subwoofer from the
electrical outlet.
Unplug the combined stereo subwoofer when unused for long periods of time.
Do not block the openings in the combined stereo subwoofer cabinet, never push objects into
combined stereo subwoofer vents or slots because of fire or electric shock hazards, and provide
sufficient space around the combined stereo subwoofer for proper ventilation.
Place the combined stereo subwoofer in a stable location so that it will not fall causing damage to
the combined stereo subwoofer or bodily harm.
Unplug the combined stereo subwoofer from the electrical outlet before cleaning with a damp
cloth.
Servicing is required when the apparatus has been damaged in any way, such as the power-supply
cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the ap-
paratus has been exposed to rain or moisture, does not operate normally, or has been dropped
Refer all servicing to qualified service personnel only.
Please read all the instructions herein. Please retain this manual safely for future reference.
Please heed all safety warnings. Please install in accordance with the Manufacturer’s instructions.
Please adjust the volume control to a comfortable level to avoid damaging your hearing and the
system.
WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK
CAUTION: TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER
(OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED AQUATIC AV SERVICE PERSONNEL ONLY.
Introduction Combined Bluetooth Stereo Subwoofer AQ-SWA8-6BT
3www.aquaticav.com

Congratulations on the purchase of the AQ-SWA8-6BT Combined Stereo Subwoofer with
Bluetooth connectivity and two full range speaker outouts. With the right care and attention it will
give you many years of trouble free operation.
Before operating the system, please read this manual fully to obtain the best results from your
new product, and retain it for future reference.
• AQ-SWA8-6BT Active Subwoofer
• User/Installation Manual
• Bluetooth Halo Aerial Technology Antenna (AQ-BTANT-1)
2.1 Contents
The AQ-SWA8-6BT Combined Bluetooth Stereo Subwoofer System is a high quality, robust and
durable combined subwoofer and stereo, with built-in amplifier and outputs for connection of
standard full range speakers.
Built-in electronic cross-over automatically balances the full range speaker outputs with the tuned
subwoofer for optimum performance
Halo Aerial Technology provides unrivalled Bluetooth range and signal strength.
Connect your Smartphone or MP3 device wirelessly over Bluetooth or with wired RCA inputs. Vari-
able stereo RCA inputs allow optimum performance from all devices. There are 3 selected ranges
from 400mV, 2V and 4V inputs.
Automatic Standby mode will engage when the Combined Stereo Subwoofer does not see any
input from either the RCA’s or Bluetooth.
Rated at 288W max power output: 144W for the sub and 72W x 2 to the full range speakers (at 2
Ohms) with a frequency response of 26Hz-125Hz for the sub frequencies and 125-20Hz for the
full range frequencies.
The amplifier is both 2 Ohm and 4 Ohm stable, so a maximum of four 4 Ohm speakers can be
connected.
The AQ-SWA8-6BT active subwoofer features a Tuned Port for enhanced bass response and 8”
DVC (Dual Voice Coil) speaker to deliver powerful, warm bass to your existing speaker setup, add-
ing musicality and depth to your favourite audio content.
Designed and built to withstand the harsh IPX4 conditions associated with use in marine, boat,
pool or spa applications the cabinet has been treated to an IPX4 rating and the PCB is conformal
coated.
2.2 Features
Getting Started Combined Bluetooth Stereo Subwoofer AQ-SWA8-6BT
4www.aquaticav.com

The AQ-SWA8-6BT requires a wiring harness in order to connect to power and speakers.
All open wire connections should be soldered and protected against water and dust for best long
term performance.
1. You will need an Aquatic AV AQ-UNH-2 wiring harness or the factory harness on your stereo
system to complete the install.
2. Follow the Wiring Harness diagram below. Use a minimum of 18 gauge wire for power and
ground.
3. When the unit is powered on you will see the LED light up green on the control panel.
3.1 Connecting the Combined Stereo Subwoofer
RCA Input (Red & White)
Green Power LEDVariable Voltage Input Selector
Wiring Harness
connections (see below)
Halo Aerial Technology
Connector
3.2 Wiring Harness
No lower than a 2 Ohm load should be used
or damage may occur to the Digital Media
Locker.
Make sure the polarity of speakers are
connected correctly.
Power Antenna (7)
Fuse Box
No lower than a 4 Ohm speaker should be
used or damage may occur to the Combined
Stereo Subwoofer.
Make sure the polarity of speakers are
connected correctly.
(White/strip)
Left Rear Speaker
Right Front Speaker
Right Rear Speaker
OPTIONAL
OPTIONAL
Left Front Speaker
Remote Control (optional)
Connection
4 Ohm
4 Ohm
4 Ohm
4 Ohm
Installation & Wiring Combined Bluetooth Stereo Subwoofer AQ-SWA8-6BT
5www.aquaticav.com

The Bluetooth Halo Aerial Technology antenna AQ-BTANT-1 (included) improves the standard
Bluetooth wireless signal and range, for a stronger signal and increased range.
Please read the precautions and installation instructions below before installing the AQ-
BTANT-1 Bluetooth Antenna.
3.3 Bluetooth Halo Aerial Technology Antenna
3.3.2 Bluetooth Halo Aerial Technology Installation
1. Connect the Bluetooth Antenna’s cable to the
Halo Aerial Technology connector on the control
panel, ensuring it is fully secure by turning
clockwise until it is finger tight.
2. Make sure the arrow is pointing directly upwards
towards the sky when the antenna is mounted to
ensure the Bluetooth range is maximized.
3. Screw on the provided Bluetooth Antenna,
avoiding bending the cable at more than a 60°
angle.
4. Install the Bluetooth Antenna making sure the
arrow is pointing directly upwards towards the
sky. If there is no suitable surface to screw it in,
we recommend using a good quality double sided
tape.
Connect the Bluetooth Halo Aerial Technology Antenna (AQ-BTANT-1) to the male SMA
connector. Do not apply excessive torque on the SMA connector (no more than 0.5N-m). Use
hands to tighten the connection (do not use a wrench).
To ensure that the range is maximized, make sure the arrow is pointing directly upwards
towards the sky when the antenna is mounted.
If there is excess antenna cable length make sure this is coiled and not bent as bending may
cause damage to the cable.
For spa or hot tub installation the antenna should be located above the waterline otherwise
Bluetooth range will be drastically reduced.
3.3.1 Bluetooth Halo Aerial Technology Precautions
Installation & Wiring Combined Bluetooth Stereo Subwoofer AQ-SWA8-6BT
6www.aquaticav.com

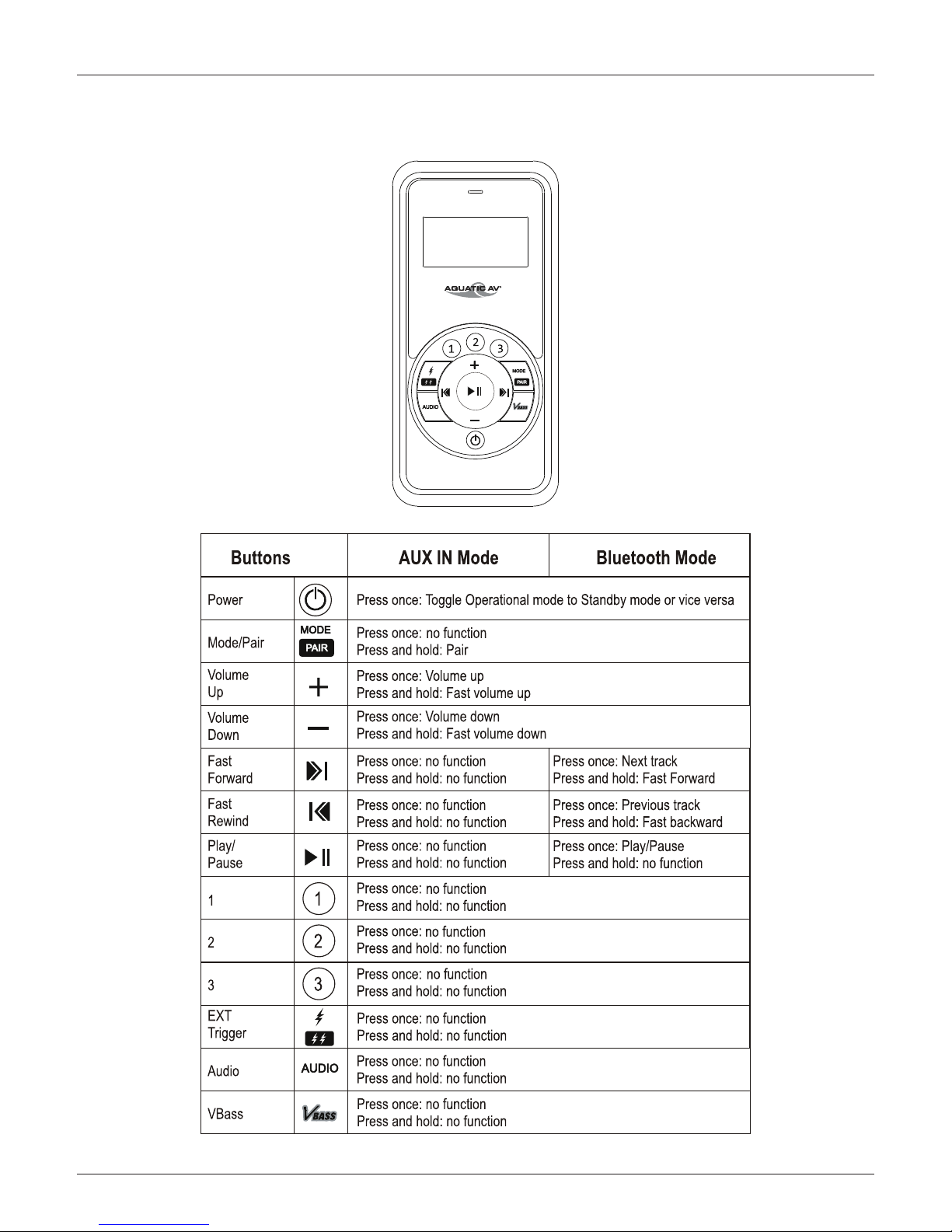

4.1 Wireless Handheld Remote Control AQ-RF-6UBT (sold separately)
7www.aquaticav.com
Remote Control (optional) Combined Bluetooth Stereo Subwoofer AQ-SWA8-6BT

1. Switch on your Bluetooth device.
2. Select ‘AQ-SWA8-6BT’ from the list of available devices to pair (no password is needed).
5.1.1 Pair with Bluetooth Device
Only one Bluetooth device can be paired with the Bluetooth Subwoofer at any time.
5.1 Listening via Bluetooth
5.1.2 Play Bluetooth Device
1. Bluetooth mode will be activated once a Bluetooth device is paired.
2. Play the song from device and the sound will play through the subwoofer.
3. Play/Pause, track forward/back and volume up/down can be controlled directly from your
Bluetooth device.
5.2 Listening via Auxiliary Input
1. Connect your MP3 device to the stereo RCA inputs.
2. Turn the Variable Voltage Input Selector switch to determine the best sound quality for
your input device (400mV, 2V or 4V). Smartphones will typically use the 4V setting.
The RCA input connections are designed for a full-range audio signal and when used in conjunction with a ‘sub’
output (typically a single green RCA) from your stereo source unit will mean the AQ-SWA8-6BT can only be used
as a subwoofer (i.e. without the 2x full-range speaker outputs).
If using a single RCA ‘sub’ output then an RCA Y adaptor must be used to provide input to both red and white
RCA inputs on the subwoofer.
5.3 Automatic Standby Mode
Automatic Standby mode will engage when the Combined Stereo Subwoofer does not see any
input from either the RCA’s or Bluetooth.
Once a signal is detected the unit will switch on again.
5.1.3 Bluetooth Multi-link
A second Bluetooth device can pair to the AQ-SWA8-6BT even when it has been paired to
another Bluetooth device. The second Bluetooth device will be able to play once the first
device has stopped playing.
Only one Auxiliary device can be used at any one time.
Listening to Devices Combined Bluetooth Stereo Subwoofer AQ-SWA8-6BT
8www.aquaticav.com

Inputs...................................................
Outputs.................................................
Subwoofer Cone Size..............................
Power (max @ 2ohms)............................
Frequency Response...............................
Sensitivity..............................................
Impedance............................................
Waterproof / Dustproof............................
Conformal PCB coating...........................
Dimensions...........................................
Bluetooth, 2x RCA with variable 400mV, 2V or 4V input
2x full range speaker output
8”
288W (144W subwoofer + 2x 72W speakers)
26Hz - 125Hz (subwoofer), 125Hz - 20,000Hz (speaker outputs)
86dB
4 Ohm & 2 Ohm stable
Yes IPX4
Yes
368.3 x 279.4 x 144.2 mm
6.1 Specifications
6.2 Dimensions
279.4mm
368.3mm
368.3mm
80.4mm 225.3mm 43.4mm
112.9mm 132.9mm
231.4mm 144.2mm
Specifications & Dimensions Combined Bluetooth Stereo Subwoofer AQ-SWA8-6BT
9www.aquaticav.com

Aquatic AV offers a limited warranty of our products on the following terms:
Length of warranty
2 years on audio systems, electronics, speakers, and accessories (receipt required).
Coverage
This warranty covers only the original purchaser of a Aquatic AV product purchased from an
authorized Aquatic AV dealer in the United States. In order to receive service, the purchaser must
provide Aquatic AV with a copy of the receipt stating the customer name, dealer name, product
purchased and date of purchase.
Defective products
Products found to be defective during the warranty period will be repaired or replaced (with a
product deemed to be equivalent) at Aquatic AV’s discretion.
What is not covered
Damage caused by accident, abuse, improper operations, theft. Any cost or expense related to
the removal or reinstallation of product. Service performed by anyone other than an authorized
Aquatic AV service center. Any product with the serial number or tamper labels defaced, altered,
or removed. Subsequent damage to other components. Any product not purchased from an au-
thorized Aquatic AV dealer.
Limit on implied warranties
Any implied warranties including warranties of fitness for use and merchantability are limited in
duration to the period of the express warranty set forth above. Some states do not allow limita-
tions on the length of an implied warranty, so this limitation may not apply. No person is author-
ized to assume for Aquatic AV any other liability in connection with the sale of the product.
How to obtain service
You must obtain a return material authorization number (RMA) to return any product to Aquatic
AV. You are responsible for shipping charges of returned products to Aquatic AV.
Priority Customer Support & Free Extended Warranty
In order to receive the best customer support from Aquatic AV we recommend you register your
product for a free extended warranty.
Register your product for extended warranty and priority support at www.aquaticav.com/register
Please record the model and serial number[s] of your equipment in the space provided below as
your permanent record and will assist us with your factory warranty coverage.
Model number[s]: Serial number[s]:
Product design and specification subject to change without notice. E&OE.
Doc V2.2
Warranty Information Combined Bluetooth Stereo Subwoofer AQ-SWA8-6BT
10www.aquaticav.com

E-mail: [e-mail]
US & Canada: 1 877 579 2782
International: [phone]
Fax: [phone]
www.aquaticav.com
Aquatic AV
282 Kinney Drive
San Jose, CA 95112, USA
