Aquatica Digital True Ofuro Tranquility Series User manual

Aquaticabath.eu
E: [e-mail]
Manual
(220V/50HZ)
True Ofuro Tranquility
Series Bathtubs

True Ofuro Tranquility
Warning
WARNING
1. READ AND FOLLOW ALL INSTRUCTIONS
2. WARNING: When using electrical products, basic precautions should always be followed, including the following:
3. DANGER: To reduce the risk of injury, do not permit children to use this unit unless they are closely supervised at all
times.
4. Use this unit only for its intended use as described in this manual. Do not use attachments not recommended by the
manufacturer.
5. Never drop or insert any object into any opening.
6. Do not operate this unit without the guard over the suction fitting.
7. DANGER: RISK OF ELECTRIC SHOCK. The unit must be connected only to a supply circuit that is protected bya
ground-fault circuit-interrupter (GFCI) or Earth-Leakage Circuit-Breaker (ELCB). Such a GFCI should be provided by
the installer and should be tested on a routine basis. To test the GFCI, push the test button. The GFCI should interrupt
power. Push the reset button. Power should be restored. If the GFCI fails to operate in this manner, the GFCI is
defective. If the GFCI interrupts power to the bathtub without the test button being pushed, a ground current is flowing,
indicating the possibility of an electric shock. Do not use this hydromassage bathtub. Disconnect the hydromassage
bathtub and have the problem corrected by a qualified service representative before using.
8. WARNING: RISK OF ELECTRIC SHOCK. A licensed electrician should make all electrical connections. Disconnect
power before servicing.
9. WARNING: RISK OF INJURY OR PROPERTY DAMAGE. Please read all instructions thoroughly before beginning
installation, including the following requirements.
10. Follow all local plumbing and electrical codes.
11. INSTALL TO PERMIT ACCESS FOR SERVICING.
12. (For permanently connected units) A green-colored terminal (or a wire connector marked G, GR, Ground, or
Grounding) is provided within the terminal compartment. To reduce the risk of electric shock, connect this terminal or
connector to the grounding terminal of your electric service or supply panel with a conductor equivalent in size to the
circuit conductors supplying this equipment. A pressure wire connector is provided on the exterior of the pump or
control within this unit to permit connection of a bonding conductor between this unit and all other exposed metal in the
vicinity, as needed to comply with local requirements.
GROUNDING IS REQUIRED. The unit must be installed by a qualified service representative, and grounded. Building
materials and wiring should be routed away from the pump body and other heat-producing components of the unit.
Aquaticabath.eu
E: [e-mail]

True Ofuro Tranquility
IMPORTANT PRODUCT INFORMATION
DANGER
Warning
PRODUCT NOTICES
WARNING: Unauthorized modification may cause unsafe operation and poor performance of the bath. Do not relocate
the pump, or make other modifications to the circulating system, as this could adversely affect the
performance and safe operation of your bath. Aquatica Plumbing Group Inc. shall not be liable under its warranty or
otherwise for personal injury or damage caused by any such unauthorized modification.
PRODUCT INSPECTION
Carefully unpack the product and inspect the unit for damage. Return the unit to the carton during construction to
prevent damage.
FACTORY-ASSEMBLED FEATURES
Factory installed components include components like pump, blower, level sensors, in-line heater, submerged
chromotherapy lights, keypad and diverter. The pump and piping are factory-assembled.
CONNECTIONS AND SERVICE ACCESS
NOTICE: For built-in and corner bathtubs provide unrestricted service access to the pump, heater and control box.
Provide unrestricted service access to the pump, blower, in-line heater, and for built-in bathtubs you must construct
an access panel to provide sufficient clearance for servicing the pump, inline heater, and control box. The access
panel must be located immediately next to the pump and in line heater. Study the roughing-in information.
ELECTRICAL REQUIREMENTS
1. DANGER: RISK OF ELECTRIC SHOCK. The installation must have one (1) Class A GroundInterrupters (GFCI's) or
Earth-Leakage Circuit Breakers (ELCB's). The GFCI/ELCB protects against line shock hazard. Use a 208V-240V, 20A,
50/60 Hz dedicated service to wire the control system.
2. GROUNDING IS REQUIRED. The unit should be installed by a qualified service representative and grounded.
3. Installation instructions shall identify fittings, such as brackets or hangers, that are necessary to the intended
mounting of the unit.
4. The minimum structural strength required for the supporting surface for the unit. Need to provide rough in
instructions to review for compliance.
5. Instructions shall indicate that building materials and wiring should be routed away from the pump body and other
heat producing components.
6. INSTALL TO PERMIT ACCESS FOR SERVICING
7. An equipment bonding terminal is provided in the field wiring compartment. To reduce the risk of electric shock, this
terminal must be connected to the bonding means provided in the electric supply panel with a conductor equivalent in
size to the circuit conductors supplying this equipment.

True Ofuro Tranquility
Warning
ELECTRICAL REQUIREMENTS
IMPORTANT! SAFETY INSTRUCTIONS / INSTRUCTIONS IMPORTANTES
RELATIVES A LA SECURITE
READ, FOLLOW ALL INSTRUCTIONS / LIRE ET SUIVRE TOUTES LES
INSTRUCTIONS
SAVE THESE INSTRUCTIONS / CONSERVER CES INSTRUCTIONS
8. INSTALL THIS UNIT IN ACCORDANCE WITH THE CANADIAN ELECTRICAL CODE, PART I. and INSTALLER
CONFORMEMENT AU CODE CANADIEN DE L'ELECTRICITE, PREMIERE PARTIE (CSA C22.2 No. 218.2 com
compliance).
Your physiological response to hot water is subjective and depends on your age, health, and medical history. If you
don't know your tolerance to hot water, or if you get a headache, or become dizzy or nauseous when using your hot
tub, get out and cool off immediately.
WARNING
1. WARNING: RISK OF ACCIDENTAL INJURY OR DROWNING. Children should not use hydromassage bathtub
without adult supervision. / AVERTISSEMENT. RISQUE DE BLESSURE ET DE NOYADE. Ne pas laisser un enfant
utiliser la cuve a remous en l'absence d'un adulte.
2. WARNING: RISK OF ACCIDENTAL INJURY OR DROWNING. Do not use hydromassage bathtub unless all suction
guards are installed to prevent body and hair entrapment. / AVERTISSEMENT. RISQUE DE BLESSURE ET DE
NOYADE. Pour éviter le happement de membres ou de cheveux, ne pas utiliser la.
3. WARNING: To avoid injury, exercise care when entering or exiting the hydromassage bathtub. /AVERTISSEMENT.
Pour eviter les blessures, user de prudence en entrant dans la cuve a remous et en la quittant.
4. WARNING: RISK OF ACCIDENTAL INJURY OR DROWNING. Do not use drugs or alcohol before or during the use
of a hydromassage bathtub equipped with heater to avoid unconsciousness and possible drowning. /
AVERTISSEMENT. RISQUE DE BLESSURE ET DE NOYADE. Ne pas prendre de médicament ni consommer
d'alcool lorsqu'on utilise une cuve à remous chauffée ou avant d'y entrer afin d'éviter l'évanouissement et le risque de
noyade.
5. WARNING: RISK OF FETAL INJURY. Pregnant or possibly pregnant women should consult a physician before
using a hydromassage bathtub equipped with heater. / AVERTISSEMENT. DANGER POUR LE FOETUS. Les
femmes enceintes, que leur grossesse soit confirmée ou non, devraient consulter un médecin avant d'utiliser une cuve
à remous chauffée.
6. WARNING: RISK OF HYPERTHERMIA AND POSSIBLE DROWNING. Do not use a hydromassage bathtub
equipped with heater immediately following strenuous exercise. / AVERTISSEMENT. RISQUE D'HYPERTHERMIE ET
DE NOYADE. Ne pas utiliser une cuve à remous chauffée après un exercice intense.
Aquaticabath.eu
E: [e-mail]

True Ofuro Tranquility
Warning
CAUTION DANGER
7. WARNING: RISK OF ELECTRIC SHOCK. Do not permit electric appliances (such as a hair dryer, lamp, telephone,
radio, or television) within 1.5 m of this hydromassage bathtub. / AVERTISSEMENT. RISQUE DE CHOC
ELECTRIQUE. Ne pas placer d'appareils electriques (luminaire, téléphone, radio, televiseur, etc.) a moins de 1.5 m de
cette cuve a remous.
8. CAUTION: Test the ground fault circuit interrupter protecting this appliance periodically in accordance with the
manufacturer's instructions. / ATTENTION. Verifier regulierement le fonctionnement du disjoncteur de fuite a la
terre conformement aux instructions du fabricant.
9. WARNING: RISK OF HYPERTHERMIA AND POSSIBLE DROWNING. Water temperature in excess of 38 °c
can be injurious to your health. check and adjust water temperature before use. / AVERTISSEMENT. RISQUE
D'HYPERTHERMIE ET DE NOYADE. Une température d'eau supérieure à 38 °c peut présenter un risque pour la
santé. vérifier et régler la température de l'eau avant d'utiliser la cuve .
10. WARNING: RISK OF HYPERTHERMIA. People using medications and/or having an adverse medical history
should consult a physician before using a hydromassage bathtub equipped with heater. / AVERTISSEMENT.
RISQUE D'HYPERTHERMIE. Les personnes qui prennent des médicaments ou qui ont des problèmes de santé
devraient consulter un médecin avant d'utiliser une cuve à remous chauffée.
Since your hot tub can be set to reach temperatures of 40°C (104° F), users should be aware that extended
submersion in water that exceeds normal body temperature can lead to hyperthermia.
The causes, symptoms and effects of hyperthermia may be described as follows:
Hyperthermia occurs when the internal temperature of the body reaches several degrees above the normal body
temperature of 37°C (98.6°F). The symptoms of hyperthermia include drowsiness, lethargy, and an increase in the
internal temperature of the body.
If you sense any of the symptoms of hyperthermia, safely exit the hot tub immediately.
The use of alcohol, drugs or medication can significantly increase the risk of fatal hyperthermia.
Unawareness of impending hazard
Failure to perceive heat
Failure to recognize the need to exit the hot tub
Physical inability to exit the hot tub
Fetal damage in pregnant woman
Unconsciousness resulting in the danger of drowning
The effects of hyperthermia include:
●
●
●
●
●
●

True Ofuro Tranquility
Electrical Manual
BATH CONTROLLER ENCLOSURE
Do not tamper with our bath controller enclosure. It is pre-configured and pre-wired. Opening and tempering
might void our warranty.
AC JUNCTION BOX
Connect to your home electrical system via our AC
junction box solely! Use #12 AWG size wire and 20A
breaker to connect to your home's electrical system.
JUNCTION BOXWIRE COLOR MARKINGS:
• Black - L1
• White - N
• Green - Ground
Aquaticabath.eu
E: [e-mail]

True Ofuro Tranquility
Electrical Manual
International Series
Main Bathtub
Controller
Water Heater
60W Circulation
Pump
12V AC
LED LIGHTS
LED Light
Controller

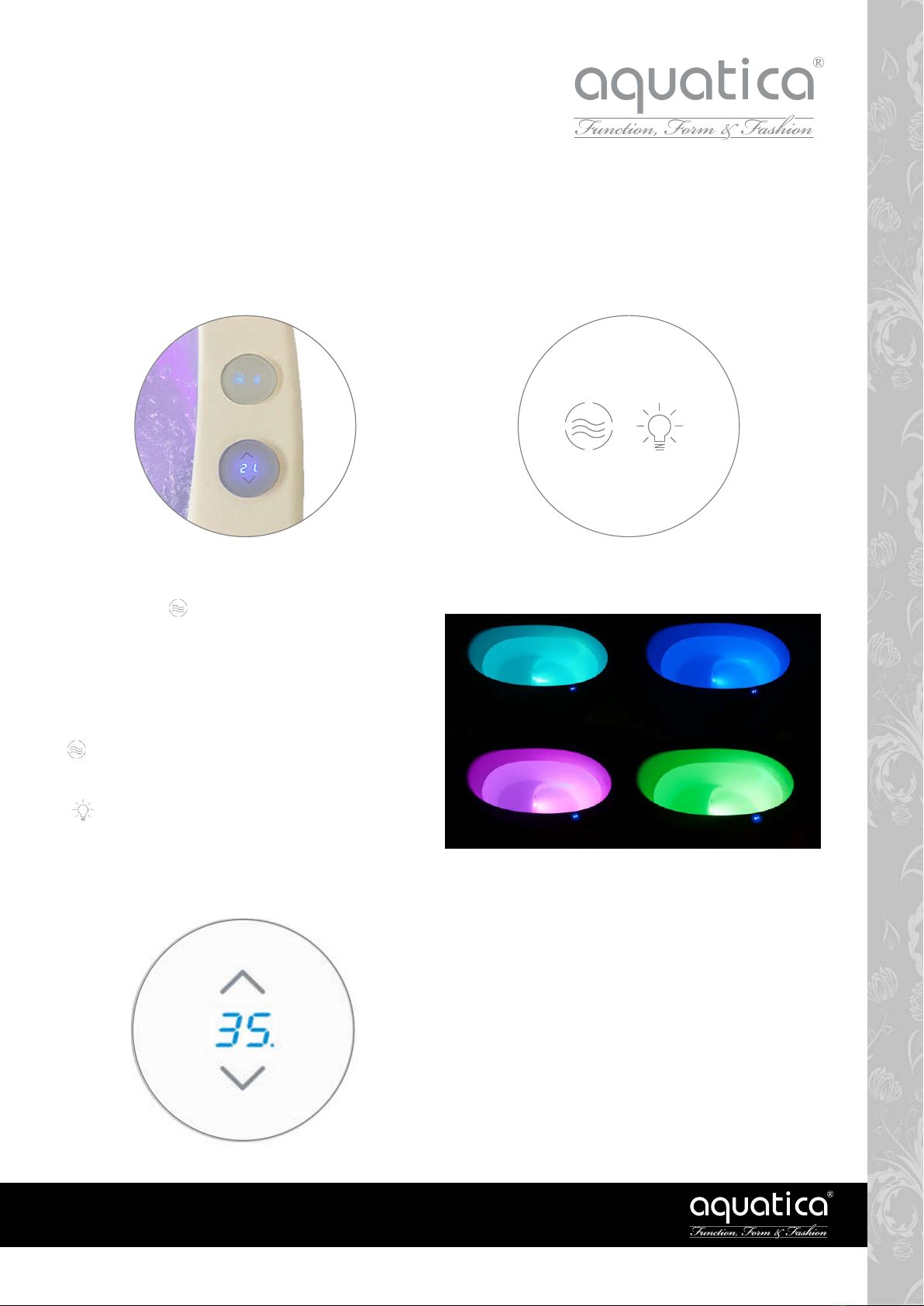

Digital Keypad with
HEAT ON/OFF
+ LIGHT ON/OFF
Junction Box
ENSURING THAT THERE IS SUFFICIENT AIR CAVITY BETWEEN
THE BATHTUB AND THE FLOOR
Upon installing the bathtub ensure that a sufficient cavity is left between
the bath and the floor. Do NOT silicone the entire perimeter. The exte-
rior bath walls should NOT touch the floor. Silicon some sections of
the skirt allowing for sufficient air intake and ventilation. Insufficient air
cavity volume beneath the bath can lead to low performance. Confirm
with your installer that proper sizing and/or venting recommendations
have been followed.
SIMPLICITY:
Wire the bath to the main breaker panel (16A RCBO). 240 volts elec-
trical current will need to be supplied to the junction box installed under-
neath the Tranquility bathtub. The electrical cord with Live, Neutral
and Ground wires can be fed through the 1/2" strain relief cord connec-
tor installed on the junction box.
Enjoy your Aquatica® Tranquility bathtub.
IMPORTANT:
16A/230V BREAKER WITH RCD SAFETY SWITCH
(aka RCBO(residual-current circuit breaker with overcurrent protection)
(ONE 16A/230 VOLT CIRCUIT.)
MAIN BREAKER
PANEL
230V/50HZ
1
2

True Ofuro Tranquility
Installation
The item shown is included with the bathtub
12°
902
520
482
45
785
1190
1309
12°
13°
12°
Slope to the drawin -2 degrees
66
Ø52
99
682
R45
539
860
582 920 726
97
514343
102
40
Aquaticabath.eu
E: [e-mail]

True Ofuro Tranquility
EUROPE - MANDATORY INSTALL PROCEDURE
Installation
250 400
1
2
!
24 h
!
3
4
min
10mm
min
10mm
460
Installation is completed by applying
silicone at several points between
the bottom panel and floor.
200
DEPTH =
MIN. 50mm

True Ofuro Tranquility
Maintenance Instructions
The smooth surface of your Aquatica
® AquateX™
Bathtub accumulates hardly any dirt, and can be
maintained by simply cleaning with a soft cloth,
using a mild detergent in water, then wiping over
with a dry cloth.
Avoid using abrasive cleansers or solvents,
which will cause damage to the surface. Damage
caused by use of these products, or any other
inappropriate treatment, is not covered by our
guarantee.
Инструкция по уходу
Поверхность легко чистится. За счет
гладкости грязь к ней не прилипает. Для
регулярного ухода используйте мягкую
ткань, мыльный раствор и воду. После
чистки вытирайте поверхность сухой тканью,
которая хорошо впитывает влагу.
Не используйте губки с абразивной
поверхностью и агрессивные растворители,
которые могут повредить ванну.
Повреждения, возникшие вследствие
неправильного ухода, не покрываются
гарантией.
Installation & Entretien
Cette surface est facile à entretenir et à
nettoyer. Sa surface particulièrement lisse, ne
retiens que très peu la saleté. Un entretien
quotidien nécessite simplement l’utilisation d’un
chiffon doux, de l’eau et un peu de savon.
Essuyer avec un chiffon sec. L’utilisation de
détergents ou de solvants endommageraient
cette surface. Les dommages resultants d’un
traitement non conforme effectué par l’utilisateur
sont exclus de la garantie que nous offrons.
Manuale per il corretto mantenimento
La superficie necessita di pulizia ed accorgimenti
per il corretto mantenimento. Una superficie
liscia non accumula lo sporco. Usare una
spugnetta con del detergente non aggressivo per
una pulizia regolare. Asciugare con un
panno. Evitare l’uso di solventi o materiali
abrasivi: potrebbero rovinare la superficie.
Un danno causato da trattamento inappropriato
non verra’ coperto dalla garanzia.
Instrucciones para la correcta manutención
La superficie debe de ser limpiada y
adecuadamente mantenida. Una superficie lisa
no acumula suciedad.
Utilice una esponja con un detergente suave para
la limpieza diaria. Seque con un paño.
No utilice disolventes o materiales abrasivos ya
que podrían dañar la superficie.
Los daños causados por el tratamiento
inadecuado no serán cubiertos por la garantía.
Maintenance
Aquaticabath.eu
E: [e-mail]

True Ofuro Tranquility
The True Ofuro Tranquility series bathtubs are easy to operate and fun to use.
The control system consists of
2 keypads as follows: On/Off and Lights On/Off
Activate the heating and circulation feature by
touching the icon, the icon will light up when
activated. This feature will only activate once
sufficient water level has been reached. As per
safety regulation, the heating feature is pro-
grammed to automatically shut down after 20
minutes from time of activation, simply touch the
i icon again to reactivate.
Activate the lighting feature by touching the
0icon, the icon will light up when activated.
Tap to cycle through the various modes/effects,
similar to what is depicted on the image below.
Touch and hold for a few seconds to turn off. Temperature Adjustment Function
The round 2-digit display is the temperature con-
troller. When the Tranquility is powered it will re-
flect the current water temperature. By taping the
up or down icon, it will increase or decrease set
temperature. When increasing or decreasing set
temps, the display will change from current water
temperature to reflect settings temperature. The
setting temperature will show for a few seconds
when adjusting before changing back to current
water temperature. The maximum allowed tem-
perature is +40C (104F).
Operating Manual

True Ofuro Tranquility
Operating Manual
CURRENT SYSTEM LIMITATIONS
100F A0
101F
102F
103F
104F
A1
A2
A3
A4
Temperature Adjustment Function in 220V Systems
The Tranquility heating system in the 220V/240V systems is intended to maintain the temperature.
Temperature Display in Degrees (220V) / Fahrenheits (240V)
Please note that since the display is a 2-digit display after exceeding 99F the temperature will be
displayed according to the following format:
Aquaticabath.eu
E: [e-mail]
