Arada Ecoburn Plus Medium Gas User manual

PLEASE RETAIN THIS GUIDE FOR FUTURE REFERENCE
BK710 SPECIFIC Rev 02 ISSUE DATE : 28/11/2017
BS EN 613: 2001 + A1: 2003 +C1:2008
Ecoburn Plus Gas
Ecoburn Plus Medium
Gas

Arada Ecoburn Plus Gas Stove
Ecoburn Plus Gas
Page 2 BK 710 Specific
Congratulations on the purchase of your new Arada stove!
More than 30 years of experience has been put into the development of
your stove to ensure ultimate performance and years of trouble free use and
enjoyment. Every detail of your stove has been carefully designed and
engineered which is why we are so confident in the reliability of our products.
Your Arada stove is built to the highest standard of craftsmanship using the
best materials and the most modern equipment available. It is a highly efficient
and sophisticated piece of machinery and when properly installed and
operated it should provide a lifetime of heating satisfaction.
Should you have any questions about your stove which are not covered by this
manual, please contact the Arada retailer in your area, call our technical
support department on [phone] or visit our website
www.aradastoves.com which offers a wealth of information on how to care for,
and get the best from your stove.
Please ensure that you read these instructions in full and understand them
before operating your stove.
Arada has a policy of continuous product development and therefore we
reserve the right to amend specifications without prior notice. Due to printing
cycles, items or options may be described before they are generally available
or after they have ceased. Please check with your retailer or dealer if you are
unsure about any aspect of your stove, its installation or correct use.

Contents
Installation & Service
1 Appliance Information
1.1 Conditions Of Installation…………………………………....…..
1.2 Flue & Chimney Suitability……………………………….. …….
2 Installation
2.1 Hearth……………………………………………………………..
2.2 Siting ……………………………………………………………...
2.3 Flue Connection ………………………………………………….
2.4 Ventilation ………………………………………………………..
2.5 Gas Connection ………………………………………………….
2.6 Placement Of The Ceramic Logs……………………………….
2.7 Operating Instructions …………………………………………..
2.8 Spillage ……………………………………………………………
2.9 Customer Education …………………………………………….
3 Servicing Instructions
3.1 Replacement Parts……………………………………………….
User Instructions
4 Important Information
4.1 Important Information For Use Of Appliance………………….
4.2 Layout Of Ceramic Logs…………………………………………
4.3 Operating Control Locations…………………………………….
4.4 Battery Replacement…………………………………………….
4.5 Fire Control Valve—Red Indicator Meaning………………….
4.6 Using The Remote Display Handset…………………………..
4.7 Trouble Shooting / FAQ …………………………………………
4.8 Remote Display Handset Optional Features…………………..
5 Guarantee
5.1 Guarantee………………………………………………………...
5.2 Terms & Conditions………………………………………………
5.3 General…………………………………………………………….
5.4 Notes……………………………………………………………….
Ecoburn Plus Gas
BK 710 Specific Page 3
4
5
6
6
7
7
7
8-9
10-13
14
14
14
16
17-18
19
20
20
21-22
22
23-27
28
28-29
30
31
Installation & Service

SECTION 1 : APPLIANCE INFORMATION
BK 710 Specific Page 4
Ecoburn Plus Gas
Model ARADA ECOBURN PLUS
Gas type G20 (natural gas)
Supply pressure (measured at test elbow), mbar 20
Injector (x1) Stereomatic 500
Oxypilot type Erta PG-82 -10
Nominal Heat Input (Qn), kW (Gross)-Maximum Rate 6.2
Gas consumption at max rate (m3/h) 0.590
Minimum heat input Kw (Gross) 2.5
Gas consumption at minimum rate (m3/h) 0.238
Gas connection 8mm compression
Remote gas valve TESCO1 RF868-15
Countries of Destination GB and IE
Efficiency class 1
NOX 2
1.1 - Conditions Of Installation
Before installation, check that the local distribution conditions, nature of the gas and pressure, and adjustment
of the appliance compatible. It is the law that only a competent person installs all gas appliances i.e.: a gas
registered installer in accordance with the current edition of the gas safety (installation and use) regulations or
the rules in force, failure to do so could lead to prosecution.
The installer must be gas safe registered.
The installation must also be in accordance with all relevant parts of the local and national buildings regula-
tions where appropriate, the building regulations (Scotland consolidation) issued by the Scottish development
department, and all applicable requirements of the following standard codes of practice :
1. BS 5871 part 1
2. BS 6891 installation of gas pipework
3. BS 5440 parts 1 & 2 installation of flues and ventilation
4. BS 8303 installation of domestic heating appliances
5. IS 813 Domestic gas installation (Republic Of Ireland)
No purpose made additional ventilation is normally required for this appliance when in-
stalled in G.B. when installing in I.E. please consult document IS 813 domestic gas in-
stallation, which is issued by the national standards authority of Ireland, if installing in
Northern Ireland please consult local building regulations. In Scotland, please consult
the current edition of the building standards regulations, issued by the Scottish
executive. Any purpose made ventilation must be checked periodically to ensure that it
is free from obstruction.
PLEASE NOTE—The stove is a very heavy appliance and care must be used when lifting and moving, we
recommend 2 people lift following lifting guidelines. Preferably wear gloves when lifting.

BK 710 Specific Page 5
Ecoburn Plus Gas
1.2 - FLUE & CHIMNEY SUITABILITY
This appliance is designed for use with conventional brick built or lined chimneys, all flues must conform to the
following minimum dimensions :
Before commencing installation a flue or chimney should be inspected to ensure that all of the following
conditions are satisfied :
1. Check that the chimney / flue only serves one fireplace and is clear of any obstruction, any dampers or
register plates must be removed or securely locked in the open position.
2. Brick / stone built chimneys or any chimney or flue which has been used for an appliance burning fuel
other than gas must be thoroughly swept.
3. Any under floor air supply to the fireplace must be completely sealed off.
4. Ensure that the inside of the chimney / flue is in good condition along its length and check that there is
no leakage of the smoke through the structure of the chimney / flue during and after the smoke pellet
test.
5. Using a smoke pellet check there is an updraft in the chimney / flue and that the smoke can be see
coming from the terminal / pot outside.
There must be no leakage of smoke through the structure of the chimney during or after the smoke
pellet test and it is important to check the inside upstairs rooms adjacent to the chimney / flue.
Check the chimney pot / terminal and general condition or the brickwork and masonry. If the chimney /
flue is in poor condition or if there is no up-draught do not proceed with the installation, if there is a
history of down draught conditions with the chimney / flue, again do not proceed until the fault has been
fixed.
A tested and certificated flue terminal or cowl suitable for the relevant flue type should be considered.
6. A spillage test must always be carried out during commissioning of this appliance.
Minimum dimension of flues 125 mm Minimum effective height of all flue types 3 metres

ECOBURN PLUS GAS
Page 6 BK 710 Specific
WARNING
This stove is fitted with a spillage monitoring system consisting of a thermal switch, which shuts the appliance
off in the event of a blocked flue or inadequate flue pull occurring.
The system shall not be adjusted by the installer or shall not be put out of action.
When the spillage monitoring system is required to be replaced, only original manufacturers parts shall be
used.
If the stove switches off for no apparent reason, the appliance should not be used until expert advice is
obtained and the fault rectified.
All surfaces, except the control valve, are working surfaces and become very hot in use. They must not be
touched or any combustible materials put on them.
It is recommended that a fireguard complying to BS 8423 should be fitted for protection of young children or
elderly or infirm persons.
The door assembly has to be removed, to allow access to remove the glass frame assembly. Allow to
cool before removing this, as it will become very hot and is a working surface in use.
SECTION 2 : INSTALLATION
2.1 - HEARTH
The stove must be installed on a non-combustible hearth with the hearth material being at least 12mm thick,
the hearth must protrude at least 150mm (6”) in front of the stove and be of a size sufficient to accommodate
the stove.
2.2 - SITING
The stove must not be installed in a bathroom.
Clearance from non-combustible material in the fireplace opening must be at least to dimensions in the table
below :
NOTE : Fitting the stove any closer to the back may cause nuisance shutdown of the stove
as the airflow may be compromised and the thermal cut off will operate.
Position
Above
Back
Left
Right
Distance mm
100 mm
100 mm
100 mm
100 mm
300 mm
300 mm
300 mm
300 mm
Combustible MaterialNon Combustible Material

BK 710 Specific
2.3 - FLUE CONNECTION
The flue should be at least 3m high and at least 125mm diameter (5”) at no point should there be any
negative or horizontal gradients in the flue pipe.
It is recommended that a minimum height of 600mm from the stove before any significant change of
direction of the flue.
2.4 - VENTILATION
Ventilation should be in accordance with national regulations in the UK purpose provided ventilation is not
normally required BS5871 part 1 and in IE IS813 (IE Only).
2.5 - GAS CONNECTION
The gas connection can be made by removing the glass frame assembly; remove all the fixing screws a
keep safe for future use. Once the frame has been removed, the 4 no. fixings, holding the burner in place
can be removed and access to the gas inlet elbow can be gained. Once the connection has been made and
soundness verified the burner can be replaced ensuring correct position and the 4no. fixings replaced.
Page 7
ECOBURN PLUS GAS

BK 710 Specific Page 8
2.6 - PLACEMENT OF THE CERAMIC LOGS
The logs should be positioned as in the pictures below.
DO NOT CHANGE THE FUEL BED LAYOUT, THE TYPE OR NUMBER OF LOGS.
ECOBURN PLUS GAS
Step 1 Step 2
Step 3 Step 4
Step 5 Step 6

BK 710 Specific
ECOBURN PLUS GAS
Correct completed ceramic log layout
Page 9
Step 7 Step 8
Step 9 Step 10
Step 11

2.7 - OPERATING INSTRUCTIONS
Below the gas controls, which are situated at the bottom left hand side of the appliance (when viewed
looking at the appliance door).
Below the remote control handset.
Page 10 BK 710 Specific
ECOBURN PLUS GAS
Battery Compartment Cover
Increase FlamePower Button
Decrease Flame
Indicator Light Power Isolator Switch Battery Compartment Release Lever

Page 11BK 710 Specific
Replacement of batteries in TESC01 gas control -
The TESC01 gas control which operate the appliance are battery powered and require replacing periodically;
after removing the plastic front cover from the control, the batteries are fitted and positioned as shown above,
always replace the plastic cover once, the new batteries have been fitted.
Replacement of batteries in the handset -
The remote handset also has batteries as shown above. It is important that the batteries are replaced at least
every 12 months.
Meaning (s) of the red indicator on Fire Control Valve (Handset)
ECOBURN PLUS GAS
RED INDICATOR MEANING
Permanently Lit Valve tried to light but failed in LOCKOUT E00
Flashing Very Fast Valve Is Busy (Will Not Accept Any Command)
Flashing Once A Second Valve Detects An Error
Permanently Off Valve In Standby Or In A Stable Operation
On Momentarily After Power Up Valve Doing A Self Test
Appears After Pressing Start Indicates Time To Release Pressing The Start
Button

INFORMATION ONLY - THE HANDSET WILL ALREADY BE PAIRED

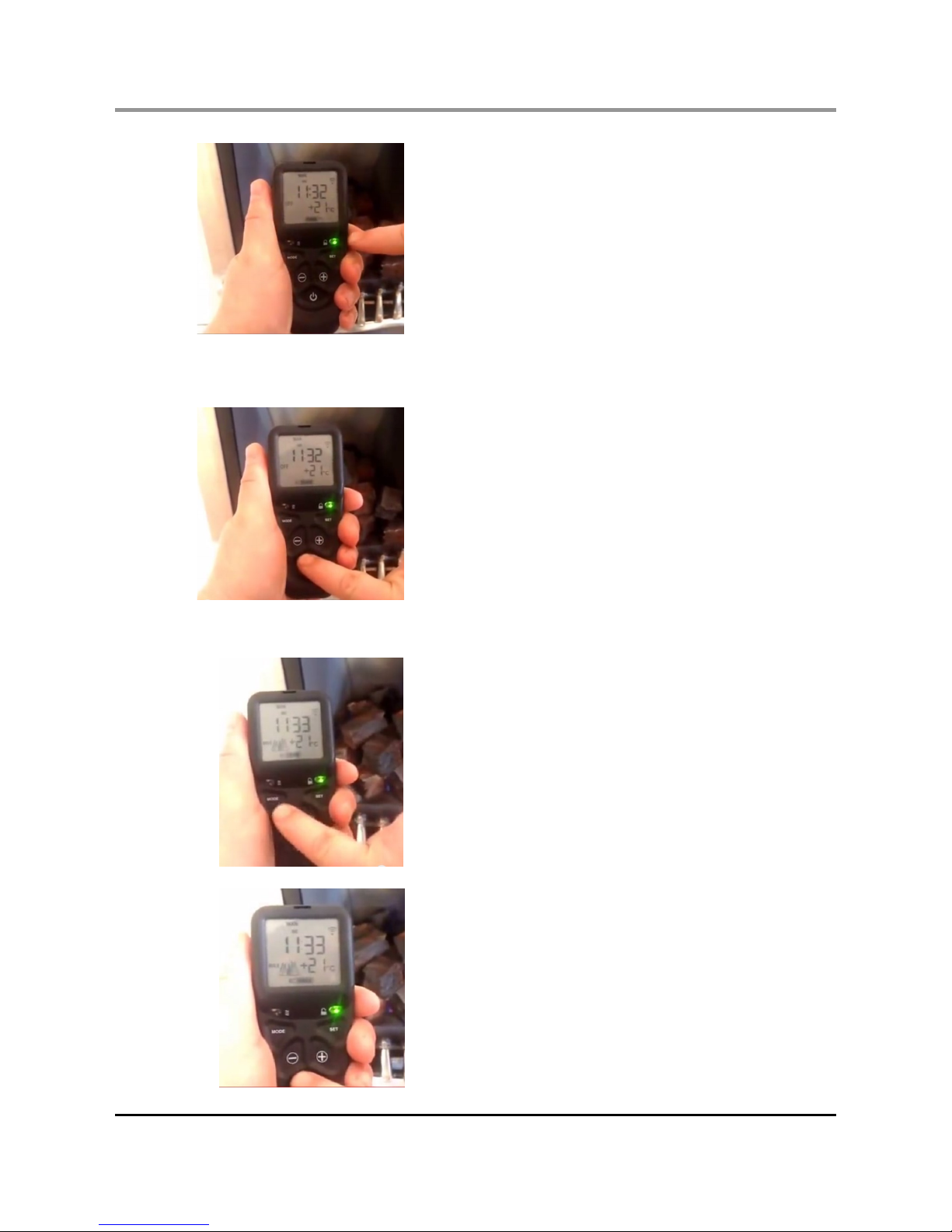

Pairing the handset with the gas valve -
Ensure the handset and the gas fire control have good batteries inside and the batteries are facing the correct
direction (as shown inside the battery compartments).
Ensure the battery contacts and compartments are clean and free from any contamination.
The green light on the handset will flash fast when the handset is held (not steady green), which shows it is
ready to accept a pairing from the gas fire control.
(NOTE: Ensure the small slide switch on the top left of the gas fire control is slid to he right (I) position).
Place the handset within a few feet of the fire ( no need to hold it at the time ).
On the gas fire, simultaneously press the hold the - and + buttons on the gas fire control (i.e. not the handset)
unit the red light on top left of gas fire control begins to flash rapidly (this will take about 5-8 seconds), then
immediately as the red light starts to flash release the - and + buttons and quickly and press the power button
that is underneath them. (Note: This button press must be done with 1 second of the red light coming on.
If not done quickly enough, then the above must be repeated until done correctly).
When done correctly, you will hear an audible sound from the handset. Immediately, pick up and grasp the
handset as normal to unlock the key pad and then press and hold the “ set “ button for around 3 to 5 seconds.
When you hear several beeps from the handset as the pairing has been confirmed.
You know the pairing has taken as now when holding the handset the green light will be a steady green ( not
flashing when held).
IMPORTANT USER INFORMATION – AFTER INSTALLATION BY THE
ENGINEER , READ THIS BEFORE ATTEMPTING TO OPERATE THE FIRE
NOTE: The handset is supplied paired to the Gas Control.
Do not alter the pairing. The handset is designed to be not too easily operated by
accident for safety reasons. If for any reason the pairing has been altered, then the
handset will not work. The handset needs to be reset and paired again.
BK 710 Specific Page 12
ECOBURN PLUS GAS

ECOBURN PLUS GAS
BK 710 Specific Page 13
Hold the handset as shown, wrapping
your hand around the handset touching
both sides. In a second or less the green
unlock light will illuminate, allowing the
buttons to work when pushed.
(NOTE: If the green light is not a constant
green or not lit at all the buttons will not
be operable).
Press and hold in the power symbol button and
release immediately when the word pilot ap-
pears at the bottom left of the display (After
about 1-2 seconds).
The stove will light onto MAX burner setting.
(NOTE: Releasing the power button too soon or
too long after the word pilot is illuminated,
results in the burner not lighting, this is for
safety reasons).
If for any reason the ignition sequence fails to
ignite the burner, the fire control valve
automatically re-attempts the lighting
sequence for a further 2 attempts.
To adjust high and low whilst holding the
handset and green light on press + & - to adjust
for the preferred heat setting.
To Stop the stove, hold handset to unlock the
buttons and then press the power button.
The flame stops almost immediately.

2.8 - SPILLAGE
Check for clearance of combustion products.
Close all doors and windows in the room containing appliance.
Turn on appliance and turn to high, leave running for 5 minutes and insert a lighted taper or smoke match into
the flue diverter at the rear of the appliance.
All the smoke must be drawn into the appliance.
If spillage occurs, allow a further 10 minutes and retest.
Should spillage occur, seek expert advice.
If an extractor fan is situated in the room, the test should be carried out with the fan running, if there is a
connected room with an extractor fan the test should be repeated with the fan running and any
interconnecting doors open.
2.9 - CUSTOMER EDUCATION
Hand these instructions to user.
Advise the user until they are fully educated on the use of the stove and the controls.
Explain regarding the thermal cut off feature.
Advise if this system repeatedly shuts off specialist advice must be consulted.
Advise that if the fire goes off for any reason do not re-light for 3 minutes.
Advise the stove may give off a slight smell due to the newness and any odours will go after a few hours of
use.
Advise that the stove must not be used with the glass panel damaged or broken or missing.
Advise that no materials like washing, may not be draped over the stove.
Recommend regular servicing at least annually.
Recommend no extra fuel pieces are added and only authorized spares used.
3.0 - SERVICING INSTRUCTIONS
The stove is fitted with a spillage monitoring system consisting of a thermal switch this system is non
adjustable and must not be bypassed or put out of action if any parts are replaced it must be with the original
manufacturers parts used.
1. Servicing must be carried out regularly and only by a qualified person, ensure the fire is turned off and cold
(minimum service must be carried out annually)
2. Open the stove door by unscrewing the handle on the left fully and remove the door can now be opened or
even lifted off its hinges then the screws holding the glass can be removed and the glass panel removed.
3. Remove the ceramics carefully.
4. Remove any debris from the burner if necessary vacuum, also clean the pilot or vacuum.
5. If necessary replace pilot (for extended warranty) by removing burner and disconnect gas supply 4 screws
can be removed and burner tray removed the thermal cut off switch will have to be disconnected at the rear of
the fire to allow the tray to be removed it has to be lifted up on the right hand side and carefully twisted out
6. Replace burner tray and reconnect thermal switch the appliance will not work if this is not done and then
replace in reverse order replace glass and stove door.
7. Check the supply pressure and test for spillage
8. The flue will need sweeping periodically for safe use of the appliance.
3.1 REPLACEMENT PARTS
Genuine replacement spare parts can be
obtained from www.aradastovesandspares.com
or your Arada dealer.
Please note, that fitting non-official Arada parts to
your stove will invalidate the guarantee.
BK 710 Specific Page 14
FARRINGDON Eco Stove User Guide
Pilot Assembly ERTA-PG-82-10
Thermal Switch TSC-30112010AFV
Thermal Switch Wires TTB Wires
Fuel Logs
Injector STEREOMATIC 500
Handset TESC Handset
Valve TESC01 RF868-15

Page 15
BK 710 Specific
ECOBURN PLUS GAS
ARADA ECOBURN PLUS
MEDIUM GAS STOVE
THE FIREWORKS
WEYCROFT AVENUE
AXMINSTER DEVON
EX13 5HU
THIS APPLIANCE IS CATEGORY I2H FOR
USE WITH NATURAL GAS AT A SUPPLY
PRESSURE OF 20 mbar
G.B. AND I.E.
USERS INSTRUCTIONS
THIS MANUAL MUST BE LEFT WITH
THE USER

BK 710 Specific
Page 16
ECOBURN PLUS GAS
SECTION 4. IMPORTANT INFORMATION
4.1 IMPORTANT INFORMATION FOR USE OF APPLIANCE
This stove should not be used for any other purpose than as a room heater and decorative stove,
due to its newness of materials the stove may give off a slight smell for a period of time after
commissioning, this is quite normal and should clear within a few hours of use.
The installation must be in accordance with the national regulations and must be carried by a qualified
installer EG: gas safe engineer.
Under no circumstances should the stove be operated with the glass panel damaged broken or missing.
All surfaces except controls are considered to be working surfaces and will get very hot during and after use,
they must not be touched or any combustible materials, if young children, the elderly or infirm are likely to be
near the stove, a suitable fireguard to BS8423 is recommended.
A combustible shelf may be fitted above the stove providing the shelf protrudes less than 150mm in front of
the stove and there is 300mm clearance above the top of the stove.
Curtains are not recommended above the stove.
Do not drape clothes or any materials over the stove.
The stove must stand on a non-combustible hearth and be at least 12mm thick and sufficient size to
accommodate the stove.
No purpose provided ventilation is normally required but must be in accordance with national regulations in
force.
The fuel should be arranged only as shown in these instructions.
Should the stove extinguish for any reason do not relight for a minimum of 3 minutes.
The door handle has to be removed to open the door and get to the glass this is also a working surface allow
to cool before touching.
This stove should be serviced regularly at least annually.
Only replace ceramic parts or any parts of the fuel bed with parts supplied by the manufacturer for this stove
do not change the fuel bed layout from the instructions supplied.
The flue will need sweeping periodically.
If the stove fails to light and the appliance goes to reset the start button will have to be held for 10 seconds to
clear the remote fault.
THE STOVE IS FITTED WITH A SPILLAGE MONITORING SYSTEM CONSISTING OF A
THERMAL SWITCH.
THIS SYSTEM IS NOT ADJUSTABLE AND MUST NOT BE PUT OUT OF ACTION & IF
REQUIRED TO BE REPLACED ONLY ORIGINAL MANUFACTURERS PARTS MUST BE
USED (IF THE STOVE SWITCHES OFF FOR NO APPARENT REASON THE
APPLIANCE SHOULD NOT BE USED UNTIL EXPERT ADVICE IS TAKEN).

BK 710 Specific Page 17
ECOBURN PLUS GAS
4.2 LAYOUT OF THE CERAMIC LOGS
The logs should be positioned as in the pictures below.
WARNING : DO NOT CHANGE THE FUEL BED LAYOUT OR THE TYPE OR NUMBER OF LOGS

BK 710 Specific
Page 18
ECOBURN PLUS GAS

ECOBURN PLUS GAS
Page 19BK 710 Specific
4.3 - OPERATING CONTROL LOCATIONS
The main control of your appliance is the gas fire control valve, which is situated at the bottom left hand
side of the appliance (when viewed looking at the appliance door).
Below the remote control display handset.
Power Isolator Switch
Indicator Light
Battery Compartment
Battery Compartment
Release Lever
Increase
Flame
Power
Button
Decrease
Flame
Communication Symbol
(Showing link between fire
control valve and handset)
Room Temperature
Green Unlock Light
Set Button
Increase Button
Power / Standby
Decrease Button
Mode Button
Light Sensor
(For Backlit Display)
Day & Time
Mode—Manual Or 'Zzz' Snooze,
Thermostat Or Timed
Battery Condition Indicator
(Alternates between RC—
Handset Battery &
FC –Valve Battery)
Gas Burner Status
(Flames Shown When Lit)
FRONT

ECOBURN PLUS GAS
Page 20 BK 710 Specific
4.4 - BATTERY REPLACEMENT
The gas control valve which operates the appliance is battery powered and require replacing periodically;
after removing the plastic front cover from the control, the batteries (3 No. AA/1.5V LR6) are fitted and
positioned as shown below, always replace the plastic cover, once the new batteries have been fitted.
The remote display handset also has batteries as shown below. Again, remove the rear cover and replace
the batteries (2 No. AA/1.5V LR6), observing the correct position as shown.
It is important that the batteries are replaced at least every 12 months, otherwise, the pairing to the
fire control valve will be lost and you will no longer be able to control your appliance via the handset.
A re-pairing of the handset to the fire control valve will be needed to be performed to re-instate the lost
communication between the two components (see page 12).
4.5 - FIRE CONTROL VALVE—RED INDICATOR MEANING
+
+
+-
-
-
+-
-+
RED INDICATOR MEANING
Permanently Lit Valve tried to light but failed in LOCKOUT E00
Flashing Very Fast Valve Is Busy (Will Not Accept Any Command)
Flashing Once A Second Valve Detects An Error
Permanently Off Valve In Standby Or In A Stable Operation
On Momentarily After Power Up Valve Doing A Self Test
Appears After Pressing Start Indicates Time To Release Pressing The Start
Button
