Arada Lagom User manual

PLEASE RETAIN THIS GUIDE FOR FUTURE REFERENCE
BK 746 SPECIFIC Rev 01 ISSUE DATE : 05/10/2020
EN 13240:2011 +A2:2004
Lagom Stove User Guide
Lagom

Congratulations on the purchase of your new Arada stove!
More than 30 years of experience has been put into the development of
your stove to ensure ultimate performance and years of trouble free use and
enjoyment. Every detail of your stove has been carefully designed and
engineered which is why we are so confident in the reliability of our products.
Your Arada stove is built to the highest standard of craftsmanship using the
best materials and the most modern equipment available. It is a highly efficient
and sophisticated piece of machinery and when properly installed and
operated it should provide a lifetime of heating satisfaction.
Should you have any questions about your stove which are not covered by this
manual, please contact the Arada retailer in your area, call our technical
support department on [phone] or visit our website
www.aradastoves.com which offers a wealth of information on how to care for,
and get the best from your stove.
Please ensure that you read these instructions in full and understand them
before operating your stove.
Arada has a policy of continuous product development and therefore we
reserve the right to amend specifications without prior notice. Due to printing
cycles, items or options may be described before they are generally available
or after they have ceased. Please check with your retailer or dealer if you are
unsure about any aspect of your stove, its installation or correct use.
Arada Lagom Stove User Guide
LAGOM Stove User Guide
Page 2 BK 746

Contents
1 Identifying your stove
1.1 Identifying parts & terminology of your stove—External..…..
1.2 Identifying parts & terminology of your stove—Internal …….
2 Additional installation information
2.1 Stove clearance dimensions………………………………………
2.2 Corner installation dimensions ……………………………………
2.3 Floor protection dimensions ………………………………………
2.4 Stove dimensional drawing ……………………………………….
2.5 External air supply connections…………………………………..
2.6 Rear flue spigot connection ……………………………………...
3 Warnings
3.1 Important warnings ……………………………………………..
2.2 Health and safety …………………………………….……….…
4 Recommended fuels
4.1 Wood ………………………………………………………………
5 Before using your stove ………………………………………….
6 Air inlet controls
6.1 Air inlet ……………………………………………………………..
6.1.1 Air control location…………………………………….………...
6.1.2 Air control …………………………………………………..…….
7 Lighting your stove
7.1.1 Smoke control areas …………………………………………..
7.1.2 Fuel overloading ………………………………………………...
7.1.3 Operation with door left open ………………………………….
7.1.4 Dampers / Air controls left open ……………………………….
7.2 Burning wood ……………………………………………………...
7.3 Refuelling..…………………………………………………………
7.4 Operation during the transition period…………………………...
7.5 Warning - Fume / Smoke emissions …………………………….
7.6 Refuelling on to a low fire bed …………………………………...
7.7 Typical burn for nominal output ………………………………….
LAGOM Stove User Guide
BK 746 Specific Page 3
5
6
7
8
8
9
10
10
11
12
12
13
14
14
15
16
16
16
16
16
17
17
17
18
18

BK 476 Specific
8 Further information for all stove owners
8.1 Reduced burning (Slow combustion)…………………………...
8.2 Over firing………………………………………………………….
8.3 Chimney fires……………………………………………………...
8.4 Periods of non-use (Summer months)………………………….
8.5 Ash removal ……………………………………………………...
8.6 Replacement parts……………………………………………….
8.7 Classification………………………………………………………
8.8 Adverse weather conditions……………………………………..
8.9 Door glass…………………….…………………………………..
8.10 Fire door handle ………………………………………………..
8.11 Storage cupboard/compartment……………………………….
9 How heat is delivered by your stove
9.1 Radiant heat ……………………………………………………..
10 Care for your Arada stove
10.1 Liners / firebricks ………………………………………………
10.2 Throat plate …………………………...……………………….
10.3 Fire door seal ……………………………………………………
10.4 Cracked glass ………………………………………………….
10.5 Chimney / flue sweeping ……………………………………….
11 Further resources / reading
11.1 Information……………………………………………………….
11.2 Specifications …………………………………………………...
12 Guarantee
12.1 Guarantee ……………………………………………………….
12.2 Terms and Conditions ………………………………………….
12.3 General …………………………………………………………..
13 Technical data…………………………………………………….
14 Notes ……………………………………………………………….
Page 4
LAGOM Stove User Guide
19
19
19
19
20
20
20
21
21
21
21
22
23
23
23
24
24
25
25
26
27
28
29
30-31

BK 746 Specific Page 5
1 Identifying your stove

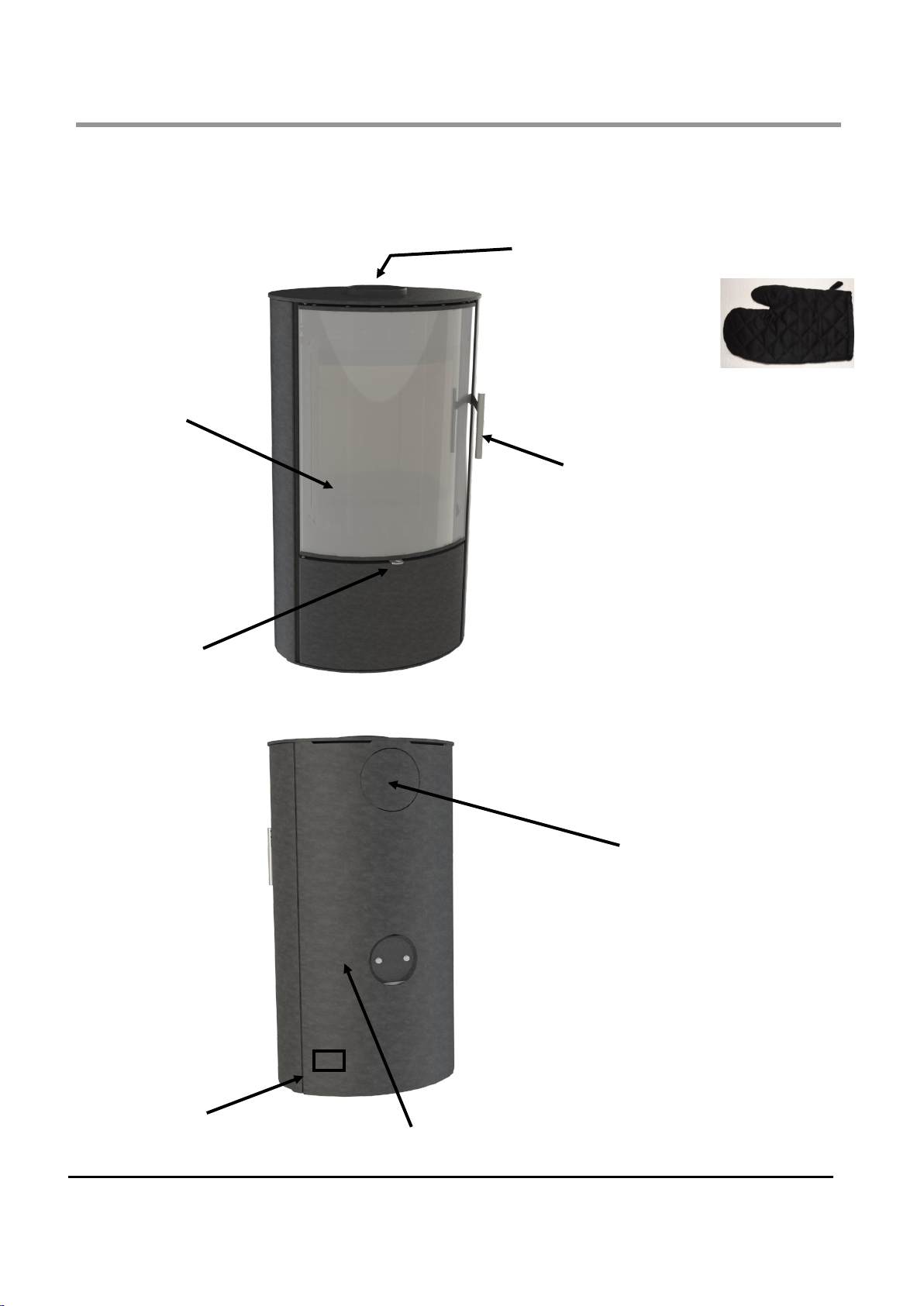

1.1 Identifying parts & terminology of your stove—External
Rear Flue Outlet
(Behind Knock Out Rear
Cover)
(NOTE : Top & rear flue
outlets are
interchangeable & will
depend upon installation
requirements)
Fire Door
Assembly
Fire Door
Handle
Socket
LAGOM Stove User Guide
Hot Glove x1
(Packed Inside
Stove)
Top Flue Outlet
Rear Heat Shield
Air Control
Stove Data Plate

Fuel Retainer
Incorporated
into grate
Firebox
Liners
(Sides & Rear)
Fire Door
Glass
LAGOM Stove User Guide
Page 6 BK 746 Specific
1.2 Identifying parts & terminology of your stove—Internal
Throat
Plates
(Upper
metal &
lower
ceramic)
Ash Pan Location
(Below grate area)
Storage Cupboard
Grate Area
Flue Spigot
(Can be
interchanged
with rear
hotplate)
Air Control
Lever

LAGOM Stove User Guide
BK 746 Specific Page 7
PLEASE NOTE : This additional information is to be read in addition to
BK545 ‘Dry Stove Installation Guide’

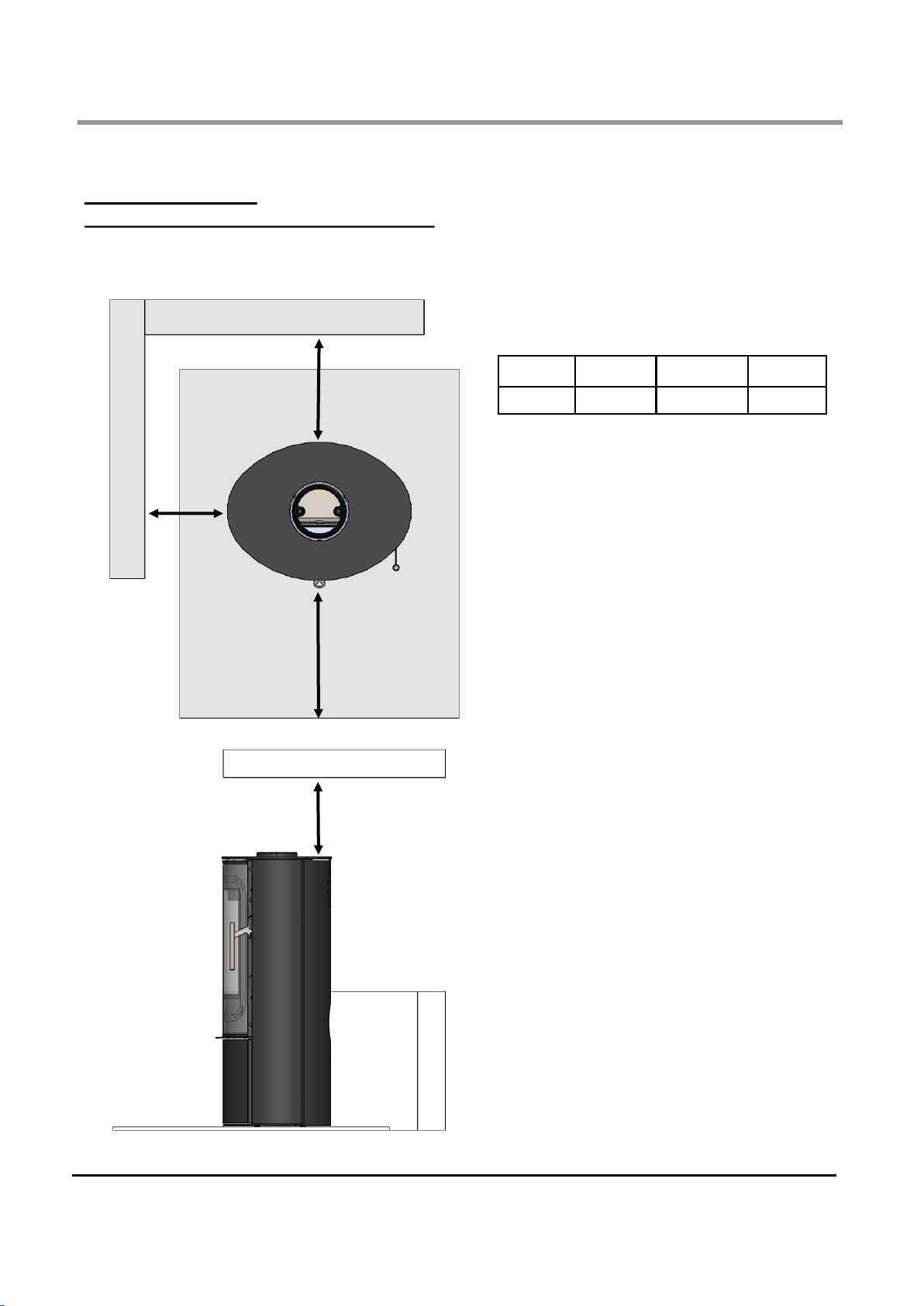

2.1 Stove clearances dimensions
Minimum Distance To
Combustible Materials
ABC D
100mm 100mm 800mm 1200mm
2 Additional Installation Information
A
B
C
D

LAGOM Stove User Guide
Page 8 BK 746 Specific
PLEASE NOTE : This additional information is to be read in addition to
BK545 ‘Dry Stove Installation Guide’

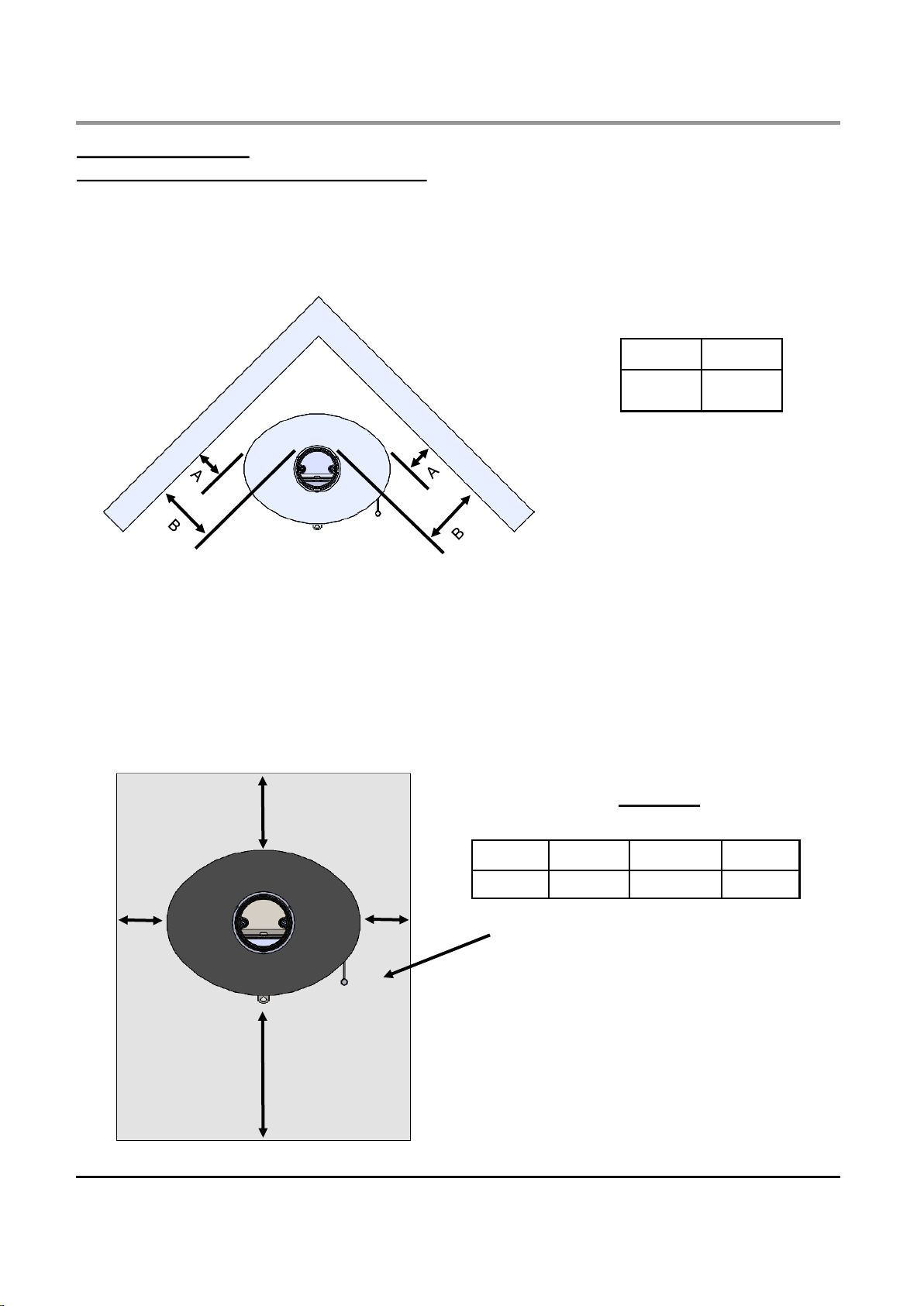

2.2 Corner Installations dimensions
2.3 Floor protection dimensions
The stove should be installed on this 100% non-flammable floor. Where a combustible
floor is present, a stove protection plate of non –combustible materials should be used.
The following manufactures recommendation should be adhered too, in conjunction with
the relevant local building standards in force.
Floor protection Minimum dimensions
(Distances can be increase from stated)
Stove Protection Plate
AB
100mm 257mm
Corner installation clearances
to combustible materials
For alcove installation
The ceiling or shelf above
the stove, can be a
minimum of 1200mm above
the appliance top.
C
D
AB
ABC D
100mm 100mm 400mm 100mm
The stove must be installed on a non-combustible
material plate (cement, brick, stone, ceramic tile,
glass, metal etc ) to protect the floor and possible
fire caused by
 ejection of sparks and hot ashes when the
stove door is opened for refuelling etc.
 radiated heat caused by stove over firing
 spillage of creosote as a result of a chimney
fire.

LAGOM Stove User Guide

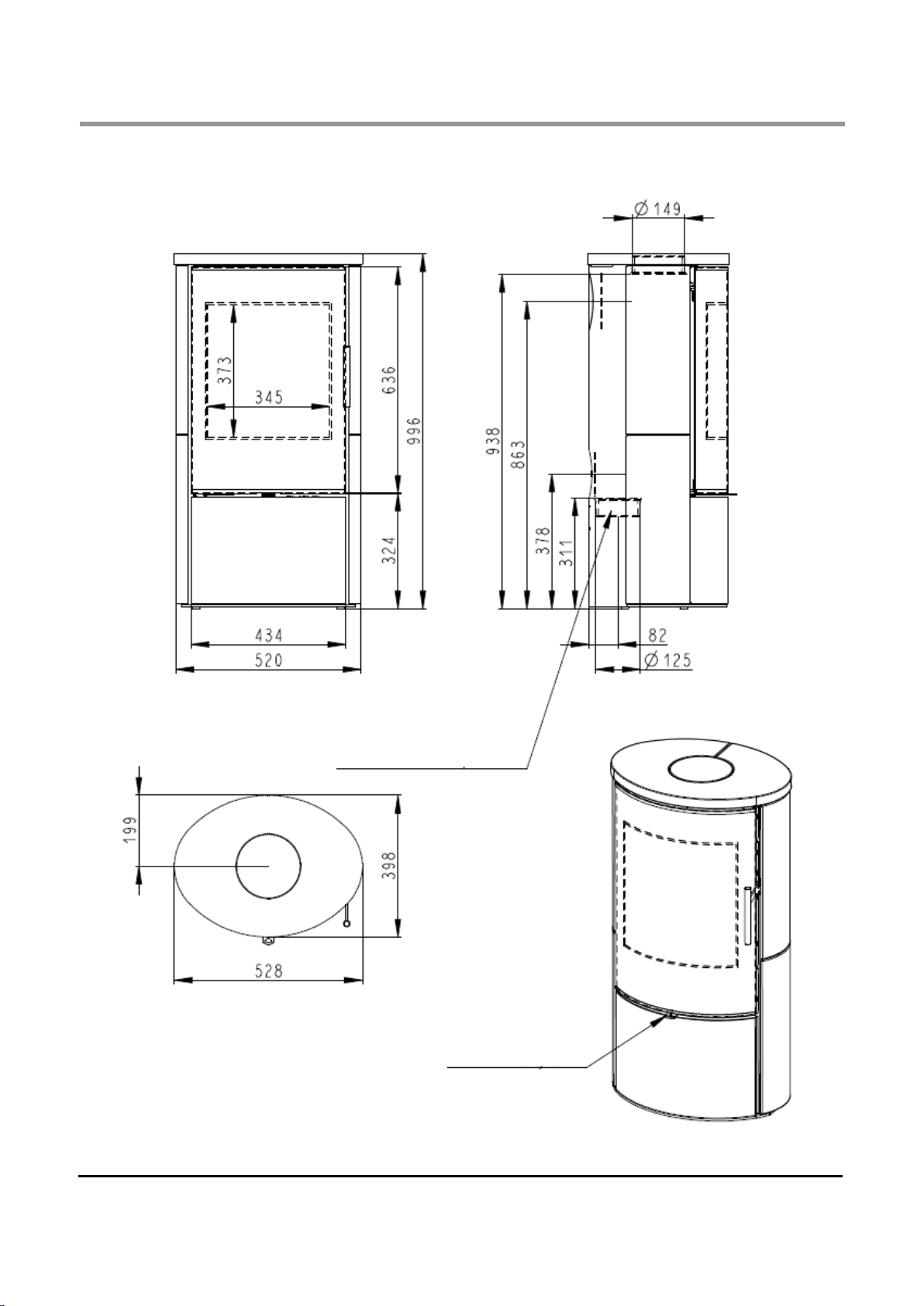

2.4 Stove dimensional drawing
BK 746 Specific Page 9
Secondary &
Primary Air
Control
External Air
Connection Ø
125mm

2.5 External air supply connections
Page 10 BK 746 Specific
LAGOM Stove User Guide

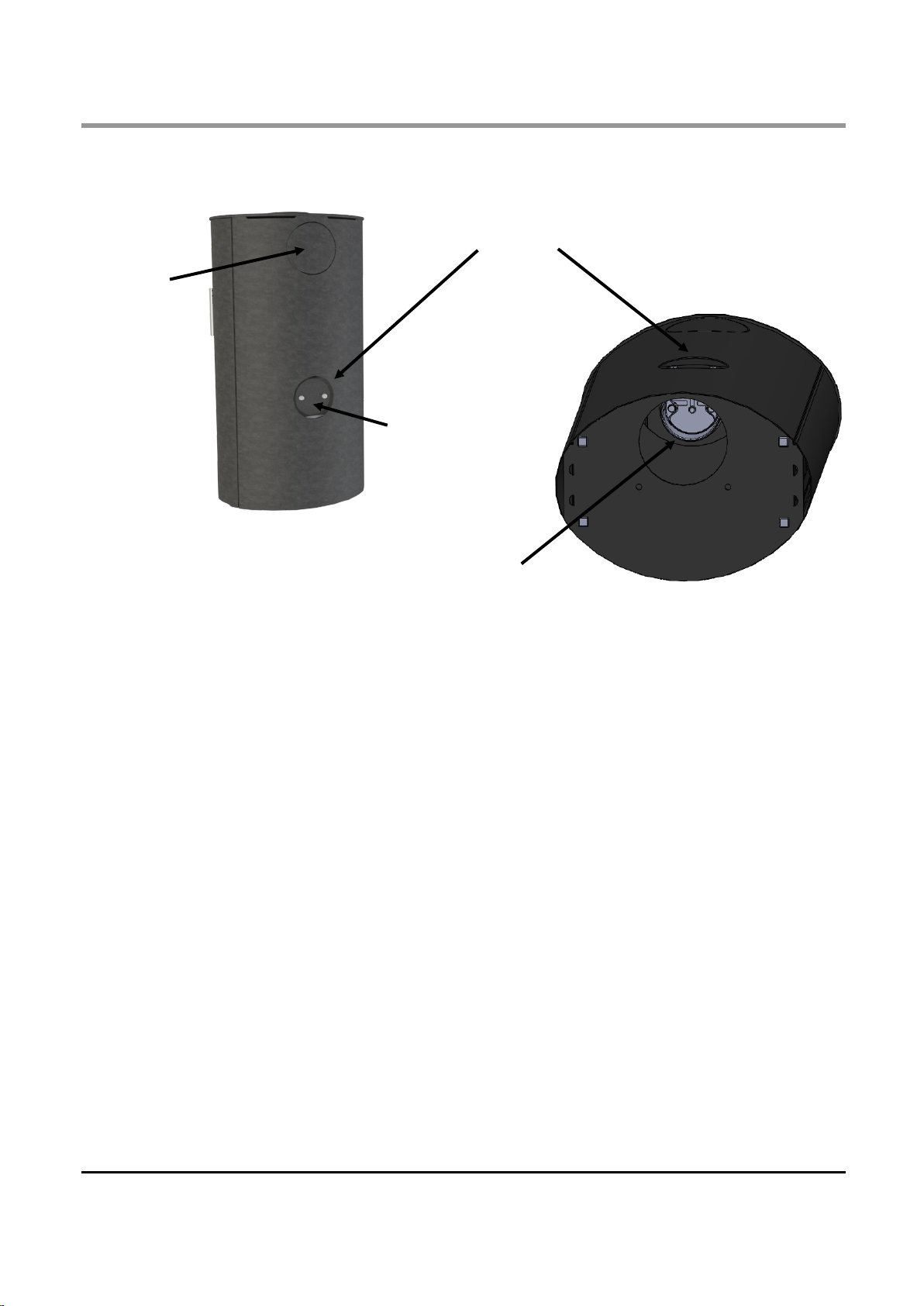

2.6 Rear flue spigot connection
The default factory setting for the Lagom, is for the rear air supply connection blanked
closed.
The air for combustion enters the firebox from the air connection spigot mounted on the
base of the appliance. The diameter of this connection is smaller than the flue connections
at 125mm.
Both these terminals are interchangeable and can be swapped to suit installation
requirements.
If an external air connection is required for installation, then a suitable supply duct of
125mm diameter in metal construction is recommended.
External Air Connection—Rear
Default External Air Connection— Base
(Showing Connection Spigot)
Rear
Connection
Blanked Closed
The default factory fitment for the Lagom, is for the flue spigot (150mm diameter) to be
fitted to the top outlet.
Provision for a rear fitted flue can be accessed via the knock-out cover in the rear panel of
the appliance (see above picture). Once removed, access to the rear flue will be visible.
Both these top and rear terminals are interchangeable and can be swapped to suit
installation requirement.
Rear
Knock Out
Cover For
Rear Flue
Connection

IMPORTANT INFORMATION
BK 746 Specific
3 Warnings
3.1 Important Warnings
It is a LEGAL REQUIREMENT that the installation of all new or replacement, wood or
solid fuel heating appliances, obtain Building Control approval from your local Authority or
the installation work must be carried out through a government approved Competent
Persons Scheme. A list of all Competent Person Schemes can be found :
https://www.gov.uk/guidance/competent-person-scheme-current-schemes-and-how-
schemes-are-authorised
Any manufacturer’s instructions must not be taken as overriding statutory requirements.
All Arada Lagom stoves MUST NOT be connected to a shared flue system.
Please Note: Classification of these appliances is for intermittent use only.
Do not use aerosol sprays or any other flammable materials near the appliance when in
use.
Do not use the appliance as an incinerator.
Use only recommended fuels. STRICTLY NO unsuitable and non recommended fuels or
materials or liquid fuels allowed.
Pure petroleum coke or Bituminous house coal must NOT be burned in this appliance.
The use of these fuels will invalidate the appliance guarantee.
Please ensure that the air inlet vent grills to the dwelling are not obstructed or liable to be
blocked.
Caution must be exercised during operation of the appliance as both internal and external
surfaces will be hot to touch. Use the stove mitten provided when the appliance is in
operation.
A fireguard conforming to BS 8423:2002 should be used in the presence of children or
elderly people.
Always observe the distances to combustible materials as stated on the appliance Data
Plate and in the Technical Data section of this manual. Ensure no soft furnishings or
combustible materials are susceptible to heat radiating from the appliance.
Under NO circumstances should the stove be operated for extended periods with the main
fire door open. This will result in an over firing situation and will lead to severe damage to
the stove and flue system.
Ignoring the warnings could lead to damage/injury to persons and/or property.
Arada Ltd will not be responsible for any consequential or incidental loss or injury however
caused.
Page 11
LAGOM Stove User Guide

BK 746 Specific Page 12
3.2 Health and Safety
Please consult Health and Safety Guidelines for advice on handling heavy and/or large
items.
4 Recommended fuels
4.1 Wood
As a natural and renewable fuel, wood is the first choice for burning, however burning
wood requires a little effort and planning.
Any type of wood is suitable (though hardwood is preferable) provided it is well
seasoned and has a moisture content below 20%. This usually implies that the timber
has been suitably stored to allow moisture to evaporate for at least 9 months in the case
of soft wood, and at least 24 months in the case of hard wood. We recommend using
dry logs with a diameter of 5-8cms and length of 20-25cms.
If, when burning wood, you see signs of sticky tar inside the appliance or chimney, your
wood is ‘green’ or too wet and requires further seasoning. An electronic moisture meter
can be obtained in order to determine the moisture content of your wood fuel. Wet wood
must not be used as this will greatly contribute to the creation of tar and creosote which
may, in extreme cases, run down the chimney in liquid form. This will seriously damage
both the chimney and the appliance and increase the risk of a chimney fire.
DO NOT BURN Bituminous house coal or petroleum coke in this appliance.
DO NOT BURN Any form of plastics in this appliance.
LAGOM Stove User Guide

5 Before using your stove
Arada stoves are designed to be operated with the fire door(s) closed at all times, apart
from refuelling (when alight) or cleaning (when cold).
Never leave the appliance unattended for an extended length of time with the
door open.
Prior to lighting the stove for the first time, please check with the installer that:
 Installation and all building work is complete. (Refer to the installation guide.)
 The chimney is sound, has been swept and is free from obstruction.
 Building Regulations and any local by-laws have been followed during installation.
 All firebox liner panels and throat plate are in place.
 The chimney draw has been checked and is within specification (between 0.1mb to
0.2mb, or 10-20 pascals). This ensures your stove will operate predictably and
efficiently.
 A Carbon Monoxide detector is correctly installed in the same room as the
appliance.
 Suitable provision for combustion and ventilation air, depending upon Building
Regulations have been undertaken by the installation fitter.
 Consideration must be given for the need for extra ventilation if another heating
source needing air is to be operated simultaneously. If an extraction fan is proposed
to be fitted to a connecting area of the house, after the stove has been installed,
professional advice should be sought from a qualified engineer.
Ensure that you have read and understood these instructions before lighting the fire.
Our YouTube channel, www.youtube.com/user/aradastoves features a collection of
videos designed to help you get the best from your Arada stove.
Always wear suitable protective fire gloves when refuelling your stove, such as the Arada
hot glove supplied with your stove. Always keep the hot glove away from naked flames
and sparks when re-fuelling the appliance.
We recommend that you light a small fire for the first few days of use to cure the paint
and allow the castings to relax.
You may hear your stove produce clicking or ticking noises whilst it heats up or cools
down. This is completely normal and is produced by the expansion and contraction of the
steel components in your stove when its temperature changes.
Page 13
BK 746 Specific
LAGOM Stove User Guide

Page 14 BK 746 Specific
6 Air inlet controls
6.1 Air Inlet
Your stove requires air to function. This enters the appliance via the circular duct on the
under side of the stove. Depending upon installation, this circular duct can also act as the
connection point for the direct air feed / ducting requirements.
NOTE : DO NOT COVER OR PARTIALLY OBSTRUCT THE AIR INLET OPENINGS FOR
THE APPLIANCE.
6.1.1 Air control location
The air control regulates the air entering the fire box chamber controlling the rate of burn.
This control is situated below the fire door in the middle of the stove when facing the front of
the stove.
Air Inlet
(Direct Air
Connection)
Rear View of Stove
LAGOM Stove User Guide
Air Control
Location
Section View of Stove

6.1.2 Air control lever
The control has an internal sliding plate with slots housed inside the body of the appliance
and is located centrally below the fire door.

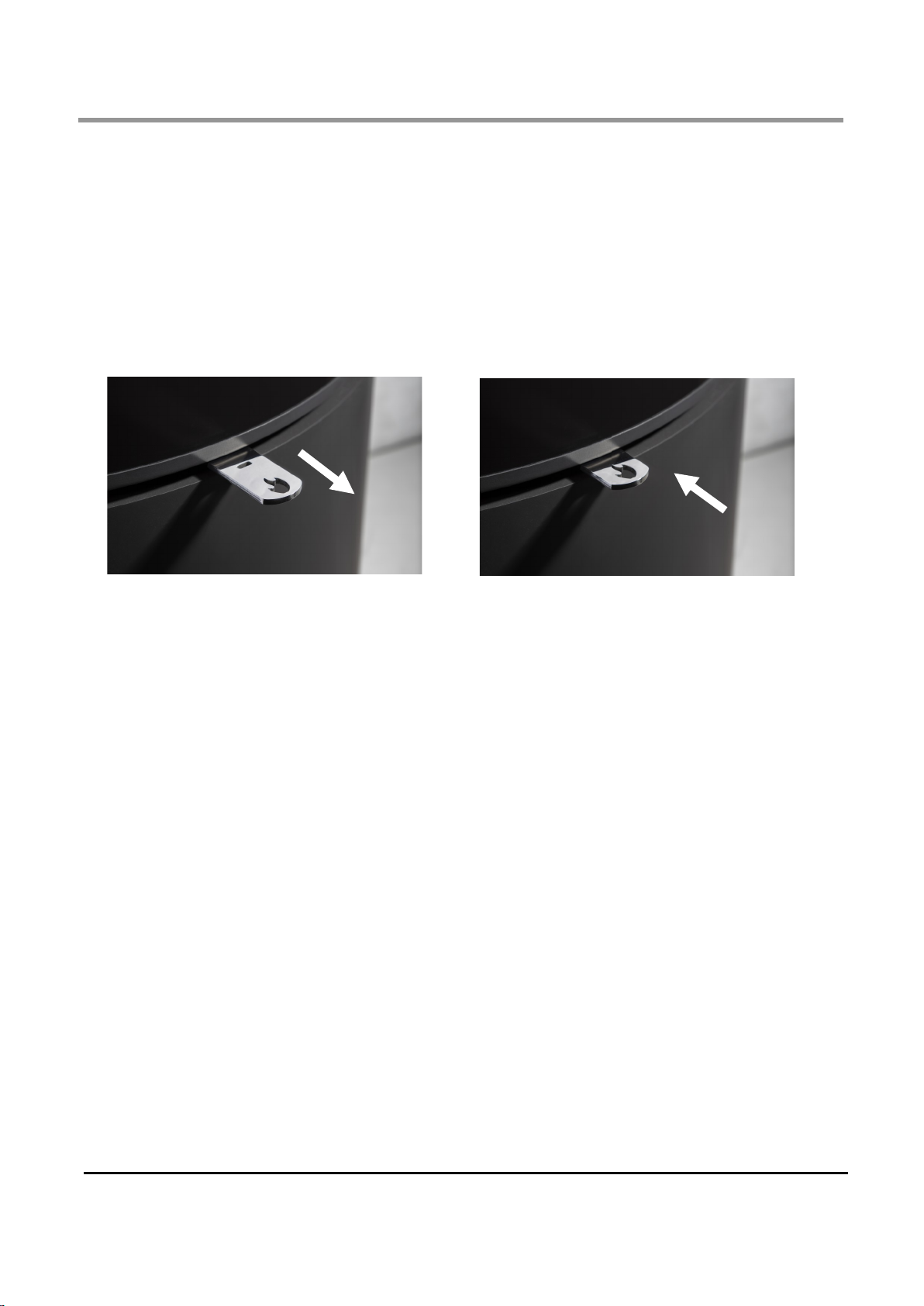

Pulling the control lever out achieves the fully open position, see Figure 1. Pushing the
control lever in will reduce the air or shut down the stove as shown in Figure 2.
Fig. 1. Pull to fully open Fig. 2. Push to fully close
BK 746 Specific Page 15
LAGOM Stove User Guide

7 Lighting your stove
7.1.1 Smoke control areas
Please check whether your dwelling is located in a smoke control area before installation or
use. Please check with your local authority or https://www.gov.uk/smoke-control-area-rules.
7.1.2 Fuel overloading
The maximum amount of fuel specified in this manual should not be exceeded. Overload-
ing can cause excess smoke. Please see Technical Data section in this manual.
7.1.3 Operation with door open
Operation with the door open can cause excess smoke. The appliance MUST NOT be
operated with the appliance door open except as directed in the instructions.
7.1.4 Dampers / Air controls left open
Operation with the air controls or appliance dampers open can cause excess smoke. The
appliance must not be operated with the air controls, appliance damper or door(s) left open
except as directed in these instructions.
7.2 Burning wood
When wood is burnt, it is in fact the volatile gases released from the wood that burn and
this requires a good supply of air coming from above the fuel. For this reason we open the
air inlet fully while igniting the stove then reduce this once the burn is well formed. As
much as 40% of the heat from burning wood is obtained from secondary combustion and
this can be severely hampered by air entering the fire box from below the fuel.
1) Set the fire by placing several layers of dry kindling wood into a criss-cross grid
pattern on top of the grate. The use of two or three fire lighters may assist in lighting
the kindling.
2) Fully open the air control and light the fire-lighters and/or kindling wood.
3) After the kindling has caught alight, you should almost close the fire door leaving it
ajar by about 10mm. This will aid flue draw during the initial lighting of the fire.
4) The flue temperature and draw should be established after five minutes and the
kindling reduced to form an ember bed. Carefully load the stove with well seasoned
wood and fully close the fire door.
5) After ten minutes, fully close the air control to control the burn rate and maintain
clear glass, typically by reducing to approximately half open.
BK 746 Specific Page 16
LAGOM Stove User Guide

7.3 Refuelling
In order to prevent smoke escaping into the room when refuelling, please follow the
procedure below:
Approximately 5-10 seconds before opening the fire door, open the air control fully and then
only slightly open the fire door. Wait a few seconds for the exhaust gas to get sucked into
the chimney and only then fully open the door. When opening the fire door, special
attention must be paid to the danger or hot fire-embers falling out.
After refuelling, close the door again. When the fuel ignites with a solid flame, return the air
control to the previous burning position. The amount of fuel should correspond to an hourly
consumption value for the stove (see the Technical Data).
Overheating/firing can permanently damage the stove construction.
To prevent exhaust gas escaping into the room during refuelling, always refuel onto a
glowing ember bed.
7.4 Operation during the transition period
The chimney draft (sucking exhaust gas from the fireplace stove) might be weaker during
the transition period, i.e. when the outside temperature is higher than 15oC, during rainy
and humid days or wind gusts. During this period the fireplace stove should be operated
with the minimum possible fuel so that the fire, as well as the chimney draft, is improved by
opening the air intake.
Tip: During this period a so-called atmospheric plug can be created in the chimney mouth
due to the draft conditions. The plug can cause smoke to escape into the room when
lighting fuel. We recommend letting a piece of paper burn down, preferably in the upper
part of the combustion chamber, before lighting the kindling. This seemingly negligible
smoke is enough to break through the atmospheric plug. Afterwards you can freely light
paper and be sure that even a humid chimney is clear.
7.5 Warning - Fume / Smoke emissions
Properly installed with a suitable flue or chimney, operated and maintained correctly,
this appliance will not emit fumes into the dwelling. Occasional fumes when
de-ashing and refuelling may occur. However, persistent fume emission is
potentially dangerous and must be investigated by an approved / registered installer.
BK 746 Specific Page 17
LAGOM Stove User Guide

STOP USING THE APPLIANCE IF YOU SMELL FUMES OR SEE SMOKE
ESCAPING.
If fume emission does persist, the following immediate actions should be taken:
 Open doors and windows to ventilate room.
 Let the fire die or extinguish and safely dispose of fuel from the appliance.
 Check for flue or chimney blockage, and clean if required.
 Seek expert advice from your approved installer.
 Do not attempt to re-light the fire until the cause of the fume emission has been identi-
fied and corrected.
7.6 Refuelling on to a low fire bed
If there is insufficient burning material in the fire bed to light a new fuel charge, excessive
smoke emission can occur. Refuelling must be carried out onto a sufficient quantity of
glowing embers and ash that the new fuel charge will ignite in a reasonable period. If there
are too few embers in the fire bed, add suitable kindling for ignition to prevent excessive
smoke.
7.7 Typical burn for nominal output
To perform the most efficient burn at the nominal rated output please consult the
specification table at the rear of this manual.
Please note that many factors can effect the nominal output, so the stated weights of fuel
(Seasoned hard wood) are a guide, which is a representation to laboratory test burn
conditions.
LAGOM Stove User Guide
BK 746 Specific
Page 18

8 Further information for all stove owners
8.1 Reduced burning (Slow Combustion)
When wood is burnt slowly in a closed appliance (e.g.: air controls at the minimum
setting), it produces moisture and tar which will create condensation and deposits in the
chimney. This effect can be minimised by burning hard for a short period, fifteen to twenty
minutes twice a day.
To avoid chimney problems, your appliance should not be burnt at a reduced burn rate
without a period of fast burning. Fast burning is when the stove is burnt with a ’lively flame’
and a higher temperature. We strongly advise against stoking the fire with wood and
reducing the air inlets before leaving the stove to extinguish (perhaps when retiring to bed)
as this can lead to a cooling of the stove and flue, resulting in incomplete combustion,
sooty deposits and high levels of pollutant gases released into the environment.
8.2 Over firing
DO NOT over fire your appliance. Firing the stove at maximum for prolonged
periods may result in over-firing. If the chimney connector or casing glows red the
appliance is being over-fired and this may result in a chimney fire. Other signs include
warping and a red-oxide colouring will demonstrate the over heating of internal parts; body
paint which has turned dusty white is also indicative of such use.
8.3 Chimney fires
Used in the correct manner, with the correct fuel and regular maintenance a chimney fire
should never occur. However in the event of a chimney fire, the following procedure
should be actioned without delay:
 Call the fire service—DIAL 999
 Immediately close all of the air inlet supplies on the appliance to reduce the air
supply to the stove.
 Move items of furniture and combustibles away from the surrounding area of
the stove, to reduce the risk of fire and allow access for the fire service.
 Ensure access to the loft space is available.
 Evacuate the property.
8.4 Periods of non-use (summer months)
Please ensure that your stove is left clean and moving components are well lubricated
with a water repelling corrosion inhibitor for the summer months (during periods of
prolonged non-use). If possible store the throat plate outside the stove. Check all movea-
ble components at regular intervals to ensure they are moving freely. Allow air movement
through the stove by opening the air inlet control to about half way, open or leave the door
ajar. This will allow a free flow of air through the appliance thus preventing moisture and
condensation forming inside the stove and chimney. This preventative maintenance will
ensure your stove stays in the best condition for the coming winter months.
BK 746 Specific Page 19
LAGOM Stove User Guide

Page 20 BK 746 Specific
LAGOM Stove User Guide
8.5 Ash removal
The ash pan should be emptied when the level of ash reaches the top of the ash pan. On
no account should the ash be allowed to build up to touch the underside of the grate, as this
will greatly reduce the life span of the grate.
To remove the ash pan ALWAYS USE the supplied hot glove -
 Open the door of the stove, pausing briefly when ajar so as to allow the fire to adjust
to the increased air supply.
 Locate the central handle on the ash pan with one hand.
 Carefully withdraw the ash pan from the ash pit chamber.
 Empty the ash into a suitable metal container. Replace the ash pan into the stove,
 reversing the above procedure and close the fire door.
8.6 Replacement parts
Genuine replacement spare parts can be obtained from www.aradastovesandspares.com
You can find a complete list of spares and consumables such as liners, grate and throat
plates, as well as items to enhance its visual appearance and efficiency such as stove paint
and rope kits.
It is worth noting that the fitting of non-official Arada parts to your stove will invalidate its
guarantee.
8.7 Classification
All Lagom stoves are classed as intermittent operation. Thereby meaning, to give nominal
rated output, you will have to refuel a minimum of 45min for wood, as stated in EN
13240:2011 +A2:2004.
Warning: The ash can be very
hot. Care must be taken not to burn
hands or household objects with
falling embers—ALWAYS USE
THE HOT GLOVE SUPPLIED.
Empty only into a metal container.
Even if the ash appears cold, red-
hot embers may be concealed and
could easily start a fire or cause an
injury.
Central Handle
