araknis 300 - SERIES User manual

300 - SERIES NETWORK SWITCHES
QUICK START GUIDE
Managed IT Rack Network Switches

© 2014 Araknis Networks®
2
FCC Warning
This device has been tested and found to comply with limits for a Class A digital device,
pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment.
This equipment generates and radiates radio frequency energy that will be required to correct
interference at their own expenses.
CE Warning
This is a Class A product. In a domestic environment this product may cause radio interference,
in which case the user may be required to take adequate measures.
About this Manual
This manual was created to provide a reference for installers and end users of Araknis
Networks products. It provides all known information regarding the installation, setup, use,
and maintenance of the product. This manual was created expressly for electronic use, but
has been formatted so that it may be printed and bound using either one-sided or front-and-
back printing.
The symbols on the next page are used in this manual to identify certain information. Review
the denition of each symbol type to better understand notes later in the text.
UL Warning
This device is intended for indoor use only. It should not be connected to an Ethernet network
with outside plant routing.

www.snapav.com | Support: 866.838.5052
3
Warnings indicate information vital to the safety to the installer or end user of the product.
Warnings are always provided before the information they relate to. Not following a warning
may result in permanent damage to equipment and serious injury or death of the installer or
end user.
Warnings
Cautions
The caution symbol is used to indicate information vital to the safety of the equipment in use
with the product, or the product itself. Cautions are always provided before the information
they relate to. Not following a caution will almost always result in permanent damage to
equipment that is not covered by warranty.
Notes
Notes emphasize information important to the installation, setup, or use of the product that
is not essential to follow for safety of the equipment or user. Notes may be located before or
in the midst of the section they apply to, depending on the type of information. These items
are usually essential information, like the size or dimension of a separate part required, or a
critical step in the process, that, if missed, would cause the installer or end user extra work
to overcome.
Pro Tips
Pro tips are included in sections of the manual to add information that provides extra value,
utility, or ease-of-use for the installer or end user of the product. Pro tips may also link to
extra information that will provide a better understanding of application, technology or use
of the product or feature in question. These items are not required, but have been added for
your convenience.

© 2014 Araknis Networks®
4
Welcome to Araknis® Networks
Thank you for choosing an Araknis 300-series Network Switch. The 300-series managed network switch
is an enterprise-class switch specically designed for use in Ethernet applications within the IT market.
With front-facing indicators and ports, the 300-series switch was designed for easy installation and high
performance in an environment where trafc on the network and the number of users could increase
continuously. The switch provides 10/100/1000Mbps capability on all ports and operates as a plug-
and-play device, auto detecting connections to other switches and allowing straight-through patch
cables throughout an installation. An intuitive GUI (Graphical User Interface) allows for quick and easy
conguration of the switch’s powerful features.
PoE models provide full PoE functionality. The PoE power budget in the AN-300-SW-F-8-POE / -16-POE
/ -24-POE provides 15W on each port simultaneously. This helps systems integrator save time and effort
calculating the available power budget as more PoE devices are added to the switch.
Araknis®300-Series Overview
The following table lists the models available in the 300-series family of network switches.
Model Number of
Ethernet Ports
Number of
PoE Ports
Number of
SFP Ports
Internal/External
Power Supply
AN-300-SW-F-8 8 0 2 Internal
AN-300-SW-F-16 16 0 2 Internal
AN-300-SW-F-24 24 0 2 Internal
AN-300-SW-F-8-POE 8 8 2 Internal
AN-300-SW-F-16-POE 16 16 2 Internal
AN-300-SW-F-24-POE 24 24 2 Internal
This Quick Start Guide will guide you through the layout of the device, and show the basic steps for
using the switch.
For more information, visit www.snapav.com.
Individual ports can provide up to 25W but this will affect the available PoE budget for other
ports. Each PoE model can provide 25W on half of the available ports at the same time

www.snapav.com | Support: 866.838.5052
5
Package Contents
Recommended for Installation
·#2 Phillips screwdriver (for mounting ear installation)
· Screws and anchors for wall-mount installation optional; use a material that is fastener rated, specied
for use in the wall, and can safely hold the weight of the model in use
·Rack screws (optional; use screws designed for the rack in use)
·Drill (optional; for installation of wall-mount screws or anchors)
AN-300-SW-F Gigabit Ethernet Switch (1)
Quick Installation Guide (1)Color-coding Decals set (1)
AC Power Cord (1) Rubber Feet for at surfaces (4) Rack-Mount Kit (1)
Note: For wall mounting, It’s recommended to use #8x1-1/4 in. Coarse Phosphate-Plated
Steel Bugle-Head Phillips Drywall Screws and Anchors.

© 2014 Araknis Networks®
6
Rack Mounting
Mounting Options
or
Standard Protruding Recessed
Note: All product pictures in the document are for AN-300-SW-F-16-POE as an example of
the 300-series product line

www.snapav.com | Support: 866.838.5052
7
Rack Mounting (Continued)
• Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the
operating ambient temperature of the rack environment may be greater than room ambient.
Therefore, consideration should be given to installing the equipment in an environment
compatible with the maximum ambient temperature of 104°F.
• Reduced Air Flow - Installation of the equipment in a rack should be such that the amount
of air ow required for safe operation of the equipment is not compromised.
• Mechanical Loading - Mounting of the equipment in the rack should be such that a
hazardous condition is not achieved due to uneven mechanical loading.
• Circuit Overloading - Consideration should be given to the connection of the equipment to
the supply circuit, and the effect that overloading of the circuits might have on overcurrent
protection and supply wiring. Appropriate consideration of equipment nameplate ratings
should be used when addressing this concern.
• Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained.
Particular attention should be given to supply connections other than direct connections to
the branch circuit (e.g. use of power strips).
Rack Mounting Guidelines

© 2014 Araknis Networks®
8
Wall Mounting
Shelf Mounting
Caution: Do not stack more than 4 switches together. Do not stack any other equipment on
top of the network switch to avoid possible interference or damage.

www.snapav.com | Support: 866.838.5052
9
Behavior Description
On Power is on
Off Power is off
4. Power LED Indicator
LED Behavior Description
1 Gbps
Off
No device is connected/
Connected device supports
10/100M speed
On Device is connected at
1Gbps speed
PoE LED Indicator
(for PoE Models)
Off No PoE device is connected
On PoE-enabled device is
connected
1. 1 Gbps LED Indicator (for non-PoE Models)
2. PoE LED Indicator (for PoE Models)
Behavior Description
Off No device is connected
Blinking Device is connected and
trafc is running
3. Link/Act LED Indicator
4. Ethernet Ports (RJ45)
Connect Ethernet network cables routed to equipment.
5. SFP Ports
Port for AN-ACC-SFP-E-100 or AN-ACC-SFP-MMF-350
Front Panel Layout
1
2
3
3
4
4
4 5

© 2014 Araknis Networks®
10

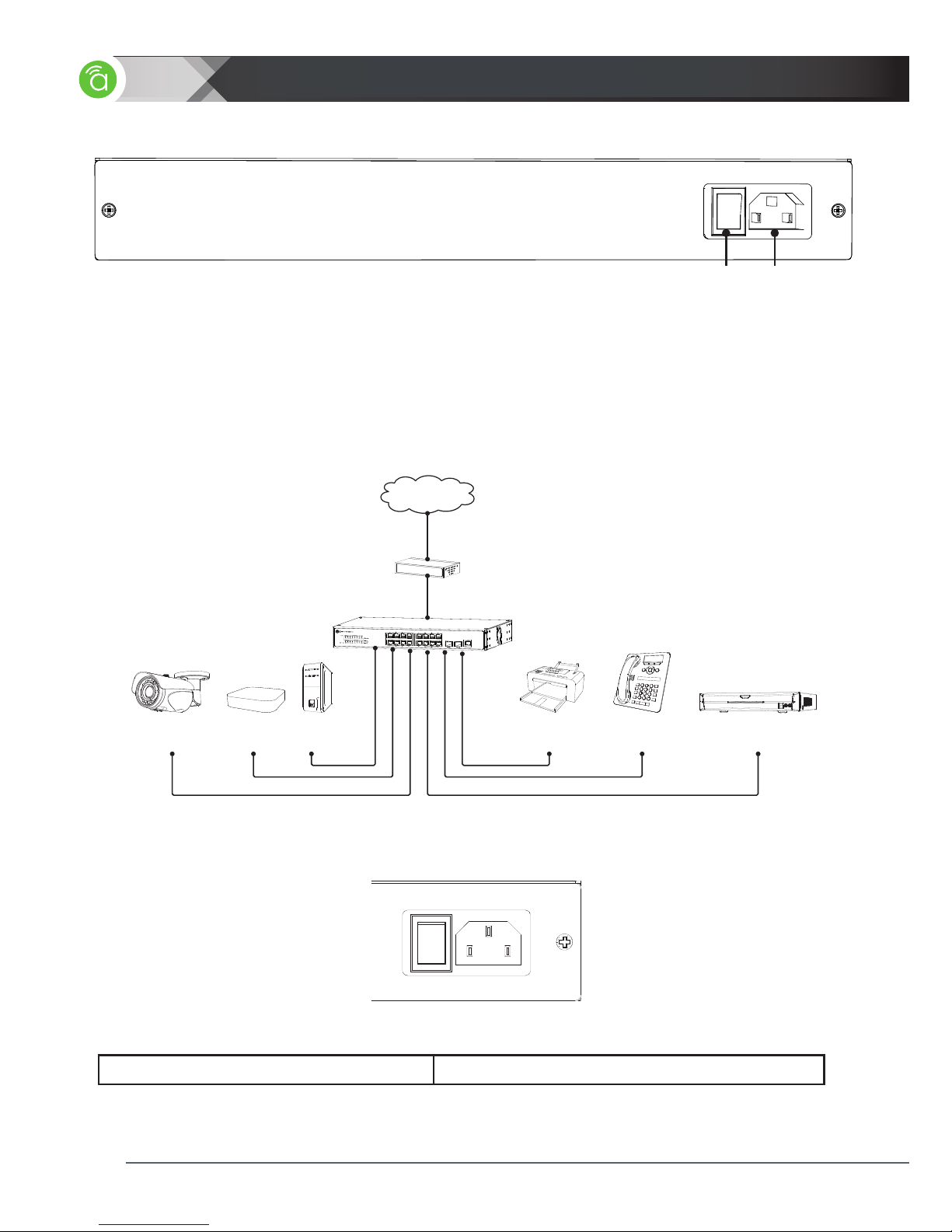

Installation
Powering the AN-300-SW-F Switch
ON 100-240VAC
OFF 50-60Hz
1 3 5 7 9 11 13 15
2 4 6 8 10 12 14 16
Input Voltage (AC Only) 100~240V AC, 50~60Hz
Electrical Requirements
1. Master Power Switch
Toggle Switch for master power control.
2. Power Jack
Attach an IEC power cable.
Rear Panel Layout
1 2
Router
Araknis Switch
Desktop
PC
IP Camera Printer/
Scanner
IP Surveillance
NVR
IP
Phone
AppleTV
Internet
(Modem)

www.snapav.com | Support: 866.838.5052
11
Accessing Switch Management
Management of the AN-300-SW-F is accessed using a laptop or desktop PC connected directly to the
switch, and using any browser by entering the IP address into the browser’s address bar.
AN-300-SW-F Switch
Network Cable
Laptop or
Desktop
PC Network Connection
1. Connect your computer to any RJ45 on the switch.
2. Congure the Ethernet adapter on your local system with a static IP address as follows:
IP Address: 192.168.20.x (x = any number from 1 to 254 except 254)
Subnet Mask: 255.255.255.0
3. Open a web browser and enter: http://192.168.20.254 in the address bar.
4. User name is araknis, password is araknis.
For more information on conguring the switch please refer to the Quick Connection Guide on
www.snapav.com.
Warranty
Contacting Technical Support
2 Year Limited Warranty
Araknis Networks®products have a 2-Year Limited Warranty. This warranty includes parts and labor
repairs on all components found to be defective in material or workmanship under normal conditions
of use. This warranty shall not apply to products which have been abused, modied or disassembled.
Products to be repaired under this warranty must be returned to SnapAV or a designated service center
with prior notication and an assigned return authorization number (RA).
Phone: [phone]
Email: T[email protected]

140905-1345
