Arbor Technology MIL-6800 User manual

MIL-6800
10.4" Core™2 Duo Rugged Tablet PC
User’s Manual
2011.10

This page is intentionally left blank.

- I -
Index
Table of Contents
Copyright Notice .....................................................................i
About User’s Manual..............................................................i
Warning .....................................................................................i
Replacing the lithium battery ...............................................i
Technical Support ..................................................................ii
Warranty ...................................................................................ii
Ordering Information ...........................................................iii
Chapter 1 - General Information............................... 1
1.1 Introduction................................................................2
1.2 Important Safety Instructions...................................2
1.3 Specications ............................................................3
1.4 Mechanical & Environmental....................................4
1.5 LCD Specications....................................................4
1.6 Touchscreen Specications .....................................4
1.7 Power Adapter & Battery ..........................................5

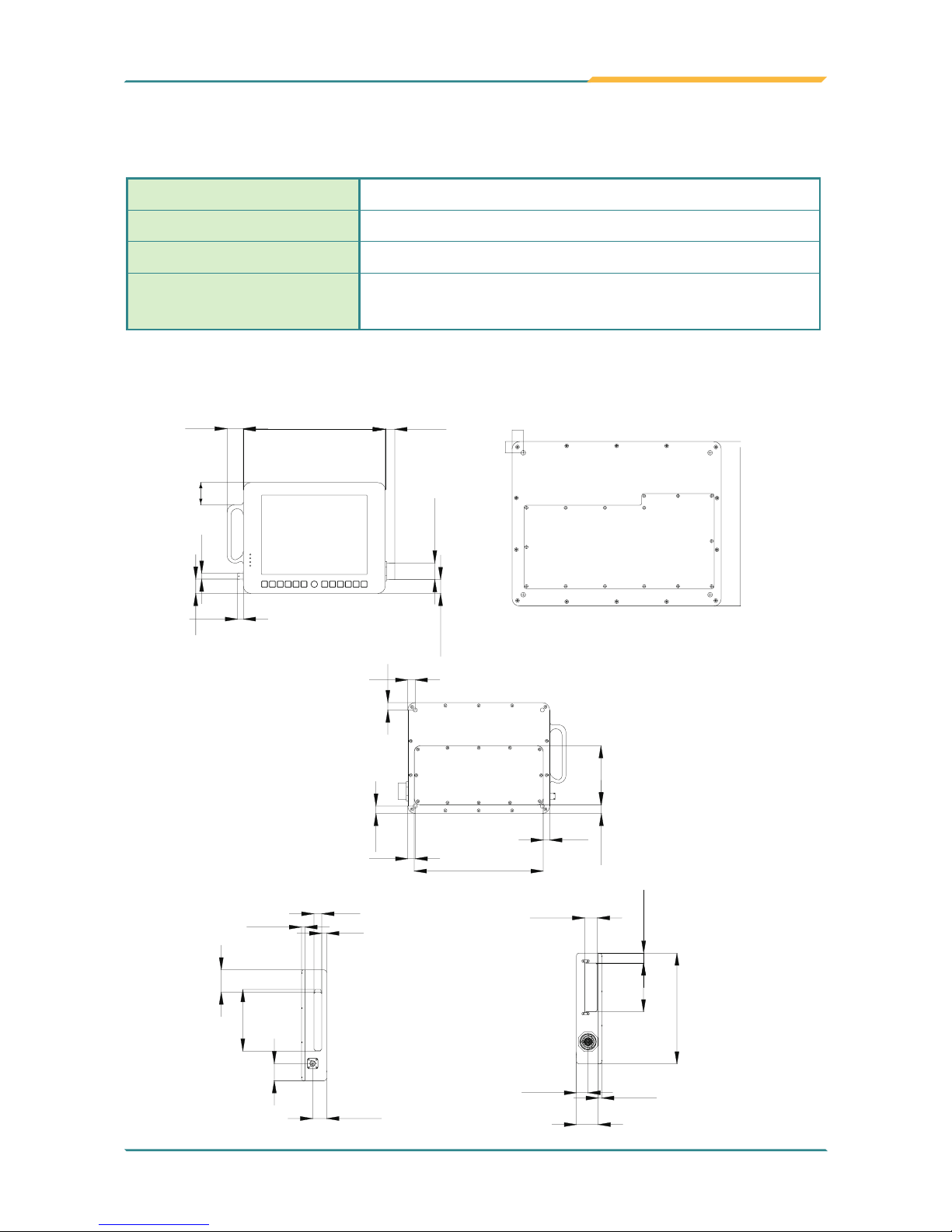

1.8 Dimensions ................................................................6
Chapter 2 - System Quick Start................................ 7
2.1 Packing List................................................................8
2.2 Getting Start...............................................................9

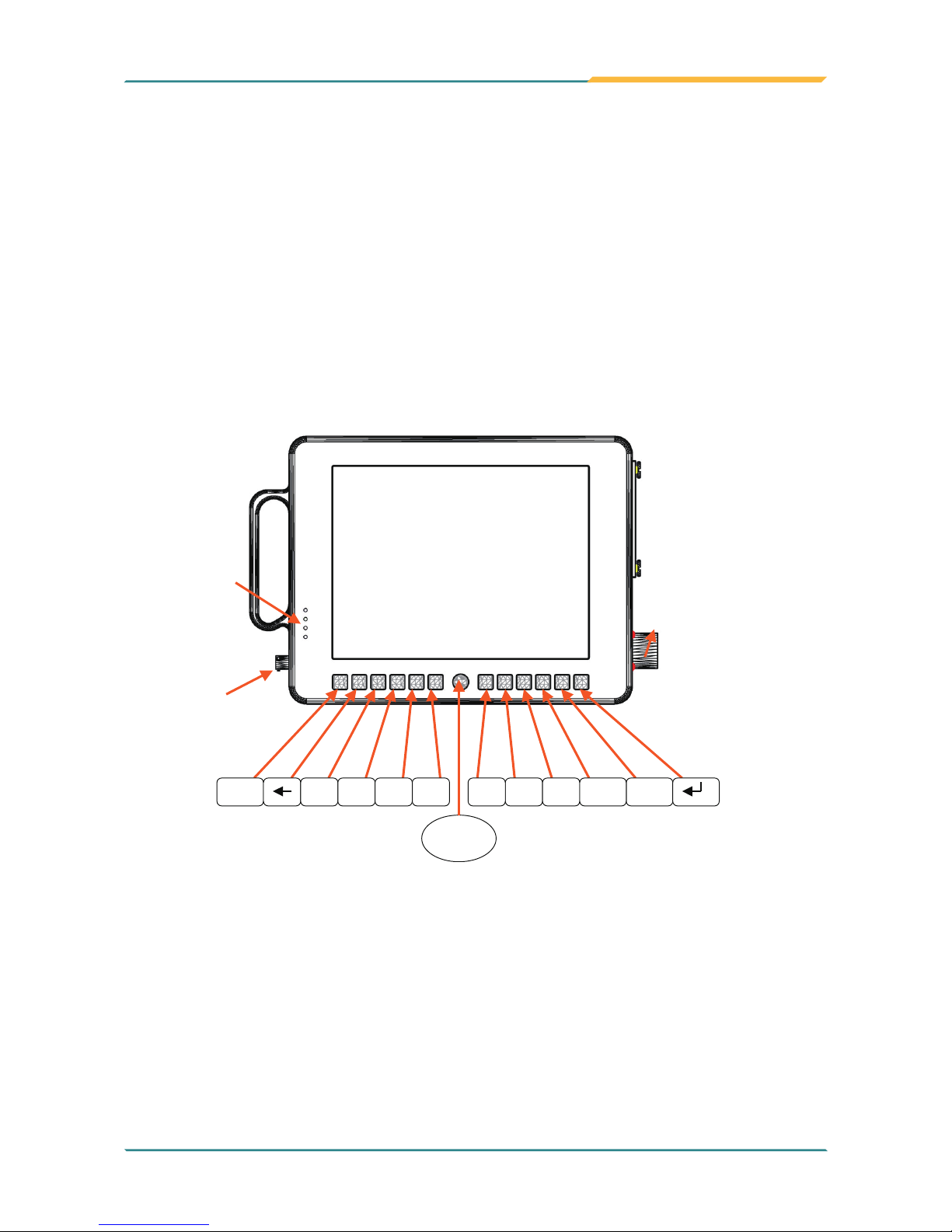

2.2.1 Illustration of Front View......................................9
2.2.2 Illustration of Power Indicators.........................10
2.2.3 Illustration of Left View ......................................10
2.2.4 Illustration of Right View....................................11
2.2.5 Illustration of Back View ....................................11
2.2.6 Important Notice .................................................12
Chapter 3 - The Engine of MIL-6800....................... 13
3.1 System Connector...................................................14
Chapter 4 - Maintenance......................................... 15
4.1 User Maintenance Instructions ..............................16
Chapter 5 - Power Management............................. 17
5.1 Checking the Battery Level.....................................18

- II -
Index
5.2 Monitoring Battery Power.......................................18
5.3 Low Battery Alarms .................................................19
5.4 Battery Charging......................................................19
5.5 When to Replace the Battery..................................19
5.6 Heat Considerations................................................20

- i -
Copyright Notice
All Rights Reserved.
The information in this document is subject to change without prior notice in
order to improve the reliability, design and function. It does not represent a
commitment on the part of the manufacturer.
Under no circumstances will the manufacturer be liable for any direct, indirect,
special, incidental, or consequential damages arising from the use or inability
to use the product or documentation, even if advised of the possibility of such
damages.
This document contains proprietary information protected by copyright.
All rights are reserved. No part of this manual may be reproduced by any
mechanical, electronic, or other means in any form without prior written
permission of the manufacturer.
About User’s Manual
This User’s Manual is intended for experienced users and integrators with
hardware knowledge of personal computers. If you are not sure about any
description in this User’s Manual, please consult your vendor before further
handling.
Warning
The Rugged Tablet PC and their components contain very delicate
Integrated Circuits (IC). To protect the Rugged Tablet PC and its
components against damage from static electricity, you should always follow
the following precautions when handling it :
1. Disconnect your Rugged Tablet PC from the power source when you want
to work on the inside.
2. Use a grounded wrist strap when handling computer components.
3. Place components on a grounded antistatic pad or on the bag that came
with the Rugged Tablet PC, whenever components are separated from the
system.
Replacing the lithium battery
Incorrect replacement of the lithium battery may lead to a risk of explosion.
The lithium battery must be replaced with an identical battery or a battery type
recommended by the manufacturer.
Do not throw lithium batteries into the trashcan. It must be disposed of in
accordance with local regulations concerning special waste.

- ii -
Warranty
This product is warranted to be in good working order for a period of one year
from the date of purchase. Should this product fail to be in good working order
at any time during this period, we will, at our option, replace or repair it at no
additional charge except as set forth in the following terms. This warranty
does not apply to products damaged by misuse, modications, accident or
disaster.
Vendor assumes no liability for any damages, lost prots, lost savings or any
other incidental or consequential damage resulting from the use, misuse of,
or inability to use this product. Vendor will not be liable for any claim made by
any other related party.
Vendors disclaim all other warranties, either expressed or implied, including but
not limited to implied warranties of merchantibility and tness for a particular
purpose, with respect to the hardware, the accompanying product’s manual (s)
and written materials, and any accompanying hardware. This limited warranty
gives you specic legal rights.
Return authorization must be obtained from the vendor before returned
merchandise will be accepted. Authorization can be obtained by calling or
faxing the vendor and requesting a Return Merchandise Authorization (RMA)
number. Returned goods should always be accompanied by a clear problem
description.
Technical Support
If you have any technical difculties, please consult the user’s manual rst
at:
ftp://ftp.arbor.com.tw/pub/manual
Please do not hesitate to call or e-mail our customer service when you still can
not nd out the answer.
http://www.arbor.com.tw
E-mail:[e-mail]

- iii -
MIL-6800
10.4" Intel® Core™ Duo rugged tablet PC with
resistive touch screen, 1GB DDRII RAM, 1.8" SATA
SSD 4GB, 60W power adapter and carry bag
UMK-6600 MIL-6600/MIL-6800 Universal Mounting Kit
MCK-6600
MIL-6600/MIL-6800 Mil-Std I/O Cable Kit, including
2 x COM (RS-232C) ports, 1 x VGA (DB-15) port, 1
x Audio (Speaker-out), 1 x MIC-in, 1 x LAN (Female
RJ-45) port, 2 x USB 2.0 ports
D38999/26WE35PN MIL-6600/MIL-6800 MIL-STD 55-pin connector
D38999/MS3116F-8-
4S (D-D)
MIL-6600/MIL-6800 DC-DC 60W power adapter
(DC9-36V input)
D38999/MS3116F-8-
4S (A-D)
MIL-6600/MIL-6800 AC-DC 60W power adapter
(AC100-240V input)
Optional Transportation Hard Case
USB interface Bluetooth module
Mini PCI WLAN module (IEEE 802.11b/g)
DC9-36V or DC48V power input
4 or 8 x RS-422 ports expansion module
Ordering Information

- iv -
This page is intentionally left blank.

- 1 -
General Information
1Chapter 1
General Information
Chapter 1 - General Informa-
tion

- 2 -
General Information
1.1 Introduction
ARBOR would like to thank you for selecting MIL-6800. MIL-6800 is designed
as a forward-thinking product that is modularized in design and upgradable.
We thank you, our customers, for giving us the inspiration for the following
features:
• All-in-One Platform
The CPU, DRAM and even Windows XP (optional purchase item) are
integrated to provide a plug-and-play machine.
• Bright Display
The high brightness TFT LCD display suits industrial demands.
• Fanless and Modularized CPU Board
By using a low power processor, the system does not have to rely on
fans, which are often unreliable and causes dust to circulate inside
the equipment. The modularized design facilitates maintenance or
possible upgrades on the CPU board.
• Powerful Communication Capability
MIL-6800 provides serial ports, Ethernet, VGA, Audio, Mic-in, USB for
expansion ports through MCK-6600 (optional purchase item).
MIL-6800, Rugged Tablet PC, is designed to meet the highest industrial and
military standards in all respects. A high-strength all-aluminum structure with
a hard-anodized nish to prevent the damage or scratch cause by suddenly
impact during operation or transportation. High grade machine screws are
used throughout the case assembly to assure both high-tech design and very
rugged structure. An industrial grade water seal rubber “O” rings are applied
to all opening doors to maintain water proof specication for entire system.
In addition, the most advanced “Floating-Mount” technology was applied to
whole system to maintain the system to meet with MIL-STD 810F vibration
specication. A special designed universal mounting kit is ready for customer
to mount on vehicles or on the wall.
1.2 Important Safety Instructions
You can use your MIL-6800 under a wide range of environmental conditions.
However, to ensure longer lifetime and high performance, the following are
highly recommended.
- Read the instructions carefully.
- Follow all warnings and instruction notes in this documentation.

- 3 -
General Information
- Save these instruction manual for later use.
- Unplug the power cord from power outlet before cleaning. Use a damp cloth
for cleaning. Do not use aerosols, solvents, or strong detergents.
- On the power adaptor, there is a label providing information of the power
requirements of this system. If you are unsure of your local power supply,
consult your dealer or local power company.
- Do not step on or place anything on the power cord.
- When you use MIL-6800 with an extension cord, make sure that the total
ampere ratings of all the devices sharing the extension do not exceed the
rating of the extension cord or the rating of the wall outlet.
- Never push foreign objects into MIL-6800 through any of the slots or openings.
Dangerous voltages are present, which could cause electric shock or re, or
damage sensitive components.
- Do not attempt to service this product yourself. Opening or removing covers
may expose dangerous voltage points and/or damage the unit. Refer all
servicing to service personnel.
System Kernel
Processor Intel®Core™2 Duo CPU
Cache 2M
Memory 1 x 200-pin DDRII SO-DIMM (1GB)
Chipset Intel® 945GME + ICH7M
Audio Controller ALC262 AC97 Codec
Ethernet 1 x Agere Et1310 Gigabit Ethernet
Flash Disk 1 x 1.8" IDE 4GB ash disk built-in (Optional to 16GB)
I/O
I/O Ports
Through MCK-6600: 2 x COM (RS-232C) ports, 1 x
VGA (DB-15) port, 1 x Audio (Speaker-out), 1 x MIC-
in, 1 x LAN (Female RJ-45) port, 2 x USB 2.0 ports
I/O Connector 1 x D38999/26WE35PN (55-pin) Mil-Std I/O connector
I/O Dust Cover Mil-Std D38999/33W17R
Expansion Bus
1) 1 x PCMCIA slot
2) 2 x Internal mini-card slots
3) 1 x CompactFlash socket
1.3 Specications

- 4 -
General Information
1.5 LCD Specications
Size/Type 10.4" TFT LCD
Maximum Resolution 1024 x 768, XGA
Pixel Pitch (WxH, mm) 0.264(H) x 0.264(V)
Contrast Ratio 600 : 1
Max. Colors 266,144 colors
Luminance (cd/m2) 400 cd/m² (Optional to 1,000 cd/m²)
Viewing Angle 80º~80º (H); 65º~65º (V)
Backlight MTBF50,000 hours (20 ~ 35°C)
1.6 Touchscreen Specications
Type Analog Resistive (4-wire)
Light Transmission 80%
Controller Interface USB Interface
Operating Temp. -40 ~ 60ºC (-40 ~ 140ºF)
Storage Temp. -40°C to 70°C (-40°F to 158°F)
Storage Humidity 5 ~ 95% (non-condensing)
Transit Drop 3ft (1.5 meter)
Dimension (W x D x H) 340.3 x 225 x 50.75 mm (13.4" x 8.9" x 2")
Net Weight 3.5kg with battery (7.7lb)
IP Rating IP-68 Rain & Dust Compliant
Shock 40G (11ms, 3 shocks/direction, 6 directions)
Vibration
6G (20 ~ 2000Hz, 3 times direction, 3 axes)(Mil-
Std-810F, Method 514.4, Procedure 1Mil-Std-810F,
Method 514.4 & 512.2, Procedure 1)
Case Material 6061-T6 Aluminum Alloy
Case Finish Hard Anodizing per Mil-A-8625D
1.4 Mechanical & Environmental

- 5 -
General Information
1.8 Dimensions
1.7 Power Adapter & Battery
AC Input 100 ~ 240V 1.7A, 50 ~ 60HzDC
Output 60W (Max.), DC [email protected]
Adapter Connector Mil-Std D38999 (MS3112E 8-4P)
Battery 4-cells Li-battery pack built-in, 19V@3,600mAh,
3 hours battery life
288
225
33 24
45
20.23
99
28.4
10
6.75
16
124.84
45
30
13
17.5
120
15
15
15
15
262
24.5
33.5
28.8
28.5
18.4
12.5
44.5
7.6
35
Unit:mm
15
15
229

- 6 -
General Information
This page is intentionally left blank.

- 7 -
System Quick Start
2Chapter 2
System Quick Start
Chapter 2 - System Quick
Start

- 8 -
System Quick Start
2.1 Packing List
After opening the package, carefully inspect the contents. If any of items
is missing or appears damaged, please contact with your local dealer or
distributor looking for service. The package should contain the following items:
Standard:
♦1 x Rugged Tablet PC
♦ 1 x Standard Battery
♦ 1 x AC Adaptor with Power Cord (American)
♦ Soft Padded Carry Bag
Options:
The following items are normally optional, but some vendors may include them
as a standard package, or some vendors may not carry all the items.
♦ Rugged Transportation Box
♦ WLAN Module
♦ Bluetooth Module
♦ I/O Output Cable With MIL-STD Connector
♦ Universal Mounting Kit
Warning:
When you purchase the accessories, please purchase the items listed above
or purchase those accessories that are approved for use with MIL-6800. The
above accessories are proprietary items. Your system vendor can obtain these
approved accessories. If you use items that are not approved for use with
MIL-6800, you may cause your MIL-6800 to malfunction, or to emit or receive
electro-magnetic radiation in exceed of local regulations. For non-proprietary
accessories, such as PC Cards or printers, make sure that the accessories
work properly in your MIL-6800 before your purchase. Your system vendor
may recommend reliable models and brand names for you.

- 9 -
System Quick Start
Before you power on the system, please refer to the following illustrations,
and make sure that you use right connectors with right ports.
2.2 Getting Start
2.2.1 Illustration of Front View
ESC F1 F2 F3 F4
Power
Switch
F6F5 F7 Space
F8
LED Status
Indicator
55-pin
MIL-STD
Connector
DC Power Input
Programmable Function Keys

- 10 -
System Quick Start
2.2.2 Illustration of Power Indicator
The power indicators show which power source the system is using.
They also show battery status and low battery power alerts. The power
indicators remain active and viewable even when the LCD panel is off.
Icon Light Description
T
Blue Wireless LAN
Green
The Tablet PC is reading from, or
writing to the built-in ash memory
type HDD.
Green Battery fully charged
Flashing Orange Battery charging
Flashing Red Battery power critically low
Blue Power is on and the battery is in use
Flashing Blue Power is in suspend mode
2.2.3 Illustration of Left View
55-pin MIL-STD Connector CF Socket PCMCIA Socket

- 11 -
System Quick Start
2.2.4 Illustration of Right View
DC Power Input
2.2.5 Illustration of Back View
55-pin MIL-STD Connector Battery Cover DC Power Input

- 12 -
System Quick Start
2.2.6 Important Notice
Note: Your vendor should install Windows XP and device drivers ready for
your system. If you want to install the different operation system, please
connect the external USB CD-ROM to I/O cable’s USB connector, insert
the operation system CD to CD-ROM, reboot the system from CD-ROM
and follow the on screen instructions, then you are on your way to install the
new operation system. After you install the new operation system, please
install the device drivers. The driver CD comes with your package. If you
can’t nd the driver CD, please contact your local dealer for service.
After you install the device drivers, please do the calibration for your
touch screen.
If you have difculties on installing you new operation system, please refer
to your local service engineer to make sure you have setup your system
correctly.
