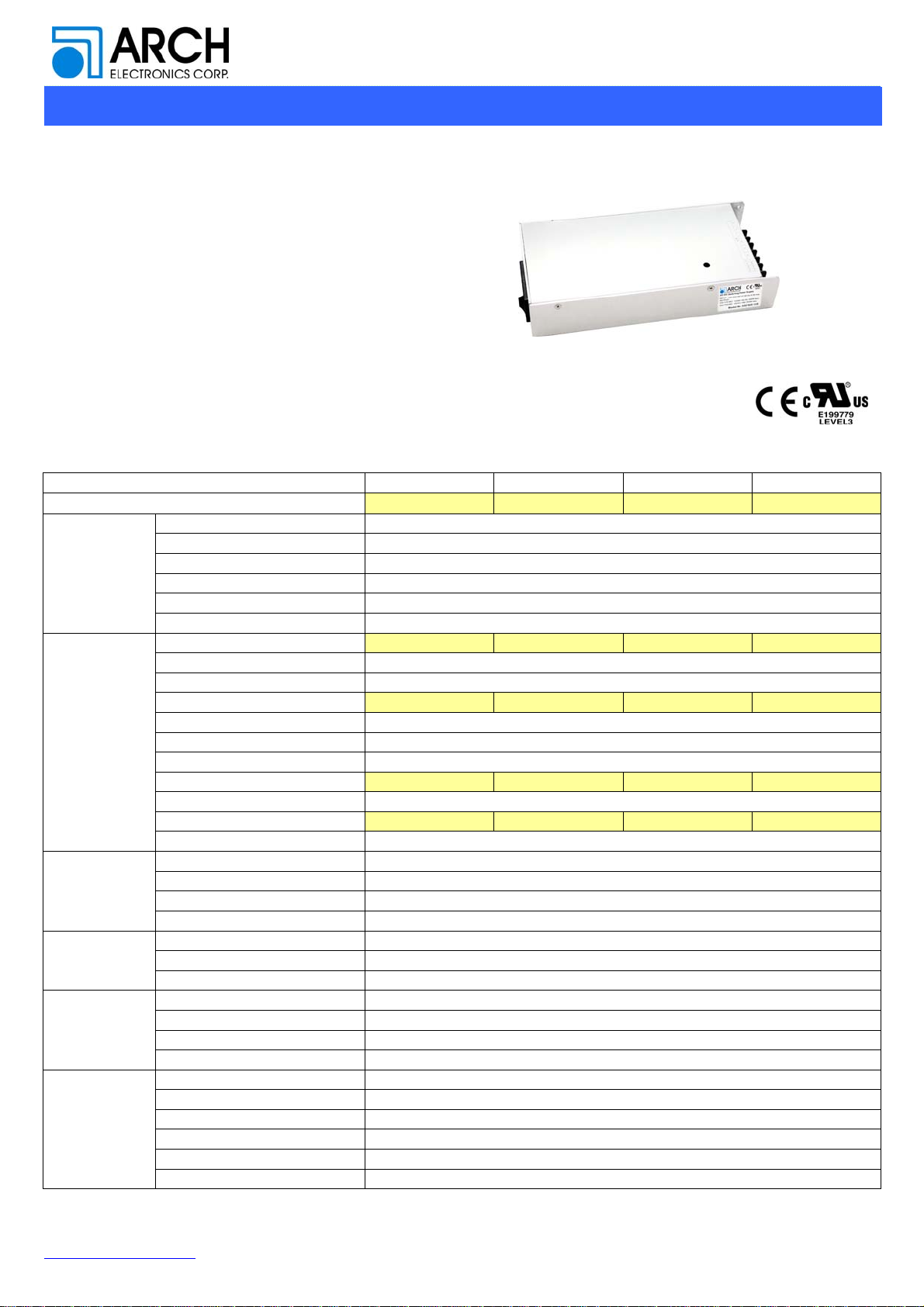

Arch AQF600 Series User manual

VER : A_8 update : 2020.08.27
AC-DC Switching Power Supply
AQF600 SERIES 600 Watts
http://www.archcorp.com.tw
TEL: [phone] FAX: [phone]-
ELECTRICAL SPECIFICATIONS
All specifications valid at normal input voltage, full load and +25°C after warm-up time unless otherwise stated.
Model No. AQF600-12S AQF600-24S AQF600-48S AQF600-54S
Max Output Wattage (Convection) (W) 540W 600W 600W 600W
Input
Voltage 90-264 VAC or 120-370 VDC
Frequency (Hz) 47-63 Hz
Current (Full load) < 8.0 A max. (115 VAC) / < 3.5 A max. (230 VAC)
Inrush Current (<2ms) < 15 A max. (115 VAC) / < 30 Amax. (230 VAC)
Leakage Current < 3.5 mA max.(240VAC 63Hz)
Power Factor PF>0.99 (115 VAC) / PF>0.95 (230 VAC) at Full Load
Output
Voltage (V.DC.) 12V 24V 48V 54V
Trim ±5%
Voltage Accuracy ±2%
Current (Convection) (A) max 45 25 12.5 11.1
Line Regulation (LL-HL) (typ.) ±1%
Load Regulation (5-100%) (typ.) ±1%
Minimum Load 1%
Maximum Capacitive Load 60,000 uF 50,000 uF 20,000 uF 10,000 uF
Ripple & Noise (max.) < 1% Vout
Efficiency (typ.) 90% 92% 92% 93%
Hold-up Time 12 ms min.
Protection
Over Power Protection Auto recovery
Over Voltage Protection Auto recovery
Over Temperature Auto recovery
Short Circuit Protection Latch off
Isolation Input-Output (V.AC) 3000VAC or 4242VDC Input-FG (V.AC) 1500V
Output-FG .(V.AC) 500V
Function
5V Stand by (18CFM FAN) 5VSB: [email protected] ; Tolerance 10% , Ripple & Noise: 100m Vp-p (max.)
DC OK Signal (Power Good) Turn ON: 3.7~5.7V ; Turn OFF: 0~1V
Remote Control +RC / -RC: Power ON=open ; Power OFF=short
Current Share CN4:CS, +V, -V are connected mutually in parallel.
Environment
Operating Temperature -25°C…+70°C (with derating)
Storage Temperature -25°C…+85°C
Temperature Coefficient ±0.03%/°C ( 0~50°C )
Humidity 95% RH
MTBF >100,000 h @ 25°C (MIL-HDBK-217F)
Vibration 10~500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes.
KEY FEATURES
Universal Input: 90-264 VAC
With P.F.C. Function, PF>0.95
Remote ON/OFF Function
Current Share Function
Power Good Function
High Efficiency up to 90~93%
Protections: Over Load / Over Voltage /
.Over Temperature / Short Circuit
High Power Density
RoHS Compliant Design
3-Year Product Warranty

VER : A_8 update : 2020.08.27
AC-DC Switching Power Supply
AQF600 SERIES 600 Watts
http://www.archcorp.com.tw
TEL: [phone] FAX: [phone]-
ELECTRICAL SPECIFICATIONS
All specifications valid at normal input voltage, full load and +25°C after warm-up time unless otherwise stated.
Model No. AQF600-12S AQF600-24S AQF600-48S AQF600-54S
Physical Dimensions (L x W x H) 9.0 x 4.13 x 1.72 Inches (228.5 x 105.0 x 44.0 mm ) Tolerance 0.5 mm Weight 1024±50 g
Cooling Integral fan
Safety Agency Approvals CE, UL60950-1
EMC EMI (Conducted & Radiated Emission) EN 55032 class B, Radiated Class A EMS (Noise Immunity) EN 55024
Surge 1KV L-N, 2KV L N-FG
NOTE
1. Ripple & Noise are measured at 20MHz of bandwidth with 0.1uF & 47uF parallel capacitor.
2. Strongly recommend to conduct this test with DC Voltage. If customer wishes to test with AC Voltage,
please disconnect all Y-Capacitors fromArch power supply.

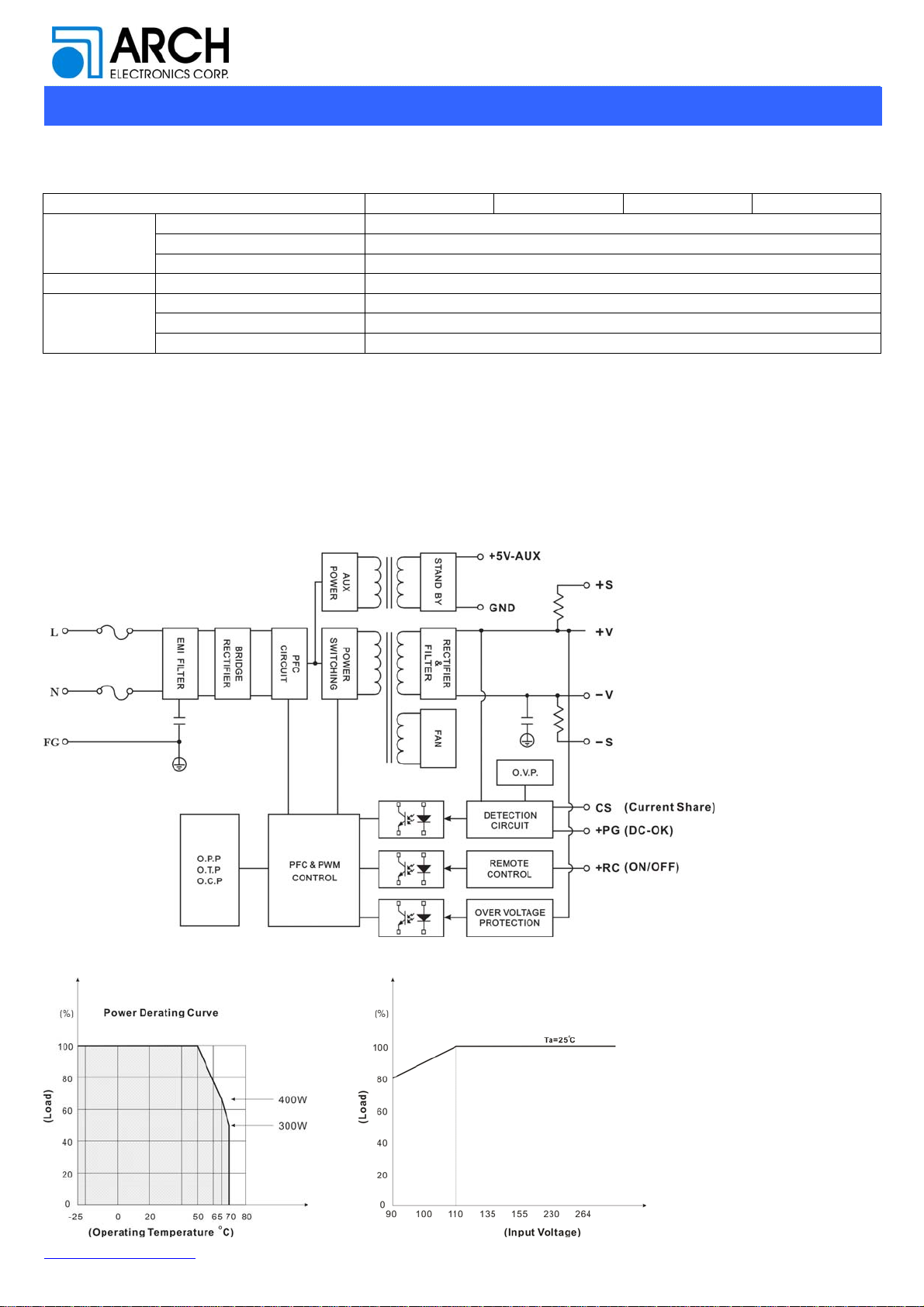

BLOCK DIAGRAM
DERATING

VER : A_8 update : 2020.08.27
AC-DC Switching Power Supply
AQF600 SERIES 600 Watts
http://www.archcorp.com.tw
TEL: [phone] FAX: [phone]-

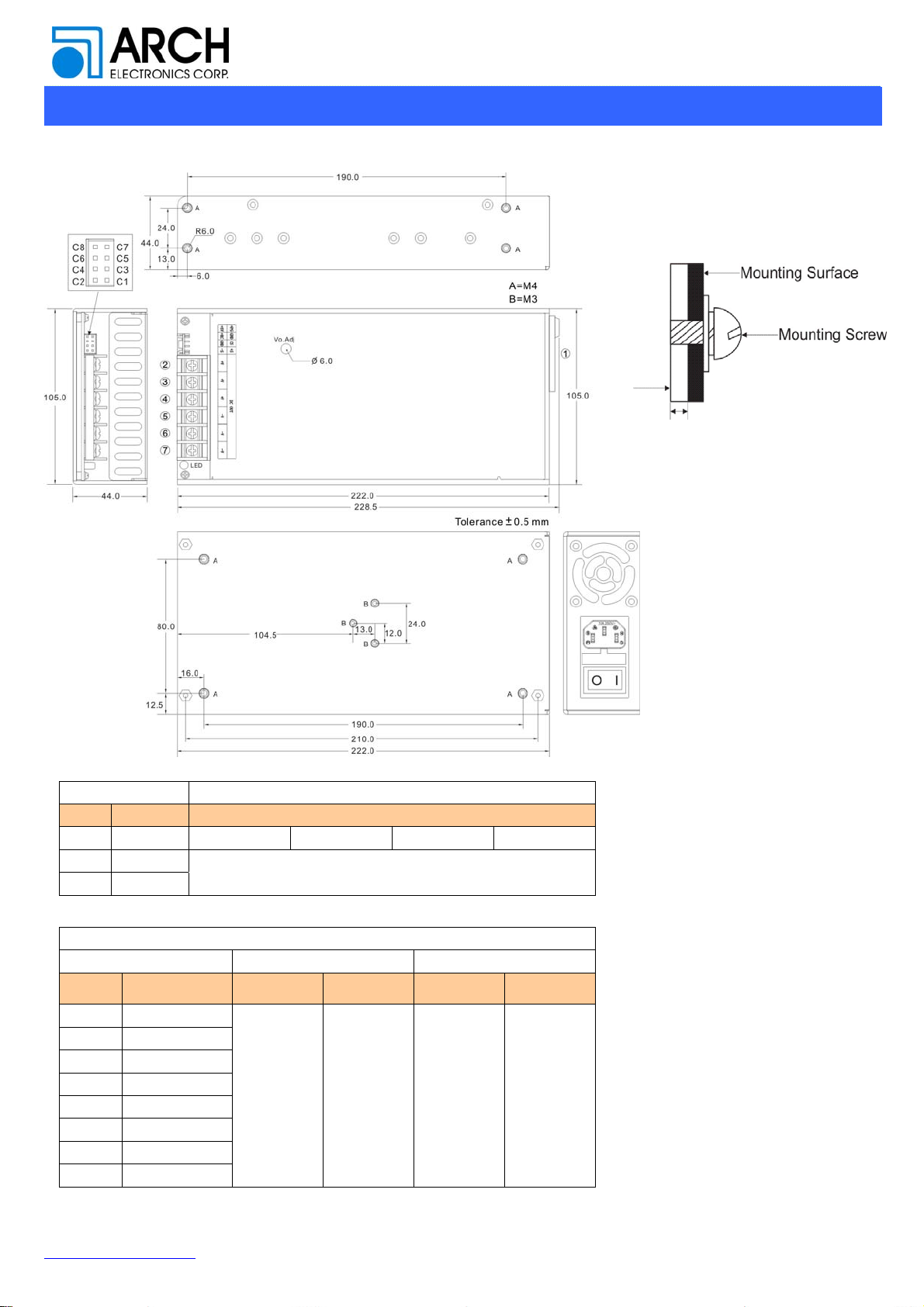

MECHANICAL DIMENSIONS
ASSEMBLY INSTRUCTIONS
*U Case T=2.0mm
Customer is advised to screw into the
threads no more than 2.0mm
T=2.0mm
Chassis of
A
QF600
Series
Brands
PIN# Single Terminal
1 AC IN ────
2~4 +DC OUT DINKLE DT-49-B01W-06
5~7 -DC OUT
Connector Pin (CN4)
Brands Cherng Weei JST
PIN# Single Mating
Housing Terminal Mating Housing Terminal
C1 +S
PHD-H20-
2X4P PHD-T20 PHDR- 08VS SPHD-001T- P0.5
C2 -S
C3 CS
C4 GND
C5 GND
C6 +RC
C7 +PG
C8 +5V-AUX
Torque:30.5 Kgf.cm

VER : A_8 update : 2020.08.27
AC-DC Switching Power Supply
AQF600 SERIES 600 Watts
http://www.archcorp.com.tw
TEL: [phone] FAX: [phone]-

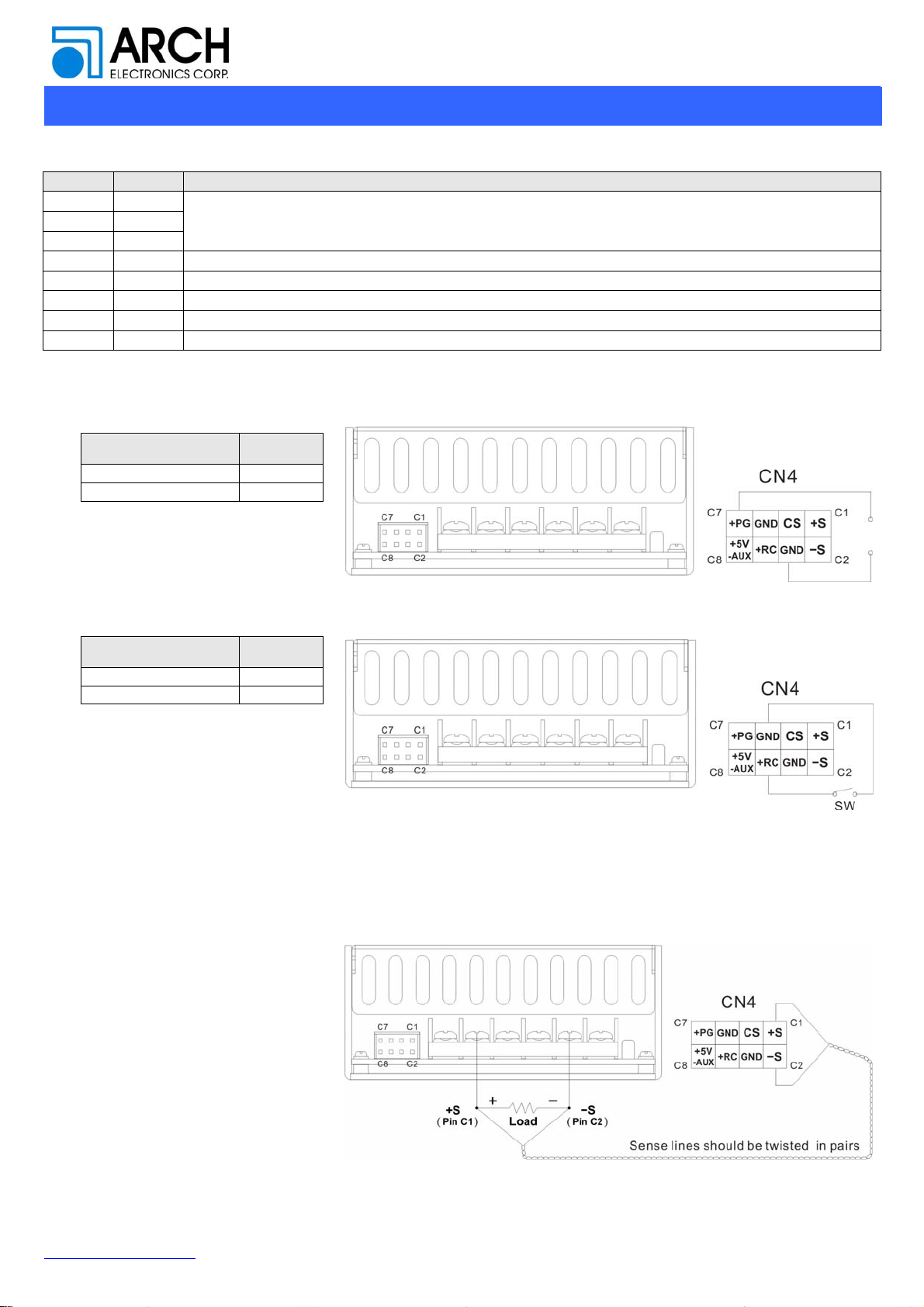

FUNCTION DESCRIPITON of CN4
Pin No. Function Description
C1 +S
Current Share Function Pin
C2 -S
C3 CS
C4 GND This pin connects to the negative terminal(-V). Return for DC-OK signal output.
C5 GND This pin connects to the negative terminal(-V). Return for DC-OK signal output.
C6 +RC Turns the output on and off by electrical or dry contact between pin C4 (-RC), Short: Power OFF, Open: Power ON.
C7 +PG DC-OK Signal is a DC output, referenced to pinC6(DC-OK GND).
C8 +5V-AUX Stand by voltage output ground 4.5~5.5V, referenced to pin C4 or C5(GND). The maximum load current is 0.6A.
FUNCTION MANUAL & APPLICATION NOTE
1. DC-OK Signal
Between DC-OK(pinC5)
and GND(pinC6) Output Status
3.7~5.7V ON
0~1V OFF
2. Remote Control
It can be turned ON/OFF by using the "Remote Control" function.
Between RC+(pinC3) and
RC-(pinC4) Output Status
SW ON (Short) OFF
SW OFF (Open) ON
3. Current Share
1. Difference in Vout among parallelled units should be less than +/-1%
2. Output Power at Parallel Operation = Rated Power per Unit x Number of Unit x 80%
3. Connect in parallel no more than 2 units. Please contact Arch for advice if more than 2 is needed.
4. Shorter wiring to each unit is recommended, as well as twisting +S and -S in pairs, as shown below
5. The remote sensing compensates voltage drop on the load wiring up to 5V

VER : A_8 update : 2020.08.27
AC-DC Switching Power Supply
AQF600 SERIES 600 Watts
http://www.archcorp.com.tw
TEL: [phone] FAX: [phone]-
4. 1+1 Redundancy：sing 1 more AQF600 as the redundant unit
5. 1+N Redundancy: Using more AQF600 as the redundant units to increase the reliability
We reserve the right to make alterations in the product materials and specifications without prior notification and consent to improve reliability, function or design or otherwise.
