Archgard 27-DVIM22N-2 User manual

27-DVIM22N-2
GAS FIRED VENTED ROOM HEATER
(DIRECT VENT)
S/N 260110 AND UP
ARCHGARD FIREPLACE PRODUCTS
7116 Beatty Drive
Mission, BC V2V 6B4 Canada 200-1227-06
November 15, 2018
English and French Installation Manuals available through your
local dealer or visit our website at: www.archgard.com
Les manuels d'installation en anglais et en français son
disponibles chez votre détaillant local ou en visitant notre site
web: www.archgard.com
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE
This appliance may be installed in an aftermarket permanently
located, manufactured home (USA only) or mobile home where
not prohibited by local codes.
This appliance is only for use with the type of gas indicated on
the rating plate. This appliance is not convertible for use with
other gases, unless a certied kit is used.
WARNING: If the information in these instructions is not
followed exactly, a re or explosion may result, causing
property damage, personal injury or loss of life.
INSTALLATION, OPERATION, AND
MAINTENANCE MANUAL
Do not store or use gasoline or other ammable vapors or
liquids in the vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS:
• Do not light any appliance
• Do not touch any electrical switch: do not use any phone in
your building.
• Immediately call your gas supplier from a neighbors phone.
• Follow the gas suppliers instructions.
• If you can not reach your gas supplier, call the re
department.
Installation and service must be performed by a qualied
installer, service agency or the gas supplier.
WARNING: If the information in this manual is not followed
exactly, a re or explosion may result causing property
damage, personal injury or loss of life.
Gas Fireplace Energy E󰀩ciency Rating
70.03%
Based on CSA P.4.1-09

2
TABLE OF CONTENTS
Introduction 3
Safety Information 4
Appliance Certication 5
Installation Codes 5
Specications 5
High Altitude Installation 5
Rating Plate Label 6
Installation Checklist 7
Appliance Overview 8
Rating Plate Location 8
Appliance Overview 8
Leveling the Appliance 9
Electrical Connections 9
Congure the Fireplace 10
Control Panel Locations 10
Minimum Fireplace Opening Dimensions
11
Factory Built Fireplaces 12
Refacing a Masonry Fireplace 13
Mantle Clearances 14
Sidewall Clearances 14
Clearances 15
Hearth Clearances 15
Gas Connections 16
Clocking Procedure 16
Conversion Kit Instructions 17
Prepare the Fireplace 17
Pilot Conversion 17
Convert the Gas Valve 18
Complete the Conversion 18
Venting Instructions 19
Sealing the Vent 20
Approved Terminations 20
Venting Instructions 999-INS-TK 22
Using a Co-linear to Coaxial Adapter 23
Barrier Screen Installation 24
Glass Door Installation 25
If Your Glass Breaks 25
Optional Wall Switch or Thermostat 26
Fan Wiring Diagram 26
Surround Installation 27
Firebox Liner Installation 28
Log Placement 30
Locator Pins 30
Ember Placement 33
Complete Log Set 35
Operation 36
Before Lighting 36
First Fire 36
Lighting Instructions on Rating Plate 37
Maintenance 38
Cleaning the Appliance 38
Servicing Under Warranty 39
Adjusting Primary Air 39
Checking Inlet / Outlet Gas Pressure 40
Checking and Adjusting Pilot 40
Replacing Comfort Blower 41
To Access From the Front 41
To Access From the Back 41
Troubleshooting 42
Replacement Parts List 43
Frequently Asked Questions 44
Archgard Limited Warranty 45

3
General Information
Introduction
Thank You and Congratulations for choosing an Archgard Gas Fireplace!
The 27-DVIM22-2 is one of the most advanced Direct Vent Insert heaters available today. It is solidly designed using the latest
technology and manufactured to the highest quality. It is our aim to provide you with an appliance that brings many trouble-free years of
reliable service.
Some of the many features of your 27-DVIM22N-2 are:
• Heater Classication The 27-DVIM22N-2 is classied as a heating appliance. Therefore, it uses Direct Vent safety
technology and it is suitable for continuously operated zone heating.
• High E󰀩ciency The 27-DVIM22N-2 has one of the highest e󰀩ciencies of any Direct Vent gas insert, which means
that it is less expensive to operate.
• Adjustable Fan Speed Each 27-DVIM22N-2 comes complete with an adjustable speed temperature controlled circulation
fan.
• Adjustable Flame The ame aesthetics and heat output can be adjusted to suit the owner’s liking and heating needs.
• Solid Construction The 27-DVIM22N-2 is mainly constructed of 16 and 18 gauge galvanized and aluminized coated
steel for long life and durability.
• Optional Accessories Check with your Authorized Archgard Dealer for a full complement of decorative accessories to suit
your home’s décor and your tastes.
• Millivolt Control System The gas control system is “thermostat” ready for any optional millivolt wall thermostat or wireless
remote control.
Please complete and submit the warranty registration card included in the back of this manual or by visiting us at:
www.archgard.com/warranty-registration

4
General Information
Safety Information
Caution
FOR YOUR SAFETY - Do not install or operate your 27-DVIM22N-2 without reading and understanding this manual. Any installation or
operational deviation from this instruction manual voids the warranty and may prove hazardous.
This appliance must be installed by a qualied gas installer and the installation must conform to the installation codes.
Provide adequate clearance around air openings into combustion chamber.
Never obstruct front openings.
Provide adequate clearances for proper operation and servicing of the appliance.
This appliance must be properly connected to an approved venting system and must not be connected to a chimney ue serving a
separate solid fuel burning appliance.
Flow of combustion and ventilation air must not be obstructed.
Always provide adequate clearance around the intake and exhaust openings.
Safety
Due to high temperatures, the appliance should be located out of tra󰀩c and away from furniture and draperies.
Children and adults should be alerted to the hazards of high surface temperature and stay away to avoid burns or clothing ignition.
Young children should be carefully supervised when they are in the same room as the appliance. Toddlers, young children and others
may be susceptible to accidental contact burns. A physical barrier is recommended if there are at risk individuals in the house. To
restrict access to a replace or stove, install an adjustable safety gate to keep toddlers, young children and other at risk individuals out
of the room and away from hot surfaces.
Do not store or place combustibles, gasoline, and other ammable vapors and liquids near the appliance.
Clothing or other ammable material should not be placed on or near the appliance.
Do not operate with cracked or broken glass. Do not to strike or slam the glass.
WARNING: Do not operate appliance with the glass front removed, cracked, or broken. Removal of the glass should be done by a
licensed or qualied service person.
Any safety screen or guard removed for servicing an appliance must be replaced prior to operating.
Installation and Repair should be done by a qualied service person. The appliance should be inspected before use and at least
annually by a professional service person. More frequent cleaning may be required due to excessive lint from carpeting, bedding
materials, etc. It is imperative that the control compartments, burners and circulating air passageways of the appliance are kept clean.
Do not use this appliance if any part has been under water. Immediately call a qualied service technician to inspect the appliance and
to replace any part of the control system and any gas control which has been under water.
Each Archgard Gas Fireplace is checked and tested at the factory prior to being packaged and shipped to our dealers and nally
installed in your home. Before leaving this unit with the customer, the installer must ensure that the appliance is ring correctly and that
the electrical system is in working order. The Installation Checklist on Page 7 should be used to ensure the proper installation of this
gas replace insert and to document any deviations from a typical install.
Any alteration to the product that causes carbon or soot deposits that results in any damage or requires
cleaning is not the responsibility of the manufacturer.

5
General Information
Appliance Certication
This appliance was listed by QAI Laboratories Inc to the following USA and Canadian gas appliance standards.
• ANSI Z21.88-2014/CSA 2.33-2014 Vented Gas Fireplace Heaters
• CAN/CGA-2.17-M91(R2009), Gas-Fired Appliances for Use at High Altitudes
• CSA P.4.1-09 testing method for measuring annual replace e󰀩ciency
CSA C22.2 No.3 - M1998(R.2014) - Electrical Features of Fuel-Burning Equipment
The listing label is attached to the appliance on the bottom right side of the appliance. A copy is shown on Page 6.
Commonwealth of Massachusetts: This appliance has been manufactured in accordance with Massachusetts code 248 CMR 5.00.
Approval Code: G1-0717-621. (http://license.reg.state.ma.us/public/licque.asp).
Please contact Archgard Industries Ltd., if you have any questions regarding the certication of this appliance.
Installation Codes
This appliance must be installed by a qualied gas appliance installer. The installation must conform with the local codes or, in
the absence of local codes, with the current National Fuel Gas Code ANSI Z223.1/ NFPA 54 in the US, or Installation Code CAN/
CGA-B149.1 in Canada. Electrical connections and grounding must conform with local code, or current National Electrical code ANSI/
NFPA No. 70-1987 in the US, and in Canada the current Canadian Electrical Code CSA C22.1.
We recommend that our gas hearth products be installed and serviced by professionals who are certied in the U.S. by the
National Fireplace Institute® (NFI) as NFI Gas Specialists.
Specications
Natural Gas (NG) Propane (LP)
Manifold Pressure 1.6 - 3.5 in. W.C. (0.4 - 0.9 kPa) 6.4 - 10.0 in. W.C. (1.6 - 2.5 kPa)
Min. Supply Pressure
Max. Supply Pressure
5.0 in. W.C. (1.2 kPa)
14.0 in. W.C. (3.5 kPa)
11.0 in. W.C. (2.8 kPa)
14.0 in. W.C. (3.5 kPa)
Orice Size #43 DMS (2.25 mm dia) #54 DMS (1.36 mm dia)
Nominal Input Rating 15,000 - 22,400 BTU/h (4.5 - 6.56kW) 16,500 - 21,000 BTU/h (4.8 -6.15kW)
P.4 Fireplace E󰀩ciency (FE) 70.03% 70.03%
P.4 Steady State E󰀩ciency 74.55% 74.55%
Electrical Rating 120 VAC, 60Hz less than 2 A. 120 VAC, 60Hz less than 2 A.
Gas Control SIT 820 Nova SIT 820 Nova
Altitude 0 - 4,500 ft. (0 - 1372 M) 0 - 4,500 ft. (0 - 1372 M)
Primary Air Opening 1/4” (6 mm) OPEN FULLY OPEN
High Altitude Installation
When installing this appliance beyond 4500 ft. (1372 M) above sea level, the appliance must be properly de-rated and installed ac-
cording to local codes, in the absence of local codes, with the current National Fuel Gas Code, ANSI Z223.1/ NFPA 54, in the US or
Installation Code, CAN/CGA-B149, in Canada.

6
General Information
Rating Plate Label
SAMPLE

7
General Information
Installation Checklist
This standard installation checklist is to be used by the installer in conjunction with, not instead of, the instructions contained
within this installation manual.
Customer: Date Installed:
Install Address: Location of Fireplace:
Installer:
Solid Fuel Zero Clearance Install: YES NO IF NO, WHY NOT?
Was the bottom of the existing zero clearance removed?
Venting: YES NO IF NO, WHY NOT?
Venting conguration complies with vent diagrams.
Venting installed, fastened, and secured in place maintaining proper
clearances.
Secured or removed existing solid fuel replace damper.
Terminations installed and sealed in compliance with local building
code.
Direct vent termination is highest point in vent assembly.
Wiring / Electrical: YES NO IF NO, WHY NOT?
Connected to household 110/120v per local codes.
Unit is properly grounded.
Gas: YES NO IF NO, WHY NOT?
Proper appliance for fuel type?
Was a conversion performed?
Leak check performed & inlet and manifold pressures veried?
Was the rating of the insert clocked?
Finishing: YES NO IF NO, WHY NOT?
Only noncombustible material installed in noncombustible areas.
Clearances meet installation manual requirements.
Mantels and/or projections comply with install manual.
Was the solid fuel replace warning plate installed?
Appliance Setup: YES NO IF NO, WHY NOT?
Burner media / log set, door, and screen installed according to install
manual.
Manual given to home owner.
Did you check operation of fans, and ame modulation?
Comments:

8
Installation
Appliance Overview
Rating Plate Location
Figure 6.1.01:
Appliance Overview
Surround
Left Side Right Side
The valve is located on the left side* of the replace behind the surround.
The fan is located on the inside of the rear replace shell and can be accessed from the rear of the replace or through the front of the
replace by removing the burner.
The exhaust and intake collars are located on top of the replace as marked.
*Left and right side references in this manual correspond with the sides identied in Figure 6.2.01.
Figure 6.2.01:
Figure 6.2.02:

9
Installation
Electrical Connections
The 27-DVIM22N-2 comes complete with an thermally controlled variable speed fan equipped with a solid state speed control.
Do not cut or remove the grounding prong from this plug.
NOTE: This appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes,
with the National Electrical Code, ANSI / NFPA 70, or the Canadian Electrical code, CSA C22.1.
CAUTION: Label all wires prior to disconnection when servicing.
Leveling the Appliance
Figure 6.3.01:
The 27-DVIM22N-2 is equipped with front and rear leveling bolts.
The replace has the ability to independently level left/right and
front/back.
Leveling is done from the bottom of the unit Front Bolts
Rear Bolts
CONTROLS IN CONTROLS OUT
Figure 6.2.03: Figure 6.2.04:

10
Installation
Congure the Fireplace
Control Panel Locations
The control panels can be mounted in the following di󰀨erent ways. They are shipped in the “Controls In” conguration. They can be
moved to the “Controls Out” conguration by removing the two mounting screw on each side and swinging the panels out and re-
installing the screws. They can also be disconnected and placed remotely within the limits of the gas connections and electrical wiring
making sure to place them away from any heat source over 150 degrees Fahrenheit or 65 degrees Celsius.

11
Installation
Minimum Fireplace Opening Dimensions
WARNING
This replace has been designed to be installed into a Masonry or Factory Build Wood Burning Fireplaces ONLY. Never attempt to
install the appliance into a combustible enclosure.
If the information in these instructions are not followed exactly, a re or explosion may result causing property damage, personal
injury or loss of life.
AB
C
D
E
F
G
Reference Dimension
(Controls Out)
Dimension
(Controls In)
A18" (457.2 mm) 18" (457.2 mm)
B 8 7/8" (225.43 mm) 8 7/8" (225.43 mm)
C14" (355.6 mm) 15.5" (393.7 mm)
D 0" (0 mm) 3.0" (76.2 mm)
E22" (558.8 mm) -
15 3/4" (400 mm)*
22.0" (558.8 mm)
F 26 3/4" (679.5 mm) 30.0" (762 mm)
G111.5° 108.0°
*Dimension E may be smaller than 22.0" (558.8 mm)
if the depth (dimension C and/or D) is larger.

12
Installation

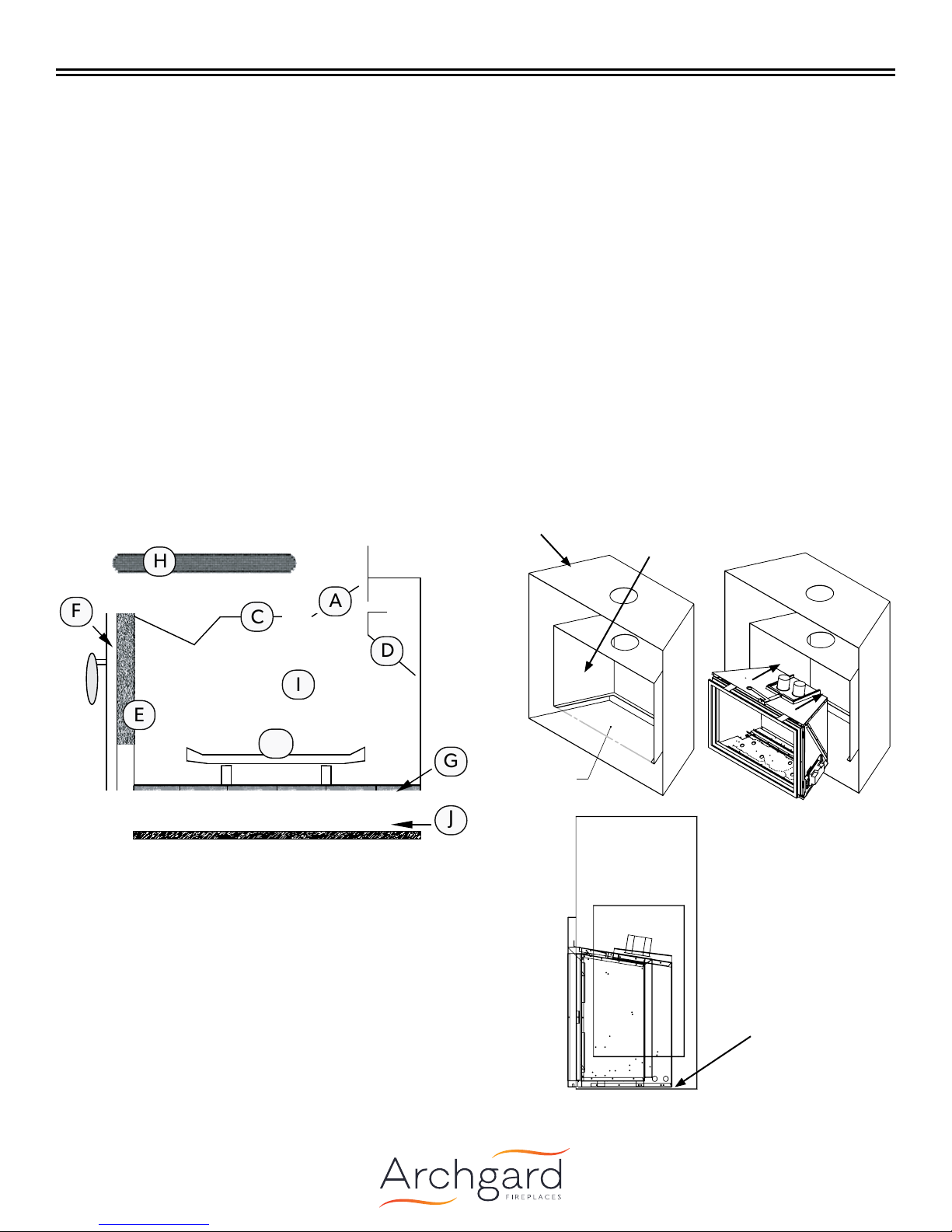

Factory Built Fireplaces
The following information applies to Factory Built (metal) Wood-Burning Fireplace installations:
Trim panels must not seal ventilation openings in the replace. Any parts that are removed must be saved and reinstalled if the insert
is ever removed. If the factory-built replace has no gas access hole(s) provided, an access hole of 1 1/2” (38.1 mm) or less may be
drilled through the lower sides or bottom of the rebox in a proper workmanship-like manner. This access hole must be plugged with
noncombustible insulation after the gas supply line has been installed.
The damper (A) and grate with logset (B) must be removed or fully blocked open.
The smoke shelf (C), internal ba󰀪es (D), screen ( E), masonry lining or refractory (G and I), and metal or glass doors (F) may be
removed.
The replace must be permanently marked to indicate that it has been altered and is no longer suitable for burning any fuel unless the
removed parts are reinstalled (See Figure 9.0.02). Cutting out of any metal parts is prohibited, except the metal oor (J) as specied.
The insulation (H), and any structured rigid frame member must not be removed or altered (side and top of door frame, side and top of
the face of replace, metal sides, etc.).
The metal oor of the rebox may be removed only if the following is strictly adhered to.
The metal oor (J) may be removed to allow additional room for installation of the insert as long as it does not compromise the
structural integrity of the existing replace (See Figure 9.1.02).
A
C
D
G
I
F
H
J
E
B
Figure 9.1.01: Side view of Factory Built (metal) Wood Burning
Fireplace.
Figure 9.1.02: Removing the Metal Floor
REMOVE THIS
SECTION OF
METAL FLOOR
REMOVE THIS
SECTION OF
METAL FLOOR
REMOVE THIS
SECTION OF
METAL FLOOR
Factory built
replace shell Factory built
replace
rebox
Remove this
section of
rebox oor
0" Clearance to
combustibles.
Leveling bolts
may be removed if
desired.

13
Installation
Refacing a Masonry Fireplace
Using Steel Studs and Cement Board on Wood Fireplaces
Brick or rock facing may be removed and replaced with noncombustible material such as steel studs and cement board.
WARNING: Only facing material may be removed. All other masonry material must not be cut out, chipped away, or removed.
WARNING: Louvers or any air circulation around existing solid fuel replace must not be blocked or covered.
The area between the masonry and the cement board must be sealed so that no heat can enter the open space between the masonry
of the wood replace and the refacing material. The insert must be moved outward so that the face of the replace is ush with
the nishing material.
Figure 9.2.01:
Original Wood Burning
Masonry Fireplace

14
Installation
Mantle Clearances
WARNING
Failure to position the parts in accordance with these diagrams or failure to use only parts specically approved with this appliance
may result in property damage or personal injury.
NOTE
Mantle depth of less than 1” is not considered a mantle
Sidewall Clearances

15
Installation
WARNING
Failure to position the parts in accordance with these diagrams or failure to use only parts specically approved with this appliance
may result in property damage or personal injury.
NOTE
All specied clearances must be maintained from the top surface of carpeting, tile, etc.
Clearances
Hearth Clearances
Non Combustible
Zone
16”
Non Combustible
Zone
16”
31 3/4”
The Non Combustible
Zone may contain any
noncombustible material or
open air space. Never use
combustible materials within
the Non Combustible Zone.
Non Combustible Zone
16" (406.4 mm)
7"
(177.8 mm)
25-3/8" (644.5 mm)
16"
(406.4 mm)
TOP VIEW LEFT SIDE VIEW
Combustible Zone
Any hearth extending out in front of the insert must not have any portion above 7” below the bottom of the unit made from combustible
materials. This includes any type of framing underneath a non-combustible material such as tile, marble or stone. Any material below
7” can be combustible.

16
Installation
Gas Connections
Before connecting the appliance to the gas supply line, double check that the appliance you have purchased is designed for the gas
type you are using. The gas type markings are located on the rating plate and also on the appliance’s gas valve.
Adequate clearance for proper installation and checking of the gas connections must be provided. All gas connections must be
checked for gas leaks.
Have your gas supplier or a qualied gas tter run a gas supply line into the solid fuel replace. The line must be properly sized and
tted according to the installation codes. Immediately upstream of the supply connection, the tter shall provide an accessible manual
shut-o󰀨 valve. When connecting the supply line to the gas valve, the installer shall brace the gas valve to ensure that the gas valve is
not moved from its bracket. If the valve is not braced when the supply line is connected, the valve may be moved and cause a “break”
in the main burner supply line. Such damage is not covered by the manufacturer’s warranty.
CAUTION: The appliance and its individual shut-o󰀨 valve must be disconnected from the gas supply piping system during any
pressure-testing of that system at test pressures in excess of 1/2 psig (3.5 kPa). The appliance must be isolated from the gas supply
piping system by closing its individual manual shut-o󰀨 valve during any pressure-testing of the gas supply piping system at test
pressures equal to or less than 1/2 psig (3.5 kPa). Failure to do so will damage the appliance’s gas valve. Such damage is not covered
by the manufacturer’s warranty.
Natural Gas Pressure Settings:
The inlet supply or line pressure must be a minimum of 5.0” W.C. (1.2 kPa) and a maximum of 14.0” W.C. (3.5 kPa). The orice is a
#43 DMS (2.25mm) drill size.
ELEVATION INPUT RATING
0-4500 ft (0-1372 M) 22,400 BTU/hr (9.6 kW)
4500 ft (1372 M) and above. 22,400 BTU/hr (9.6 kW) less 4% per 1000 ft. (305 M)
Please contact your local distributor for the appropriate orice size you require.
Propane Pressure Settings:
The inlet supply or line pressure must be a minimum of 11.0” W.C. (2.8 kPa) and a maximum of 14.0” W.C. (3.5 kPa). The orice is a
#54 DMS (1.36 mm) drill size.
ELEVATION INPUT RATING
0-4500 ft. (0-1372 M) 21,000 BTU/hr (9.02 kW)
4500 ft. (1372 M) and above. 21,000 BTU/hr (9.02 kW) less 4% per 1000 ft. (305 M)
Please contact your local distributor for the appropriate orice size you require.
To do this, reduce the background ow rate, time the meter.
Clocking Procedure
IMPORTANT: THE INPUT RATING SHOULD ALWAYS BE CHECKED WHEN FIRST FIRING THIS APPLIANCE.
Before you begin, shut o󰀨 all other gas appliances including any standing pilots. Light the replace and wait 15 minutes. Clock the
time to burn 1ft³ of gas on the meter. Check with your gas supplier for the gas BTU content at your elevation. Input is the rate of ow
multiplied by the heating value of the gas (cubic feet/hour x BTU per cubic feet). Note: This assumes a dry gas meter at 1/2 psi. If using
a 2 psi dry gas meter the unit will rate lower as the calculation has to correct for the higher pressure in the meter. If the unit is over-
rated, contact your authorized Archgard dealer. The following calculation equation gives a rough estimation as it does not correct for
temperature and pressure.
Rough Calculation Equation:
1 / Time to burn 1ft³ of gas in seconds / 3600 x gas caloric value in BTU/ft³ = Rating

17
Installation
Conversion Kit Instructions
WARNING
The conversion kit shall be installed by a qualied service agency in accordance with the manufacturers instructions and all
applicable codes and requirements of the authority having jurisdiction. If the information in these instructions is not followed exactly,
a re, explosion or productions of carbon monoxide may result, causing property damage, personal injury or loss of life. The qualied
service agency is responsible for proper installation of this kit.
The installation is not proper and complete until operation of the converted appliance is checked as specied in the instructions
supplied with the kit. Refer to appliance owner’s manual or product data plate for proper inlet and manifold pressure adjustments and
orice sizing.
IMPORTANT
This replace is Natural gas ready. If converting to LP gas, follow instructions below.
KIT NUMBERS: 27-CKMLP for LP gas and 27-CKMNG for Natural Gas
KIT INCLUDES:
1- Gas conversion label (303-0128)
1- Burner orice (301-0068-54, #54 DMS for LPG) (301-0068-43, #43 DMS for NG)
1- Instruction Sheet
1- SIT 820 Valve conversion regulator c/w instructions & gas type label
FOR YOUR SAFETY
SHUT OFF GAS SUPPLY AND ELECTRICAL POWER TO FIREPLACE BEFORE BEGINNING THE GAS CONVERSION
Prepare the Fireplace
• Remove the surround, glass door assembly, logs/media and brick/panels (if applicable).
• Remove the burner side brackets and the front ember ledge. The ledge lifts up and out.
• Remove burner. Three screws along the top edge of the burner secure it to in place.
Remove the burner orice using a 1/2” wrench. Replace with the orice supplied with the
conversion kit. Use a small amount of pipe sealant on the threads of the orice holder.
Pilot Conversion
Using a 7/16” wrench and loosen the pilot hood
1/4 turn. Slide the tab at the bottom of the orice
hood all the way so the red side (propane) with
the hole in it is showing. Tighten the pilot hood
back up so that it is lined up with the two probes
on both sides of the pilot assembly.

18
Installation
WARNING
This conversion kit shall be installed by a qualied service agency in accordance with the manufacturer's instructions and all
applicable codes and requirements of the authority having jurisdiction. If the information in these instructions is not followed exactly,
a re, explosion or production of carbon monoxide may result causing property damage, personal injury or loss of life. The qualied
service agency is responsible for the proper installation of this kit. The installation is not proper and complete until the operation of the
appliance is checked as specied in the manufacturer's instructions supplied with the kit.
Convert the Gas Valve
On the SIT valve, use an Allen key or a slotted screwdriver to
remove and discard the three pressure-regulator mounting screws
the pressure regulator tower and the spring diaphragm assembly.
IMPORTANT
Ensure that the rubber gasket is properly positioned and
install the new modulating pressure regulator assembly
to the valve using the screws provided in the conversion
package.
A󰀩x Archgard Manufacturer’s label (part # 303-0128) in a
conspicuous location. We suggest a location close to the gas
control valve.
Install the LP identication label
to the valve (found in kit).
Complete the Conversion
Turn on the gas and electrical supplies.
Turn on the replace so the burner is on
Check for leaks at all connections.
Test inlet and outlet pressure. Visually check pilot ame. Flame should envelope top of the ame sensor and extend forward onto the
burner. To adjust pilot turn the pilot adjustment screw on the control valve clockwise to decrease or counter clockwise to increase pilot
ame.
Turn replace o󰀨
A󰀩x gas type label to the rating plate label. (Bottom right side, under the door frame of insert on pull chain)
Complete the conversion label and a󰀩x to valve assembly plate.
Re-install the burner, brick, logs, embers and door (per the instructions starting on page 22).
IMPORTANT
For high altitude installations above 4500 ft (1372 meters), consult local gas distributor or the authority having jurisdiction for proper
de-rating methods.

19
Installation
Venting Instructions
WARNING: Operation of this heater when not connected to a properly installed and maintained venting system can result
in carbon monoxide (CO) poisoning and possible death. The appliance must not be connected to a chimney ue serving a
separate solid fuel burning appliance.
CAUTION
Only approved 3” (76mm) double wall aluminum or stainless ex liners and approved vent terminals are to be used for this appliance.
This appliance is designed for dual 3” (76 mm) double wall aluminum ex liner. The liner must run the entire length of the chimney from
the appliance to the termination.
The ue length must be a minimum of 10’ (3.05 M) and a maximum of 40’ (12.2 M) from the top of the gas replace insert.
Masonry chimneys may take various contours which the exible liner will accommodate, however, keep the exible liner as straight as
possible, avoiding unnecessary bending but at all times keep a minimum of 3” (76 mm) inside bend radius.
The Air Intake Flex Liner must be connected to the inlet air collars of the termination cap and the appliance.
The Exhaust Flex Liner must be connected to the exhaust collars of the termination cap and the appliance.
The Air intake and Exhaust connections are marked on the gas appliance. See Figure 13.0.01.
DO NOT REVERSE THESE CONNECTIONS
CAUTION
To ensure that the venting is not accidentally obstructed or punctured, the damper of the host replace must be permanently disabled
by either complete removal of the damper, or by being fully blocked open, for the installation of a gas replace insert.
Figure 13.0.01: Intake & Exhaust as viewed from the top of the replace.
The 27-DVIM22N-2 requires (2) exible ue liners:
INLET Collar - 3” (76 mm) diameter
OUTLET Collar - 3” (76 mm) diameter

20
Installation
Approved Terminations
The following Archgard venting components are available from your local Archgard dealer.
Archgard Venting Components
Vent Component Part Number
Vertical Termination 999-INS-TK
3" x 30' Aluminum Flex Liner 999-INS-FL330
3" x 50' Aluminum Flex Liner 999-INS-FL350
Approved venting components from third party manufacturers may be found on the following page.
Sealing the Vent
Secure the exible liner at the top of the replace and at the termination. DO NOT use silicone as this will void the ame sensor
warranty. Use mil-pac or other non silicone sealant and three (3) screws or gear clamps to seal the liner at each end.
Figure 13.1.01:
