Architectural Area Lighting Y-LED User manual

4321
AAA
B
4321
A
B
93049782
A
RETROFIT KIT Y-LED FGL SLG-PA3-PA5
LENS
rcarrillo 12/23/13
FGL Y-LED
KC 12/23/13
KCRCECN # 14012001212/23/13A
DRAWING NO.SIZE
B
SCALE
CATALOG NO.
ENGINEERING:
CHECKED BY:
DIMENSIONS IN INCHES
DIMENSIONS IN [ ] IN MM
CONFORMS TO ASME Y14.5M
DO NOT SCALE PRINT
DRAWN:
THIRD ANGLE PROJECTION
MATERIAL: FINISH: PART NO.
REV.
UNSPECIFED TOLERANCES: INCHES
X.X= u 0.1 X.XX= u 0.03 X.XXX= u 0.010
FRACTIONS= u 1/32 ANGULAR TOLERANCE= u 1 v
This document contains confidential and proprietary information of Architectural
Area Lighting, a division of Hubbell Lighting, Inc. (HLI). Receipt or possession of
this document does not convey any rights to reproduce or disclose its contents,
or to make, use , or sell anything it may disclose. Reproduction, disclosure, or
use of the document or its contents, without the specific written authorization of
HLI, may violate the intellectual property rights of HLI.
--/--/-----
93049782
SHT 1
1 SHTS
RECORDREV DATE DESN CHCK
26 80115 16 INCHES RED 18 AWG WIRE
25 80104 16 INCHES BLACK 18 AWG WIRE
24 A84048 2 NUT 1/4-20 HEX SS
23 93049759 1 BRACKET FGL/FGS LED MOUNTING
22 A86002-2 1 SCR-1/4-20x10 LG. SS THRD.STUD PA3 / PA5 LENS
A86002 1 SCR-1/4-20x7 LG. SS THRD.STUD SLG LENS
21 88552 1 FEMALE 4-PIN QUICK DISCONNECT
20 88548 1 FEMALE 2-PIN QUICK DISCONNECT
19 88110 6 Socket, Quick Disconnect
18 A74011 1 TERMINAL-FEMALE
17 A74010 1 TERMINAL-MALE
16 93023746 4 93023746 SCR. 6-32 x 1/4" PHH PHMS SS
15 93049774 2 PLATE LED UPLIGHT
14 93045602 2 93045602 Pico Emmiter, Acrylic
13 SEE SHART 2 ASSY-PCB 2LED BOARD 1X2
12 93049762 1 BRACKET LED UPLIGHT FGL-FGS
11 A84032 2 SCR-8-32X1/2 PHH PHMS SS
10 93049763 1 BRACKET LIFESHIELD Y-LED
9 A74106 2 WIRE TERMINAL
8 A74026 AR CABLE TIE GT50S2 BIN ITEM NOT SHOWN
7 93017851 2 SCR-4-40x3/16 PHH PH MS SS
6 93042082-080051 1 SWITCH THERMAL N. O.
5 A84041 3 SETSCR-1/4-20x1 SS
4 A84051 5 SCR-1/4-20x1/2 BTN HD CAP SS
3 A56332-18 3 STANDOFF 3/8"DIA. X 8"
2 93041672 1 32-LED OPTICAL ASSEMBLY
1 93046560 1 FGL/FGS LED MOUNTING PLATE
ITEM PART # QTY DESCRIPTION NOTES
PARTS LIST
43X
1
3 3X
5 3X
2
12
142X
132X
23
152X
4 2X
7 2X
11 2X
6
2 UP LED BOARD
ITEM # 13 P/N DESCRIPTION
93047432-3012 3000K
93047432-3014 4100K
93047432-3015 5100K
WIRE COLOR TO SLOT #
RED 4
BROWN 3
YELLOW 2
GRAY 1
4-PIN FEMALE CONNECTOR
WIRE COLOR TO SLOT #
PURPLE 1
GRAY 2
2-PIN FEMALE CONNECTOR
21
19 4X
20
10 2X
18
17
9 2X
22
24 2X
10
164X
1
2
3
4
SIDE VIEW
GRAY
PURPLE
RED
BLACK RED
BLACK
BLACK
RED
YELLOW
GRAY
BROWN
WHITE
PURPLE
GRAY
RED
1
2
SIDE VIEW
26
25

4321
AAA
B
4321
A
B
93049781
A

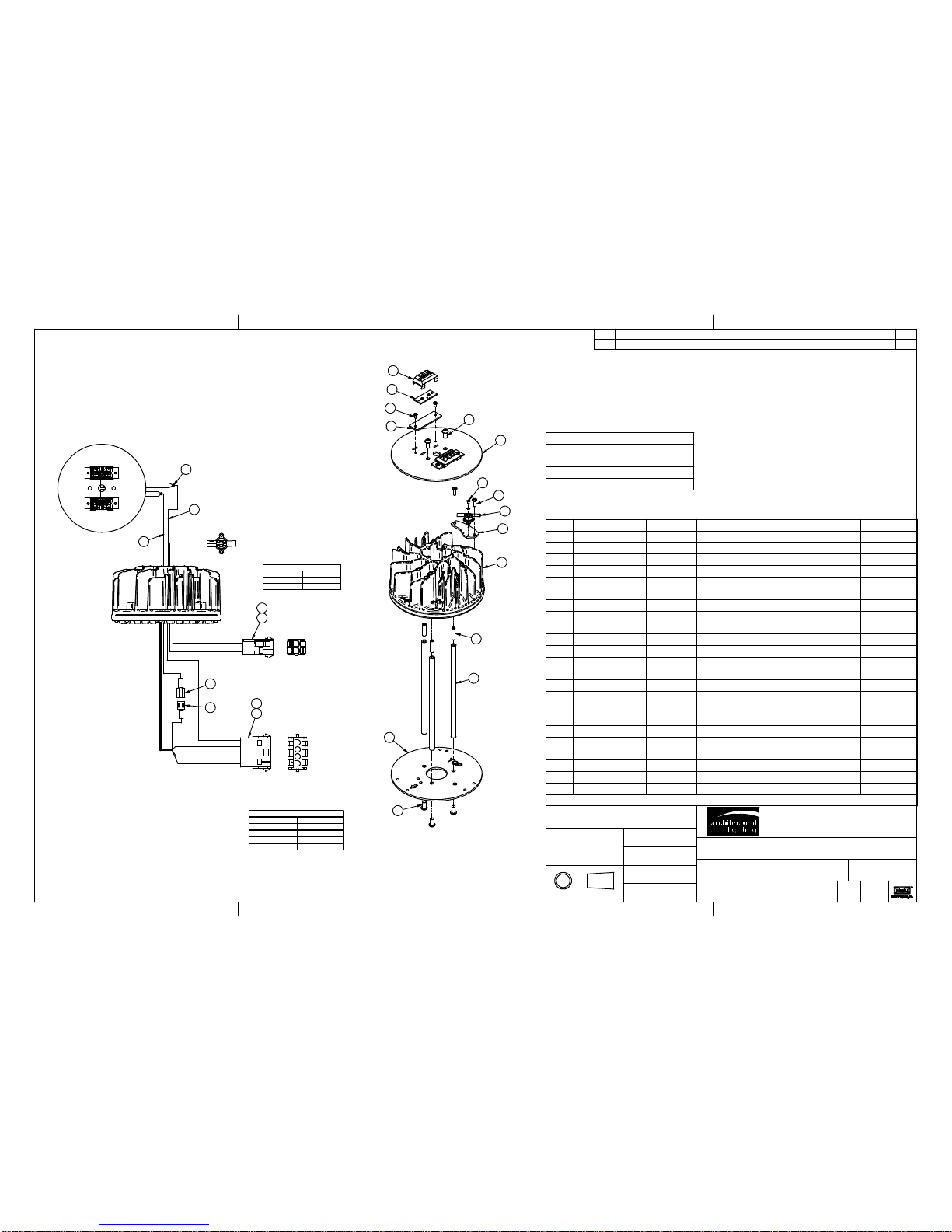

RETROFIT KIT Y-LED FGL SAL LENS
rcarrillo 12/20/13
FGL Y-LED
KC 12/20/13
KCRCECN # 14012001212/20/13A
DRAWING NO.SIZE
B
SCALE
CATALOG NO.
ENGINEERING:
CHECKED BY:
DIMENSIONS IN INCHES
DIMENSIONS IN [ ] IN MM
CONFORMS TO ASME Y14.5M
DO NOT SCALE PRINT
DRAWN:
THIRD ANGLE PROJECTION
MATERIAL: FINISH: PART NO.
REV.
UNSPECIFED TOLERANCES: INCHES
X.X= u 0.1 X.XX= u 0.03 X.XXX= u 0.010
FRACTIONS= u 1/32 ANGULAR TOLERANCE= u 1 v
This document contains confidential and proprietary information of Architectural
Area Lighting, a division of Hubbell Lighting, Inc. (HLI). Receipt or possession of
this document does not convey any rights to reproduce or disclose its contents,
or to make, use , or sell anything it may disclose. Reproduction, disclosure, or
use of the document or its contents, without the specific written authorization of
HLI, may violate the intellectual property rights of HLI.
--/--/-----
93049781
SHT 1
1 SHTS
RECORDREV DATE DESN CHCK
23 80115 16 INCHES RED 18 AWG WIRE
22 80104 16 INCHES BLACK 18 AWG WIRE
21 88552 1 FEMALE 4-PIN QUICK DISCONNECT
20 88548 1 FEMALE 2-PIN QUICK DISCONNECT
19 88110 6 Socket, Quick Disconnect
18 A74011 1 TERMINAL-FEMALE
17 A74010 1 TERMINAL-MALE
16 93023746 4 93023746 SCR. 6-32 x 1/4" PHH PHMS SS
15 93049774 2 PLATE LED UPLIGHT
14 93045602 2 93045602 Pico Emmiter, Acrylic
13 SEE SHART 2 ASSY-PCB 2LED BOARD 1X2
12 93049762 1 BRACKET LED UPLIGHT FGL-FGS
11 A84032 2 SCR-8-32X1/2 PHH PHMS SS
10 93049763 1 BRACKET LIFESHIELD Y-LED
9 A74106 2 WIRE TERMINAL NOT SHOWN
8 A74026 AR CABLE TIE GT50S2 BIN ITEM NOT SHOWN
7 93017851 2 SCR-4-40x3/16 PHH PH MS SS
6 93042082-080051 1 SWITCH THERMAL N. O.
5 A84051 5 SCR-1/4-20x1/2 BTN HD CAP SS
4 A84041 3 SETSCR-1/4-20x1 SS
3 A56332-18 3 STANDOFF 3/8"DIA. X 8"
2 93041672 1 32-LED OPTICAL ASSEMBLY
1 93046560 1 FGL/FGS LED MOUNTING PLATE
ITEM PART # QTY DESCRIPTION NOTES
PARTS LIST
53X
1
3 3X
4 3X
2
12
142X
132X
164X
152X 5 2X
7 2X
11 2X
6
10
2 UP LED BOARD
ITEM # 13 P/N DESCRIPTION
93047432-3012 3000K
93047432-3014 4100K
93047432-3015 5100K
WIRE COLOR TO SLOT #
RED 4
BROWN 3
YELLOW 2
GRAY 1
4-PIN FEMALE CONNECTOR
WIRE COLOR TO SLOT #
PURPLE 1
GRAY 2
2-PIN FEMALE CONNECTOR
21
19 4X
20
19 2X
18
17
9 2X
22
23
1
2
3
4
SIDE VIEW
GRAY
PURPLE
RED
BLACK RED
BLACK
BLACK
RED
YELLOW
GRAY
BROWN
WHITE
PURPLE
GRAY
RED
1
2
SIDE VIEW

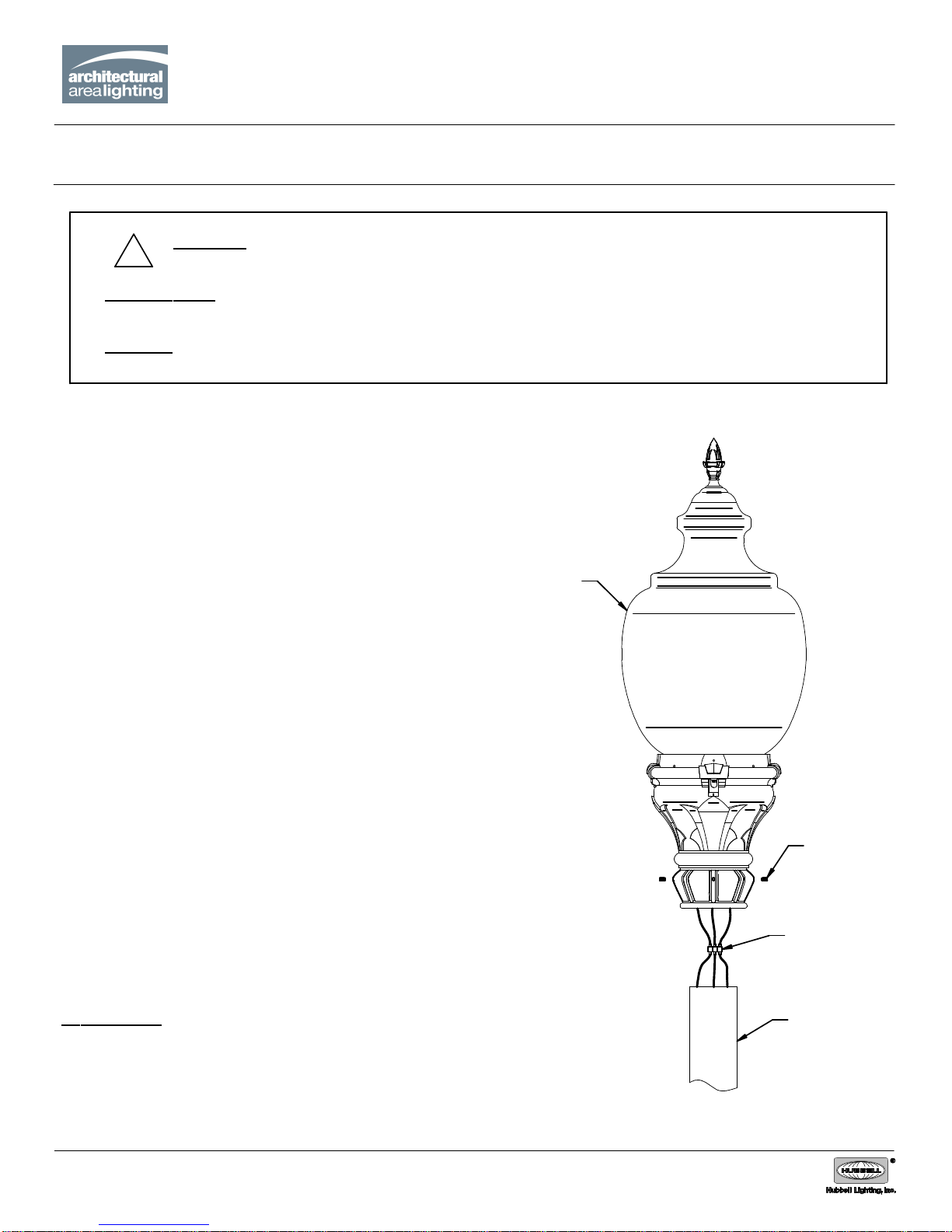

Installation Instructions
Fixture: FEDERAL GLOBE (FGL/ FGS) FOR LED
A R C H I T E C T U R A L A R E A L I G H T I N G
93049780 REV. A
PAGE 1/1
TM
www.aal.net
16555 East Gale Avenue
City of Industry, CA 91745
626.968.5666
WARNING : Fixtures must be grounded in accordance with local codes or the National Electrical
Code. Failure to do so may result in serious personal injury.
MAINTENANCE : A regularly scheduled maintenance program should be established to retain optimum light
output and reduce heat retention. Dusting with a soft, clean, dry cloth is normally sufficient for the optics.
CAUTION : All wiring must be done by a qualified electrician. KEEP THIS SHEET FOR FUTURE REFERENCE.
1. Be sure all power is OFF.
2. Make wire connections from incoming supply
to fixture as shown. (White to White, Black to
Black and Green to Green) (Note: fixture must
be grounded to incoming equipment ground
supply.)
3. Slip fixture over pole top or tenon. Secure with
four (4) supplied stainless steel set screws.
4. Turn power ON.
!
WARNING:
THIS PRODUCT CONTAINS CHEMICALS KNOWN TO THE STATE OF
CALIFORNIA TO CAUSE CANCER, BIRTH DEFECTS, AND/OR OTHER
REPRODUCTIVE HARM. THROUGHLY WASH HANDS AFTER
INSTALLING, HANDLING, CLEANING OR OTHERWISE TOUCHING THIS
PRODUCT.
SET SCREWS
ELECTRICAL
CONNECTIONS
POLE
FIXTURE

Y-LED Upgrade Kit Installation Guide
Fixture: FGL - Federal Globe Large Scale (FGL) - For SLG/PA3/PA5 Lens
A R C H I T E C T U R A L A R E A L I G H T I N G
93049778 REV. A
PAGE 1/5
www.aal.net
16555 East Gale Avenue
City of Industry, CA 91745
626.968.5666

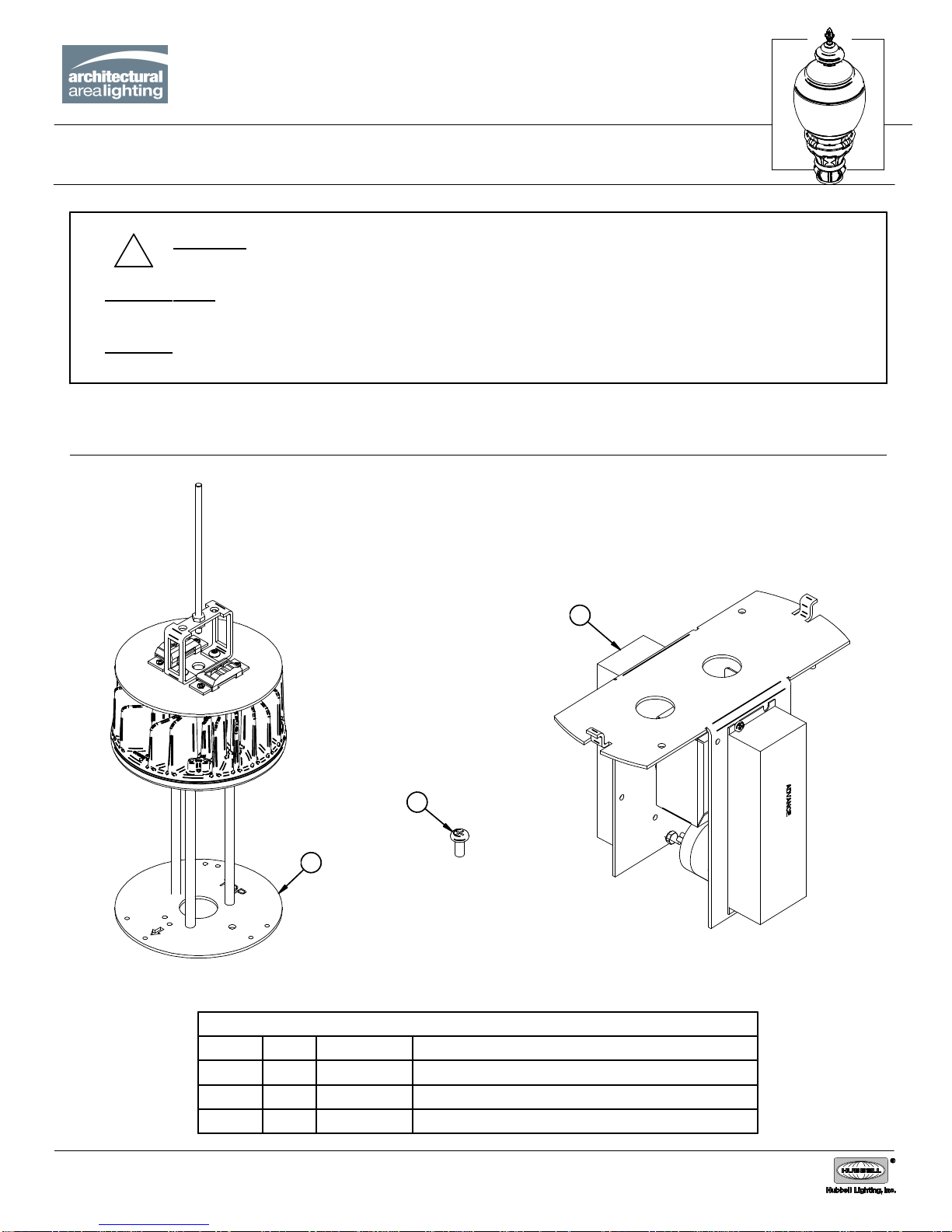

PARTS LIST
ITEM # QTY PART # DESCRIPTION
1 1 93049782 RETROFIT KIT Y-LED FGL SLG-PA3-PA5 LENS
2 1 93049772 RETROFIT KIT Y-LED FGL DRIVER ASSY
3 3 A84033 SCR-8-32 x 3/8" PHLPS PHMS S/S
!
WARNING : Fixtures must be grounded in accordance with local codes or the National Electrical
Code. Failure to do so may result in serious personal injury.
MAINTENANCE : A regularly scheduled maintenance program should be established to retain optimum light
output and reduce heat retention. Dusting with a soft, clean, dry cloth is normally sufficient for the optics.
CAUTION : All wiring must be done by a qualified electrician. KEEP THIS SHEET FOR FUTURE REFERENCE.
UPGRADE KIT CONTENTS
1
2
3

Y-LED Upgrade Kit Installation Guide
Fixture: FGL - Federal Globe Large Scale (FGL) - For SLG/PA3/PA5 Lens
A R C H I T E C T U R A L A R E A L I G H T I N G
93049778 REV. A
PAGE 2/5
www.aal.net
16555 East Gale Avenue
City of Industry, CA 91745
626.968.5666
FIG. 1-2

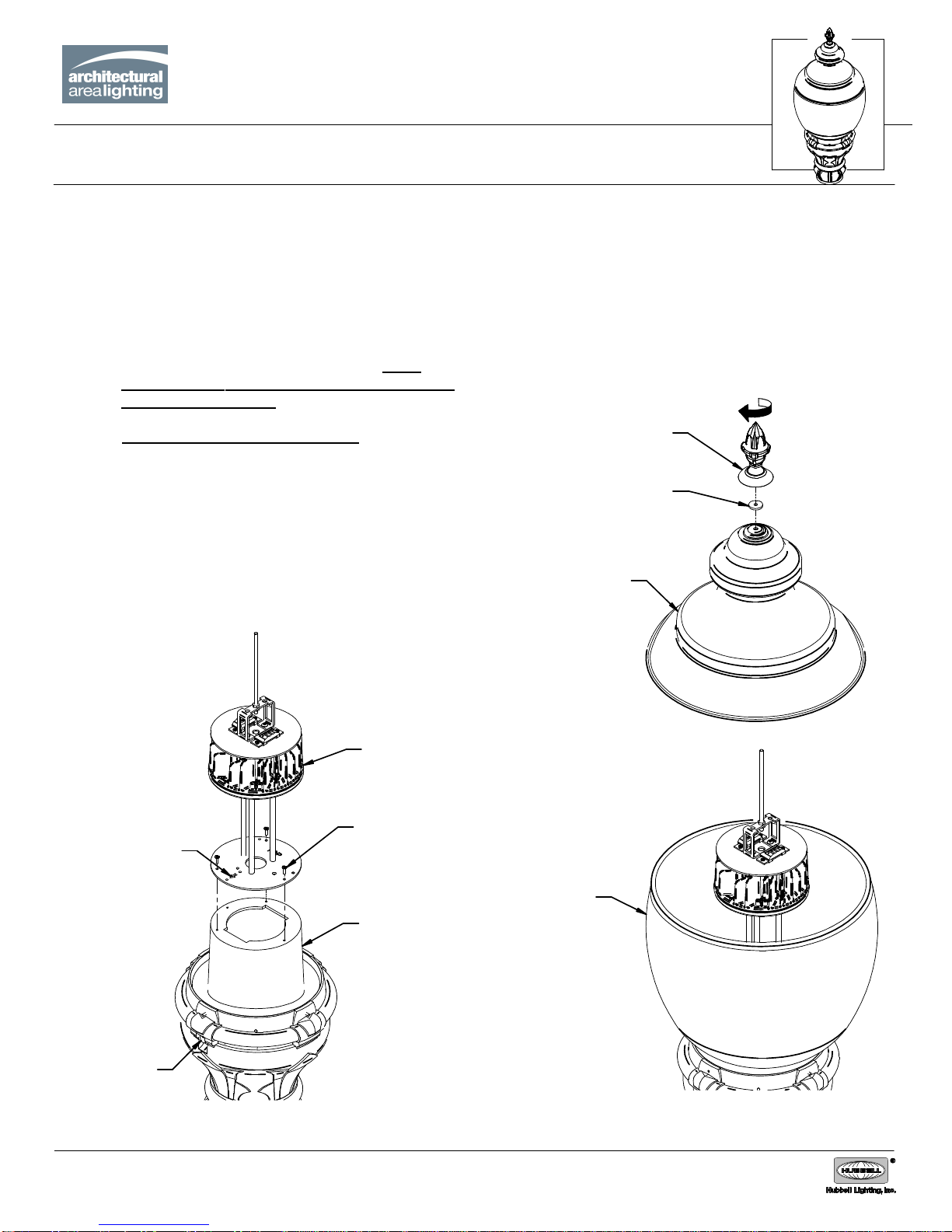

1. REMOVE EXISTING REFLECTOR ASSEMBLY
TURN OFF ALL POWER TO
THE UNIT AND TAKE PROPER SAFETY
PRECAUTION. FAILURE TO DO SO MAY RESULT IN
SERIOUS PERSONAL INJURY.
1. REMOVE FINIAL BY TURNING IT COUNTER
CLOCKWISE. (FIG. 1-1)
2. REMOVE GASKET AND TOP LENS ASSEMBLY.
DO NOT DISCARD. (FIG. 1-1)
3. WITH A PHILLIPS HEAD SCREW DRIVER REACH
INSIDE THE REFLECTOR FROM THE TOP AND
LOOSEN THE THREE SCREWS. ROTATE THE
STACK REFLECTOR AND REMOVE FROM CAST
LID. (FIG. 1-2)
!
FIG. 1-1
FINIAL
GASKET
TOP LENS
ASSEMBLY
STACK
REFLECTOR
CASTING LID
BOTTOM
LENDS
SCR-8-32 x 3/8"
PHLPS PHMS S/S
3X

Y-LED Upgrade Kit Installation Guide
Fixture: FGL - Federal Globe Large Scale (FGL) - For SLG/PA3/PA5 Lens
A R C H I T E C T U R A L A R E A L I G H T I N G
93049778 REV. A
PAGE 3/5
www.aal.net
16555 East Gale Avenue
City of Industry, CA 91745
626.968.5666
2. REMOVE EXISTING BALLAST ASSEMBLY
AND SOCKET ASSEMBLY
1. TILT CAST LID TO THE SIDE BY PULLING
LATCH BACKWARD. (FIG. 2-1)
2. DISENGAGE QUICK-DISCONNECT AND
PULL APART. (FIG. 2-1)
3. REMOVE SOCKET ASSEMBLY BY
TURNING TURN-LATCH COUNTER
CLOCKWISE. (FIG. 2-2)
4. REMOVE BALLAST ASSEMBLY. (FIG. 2-3)
FIG. 2-1
FIG. 2-3
FIG. 2-2
CAST LID
LATCH
CAST BALLAST
HOUSING
QUICK-
DISCONNECT
TURN-LATCH
SOCKET
ASSEMBLY
BALLAST
ASSEMBLY

Y-LED Upgrade Kit Installation Guide
Fixture: FGL - Federal Globe Large Scale (FGL) - For SLG/PA3/PA5 Lens
A R C H I T E C T U R A L A R E A L I G H T I N G
93049778 REV. A
PAGE 4/5
www.aal.net
16555 East Gale Avenue
City of Industry, CA 91745
626.968.5666
1. INSTALL Y-MODULE TO CAST LID WITH
ARROW ON MOUNTING PLATE POINTING TO
LATCH ON CAST LID USING PROVIDED
8-32 X 3/8" SCREWS. (FIG. 3-1)
ARROW DENOTE STREET SIDE.
2. PLACE TOP LENS ASSEMBLY OVER BOTTOM
LENS. (FIG. 3-2)
3. INSTALL GASKET AND FINIAL. (FIG. 3-2)
4. INSTALLATION COMPLETE. (FIG. 3-2)
FIG. 3-1 FIG. 3-2
3. INSTALLING 32-LED Y6 MODULE
AND LENS
Y-MODULE
ASSEMBLY
CAST LID
SCR-8-32 x 3/8"
PHLPS PHMS S/S
3X A84033
(PROVIDED)
FINIAL
GASKET
TOP LENS
ASSEMBLY
BOTTOM
LENS
ARROW ON
MOUNTING PLATE
LATCH

Y-LED Upgrade Kit Installation Guide
Fixture: FGL - Federal Globe Large Scale (FGL) - For SLG/PA3/PA5 Lens
A R C H I T E C T U R A L A R E A L I G H T I N G
93049778 REV. A
PAGE 5/5
www.aal.net
16555 East Gale Avenue
City of Industry, CA 91745
626.968.5666
FIG. 4-1
FIG. 4-2
4. INSTALLING DRIVER ASSEMBLY
1. TILT GLOBE ASSEMBLY TO THE SIDE BY PULLING
LATCH BACKWARD. (FIG 4-1)
2. INSTALL DRIVER ASSY. (FIG. 4-1)
3. MAKE WIRE CONNECTIONS BY CONNECTING
QUICK DISCONNECT FROM DRIVER ASSY TO
SOCKET ASSY AND LIFESHIELD QUICK DISCONNECT.
(FIG. 4-2)
3. CLOSE FIXTURE, ENSURE LATCH SNAPS BACK
TO ITS ORIGINAL POSITION. (FIG. 4-3)
4. MAKE WIRE CONNECTION FROM INCOMING
TO DRIVER ASSY AS FOLLOWS: WHITE TO WHITE,
BLACK TO BLACK AND GREEN TO GREEN. (FIG. 4-3)
5. INSTALLATION COMPLETE.
GLOBE ASSEMBLY
LATCH
DRIVER
ASSEMBLY
QUICK-
DISCONNECT
CAST BALLAST
HOUSING
INCOMING
BLACK
WHITE
GREEN
BLACK
WHITE
GREEN
PURPLE
GRAY
FIG. 4-3
LATCH
LIFESHIELD
QUICK DISCONNECT

Y-LED Upgrade Kit Installation Guide
Fixture: FGL - Federal Globe Large Scale (FGL) FOR SAL LENS FOR GR3/ GR5/ BLO
A R C H I T E C T U R A L A R E A L I G H T I N G
93049776 REV. A
PAGE 1/5
TM
www.aal.net
16555 East Gale Avenue
City of Industry, CA 91745
626.968.5666
!
WARNING : Fixtures must be grounded in accordance with local codes or the National Electrical
Code. Failure to do so may result in serious personal injury.
MAINTENANCE : A regularly scheduled maintenance program should be established to retain optimum light
output and reduce heat retention. Dusting with a soft, clean, dry cloth is normally sufficient for the optics.
CAUTION : All wiring must be done by a qualified electrician. KEEP THIS SHEET FOR FUTURE REFERENCE.
UPGRADE KIT CONTENTS
1
2
3
PARTS LIST
ITEM # QTY PART # DESCRIPTION
1 1 93049781 RETROFIT KIT Y-LED FGL SAL LENS
2 1 93049772 RETROFIT KIT Y-LED FGL DRIVER ASSY
3 3 A84033 SCR-8-32 x 3/8" PHLPS PHMS S/S

Y-LED Upgrade Kit Installation Guide
Fixture: FGL - Federal Globe Large Scale (FGL) FOR SAL LENS FOR GR3/ GR5/ BLO
A R C H I T E C T U R A L A R E A L I G H T I N G
93049776 REV. A
PAGE 2/5
TM
www.aal.net
16555 East Gale Avenue
City of Industry, CA 91745
626.968.5666
FIG. 1-2

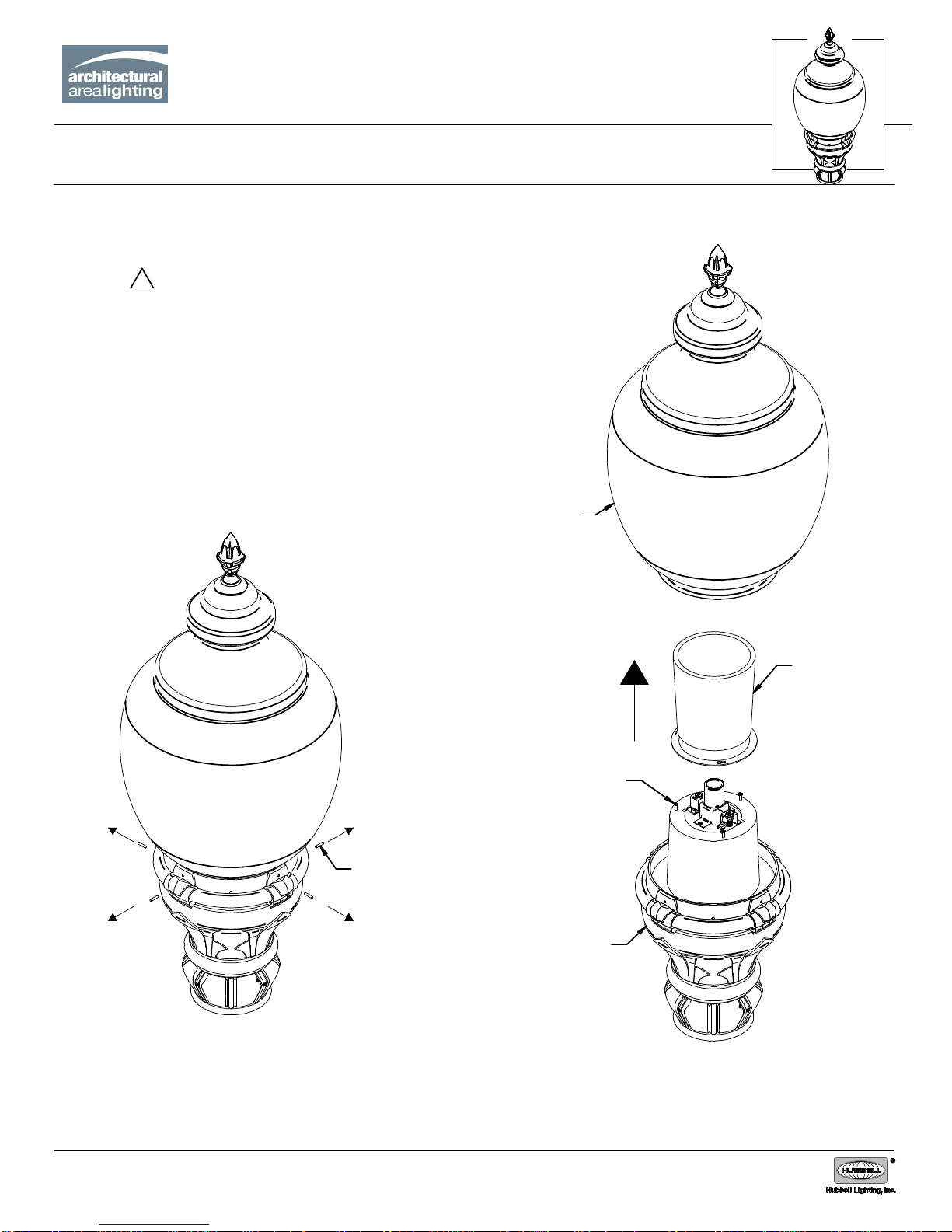

1. REMOVE LENS
TURN OFF ALL POWER TO
THE UNIT AND TAKE PROPER
SAFETY PRECAUTION. FAILURE TO DO
SO MAY RESULT IN SERIOUS PERSONAL
INJURY.
1. REMOVE GLOBE ASSEMBLY BY
LOOSEN FOUR SET SCREWS.
(FIG. 1-1)
2. IF GR3/GR5 OPTION IS PRESENT,
REMOVE BY REMOVING THREE
8-32 x 3/8" SCREWS. (FIG. 1-2)
!
FIG. 1-1
SET SCREWS
GLOBE
ASSEMBLY
GR3/GR5
(OPTION)
CAST BALLAST
HOUSING
SCR-8-32 x 3/8"
PHLPS PHMS S/S
3X

Y-LED Upgrade Kit Installation Guide
Fixture: FGL - Federal Globe Large Scale (FGL) FOR SAL LENS FOR GR3/ GR5/ BLO
A R C H I T E C T U R A L A R E A L I G H T I N G
93049776 REV. A
PAGE 3/5
TM
www.aal.net
16555 East Gale Avenue
City of Industry, CA 91745
626.968.5666
2. REMOVE EXISTING BALLAST ASSEMBLY
AND SOCKET ASSEMBLY
FIG. 2-1
FIG. 2-2
FIG. 2-3
1. TILT CAST LID TO THE SIDE BY PULLING
LATCH BACKWARD. (FIG. 2-1)
2. DISENGAGE QUICK-DISCONNECT AND PULL
APART. (FIG. 2-1)
3. REMOVE SOCKET ASSEMBLY BY TURNING
TURN-LATCH COUNTER CLOCKWISE.
(FIG. 2-2)
4. REMOVE BALLAST ASSEMBLY. (FIG. 2-3)
CAST LID
LATCH
CAST BALLAST
HOUSING
QUICK-
DISCONNECT
TURN-LATCH
SOCKET
ASSEMBLY
BALLAST
ASSEMBLY

Y-LED Upgrade Kit Installation Guide
Fixture: FGL - Federal Globe Large Scale (FGL) FOR SAL LENS FOR GR3/ GR5/ BLO
A R C H I T E C T U R A L A R E A L I G H T I N G
93049776 REV. A
PAGE 4/5
TM
www.aal.net
16555 East Gale Avenue
City of Industry, CA 91745
626.968.5666
1. INSTALL Y-MODULE TO CAST LID WITH
ARROW ON MOUNTING PLATE POINTING TO
LATCH ON CAST LID USING PROVIDED
8-32 X 3/8" SCREWS. (FIG. 3-1)
ARROW DENOTE STREET SIDE.
2. PLACE GLOBE ASSEMBLY OVER CAST
LID AND SECURE WITH FOUR SET
SCREWS. (FIG. 3-2)
FIG. 3-1
3. INSTALLING 32-LED Y6 MODULE
AND LENS
FIG. 3-2
CAST LID
Y-MODULE
ASSEMBLY
SCR-8-32 X 3/8"
PHLPS PHMS S/S
3X A84033
(PROVIDED)
GLOBE
ASSEMBLY
SET SCREWS
4X
ARROW ON
MOUNTING
PLATE
LATCH

Y-LED Upgrade Kit Installation Guide
Fixture: FGL - Federal Globe Large Scale (FGL) FOR SAL LENS FOR GR3/ GR5/ BLO
A R C H I T E C T U R A L A R E A L I G H T I N G
93049776 REV. A
PAGE 5/5
TM
www.aal.net
16555 East Gale Avenue
City of Industry, CA 91745
626.968.5666
4. INSTALLING DRIVER ASSEMBLY
FIG. 4-1
FIG. 4-2
1. TILT GLOBE ASSEMBLY TO THE SIDE BY
PULLING LATCH BACKWARD. (FIG. 4-1)
2. INSTALL DRIVER ASSY. (FIG. 4-1)
3. MAKE WIRE CONNECTIONS BY
CONNECTING QUICK DISCONNECT FROM
DRIVER ASSY TO SOCKET ASSY, AND
LIFESHIELD QUICK DISCONNECT. (FIG. 4-2)
4. CLOSE FIXTURE, ENSURE LATCH SNAPS
BACK TO ITS ORIGINAL POSITION.
(FIG. 4-3)
5. MAKE WIRE CONNECTIONS FROM
INCOMING TO DRIVER ASSY: WHITE TO
WHITE, BLACK TO BLACK AND GREEN TO
GREEN. (FIG. 4-3)
6. INSTALLATION COMPLETE.
GLOBE
ASSEMBLY
LATCH
DRIVER
ASSEMBLY
QUICK-
DISCONNECT
CAST BALLAST
HOUSING
BLACK
WHITE
GREEN
BLACK
WHITE
GREEN
GRAY
PURPLE
FIG. 4-3
LATCH
LIFESHIELD
QUICK DISCONNECT

4321
AAA
B
4321
A
B
93049902
A
RETROFIT KIT Y-LED FGS SAL LENS
WITH CCO OPION
rcarrillo 12/23/13
FGS Y-LED
KC 12/23/13
KCRCECN # 14012001312/23/13A
DRAWING NO.SIZE
B
SCALE
CATALOG NO.
ENGINEERING:
CHECKED BY:
DIMENSIONS IN INCHES
DIMENSIONS IN [ ] IN MM
CONFORMS TO ASME Y14.5M
DO NOT SCALE PRINT
DRAWN:
THIRD ANGLE PROJECTION
MATERIAL: FINISH: PART NO.
REV.
UNSPECIFED TOLERANCES: INCHES
X.X= u 0.1 X.XX= u 0.03 X.XXX= u 0.010
FRACTIONS= u 1/32 ANGULAR TOLERANCE= u 1 v
This document contains confidential and proprietary information of Architectural
Area Lighting, a division of Hubbell Lighting, Inc. (HLI). Receipt or possession of
this document does not convey any rights to reproduce or disclose its contents,
or to make, use , or sell anything it may disclose. Reproduction, disclosure, or
use of the document or its contents, without the specific written authorization of
HLI, may violate the intellectual property rights of HLI.
--/--/-----
93049902
SHT 1
1 SHTS
RECORDREV DATE DESN CHCK
26 80115 16 INCHES RED 18 AWG WIRE
25 80104 16 INCHES BLACK 18 AWG WIRE
24 A84048 2 NUT 1/4-20 HEX SS
23 93049759 1 BRACKET FGL/FGS LED MOUNTING
22 A86002 1 SCR-1/4-20x7 LG. SS THRD.STUD
21 88552 1 FEMALE 4-PIN QUICK DISCONNECT
20 88548 1 FEMALE 2-PIN QUICK DISCONNECT
19 88110 6 Socket, Quick Disconnect
18 A74011 1 TERMINAL-FEMALE
17 A74010 1 TERMINAL-MALE
16 93023746 4 SCR-6-32x1/4 PHH PHMS SS
15 93049774 2 PLATE LED UPLIGHT
14 93045602 2 93045602 Pico Emmiter, Acrylic
13 SEE CHART 2 ASSY-PCB 2LED BOARD 1X2
12 93049762 1 BRACKET LED UPLIGHT FGL-FGS
11 A84032 2 SCR-8-32X1/2 PHH PHMS SS
10 93049763 1 BRACKET LIFESHIELD Y-LED
9 A74106 2 WIRE TERMINAL
8 A74026 AR CABLE TIE GT50S2 BIN ITEM
7 93017851 2 SCR-4-40x3/16 PHH PH MS SS
6 93042082-080051 1 SWITCH THERMAL N. O.
5 A84041 3 SETSCR-1/4-20x1 SS
4 A84051 5 SCR-1/4-20x1/2 BTN HD CAP SS
3 A56332-19 3 STANDOFF 3/8"DIA. X 11.5"
2 93041672 1 93041672-XXXX 32LED Optical Assembly
1 93046560 1 FGL/FGS LED MOUNTING PLATE
ITEM PART # QTY DESCRIPTION NOTES
PARTS LIST
43X
1
3 3X
5 3X
2
12
142X
132X
23
152X
4 2X
7 2X
11 2X
6
2 UP LED BOARD
ITEM # 13 P/N DESCRIPTION
93047432-3012 3000K
93047432-3014 4100K
93047432-3015 5100K
WIRE COLOR TO SLOT #
RED 4
BROWN 3
YELLOW 2
GRAY 1
4-PIN FEMALE CONNECTOR
WIRE COLOR TO SLOT #
PURPLE 1
GRAY 2
2-PIN FEMALE CONNECTOR
21
19 4X
20
10 2X
18
17
9 2X
22
24 2X
10
164X
26
25
1
2
3
4
SIDE VIEW
GRAY
PURPLE
RED
BLACK RED
BLACK
BLACK
RED
YELLOW
GRAY
BROWN
WHITE
PURPLE
GRAY
RED
1
2
SIDE VIEW

4321
AAA
B
4321
A
B
93049900
A
RETROFIT KIT Y-LED FGS SAL LENS
rcarrillo 12/20/13
FGS Y-LED
KC 12/20/13
KCRCECN # 14012001312/20/13A
DRAWING NO.SIZE
B
SCALE
CATALOG NO.
ENGINEERING:
CHECKED BY:
DIMENSIONS IN INCHES
DIMENSIONS IN [ ] IN MM
CONFORMS TO ASME Y14.5M
DO NOT SCALE PRINT
DRAWN:
THIRD ANGLE PROJECTION
MATERIAL: FINISH: PART NO.
REV.
UNSPECIFED TOLERANCES: INCHES
X.X= u 0.1 X.XX= u 0.03 X.XXX= u 0.010
FRACTIONS= u 1/32 ANGULAR TOLERANCE= u 1 v
This document contains confidential and proprietary information of Architectural
Area Lighting, a division of Hubbell Lighting, Inc. (HLI). Receipt or possession of
this document does not convey any rights to reproduce or disclose its contents,
or to make, use , or sell anything it may disclose. Reproduction, disclosure, or
use of the document or its contents, without the specific written authorization of
HLI, may violate the intellectual property rights of HLI.
--/--/-----
93049900
SHT 1
1 SHTS
RECORDREV DATE DESN CHCK
23 80115 16 INCHES RED 18 AWG WIRE
22 80104 16 INCHES BLACK 18 AWG WIRE
21 88552 1 FEMALE 4-PIN QUICK DISCONNECT
20 88548 1 FEMALE 2-PIN QUICK DISCONNECT
19 88110 6 Socket, Quick Disconnect
18 A74011 1 TERMINAL-FEMALE
17 A74010 1 TERMINAL-MALE
16 93023746 4 SCR-6-32x1/4 PHH PHMS SS
15 93049774 2 PLATE LED UPLIGHT
14 93045602 2 93045602 Pico Emmiter, Acrylic
13 SEE CHART 2 ASSY-PCB 2LED BOARD 1X2
12 93049762 1 BRACKET LED UPLIGHT FGL-FGS
11 A84032 2 SCR-8-32X1/2 PHH PHMS SS
10 93049763 1 BRACKET LIFESHIELD Y-LED
9 A74106 2 WIRE TERMINAL
8 A74026 AR CABLE TIE GT50S2 BIN ITEM
7 93017851 2 SCR-4-40x3/16 PHH PH MS SS
6 93042082-080051 1 SWITCH THERMAL N. O.
5 A84051 5 SCR-1/4-20x1/2 BTN HD CAP SS
4 A84041 3 SETSCR-1/4-20x1 SS
3 A56332-19 3 STANDOFF 3/8"DIA. X 11.5"
2 93041672 1 32LED Optical Assembly
1 93046560 1 FGL/FGS LED MOUNTING PLATE
ITEM PART # QTY DESCRIPTION NOTES
PARTS LIST
53X
1
3 3X
4 3X
2
12
142X
132X
164X
152X 5 2X
7 2X
11 2X
6
10
2 UP LED BOARD
ITEM # 13 P/N DESCRIPTION
93047432-3012 3000K
93047432-3014 4100K
93047432-3015 5100K
WIRE COLOR TO SLOT #
RED 4
BROWN 3
YELLOW 2
GRAY 1
4-PIN FEMALE CONNECTOR
WIRE COLOR TO SLOT #
PURPLE 1
GRAY 2
2-PIN FEMALE CONNECTOR
21
19 4X
20
19 2X
18
17
9 2X
22
23
1
2
3
4
SIDE VIEW
GRAY
PURPLE
RED
BLACK RED
BLACK
BLACK
RED
YELLOW
GRAY
BROWN
WHITE
PURPLE
GRAY
RED
1
2
SIDE VIEW

4321
AAA
B
4321
A
B
93049782
A
RETROFIT KIT Y-LED FGL SLG-PA3-PA5
LENS
rcarrillo 12/23/13
FGL Y-LED
KC 12/23/13
KCRCECN # 14012001212/23/13A
DRAWING NO.SIZE
B
SCALE
CATALOG NO.
ENGINEERING:
CHECKED BY:
DIMENSIONS IN INCHES
DIMENSIONS IN [ ] IN MM
CONFORMS TO ASME Y14.5M
DO NOT SCALE PRINT
DRAWN:
THIRD ANGLE PROJECTION
MATERIAL: FINISH: PART NO.
REV.
UNSPECIFED TOLERANCES: INCHES
X.X= u 0.1 X.XX= u 0.03 X.XXX= u 0.010
FRACTIONS= u 1/32 ANGULAR TOLERANCE= u 1 v
This document contains confidential and proprietary information of Architectural
Area Lighting, a division of Hubbell Lighting, Inc. (HLI). Receipt or possession of
this document does not convey any rights to reproduce or disclose its contents,
or to make, use , or sell anything it may disclose. Reproduction, disclosure, or
use of the document or its contents, without the specific written authorization of
HLI, may violate the intellectual property rights of HLI.
--/--/-----
93049782
SHT 1
1 SHTS
RECORDREV DATE DESN CHCK
26 80115 16 INCHES RED 18 AWG WIRE
25 80104 16 INCHES BLACK 18 AWG WIRE
24 A84048 2 NUT 1/4-20 HEX SS
23 93049759 1 BRACKET FGL/FGS LED MOUNTING
22 A86002-2 1 SCR-1/4-20x10 LG. SS THRD.STUD PA3 / PA5 LENS
A86002 1 SCR-1/4-20x7 LG. SS THRD.STUD SLG LENS
21 88552 1 FEMALE 4-PIN QUICK DISCONNECT
20 88548 1 FEMALE 2-PIN QUICK DISCONNECT
19 88110 6 Socket, Quick Disconnect
18 A74011 1 TERMINAL-FEMALE
17 A74010 1 TERMINAL-MALE
16 93023746 4 93023746 SCR. 6-32 x 1/4" PHH PHMS SS
15 93049774 2 PLATE LED UPLIGHT
14 93045602 2 93045602 Pico Emmiter, Acrylic
13 SEE SHART 2 ASSY-PCB 2LED BOARD 1X2
12 93049762 1 BRACKET LED UPLIGHT FGL-FGS
11 A84032 2 SCR-8-32X1/2 PHH PHMS SS
10 93049763 1 BRACKET LIFESHIELD Y-LED
9 A74106 2 WIRE TERMINAL
8 A74026 AR CABLE TIE GT50S2 BIN ITEM NOT SHOWN
7 93017851 2 SCR-4-40x3/16 PHH PH MS SS
6 93042082-080051 1 SWITCH THERMAL N. O.
5 A84041 3 SETSCR-1/4-20x1 SS
4 A84051 5 SCR-1/4-20x1/2 BTN HD CAP SS
3 A56332-18 3 STANDOFF 3/8"DIA. X 8"
2 93041672 1 32-LED OPTICAL ASSEMBLY
1 93046560 1 FGL/FGS LED MOUNTING PLATE
ITEM PART # QTY DESCRIPTION NOTES
PARTS LIST
43X
1
3 3X
5 3X
2
12
142X
132X
23
152X
4 2X
7 2X
11 2X
6
2 UP LED BOARD
ITEM # 13 P/N DESCRIPTION
93047432-3012 3000K
93047432-3014 4100K
93047432-3015 5100K
WIRE COLOR TO SLOT #
RED 4
BROWN 3
YELLOW 2
GRAY 1
4-PIN FEMALE CONNECTOR
WIRE COLOR TO SLOT #
PURPLE 1
GRAY 2
2-PIN FEMALE CONNECTOR
21
19 4X
20
10 2X
18
17
9 2X
22
24 2X
10
164X
1
2
3
4
SIDE VIEW
GRAY
PURPLE
RED
BLACK RED
BLACK
BLACK
RED
YELLOW
GRAY
BROWN
WHITE
PURPLE
GRAY
RED
1
2
SIDE VIEW
26
25

4321
AAA
B
4321
A
B
93049781
A
RETROFIT KIT Y-LED FGL SAL LENS
rcarrillo 12/20/13
FGL Y-LED
KC 12/20/13
KCRCECN # 14012001212/20/13A
DRAWING NO.SIZE
B
SCALE
CATALOG NO.
ENGINEERING:
CHECKED BY:
DIMENSIONS IN INCHES
DIMENSIONS IN [ ] IN MM
CONFORMS TO ASME Y14.5M
DO NOT SCALE PRINT
DRAWN:
THIRD ANGLE PROJECTION
MATERIAL: FINISH: PART NO.
REV.
UNSPECIFED TOLERANCES: INCHES
X.X= u 0.1 X.XX= u 0.03 X.XXX= u 0.010
FRACTIONS= u 1/32 ANGULAR TOLERANCE= u 1 v
This document contains confidential and proprietary information of Architectural
Area Lighting, a division of Hubbell Lighting, Inc. (HLI). Receipt or possession of
this document does not convey any rights to reproduce or disclose its contents,
or to make, use , or sell anything it may disclose. Reproduction, disclosure, or
use of the document or its contents, without the specific written authorization of
HLI, may violate the intellectual property rights of HLI.
--/--/-----
93049781
SHT 1
1 SHTS
RECORDREV DATE DESN CHCK
23 80115 16 INCHES RED 18 AWG WIRE
22 80104 16 INCHES BLACK 18 AWG WIRE
21 88552 1 FEMALE 4-PIN QUICK DISCONNECT
20 88548 1 FEMALE 2-PIN QUICK DISCONNECT
19 88110 6 Socket, Quick Disconnect
18 A74011 1 TERMINAL-FEMALE
17 A74010 1 TERMINAL-MALE
16 93023746 4 93023746 SCR. 6-32 x 1/4" PHH PHMS SS
15 93049774 2 PLATE LED UPLIGHT
14 93045602 2 93045602 Pico Emmiter, Acrylic
13 SEE SHART 2 ASSY-PCB 2LED BOARD 1X2
12 93049762 1 BRACKET LED UPLIGHT FGL-FGS
11 A84032 2 SCR-8-32X1/2 PHH PHMS SS
10 93049763 1 BRACKET LIFESHIELD Y-LED
9 A74106 2 WIRE TERMINAL NOT SHOWN
8 A74026 AR CABLE TIE GT50S2 BIN ITEM NOT SHOWN
7 93017851 2 SCR-4-40x3/16 PHH PH MS SS
6 93042082-080051 1 SWITCH THERMAL N. O.
5 A84051 5 SCR-1/4-20x1/2 BTN HD CAP SS
4 A84041 3 SETSCR-1/4-20x1 SS
3 A56332-18 3 STANDOFF 3/8"DIA. X 8"
2 93041672 1 32-LED OPTICAL ASSEMBLY
1 93046560 1 FGL/FGS LED MOUNTING PLATE
ITEM PART # QTY DESCRIPTION NOTES
PARTS LIST
53X
1
3 3X
4 3X
2
12
142X
132X
164X
152X 5 2X
7 2X
11 2X
6
10
2 UP LED BOARD
ITEM # 13 P/N DESCRIPTION
93047432-3012 3000K
93047432-3014 4100K
93047432-3015 5100K
WIRE COLOR TO SLOT #
RED 4
BROWN 3
YELLOW 2
GRAY 1
4-PIN FEMALE CONNECTOR
WIRE COLOR TO SLOT #
PURPLE 1
GRAY 2
2-PIN FEMALE CONNECTOR
21
19 4X
20
19 2X
18
17
9 2X
22
23
1
2
3
4
SIDE VIEW
GRAY
PURPLE
RED
BLACK RED
BLACK
BLACK
RED
YELLOW
GRAY
BROWN
WHITE
PURPLE
GRAY
RED
1
2
SIDE VIEW

Installation Instructions
Fixture: FEDERAL GLOBE (FGL/ FGS) FOR LED
A R C H I T E C T U R A L A R E A L I G H T I N G
93049780 REV. A
PAGE 1/1
TM
www.aal.net
16555 East Gale Avenue
City of Industry, CA 91745
626.968.5666
WARNING : Fixtures must be grounded in accordance with local codes or the National Electrical
Code. Failure to do so may result in serious personal injury.
MAINTENANCE : A regularly scheduled maintenance program should be established to retain optimum light
output and reduce heat retention. Dusting with a soft, clean, dry cloth is normally sufficient for the optics.
CAUTION : All wiring must be done by a qualified electrician. KEEP THIS SHEET FOR FUTURE REFERENCE.
1. Be sure all power is OFF.
2. Make wire connections from incoming supply
to fixture as shown. (White to White, Black to
Black and Green to Green) (Note: fixture must
be grounded to incoming equipment ground
supply.)
3. Slip fixture over pole top or tenon. Secure with
four (4) supplied stainless steel set screws.
4. Turn power ON.
!
WARNING:
THIS PRODUCT CONTAINS CHEMICALS KNOWN TO THE STATE OF
CALIFORNIA TO CAUSE CANCER, BIRTH DEFECTS, AND/OR OTHER
REPRODUCTIVE HARM. THROUGHLY WASH HANDS AFTER
INSTALLING, HANDLING, CLEANING OR OTHERWISE TOUCHING THIS
PRODUCT.
SET SCREWS
ELECTRICAL
CONNECTIONS
POLE
FIXTURE

Y-LED Upgrade Kit Installation Guide
Fixture: FGS - Federal Globe Small Scale (FGS) For SAL Lens With CCO Optical System
A R C H I T E C T U R A L A R E A L I G H T I N G
93049779 REV. A
PAGE 1/5
TM
www.aal.net
16555 East Gale Avenue
City of Industry, CA 91745
626.968.5666
PARTS LIST
ITEM # QTY PART # DESCRIPTION
1 1 93049902 RETROFIT KIT Y-LED SAL LENS WITH CCO OPTION
2 1 93049901 RETROFIT KIT Y-LED DRIVER ASSY
3 3 A84033 SCR-8-32 x 3/8" PHLPS PHMS S/S
!
WARNING : Fixtures must be grounded in accordance with local codes or the National Electrical
Code. Failure to do so may result in serious personal injury.
MAINTENANCE : A regularly scheduled maintenance program should be established to retain optimum light
output and reduce heat retention. Dusting with a soft, clean, dry cloth is normally sufficient for the optics.
CAUTION : All wiring must be done by a qualified electrician. KEEP THIS SHEET FOR FUTURE REFERENCE.
UPGRADE KIT CONTENTS
1
2
3

Y-LED Upgrade Kit Installation Guide
Fixture: FGS - Federal Globe Small Scale (FGS) For SAL Lens With CCO Optical System
A R C H I T E C T U R A L A R E A L I G H T I N G
93049779 REV. A
PAGE 2/5
TM
www.aal.net
16555 East Gale Avenue
City of Industry, CA 91745
626.968.5666
1. REMOVE LENS
TURN OFF ALL POWER TO
THE UNIT AND TAKE PROPER SAFETY
PRECAUTION. FAILURE TO DO SO MAY RESULT IN
SERIOUS PERSONAL INJURY.
1. REMOVE FINIAL BY TURNING IT COUNTER
CLOCKWISE. (FIG. 1-1)
2. REMOVE GASKET AND TOP LENS ASSEMBLY.
DO NOT DISCARD. (FIG. 1-1)
3. WITH A PHILLIPS HEAD SCREW DRIVER LOOSEN
THREE SCREWS AND REMOVE CCO OPTICAL
SYSTEM FROM CAST LID. (FIG. 1-2)
!
FIG. 1-1 FIG. 1-2
CCO OPTICAL
SYSTEM
CAST BALLAST
HOUSING
SCR-8-32 x 1/4"
PHLPS PHMS S/S
3X
FINIAL
GASKET
GLOBE
ASSEMBLY
GLOBE
ASSEMBLY
