Architectural Area Lighting Towne Commons ALN540 User manual

A R C H I T E C T U R A L A R E A L I G H T I N G
93046611 REV. A
PAGE 1/10
www.aal.net
16555 East Gale Avenue
City of Industry, CA 91745
626.968.5666
Towne Commons LED Retro-fit Installation Guide
Fixture: ALN540 - Towne Commons

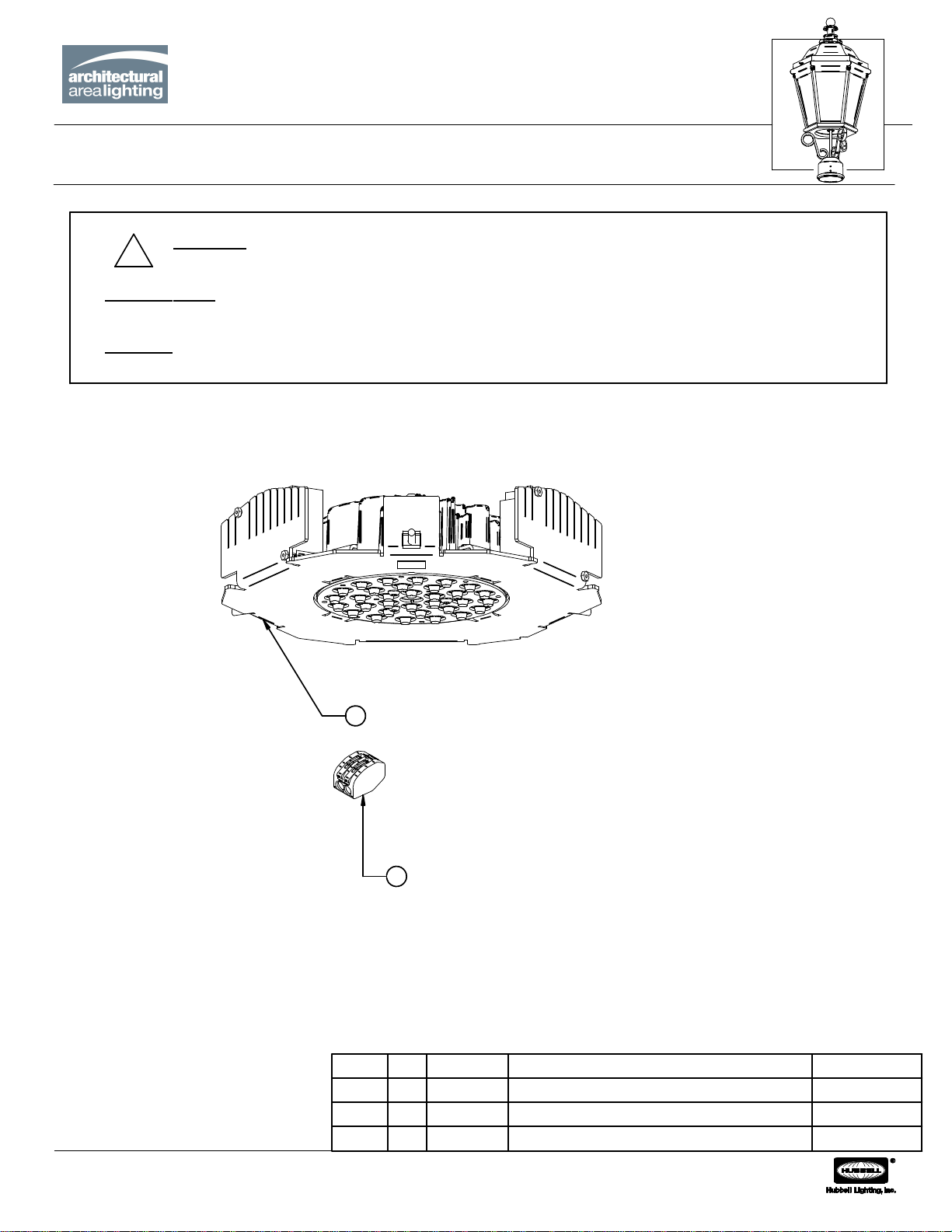

RETRO-FIT KIT PACKAGE CONTENTS:
3 2 88033 CABLE TIE 4in HEAT STABILIZED (NOT SHOWN)
2 1 LED LED OPTICAL AND DRIVER ASSY
1 6 93035846 CONN-WAGO 2-WIRE 222-412 LEVER LOCK
ITEM # QTY PART # DESCRIPTION NOTES
2
1
!
WARNING : Fixtures must be grounded in accordance with local codes or the National Electrical
Code. Failure to do so may result in serious personal injury.
MAINTENANCE : A regularly scheduled maintenance program should be established to retain optimum light
output and reduce heat retention. Dusting with a soft, clean, dry cloth is normally sufficient for the optics.
CAUTION : All wiring must be done by a qualified electrician. KEEP THIS SHEET FOR FUTURE REFERENCE.

A R C H I T E C T U R A L A R E A L I G H T I N G
93046611 REV. A
PAGE 2/10
www.aal.net
16555 East Gale Avenue
City of Industry, CA 91745
626.968.5666
Towne Commons LED Retro-fit Installation Guide
Fixture: ALN540 - Towne Commons
FIG. 1-1

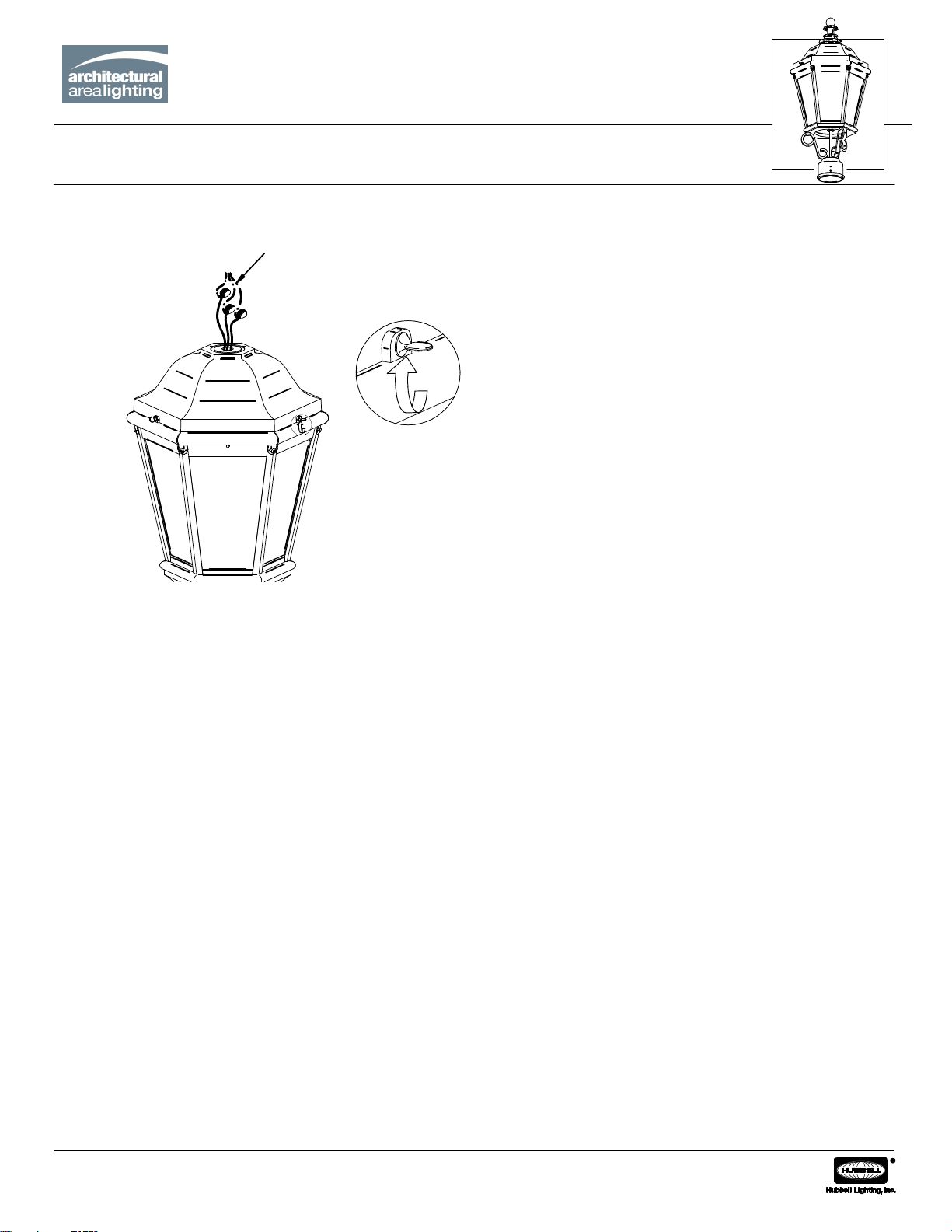

1.
OPENING THE TOP CAP
2.
REMOVING OLD OPTICAL ASSEMBLY
1) TURN OFF POWER TO THE UNIT AND TAKE PROPER SAFETY PRECAUTION!
2) Loosen the two thumb screws by rotating counter-clockwise.
3) Lift the top cap, and open the fixture.
1) Remove any lamp or bulb from the optical assembly, and
unplug all the connectors.
2) Remove the optical assembly by removing all of the screws.
FIG. 1-2
FIG. 2-1 FIG. 2-2
Optical Assembly
NOTES: Shown for reference, actual parts may varies.
Lamp
CONNECTORS

A R C H I T E C T U R A L A R E A L I G H T I N G
93046611 REV. A
PAGE 3/10
www.aal.net
16555 East Gale Avenue
City of Industry, CA 91745
626.968.5666
Towne Commons LED Retro-fit Installation Guide
Fixture: ALN540 - Towne Commons
FIG. 3-1
3.
REMOVING OLD BALLAST ASSEMBLY
4.
CONNECT THE WIRES
1) Rotate both of the knurl screws, and lift the plate
upward.
2) Remove (2) 8-32 screws to discard the old ballast
assembly, and cut the wires connection from the
output side.
3) Remove and cut the wire connection on the input side
from the ballast to the wires from the pole.
1) Connect the wires from the pole to the wires
from the wireway with the provided lever lock
connectors.
2) Install the plate and rotate both knurls at
clockwise direction until secured.
FIG. 3-1A
FIG. 4-1 FIG. 4-2
NOTES:
REMOVE AND CUT OUTPUT WIRES
NOTES:
CUT INPUT WIRES
FIG. 3-2
TWO SCREWS
FIG. 4-1A
OLD BALLAST ASSEMBLY

A R C H I T E C T U R A L A R E A L I G H T I N G
93046611 REV. A
PAGE 4/10
www.aal.net
16555 East Gale Avenue
City of Industry, CA 91745
626.968.5666
Towne Commons LED Retro-fit Installation Guide
Fixture: ALN540 - Towne Commons
FIG. 5-1
5.
INSTALLING THE LED RETRO-FIT KIT
6.
WIRING THE CONNECTORS
1) Drop in the LED module assembly inside the fixture
2) Make sure the "STREET SIDE" is pointing towards the
desired direction.
3) Tighten 3 of the thumb screws until the kit is secured.
FIG.6-1
FIG. 5-2A FIG. 5-3
FIG. 5-2
FIG. 6-1A
1) Connect the wires from the LED module assembly
with provided lever connectors.
(NOTE: WHITE TO WHITE, BLACK TO BLACK,
AND GREEN TO GREEN)
"STREET SIDE" THUMB SCREW
LEVER CONNECTORS
LED MODULE ASSEMBLY

A R C H I T E C T U R A L A R E A L I G H T I N G
93046611 REV. A
PAGE 5/10
www.aal.net
16555 East Gale Avenue
City of Industry, CA 91745
626.968.5666
Towne Commons LED Retro-fit Installation Guide
Fixture: ALN540 - Towne Commons
7.
CLOSING THE CAP
1) Close the cap.
2) Tighten two thumb screws by rotating clockwise until secured.
3) The installation process is complete.
FIG.7-1
FIG.7-2

A R C H I T E C T U R A L A R E A L I G H T I N G
93046611 REV. A
PAGE 6/10
www.aal.net
16555 East Gale Avenue
City of Industry, CA 91745
626.968.5666
Towne Commons LED Retro-fit Installation Guide
Fixture: ALN540 - Towne Commons

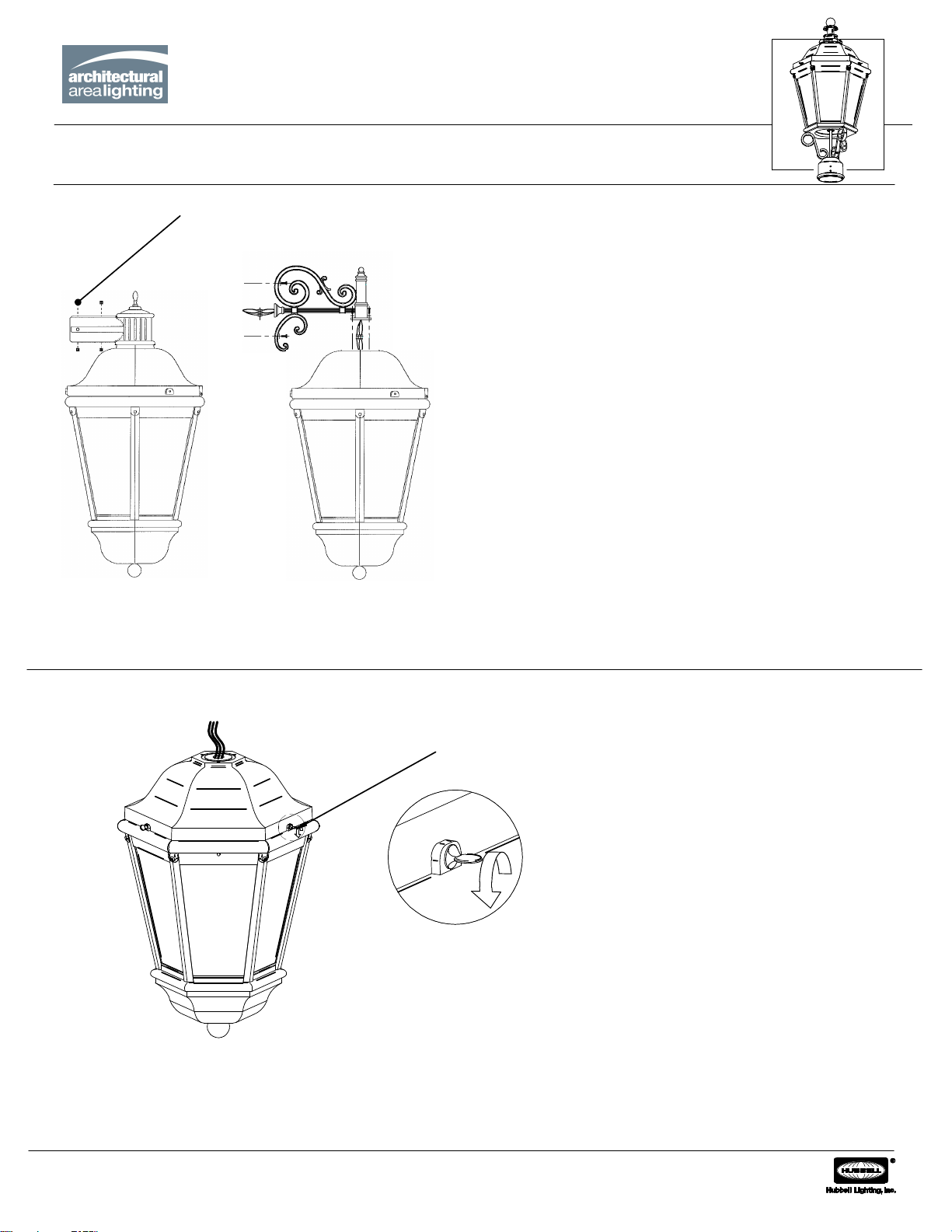

1.
REMOVE FIXTURE FROM ARM ASSEMBLY
2.
OPENING THE TOP CAP
1) Loosen the two thumb screws by rotating counter-clockwise.
2) Lift the top cap, and open the fixture.
FIG. 2-1
FIG. 2-2
FIG. 1-2
MAT ARM FIG. 1-3
DECORATIVE ARM
1) TURN OFF POWER TO THE UNIT AND TAKE PROPER SAFETY PRECAUTION!
2) FOR MAT ARM: Remove (4) x 1/4-20 set screws, and hex bolt, and disconnect
the connectors and take the fixture down
3) FOR DECORATIVE ARM: Remove (3) 5/16-18 x 1" S/S screws, then disconnect
the connectors and take the fixture down
SET SCREWS
THUMB SCREWS

A R C H I T E C T U R A L A R E A L I G H T I N G
93046611 REV. A
PAGE 7/10
www.aal.net
16555 East Gale Avenue
City of Industry, CA 91745
626.968.5666
Towne Commons LED Retro-fit Installation Guide
Fixture: ALN540 - Towne Commons

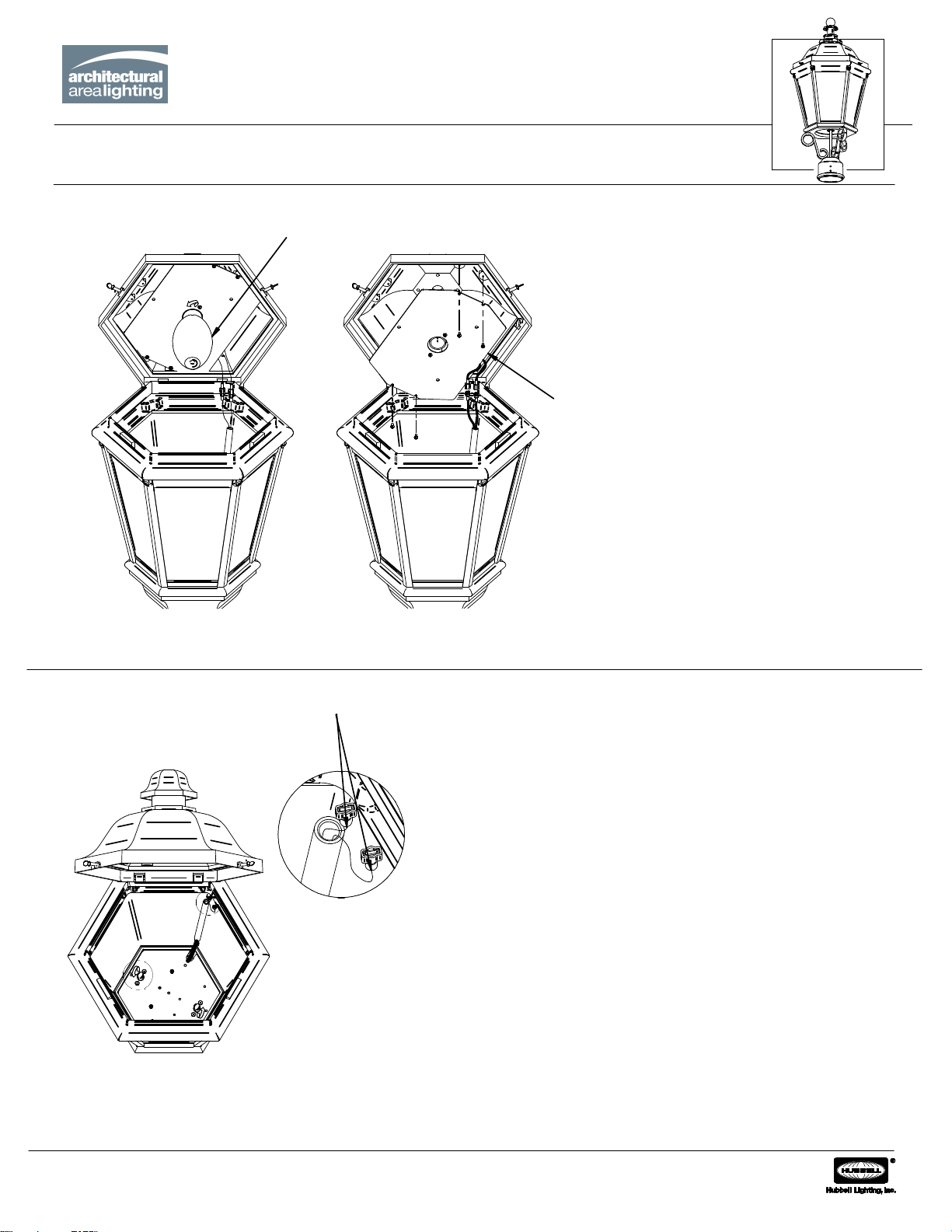

3.
REMOVE FIXTURE FROM POLES
4
OPENING THE TOP CAP
1) Remove any lamp or bulb from the optical assembly, and
unplug all the connectors.
2) Remove the optical assembly by removing all of the screws.
FIG. 3-1 FIG. 3-2
Optical Assembly
NOTES: Shown for reference, actual parts may varies.
Lamp
FIG. 4-1
1) Cut the wires on the wireway.
CUT THE WIRES

A R C H I T E C T U R A L A R E A L I G H T I N G
93046611 REV. A
PAGE 8/10
www.aal.net
16555 East Gale Avenue
City of Industry, CA 91745
626.968.5666
Towne Commons LED Retro-fit Installation Guide
Fixture: ALN540 - Towne Commons
FIG.5-1
5.
INSTALLING THE LED RETRO-FIT KIT
6.
WIRING THE CONNECTORS
1) Drop in the LED module assembly inside the fixture
2) Make sure the "STREET SIDE" is pointing towards the
desired direction.
3) Tighten 3 of the thumb screws until the kit is secured.
FIG.6-1
FIG. 5-2A FIG. 5-3
FIG. 5-2
FIG. 6-1A
1) Connect the wires from the LED module assembly
with provided lever connectors.
(NOTE: WHITE TO WHITE, BLACK TO BLACK,
AND GREEN TO GREEN)
LED MODULE ASSEMBLY
LEVER CONNECTORS

A R C H I T E C T U R A L A R E A L I G H T I N G
93046611 REV. A
PAGE 9/10
www.aal.net
16555 East Gale Avenue
City of Industry, CA 91745
626.968.5666
Towne Commons LED Retro-fit Installation Guide
Fixture: ALN540 - Towne Commons
7.
CLOSING THE CAP
1) Close the cap.
2) Tighten two thumb screws by rotating clockwise until secured.
3) Connect the output wires to arm assembly
4) The installation process is complete.
FIG.7-1
FIG.7-2
OUTPUT WIRES CONNECTION TO ARM ASSEMBLY

A R C H I T E C T U R A L A R E A L I G H T I N G
93046611 REV. A
PAGE 10/10
www.aal.net
16555 East Gale Avenue
City of Industry, CA 91745
626.968.5666
Towne Commons LED Retro-fit Installation Guide
Fixture: ALN540 - Towne Commons
8.
WIRING DIAGRAM
INCOMING
LEADS
BLACK
WHITE
GREEN (GND)
BLACK
WHITE WHITE
GREEN
BLACK
SURGE
PROTECTOR
SURGE
PROTECTOR
3-PIN FEMALE
QUICK
DISCONNECT
3-PIN MALE
QUICK
DISCONNECT
BOND
GRAY(-)
PURPLE(+)
Driver 1
Driver 2
POS
POS
NEG
NEG
930430741000_A
TC1
J1
J2
J3
J4
FI1
FI2
FI3
^
^^
^
GRY(-) (DRV1)
YLW(+) (DRV1)
BRWN(-) (DRV2)
WHT(+) (DRV2)
120-277V
TRP
LED40W-036-C1100-D
BLACK (-)
PURPLE
WHITE
BLACK
GRAY
RED (+)
INPUT
OUTPUT
120-277V
TRP
LED40W-036-C1100-D
PURPLE
WHITE
BLACK
GRAY
INPUT
OUTPUT
LIFE SHIELD
GRAY(-)
PURPLE(+)
BLACK (-)
RED (+)
YELLOW
YELLOW

A R C H I T E C T U R A L A R E A L I G H T I N G
93046610 REV. A
PAGE 1 /7
www.aal.net
16555 East Gale Avenue
City of Industry, CA 91745
626.968.5666
Towne Commons Installation Guide
Fixture: ALN540 - Towne Commons
TABLE OF CONTENTS
POST TOP MOUNT .......................................................................... pg. 2
POLE MOUNT ARM ............................................................................ pg. 3
WALL MOUNT ARM UP .................................................................... pg. 4
POLE MOUNT DECORATIVE ARM DOWN .................................... pg. 5
WALL MOUNT DECORATIVE ARM DOWN ..................................... pg. 6
POLE MOUNT ARM DOWN ............................................................ pg. 7
!
WARNING : Fixtures must be grounded in accordance with local codes or the National Electrical
Code. Failure to do so may result in serious personal injury.
MAINTENANCE : A regularly scheduled maintenance program should be established to retain optimum light
output and reduce heat retention. Dusting with a soft, clean, dry cloth is normally sufficient for the optics.
CAUTION : All wiring must be done by a qualified electrician. KEEP THIS SHEET FOR FUTURE REFERENCE.
ALN540-Y*-32LED-TRA55
ALN540D-Y*-32LED-TRA2*
ALN540-Y*-32LED-STND_MNT
ALN540-Y*-32LED-WMA55
ALN540D-Y*-32LED-MAT
ALN540D-Y*-32LED-WMA2*

A R C H I T E C T U R A L A R E A L I G H T I N G
93046610 REV. A
PAGE 2 /7
www.aal.net
16555 East Gale Avenue
City of Industry, CA 91745
626.968.5666
Towne Commons Installation Guide
Fixture: ALN540 - Towne Commons
POST TOP MOUNT
STEPS:
1) Turn off power to the unit and take proper safety precaution.
2) Make wire connections from incoming supply to arm/fixture assembly and slip over pole. Purple
and gray are 0-10V dimming wires, and can be connected when necessary.
(NOTE: WHITE TO WHITE, BLACK TO BLACK, AND GREEN TO GREEN)
3) Rotate fixture assembly to desired orientation. Securely tighten (6) 1/4-20 S/S set screws
by using 1/8" hex screw driver.
4) Turn on power and check for operation.
5) Installation is complete.
POLE
(REF.)
(6) S/S SET SCREWS
WIRE CONNECTORS
(BY OTHERS)

A R C H I T E C T U R A L A R E A L I G H T I N G
93046610 REV. A
PAGE 3 /7
www.aal.net
16555 East Gale Avenue
City of Industry, CA 91745
626.968.5666
Towne Commons Installation Guide
Fixture: ALN540 - Towne Commons
POLE MOUNT ARM
STEPS:
1) Turn off power to the unit and take proper safety precaution.
2) Make wire connections from incoming supply to arm/fixture assembly. Purple
and gray are 0-10V dimming wires, and can be connected when necessary.
(NOTE: WHITE TO WHITE, BLACK TO BLACK, AND GREEN TO GREEN)
3) Secure arm assembly to the pole with (2) 3/8-16 x 1 1/2" S/S hex bolts and lock washers.
4) Make wire connections from arm to fixture as shown.
5) Secure fixture to arm with (6) 1/4-20 x 1" S/S set screws by using 1/8" hex screw driver.
6) Turn on power and check for operation.
7) Installation is complete.
(2) 3/8-16 x 1 1/2" S/S hex bolts

A R C H I T E C T U R A L A R E A L I G H T I N G
93046610 REV. A
PAGE 4 /7
www.aal.net
16555 East Gale Avenue
City of Industry, CA 91745
626.968.5666
Towne Commons Installation Guide
Fixture: ALN540 - Towne Commons

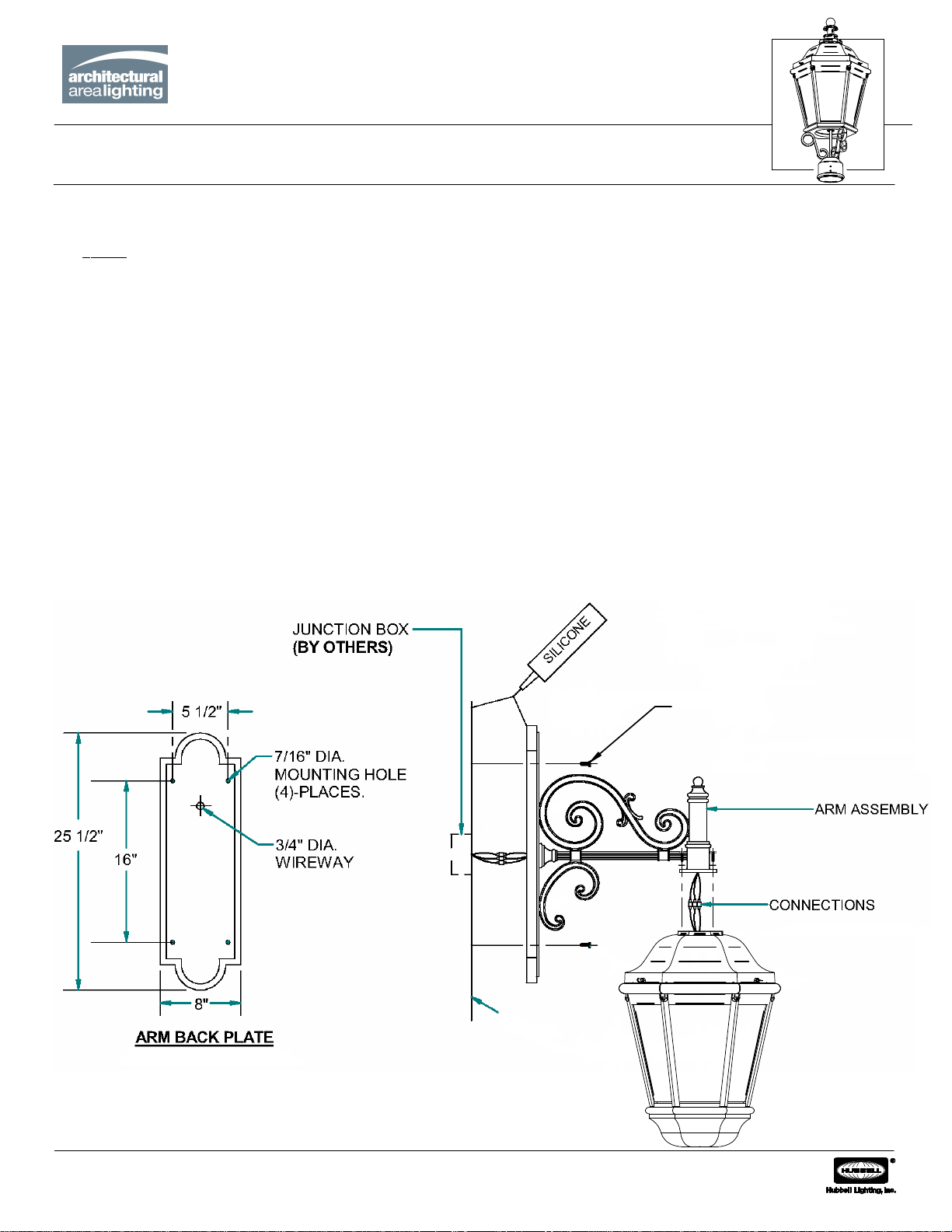

WALL MOUNT ARM UP
4 x MOUNTING SCREWS 4 x MOUNTING SCREWS
STEPS:
1) Turn off power to the unit and take proper safety precaution.
2) Make wire connections from incoming supply to arm/fixture assembly. Purple
and gray are 0-10V dimming wires, and can be connected when necessary.
(NOTE: WHITE TO WHITE, BLACK TO BLACK, AND GREEN TO GREEN)
3) Secure arm assembly to the mounting surface by using (4) mounting hardware
(NOTE: MOUNTING HARDWARE BY OTHERS)
4) Make wire connections from arm to fixture as shown.
5) Secure fixture to arm with (6) 1/4-20 S/S set screws by using 1/8" hex screw driver.
6) Apply silicone continuosly all around the back plate and mounting surface.
7) Turn on power and check for operation.
8) Installation is complete.

A R C H I T E C T U R A L A R E A L I G H T I N G
93046610 REV. A
PAGE 5 /7
www.aal.net
16555 East Gale Avenue
City of Industry, CA 91745
626.968.5666
Towne Commons Installation Guide
Fixture: ALN540 - Towne Commons
POLE MOUNT DECORATIVE ARM DOWN
POLE
(REF.)
STEPS:
1) Turn off power to the unit and take proper safety precaution.
2) Make wire connections from incoming supply to arm/fixture assembly. Purple
and gray are 0-10V dimming wires, and can be connected when necessary.
(NOTE: WHITE TO WHITE, BLACK TO BLACK, AND GREEN TO GREEN)
3) Secure arm assembly to the pole with (2) 3/8-16 x 1 1/2" hex bolts and lock washers
4) Make wire connections from arm to fixture as shown.
5) Secure fixture to arm with (3) 5/16-18 x 1" S/S screws and lock washers.
6) Turn on power and check for operation.
7) Installation is complete.
(3) 5/16-18 X 1" S/S
SCREWS AND
LOCK WASHERS
(2) 3/8-16 X 1 1/2" S/S
HEX BOLTS AND
LOCK WASHERS

A R C H I T E C T U R A L A R E A L I G H T I N G
93046610 REV. A
PAGE 6 /7
www.aal.net
16555 East Gale Avenue
City of Industry, CA 91745
626.968.5666
Towne Commons Installation Guide
Fixture: ALN540 - Towne Commons
WALL MOUNT DECORATIVE ARM DOWN
STEPS:
1) Turn off power to the unit and take proper safety precaution.
2) Make wire connections from incoming supply to arm/fixture assembly. Purple
and gray are 0-10V dimming wires, and can be connected when necessary.
(NOTE: WHITE TO WHITE, BLACK TO BLACK, AND GREEN TO GREEN)
3) Secure arm assembly to the mounting surface by using (4) mounting hardware
(NOTE: MOUNTING HARDWARE BY OTHERS)
4) Make wire connections from arm to fixture as shown.
5) Secure fixture to arm with (3) 5/16-18 x 1" S/S screws and lock washers.
6) Apply silicone continuosly all around the back plate and mounting surface.
7) Turn on power and check for operation.
8) Installation complete.
(4) MOUNTING SCREWS
MOUNTING
SURFACE

A R C H I T E C T U R A L A R E A L I G H T I N G
93046610 REV. A
PAGE 7 /7
www.aal.net
16555 East Gale Avenue
City of Industry, CA 91745
626.968.5666
Towne Commons Installation Guide
Fixture: ALN540 - Towne Commons
POLE MOUNT ARM DOWN
STEPS:
1) Turn off power to the unit and take proper safety precaution.
2) Make wire connections from incoming supply to arm/fixture assembly. Purple
and gray are 0-10V dimming wires, and can be connected when necessary.
(NOTE: WHITE TO WHITE, BLACK TO BLACK, AND GREEN
TO GREEN)
3) Secure arm assembly to the pole with (1) 3/8-16 x 1" S/S hex bolts
and lock washers. (NOTE: ARM TO BE FIELD DRILLED FOR 3/8-16
HEX BOLT)
4) Make wire connections from arm to fixture as shown.
5) Secure fixture to arm with (4) 3/8-16 x 1" S/S set screws.
6) Turn on power and check for operation.
7) Installation is complete.
(4) 3/8-16 X 3/8" S/S
SET SCREW

INSTALLATION INSTRUCTIONS
1) TURN OFF POWER.
2) MAKE WIRE CONNECTIONS FROM FIXTURE TO
POLE AS SHOWN. (WHITE TO WHITE,
BLACK TO BLACK, AND GREEN TO GREEN).
PUSH WIRES AND CONNECTORS INTO POLE.
3) MAKE WIRE CONNECTIONS FROM INCOMING
SUPPLY TO FIXTURE AS SHOWN. (NOTE-
ASSEMBLY MUST BE GROUNDED TO
INCOMING EQUIPMENT GROUND SUPPLY.
4) SECURE TO POLE WITH (6) 1/4-20 S/S SET
SCREWS.
5) OPEN TOP LID. INSTALL REQ'D LAMP, CLOSE
LID AND SECURE.
CANDLEABRA
FIXTURE ASS'Y
TOP LID
(6) S/S SET SCREWS
CONNECTIONS
4" O.D. POLE
(REF.)
14249 Artesia Blvd. P.O. Box 1869
La Mirada CA. 90638-1869
714-994-2700
fax [phone]
INSTALLATION INSTRUCTIONS
ARCHITECTURAL
AREA
LIGHTING DATE REV
DATE APPRVD
CATALOG NUMBER
ALN540-PM-H*-CND
PART NO. A96209

LAMP
BY OTHERS (REF).
HOOD
FIXTURE ASS'Y
CONNECTIONS
(6) S/S SET SCREWS
MOUNTING SURFACE
7/16" DIA.
MOUNTING HOLE
(4)-PLACES.
3/4" DIA.
WIREWAY.
SEE NOTE # 3
ARM ASS'Y
ARM BACK PLATE
(MOUNTING DETAIL)
SILICONE
INSTALLATION INSTRUCTIONS
1) TURN OFF POWER.
2) MAKE WIRE CONNECTION FROM INCOMING SUPPLY
TO ARM AS SHOWN. (NOTE-ASSEMBLY MUST BE GROUNDED
TO INCOMING EQUIPMENT GROUND SUPPLY.
3) SECURE ARM ASS'Y TO MOUNTING SURFACE (WALL).
(NOTE: MOUNTING HARDWARE BY OTHERS).
4) MAKE WIRE CONNECTIONS FROM ARM TO FIXTURE AS
SHOWN. (WHITE TO WHITE, BLACK TO BLACK, AND
GREEN TO GREEN). PUSH WIRES AND CONNECTORS INTO
ARM.
5) SECURE FIXTURE TO ARM WITH (6) 1/4-20 x S/S SET
SCREWS.
6) TO INSTALL LAMP, LOOSEN THE (2) SET SCREWS
FROM HOOD, OPEN HOOD AND INSTALL REQUIRED LAMP,
CLOSE HOOD AND SECURE.
7) APPLY CONTINUOUS BEAD OF SILICONE ALL
AROUND BACK PLATE WHERE IT MEETS
MOUNTING SURFACE.
NOTE:
BALLAST REMOTE, REMOTE COMPARTMENT AND
INSTALLATION BY OTHERS.
14249 Artesia Blvd. P.O. Box 1869
La Mirada CA. 90638-1869
714-994-2700 fax [phone]
INSTALLATION INSTRUCTIONS
ARCHITECTURAL
AREA
LIGHTING
CATALOG NUMBER
ALN540-PM-H*-
WMA-55
DATE REV
DATE APPRVD
PART NO. A96220

CONNECTIONS
(3) S/S HEX BOLTS
(2) S/S HEX BOLTS
POLE 4" O.D.
(REF).
FIXTURE ASS'Y
GLASS
REFRACTOR
INSTALLATION INSTRUCTIONS
1) TURN OFF POWER.
2) SECURE ARM ASS'Y TO POLE WITH (2) S/S HEX BOLT.
HOLE FOR 3/8-16 S/S HEX BOLT TO BE FIELD DRILLED
AND TAPPED INTO POLE BY OTHERS.
3) MAKE WIRE CONNECTION FROM INCOMING SUPPLY
TO ARM AS SHOWN. (NOTE-ASSEMBLY MUST BE GROUNDED
TO INCOMING EQUIPMENT GROUND SUPPLY.
4) MAKE WIRE CONNECTIONS FROM ARM TO FIXTURE AS
SHOWN. (WHITE EO WHITE, BLACK TO BLACK, AND
GREEN TO GREEN). PUSH WIRES AND CONNECTORS INTO
FIXTURE.
5) SECURE FIXTURE TO ARM WITH (3) 3/8-16 S/S HEX BOLT.
6) OPEN TOP LID. INSTALL REQ'D LAMP, CLOSE LID
AND SECURE.
ARM ASS'Y
14249 Artesia Blvd. P.O. Box 1869
La Mirada CA. 90638-1869
714-994-2700
fax [phone]
INSTALLATION INSTRUCTIONS
ARCHITECTURAL
AREA
LIGHTING
PART NO. A96207
DATE REV
DATE APPRVD
CATALOG NUMBER
ALN540-GR*-TRA2M
