Archlit LeeSti BrytDyt Trimless 45 Degrees User manual

a r c h l i t
architecture lit
LeeSti BrytDyt Trimless - 45 v
Installation Instructions
archlit 42 Ithanell Rd Hopatcong, NJ 07843 USA 973.577.4400 www.archlit.com Page 1 of 7
P/N # 493.45-823
1. Disconnect electrical power from lighting circuit before installation.
2. Make sure LED drivers, Linear LED Modules and all other fixture
components are present.
3. This installation assumes Class 2 two conductor wires have been
run from fixture mount location to LED driver enclosure location.
4. Install LED driver enclosure as shown on age 7 of 7, in an
accessible. dry and well ventilated location using the screw holes
provided on enclosure flange.
5. Make wire connection from LED driver to two conductor Class 2
wire, running in wall\ceiling with wire nuts (not included).
6. Cutout drywall at fixture mount location as per Submittal.
Please read these instructions completely before attemping this installation.
CAUTION-RI K OF FIRE. THI PRODUCT MU T BE IN TALLED IN ACCORDANCE WITH THE
APPLICABLE IN TALLATION CODE BY A PER ON FAMILIAR WITH THE CON TRUCTION AND
OPERATION OF THE PRODUCT AND HAZARD INVOLVED.

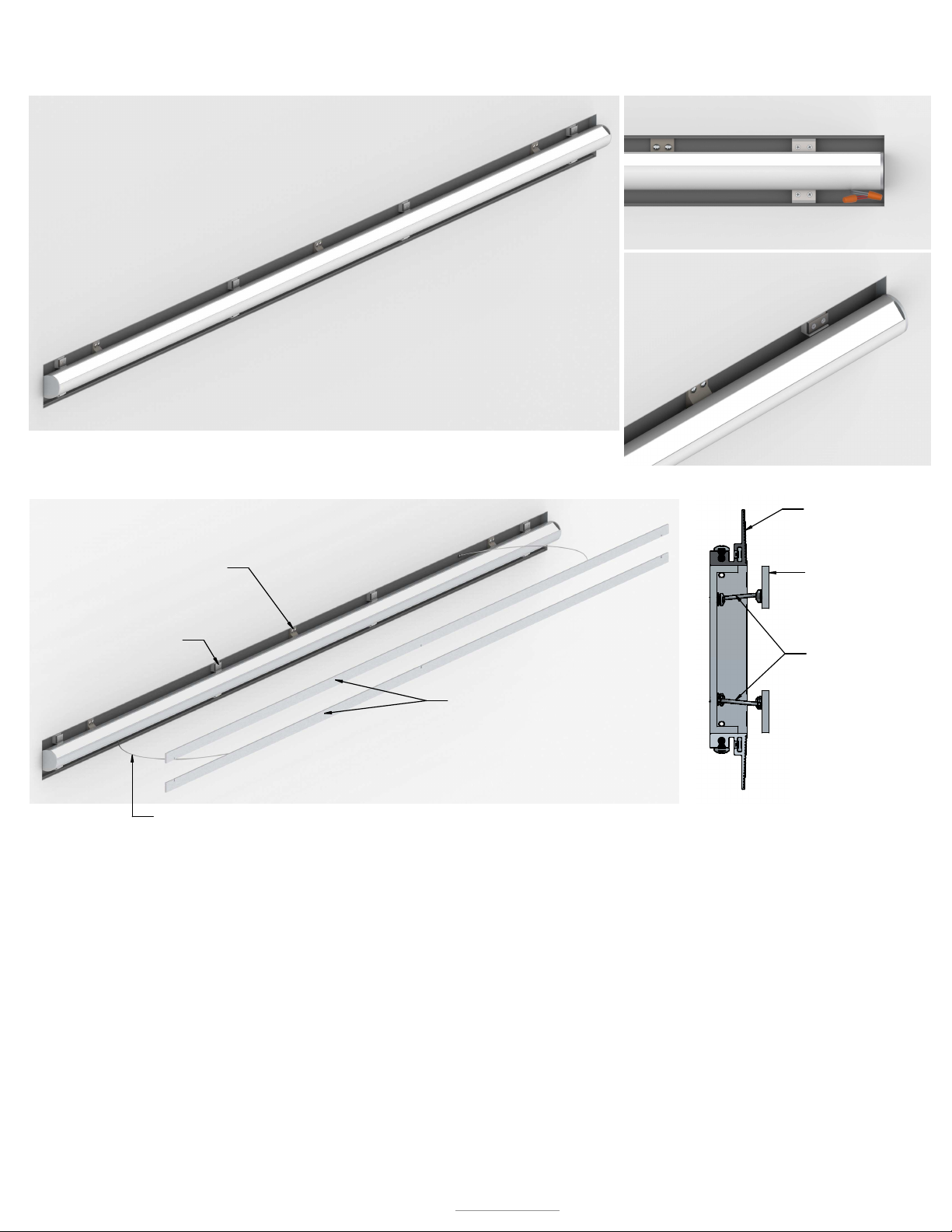

Drywall cutout
Fixture frame assembly
(with magnets)
Front Steel bars
LED module assembly
Feed wire from
Remote drivers
Wirenuts
(by others)
Fixture assembly parts
Exploded view
SECTION
LED module
45°
Front
Steel bars

a r c h l i t
architecture lit
LeeSti BrytDyt Trimless - 45 v
Installation Instructions
archlit 42 Ithanell Rd Hopatcong, NJ 07843 USA 973.577.4400 www.archlit.com Page 2 of 7
P/N # 493.45-823

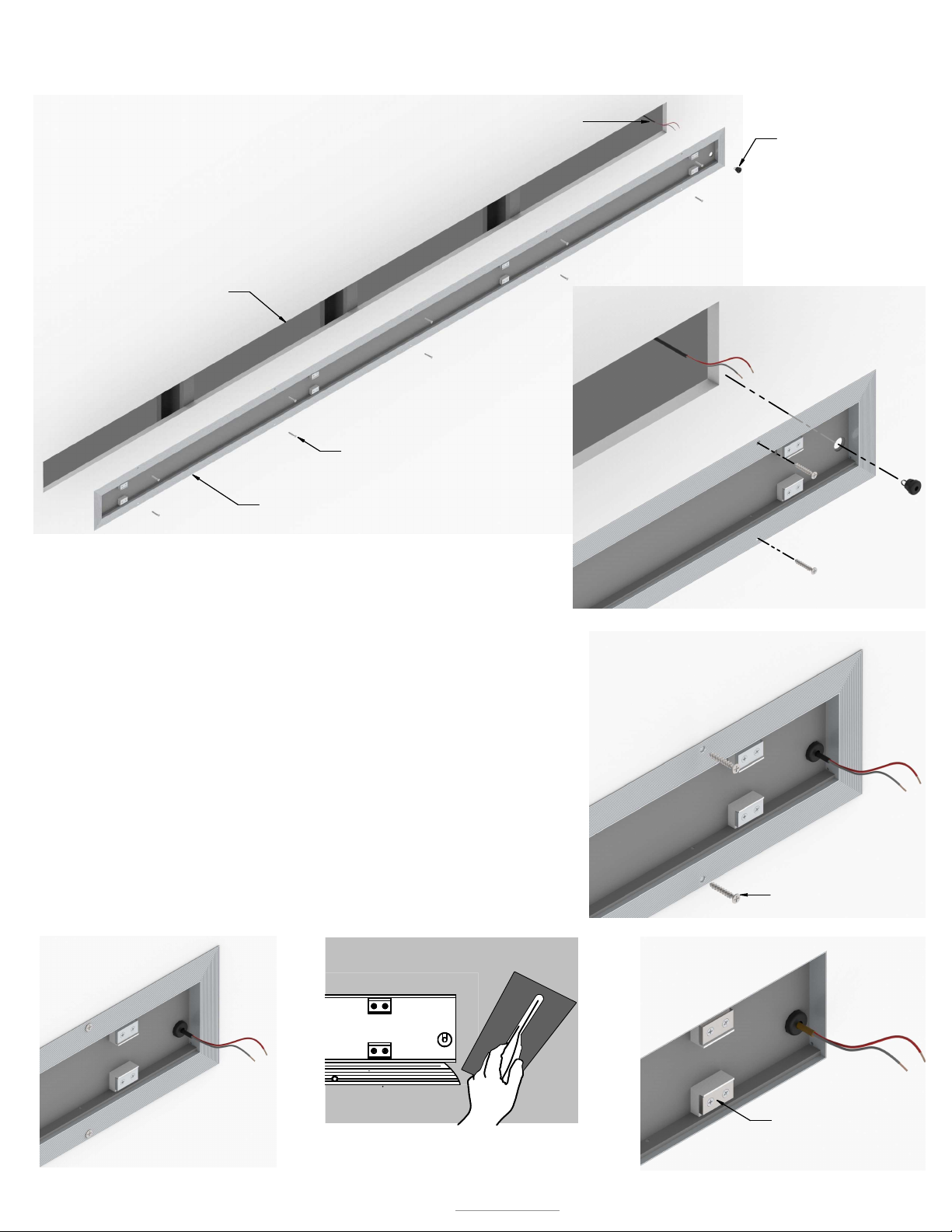

Drywall cutout
Fixture frame
Feed wire from
Remote drivers
Installing fixture frame
Drywall screws
Wire hole
bushing
Passing feed wire
from Remote drivers
through wire hole in frame
( tep 7 )
tep 8 :
ecuring fixture frame
to drywall
Drywall screws
7. Insert feed wire from Remote drivers into fixture frame
through feed wire hole on U-channel at fixture ends to
connect to LED module wires later. Make sure to use
wire bushing (provided) in hole to avoid wire cutting.
8. Insert fixture frame into drywall cutout till trimless flanges
touch drywall. Secure it to drywall using drywall screws
(not provided) at marked locations on each trimless
flange/extrusion.
9. Finish wall\ ceiling by covering trimless flange with mud.
Donot applying mud on inner surface of trimless extrusion.
Make sure front surface of magnets (present inside frame)
remain free from dust.
tep 9 : Drywall Finish /
Applying mud
Magnets
Fixture after applying mud

a r c h l i t
architecture lit
LeeSti BrytDyt Trimless - 45 v
Installation Instructions
archlit 42 Ithanell Rd Hopatcong, NJ 07843 USA 973.577.4400 www.archlit.com Page 3 of 7
P/N # 493.45-823
LED module
assembly
Feed wire from Remote drivers
Wirenuts (by others)
Wires from LED module
Module
Mounting block
#6-32 x 1/4"
screws
Module
Mounting
block
tep 10 :Making Feed wire connections
tep 11 : ecuring LED module to Frame U-channel
LED module
#6-32 x 1/4"
screws
Module
Mounting block
Frame
U-channel
Section /
LED module installed
Section /
Installing LED module
10. Connect feed wires from Remote
Drivers to wires from LED module
using wirenuts (not provided).
11. Insert LED module into fixture frame
and align each Module Mounting
blocks (secured to LED module)
to screw holes on U-channel.
12. Secure each Module Mounting block
to U-channel using (2) 6-32 x 1/4"
hillips pan head screws.
Drywall
5/8"

a r c h l i t
architecture lit
LeeSti BrytDyt Trimless - 45 v
Installation Instructions
archlit 42 Ithanell Rd Hopatcong, NJ 07843 USA 973.577.4400 www.archlit.com Page 4 of 7
P/N # 493.45-823
13. Make sure there is no pinched wire and wirenuts are not interfering with LED module.
14. Insert both Front Steel bars into frame in tilted position and centered to frame length.
15. Slide and push inwards to snap them to magnets. Make sure both upper and lower Front Steel
bars are installed straight and parallel to frame.
16. Front Steel bars are pre-secured to frame by Safety cable, make sure they are placed well
inside frame. The notches on Steel bars at both ends aid in uninstalling. Make sure the side
with notches is placed towards LED module for both Steel bars.
17. To uninstall Front Steel bars insert a allen key into slots provided on them and pull out to
detach bars from magnets. Make sure not to damage drywall.
LED module secured to Frame U-channel
Installing (2)Front teel bars
Front Steel bars
(attach to magnets)
Module
Mounting block
Magnets Safety
Cables
ection /
Front steel bars
pre-secured by safety cables
Front Steel
bars
Fixture frame
Safety Cables

a r c h l i t
architecture lit
LeeSti BrytDyt Trimless - 45 v
Installation Instructions
archlit 42 Ithanell Rd Hopatcong, NJ 07843 USA 973.577.4400 www.archlit.com Page 5 of 7
P/N # 493.45-823
teps (14-16): Installing (2)Front teel bars
slide in
slide in
Notch at Steel bars,
to aid in uninstalling
Steel plates install straight
and aligned to frame
Front view / Finished fixture
Drywall
5/8"
Notch side placed
toward LED module
Safety cables
(pre-installed securing
Steel bars to frame)
Front Steel
bars
Magnets

a r c h l i t
architecture lit
LeeSti BrytDyt Trimless - 45 v
Installation Instructions
archlit 42 Ithanell Rd Hopatcong, NJ 07843 USA 973.577.4400 www.archlit.com Page 6 of 7
P/N # 493.45-823
18. Make sure fixture is well secured to wall\ceiling and there are no pinched or exposed wires.
19. Make Mains power connection to LED driver using provided connector inside driver enclosure.
Make sure Mains power Ground wire is secured to green ground wire inside driver enclosure.
20. Restore Mains power.

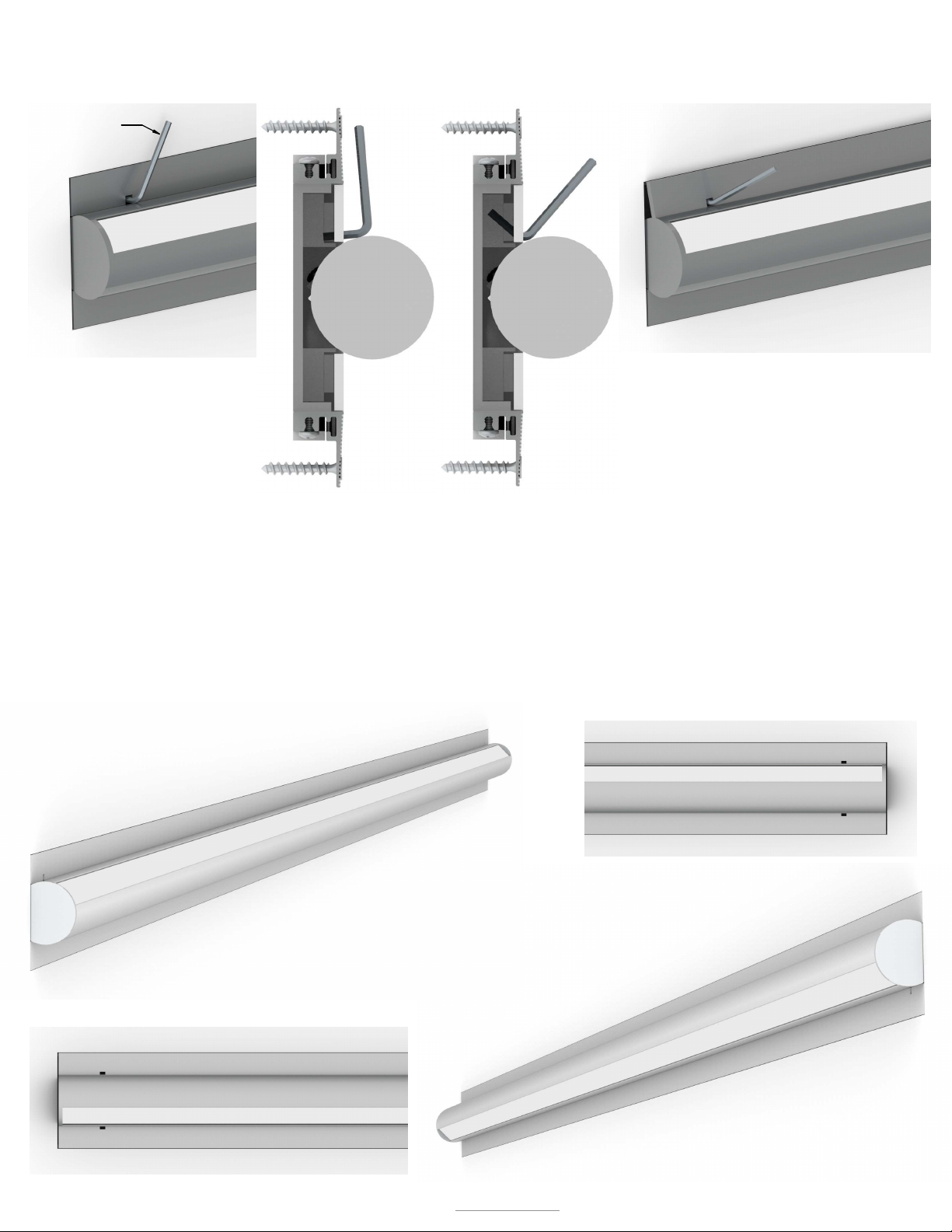

teps (17): Uninstalling Front teel bars (if required)
Insert allen key to slot Pullout allen key
(use plier to pull key if required)
Allen key
Upward
Downward

a r c h l i t
architecture lit
LeeSti BrytDyt Trimless - 45 v
Installation Instructions
archlit 42 Ithanell Rd Hopatcong, NJ 07843 USA 973.577.4400 www.archlit.com Page 7 of 7
P/N # 493.45-823

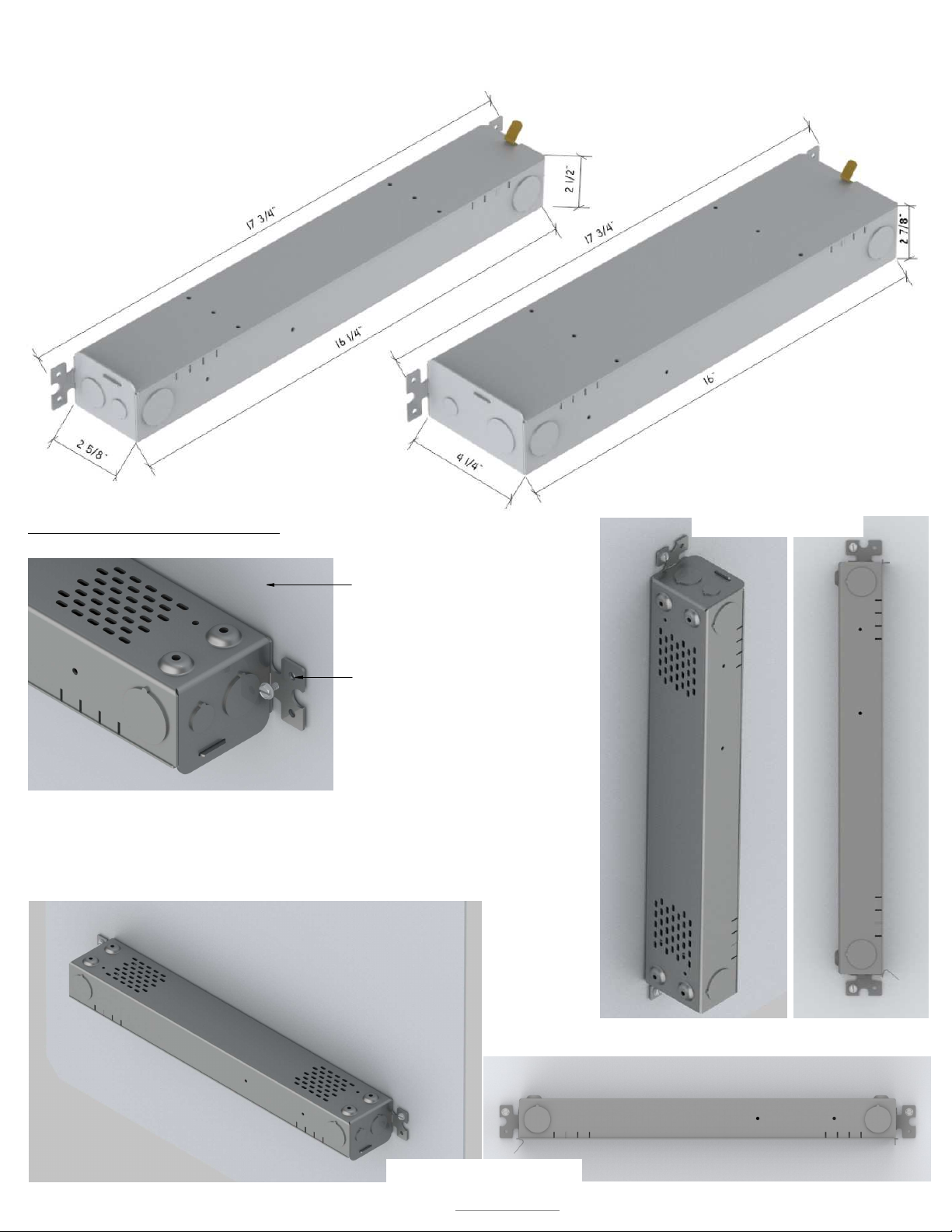

Driver box
Enclosure mall
Driver box Enclosure
Large
ecure Driver box enclosure flange
to remote mounting surface by
a screw at each end of enclosure
Driver enclosure,
should be installed
with flanges secured
to mounting surface
as shown
Driver enclosure
mounting surface
Installing Driver enclosure
Horizontal mounting
Vertical mounting
