Arctic King KAW05M1AWT User manual

KAW05M1AWT
KAW05R1AWT
KAW06R1AWT
KAW08R1AWT
KAW10R1AWT
KAW12R1AWT
KAW15R1AWT

!
Table of Contents
Important Safety Instructions ...................................................03
Installation Instructions..............................................................13
Normal Sounds............................................................................27
Air Conditioner Features............................................................28
Care and Cleaning.......................................................................33
Troubleshooting Tips..................................................................34
Remote Control Instructions...................................................... 36
...................................................... 43Warranty and Return Policy

WARNING
Important Safety Instructions
Inside you will nd many helpful hints on how to use and maintain your air conditioner
properly. Just a little preventive care on your part can save you a great deal of time and
money over the life of your air conditioner. You'll nd many answers to common
problems in the chart of troubleshooting tips. If you review our chart of Troubleshooting
Tips rst, you may not need to call for service at all.
To prevent injury to the user or other people and property damage, the following
instructions must be followed. Incorrect operation due to ignoring of instructions may
cause harm or damage. The seriousness is classied by the following indications.
.
READ THIS MANUAL
Plug in power plug properly. Otherwise, it may cause electric shock or re due to excess
heat generation. Do not operate or stop the unit by inserting or pulling out the power
plug.It may cause electric shock or re due to heat generation. Do not damage or use an
unspecied power cord.It may cause electric shock or re. If the power cord is damaged,
it must be replaced by the manufacturer or an authorised service centre or a similarly
qualied person in order to avoid a hazard.
Always install circuit breaker and a dedicated power circuit. Incorrect installation may
cause re and electric shock. Do not operate with wet hands or in damp environment. It
may cause electric shock . Do not direct airow at room occupants only. This could
damage your health.
Always ensure eective grounding.Incorrect grounding may cause electric shock. Do not
allow water to run into electric parts.It may cause failure of machine of electric shock.
Do not modify power cord length or share the outlet with other appliances. It may cause
electric shock or re due to heat generation.
Unplug the unit if strange sounds, smell, or smoke comes from it. It may cause re and
electricshock. Do not use the socket if it is loose or damaged. It may cause re and electric
shock. Do not open the unit during operation. It may cause electric shock.
Keep rearms away. It may cause re. Do not use the power cord close to heating
appliances.It may cause re and electric shock.
Do not use the power cord near ammable
gas or combustibles, such as gasoline, benzene, thinner, etc. It may cause an explosion or re.
Ventilate room before operating air conditioner if there is a gas leakage from another
appliance. It may cause explosion, re and, burns. Do not disassemble or modify unit. It
may cause failure and electric shock.
This symbol indicates the possibility of death or serious injury .
Always do this.
Never do this.
CAUTION
This symbol indicates the possibility of injury or damage to property.
WARNING
Page 3 

CAUTION
This appliance is not intended for use by persons (including children) with reduced
physical ,sensory or mental capabilities or lack of experience and knowledge, unless they
have beengivensu pervision or instruction concerning use of the appliance by a person
responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualied persons in order to avoid a hazard.
The appliance shall be installed in accordance with national wiring regulations.
Do not operate your air conditioner in a wet room such as a bathroom or laundry room.
The appliance with electric heater shall have at least 1meter space to the combustible
materials.
Contactthe authorised service technician for repair or maintenance of this unit.
Contact the authorised installer for installation of this unit.
Do not operate the louvers with your hands, it may cause an injury.
CAUTION
When the air lter is to be removed, do not touch the metal parts of the unit. It may cause
an injury. Do not put a pet or house plant where it will be exposed to direct air ow. This
could injure the pet or plant. Ventilate the room well when used together with a stove,
etc. An oxygen shortage may occur.
Do not use strong detergent such as wax or thinner but use a soft cloth. Appearance may
be deteriorated due to change of product color or scratching of its surface. Do not clean
the air conditioner with water. Water may enter the unit and degrade the insulation. It
may cause an electric shock. Do not use for special purposes. Do not use this air
conditioner to preserve precision devices, food, pets, plants, and art objects.lt may cause
deterioration of quality, etc.
Stop operation and close the window in storm or hurricane. Operation with windows
opened may cause wetting of indoor and soaking of household furniture. When the unit
is to be cleaned, switch o, and turn o the circuit breaker.Do not clean unit when power
is on as it may cause re and electric shock, it may cause an injury. Ensure that the
installation bracket of the outdoor appliance is not damaged due to prolonged exposure.
If bracket is damaged, there is concern of damage due to falling of unit.
Always insert the lters securely. Clean lter once every two weeks. Operation without
lters may cause failure. Hold the plug by the head of the power plug when taking it out.
It may cause electric shock and damage. Turn o the main power switch when not using
the unit for a long time. It may cause failure of product or re.
Do not place obstacles around air-inlets or inside of air-outlet. It may cause failure of
appliance or accident. Do not place heavy object on the power cord and ensure that the
cord is not compressed. There is danger of re or electric shock. Do not drink water
drained from air conditioner. It contains contaminants and could make you sick.
Use caution when unpacking and installing. Sharp edges could cause injury.
If water enters the unit, turn the unit o at the powei outlet and switch o the circuit
breaker. Isolate supply by taking the power-plug out and contact a qualied service
technician.
Page 4 

WARNING
Page 5 

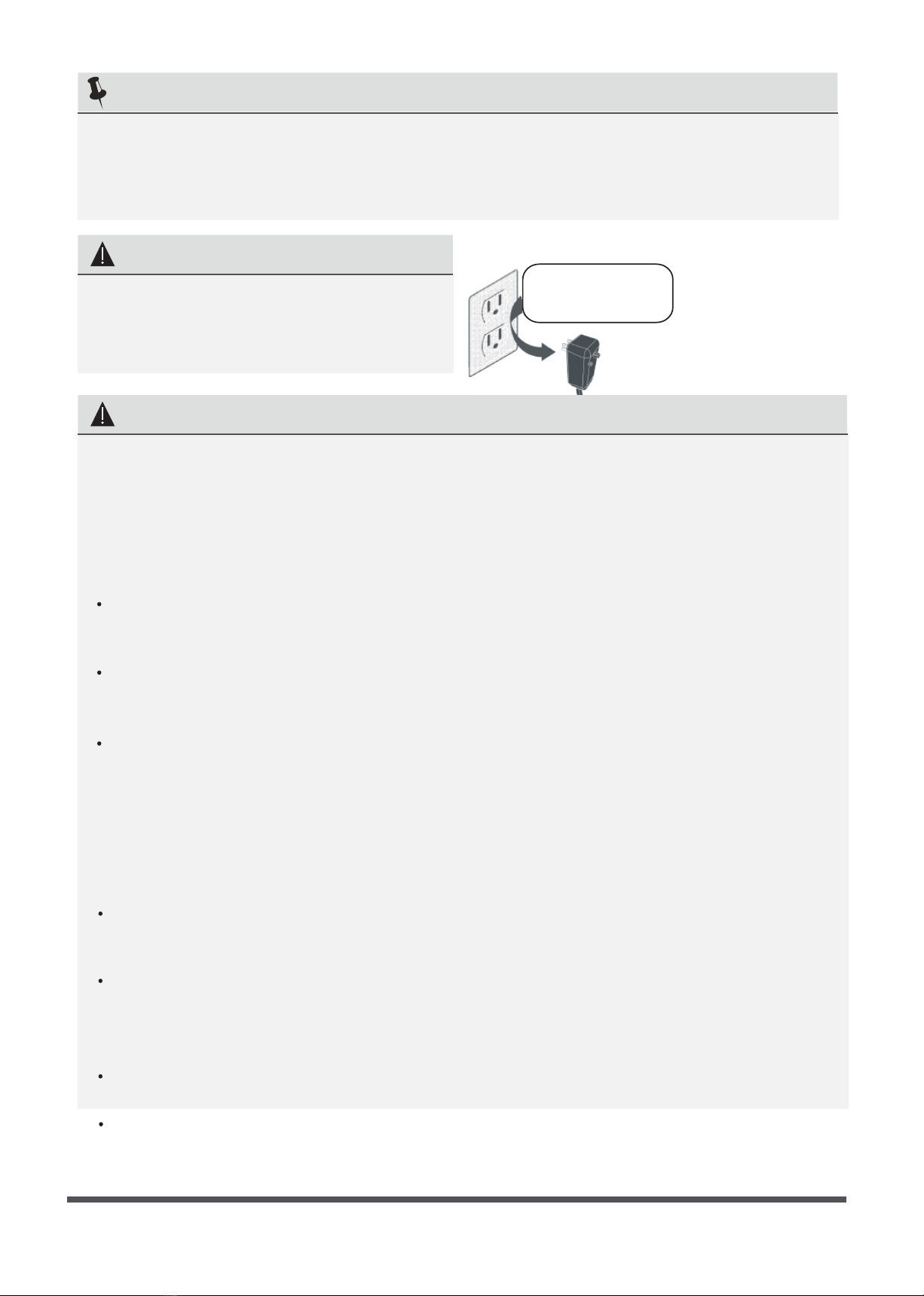

Do not, under any
circumstances, cut,
remove, or bypass
the grounding prong.
NOTE:
The power supply cord with this air conditioner contains a current detection device
designed to reduce the risk of re. Please refer to the section Operation of Current Device
for details.In the event that the power supply cord is damaged, it cannot be repaired-it
must be replaced with acord from the Product Manufacturer.
Avoid re hazard or electric shock. Do not
use an extension cord or an adaptor plug.
Do not remove any prong from the power
cord.
Grounding type wall receptacle
Power supply cord with
3-prong grounding plug
and current detection
device.
WARNING
Do not store or use gasoline or other ammable vapors and liquids in the vicinity of this
or any other appliance.
To reduce the risk of re, electrical shock, or injury to persons when using your air
conditioner, follow basic precautions, including the following:
Be sure the electrical service is adequate for the model you have chosen. This
information can be found on the serial plate, which is located on the side of the the
cabinet and behind the grille.
If the air conditioner is to be istalled in a window,you will probably want to clean both
sides of the glass rst. If the window is a triple-trackty pew it has creen panel included,
remove the screen completely before installation.
Be sure the airconditionerh as been securely and correctly in stalled accordingto the
installation instructions in this manual. Save this manual for possible future use in
removing or installing this unit. When handling the air conditioner, be careful to
avoid cutsf romsnarpm etalf ins on front and rear coils.
For Your Safety
Prevent Accidents
The complete electical rating of your new room air conditioner is stated on the serial
plate. Refer to the rating when checking the electrical requirements.
Be sure the air conditioner is properly grounded. To minimize shock and re hazards,
proper grounding is important. The power cord is equipped with a three-prong
grounding plug for protection against shock hazards.
Your air conditioner must be used in a properly grounded wall receptacle. If the wall
receptacle you intend to use is not adequately grounded or protected by a time delay
fuse or circuit breaker, have a qualied electrician install the proper receptacle. Ensure
the receptacle is accessible after the unit installation.
Do not run air conditioner without side protective cover in place.This could result in
mechanical damage within the air conditioner.
Do not use an extension cord or an adapter plug.
Electrical Information

Operation of Current Device
(Applicable to the unit adopts current detection device only )
Note: Performance may be reduced
outside of these operating
temperatures.
WARNING：(for using R290/R32 refrigerant only)
-Do not use means to accelerate the defrosting process or to clean, other than those
recommended by the manufacturer.
-The appliance shall be stored in a room without continuously operating ignition sources
(for example: open ames, an operating gas appliance) and ignition sourcesor (for example:
an operating electric heater) close to the appliance. The appliance shall be stored in a room
without continuously operating ignition sources (for example: open ames, an operating
gas appliance or an operating electric heater).
-Do not pierce or burn.
-Be aware that the refrigerants may not contain an odour.
-Compliance with national gas regulations shall be observed.
-Keep ventilation openings clear of obstruction.
-The appliance shall be stored so as to prevent mechanical damage from occurring.
-A warning that the appliance shall be stored in a well-ventilated area where the room size
corresponds to the room area as specied for operation.
-Any person who is involved with working on or breaking into a refrigerant circuit should
hold a current valid certicate from an industry-accredited assessment authority, which
authorises their competence to handle refrigerants safely in accordance with an industry
recognised assessment specication.
NOTE:
Do not use this device to turn the unit on or o.
Always make sure the RESET button is pushed in for correct operation.
The power supply must be replaced if it fails reset when either the TEST button is
pushed, or it cannot be reset. A new one can be obtained from the product manufacturer.
If power supply cord is damaged, it cannot be repaired. It MUST be replaced by one
obtained from the product manufacturer.
NOTE:This air conditioner is designed to be operated under condition as follows:
The power supply cord contains a current device that senses damage to the power cord.
To test your power supply cord do the following:
1. Plug in the Air Conditioner.
2. The power supply cord will have TWO buttons on the plug head. Press the TEST
button, you will notice a click as the RESET button pops out.
3. Press the RESET button, again you will notice a click as the button engages.
4. The power supply cord is now supplying electricity to the unit. (On some products this
it also indicated by a light on the plug head.)
Page 6 
Cooling
operation
Outdoor temp:
Indoor temp:
Heating
operation
Outdoor temp:
O
O
23-76 F/ C-5-24
Indoor temp:
O
32-80 F/
O
0-27 C
O O O O
64-109 F/18-43 C (64-125 F/18-52 C
for special tropical models)
O
62-90 F/
O
17-32 C

WARNINGS (for using R290/R32 refrigerant only)
1.Transport of equipment containing flammable refrigerants
See transport regulations
2.Marking of equipment using signs
See local regulations
3.Disposal of equipment using flammable refrigerants
See national regulations.
4.Storage of equipment/appliances
The storage of equipment should be in accordance with the manufacturer's instructions.
5.Storage of packed (unsold) equipment
Storage package protection should be constructed such that mechanical damage to the
equipment inside the package will not cause a leak of the refrigerant charge.
The maximum number of pieces of equipment permitted to be stored together will be
determined by local regulations.
6.Information on servicing
1)Checks to the area
Prior to beginning work on systems containing ammable refrigerants, safety checks are
necessary to ensure that the risk of ignition is minimised. For repair to the refrigerating
system, the following precautions shall be complied with prior to conducting work on
the system.
2)Work procedure
Work shall be undertaken under a controlled procedure so as to minimise the risk of a
ammable gas or vapour being present while the work is being performed.
3)General work area
All maintenance sta and others working in the local area shall be instructed on the
nature of work being carried out. Work in conned spaces shall be avoided. The area
around the workspace shall be sectioned o. Ensure that the conditions within the area
have been made safe by control of ammable material.
4)Checking for presence of refrigerant
The area shall be checked with an appropriate refrigerant detector prior to and during
work, to ensure the technician is aware of potentially ammable atmospheres. Ensure
that the leak detection equipment being used is suitable for use with ammable
refrigerants, i.e. non-sparking, adequately sealed or intrinsically safe.
5)Presence of re extinguisher
If any hot work is to be conducted on the
refrigeration equipment or any associated parts,
appropriate re extinguishing equipment shall be available to hand. Have a dry powder
or CO2 re extinguisher adjacent to the charging area.
6)No ignition sources
No person carrying out work in relatio
n to a refrigeration system which involves exposing
any pipe work that contains or has contained ammable refrigerant shall use any sources
of ignition in such a manner that it may lead to the risk of re or explosion. All possible
ignition sources, including cigarette smoking, should be kept suciently far away from
the site of installation, repairing, removing and disposal, during which ammable
refrigerant can possibly be released to the surrounding space. Prior to work taking place,
the area around the equipment is to be surveyed to make sure that there are no
ammable hazards or ignition risks. No Smoking signs shall be displayed.
Page 8 

WARNINGS (for using R290/R32 refrigerant only)
7)ventilated area
Ensure that the area is in the open or that it is adequately ventilated before breaking
into the system or conducting any hot work. A degree of ventilation shall continue
during the period that the work is carried out. The ventilation should safely disperse any
released refrigerant and preferably expel it externally into the atmosphere.
8)Checks to the refrigeration equipment
Where electrical components are being changed, they shall be t for the purpose and to
the correct specication. At all times the manufacturer's maintenance and service
guidelines shall be followed. If in doubt consult the manufacturer's technical department
for assistance. The following checks shall be applied to installations using ammable
refrigerants:
The charge size is in accordance with the room size within which the refrigerant
containing parts are installed;
The ventilation machinery and outlets are operating adequately and are not obstructed;
If an indirect refrigerating circuit is being used, the secondary circuit shall be checked for
the presence of refrigerant;
Marking to the equipment continues to be visible and legible. Markings and signs that
are illegible shall be corrected;
Refrigeration pipe or components are installed in a position where they are unlikely to
be exposed to any substance which may corrode refrigerant containing components,
unless the components are constructed of materials which are inherently resistant to
being corroded or are suitably protected against being so corroded.
9)Checks to electrical devices
Repair and maintenance to electrical components shall include initial safety checks and
component inspection procedures. If a fault exists that could compromise safety, then
no electrical supply shall be connected to the circuit until it is satisfactorily dealt with. If
the fault cannot be corrected immediately but it is necessary to continue operation, an
adequate temporary solution shall be used. This shall be reported to the owner of the
equipment so all parties are advised.
Initial safety checks shall include:
That capacitors are discharged: this shall be done in a safe manner to avoid possibility of
sparking;
That there no live electrical components and wiring are exposed while charging,
recovering or purging the system;
That there is continuity of earth bonding.
7.Repairs to sealed components
1)During repairs to sealed components, all electrical supplies shall be disconnected from
the equipment being worked upon prior to any removal of sealed covers, etc. If it is
absolutely necessary to have an electrical supply to equipment during servicing, then a
permanently operating form of leak detection shall be located at the most critical point
to warn of a potentially hazardous situation.
2)P
articular attention shall be paid to the following to ensure that by working on electrical
components, the casing is not altered in such a way that the level of protection is aected.
This shall include damage to cables, excessive number of connections, terminals not made
to original specication, damage to seals, incorrect tting of glands, etc.
Ensure that apparatus is mounted securely.
Page 9 

WARNINGS (for using R290/R32 refrigerant only)
Page 10
Ensure that seals or sealing materials have not degraded such that they no longer serve
the purpose of preventing the ingress of ammable atmospheres. Replacement parts
shall be in accordance with the manufacturer's specications.
NOTE: The use of silicon sealant may inhibit the eectiveness of some types of leak
detection equipment. Intrinsically safe components do not have to be isolated prior to
working on them.
8.Repair to intrinsically safe components
Do not apply any permanent inductive or capacitance loads to the circuit without
ensuring that this will not exceed the permissible voltage and current permitted for the
equipment in use. Intrinsically safe components are the only types that can be worked on
while live in the presence of a ammable atmosphere. The test apparatus shall be at the
correct rating.Replace components only with parts specied by the manufacturer. Other
parts may result in the ignition of refrigerant in the atmosphere from a leak.
9.Cabling
Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration,
sharp edges or any other adverse environmental eects. The check shall also take into
account the eects of aging or continual vibration from sources such as compressors or fans.
10.Detection of flammable refrigerants
Under no circumstances shall potential sources of ignition be used in the searching for or
detection of refrigerant leaks. A halide torch (or any other detector using a naked ame)
shall not be used.
11.Leak detection methods
The following leak detection methods are deemed acceptable for systems containing
ammable refrigerants. Electronic leak detectors shall be used to detect ammable
refrigerants, but the sensitivity may not be adequate, or may need re-calibration.
(Detection equipment shall be calibrated in a refrigerant-free area.) Ensure that the
detector is not a potential source of ignition and is suitable for the refrigerant used. Leak
detection equipment shall be set at a percentage of the LFL of the refrigerant and shall be
calibrated to the refrigerant employed and the appropriate percentage of gas (25 %
maximum) is conrmed. Leak detection uids are suitable for use with most refrigerants
but the use of detergents containing chlorine shall be avoided as the chlorine may react
with the refrigerant and corrode the copper pipe-work. If a leak is suspected, all naked
ames shall be removed/ extinguished. If a leakage of refrigerant is found which requires
brazing, all of the refrigerant shall be recovered from the system, or isolated (by means of
shut o valves) in a part of the system remote from the leak. Oxygen free nitrogen (OFN)
shall then be purged through the system both before and during the brazing process.
12.Removal and evacuation
When breaking into the refrigerant circuit to make repairs or for any other purpose
conventional procedures shall be used. However, it is important that best practice is
followed since ammability is a consideration. Opening of the refrigeration systems shall
not be done by brazing. The following procedure shall be adhered to:
Remove refrigerant;
Purge the circuit with inert gas;
Evacuate;
Purge again with inert gas;

Page 11
WARNINGS (for using R290/R32 refrigerant only)
Open the circuit by cutting or brazing.
The refrigerant charge shall be recovered into the correct recovery cylinders. The system
shall be ushed with OFN to render the unit safe. This process may need to be repeated
several times. Compressed air or oxygen shall not be used for this task.
Flushing shall be achieved by breaking the vacuum in the system with OFN and
continuing to ll until the working pressure is achieved, then venting to atmosphere, and
nally pulling down to a vacuum. This process shall be repeated until no refrigerant is
within the system. When the nal OFN charge is used, the system shall be vented down
to atmospheric pressure to enable work to take place. This operation is absolutely vital if
brazing operations on the pipe-work are to take place.
Ensure that the outlet for the vacuum pump is not close to any ignition sources and there
is ventilation available.
13.Charging procedures
In addition to conventional charging procedures, the following requirements shall be
followed. Ensure that contamination of dierent refrigerants does not occur when using
charging equipment. Hoses or lines shall be as short as possible to minimise the amount
of refrigerant contained in them.
Cylinders shall be kept upright.
E
nsure that the refrigeration system is earthed prior to charging the system with refrigerant.
Label the system when charging is complete (if not already).
Extreme care shall be taken not to overll the refrigeration system.
Prior to recharging the system it shall be pressure tested with OFN. The system shall be
leak tested on completion of charging but prior to commissioning. A follow up leak test
shall be carried out prior to leaving the site.
14.Decommissioning
Before carrying out this procedure, it is essential that the technician is completely familiar
with the equipment and all its detail. It is recommended good practice that all refrigerants
are recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall
be taken in case analysis is required prior to re-use of reclaimed refrigerant. It is essential
that electrical power is available before the task is commenced.
a)Become familiar with the equipment and its operation.
b)Isolate system electrically.
c)Before attempting the procedure ensure that:
Mechanical handling equipment is available,
if required, for handling refrigerant cylinders;
All personal protective equipment is available and being used correctly;
The recovery process is supervised at all times by a competent person;
Recovery equipment and cylinders conform to the appropriate standards.
d)Pump down refrigerant system, if possible.
e)If a vacuum is not possible, make a manifold so that refrigerant can be removed from
various parts of the system.
f)Make sure that cylinder is situated on the scales before recovery takes place.
g)Start the recovery machine and operate in accordance with manufacturer's instructions.
h)Do not overll cylinders. (No more than 80 % volume liquid charge).
i)Do not exceed the maximum working pressure of the cylinder, even temporarily.

Page12 
WARNINGS (for using R290/R32 refrigerant only)
j)When the cylinders have been lled correctly and the process completed, make sure
that the cylinders and the equipment are removed from site promptly and all isolation
valves on the equipment are closed o.
k)Recovered refrigerant shall not be charged into another refrigeration system unless it
has been cleaned and checked.
15.Labelling
Equipment shall be labelled stating that it has been de-commissioned and emptied of
refrigerant. The label shall be dated and signed. Ensure that there are labels on the
equipment stating the equipment contains ammable refrigerant.
16.Recovery
When removing refrigerant from a system, either for servicing or decommissioning, it is
recommended good practice that all refrigerants are removed safely.
When transferring refrigerant into cylinders, ensure that only appropriate refrigerant
recovery cylinders are employed. Ensure that the correct number of cylinders for holding
the total system charge is available. All cylinders to be used are designated for the
recovered refrigerant and labelled for that refrigerant (i.e. special cylinders for the
recovery of refrigerant). Cylinders shall be complete with pressure relief valve and
associated shut-o valves in good working order. Empty recovery cylinders are evacuated
and, if possible, cooled before recovery occurs.
The recovery equipment shall be in good working order with a set of instructions
concerning the equipment that is at hand and shall be suitable for the recovery of
ammable refrigerants.In addition, a set of calibrated weighing scales shall be available
and in good working order. Hoses shall be complete with leak-free disconnect couplings
and in good condition. Before using the recovery machine, check that it is in satisfactory
working order, has been properly maintained and that any associated electrical
components are sealed to prevent ignition in the event of a refrigerant release. Consult
manufacturer if in doubt.
The recovered refrigerant shall be returned to the refrigerant supplier in the correct
recovery cylinder, and the relevant Waste Transfer Note arranged. Do not mix refrigerants
in recovery units and especially not in cylinders. If compressors or compressor oils are to
be removed, ensure that they have been evacuated to an acceptable level to make
certain that ammable refrigerant does not remain within the lubricant. The evacuation
process shall be carried out prior to returning the compressor to the suppliers. Only
electric heating to the compressor body shall be employed to accelerate this process.
When oil is drained from a system, it shall be carried out safely.

Page 14 

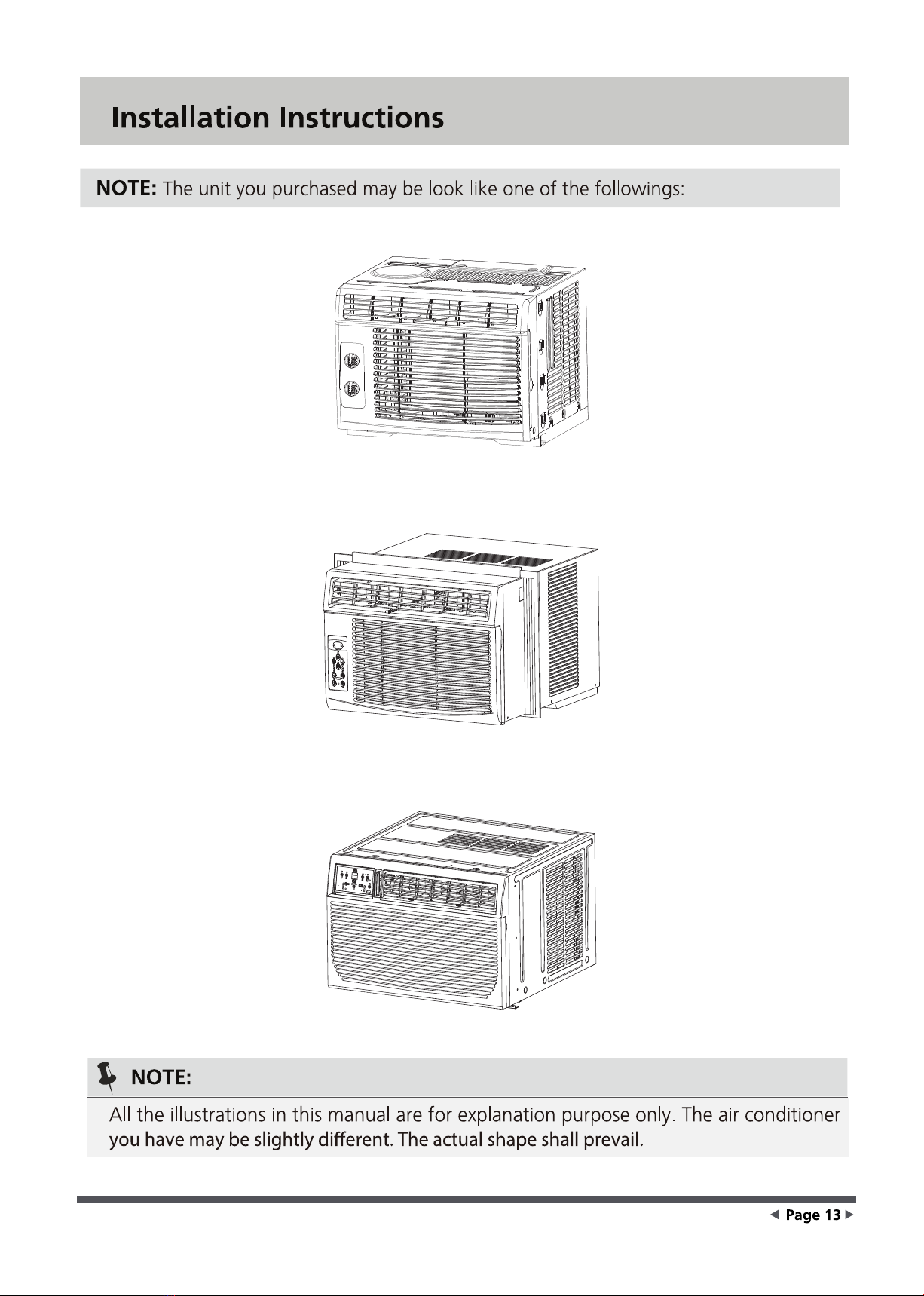

Installation Instructions
(for 5000 to 12000Btu/h)
NOTE:
Save Carton and these Installation
Instructions for future reference. The
carton is the best way to store unit during
winter, or when not in use.
CAUTION
Do not, under any circumstances, cut or
remove the third (ground) prong from
the power cord.
Do not change the plug on the power
cord of the air conditioner.
Aluminum house wiring may present
special problems- consult a qualied
electircian.When handling unit, be careful
to avoid cuts from sharp metal edges and
aluminum ns on front and rear coils.
BEFORE YOU BEGIN
Read these instructions completely and
carefully.
MPORTANT-Save these instructions for
local inspector’s use.
IMPORTANT-Observe all governing codes
and ordianaces.
Note to Installer- Be sure to leave these
instructions with the Consumer.
Note to Consumer- Keep these
instructions for futrue reference.
Skill level- Installatio of this appliance
requires basic mechanical skills.
Completion time- Approximately 1 hour.
We recommend that two people install
this product.
Proper installation is the responsibility of
the installer.
Product failure due to improper installation
is not covered under the Warranty.
You MUST use all supplied parts and use
proper installation procedures as
described in these instructions when
installing this air conditioner.
TOOLS YOU WILL NEED
TOOLS YOU MAY USE
H
WINDOW REQUIREMENTS
Your air conditioner is designed to install
in standard double hung windows with
opening widths of 23 to 36 inches
(584mm to 914mm).
Screwdriver
Level
Screwdriver
Pencil
Ruler or tape
measure
Scissors or knife
Model
H
6000~8000Btu/h
10000~12000Btu/h
14 (356mm)
15-1/2 (394mm)
Table 1
5000~6000Btu/h
13 (330mm)
H

Page 15 
3/ 4 (or 1/
Screws
(7)
2 )
Lock Frame
(2)
Sash Lock
(1)
Window sash
seal foam
(1)
Lock Frame
(2)
(For Wooden
windows)
(For Vinyl-Clad
windows)
(on some models)
Lower sash must open suciently to allow a clear
vertical opening of 13 inches (330mm). Side
louvers and the rear of the AC must have clear air
space to allow enough airow through the
condenser, for heat removal. The rear of the unit
must be outdoors, not inside a building or garage.

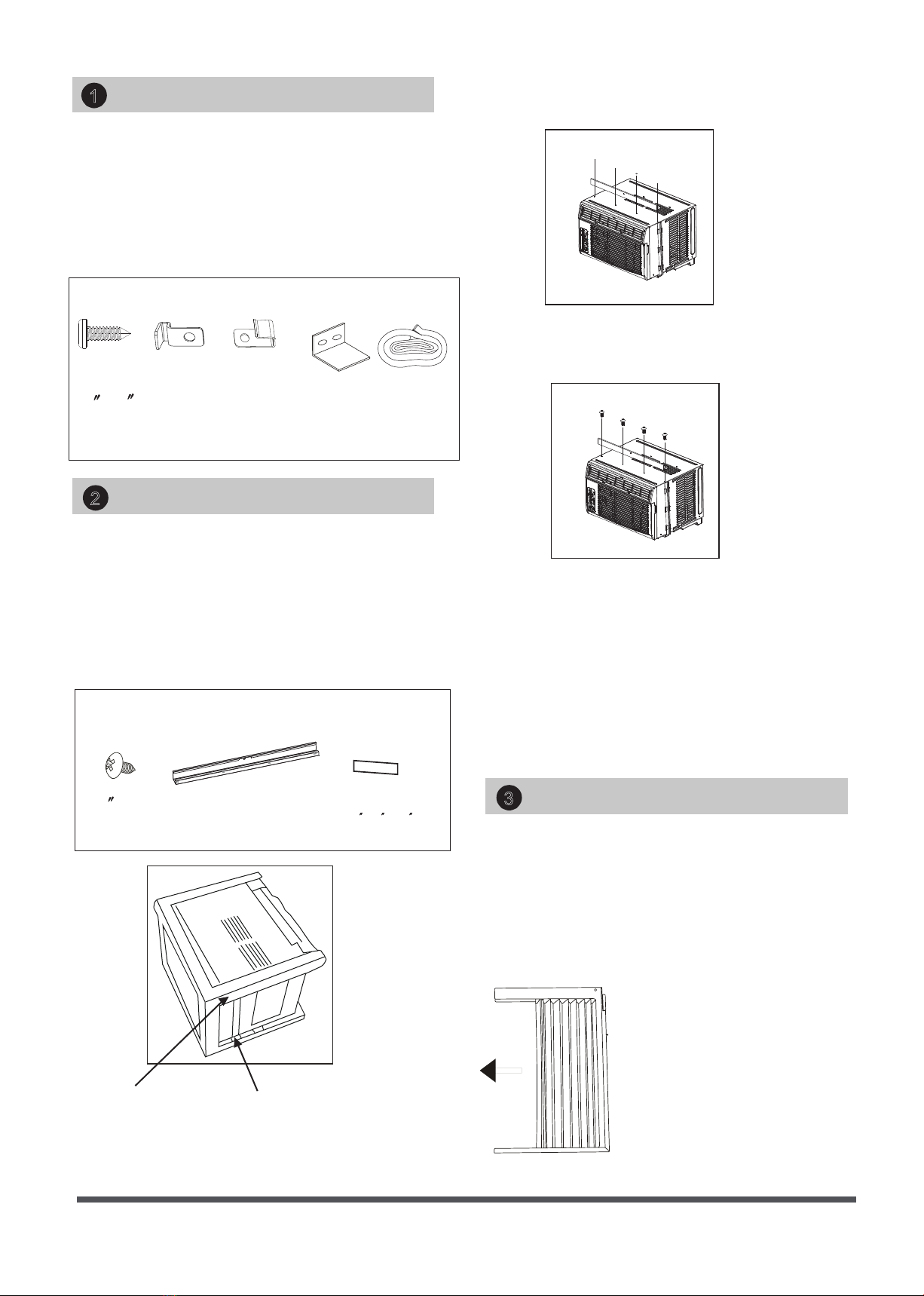

PREPARE THE WINDOW
1
Mounting Hardware
A: Remove the air conditioner from the carton
and place on a at surface.
B: Remove top rail and weather stripping from
the packaging material as shown in Fig. A
(Weather stripping are only available for
Energy star models).
Packaging Top Rail
Top Rail Hardware
3/8 Screws
4)
Top Rail
1)
(10 *3/4 *1/12 )
Weather stripping
5)
PREPARE AIR CONDITIONER
2
3INSTALL THE ACCORDION PANELS
NOTE: The top rail hardware and the Fig.A,
Fig.B and Fig.C are not applicable to the units
more than 10000Btu/h.Before installing unit,
the top rail must be assembled on the unit
(For <10000Btu/h models only).
C: Align the hole in the top rail with those in the
top of the unit as shown in Fig.B
D: Secure the top rail to the unit with the 3/8"
Screws as shown in Fig.C.
Fig.1
Fig.A
Fig.C
Fig.B
NOTE: For safety reasons, all four(4) screws
MUST be securely fastened.
NOTE: Top rail and Sliding Panels at each
side are oset to provide the proper pitch to
the rear of (5/16 "). This is necessary for proper
condensed water utilization and drainage. If
you are not using the Side Panels for any
reason, this pitch to the rear must be
maintained.
A.Place unit on oor, a bench
or a table. Hold the Accordion
Panel in one hand and gently
pull back the center to free
the open end. See Fig.1

Page 16 
"Ⅰ"section
Top Rail
Bottom Rail
Top Rail
Bottom Rail
Top left
Top right
Fig.2
Fig.3
Fig.4
NOTE: If storm window blocks AC, see Fig. 11.
B. Slide the free end " I" section of the panel
directly into the cabinet as shown in Fig. 2.
Slide the panel down. Be sure to leave enough
space to slip the top and bottom of the frame
into the rails on the cabinet.
C. Once the panel has been installed on the side
of the cabinet, make sure it sits securely inside
the frame channel by making slight adjustments.
Slide the top and bottom ends of the frame into
the top and bottom rails of the cabinet. Fig .3.
D. Slide the panel all the way in and repeat on
the other side.
Wooden Windows
INSIDE
OUTSIDE

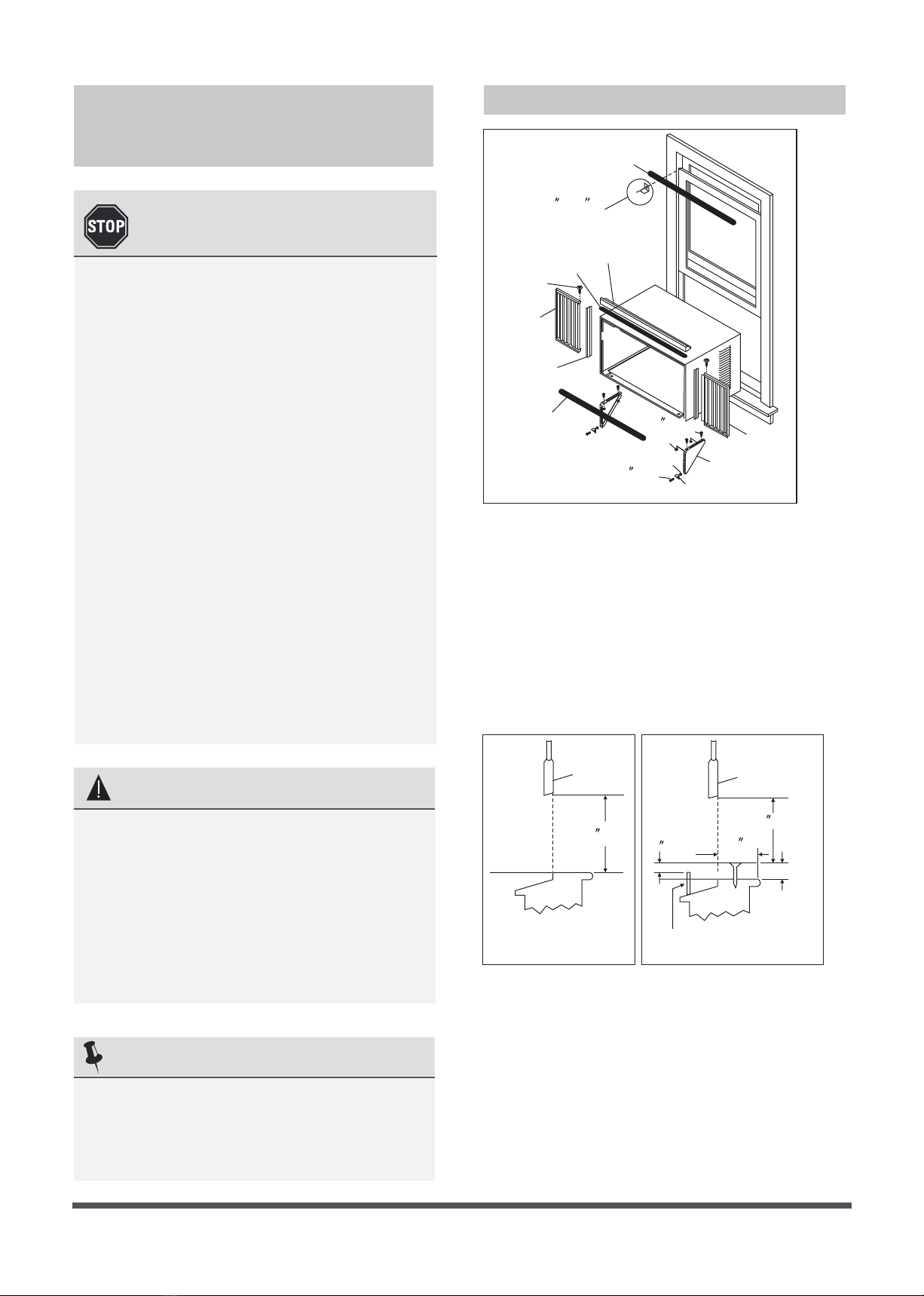

H:About 3/4 to 1 （for 5 to 8K);
Measure from the cabinet edge
3
H:About 1 to 1 / （for 10 to12K);
8
H
Vinyl-Clad Windows
INSIDE
OUTSIDE
H:About 3/4 to 1 （for 5 to 8K);
Measure from the cabinet edge
3
H:About 1 to 1 / （for 10 to12K);
8
H
INSTALL SUPPORT BRACKET
5
SECURE THE ACCORDION PANELS
NOTE: Check that air conditioner is tilted
back about H (Fig.5A and Fig.5B) (tilted
about 3°to 4°downward to the outside).
After proper installation, condensate
should not drain from the overow drain
hole during normalu se,correct the slope
otherwise.
Fig.5A
Fig.5B
Fig.6
A. Keep a rm grip on the air conditioner,
carefully place the unit into the window
opening so the bottom of the air conditioner
frame is against the window sill (Fig.5A and
Fig.5B). Carefully close the window behind the
top rail of the unit.
B. Extend the side panels out against the window
frame(Fig.6).
A. Place the frame lock between the frame
extensions and the window sill as shown(Fig.7A
for Wooden windows), (Fig.7B for Vinyl-Clad
windows) .
window
frame
4

Installation Instructions
(for 15000 to 28500Btu/h)
Page 19 
CAUTION
Do not, under any circumstances, cut or
remove the third (ground) prong from the
power cord.Do not change the plug on the
power cord of the air conditioner.
Aluminum house wiring may present
special problems- consult a qualied
electircian.When handling unit, be careful
to avoid cuts from sharp metal edges and
aluminum ns on front and rear coils.
BEFORE YOU BEGIN
Read these instructions completely and
carefully.
IMPORTANT-Save these instructions for
local inspector ’ s use.
IMPORTANT-Observe all governing codes
and ordianaces.
Note to Installer- Be sure to leave these
instructions with the Consumer.
Note to Consumer- Keep these
instructions for futrue reference.
Skill level- Installation of this appliance
requires basic mechanical skills.
Completion time- Approximately 1 hour.
We recommend that two people install
this product.
Proper installation is the responsibility of
the installer.
P roduct failure due to improper installation
is not covered under the Warranty.
You MUST use all supplied parts and use
proper installation procedures as described
in these instructions when installing this
air conditioner.
NOTE:
Save Carton and these Installation
Instructions for future reference. The
carton is the best way to store unit during
winter, or when not in use.
Do the following before starting to install unit.
See illustrations below.
Check dimensions of your unit to determine
model type:
Unit Height: 18 5/8 " 17 5/8 ''
Unit Width: 26 " 23 "
Min. Window Opening: 19 " 18 "
Min. Window Width: 31" 28"
Max. Window Width: 42" 40 "
1 .Check window opening size-- the
mounting parts furnished with this air conditioner
are made to install in a wooden sill double-hung
window. The standard parts are for window
dimensions listed above. Open sash to a
minimum of 19 inches(483mm). See Fig.D.
2.Check condition of window-- all wood parts
of window must be in good shape and able to
rmly hold the needed screws. If not, make
repairs before installing unit.
12
/
12
/12
/
12
/
58
/
SASH
.
19 MIN.
indow Frame or
bstruction Storm Window
Frame or Other
Obstruction
Board
Thickness
As Required,
Along Entire
Sill. Fasten
With Two Nails
Or Screws.
/2 MIN.
1/2 MIN.
1
19 MIN.
SASH
Window Sash Seal
Safety Lock and
3 /4 (or1/2 ) Long
Hex Head Screw
Top Angle
Foam Gasket
Washer Head
Locking screw
Frame
Assembly
(Left)
Side Retainer
Bottom rail
seal to Unit 1 /2 Long
Screw and
Locknuts
Locknut
3 /4 Long
Flat Head
Bolt Sill Angle
Bracket
Window Support
Bracket
Frame
Assembly
(Right)
Preliminary Instructions
Fig.D Fig.E

Page 20
Locking screw 10X 1/ 4 panhead
screws (for Vinyl-Clad window)(on some models)
Phillips
7/16 inch Locking screw and
Flat washer for window panels
3 / 4 （or 1/2)inch Long
Hex-head Screw
Safety Lock
1 / 2 inch Long screw and Locknut
3 / 4 inch Long Flat Head
Bolt and Locknut
Sill Angle Bracket
Long hex-head locking
screw for top angle, side
retainer 5 /16 inch Long
2 ea.
7
1
4ea.
2ea.
2
10
Foam insert 2
Window sash
seal foam 1
R1 hardware 2
(10 *3/4 *1/12 )
NOET: R1 hardware and Weather stripping is only
for Energy star models.
Weather stripping 5
Safety Lock
(for Vinyl-Clad window)(on some models)
2
2
Lock Frame(For Wooden
windows)(on some models)
2
3 / 4 inch Long Screw(on some models)
2

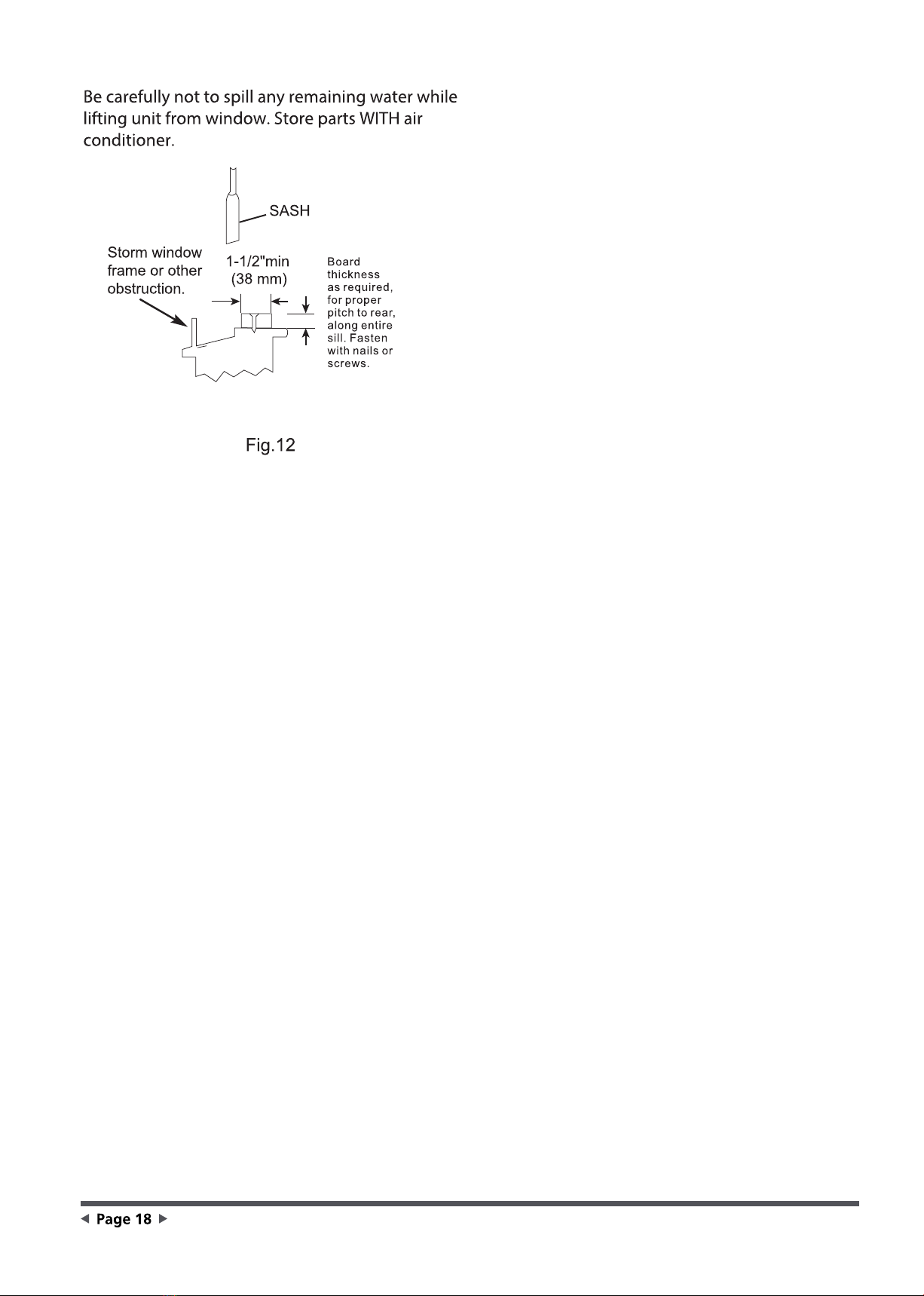

3. Check your storm windows-- if your storm
window frame does not allow the clearance
required, correct by adding a piece of wood
as shown in Fig.E,or by removing storm window
while room air conditioner is being installed.
4 .Check for anything that could block
airflow- check area outside of window for things
such as shrubs, trees, or awnings. Inside, be sure
furniture, drapes, or blinds will not stop proper
airow.
5. Check the available electrical service- Power
supply must be the same as that shown on the
unit serial nameplate. Power cord is 48 inches
long. Be sure you have an outlet near.
6. Carefully unpack air conditioner- Remove all
packing material. Protect oor or carpet from
damage. Two people should be used to move
and install unit.
Tools Required
A large at blade screwdriver; Tape measure;
Adjustable wrench or pliers; Pencil; Level Socket
wrenches; Phillips Screwdriver.
Hardware(Packed with the unit)
1
Front Grille
Front Panel
shipping
screws
Remove Air Conditioner from Cabinet
A. Window Mounting
NOTE: Remove any packaging material from
cabinet exterior.
1. Pull down front grille and remove lter.
(See Fig.1).
2. Lift front grille upwards and place to one side.
3. Locate the four front screws and remove. These
screws will be needed to re-install the front panel
(see Fig.2).
4. Push metal cabinet side to release plastic tabs
on each side of front panel (see Fig.3).
5. Gently lift front panel o unit(see Fig.3A).
6. Disconnect the connector plug of the display
panel from the unit and place front panel to
one side(see Fig.4).
7. Remove shipping screws from top of unit and
also on the side by the base if installed(see Fig.5).
8. Hold the cabinet while pulling on the base
pan handle, and carefully remove the unit.
9. Add two foam inserts to holes in top of
cabinet where shipping screws were
removed from (see Fig .6)
Fig.1 Fig.2
Fig.3
Fig.3A
Fig.4
Fig.5 Fig.6
